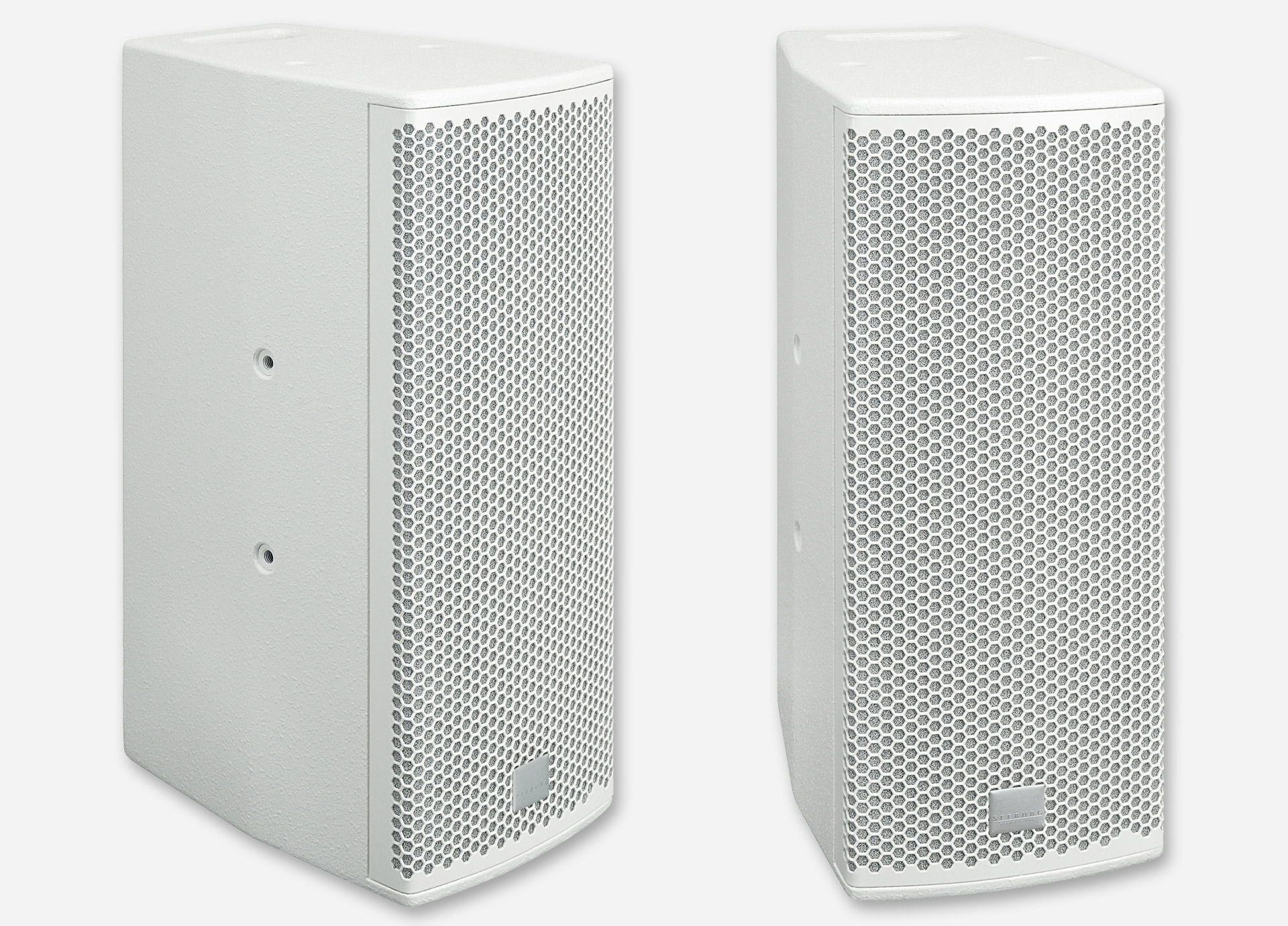

F 2 Fullrange Speaker System

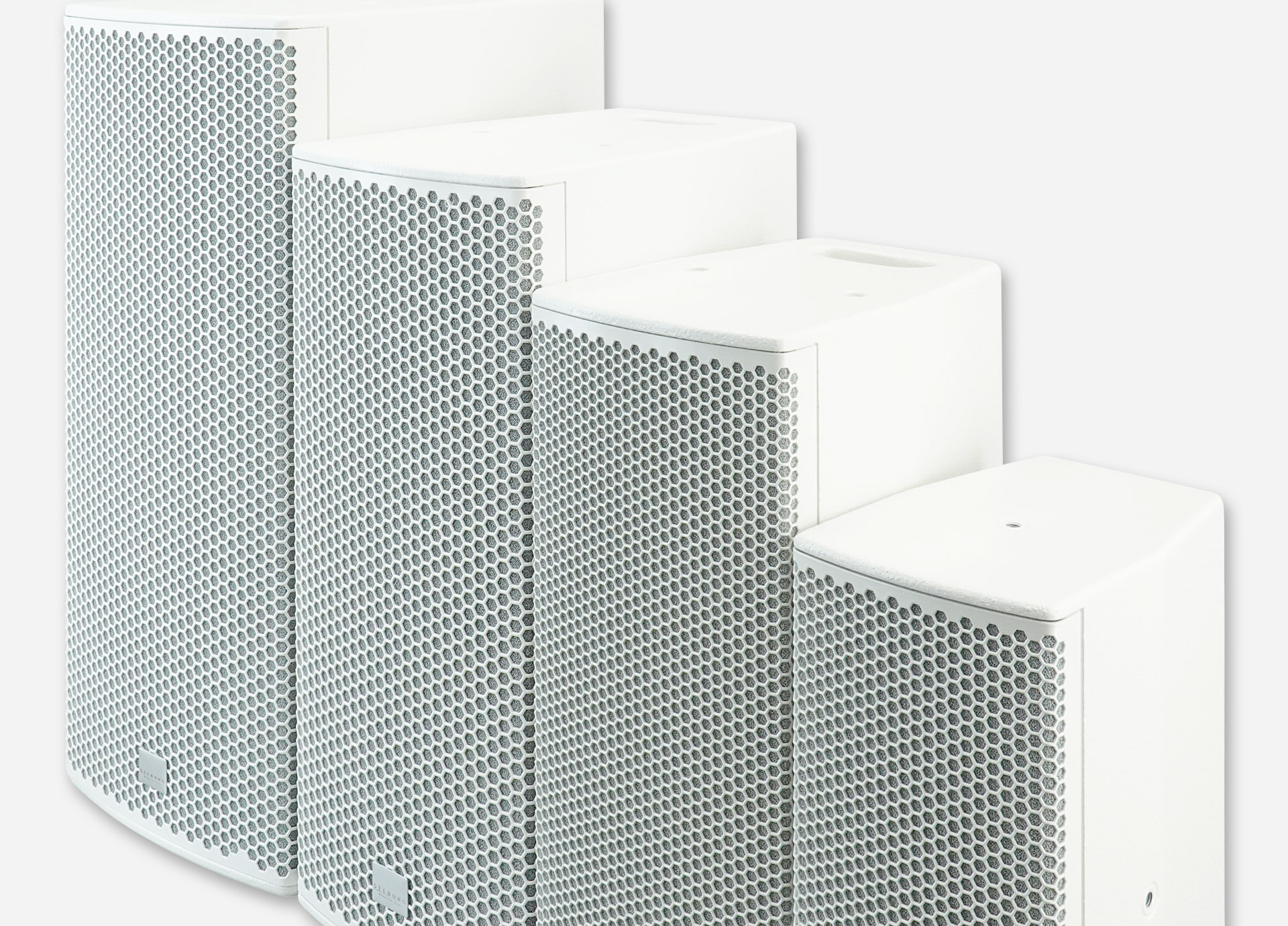

The F series speakers are suitable for all applications where highly precise and broadband sound transmission down to low frequencies is required. This makes perfect integration easy and opens up many application possibilities in the field of corporate events, trade fairs and product presentations, press conferences, in conference rooms and lecture halls, in theaters, concert halls and cinemas as well as in sports halls and fitness centers. If the speakers are supported by subwoofers, concert levels are also possible. The arrangement of the components ensures good focusing to optimize speech intelligibility. All models feature newly developed top-class components to achieve the best possible sound quality and defined dispersion characteristics.
| Speaker Components | 2 x 6,5“ Nd (2,5“ VC) / 1“ Nd (1,7“ VC) |
| Description | Fullrange Speaker System |
| Power AES / Peak | 600 W / 1800 W |
| Impedance nominal | 8 Ω |
| SPL 1 W / Peak @ 1 m |
92,5 dB / 125 dB |
| Usable Range |
65 Hz - 20 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 65 Hz |
| X - Overpoint acoustical | 1,1 kHz |
| Coverage horizontal / vertical | 90° x 60°, rotatable |
| Enclosure Wedge Angle | 20° |

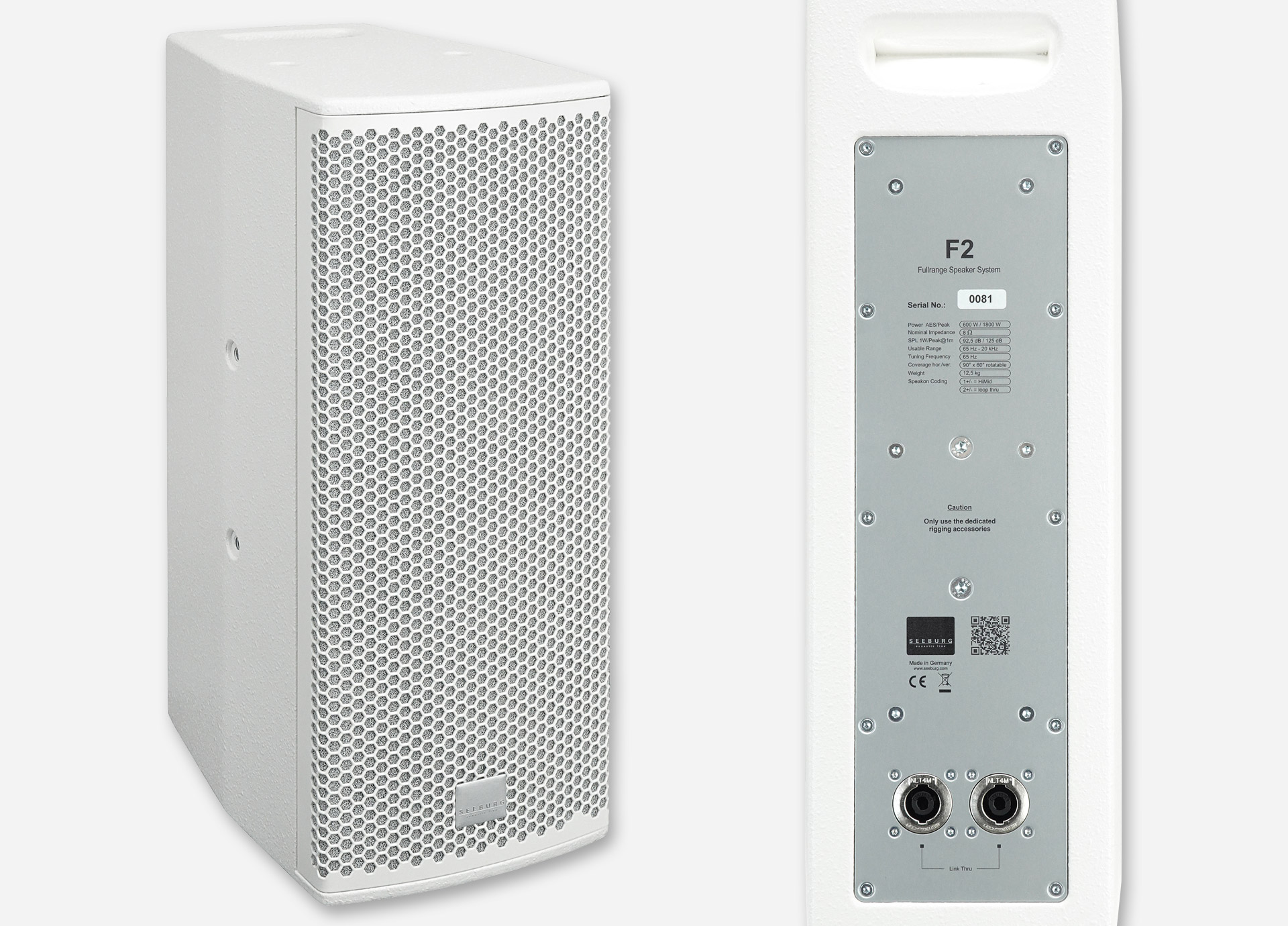

| Connectors | 2 x NLT4MP in/out (optionally NLT4FP) Coding: 1 +/- FR, 2 +/- loop thru |
| Handles | 1 x |

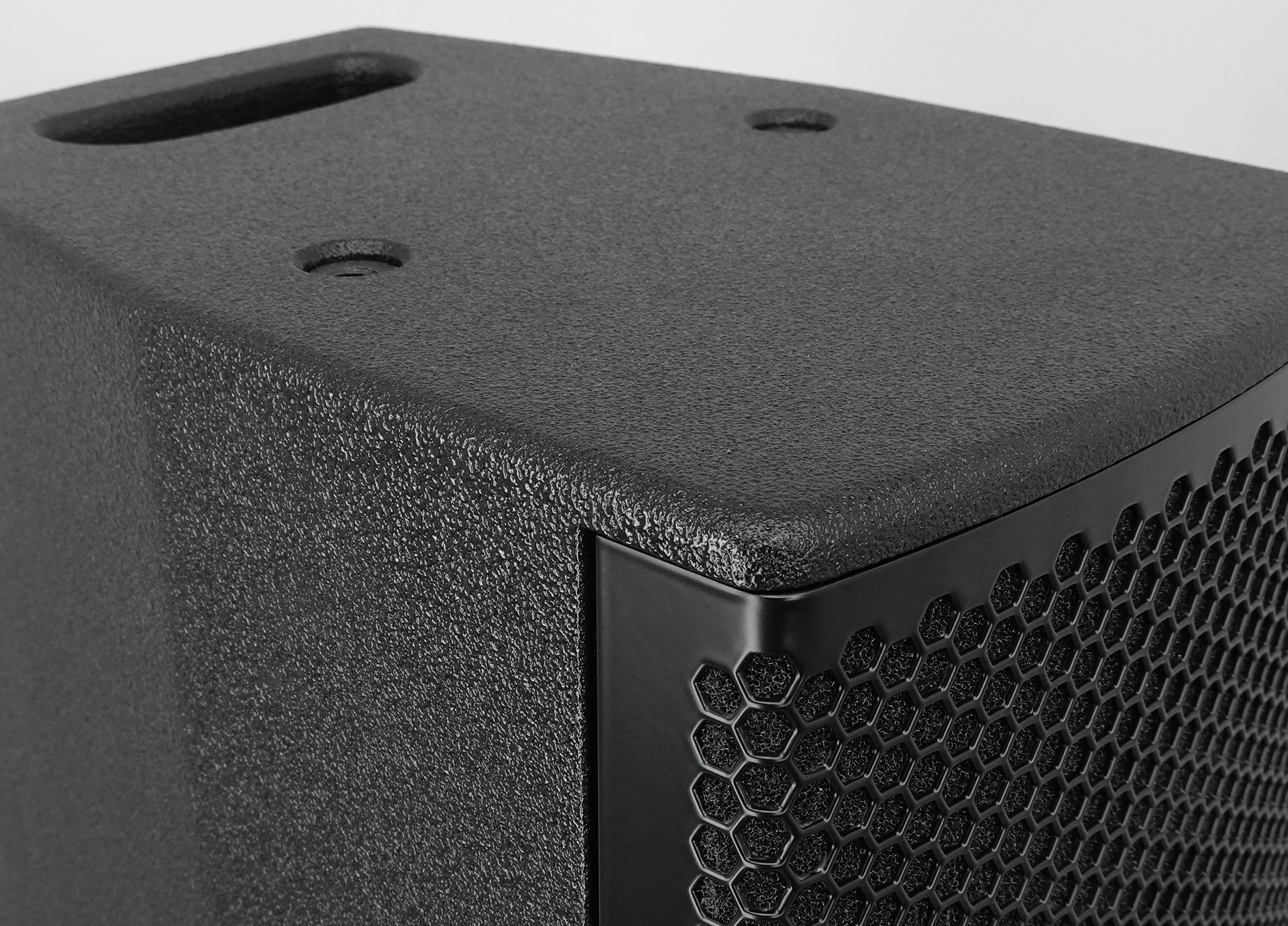

| Rigging / Fittings | 8 x M10 / 2 x M6 35 mm pole mount |
| Weight | 12,5 kg |
| Size height x width x depth | 52,0 x 21,0 x 30,0 cm |
| Order No. | 00315 |
for F 2, horizontal alignment,
(incl. 4 x socket head screws
M10 x 20 mm, 4 x washers M10,
4 x rubber washers)
for flown and ground stacked
applications, (incl. 2 x knurled screws
M10 x 20 mm, 1 x handle screw
M8 x 55 mm), max. load 50 kg
for fixed installations,
(incl. 2 x socket head screws
M10 x 20 mm),
max. load 50 kg
(incl. load adapter M10,
2 x knurled screws M10 x 20 mm),
max. load: 50 kg
Tilt adapter with adjustable tilt
from 0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
(incl. 2 x knurled screws M10 x 20 mm),
max. load 50 kg
for flying brackets,
adjustable, M10 x 20 mm
M10 x 20 mm
Order No. 73750/w (RAL 9010)
with ball and socket joint,
with additional locking screw,
M10 x 15 mm, max. load 15 kg
max. load 100 kg
Order No. 01223/100kg
incl. M10 mini TV spigot,
max. load 15 kg
M10, max. load 20 kg
Order No. 01223/20kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
M10 internal thread,
28 mm ø
6 mm x 600 mm,
quick connector undetachably,
max. load 22 kg (BGI 810-3)
2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg
Order No. 03034/w (RAL 9010)
Order No. 03034
bar: 400 mm,
(incl. socket head screw M10 x 70,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/400/w (RAL 9010)
using fixing points d= 73 mm
Order No. 08132/w (RAL 9010)
bar: 269 mm,
(incl. socket head screw M10 x 70 mm,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/269/w (RAL 9010)
for permanent installation,
(incl. tilt angle stop M10),
max. load 15 kg
Order No. 08131/F/w (RAL 9010)
Order No. 08131/F

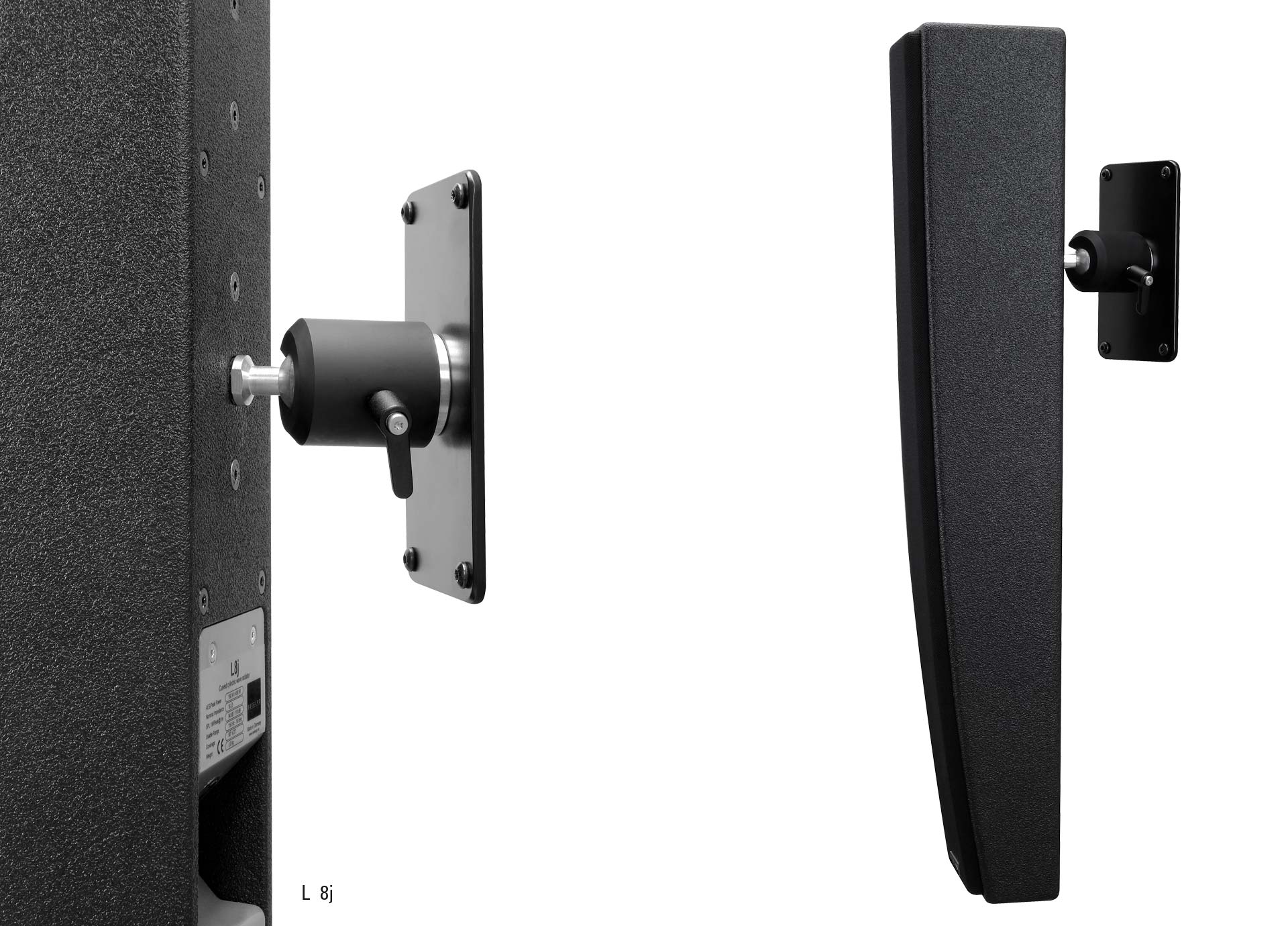

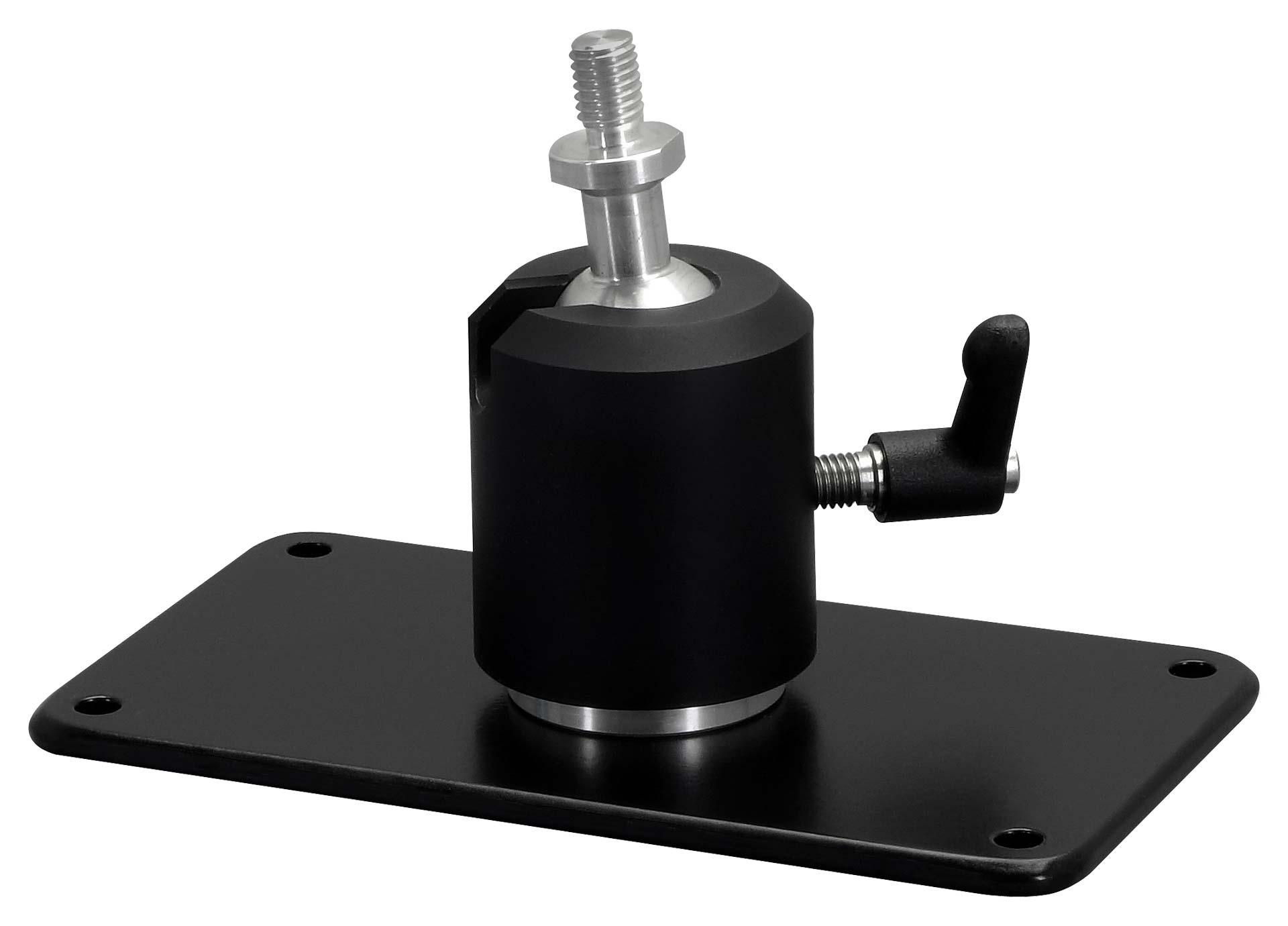

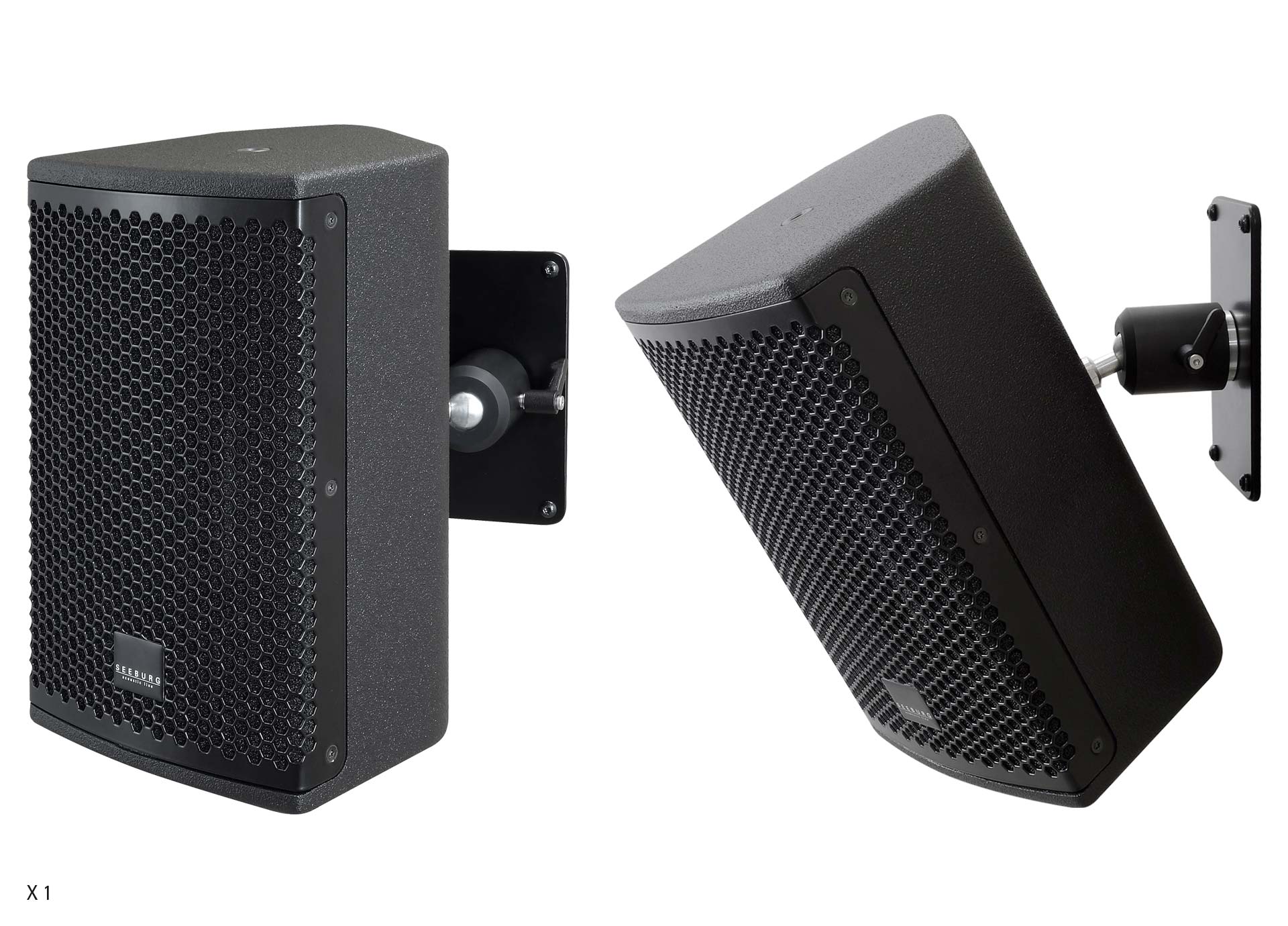

ball and socket joint flange (08125)
+ 08125/plate
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
