A 2 HiMid Sound System
A 2
00230/III |
400 W AES, 8 Ω |
00230/dp |
500 W / 150 W AES, bi-amped |
 Downloads |
|
| Data Sheet A2 |
 |
| Data Sheet A2 dp |
|
| User Manual A2 dp |
|
| Quick Start Manual dp-systems |
|
| Quick Start Guide SEEBURG Network Manager-AES67 |
|
| 3D-Files | |
| Architectural Specifications |
|
| Product Pictures |
 |
An unobtrusive and elegant Hi - Mid system for permanent installations and coporate applications. The classic 2 x 6.5” Nd / 1” combination provides for clear and transparent speech reproduction and a good throw. Four M10 mounting points, and a fifth as an optional alternative to the speaker stand socket, in combination with the comprehensive accessory range, allow simple vertical or horizontal mounting.
The A 3 is also available in the dp-version with an integrated,
DSP controlled 500 Watt / 150 Watt AES amplifier.
| A 2 | A 2 dp | |
| Speaker Components | 2 x 6,5" Nd (2" VC) / 1" (1,7" VC | 2 x 6,5" Nd (2" VC) / 1" (1,7" VC) |
| Description | HiMid Sound System | HiMid Sound System |
| Power AES / Peak | 400 W / 1200 W | - - - |
| Amp Power AES | - - - | LF: 500 W AES / 110-230 V HF: 150 W AES / 110-230 V |
| Impedance nominal | 8 Ω | - - - |
| Rated Current | - - - | 0,5 A @ 230 V |
| SPL 1 W / Peak @ 1 m |
97 dB / 128 dB | - - - |
| SPL Peak@1m | - - - | 128 dB |
| Max. Input Signal | - - - | 25 dBu |
| DSP | - - - | DPLMx FPGA Processing 32 bit floating point |
| AD / DA | - - - | 24 bit / 96 kHz |
| Latency | - - - | 0,8 ms (analog in to analog out) |
| Usable Range |
80 Hz - 19 kHz (-6 dB) | 80 Hz - 19 kHz |
| Tuning Frequency excursion minimum | 95 Hz | 95 Hz |
| X - Overpoint acoustical | 1,5 kHz | Depends on preset |
| Coverage horizontal / vertical | 90° x 60° - rotatable | 90° x 60° - rotatable |
| Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru |
XLR in/thru, Ethercon Powercon in/out |
| Handles | 1 x | 1 x |
| Rigging / Fittings | 4 x M10, 2 x M6 35 mm pole mount |
4 x M10, 2 x M6 35 mm pole mount |
| Weight | 9,5 kg | 10,5 kg |
| Size height x width x depth | 51,0 x 21,0 x 21,0 cm | 51,0 x 21,0 x 21,0 cm |
| Order No. | 00230/III | 00230/dp |
for A 2, padded
Order No. 01243
for A 2,
with zipper
for A 2,
incl. (black version: 2 x M10 x 20 knurled screws, 2 x rubber washers
white version: 2 x M10 x 20 socket head screws, 2 x rubber washers)
Order No. 01214/set/w (RAL 9010)
for A 2,
horizontal alignment,
incl. (2 x M10 x 20 socket head screws,
2 x rubber washers, 1 x plate)
Order No. 01214/H/set/w (RAL 9010)
swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg
version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg
for MultiRigg™ /MultiRigg™ light
for mounting on M10,
incl. 1 x M10 x 25 mm screw,
max. load 20 kg
M10 x 20 mm
Order No. 73750/w (RAL 9010)
for A 2 / A 3 flying brackets,
horizontal alignment,
replacement for pole mount flange,
110 mm ø flange with M10 nut
Order No. 08119/M10/w (RAL 9010)
for flying brackets,
5 mm x 40 mm ø
with ball and socket joint,
with additional locking screw,
M10 x 15,
max. load 15 kg

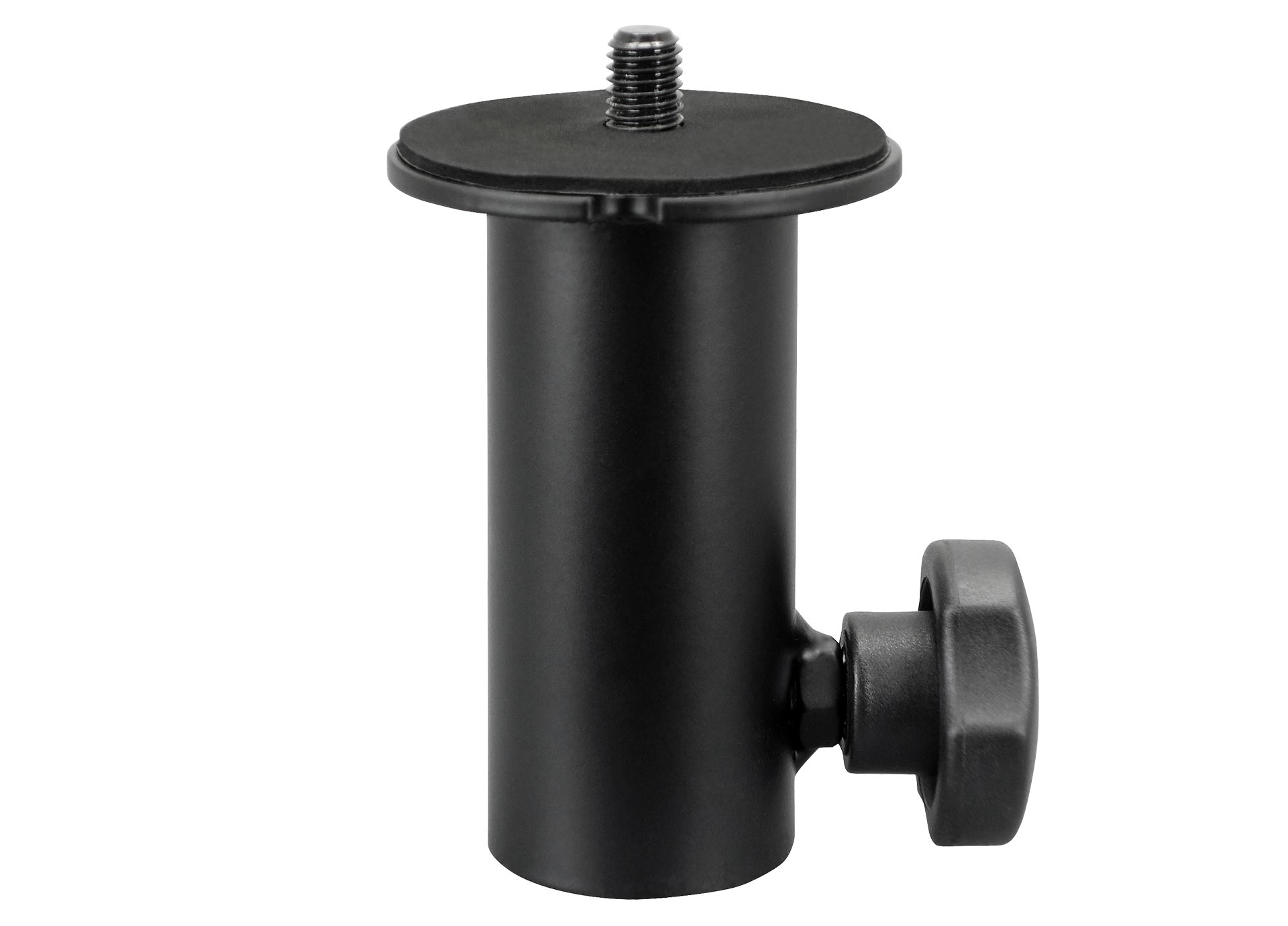

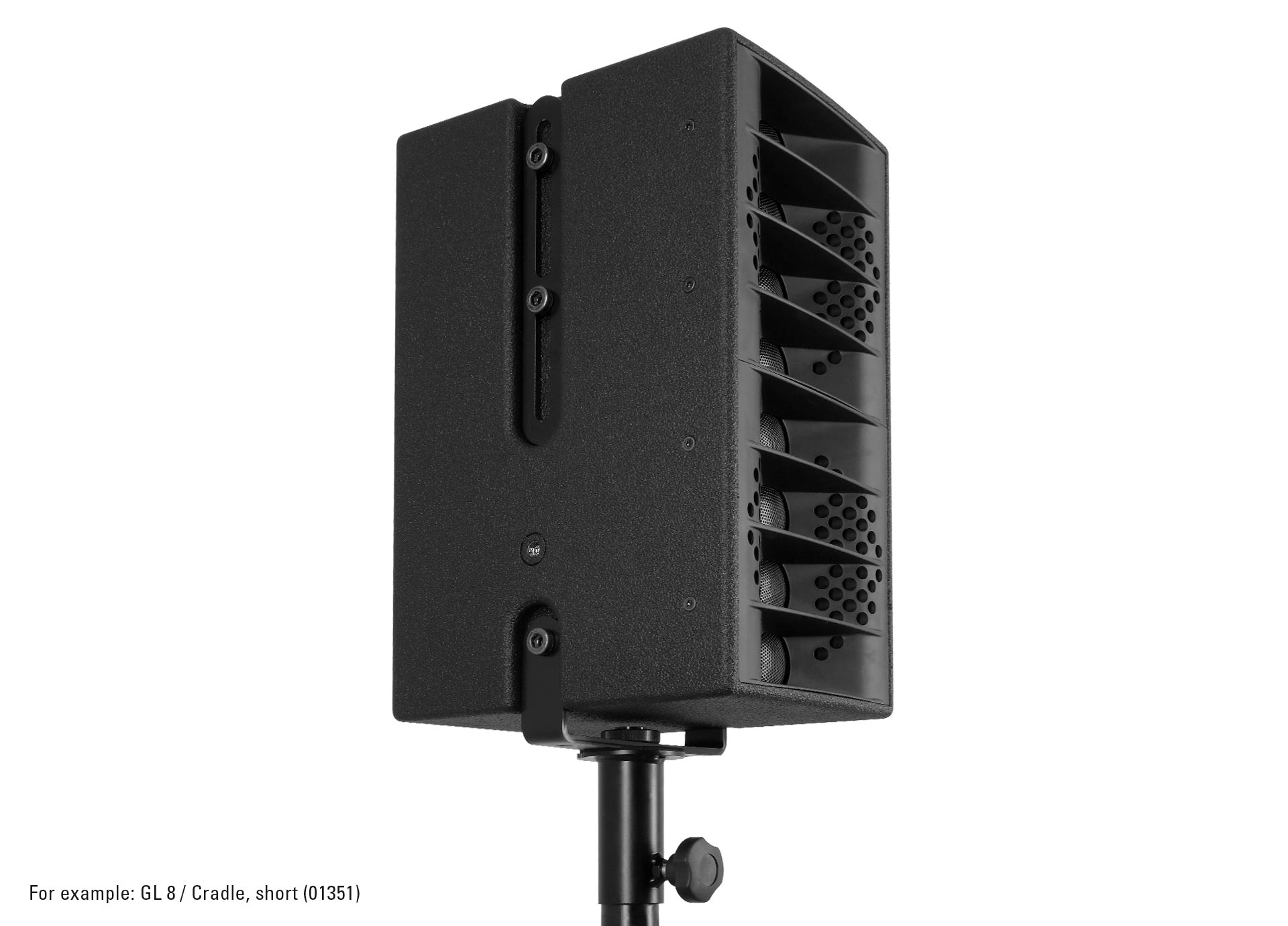

reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
max. load 100 kg
Order No. 01223/100kg
incl. M10 Adapter,
max. load 15 kg
M10, max. load 20 kg
Order No. 01223/20kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
10 mm internal thread,
28 mm ø
4 mm x 600 mm,
max. load 10 kg (BGI 810-3),
quick connector undetachably
2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg
Order No. 03034/w (RAL 9010)
Order No. 03034

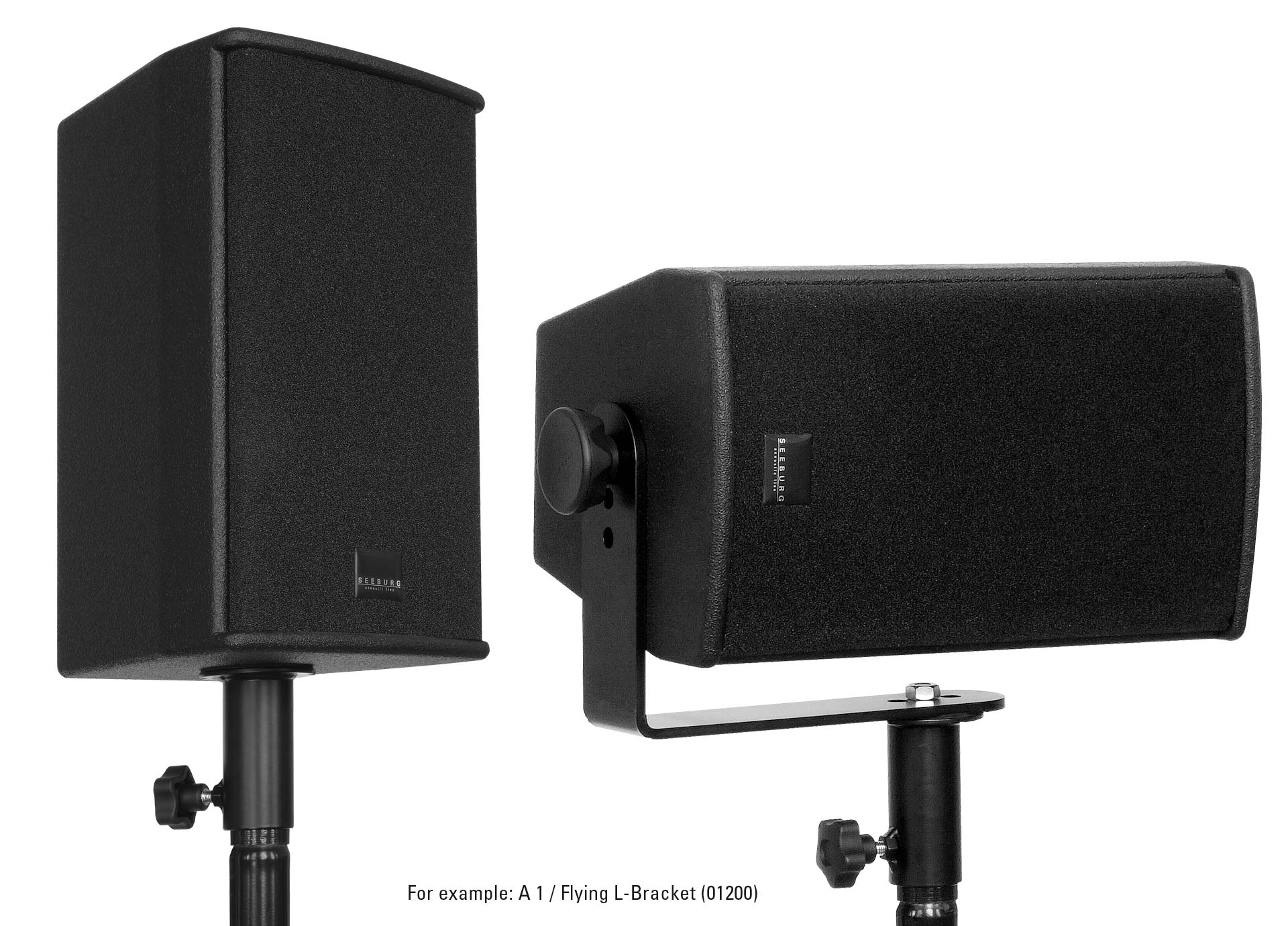

for L 8 / L 16 / A 2 / A 3
