X 4 Coaxial

X 4

01093

350 W AES,
8 Ω

01093/dp

800 W / 400 W AES
Downloads
Datasheet X 4
Datasheet X 4 dp
X-Serie Flyer
3D-Files
Simulation Data
Product Pictures

Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.
Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.

The X 4 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 800/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Specifications
  X 4 X 4 dp
Speaker Components 10“ Nd (3“ VC) / 1“ Nd (1,7“ VC) 10“ Nd (3“ VC) / 1“ Nd (1,7“ VC)
Description Multifunctional Coaxial Sound System - digitally powered
Power AES / Peak 350 W / 1000 W - - -
Amp Power AES - - - LF: 800 W / HF: 400 W / 110-230 V
Impedance nominal 8 Ω - - -
Rated Current - - - 0,5 A
SPL 1 W / Peak @ 1 m
97 dB / 127 dB - - -
SPL Peak@1m - - - 127 dB
Max. Input Signal - - - 25 dBu
DSP - - - HDLM FPGA Processing 32 bit floating point
AD / DA - - - 24 bit / 96 kHz
Latency - - - 0,8 ms (analog in to analog out)
Usable Range
60 Hz - 19 kHz (-6 dB) 60 Hz - 19 kHz (-6 dB)
Tuning Frequency excursion minimum 70 Hz 70 Hz
X - Overpoint acoustical 1,2 kHz Depends on preset
Coverage horizontal / vertical 80° x 60° - rotatable 80° x 60° - rotatable
Max. Splay Angle - - - - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Neutrik XLR in/ Ethercon/
Neutrik PowerCon in
Handles 2 x 2 x
Rigging / Fittings 9 x M10
To be used with MultiRigg™
35 mm pole mount
9 x M10
To be used with MultiRigg™
35 mm pole mount
Weight 12,5 kg 13,5 kg
Size height x width x depth 45,0 x 31,0 x 29,0 cm 45,0 x 31,0 x 29,0 cm
Order No. 01093 01093/dp
Accessories
x

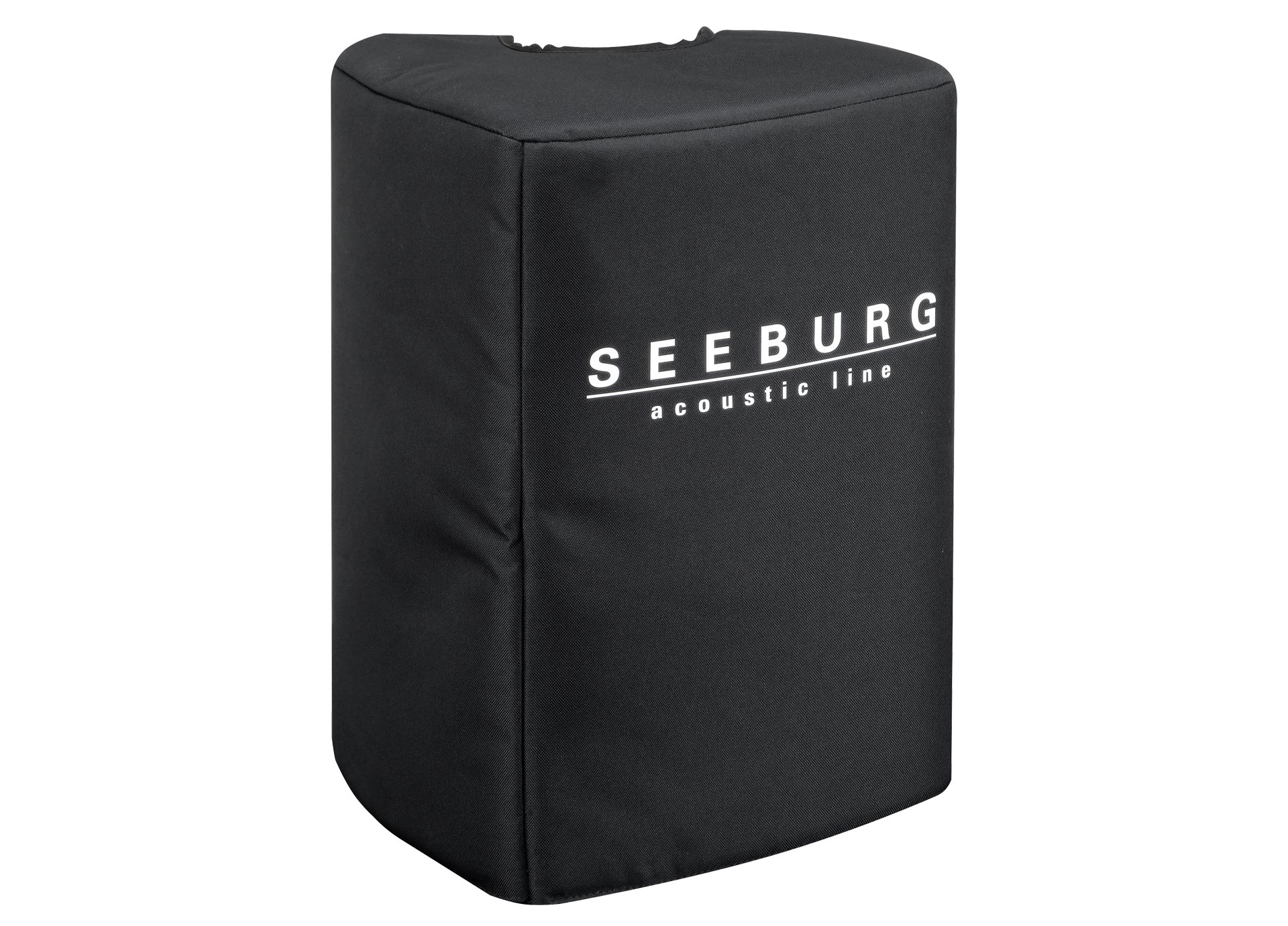

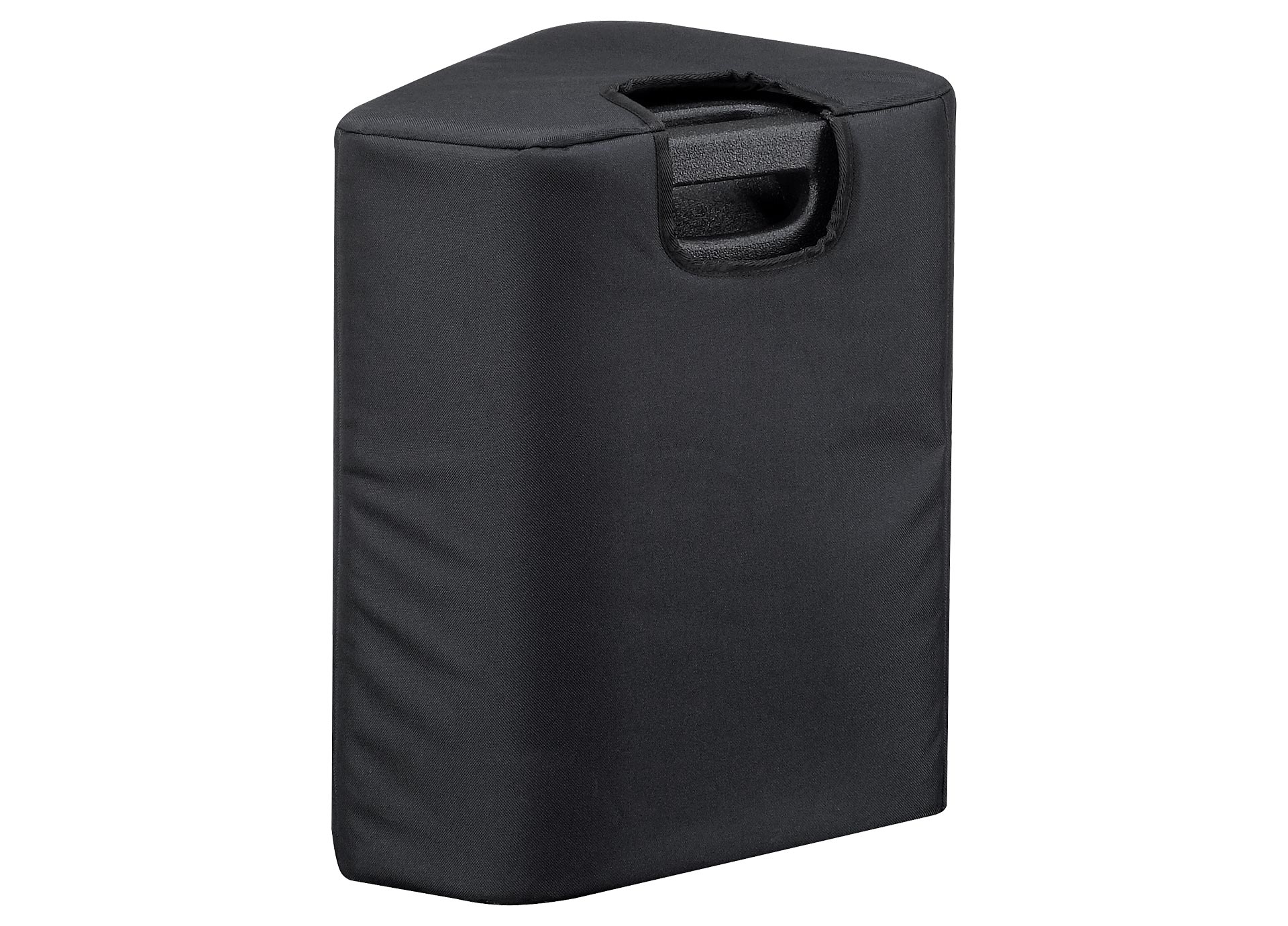

Cover

for X 4,
padded

Order No. 01225/X4
x

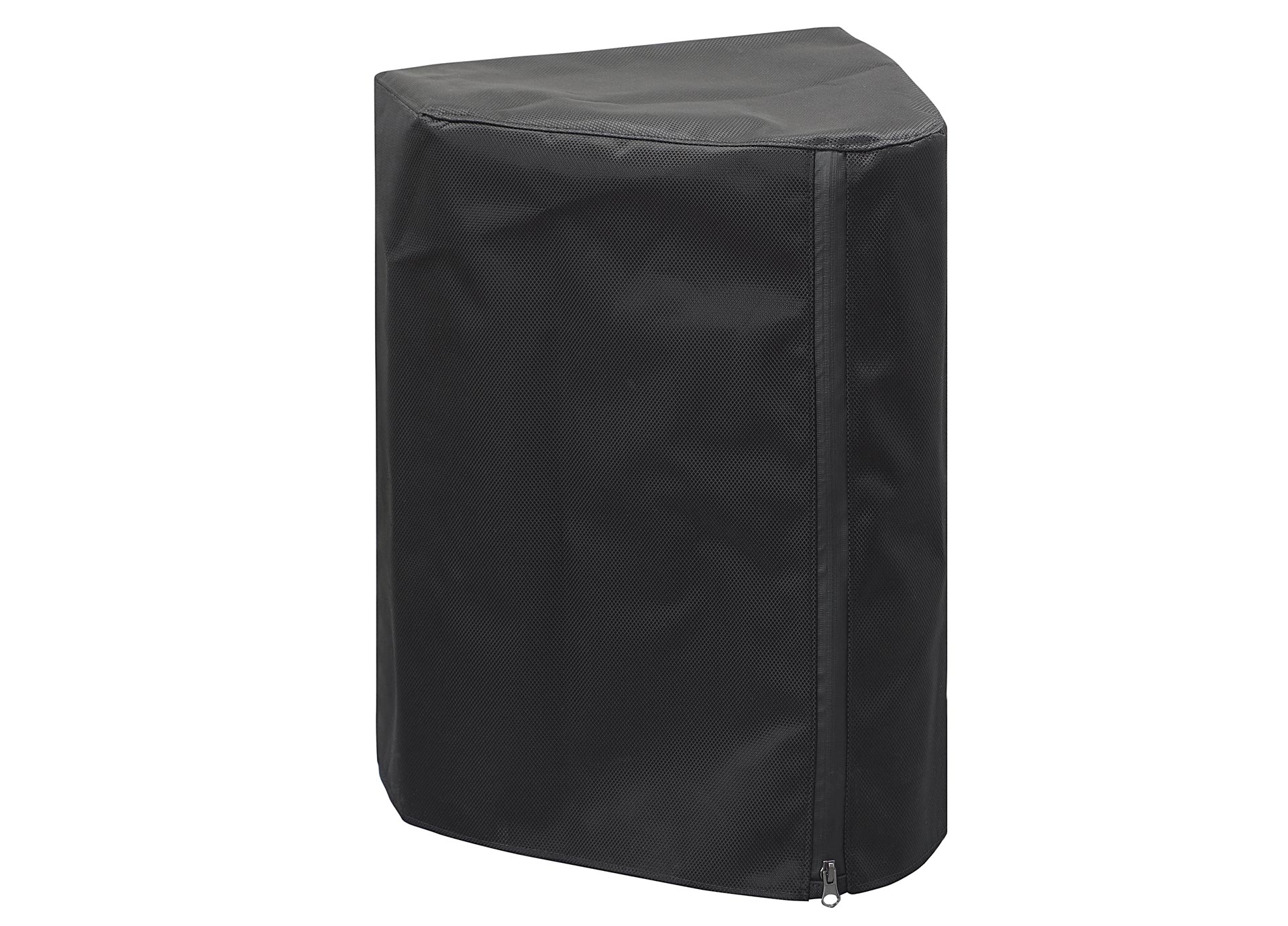

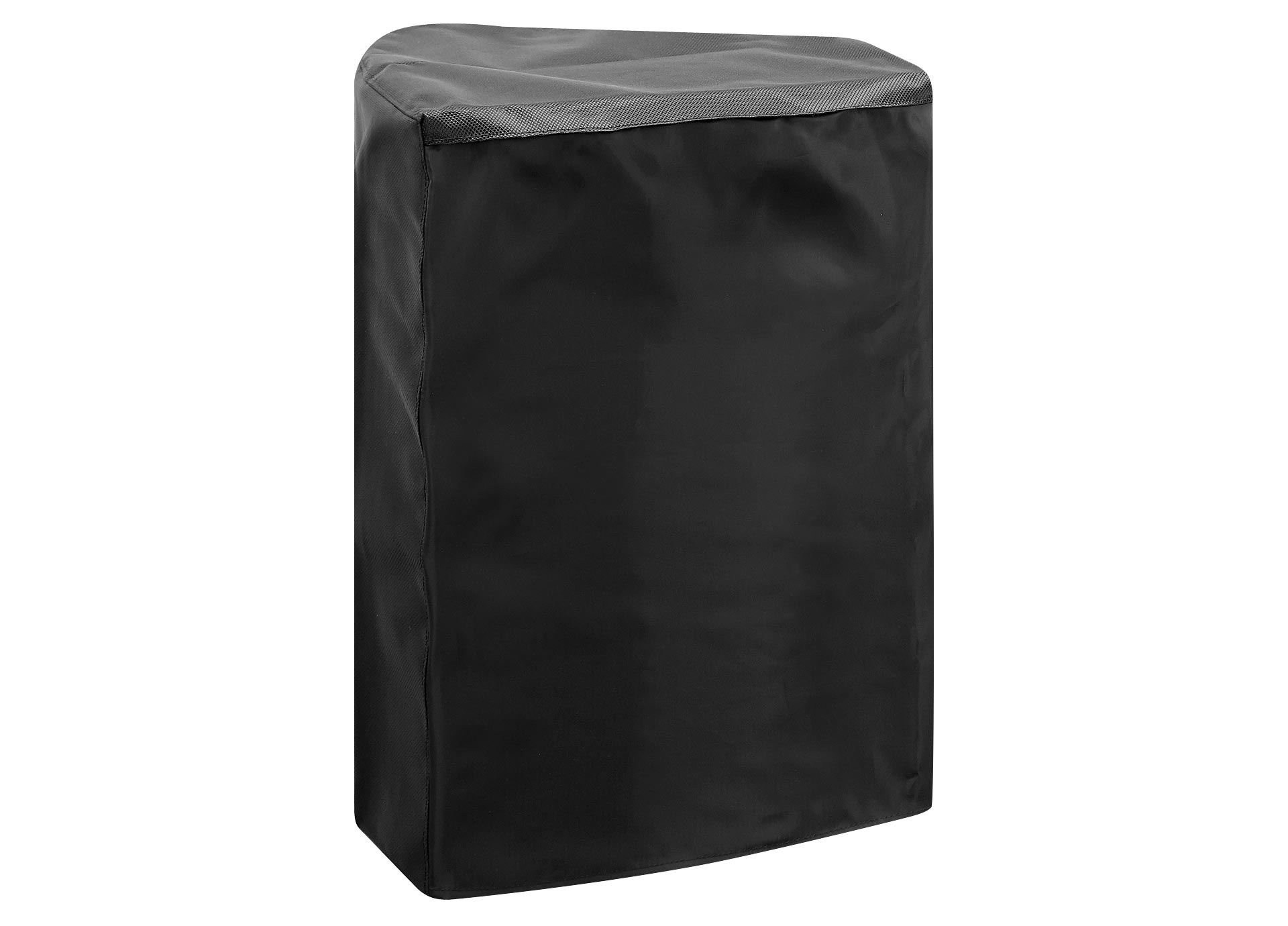

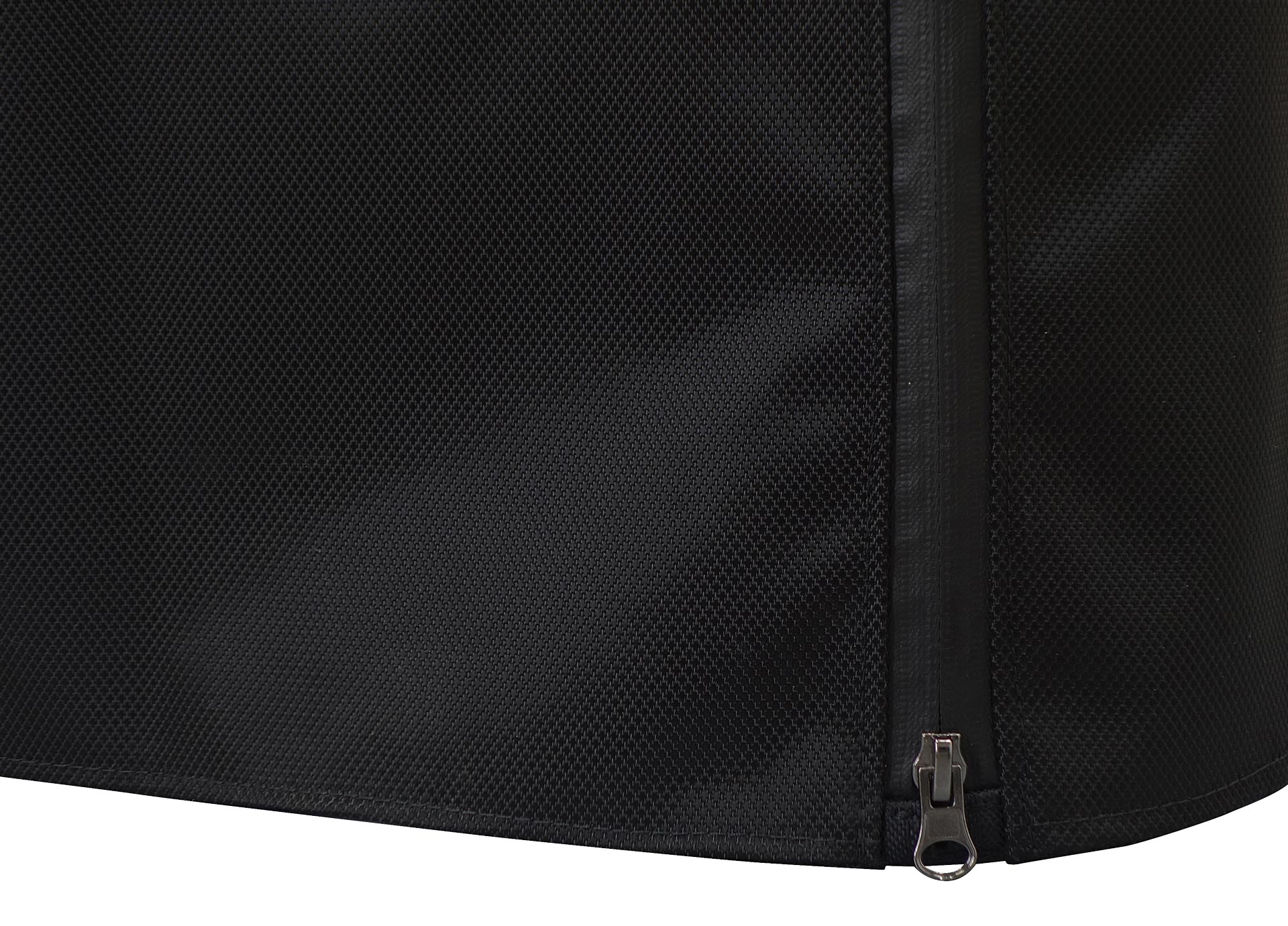

Rain Cover

for X 4,
with zipper

Order No. 01225/X4/outdoor
x

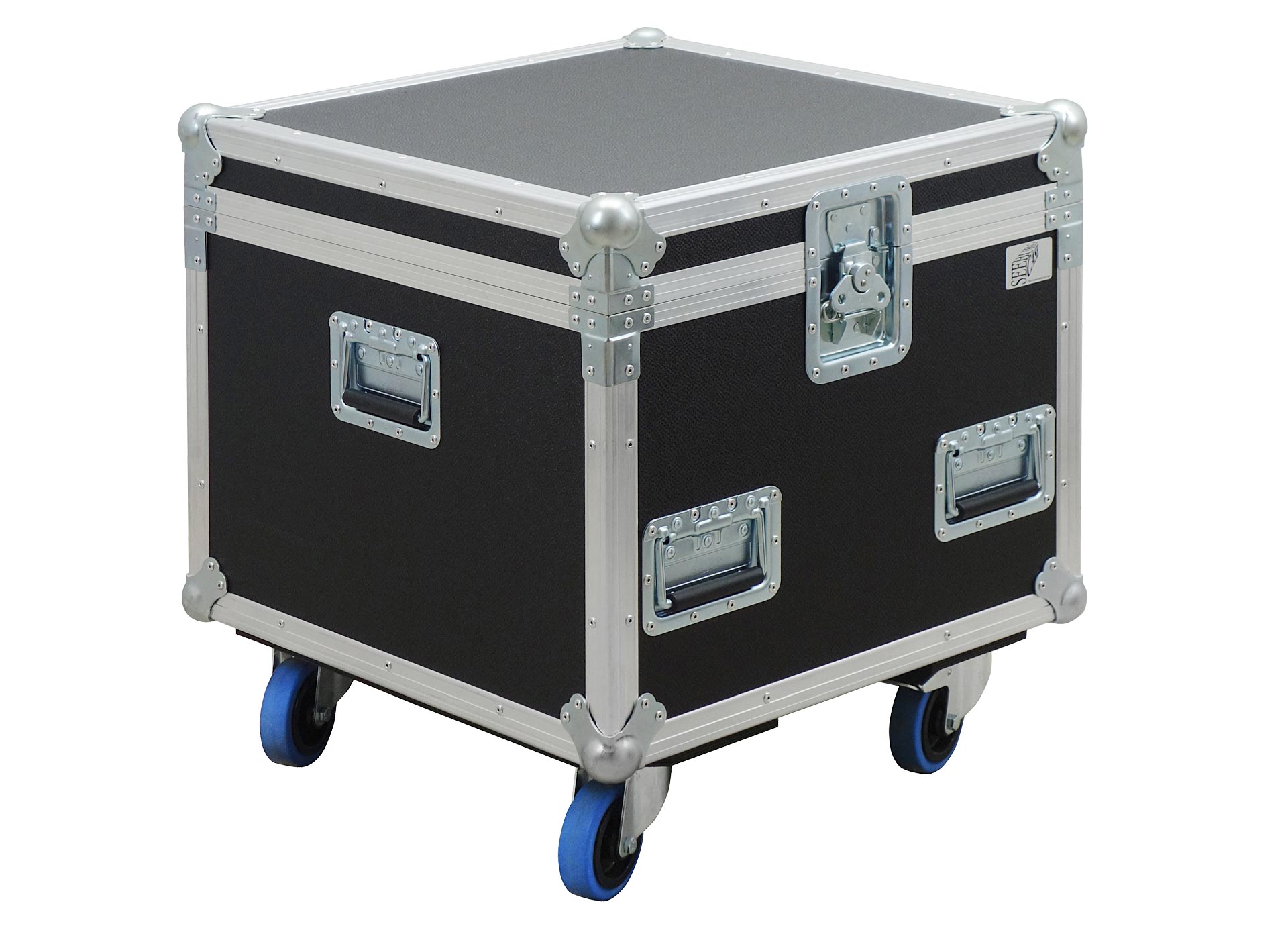

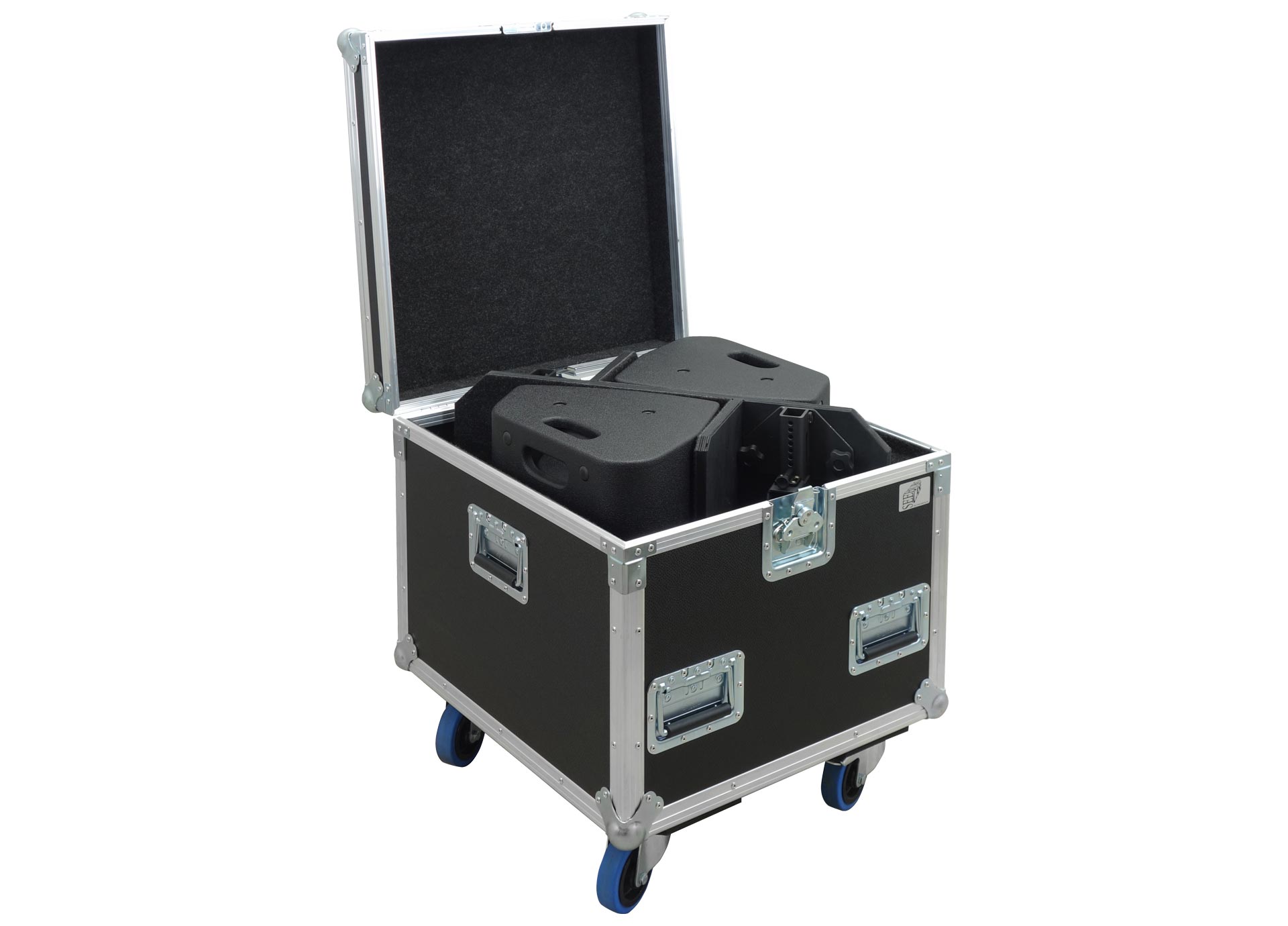

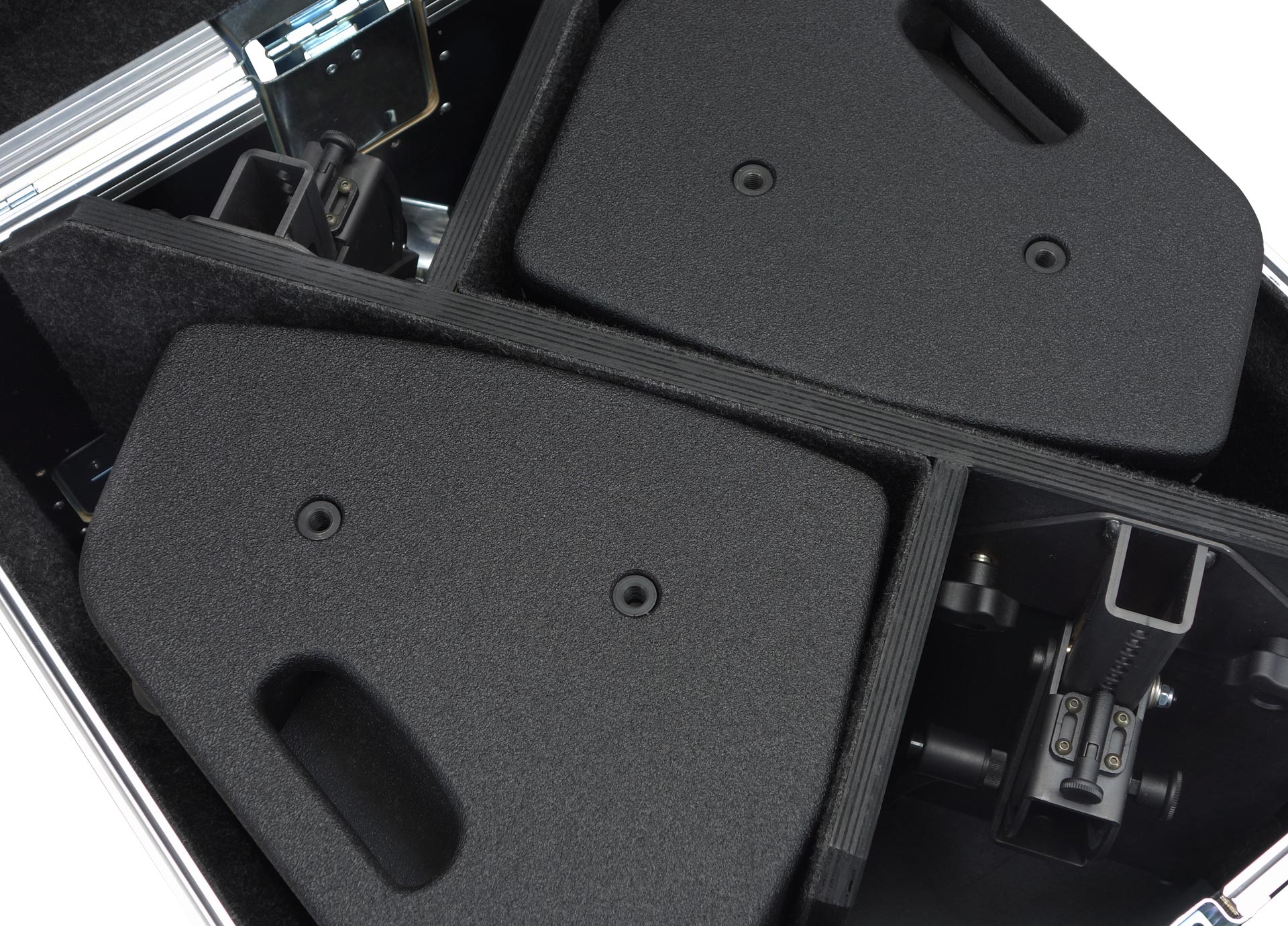

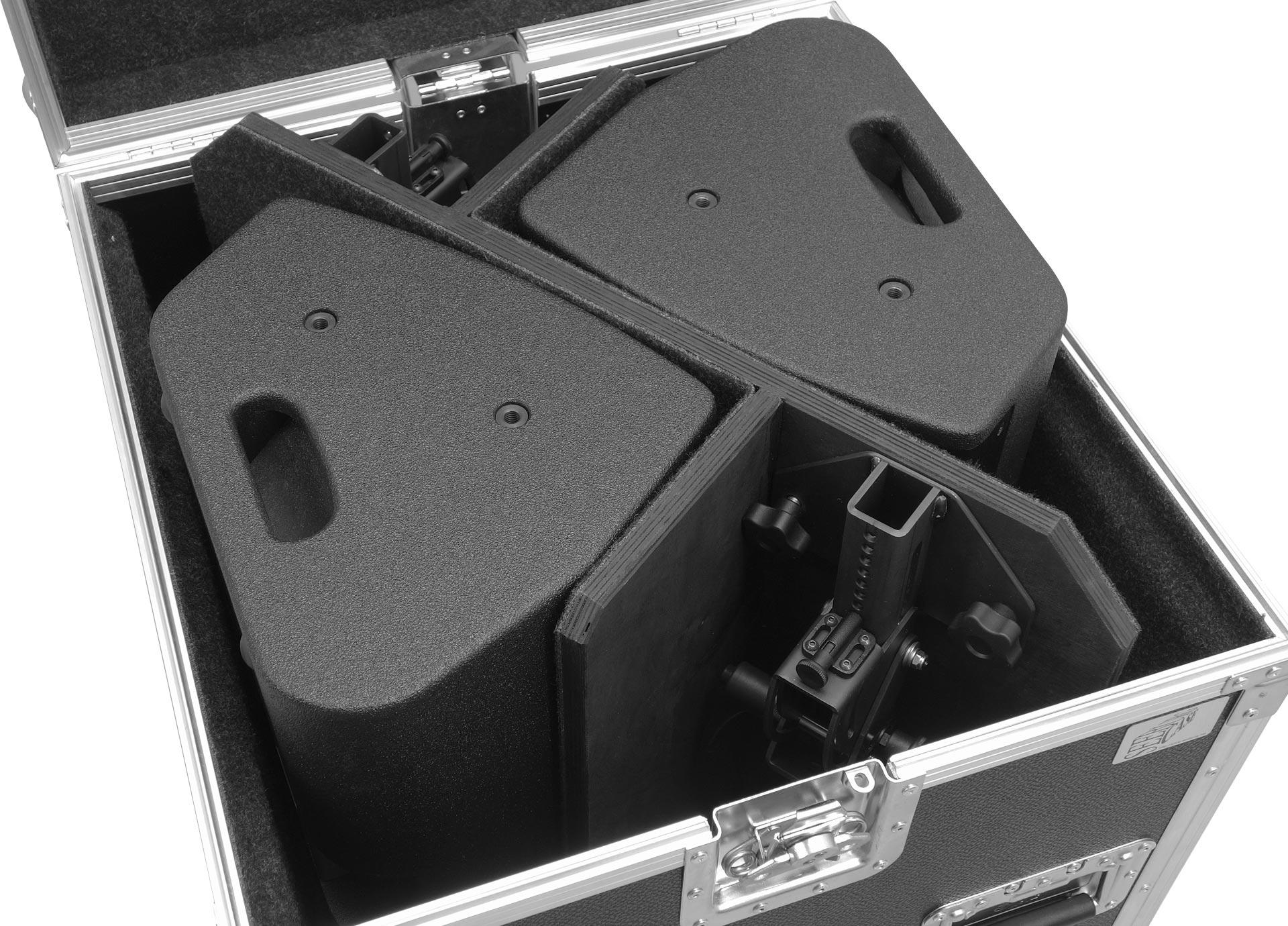

Flight Case

for 2 pcs. X 4 and 2 pcs. MultiRigg, partition walls, heavy duty, 9 mm birch multiplex, PVC coated black, 6 x recessed sprung handles, 1 x butterfly catch, 4 x 100 mm blue wheels (2 pcs. with brake), interior lined with felt
Size (H x W x D): 63 x 61,5 x 59 cm



Order No. 16560
MultiRigg™

swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20 mm,
1 x handle screw M8 x 55 mm),
max. load 50 kg

Order No. 01360
x
Knurled Head Screw

reduction screw for fastening
M10 Flange (08126)

Order No. 73755
x
Knurled Screw

M10 x 20 mm

Order No. 73750
Flange

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126
x
Doughty Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
x
Steel Safety

4 mm x 600 mm, black,
max. load 10 kg (BGI 810-3),
quick connector undetachably

Order No. 01376/4
Wall Mount

for U-brackets,
max. load 40 kg, bar: 269 mm,
incl. screws
(M10 x 70 mm socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/269
Wall Mount

with tilt unit,
max. load 40 kg

Order No. 08130
Wall Mount

for permanent installation,
incl. tilt angle stop
M10, max. load 15 kg,



Order No. 08131/F/w (white)

Order No. 08131/F
x
Hybrid Cable System

PowerCon-PowerCon / XLR-XLR

Order No. 08462    2,5 m
Order No. 08464    5,0 m
Order No. 08466    10 m
Order No. 08468    15 m
