GL 16 Cylindric Wave Radiator
GL 16
00500/2x500W |
i-Version, selfpowered Version, 2 x 500 W AES |
00501/2x500W |
c-Version as above |
00500/a |
i-Version, 2-way-active 400 W / 150 W AES, 8 Ω / 8 Ω |
00501/a |
c-Version, as above |
00500/xov |
i-Version, X-Over 400 W AES, 8Ω |
00501/xov |
c-Version as above |
The GL 16 is a high-performance line array system for high definition voice and music transmission in acoustically challenging venues, particularly in long throw situations.
Acoustic coupling between two line arrays arranged one behind the other within the cabinet is exploited in the innovative design of the GL series to provide vertical directivity up to 15 kHz without any loss of power in the lower frequencies, and exceptionally homogenous and symmetrical horizontal dispersion. The design principle also allows the cabinet width to be kept down to a slim 19 cm.
The acoustic and mechanical properties of the GL 16 system make it particularly suitable as an alternative to conventional column speakers and compact line arrays. From single element installations in churches, auditoriums and conference facilities to multiple element applications in array configurations in theatres and concert halls, the GL 16 is suitable for a multitude of applications.
For operation without separate amplifiers and controllers, active dp (digitally powered) versions of the GL 16 are available.

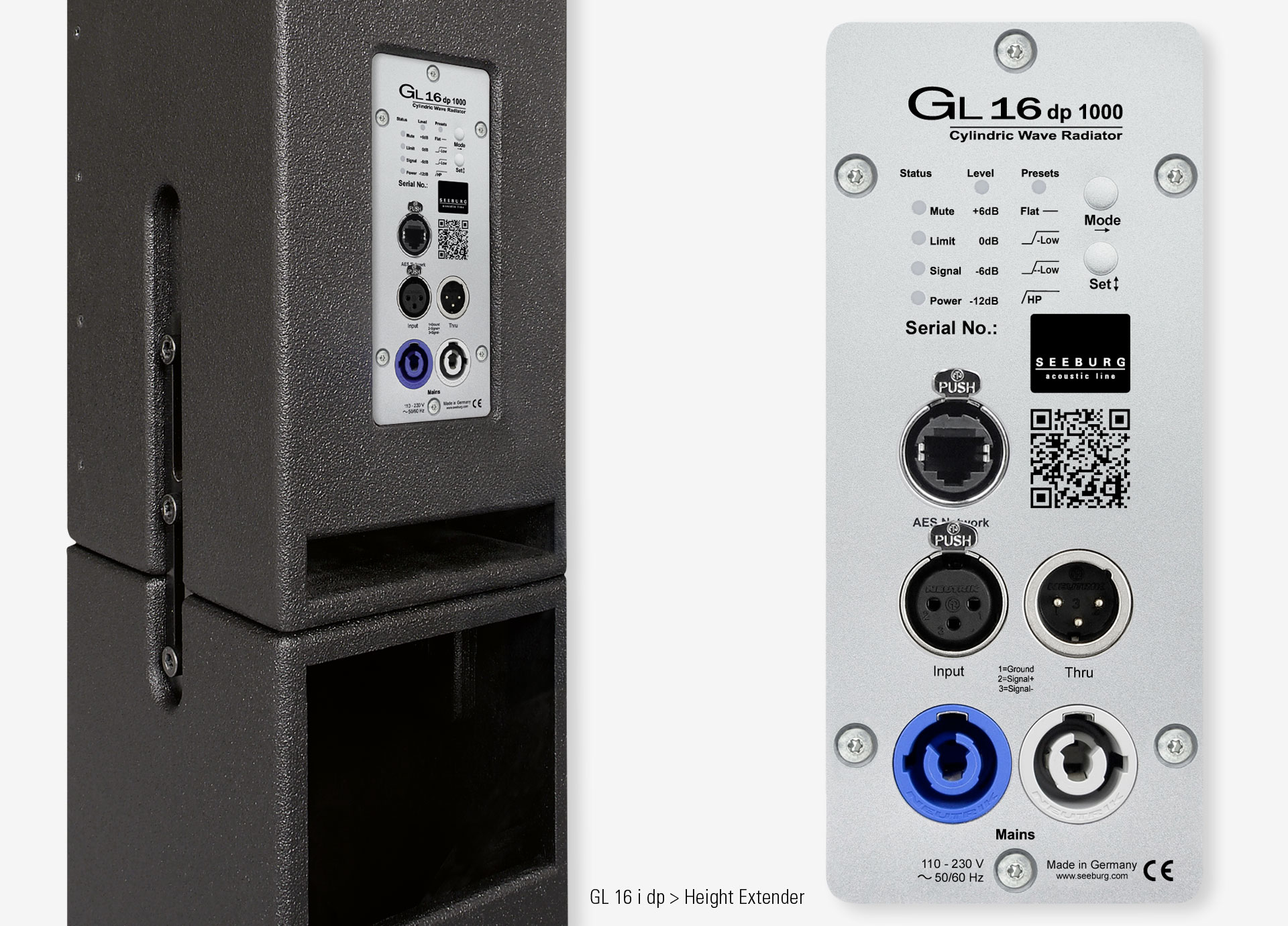

| GL 16 dp 1000 | ||
| Speaker Components | 4 x 6,5“ Nd / 16 x 1“ Nd Tweeter | |
| Description | Digitally Powered Cylindric Wave Radiator | |
| Amp Power | 2 x 500 W AES / 110-230 V biamped | |
| Rated Current | 0,85 A @ 230 V | |
| SPL Peak @ 1 m |
> 130 dB | |
| Max. Input Signal | 25 dBu | |
| DSP | DPLMx FPGA Processing 32 bit floating point | |
| AD / DA | 24 bit / 96 kHz | |
| Latency | 0,8 ms (analog in to analog out) | |
| Usable Range |
80 Hz - 20 kHz (- 6 dB) | |
| Tuning Frequency excursion minimum |
90 Hz | |
| X-Overpoint acoustical |
Depends on preset | |
| Coverage horizontal / vertical |
100° x 7° (i-version) 100° x 23° (c-version) |
|
| Mechanical Splay Angle | 0° (i-version) 16° (c-version) |
|
| Connectors |
XLR in/thru, |
|
| Rigging / Fittings |
11 x M10 Integrated flying hardware |
|
| Weight | 17 kg | |
| Size height x width x depth | 70,8 x 18,9 x 24,5 cm (i-version) 72,0 x 18,9 x 26,2 (24,5) cm (c-version) |
|
| Order No. | 00500/2x500W (i-version) 00501/2x500W (c-version) |
|
| GL 16 a | GL 16 xov | |
| Speaker Components | 4 x 6,5“ Nd / 16 x 1“ Nd Tweeter | 4 x 6,5“ Nd / 16 x 1“ Nd Tweeter |
| Description | Cylindric Wave Radiator | Cylindric Wave Radiator |
| Power AES / Peak | LF: 400 W / 1200 W HF: 150 W / 450 W |
400 W / 1200 W |
| Impedance nominal |
LF: 8 Ω / HF: 8 Ω | 8 Ω |
| SPL 1 W / Peak @ 1 m | LF: > 96 dB / 127 dB HF: > 97 dB / 124 dB |
> 127 dB |
| Usable Range |
80 Hz - 20 kHz (- 6 dB) | 80 Hz - 20 kHz (- 6 dB) |
| Tuning Frequency excursion minimum | 90 Hz | 90 Hz |
| X-Overpoint acoustical | Depends on preset | 1,1 kHz |
| Coverage horizontal / vertical | 100° x 7° (i-version) 100° x 23° (c-version) |
100° / 7° (i-version) 100° / 23° (c-version) |
| Mechanical Splay Angle | 0° (i-version) 16° (c-version) |
0° (i-version) 16° (c-version) |
| Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HF, 2 +/- LF |
2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru |
| Handles | 1 x | 1 x |
| Rigging / Fittings | 11 x M10 Integrated flying hardware |
11 x M10 Integrated flying hardware |
| Weight | 16 kg | 16,5 kg |
| Size height x width x depth | 70,8 x 18,9 x 24,5 cm (i-version) 72,0 x 18,9 x 26,2 (24,5) cm (c-version) |
70,8 x 18,9 x 24,5 cm (i-version) 72,0 x 18,9 x 26,2 (24,5) cm (c-version) |
| Order No. | 00500/a (i-version) 00501/a (c-version) |
00500/xov (i-version) 00501/xov (c-version) |
for one unit GL 16, GL 16 Sub
Order No. 01230

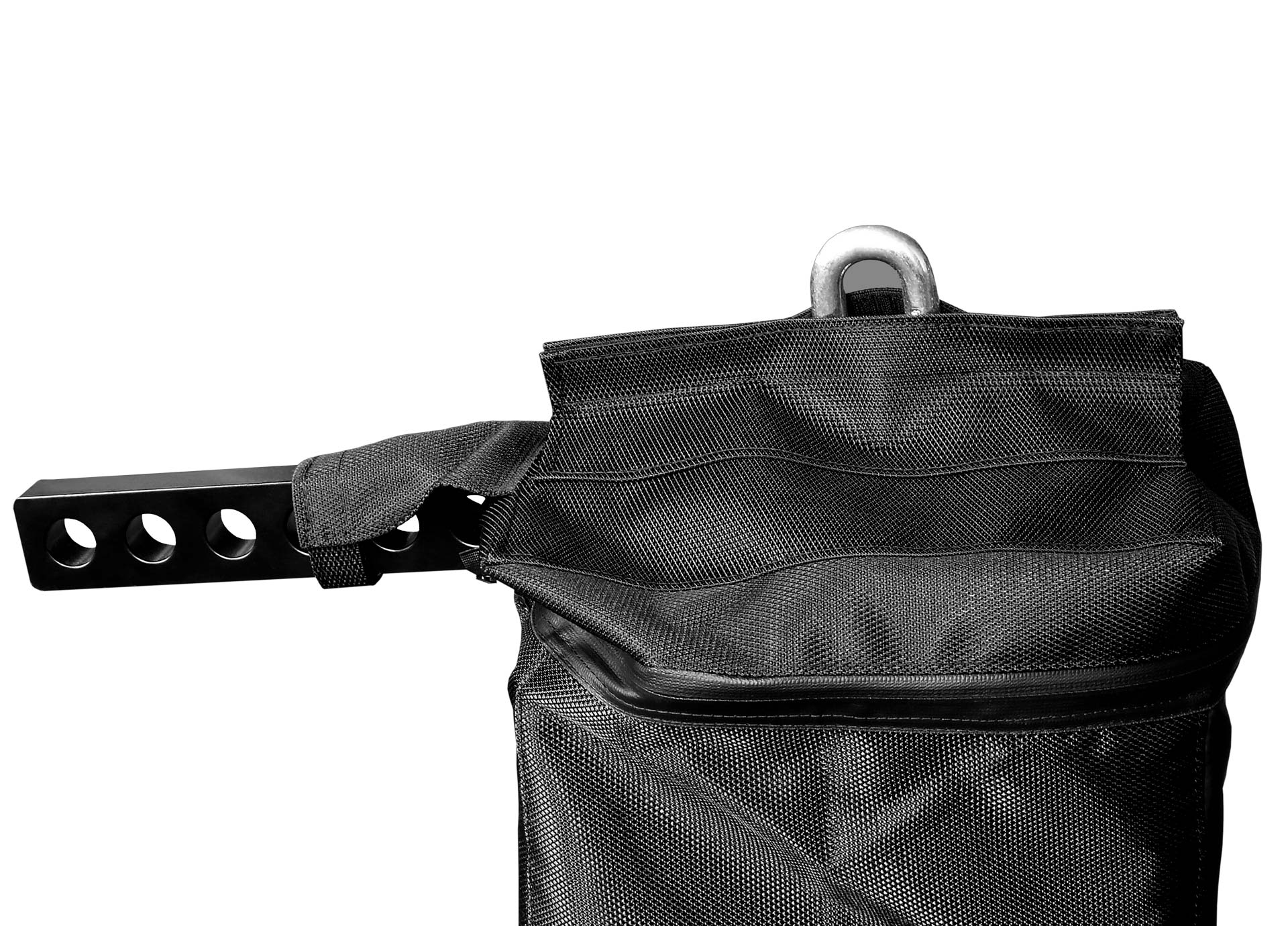

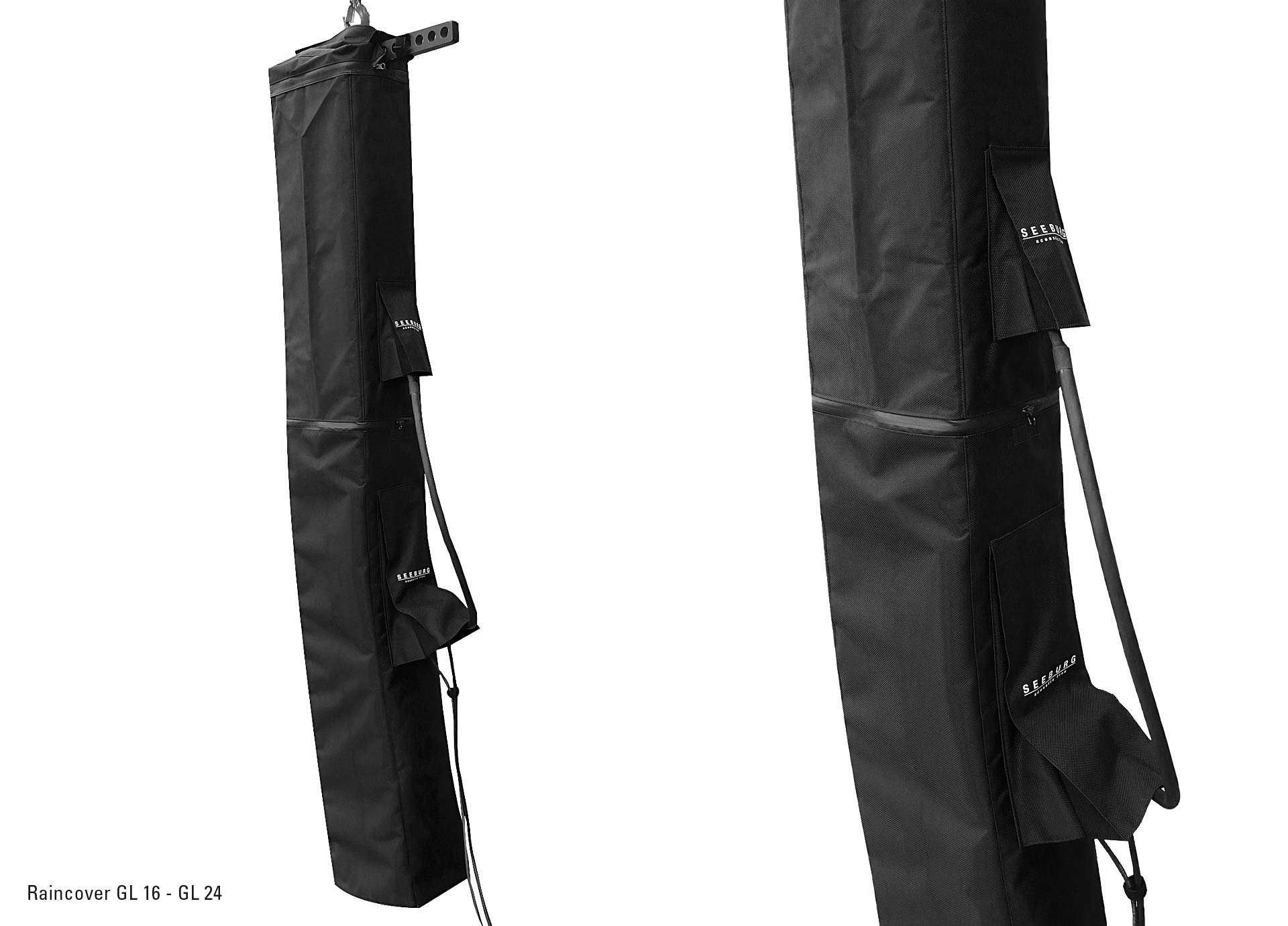

for GL 16,
set incl. low lid and
high lid (by using flying cradle),
connectable to other covers of the GL-system
for one unit GL 16,
other colors available on request
Order No. 01230/GL16
for two units GL 16,
several colors on request
Universal bag for
Small Base Plate and accessories,
with side pocket
51 cm x 62 cm x 23 cm
(height x width x depth)

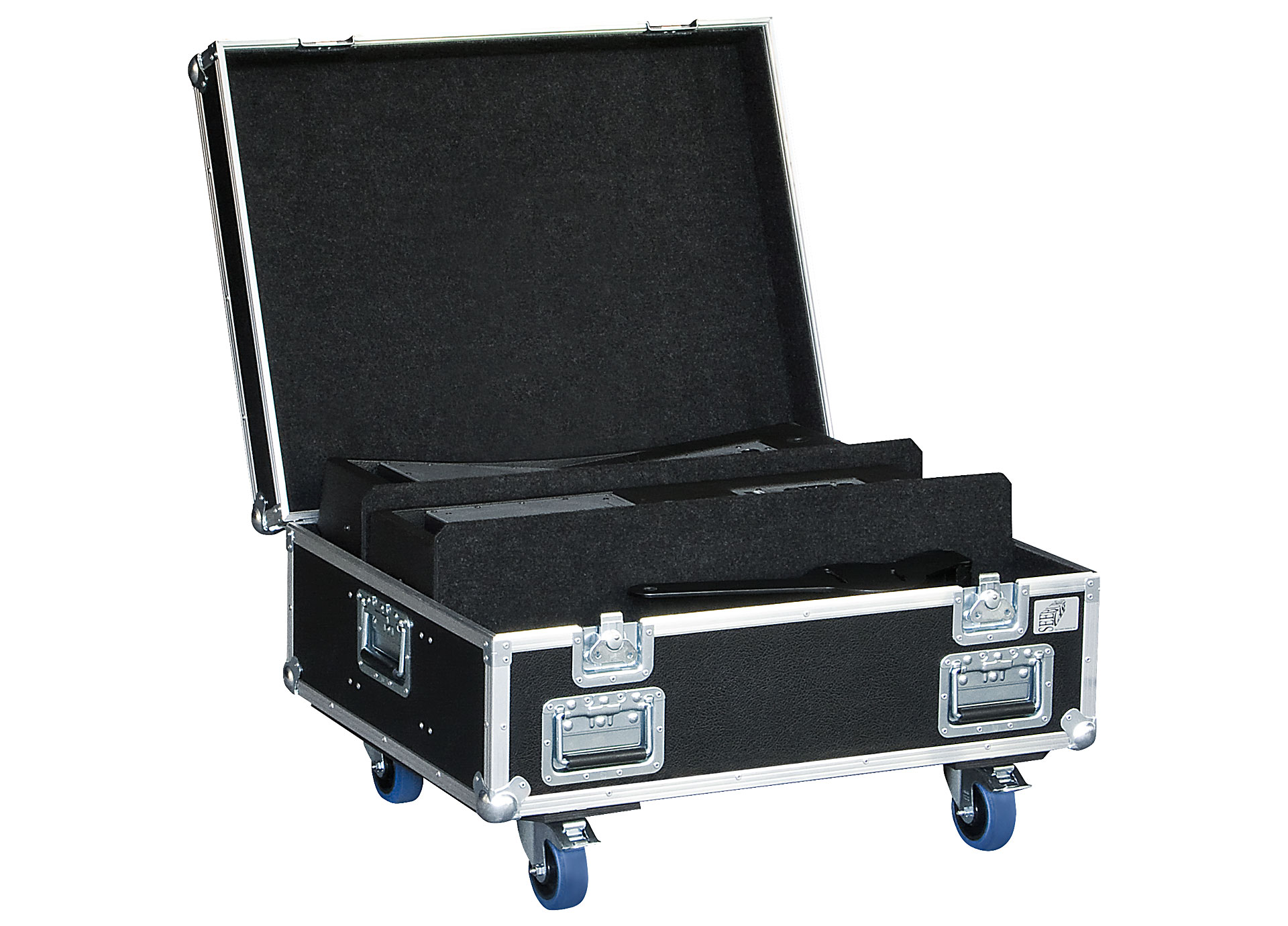

for 2 pcs. GL 16 i/c units
and accessories, heavy duty, 9 mm birch multiplex, PVC coated, hinged lid, 6 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, inserts for accessories, interior lined with felt,
size (H x W x D): 48 x 77 x 61 cm
for GL 16 i / GL 16 Sub to be mounted on baseplates with M20 mounting,
incl. 1 x M20 x 80 flat head screw,
2 x M10 x 20 flat head screws
for GL 16 c -> GL 16 Sub,
incl. 1 x M10 x 30, 1 x flat washer,
2 x M10 x 20 flat head screws
for GL 16, GL 16 Sub
height 110 cm
for stacking
GL 8 i, GL 16 i, GL 16 Sub,
height 35,4 cm
for GL System,
incl. (black version:
2 x M10 x 30 handle screws,
1 x knurled head nut
white version:
2 x M10 x 30 socket head screws,
1 x knurled head nut)
Order No. 01352/GL16/set/w (RAL 9010)
for GL System,
max. load 120 kg,
incl. shackle (01372/GL)
swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg
version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg
for MultiRigg™ /MultiRigg™ light
for mounting on M10,
incl. 1 x M10 x 25 mm screw,
max. load 20 kg
for flying brackets,
adjustable
M10 x 30
adjustable
M10 x 20
reduction screw for fastening
M10 pole mount adapter (08126)
max. load 100 kg
Order No. 01223/100kg
M10, max. load 20 kg
Order No. 01223/20kg
Max. load 200 kg
Order No. 01223/TV
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
M20 external thread,
28 mm ø x 147 mm
VBS 7 mm
Order No. 01378
for GL-flying cradle,
WLL 1000 kg
6 mm x 600 mm,
max. load 22 kg (BGI 810-3),
quick connector undetachably
2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg
Order No. 03034/w (RAL 9010)
Order No. 03034
bar: 400 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/400/w (RAL 9010)
bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/269/w (RAL 9010)

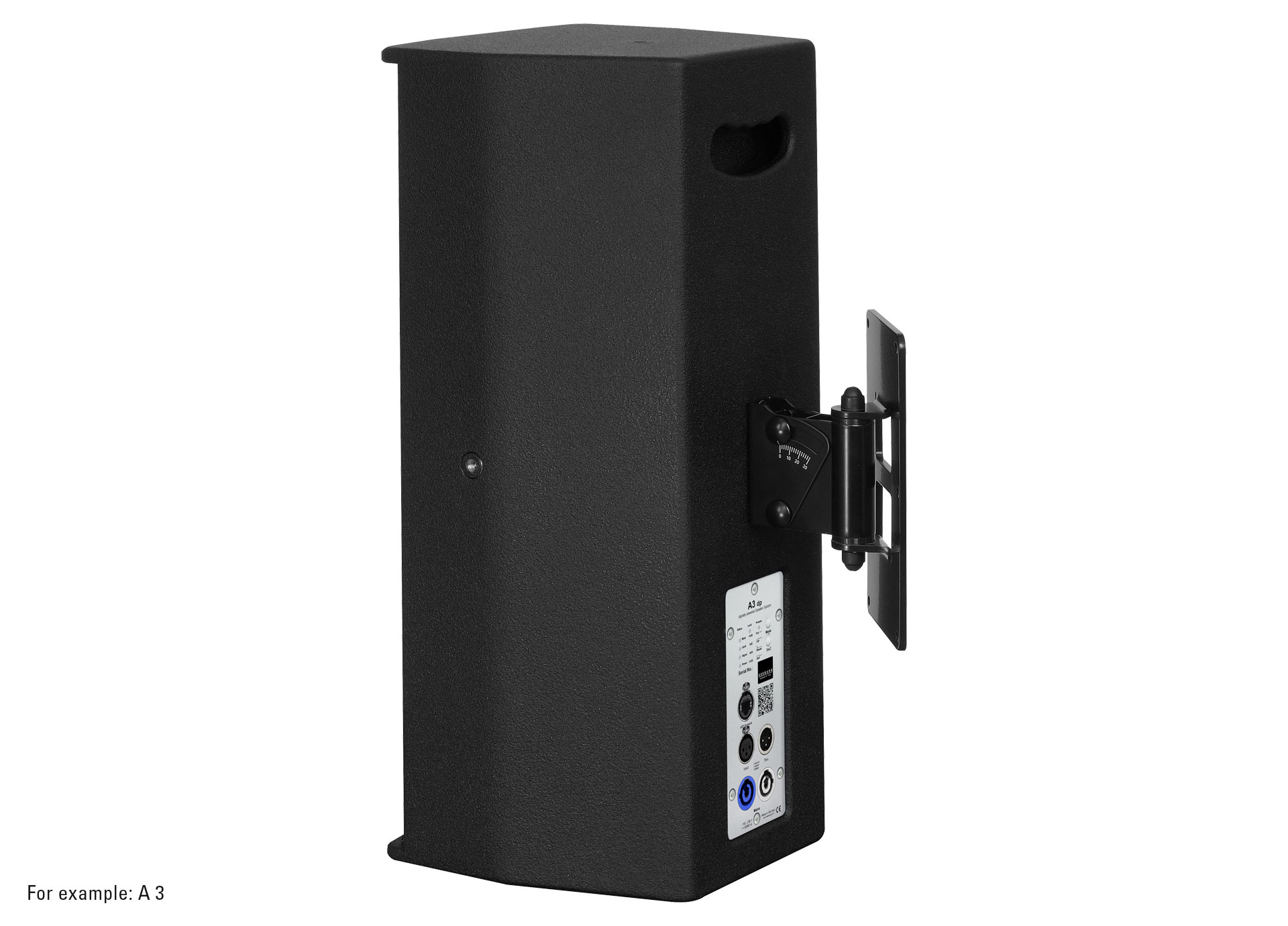

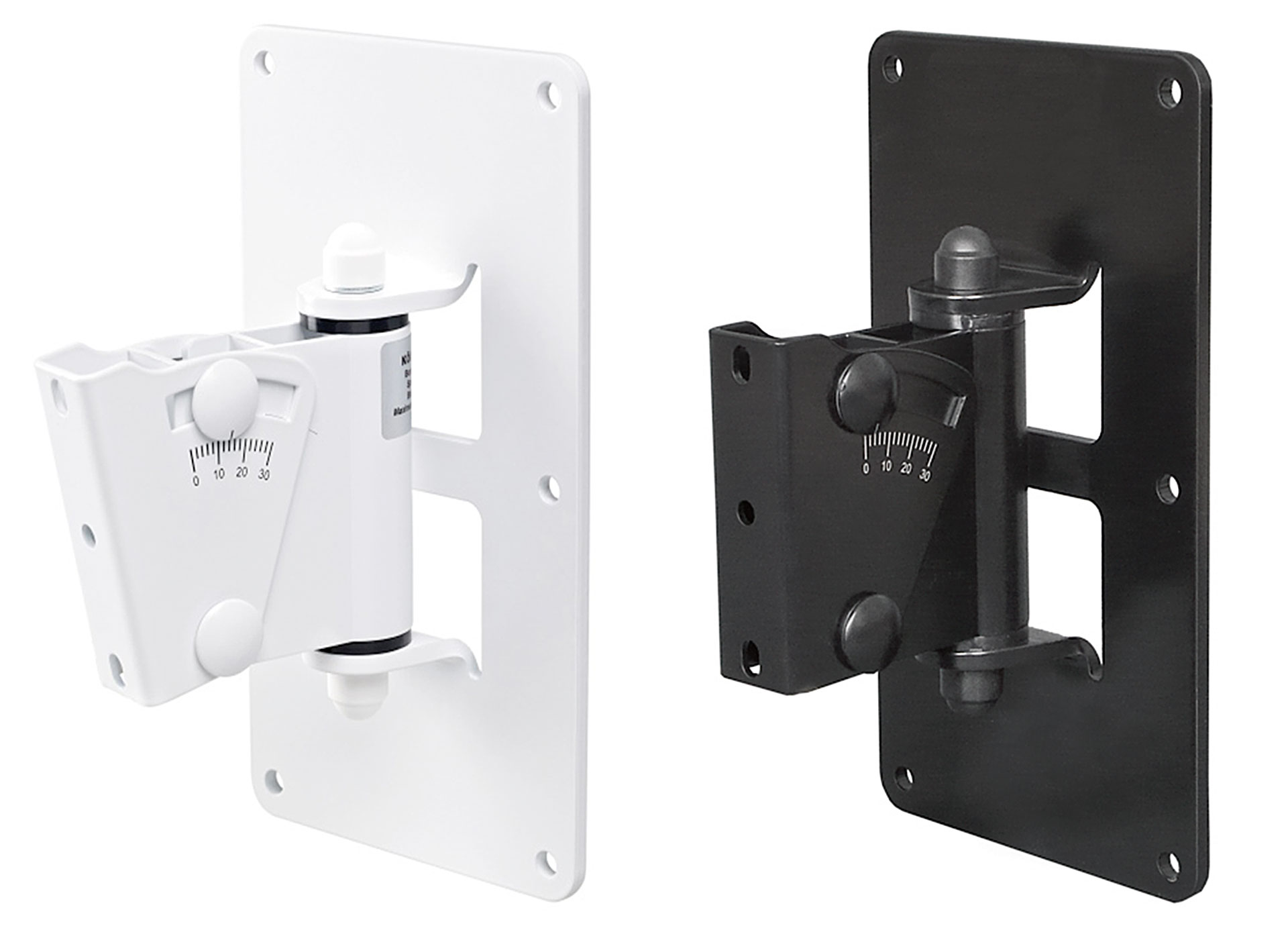

for Wall Mount (03034)
M10 x 55 socket head screw,
polyurea coated
Order No. 03034/spc/w (RAL 9010)
Order No. 03034/spc
with M20 flange,
61,5 x 48,0 cm
Order No. 01278/w (RAL 9010)
Order No. 01278
for stacked mounting,
with M20 flange, cable channel,
80,0 x 80,0 cm
Order No. 01279/w (RAL 9010)
Order No. 01279

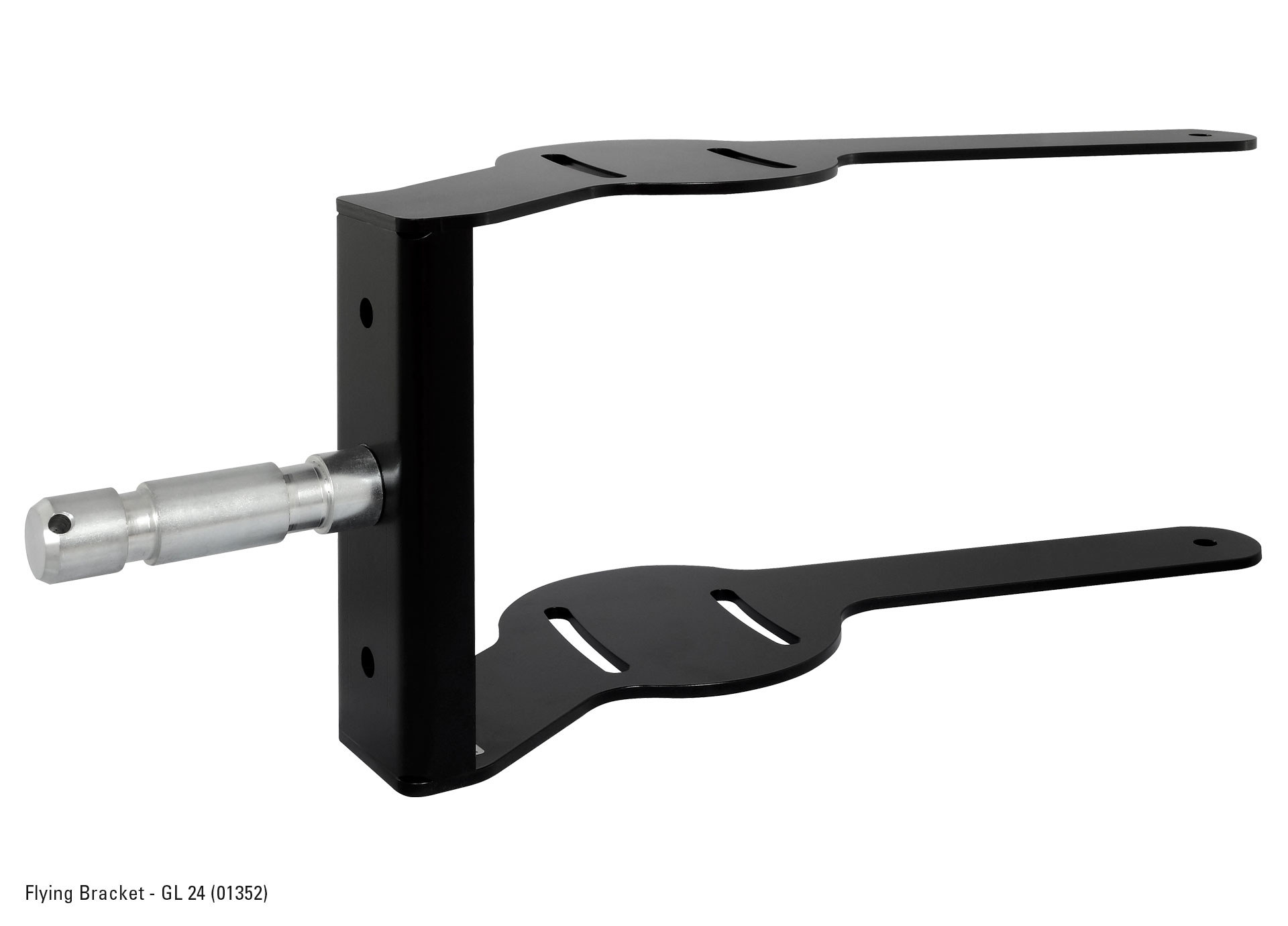

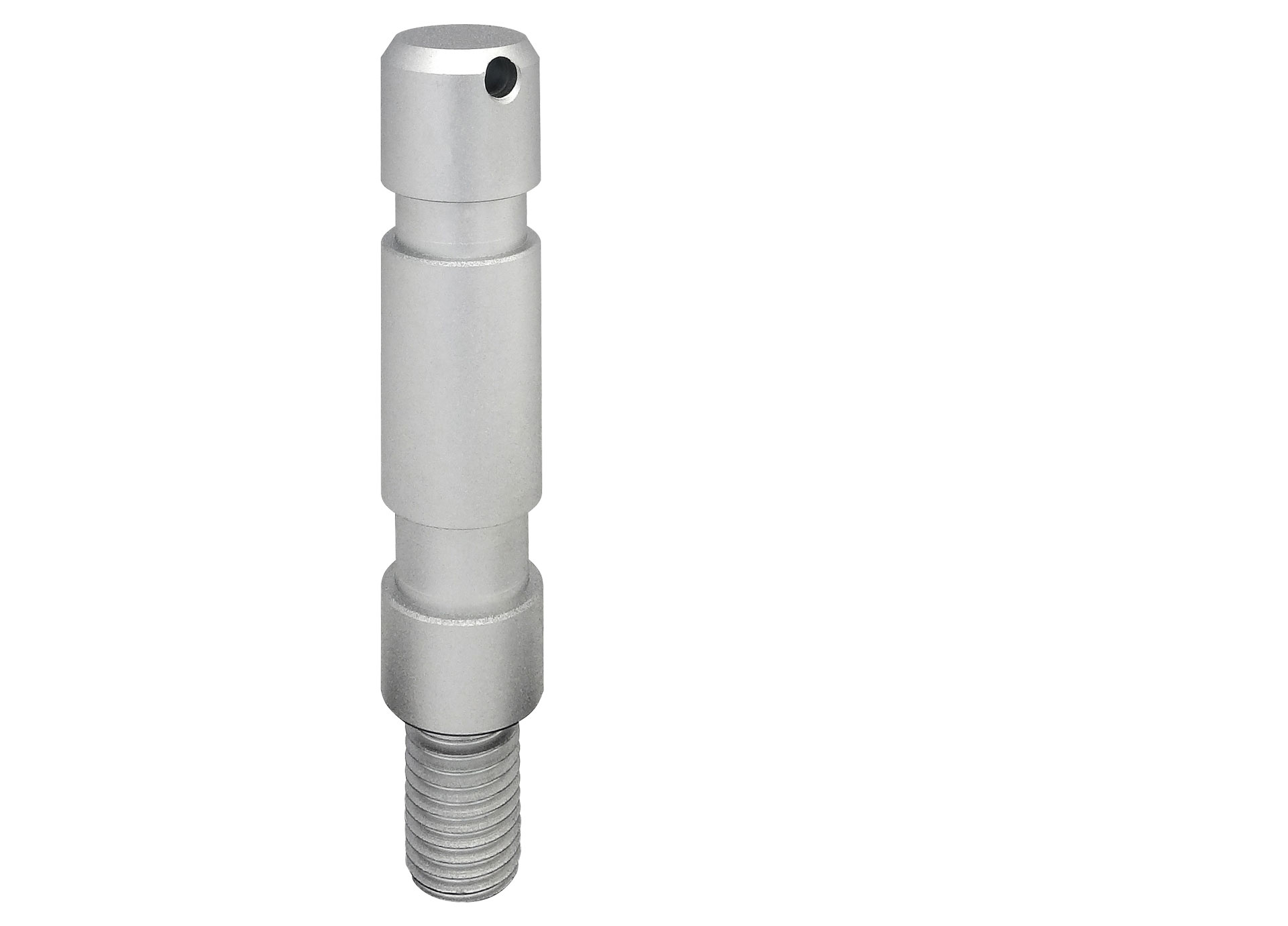

for flying bracket,
M20 x 35 mm with nut,
incl. 1 x M20 x 30 socket head screw,
1 x flat
adjustable,
incl. M20 Adapter
incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg
height 137,5 to 218,5 cm,
max. load 50 kg
PowerCon-PowerCon / XLR-XLR
Order No. 08462 2,5 m
Order No. 08464 5,0 m
Order No. 08466 10 m
Order No. 08468 15 m
