A 2 HiMid Sound System

A 2

00230/III

 400 W AES,
8 Ω

00230/dp

 500 W / 150 W AES, bi-amped
Downloads
Datenblatt A2
Datenblatt A2 dp
Benutzerhandbuch A2 dp
Quick Start Manual
dp-systems
Quick Start Guide SEEBURG Network Manager-AES67
Ausschreibungstexte
3D-Dateien
Zertifikat Ballwurfsicherheit-Spritzwasserschutz
Produktbilder

Unauffällig elegantes und kräftiges System für die Festinstallation und Industriepräsentation. Die optimierte 2 x 6,5“/ 1” Treiber Konfiguration mit großem Horn sorgt für gutes Abstrahlverhalten, Sprachverständlichkeit und Reichweite. Vier M10 Aufnahmepunkte (optional fünf bei Austausch gegen die werkseitig montierte HS-Flanschbuchse) ermöglichen in Kombination mit dem Zubehör eine einfache Installation in Horizontal- und Vertikalausrichtung.

Die A 2 ist auch als dp-Variante mit 500 Watt / 150 Watt AES Endstufenleistung und DSP-Controller lieferbar.

Anwendungen
Technische Daten
  A 2 A 2 dp
Speaker Components 2 x 6,5" Nd (2" VC) / 1" (1,7" VC 2 x 6,5" Nd (2" VC) / 1" (1,7" VC)
Description HiMid Sound System HiMid Sound System
Power   AES / Peak 400 W / 1200 W - - -
Amp Power AES - - - LF: 500 W AES / 110-230 V
HF: 150 W AES / 110-230 V
Impedance   nominal 8 Ω - - -
Rated Current - - - 0,5 A @ 230 V
SPL   1 W / Peak @ 1 m
 97 dB / 128 dB - - -
SPL Peak@1m - - - 128 dB
Max. Input Signal - - - 25 dBu
DSP - - - DPLMx FPGA Processing 32 bit floating point
AD / DA - - - 24 bit / 96 kHz
Latency - - - 0,8 ms (analog in to analog out)
Usable Range
 80 Hz - 19 kHz (-6 dB) 80 Hz - 19 kHz
Tuning Frequency excursion minimum 95 Hz 95 Hz
X - Overpoint   acoustical 1,5 kHz Depends on preset
Coverage horizontal / vertical 90° x 60° - rotatable 90° x 60° - rotatable
Connectors 2 x Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru		 XLR in/thru, Ethercon
Powercon in/out
Handles 1 x 1 x
Rigging / Fittings 4 x M10, 2 x M6
35 mm pole mount		 4 x M10, 2 x M6
35 mm pole mount
Weight 9,5 kg 10,5 kg
Size height x width x depth 51,0 x 21,0 x 21,0 cm 51,0 x 21,0 x 21,0 cm
Order No. 00230/III 00230/dp
Zubehör

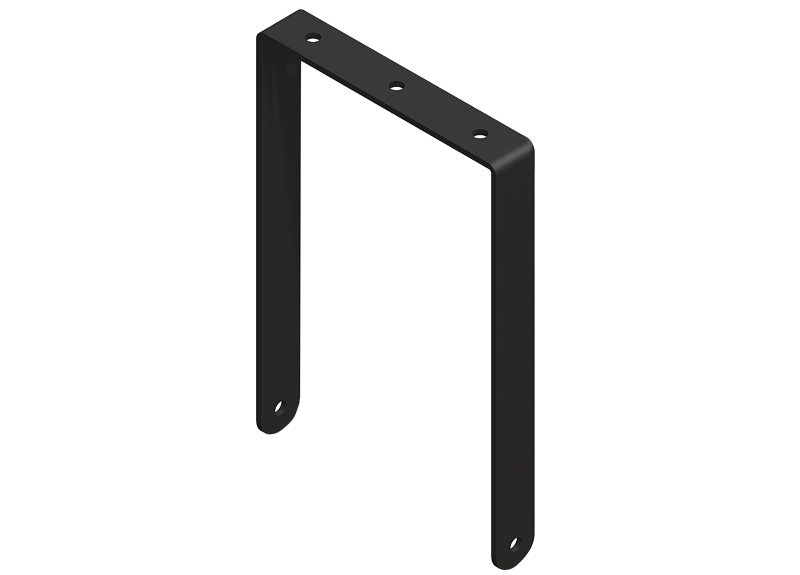

Flying Bracket

for A 2,
(incl. black version:
2 x knurled screws M10 x 20 mm,
2 x rubber washers /
white version:
2 x socket head screws M10 x 20 mm,
2 x rubber washers)

Order No. 01214/set/w (RAL 9010)

 Order No. 01214/set
Flying Bracket

for A 2,
horizontal alignment,
(incl. 2 x socket head screws
M10 x 20 mm,
2 x rubber washers, 1 x plate)

Order No. 01214/H/set/w (RAL 9010)

 Order No. 01214/H/set
MultiRigg™

for flown and ground stacked
applications, (incl. 2 x knurled screws
M10 x 20 mm, 1 x handle screw
M8 x 55 mm), max. load 50 kg

 Order No. 01360
MultiRigg™ Light

for fixed installations,
(incl. 2 x socket head screws
M10 x 20 mm),
max. load 50 kg

 Order No. 01362
MultiRigg™ Basic

(incl. load adapter M10,
2 x knurled screws M10 x 20 mm),
max. load: 50 kg

 Order No. 01364
Adapter

for MultiRigg™ /MultiRigg™ light
for mounting on M10,
(incl. 1 x screw M10 x 25 mm),
max. load 20 kg

 Order No. 01358
Knurled Screw

M10 x 20 mm

Order No. 73750/w (RAL 9010)

 Order No. 73750
Plate

for A 2 / A 3 flying brackets,
horizontal alignment,
replacement for pole mount flange,
110 mm ø flange with M10 nut

Order No. 08119/M10/w (RAL 9010)

 Order No. 08119/M10
Rubber Washer

for flying brackets,
5 mm x 40 mm ø

 Order No. 01206
Flange

with ball and socket joint,
with additional locking screw,
M10 x 15 mm, max. load 15 kg

 Order No. 08125
Quick Trigger Clamp

max. load 100 kg

 Order No. 01223/100kg
Truss Clamp

incl. M10 mini TV spigot,
max. load 15 kg

 Order No. 01221
Quick Trigger Clamp-Small

M10, max. load 20 kg

 Order No. 01223/20kg
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

 Order No. 73700
TV Spigot

M10 internal thread,
28 mm ø

 Order No. 08128
Steel Safety

4 mm x 600 mm,
quick connector undetachably,
max. load 10 kg (BGI 810-3)

 Order No. 01376/4
Wall Mount

2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg

Order No. 03034/w (RAL 9010)

 Order No. 03034
Wall Mount

using fixing points d= 73 mm

Order No. 08132/w (RAL 9010)

 Order No. 08132

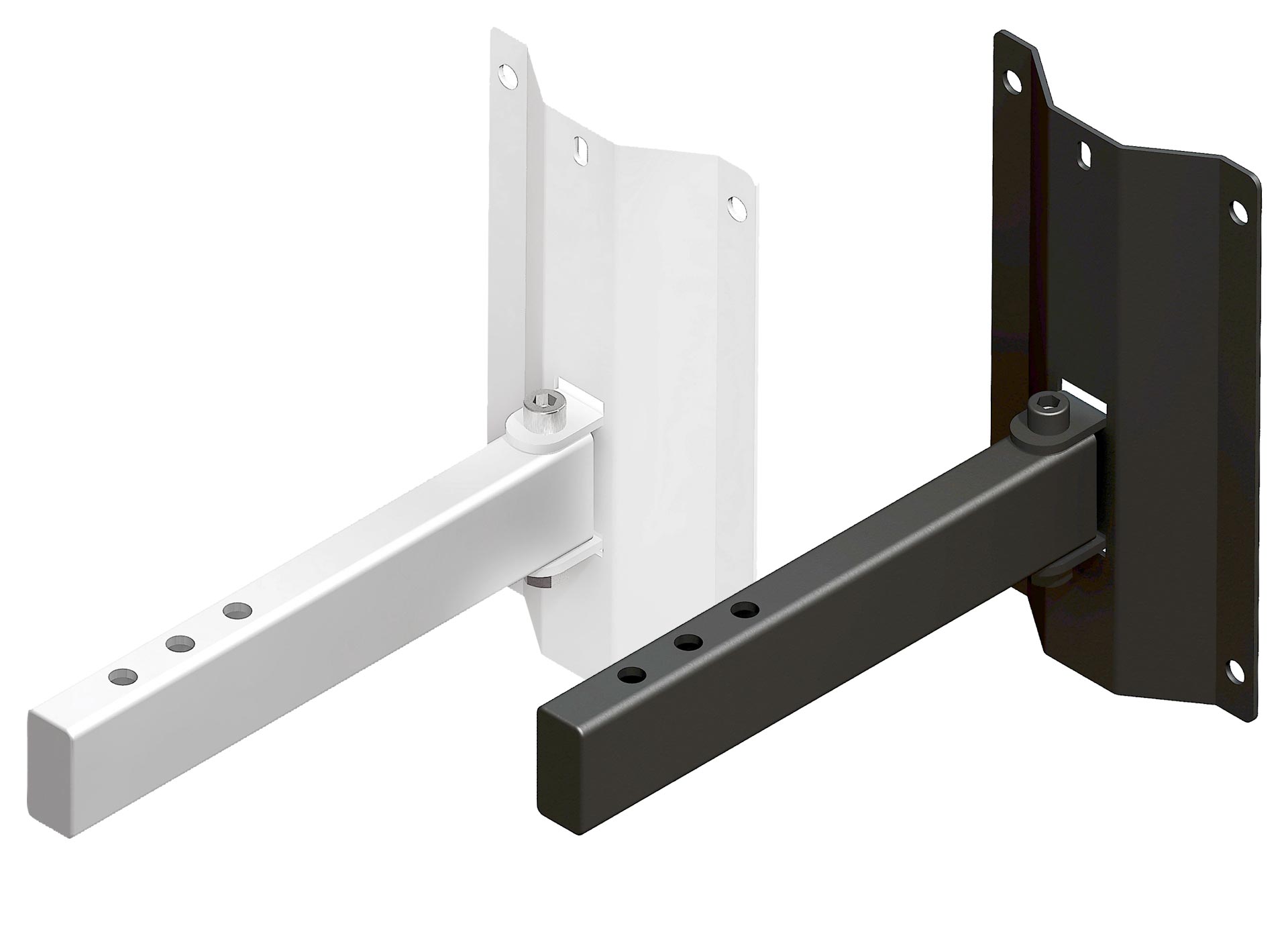

Wall Mount

bar: 269 mm,
(incl. socket head screw M10 x 70 mm,
hex lock nut and flat washer M10),
max. load 40 kg

Order No. 08130/F/269/w  (RAL 9010)

 Order No. 08130/F/269
Wall Mount

for permanent installation,
(incl. tilt angle stop M10),
max. load 15 kg



Order No. 08131/F/w (RAL 9010)

 Order No. 08131/F

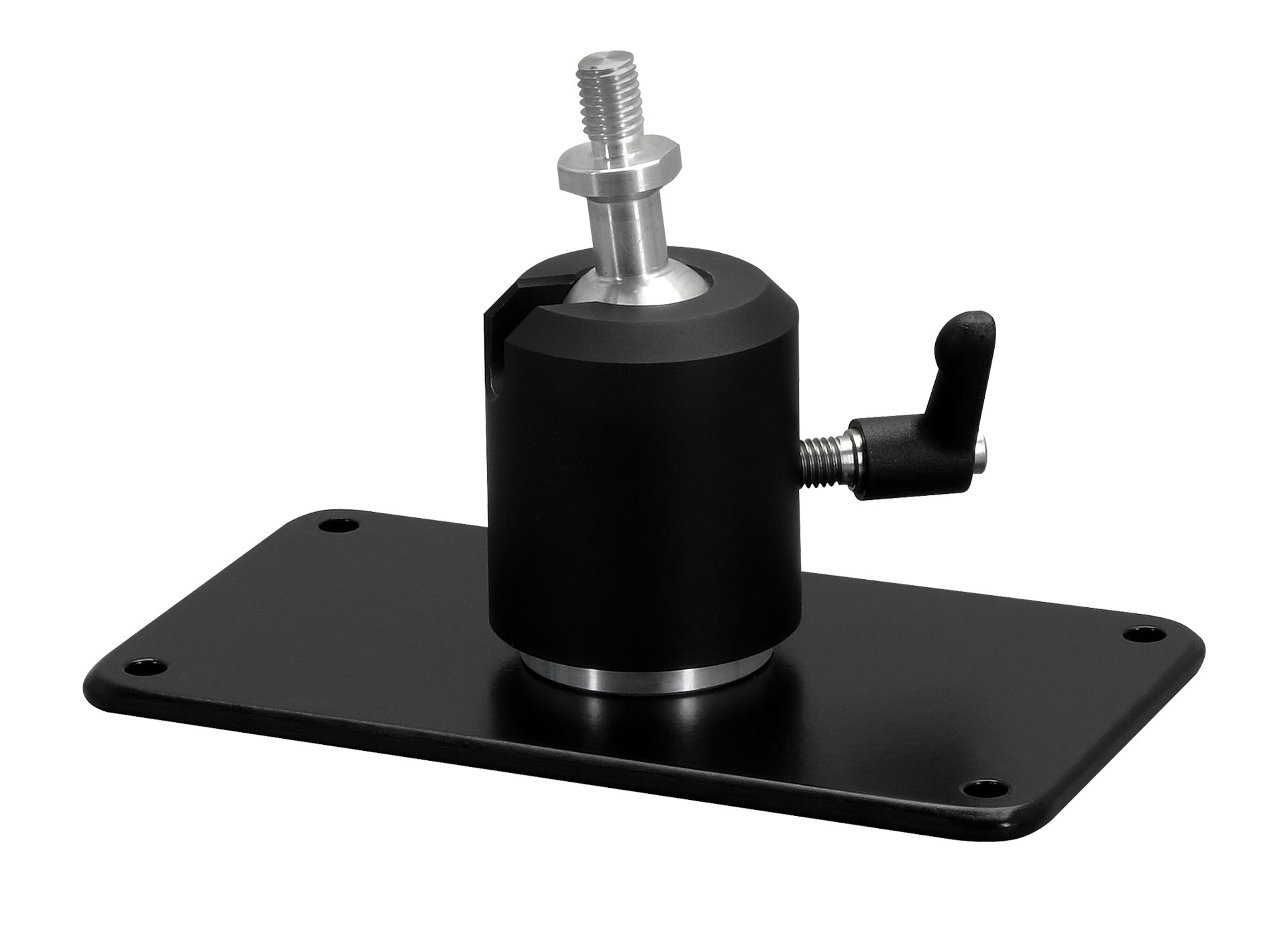

Wall Mount

ball and socket joint flange (08125)
+ 08125/plate

 Order No. 08125/set
Wall Mount Spacer

for Wall Mount (03034),
socket head screw M10 x 55 mm,
65(height) x 100(width) x 40 mm(depth)



Order No. 03034/spc/w  (RAL 9010)

 Order No. 03034/spc
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

 Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm

Order No. 08126/w (RAL 9010)

 Order No. 08126
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

 Order No. 08126/II
Tilt Unit

with grid plate, max. load 30 kg

Order No. 01282

with grid plate and
„balance correction“, max. load 40 kg

 Order No. 01284
Speaker Stand

incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

 Order No. 03011
Speaker Stand

height 137,5 to 218,5 cm,
max. load 50 kg

 Order No. 03010
Cover

for A 2, padded

 Order No. 01243
Rain Cover

for A 2,
with zipper

 Order No. 01243/outdoor

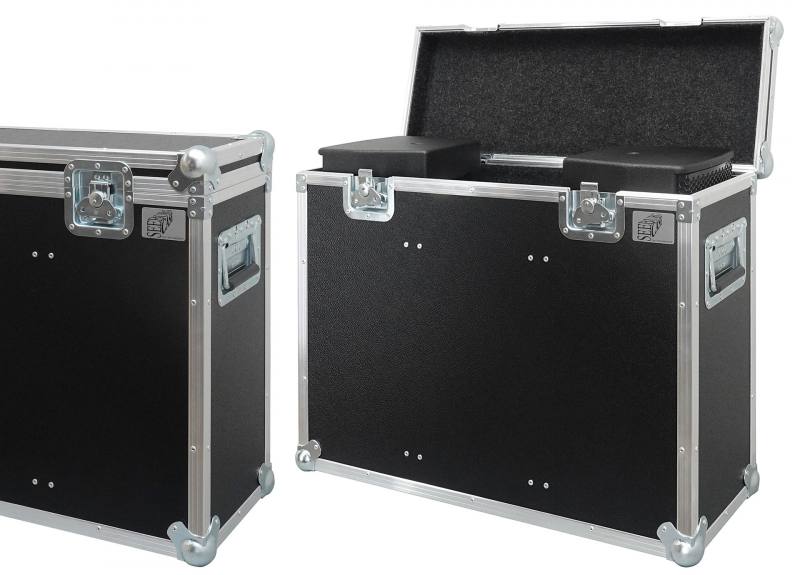

Flight Case Trunk

for 2 pcs. A 2, with accessory compartment (21 x 22 cm), interior lined with felt, standard, 7 mm birch multiplex, PVC coated black, 2 x recessed sprung handles, 2 x butterfly latches medium
Size: 71 x 26 x 55,5 cm (W x D x H)

 Order No. 16067
