X 6 Coaxial

Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion. Nine M10 threaded mounting points are available to mount MultiRigg hardware and other accessories for installation or mobile applications.

The X 6 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 1500/ 400 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.

Applications
Specifications
  X 6 X 6 dp
Speaker Components 12“ Nd (3,5" VC) / 1,4“ Nd (3" VC) 12“ Nd (3,5“ VC) / 1,4“ Nd (3“ VC)
Description Multifunctional Coaxial Sound System - digitally powered
Power AES / Peak 500 W / 1500 W - - -
Amp Power AES - - - LF: 1500 W / HF: 400 W / 110-230 V
Impedance nominal 8 Ω - - -
Rated Current - - - 0,7 A
SPL 1 W / Peak @ 1 m
99 dB / 131 dB - - -
SPL Peak@1m - - - 131 dB
Max. Input Signal - - - 25 dBu
DSP - - - DPLMx FPGA Processing 32 bit floating point
AD / DA - - - 24 bit / 96 kHz
Latency - - - 0,8 ms (analog in to analog out)
Usable Range
55 Hz - 18 kHz (-6 dB) 55 Hz - 18 kHz (-6 dB)
Tuning Frequency excursion minimum 65 Hz 65 Hz
X - Overpoint acoustical 1 kHz Depends on preset
Coverage horizontal / vertical 80° x 60° - rotatable 80° x 60° - rotatable
Connectors 2 x Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
XLR in, Ethercon,
Powercon in
Handles 2 x 2 x
Rigging / Fittings 9 x M10
to be used with MultiRigg™/MultiTilt™
35 mm pole mount
9 x M10
to be used with MultiRigg™/MultiTilt™
35 mm pole mount
Weight 18,5 kg 18,5 kg
Size height x width x depth 50,0 x 36,0 x 33,0 cm 50,0 x 36,0 x 33,0 cm
Order No. 01095 01095/dp
Accessories
x

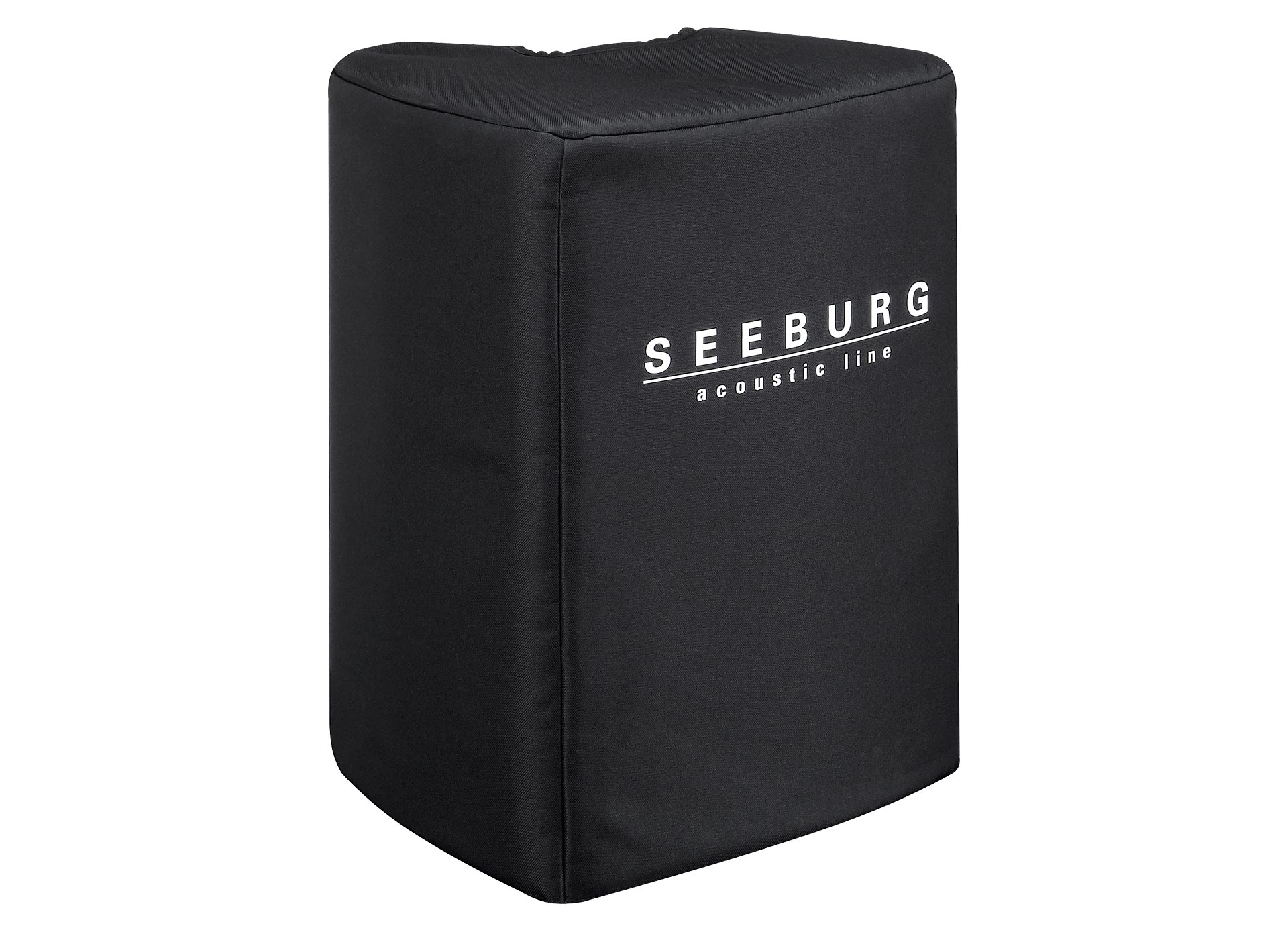

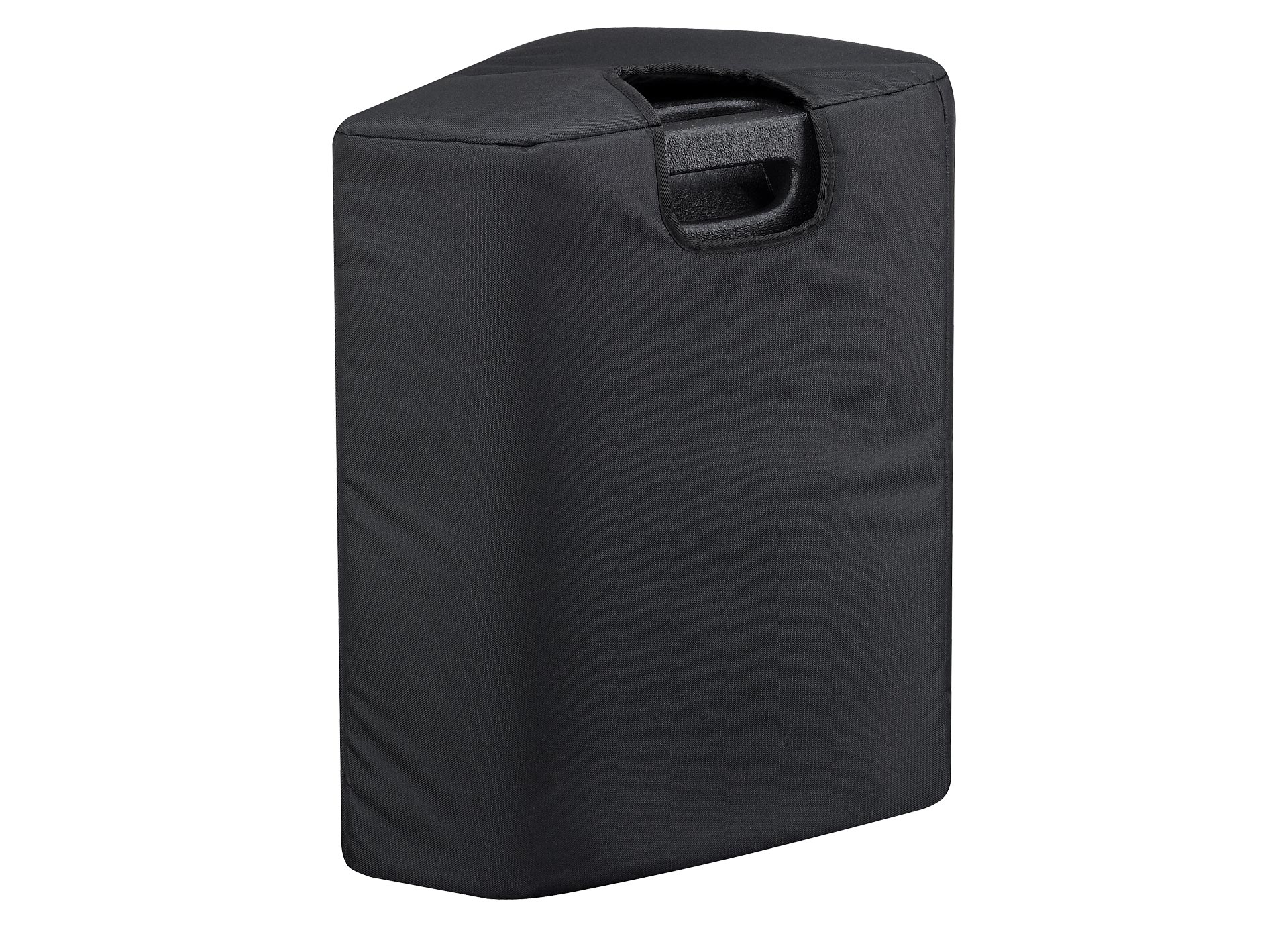

Cover

for X 6,
padded

Order No. 01225/X6
x

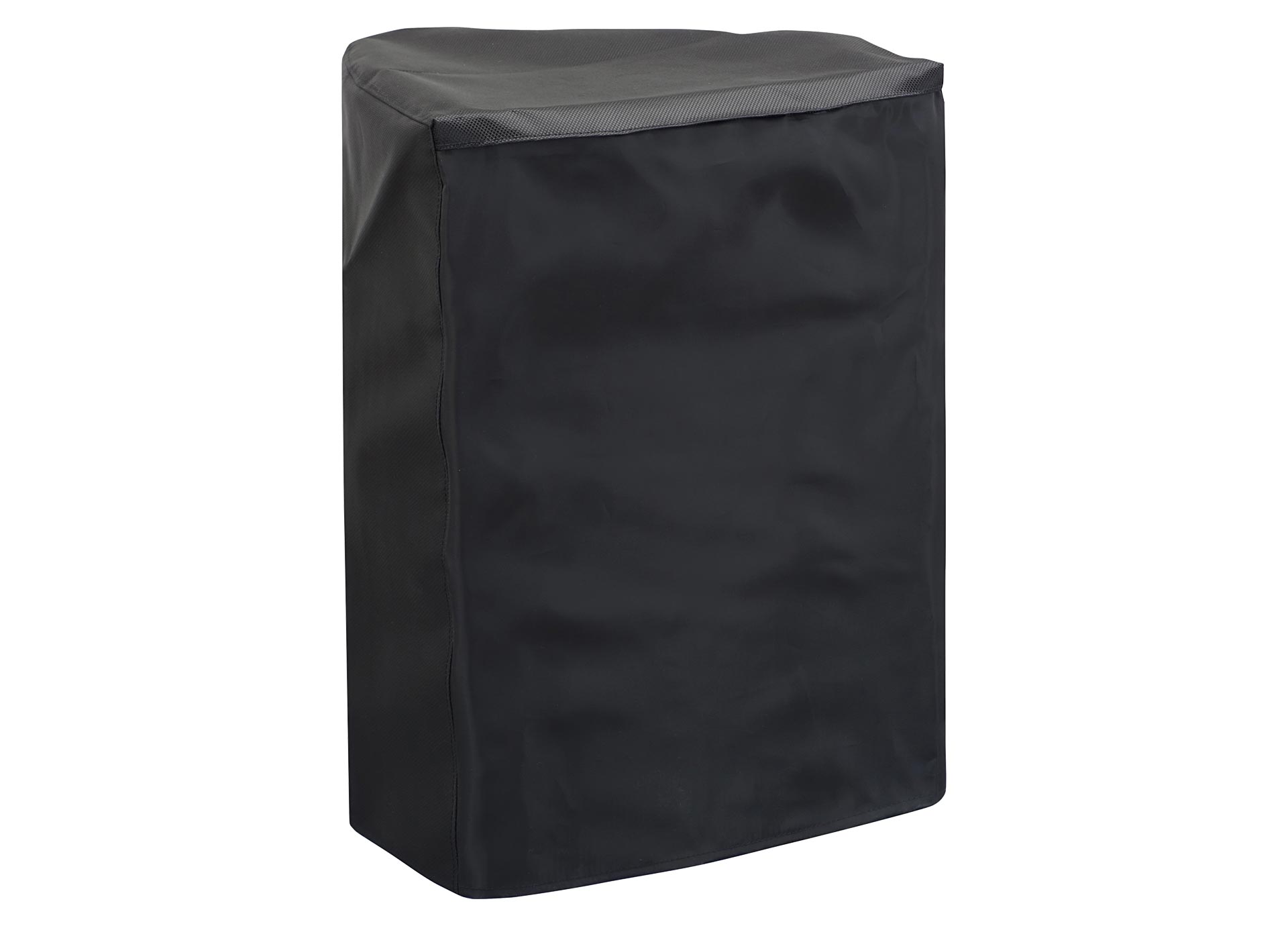

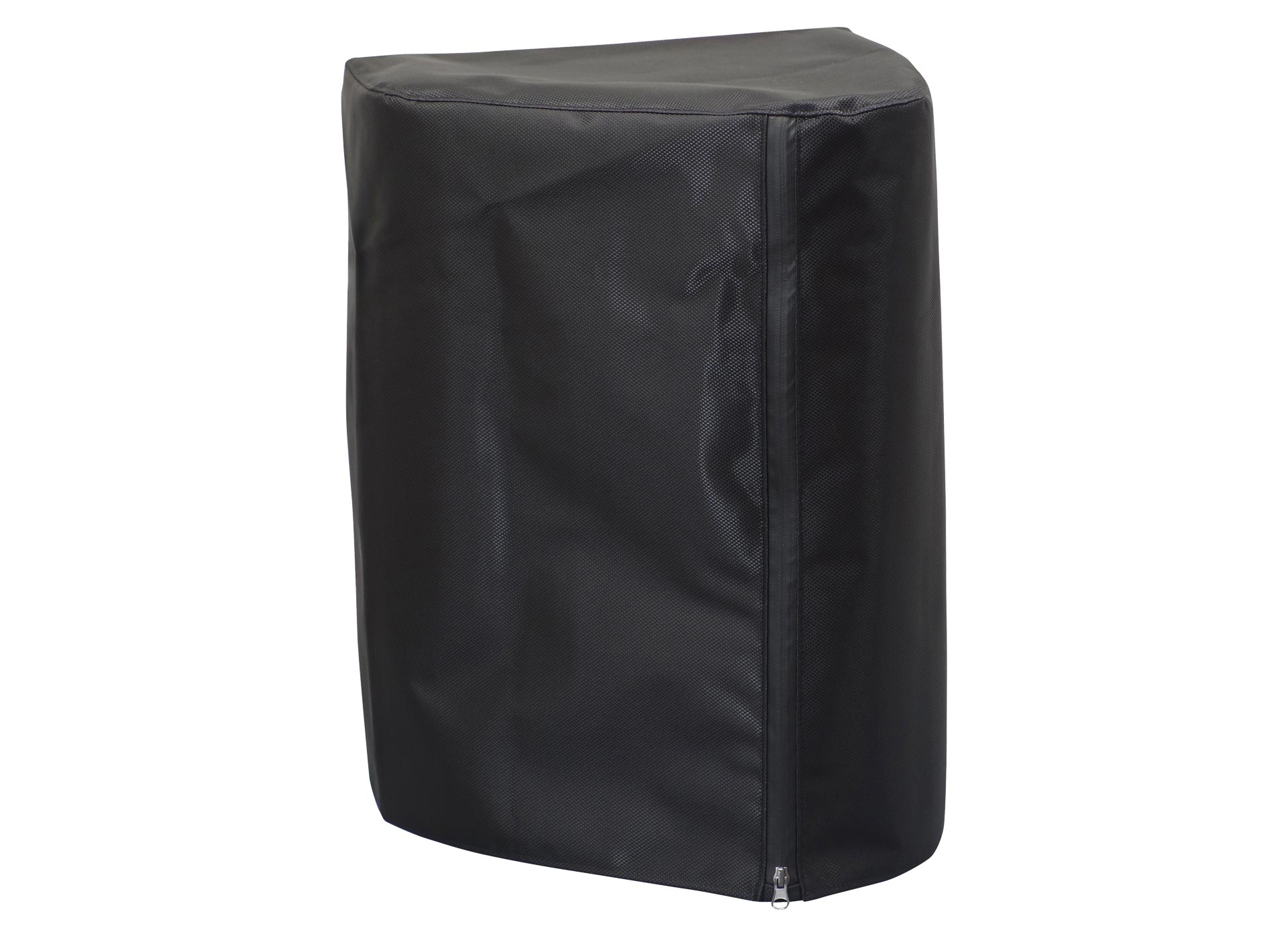

Rain Cover

for X 6,
with zipper

Order No. 01225/X6/outdoor
x

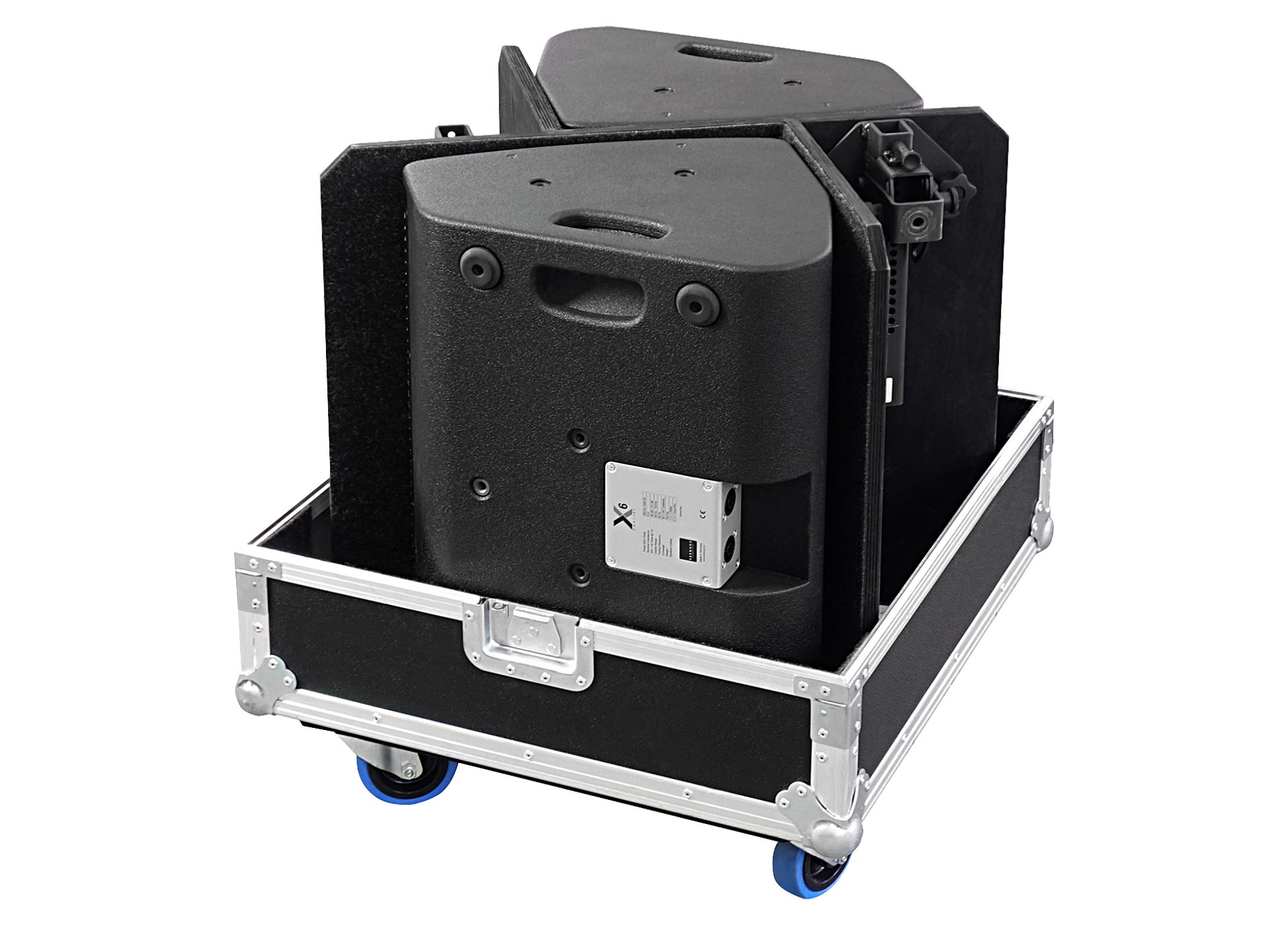

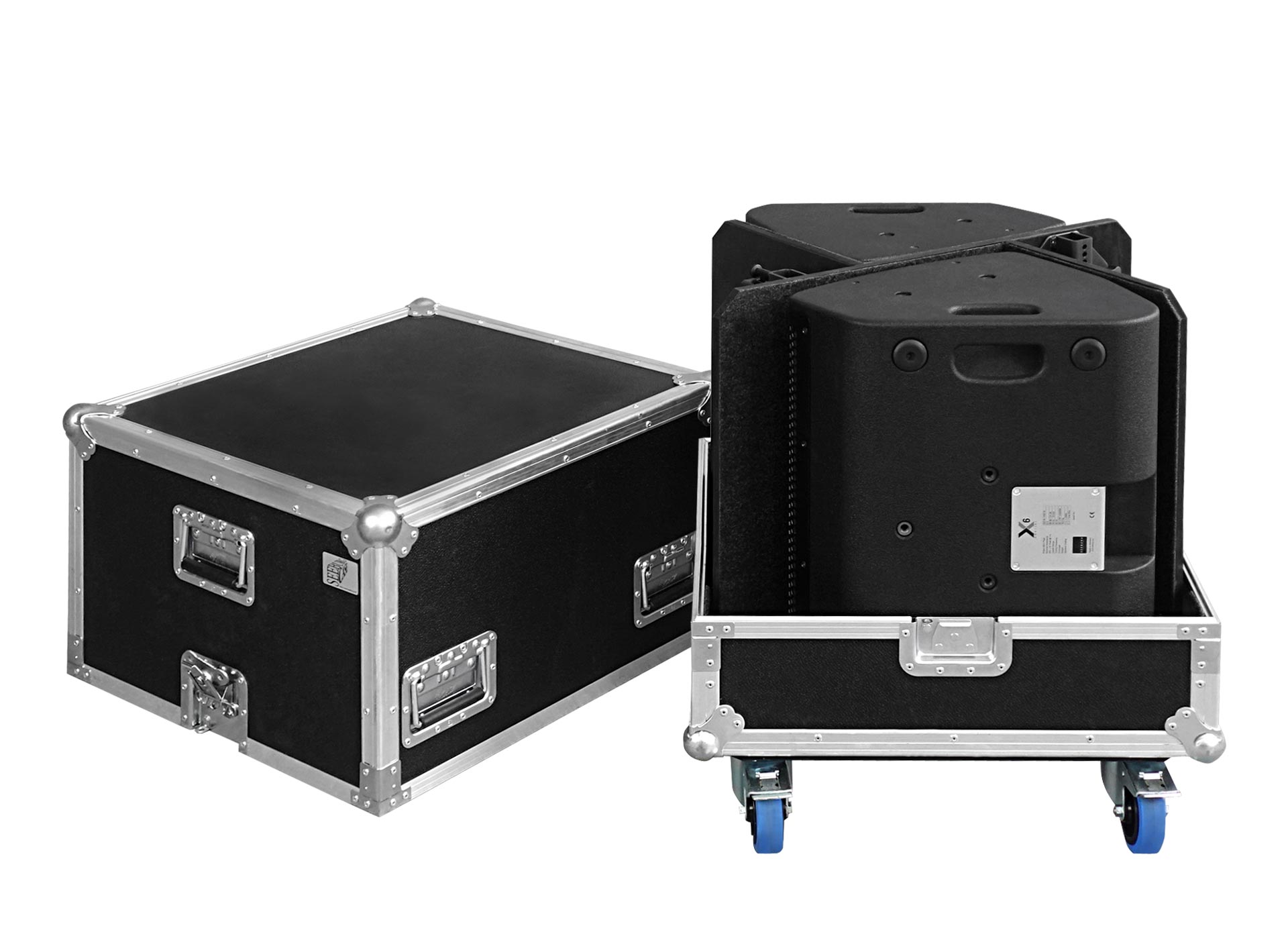

Flight Case

for 2 pcs. X 6 and 2 pcs. MultiRigg, partition walls, heavy duty, 9 mm birch multiplex, PVC coated black, 6 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels (2 pcs. with brake), interior lined with felt
Size (H x W x D): 68,6 x 61,5 x 65,5 cm



Order No. 16565
MultiRigg™

swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg

Order No. 01360
x
MultiRigg™ light

version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg

Order No. 01362
x
MultiTilt™

Tilt adapter with adjustable tilt from
0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
2 x knurled screws (M10 x 20 mm),
max. load 50 kg

Order No. 01370
x
Knurled Screw

M10 x 20 mm

Order No. 73750/w (RAL 9010)

Order No. 73750
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126/w (RAL 9010)

Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

Order No. 08126/II
x
Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Quick Trigger Clamp-Small

M10, max. load 20 kg

Order No. 01223/20kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
x
Steel Safety

4 mm x 600 mm,
max. load 10 kg (BGI 810-3),
quick connector undetachably

Order No. 01376/4
x
Adapter

for X 4, X 6, X 8
for mounting with Wall Mount (03034),
incl. 2 x M10 x 20 socket head screws

Order No. 01198/w (RAL 9010)

Order No. 01198
Wall Mount

2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg

Order No. 03034/w (RAL 9010)

Order No. 03034
Wall Mount

bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/269/w  (RAL 9010)

Order No. 08130/F/269
Wall Mount

with tilt unit,
max. load 40 kg

Order No. 08130
x
Hybrid Cable System

PowerCon-PowerCon / XLR-XLR

Order No. 08462    2,5 m
Order No. 08464    5,0 m
Order No. 08466    10 m
Order No. 08468    15 m
