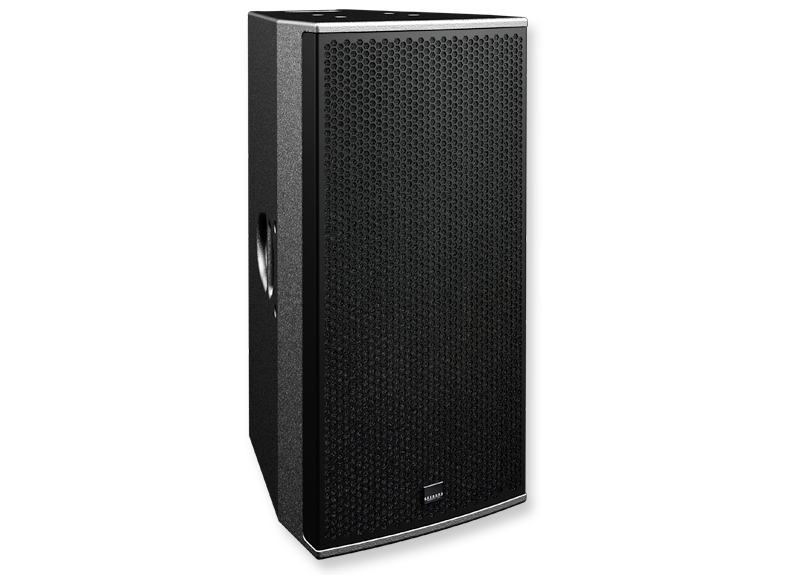

K 30 High Power HiMid System

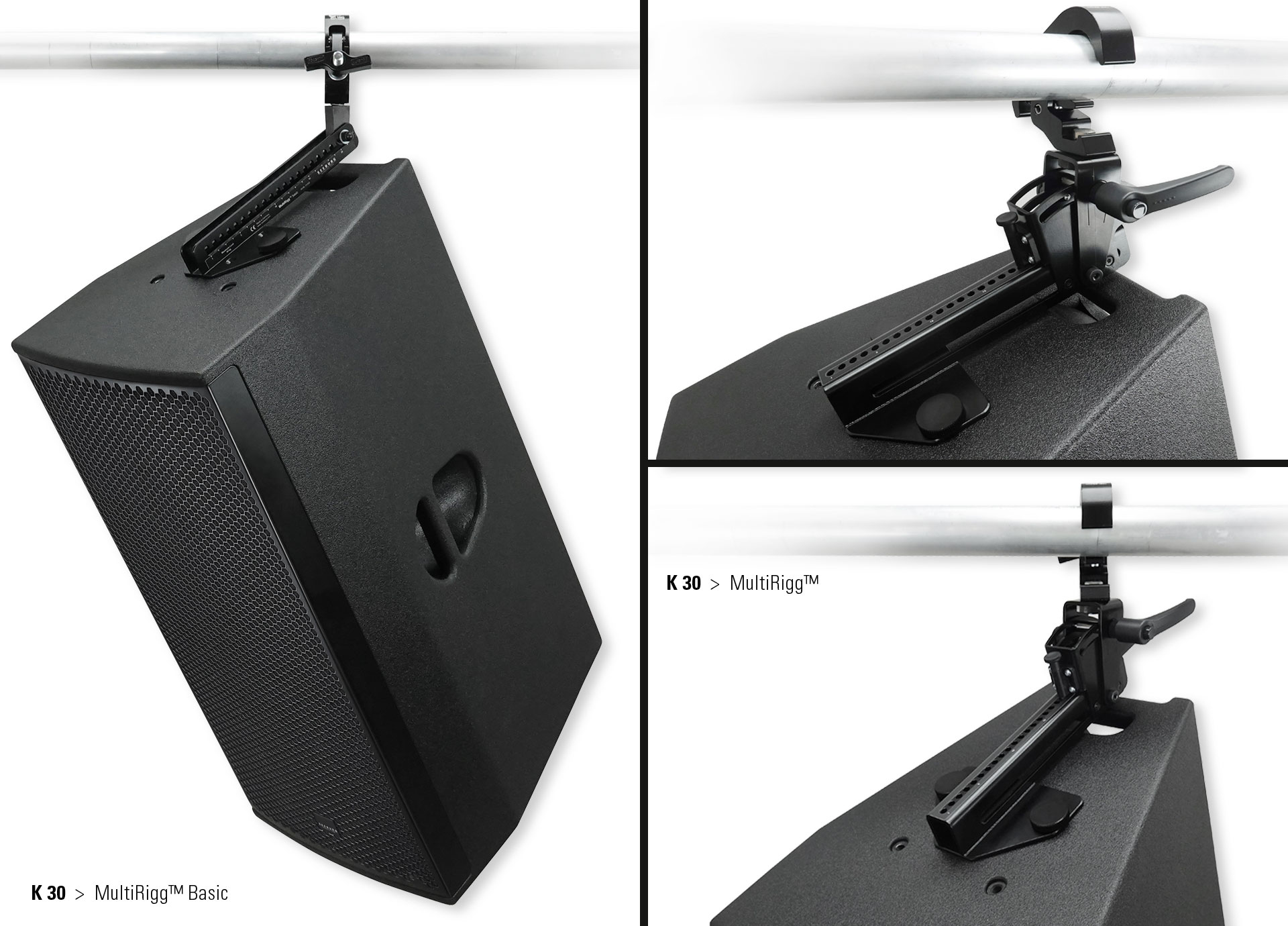

The construction principle of the high powered K 30 mid-high cabinet allows for flexibility of use in horizontal or vertical orientations. Optimised placement of the 2 x 12“ / 1.4“ drivers in relation to one another ensures a very precise phase and coverage characteristic. For installation applications, the universal MultiRiggTM be used to mount the system. The K 30 is equipped with a passive crossover. Two different horn forms are available to better cover various sound rein- forcement situations.
| K 20 | |
| Speaker Components | 2 x 12“ Nd (3,5“ VC) / 1,4“ Nd (3“ VC) |
| Description | High Power HiMid System |
| Power AES / Peak | 1300 W / 4000 W |
| Impedance nominal | 4 Ohm |
| SPL 1 W / Peak @ 1 m | 101 dB / 137 dB |
| Usable Range | 70 Hz - 18 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 80 Hz |
| X - Overpoint acoustical | 750 Hz |

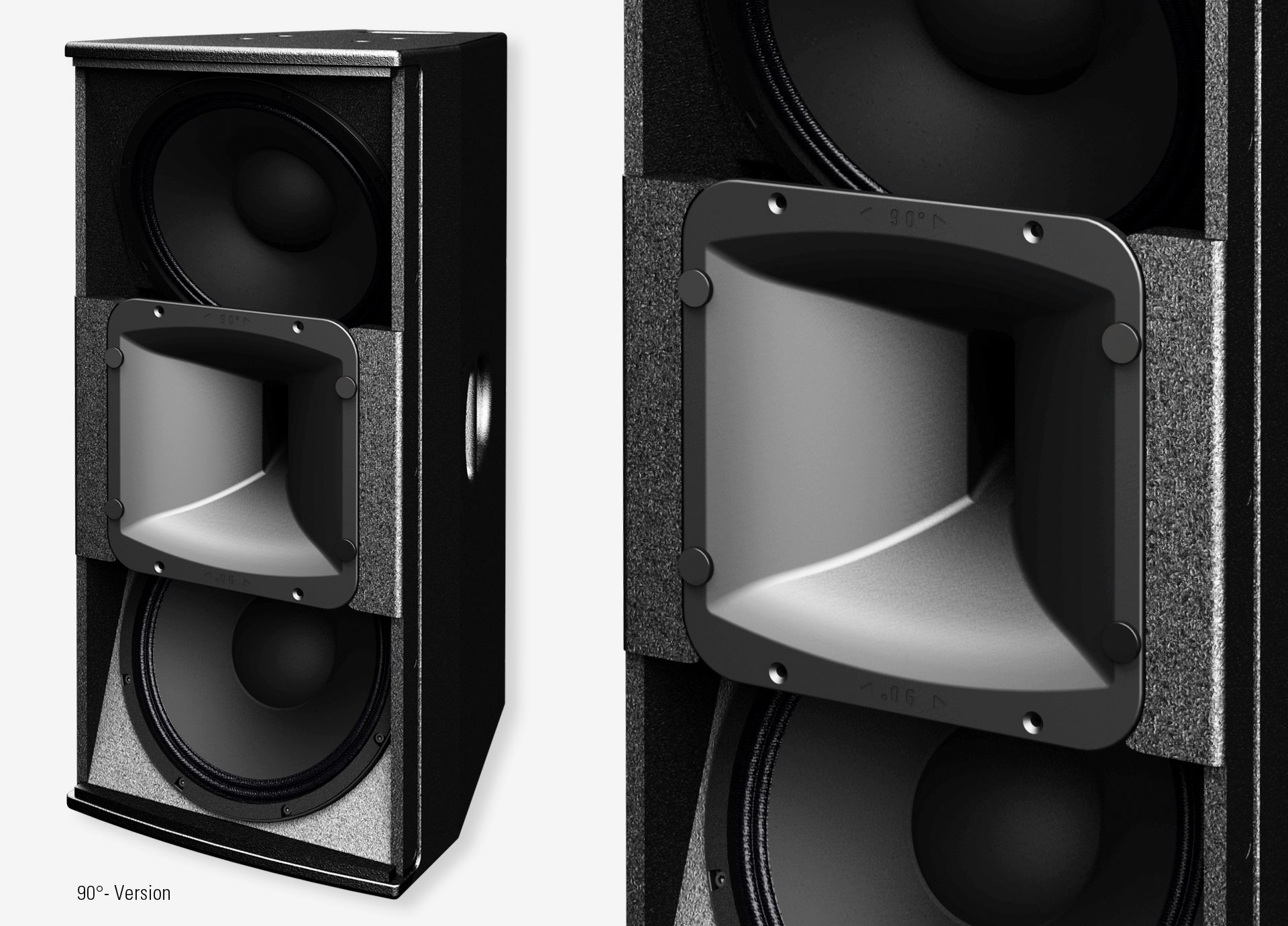

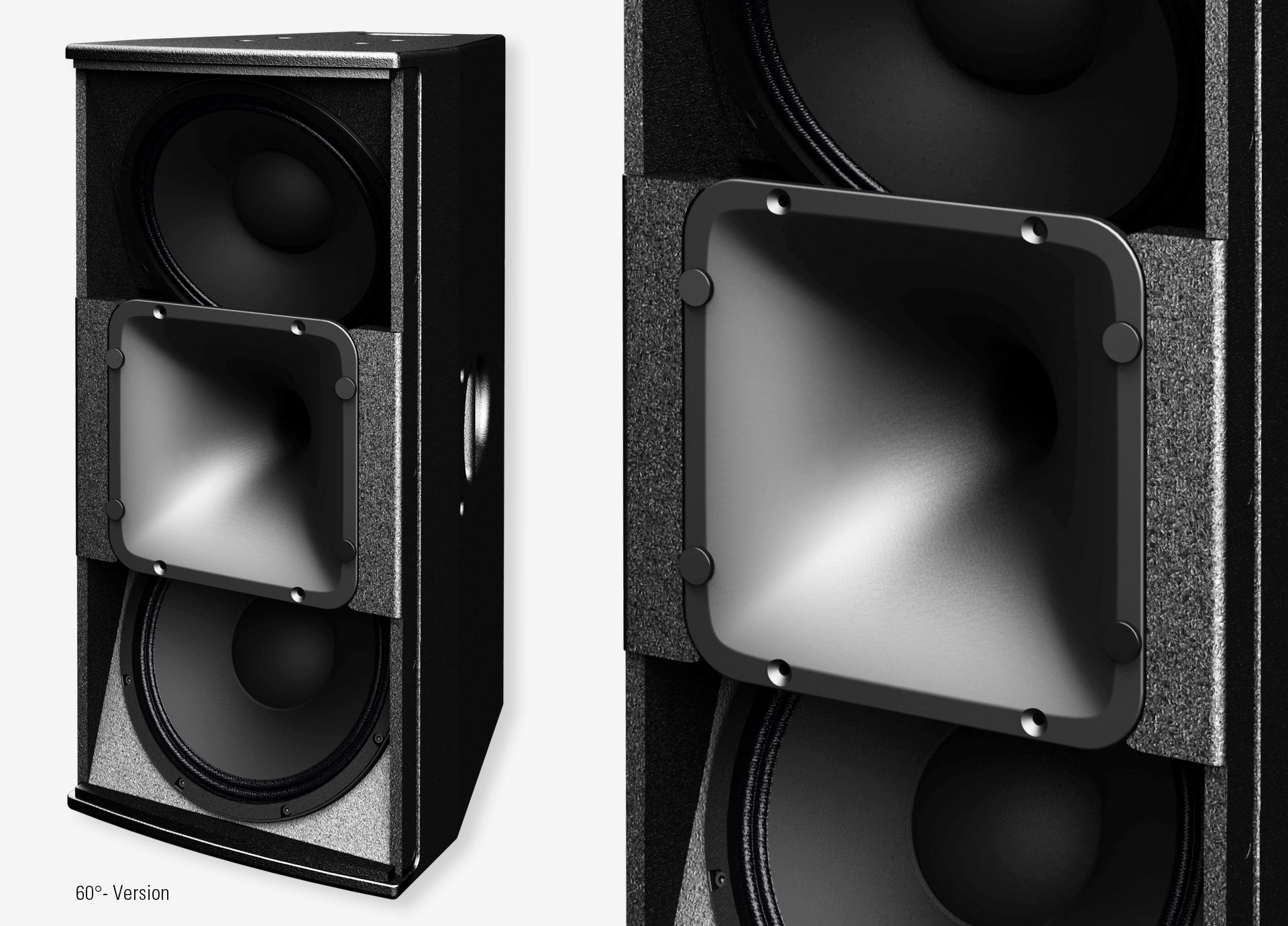

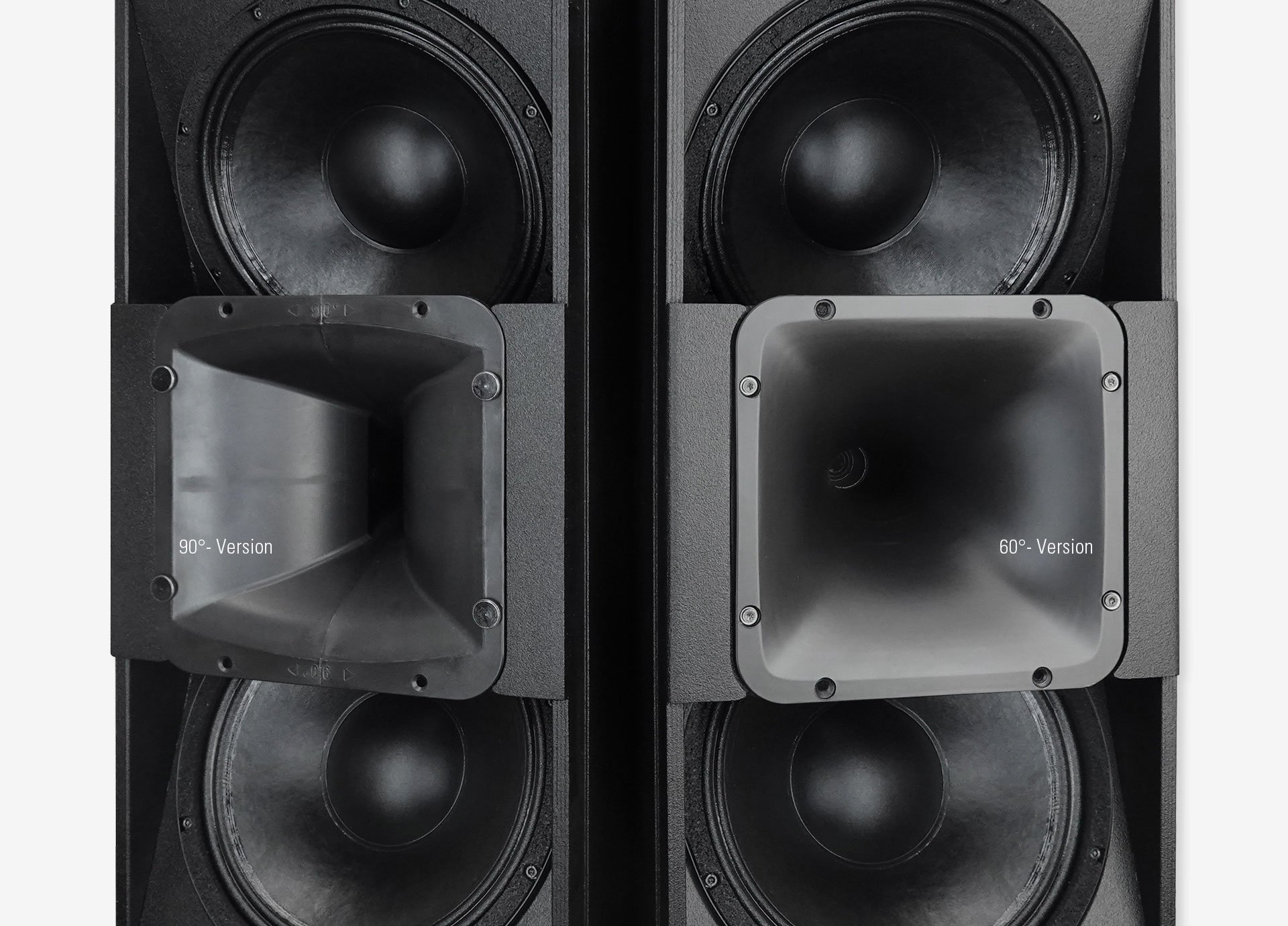

| Coverage horizontal / vertical | 90° x 50° (60° x 50°), rotatable |
| Connectors | 2 x Neutrik Speakon Coding: 1 +/- HiMid, 2 +/- thru |
| Handles | 4 x |
| Rigging / Fittings | 10 x M10 for MultiRigg™/MultiTilt™ 35 mm Pole Mount |
| Weight | 32 kg |
| Size height x width x depth | 77,0 x 36,0 x 46,0 cm |
| Order No. | 01030/90° (90° x 50° Version) 01030/60° (60° x 50° Version) |

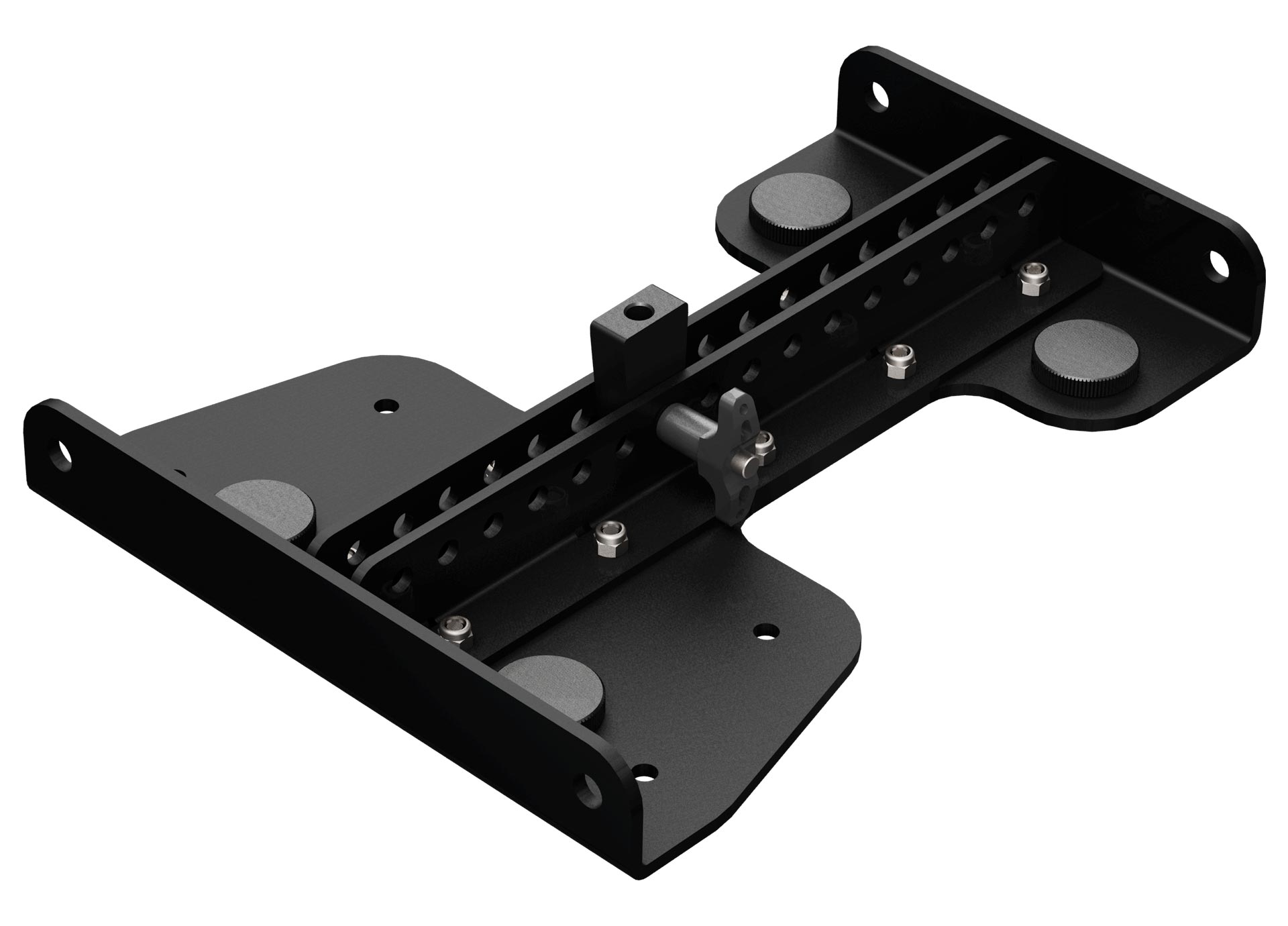

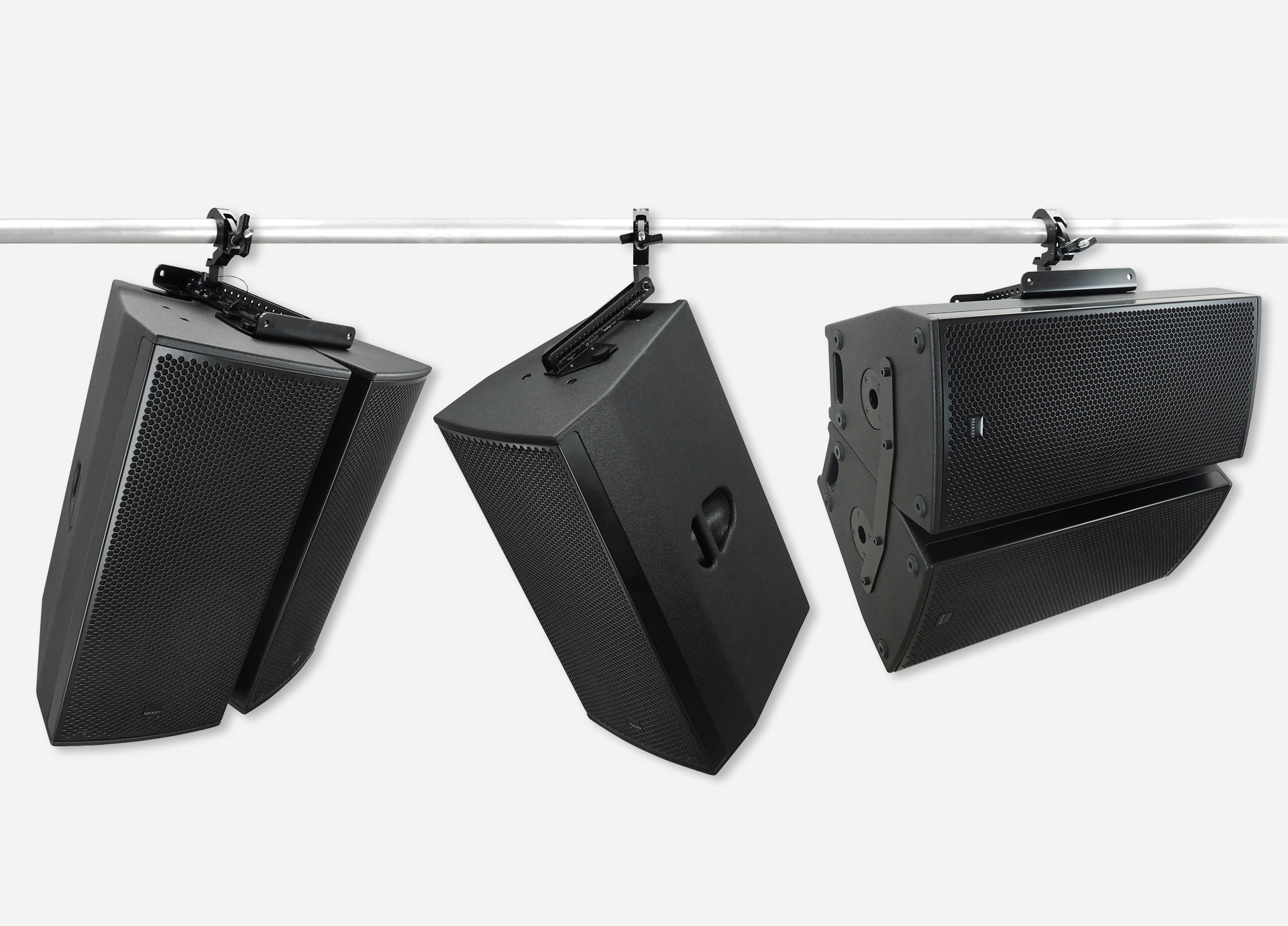

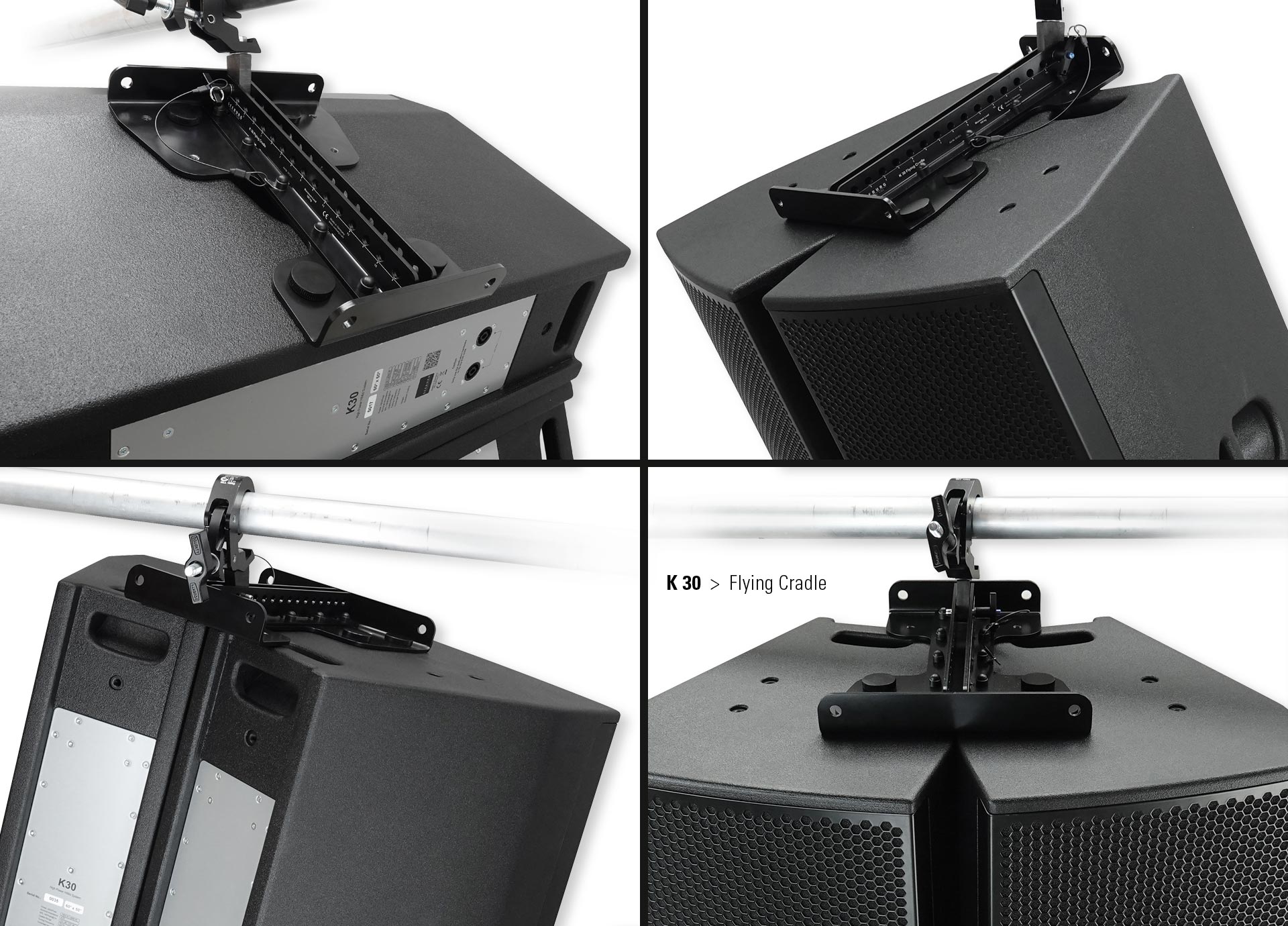

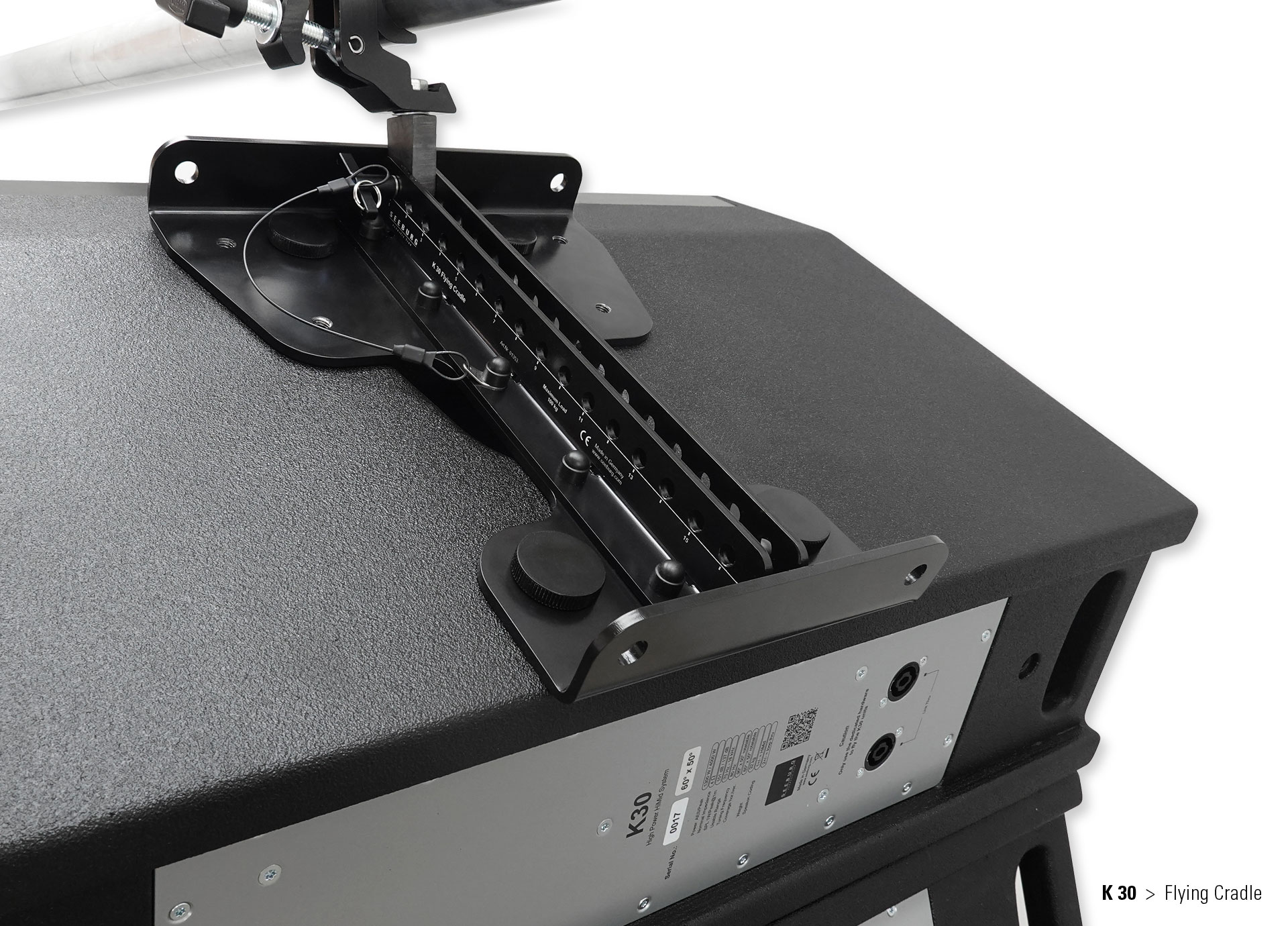

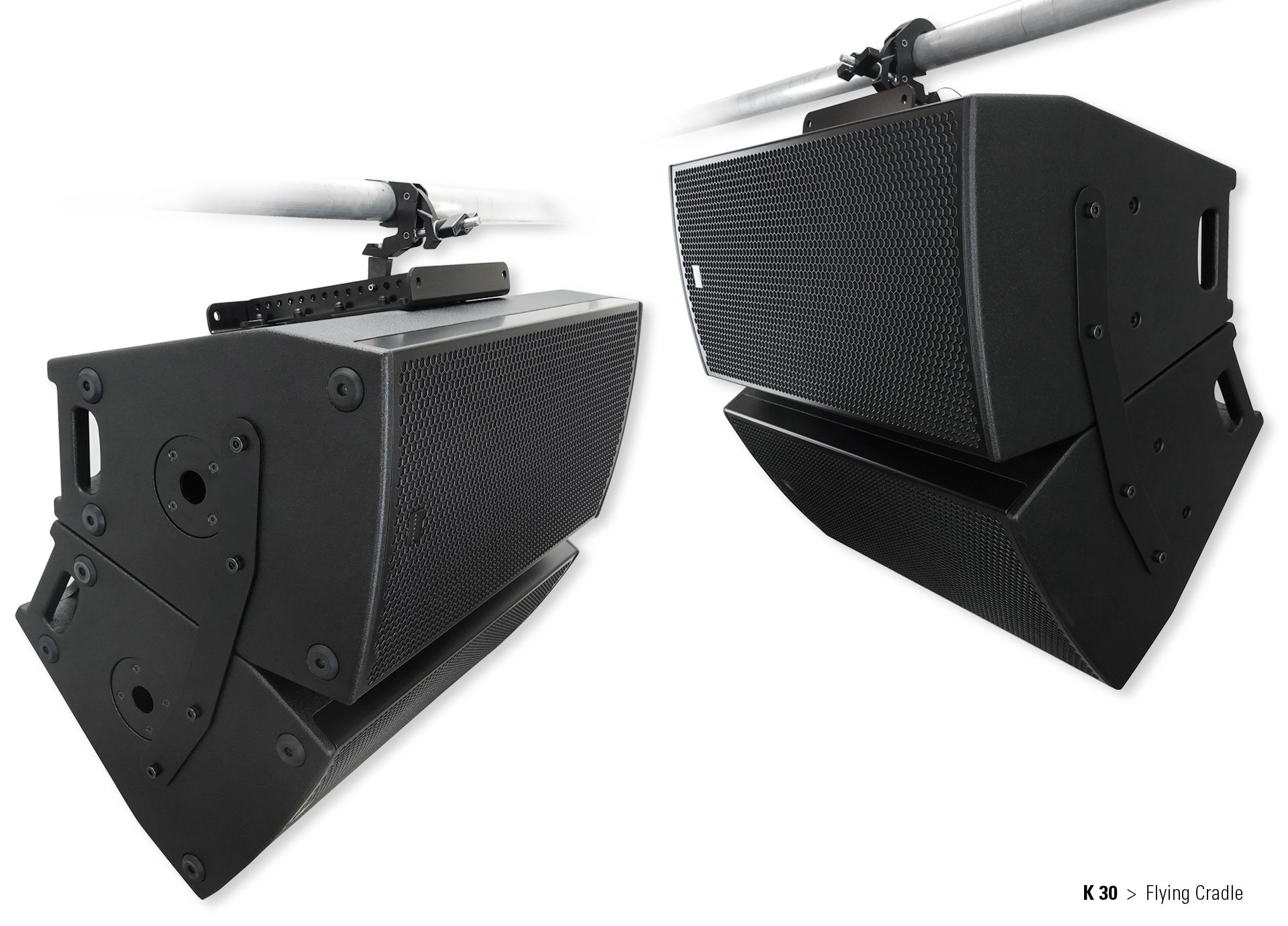

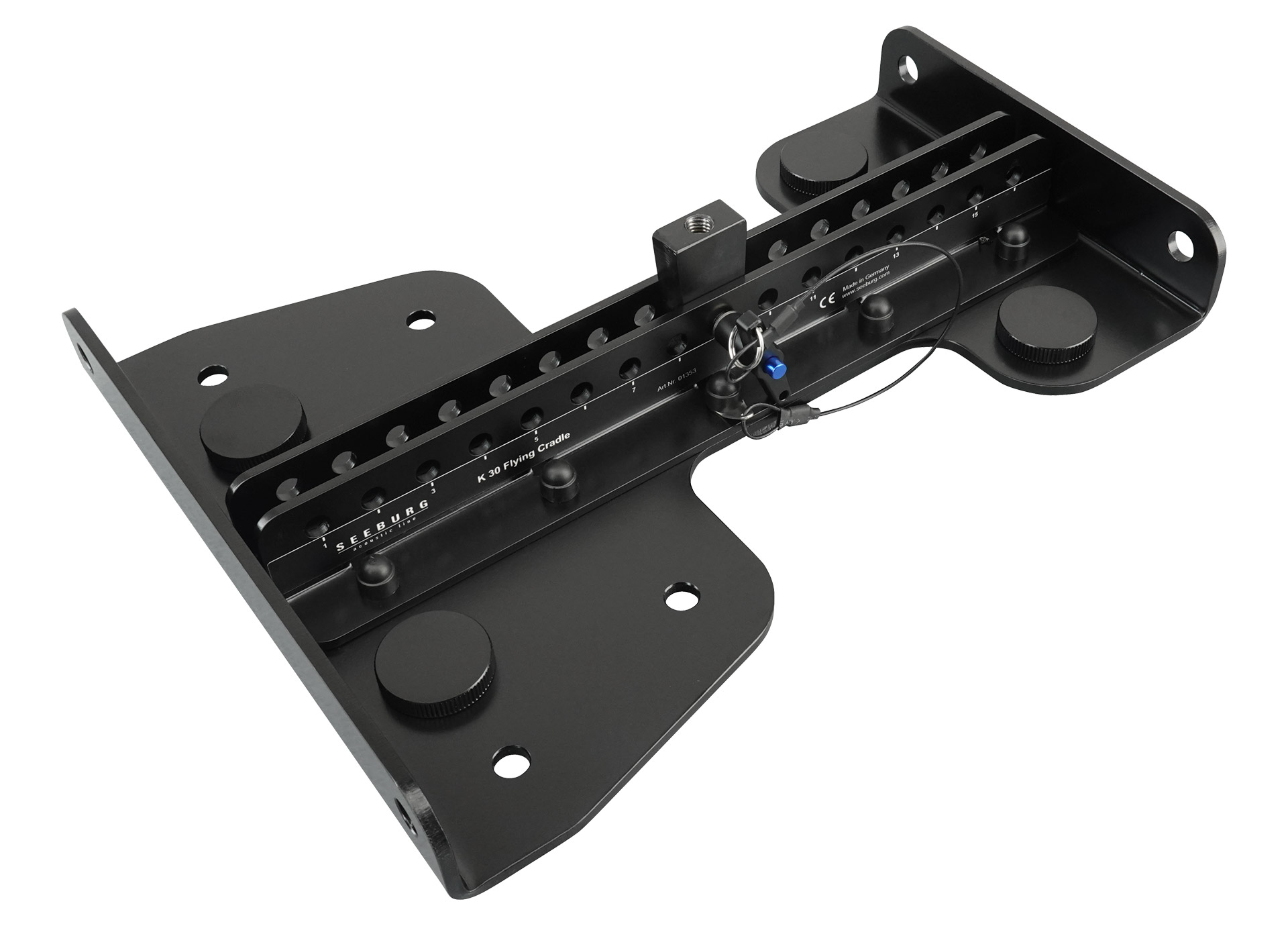

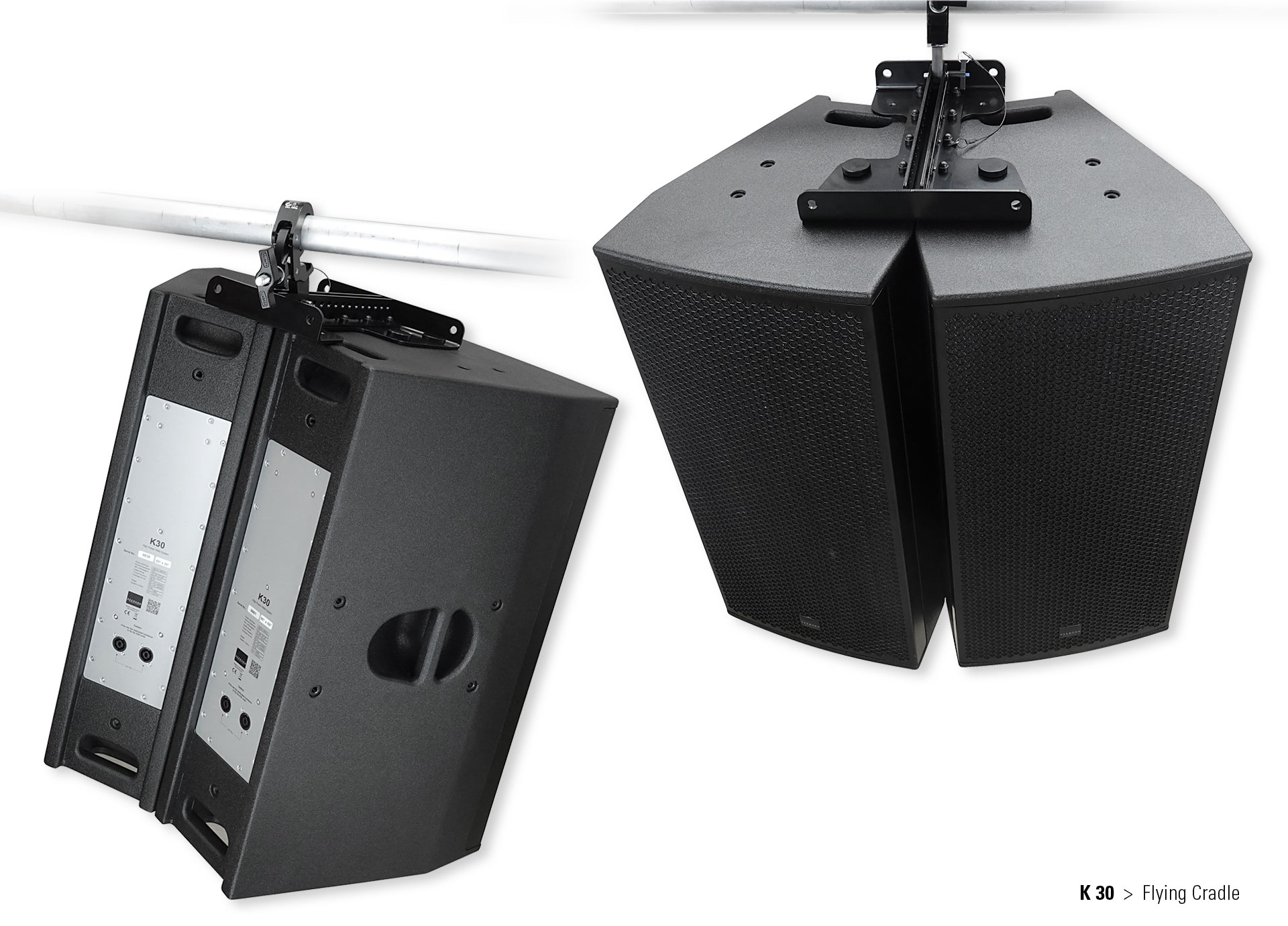

to fly one or two K 30 units,
for horizontal or vertical alignment,
(incl. load adapter M10, 4 x knurled screws M10 x 20 mm)

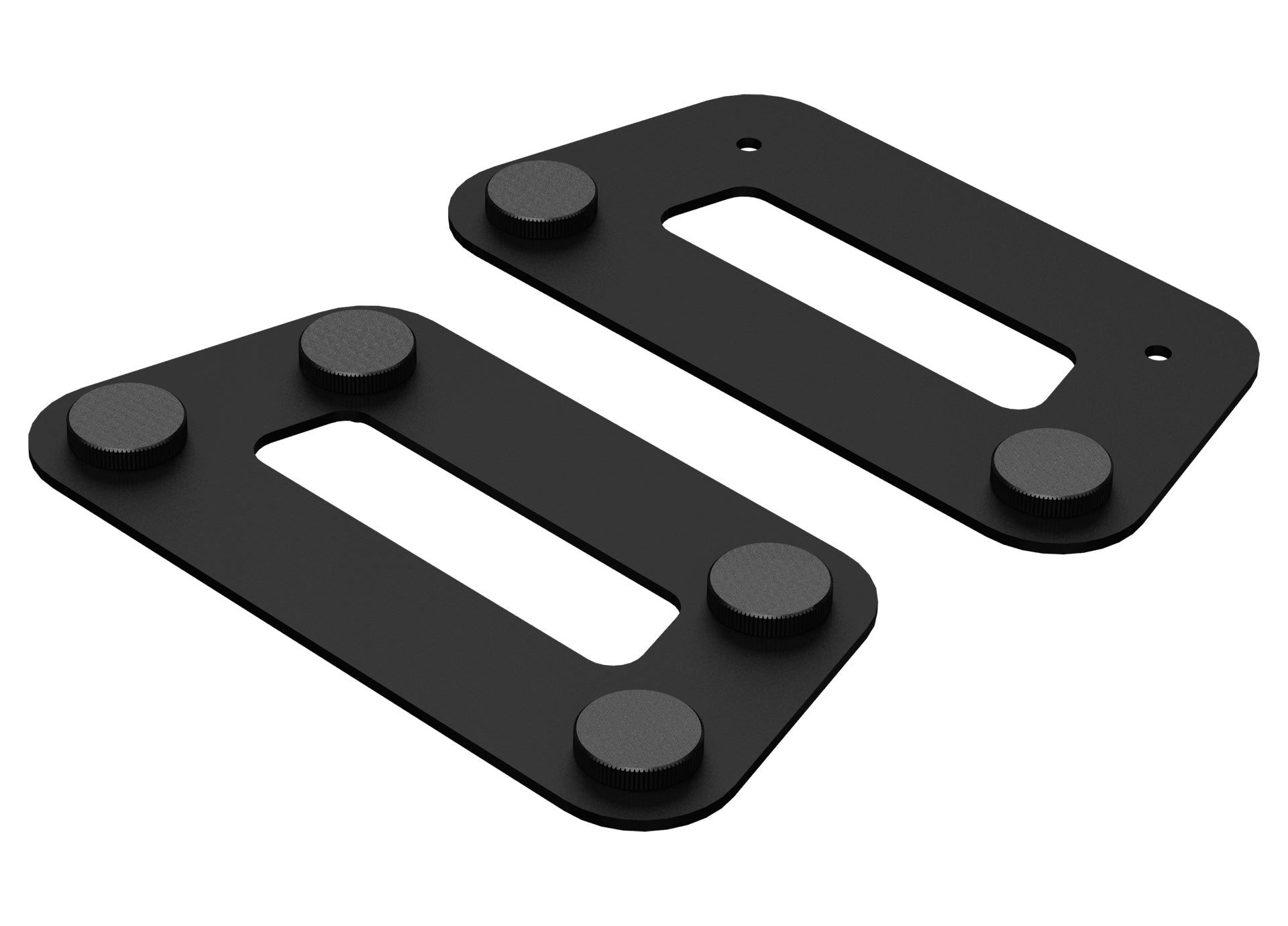

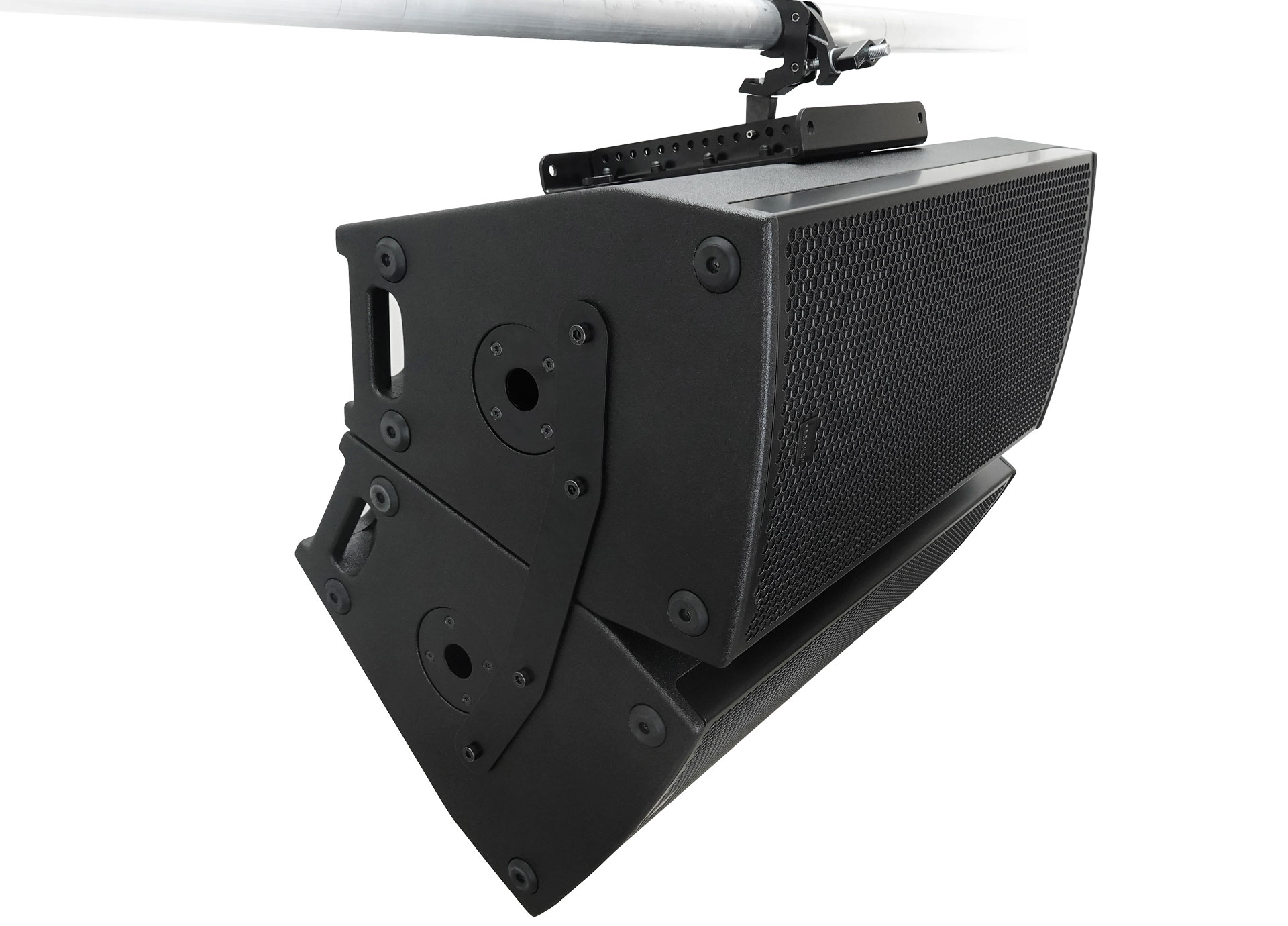

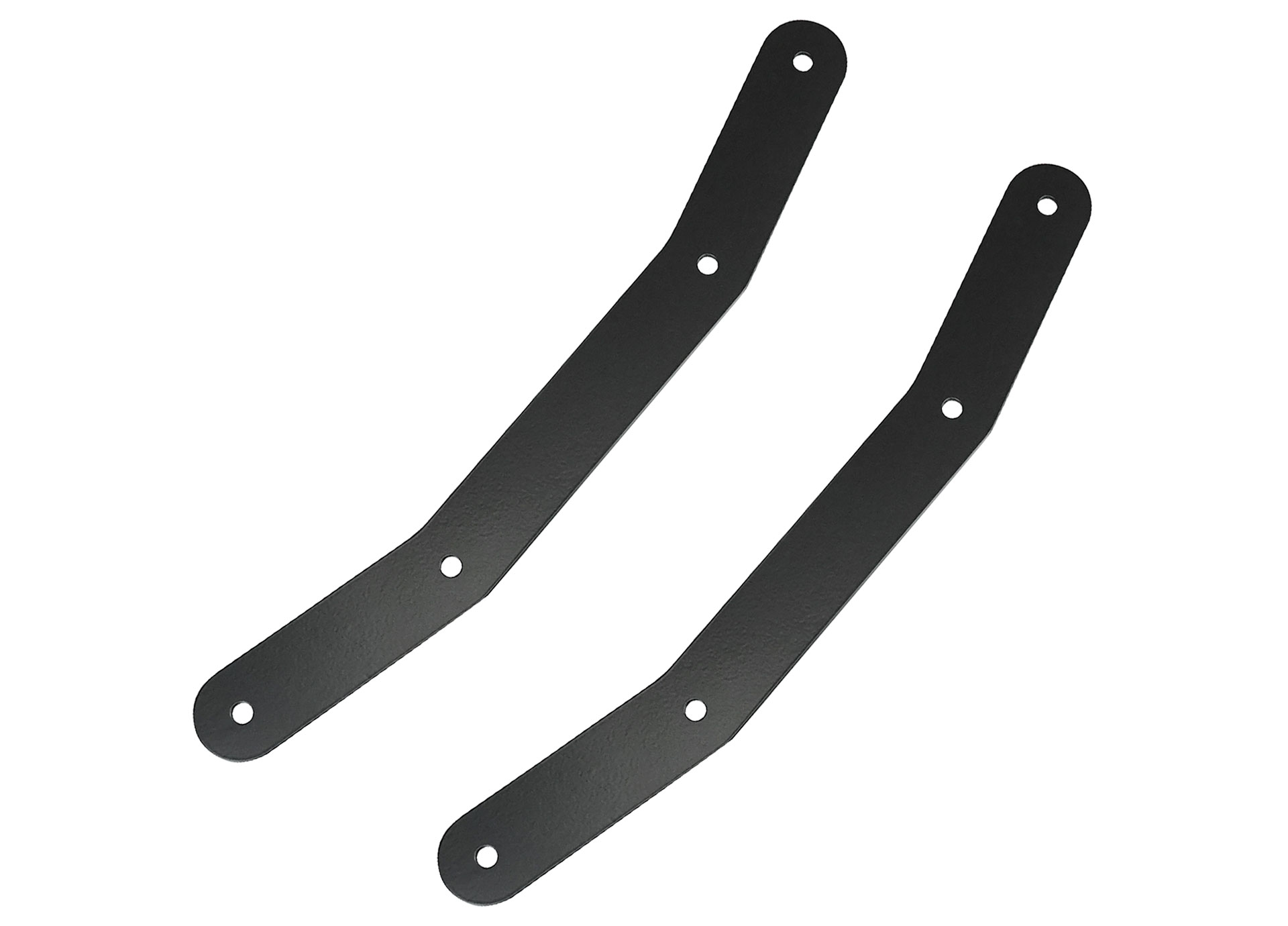

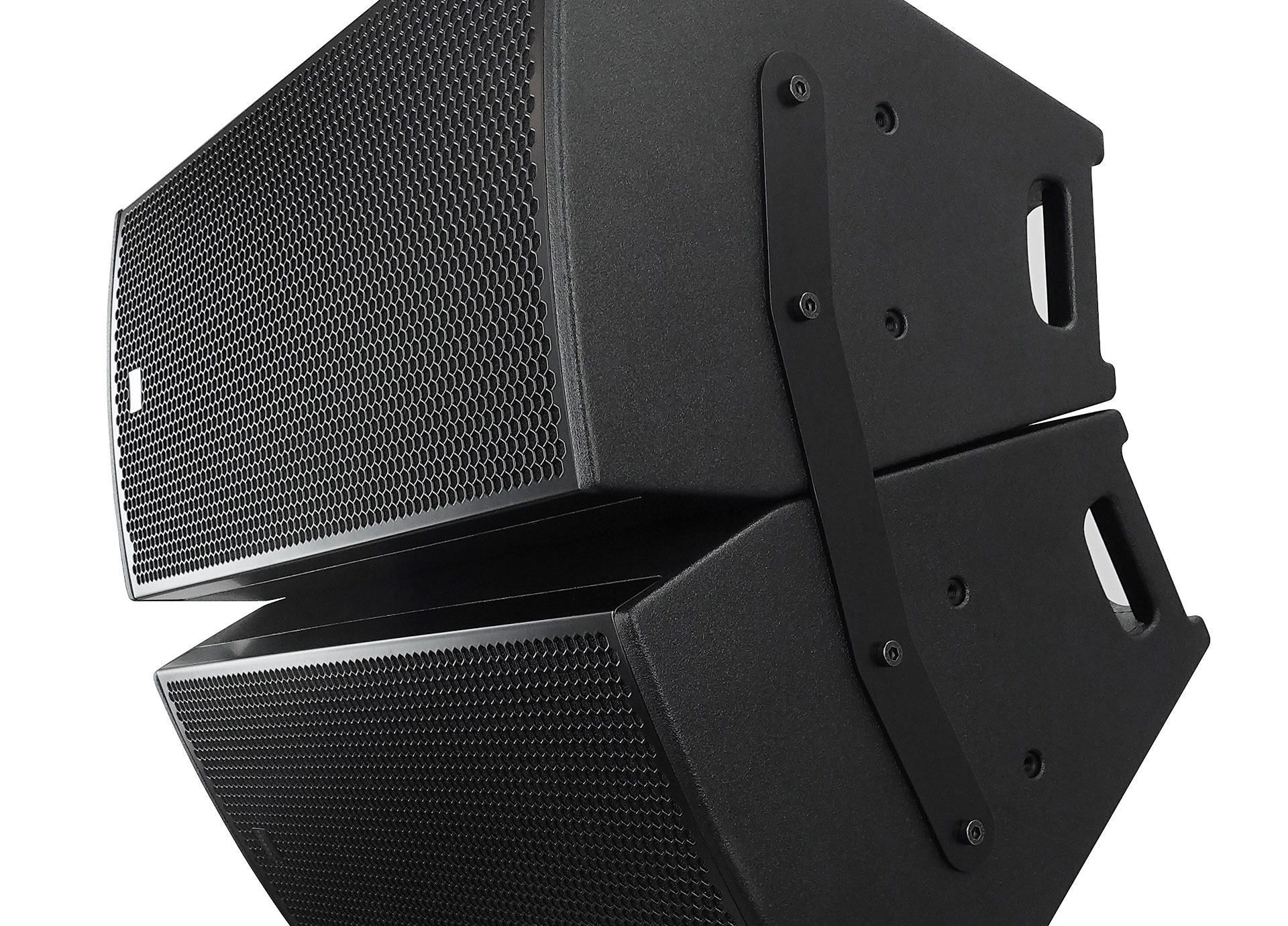

to connect two K 30 units,
(6 x knurled screws M10 x 20 mm)
for flown and ground stacked
applications, (incl. 2 x knurled screws
M10 x 20 mm, 1 x handle screw
M8 x 55 mm), max. load 50 kg
for fixed installations,
(incl. 2 x socket head screws
M10 x 20 mm),
max. load 50 kg
(incl. load adapter M10,
2 x knurled screws M10 x 20 mm),
max. load: 50 kg
Tilt adapter with adjustable tilt
from 0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
(incl. 2 x knurled screws M10 x 20 mm),
max. load 50 kg
for Galeo C / C-Series / K 24 / K 30,
to be used with FD34 / FD33 truss,
minimum truss length: 0,21 m
consisting of base plate with M20
and tilt adjuster (incl. socket head screw M20 x 30 mm),
weight: 13,5 kg, max. load 150 kg
M10 x 20 mm
Order No. 73750/w (RAL 9010)
max. load 100 kg
Order No. 01223/100kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
M10 internal thread,
28 mm ø
8 mm x 600 mm,
quick connector undetachably,
max. load 40 kg (BGI 810-3)
Order No. 01376/8
bar: 400 mm,
(incl. socket head screw M10 x 70,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/400/w (RAL 9010)
bar: 269 mm,
(incl. socket head screw M10 x 70 mm,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/269/w (RAL 9010)
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)

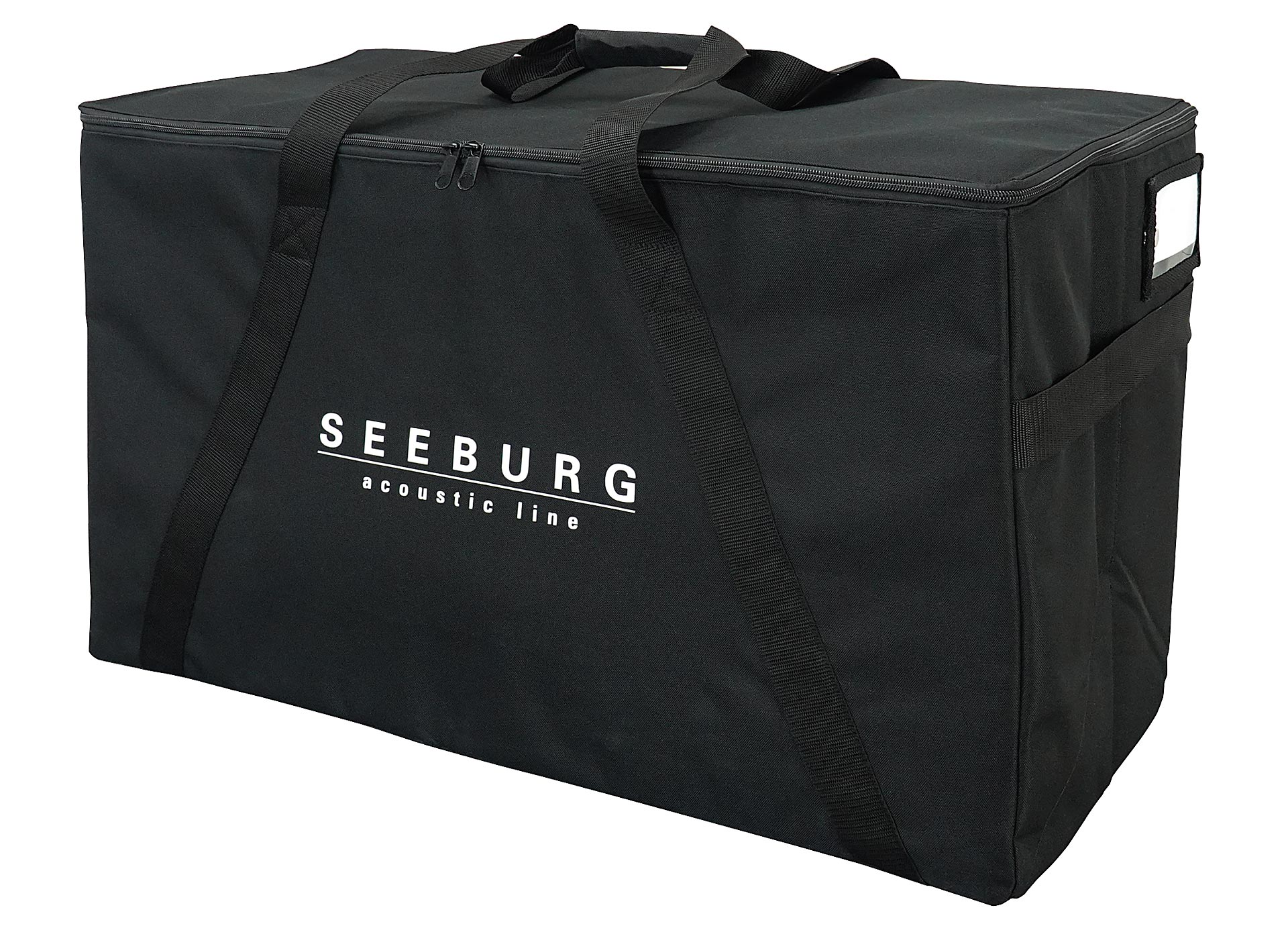

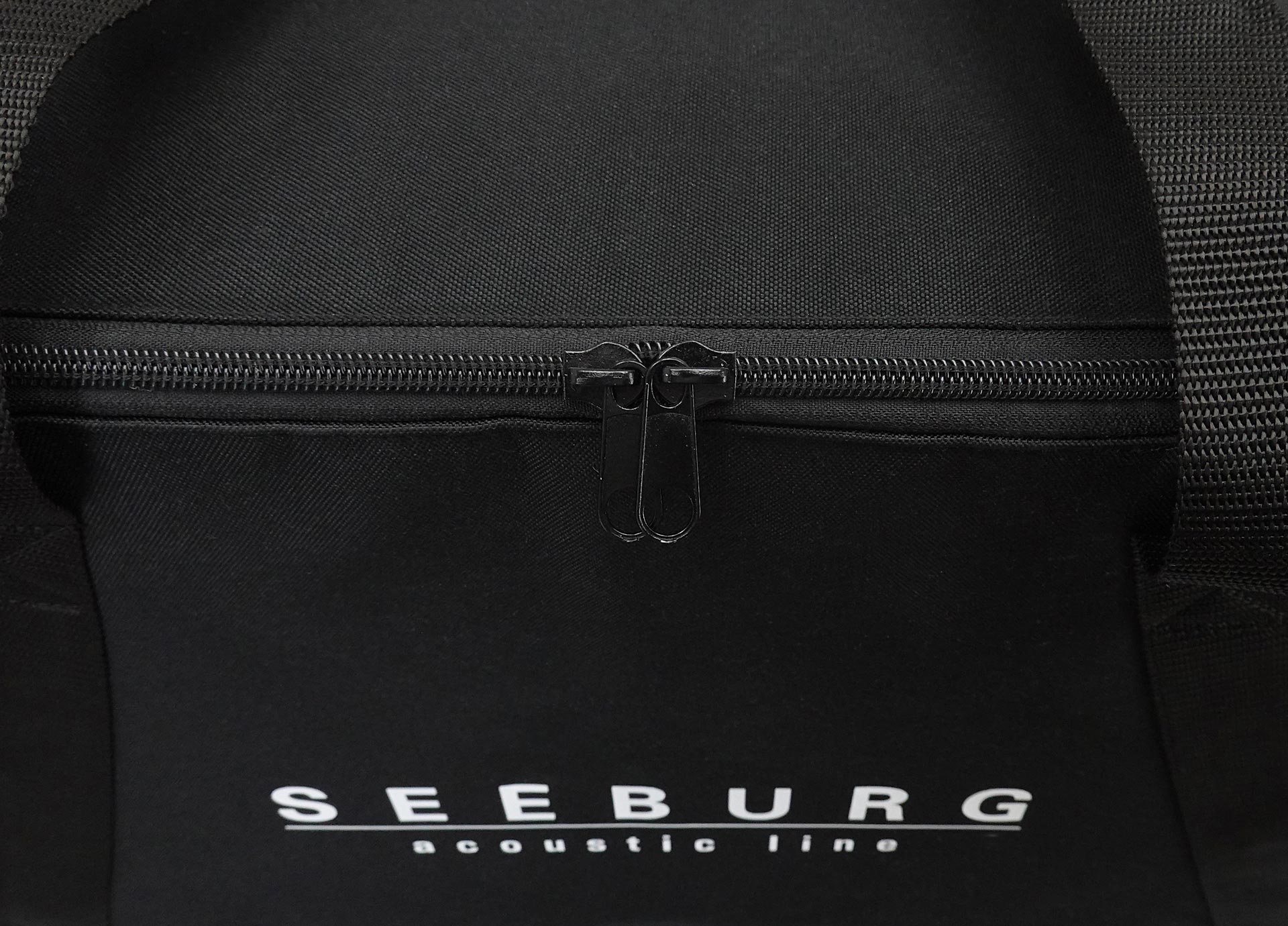

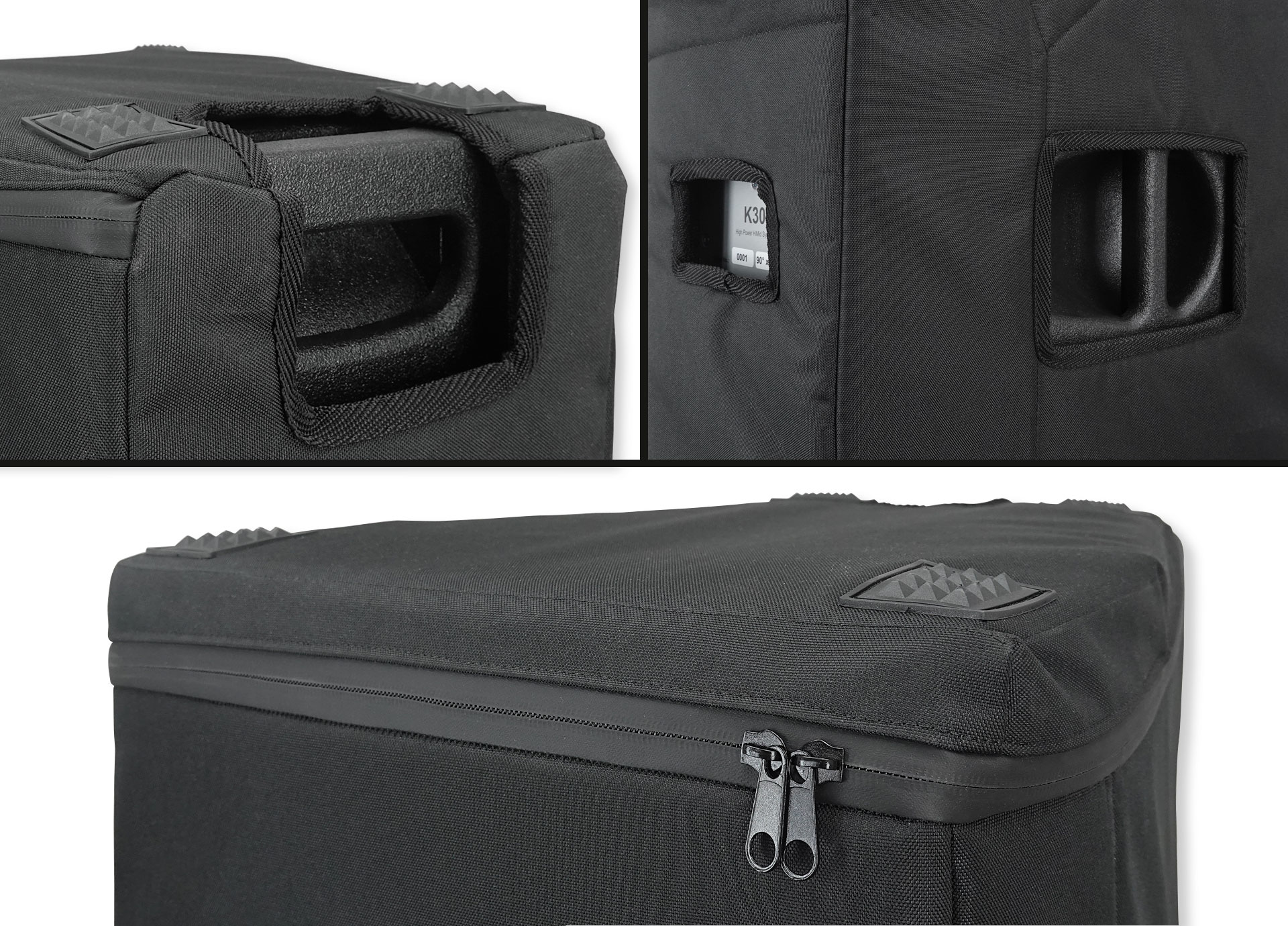

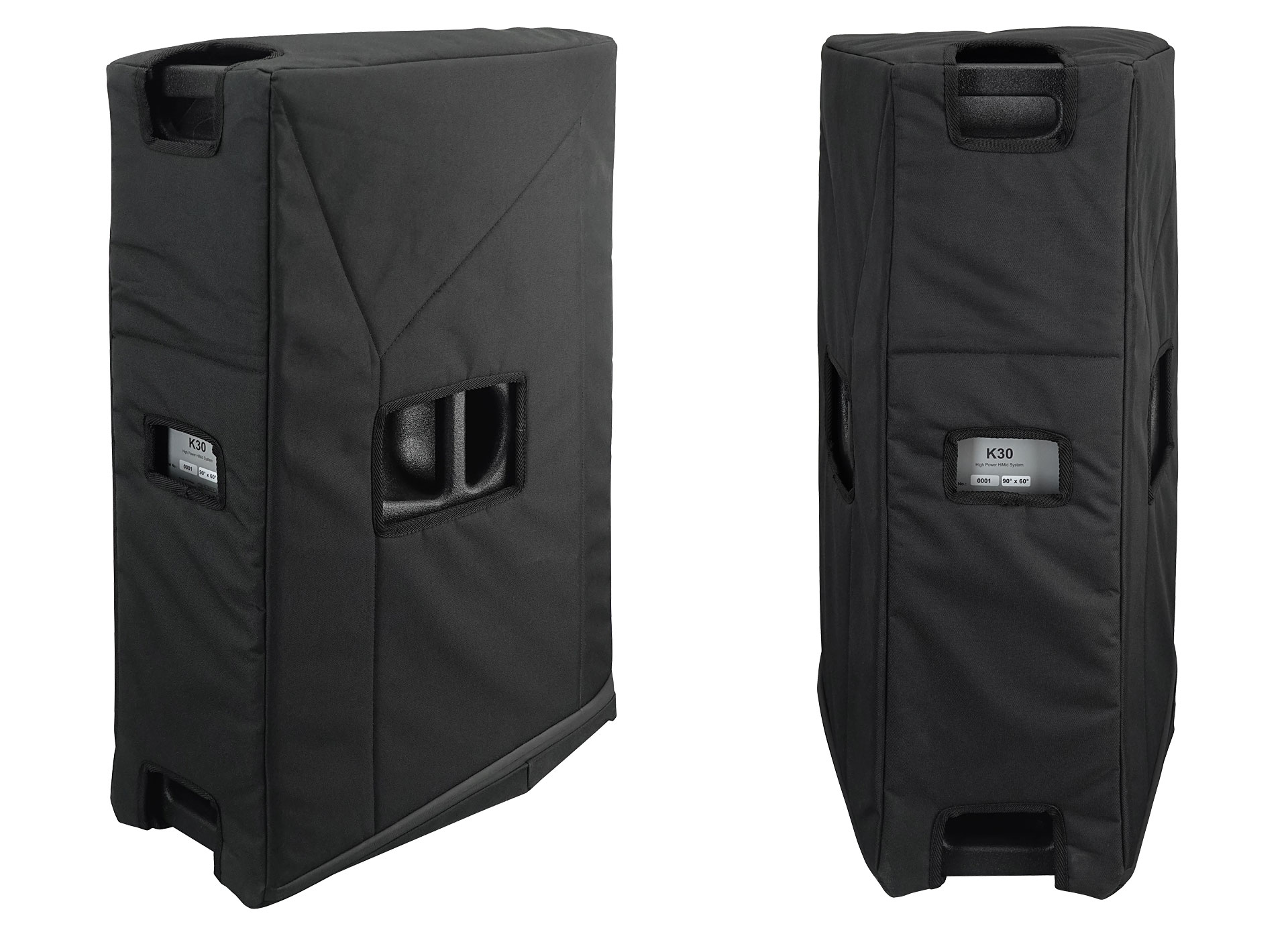

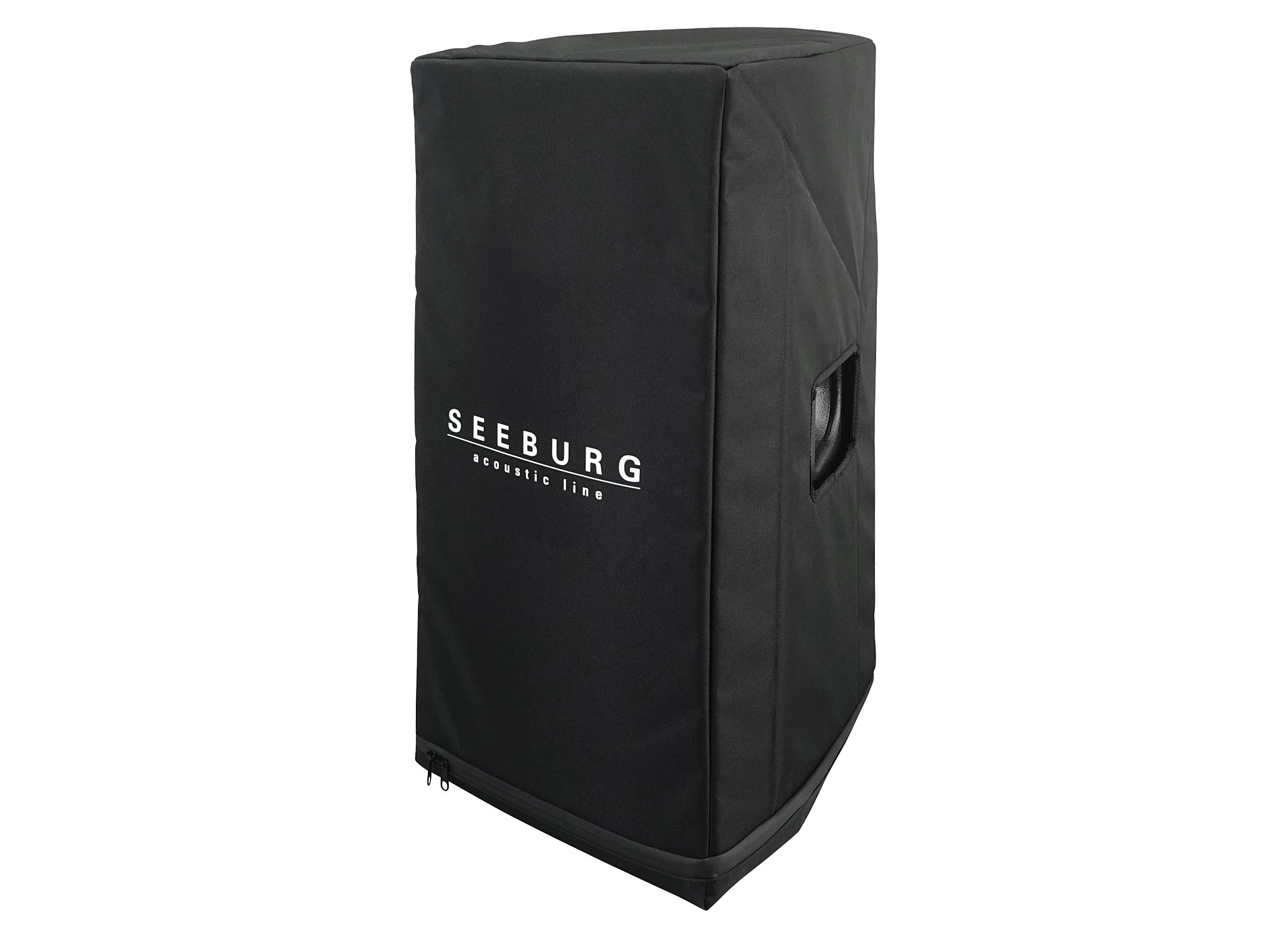

for 1 x K 30, with two-way zip,
padded, incl. label pocket

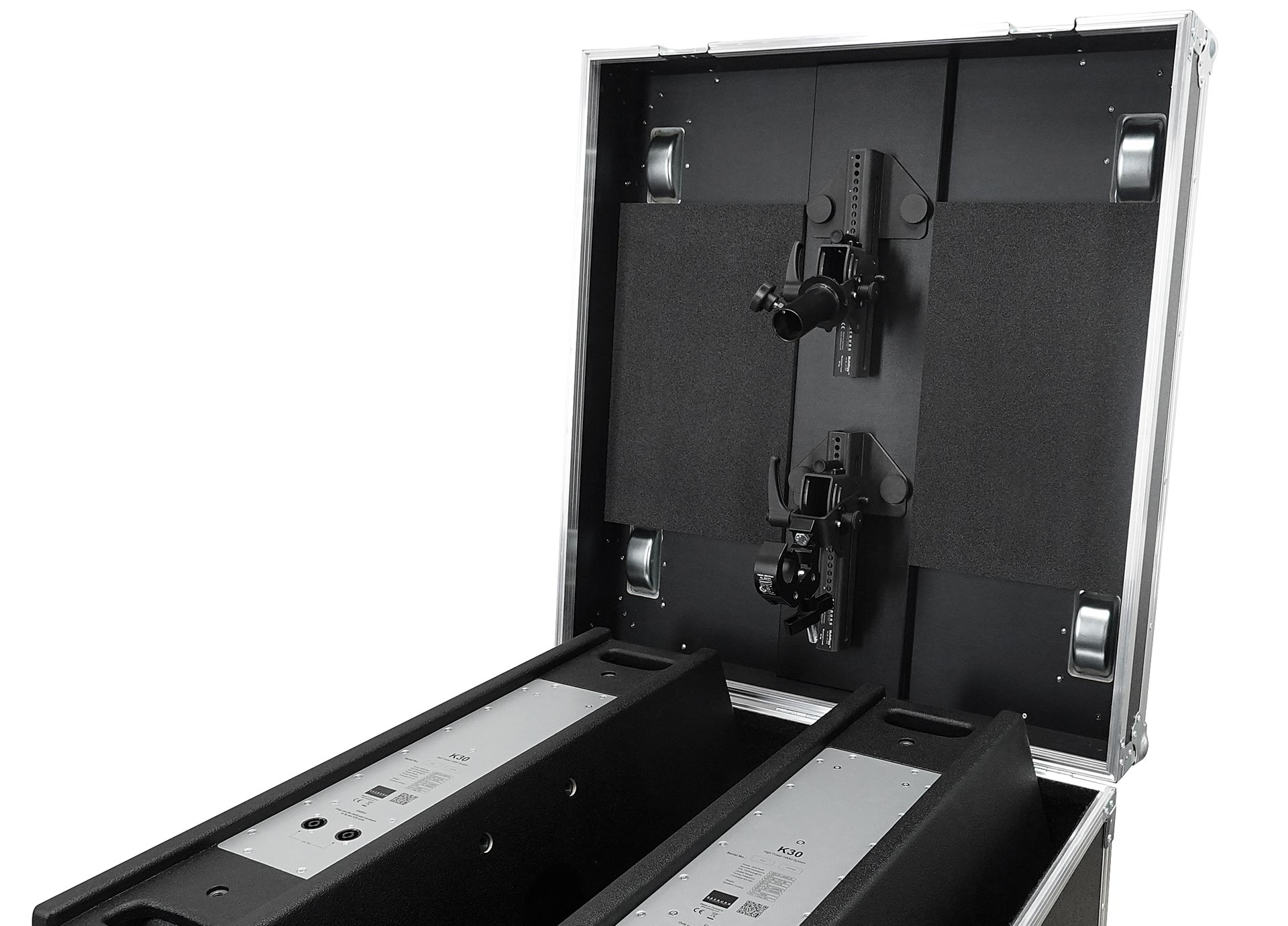

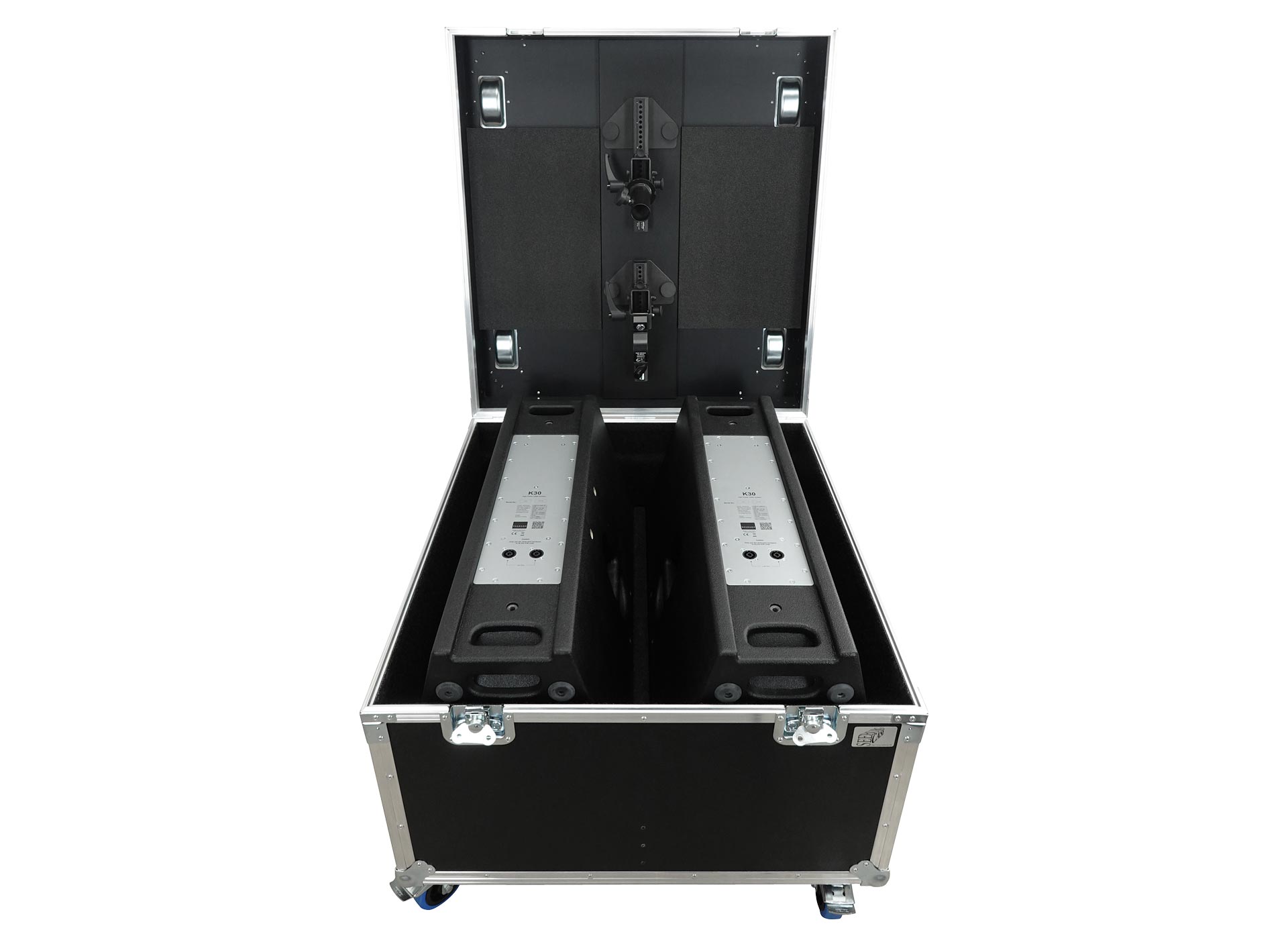

for 2 pcs. K 30,
mounting option for MultiRigg /
MultiTilt in the lid, partition wall,
interior lined with felt, PVC coated black,
4 x stacking recesses, 4 x 100 mm blue wheels (2 pcs. with brake)
Size: 80 x 84 x 66 cm (W x D x H), 37 kg
