K 20 High Power HiMid System

K 20

01024/90°

90° x 60°
800 W
4 Ω

01024/60°

60° x 50°
as above

01024dp/90°

Selfpowered Version,
90° x 60°
1000 W LF/350 W HF AES

01024dp/60°

Selfpowered Version,
60° x 50°
as above
Downloads
Datasheet K 20
Datasheet K 20 dp
User Manual K 20
Quick Start Manual
dp-systems
Quick Start Guide SEEBURG Network Manager-AES67
3D-Files
Simulation Data
Product Pictures

The construction principle of the high powered K 20 mid-high cabinet allows for flexibility of use in horizontal or vertical orientations. Optimised placement of the 2 x 10“ / 1.4“ drivers in relation to one another ensures a very precise phase and coverage characteristic.
For installation applications, the universal MultiRigg™ be used to mount the system.
2 different horn forms are available to better cover various Sound Reinforcement situations.

The K 20 is available in a self-powered version, and in a version with a passive crossover.

Applications
Specifications
  K 20
K 20 dp
Speaker Components 2 x 10“ Nd / 1,4“ Nd 2 x 10“ Nd / 1,4“ Nd
Description High Power HiMid System Digitally Powered HiMid System
Power AES / Peak 800 W / 2400 W - - -
Amp Power   AES
- - - LF: 1000 W / 110-230 V
HF: 350 W / 110-230 V
Impedance nominal 4 Ω - - -
Rated Current - - - 1,8 A @ 230 V
SPL 1 W / Peak @ 1 m
100 dB / 134 dB - - -
SPL Peak @ 1 m - - - 134 dB
Max. Input Signal - - - 25 dBu
DSP - - - DPLMx FPGA Processing 32 bit floating point
AD / DA - - -  24 bit / 96 kHz
Latency - - -  0,8 ms (analog in to analog out)
Usable Range
70 Hz - 18 kHz (-6 dB) 70 Hz - 18 kHz (-6 dB)
Tuning Frequency excursion minimum

80 Hz

80 Hz
X - Overpoint acoustical 900 Hz Depends on preset
Coverage horizontal / vertical
90° x 60° (60° x 50°), rotatable 90° x 60° (60° x 50°), rotatable
Max. Splay Angle - - - - - -
Connectors

2 x Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru

XLR in/thru,
Ethercon,
Powercon in/thru
Handles 2 x 2 x
Rigging / Fittings
10 x M10 for MultiRigg™/MultiTilt™
35 mm Pole Mount
10 x M10 for MultiRigg™/MultiTilt™
35 mm Pole Mount
Weight 22,5 kg 22 kg
Size height x width x depth 66,0 x 30,0 x 36,0 cm 66,0 x 30,0 x 36,0 cm
Order No. 01024/90° (90° x 60° Version)
01024/60° (60° x 50° Version)
01024/dp/90° (90° x 60° Version)
01024/dp/60° (60° x 50° Version)
Accessories
x

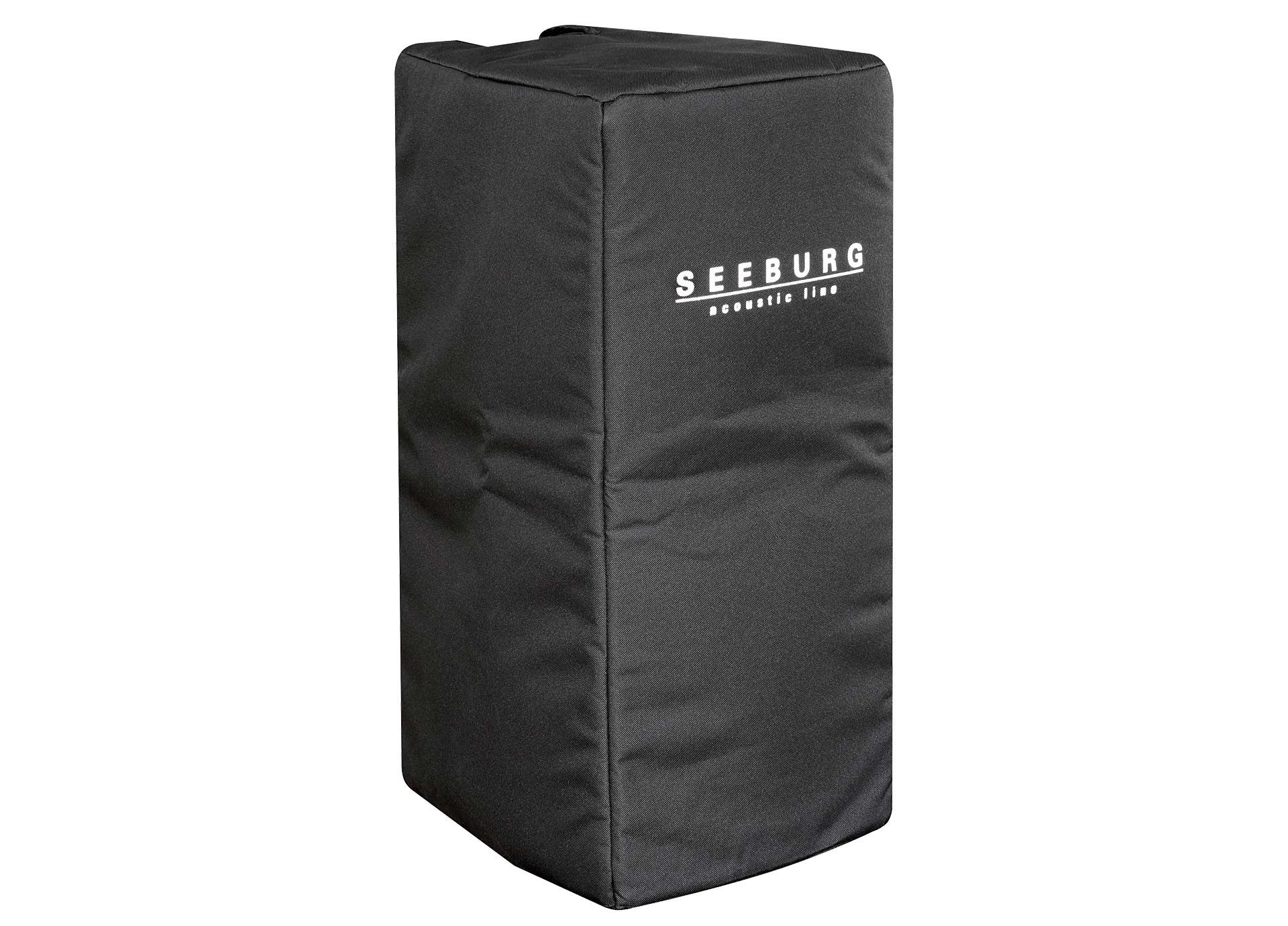

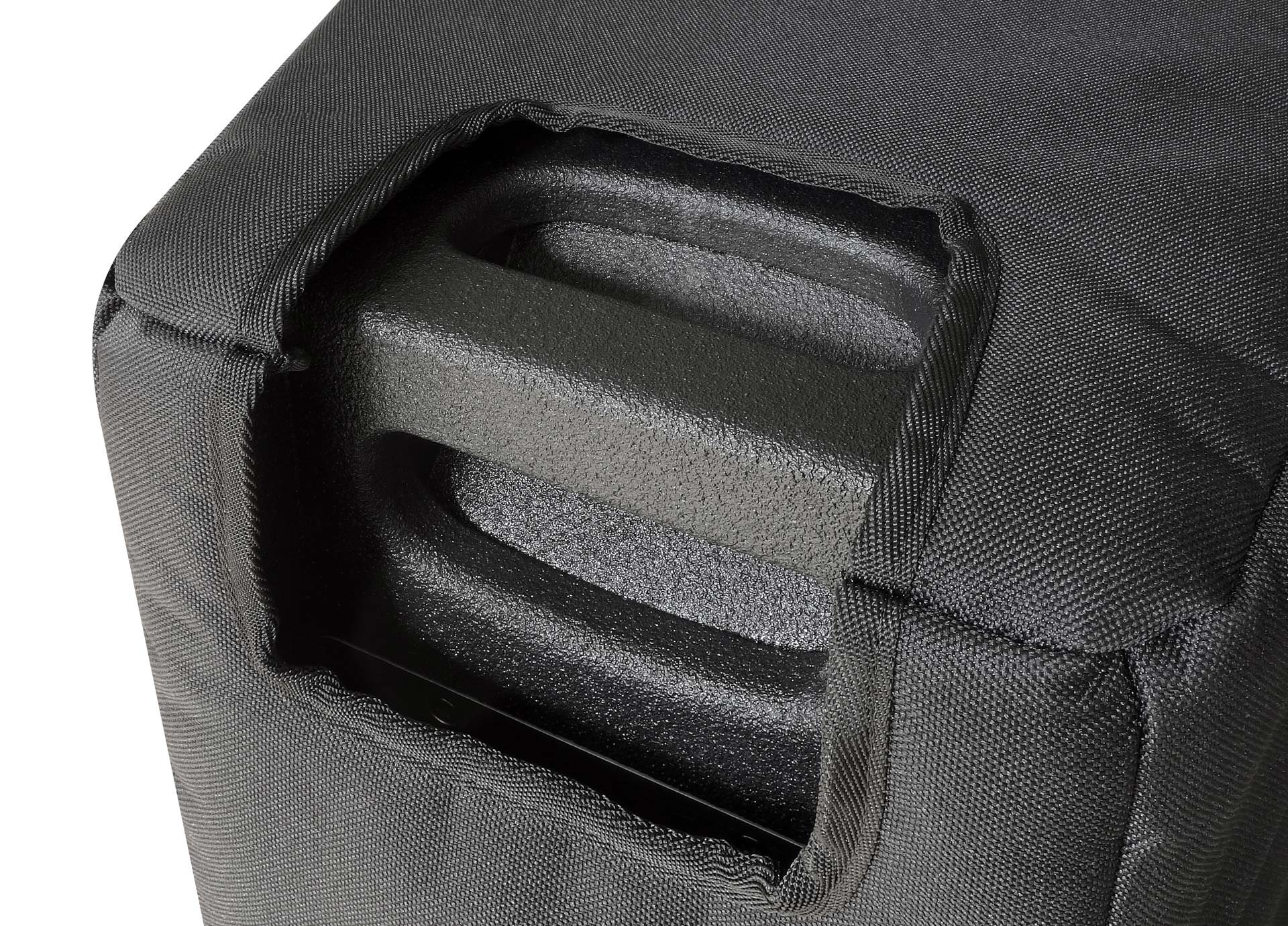

Cover

for K 20, padded

Order No. 01253
Flying Bracket

for K 20, horizontal alignment,
incl. (4 x M10 x 20 socket head screws)

Order No. 01208/H
x

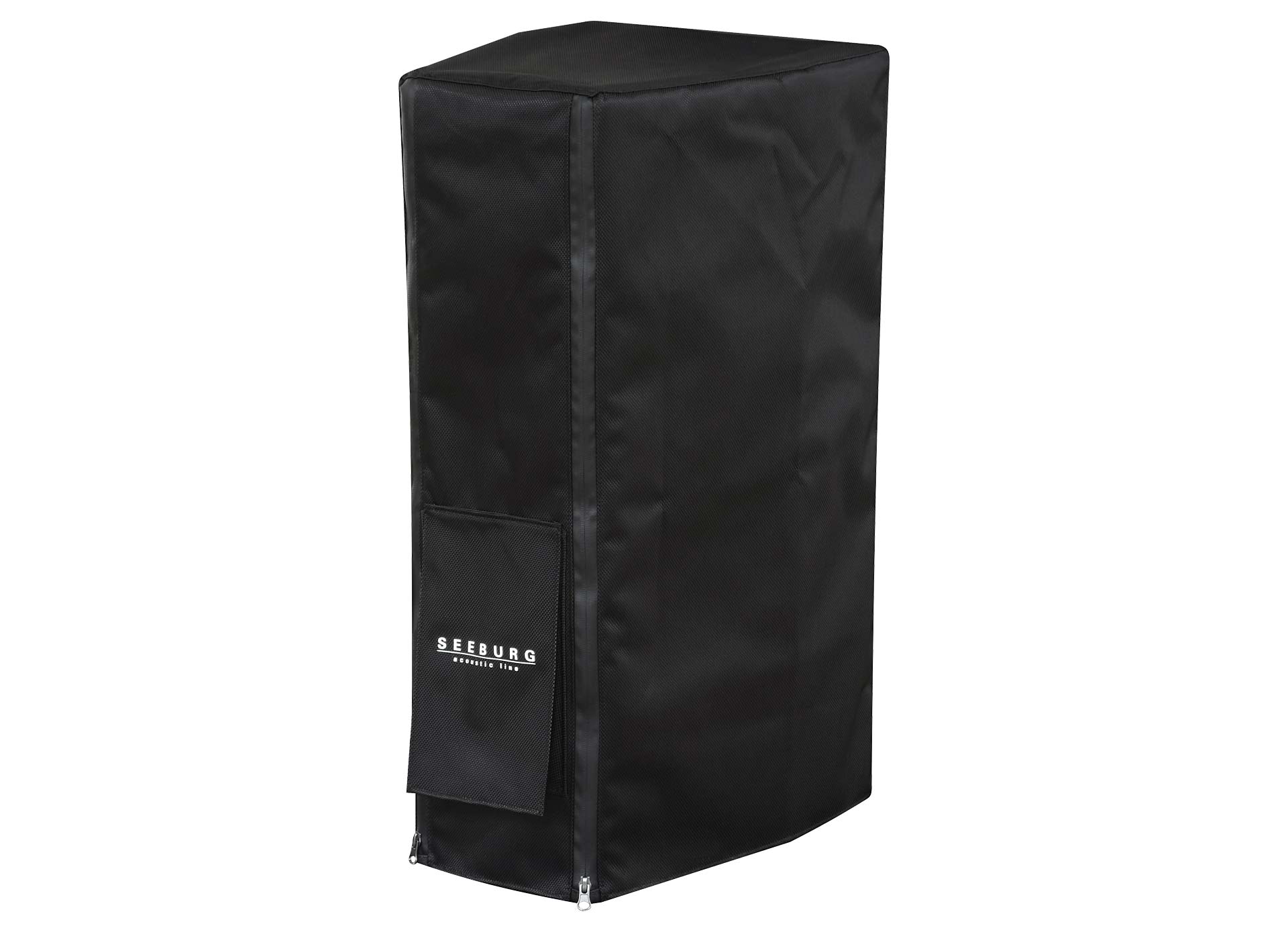

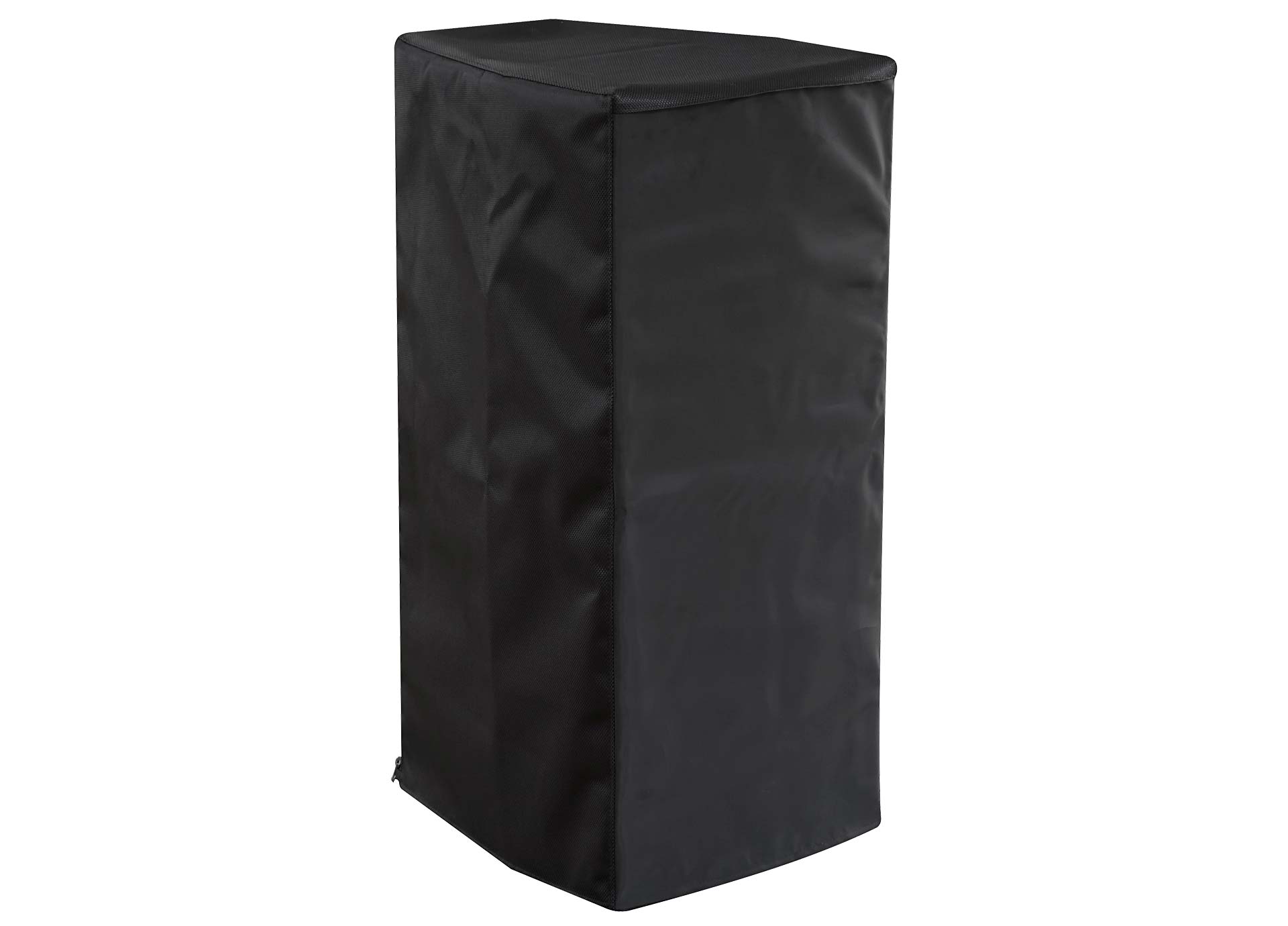

Rain Cover

for K 20

Order No. 01253/RC
x
Flight Case

for 2 pcs. K 20 and accessories,
heavy duty, 9 mm birch multiplex,
PVC coated, 6 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, inserts for accessories, interior lined with felt

Order No. 16031
MultiRigg™

swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg

Order No. 01360
x
MultiRigg™ light

version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg

Order No. 01362
x
MultiTilt™

Tilt adapter with adjustable tilt from
0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
2 x knurled screws (M10 x 20 mm),
max. load 50 kg

Order No. 01370
x
Knurled Screw

M10 x 20 mm

Order No. 73750/w (RAL 9010)

Order No. 73750
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126/w (RAL 9010)

Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

Order No. 08126/II
x
Connector

K 20 -> K 20, max. load 75 kg
incl. accessories
(black version:
6 x M10 x 18 mm knurled screws
white version:
6 x M10 x 20 mm socket head screws)

Order No. 08157/set/w (RAL 9010)

Order No. 08157/set
x
Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
x
Steel Safety

8 mm x 600 mm,
max. load 40 kg (BGI 810-3),
quick connector undetachably



Order No. 01376/8
Wall Mount

bar: 400 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/400/w (RAL 9010)

Order No. 08130/F/400
Wall Mount

bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/269/w  (RAL 9010)

Order No. 08130/F/269
x
Speaker Stand

incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

Order No. 03011
