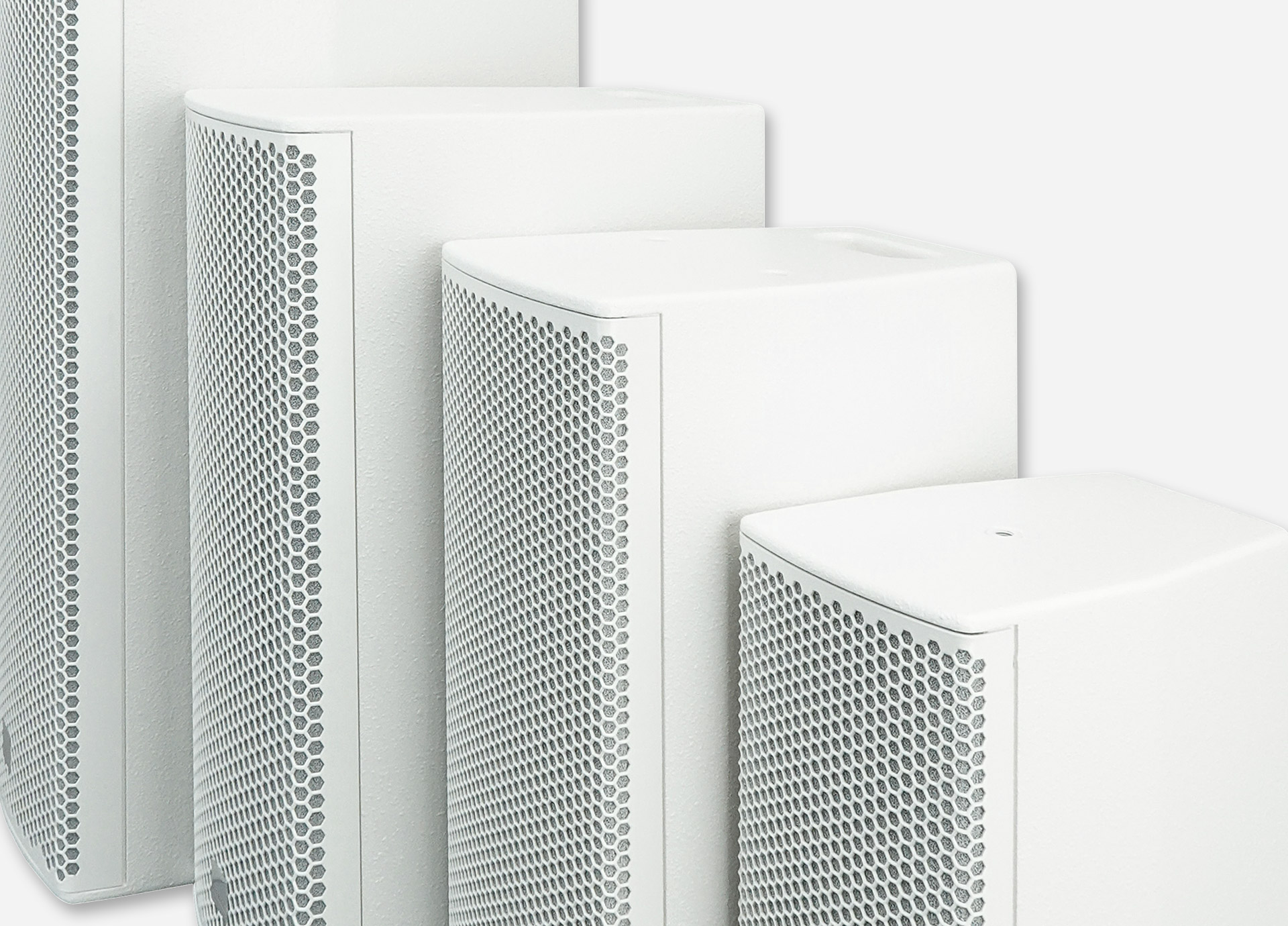

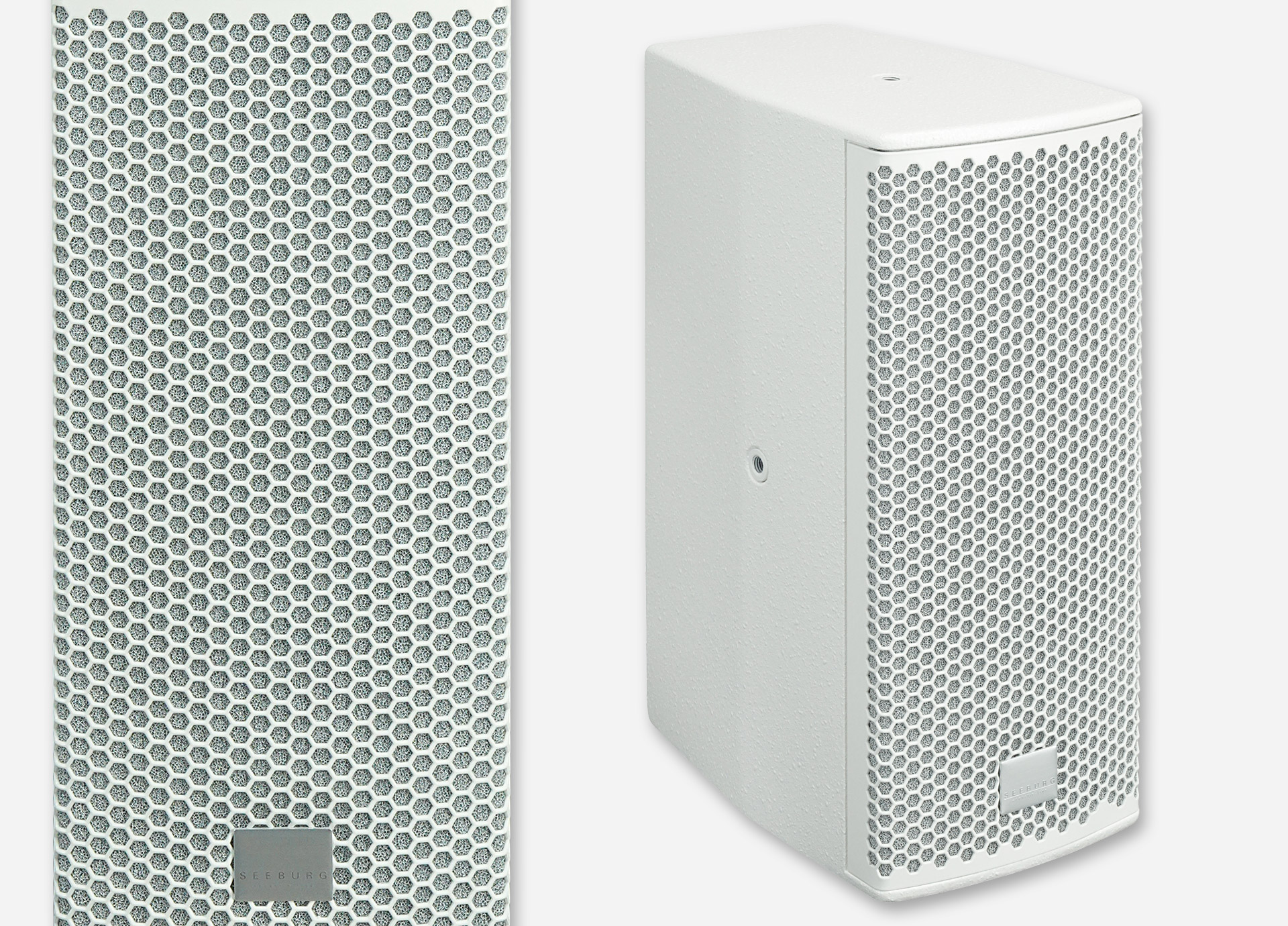

F 1 Fullrange Speaker System
The F series speakers are suitable for all applications where highly precise and broadband sound transmission down to low frequencies is required. This makes perfect integration easy and opens up many application possibilities in the field of corporate events, trade fairs and product presentations, press conferences, in conference rooms and lecture halls, in theaters, concert halls and cinemas as well as in sports halls and fitness centers. If the speakers are supported by subwoofers, concert levels are also possible. The arrangement of the components ensures good focusing to optimize speech intelligibility. All models feature newly developed top-class components to achieve the best possible sound quality and defined dispersion characteristics.
| Speaker Components | 2 x 5“ Nd (1,5“ VC) / 1“ Nd (1“ VC) |
| Description | Fullrange Speaker System |
| Power AES / Peak | 300 W / 900 W |
| Impedance nominal | 16 Ω |
| SPL 1 W / Peak @ 1 m |
90 dB / 120 dB |
| Usable Range |
70 Hz - 20 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 70 Hz |
| X - Overpoint acoustical | 1,5 kHz |
| Coverage horizontal / vertical | 90° x 60°, rotatable |
| Enclosure Wedge Angle | 20° |

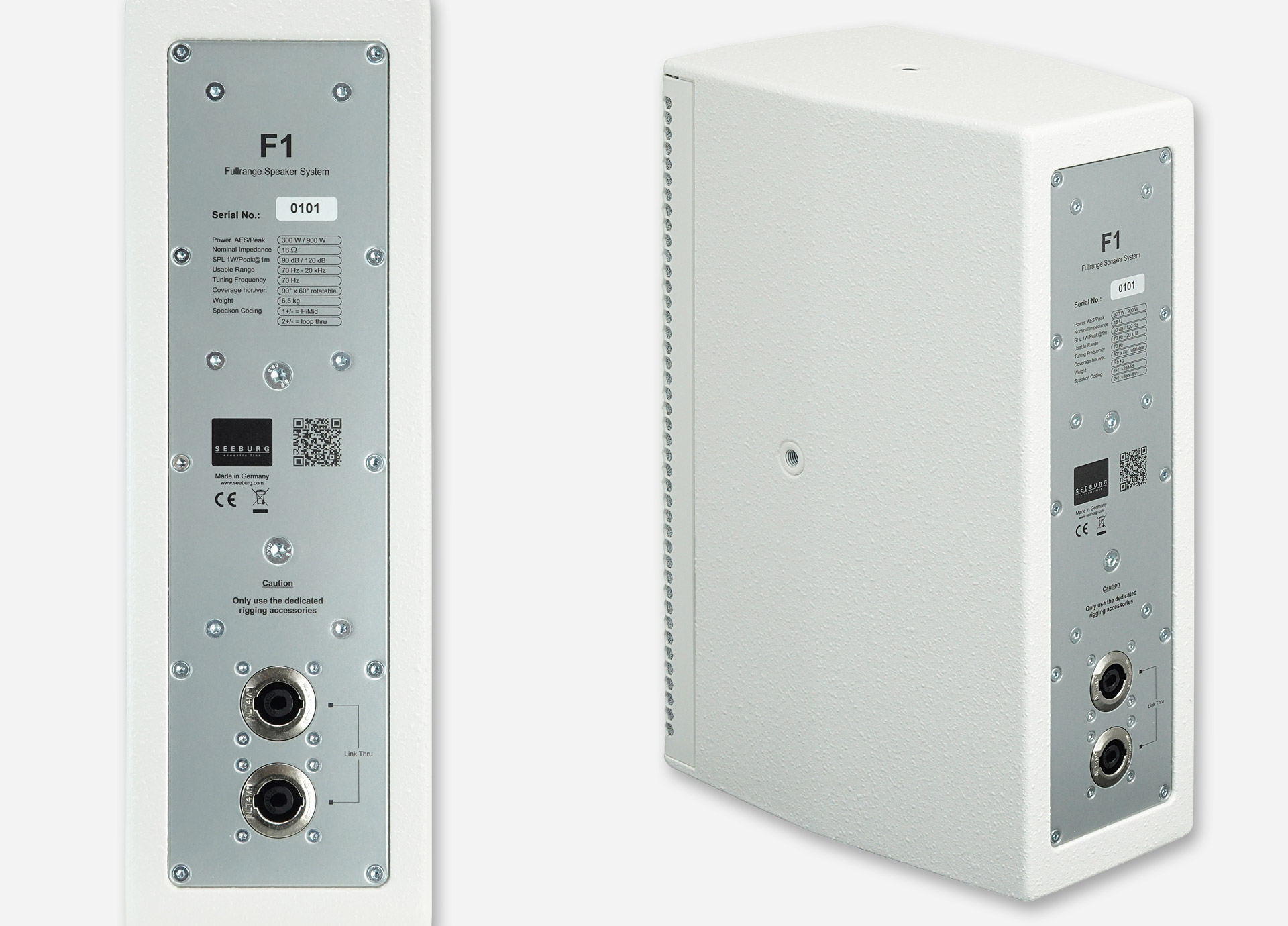

| Connectors | 2 x NLT4MP in/out (optionally NLT4FP) Coding: 1 +/- FR, 2 +/- loop thru |
| Handles | - - - |
| Rigging / Fittings | 4 x M10 / 2 x M6 |
| Weight | 6,5 kg |
| Size height x width x depth | 40,0 x 17,0 x 26,0 cm |
| Order No. | 00310 |
for F 1, horizontal alignment,
(incl. 2 x socket head screws
M10 x 20 mm, 2 x washers M10,
2 x rubber washers)
for flying brackets,
adjustable, M10 x 20 mm
with ball and socket joint,
with additional locking screw,
M10 x 15 mm, max. load 15 kg
incl. M10 mini TV spigot,
max. load 15 kg
M10, max. load 20 kg
Order No. 01223/20kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
4 mm x 600 mm,
quick connector undetachably,
max. load 10 kg (BGI 810-3)
2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg
Order No. 03034/w (RAL 9010)
Order No. 03034
using fixing points d= 73 mm
Order No. 08132/w (RAL 9010)
for permanent installation,
(incl. tilt angle stop M10),
max. load 15 kg
Order No. 08131/F/w (RAL 9010)
Order No. 08131/F

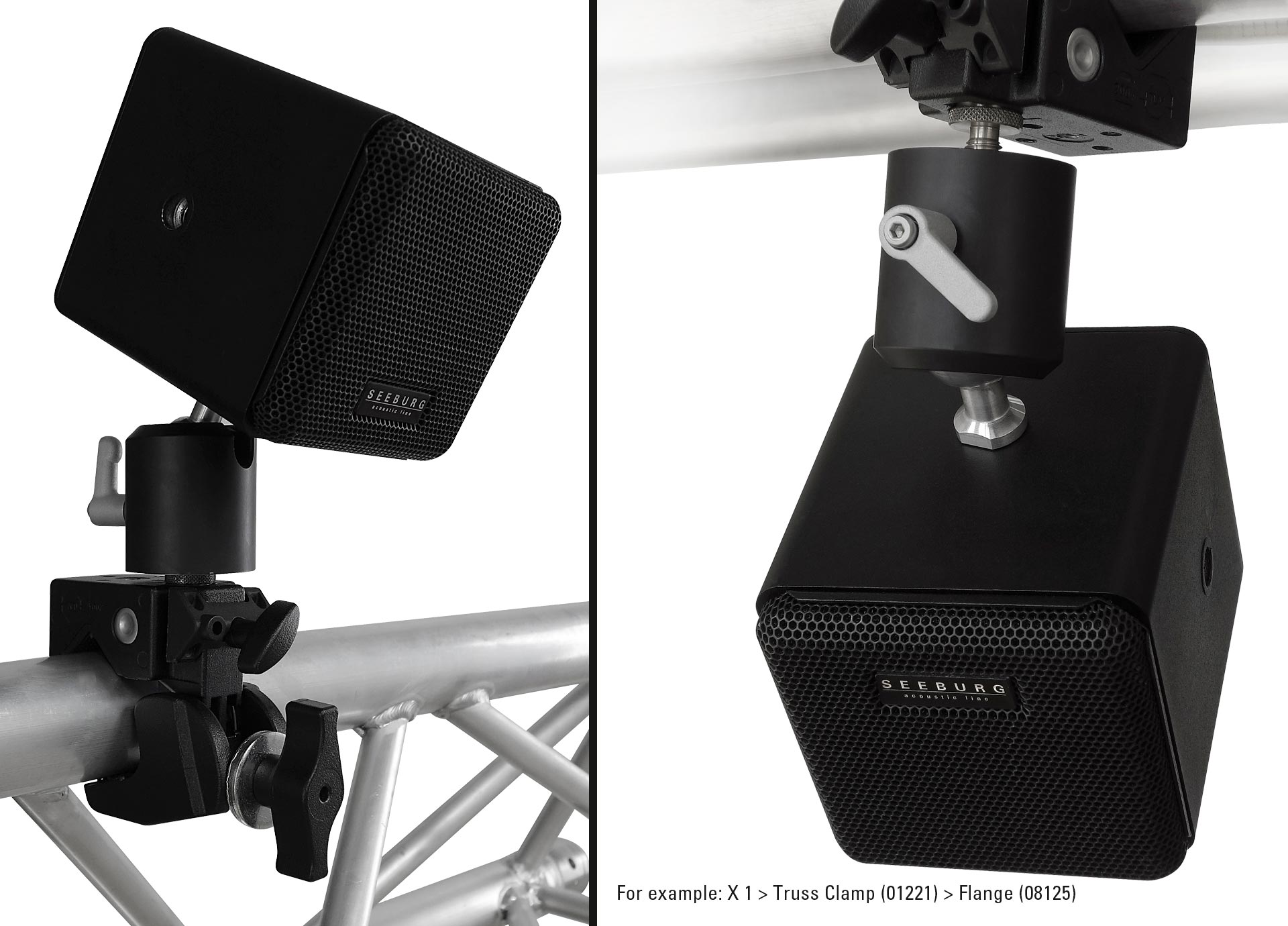

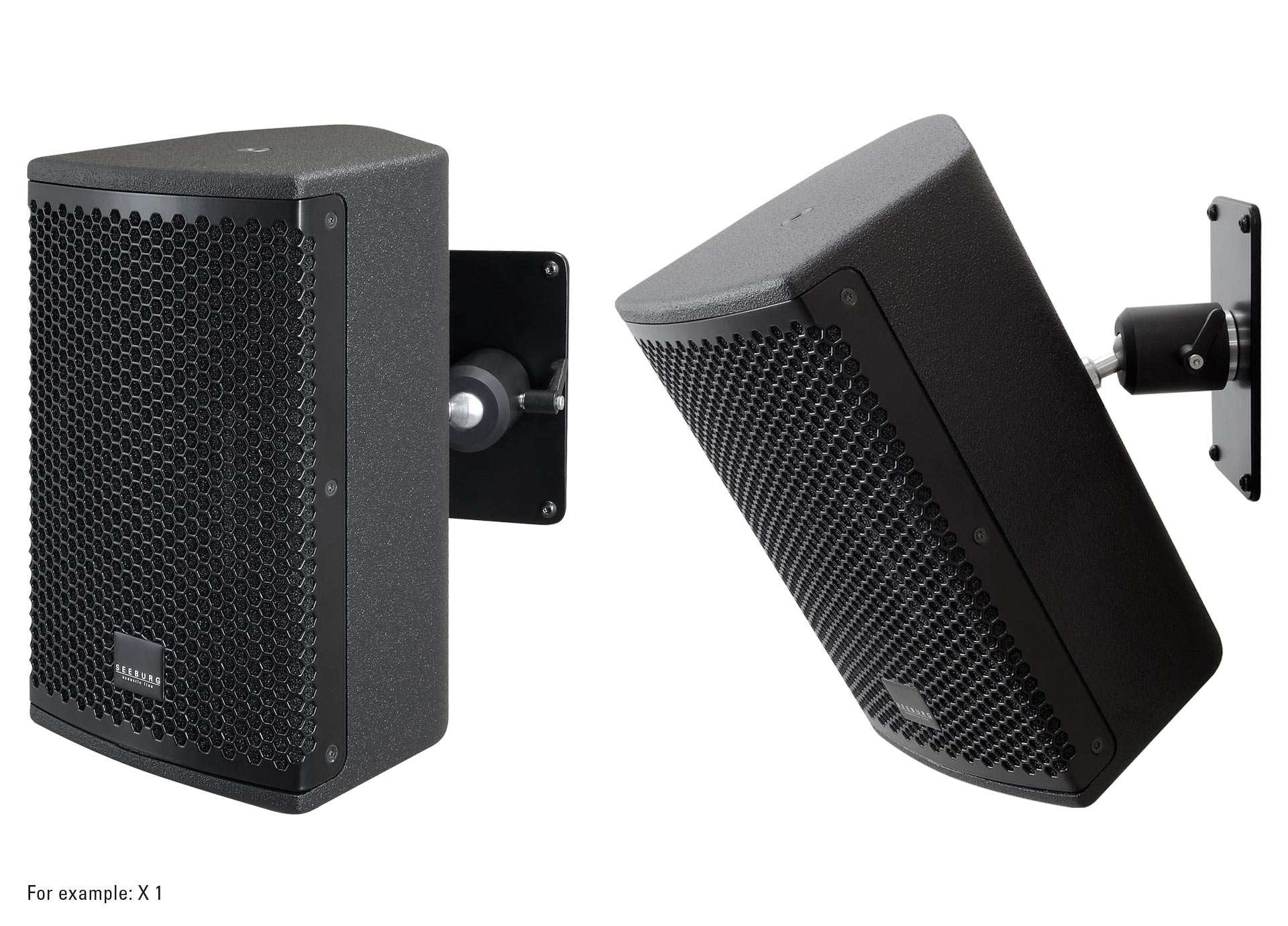

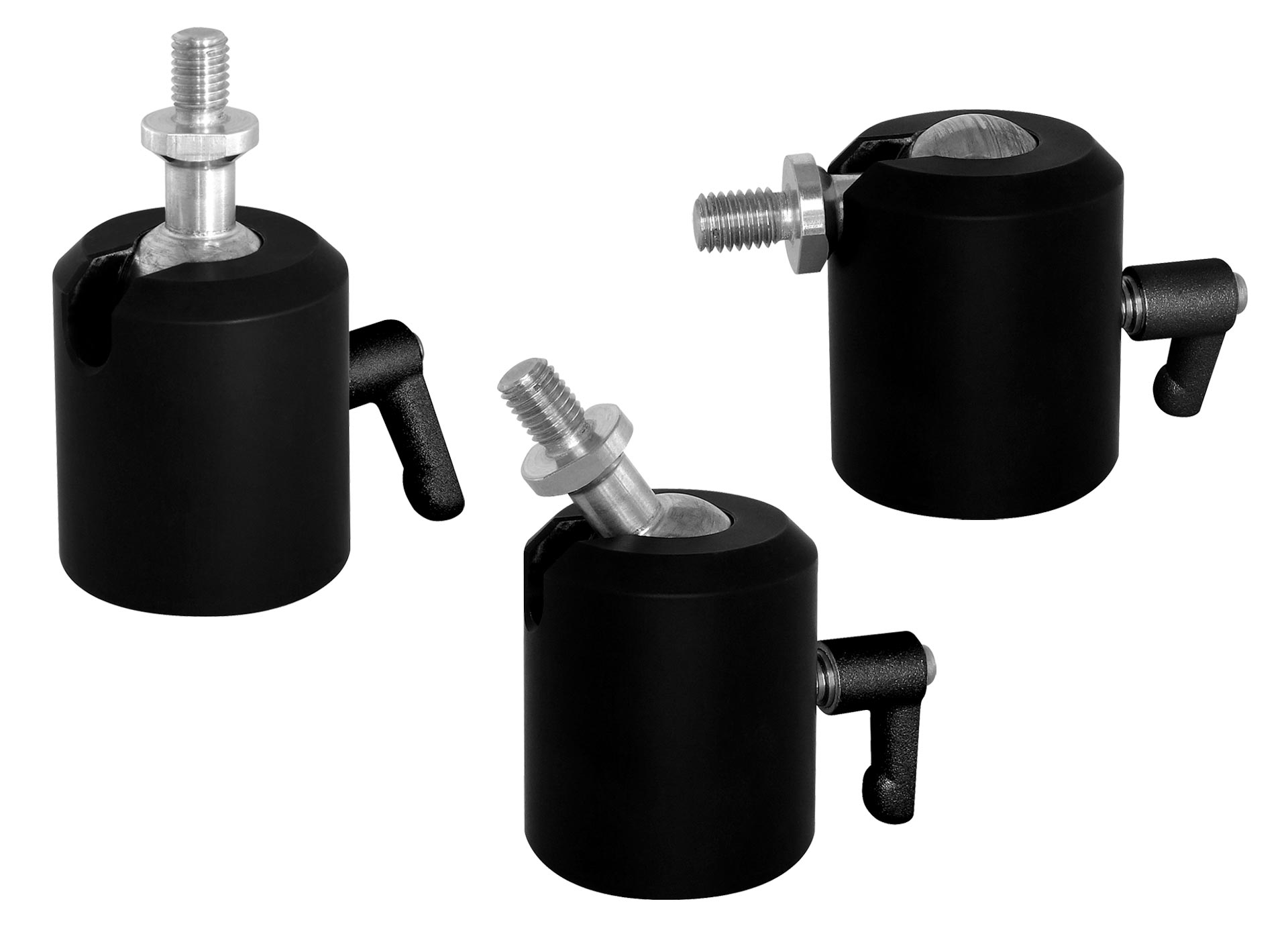

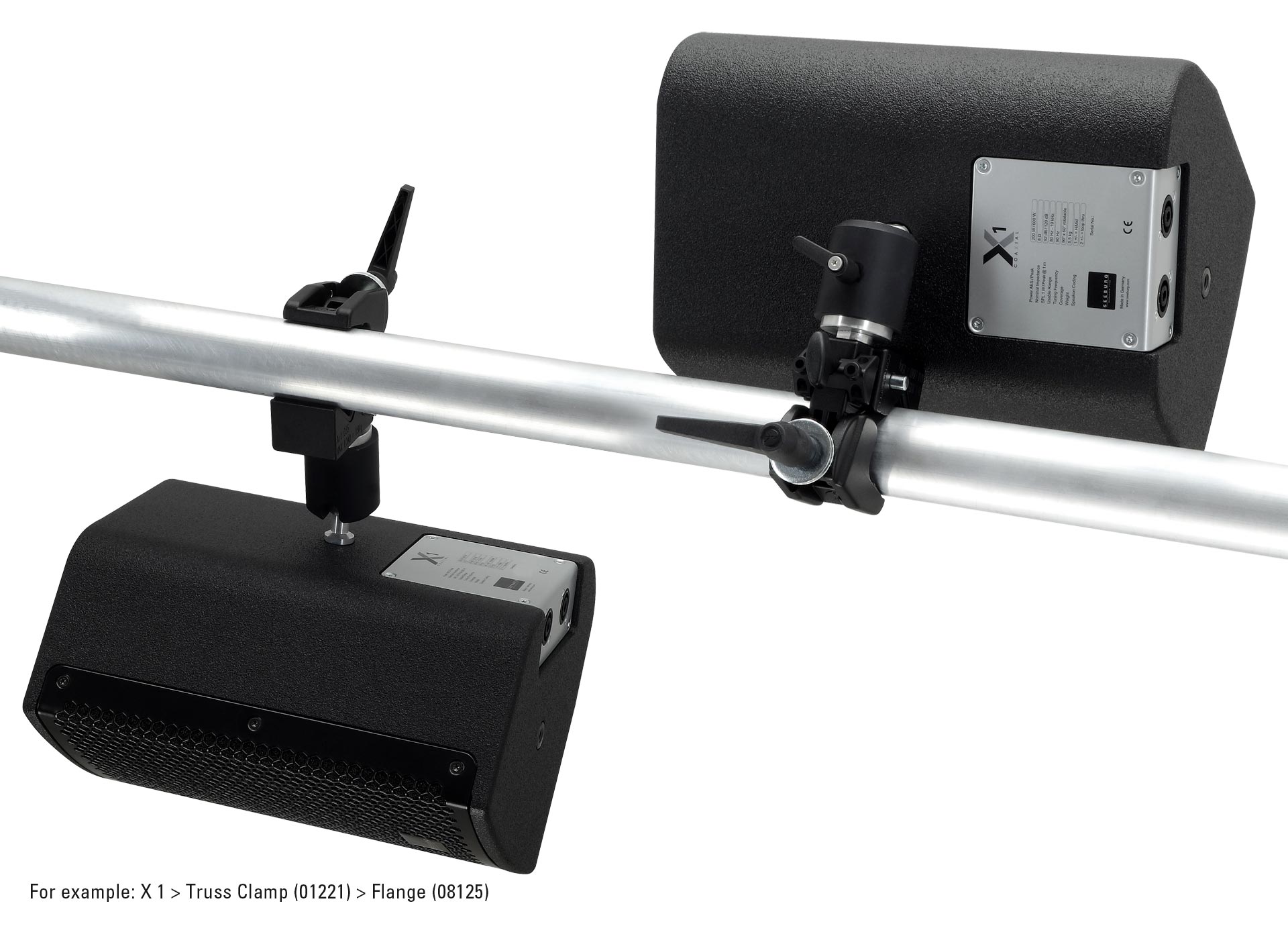

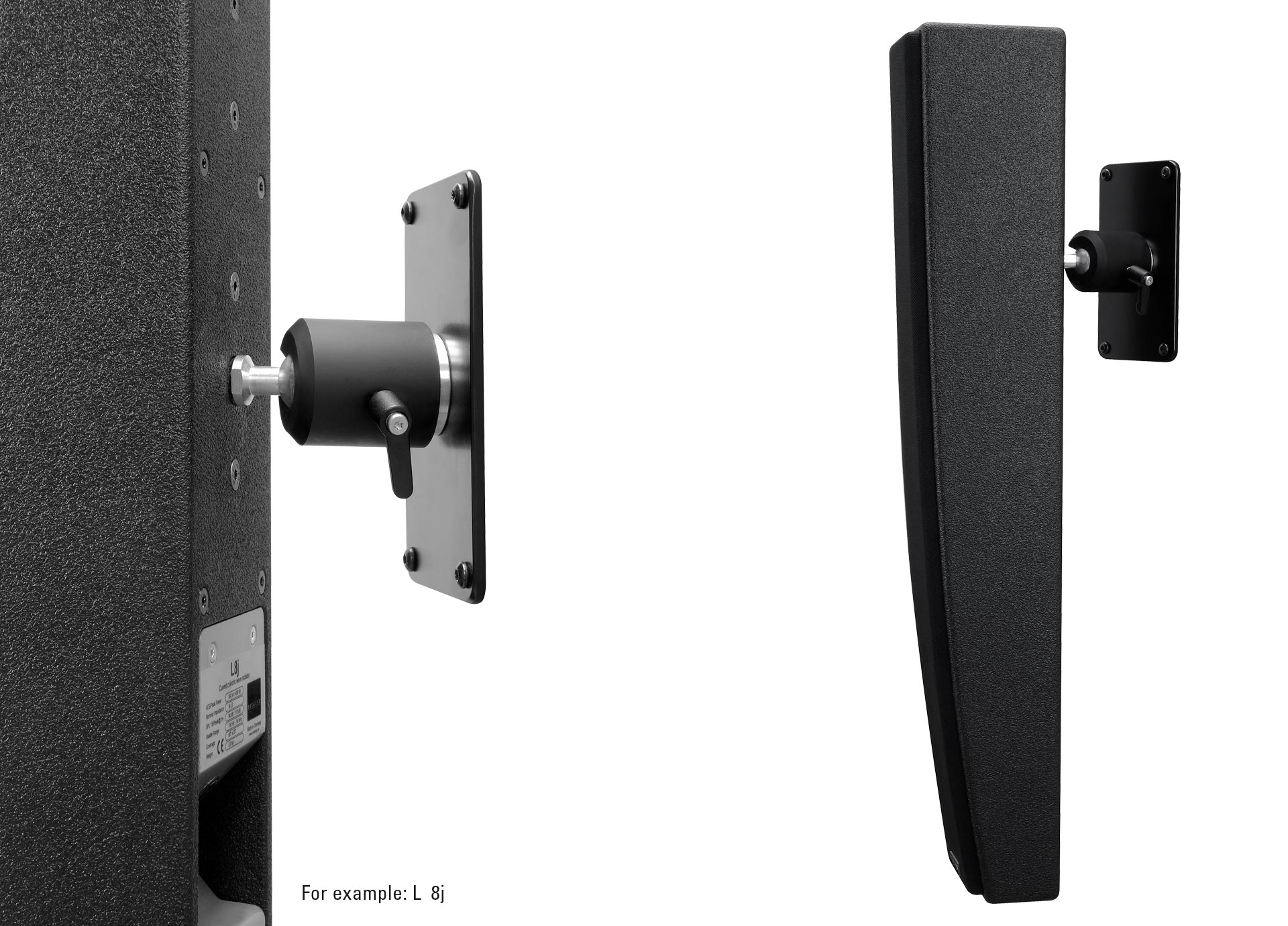

ball and socket joint flange (08125)
+ 08125/plate
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)

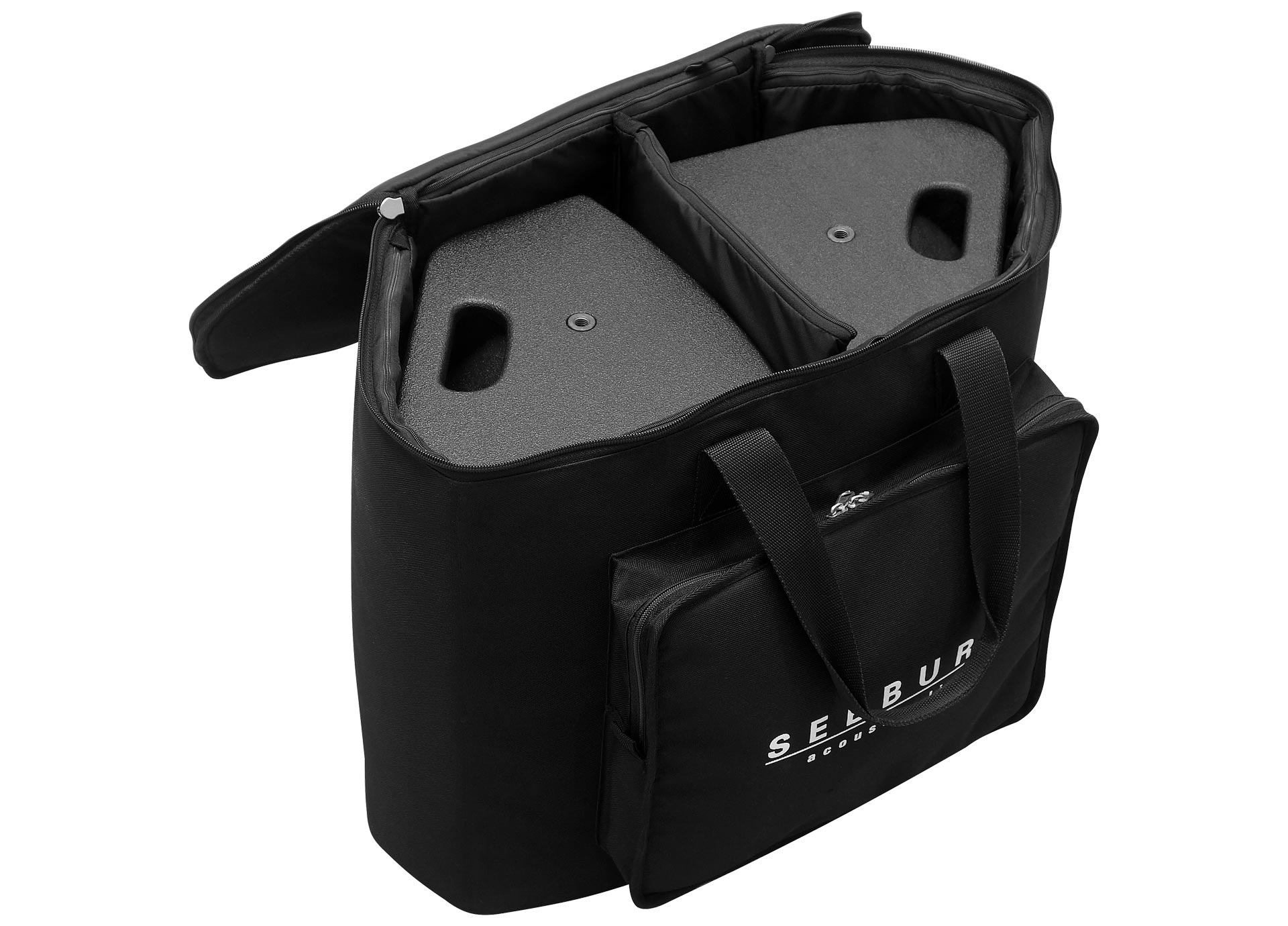

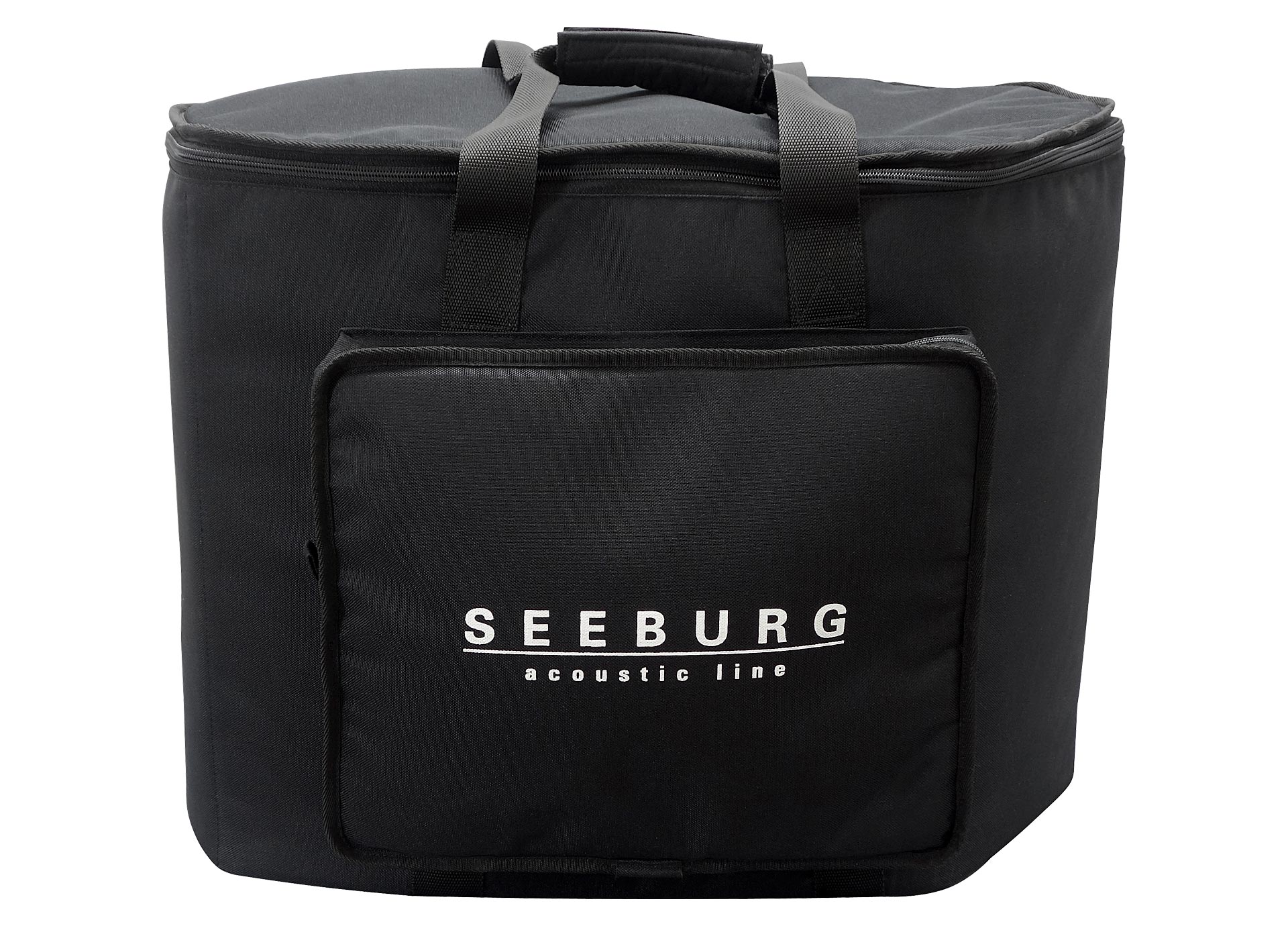

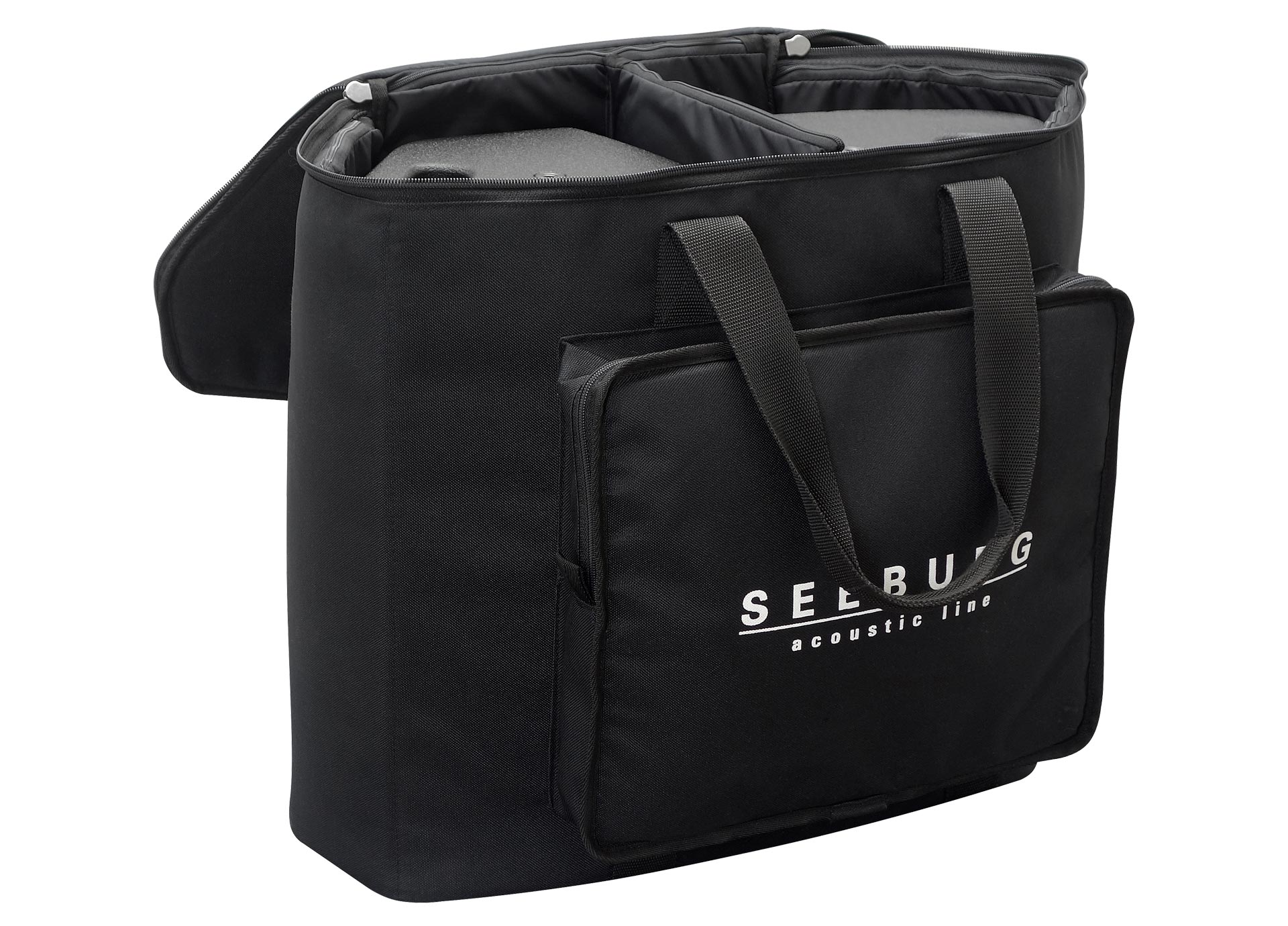

for 2 x F 1 / 2 x GL 8,
2 x TSM 8 / 2 x X 2,
padded, with pocket for accessories
