C 15 / C 30 Constant Curvature Array Units
C 15 / C 30
00470 |
C 15 - 15° 800 W AES, 8Ω |
00472 |
C 30 - 30° 800 W AES, 8Ω |
 Downloads |
|
| Data Sheet |
 |
| 3D-Files | |
| Simulation Data | |
| Architectural Specifications C 15 |
|
| Architectural Specifications C 30 |
|

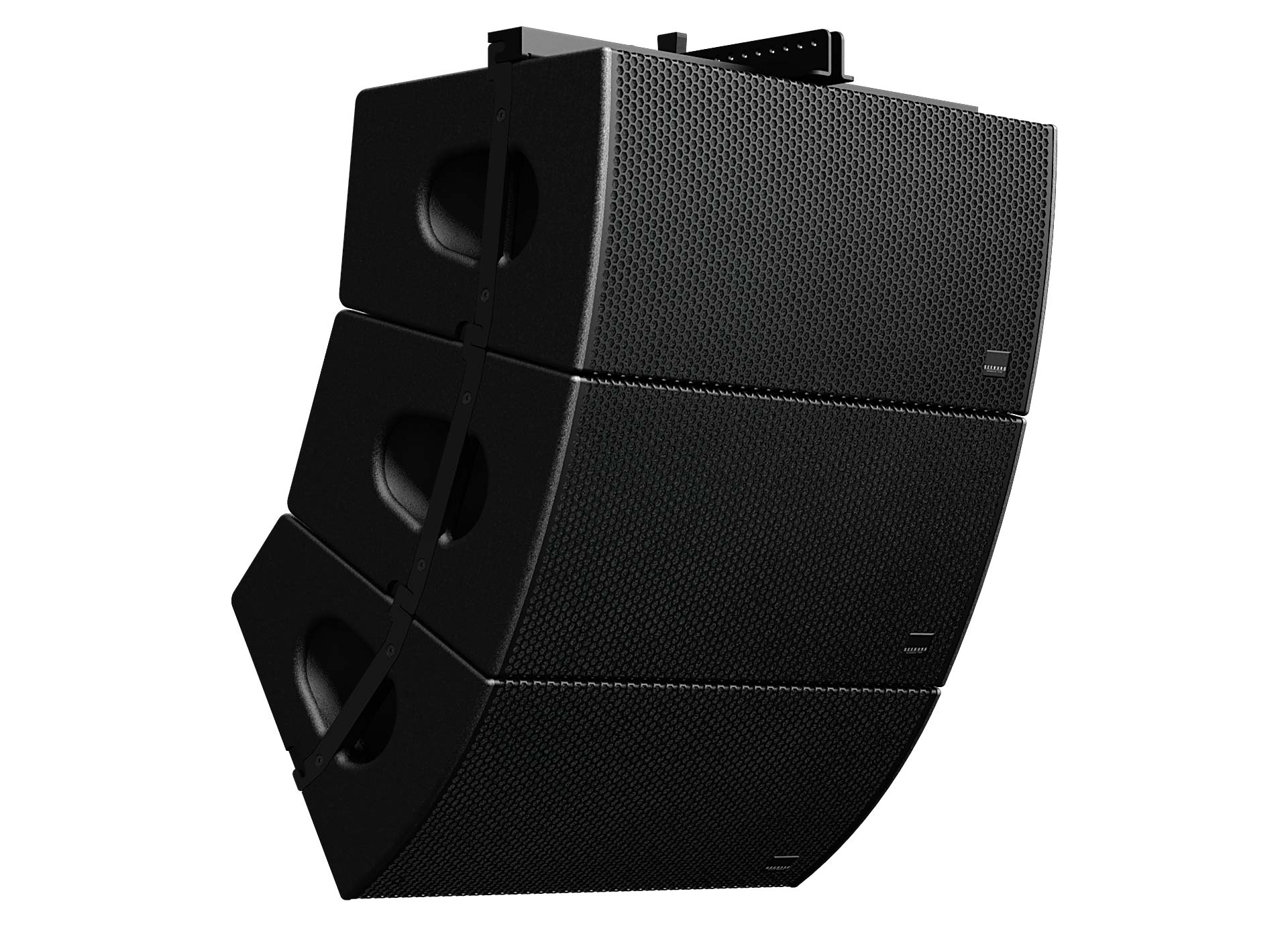

The new „Constant Curvature Array“ loudspeakers C 15 and C 30 combine the advantages of point source speakers with the performance of Line Arrays. The vertical dispersion is being defined by the addition of the single C - Series speakers. With the C 15 and C 30 there are vertical dispersion angles of 15° and 30° available. With relatively few elements, even larger audience areas can be sounded very precisely and equally. The applications are in theatres, sports arenas, club sound reinforcement and medium-sized open air concerts.
| C 15 |
C 30 |
|
| Speaker Components | 2 x 10“ Nd (3“VC) 3 x 1“ Nd (1,7“ VC) |
2 x 10“ Nd (3“VC) 3 x 1“ Nd (1,7“ VC) |
| Description | Constant Curvature Array Units | Constant Curvature Array Units |
| Power AES / Peak | 800 W / 2400 W | 800 W / 2400 W |
| Impedance nominal | 8 Ω | 8 Ω |
| SPL 1 W / Peak @ 1 m |
100 dB / 134 dB | 100 dB / 134 dB |
| Usable Range |
70 Hz - 20 kHz (-6 dB) | 70 Hz - 20 kHz (- 6 dB) |
| Tuning Frequency excursion minimum | 80 Hz Hz | 80 Hz |
| X - Overpoint acoustical | 800 Hz | 800 Hz |
| Coverage horizontal x vertical | 90° x 15° | 90° x 30° |
| Max. Splay Angle | 15° | 30° |
| Connectors | 2 x Speakon NL4MP in/out, Coding: 1+/- HiMid, 2+/- loop thru |
2 x Speakon NL4MP in/out, |
| Handles | 2 x | 2 x |
| Rigging / Fittings | Integrated flying hardware, 8 x M10 for MultiRigg™/MultiTilt™ |
Integrated flying hardware, 8 x M10 for MultiRigg™/MultiTilt™ |
| Weight | 25 kg | 23,5 kg |
| Size height x width x depth | 32,0 x 70,0 x 38,0 cm | 32,0 x 70,0 x 38,2 cm |
| Order No. | 00470 | 00472 |

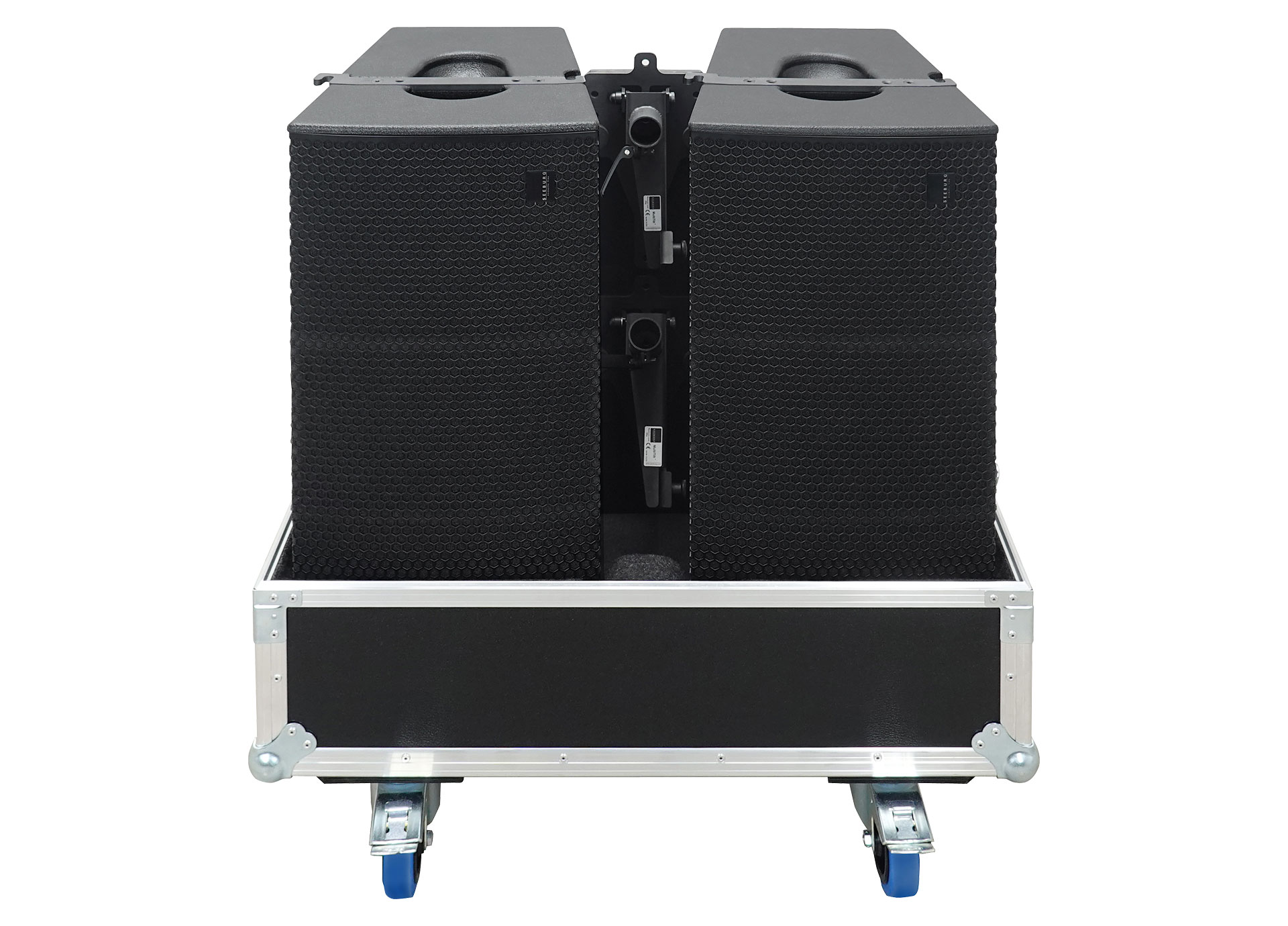

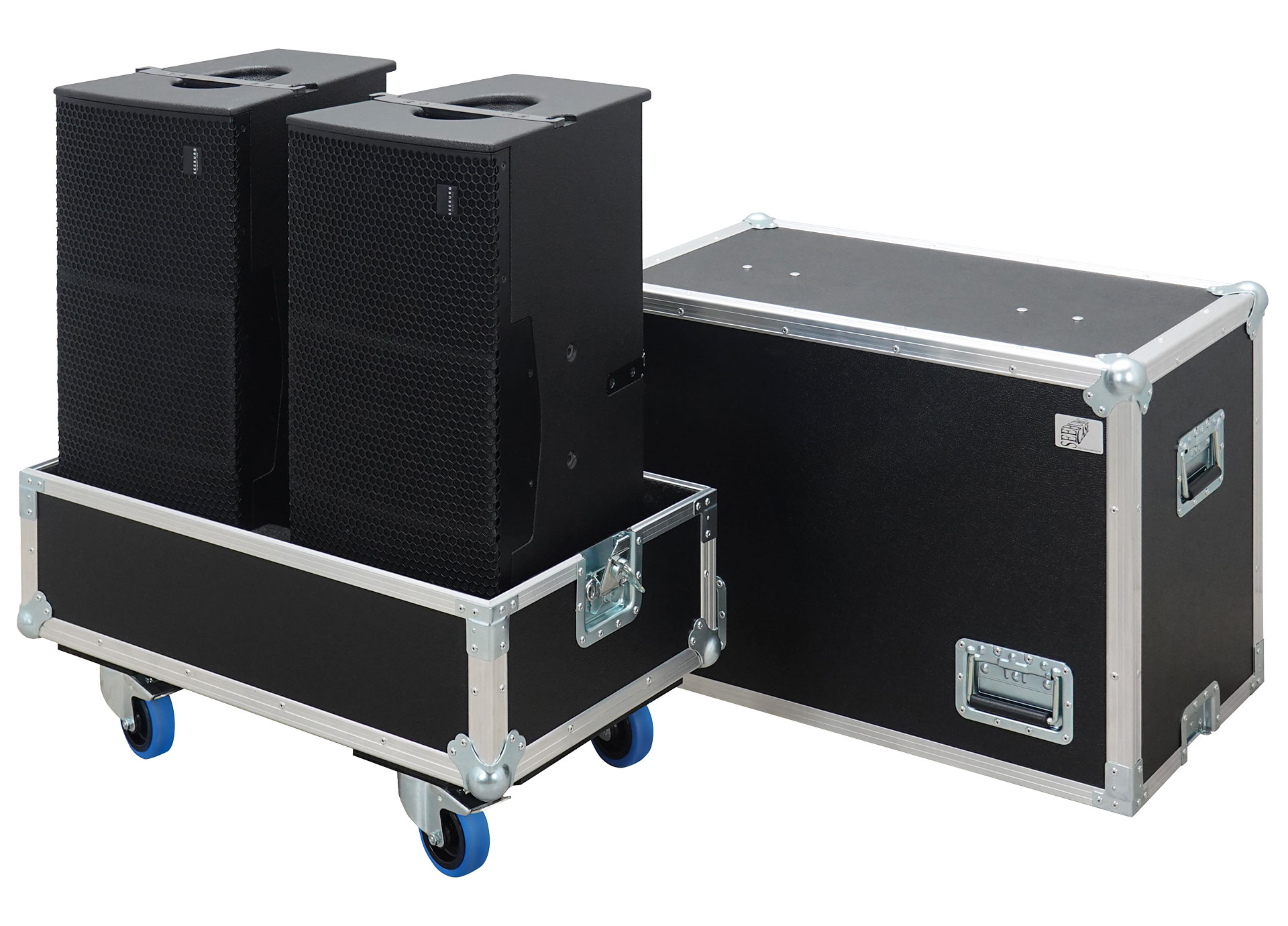

for 2 pcs. C 15 or C 30,
mounting option for 2 x MultiRigg

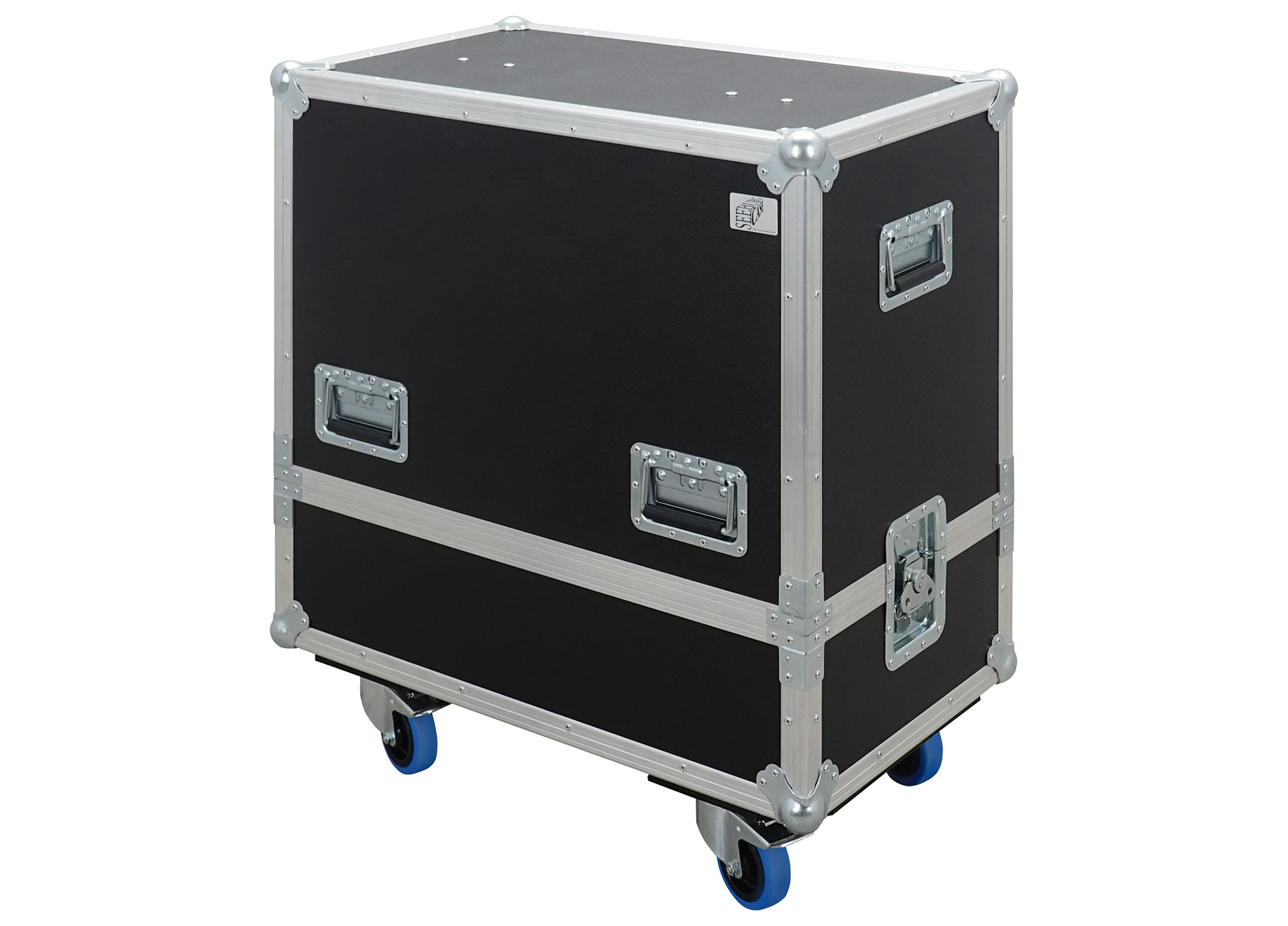

or MultiTilt, 100 mm wheels, heavy duty, PVC coated black, interior lined with felt.
Size: 80 x 45,5 x 90 cm (w x d x h),
weight: 34 kg
for C 15 / C 30 / C Sub,
max. load 150 kg,
incl. load adapter M10 (01328)
swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg
version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg
Tilt adapter with adjustable tilt from
0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
2 x knurled screws (M10 x 20 mm),
max. load 50 kg
M10 x 20 mm
Order No. 73750/w (RAL 9010)

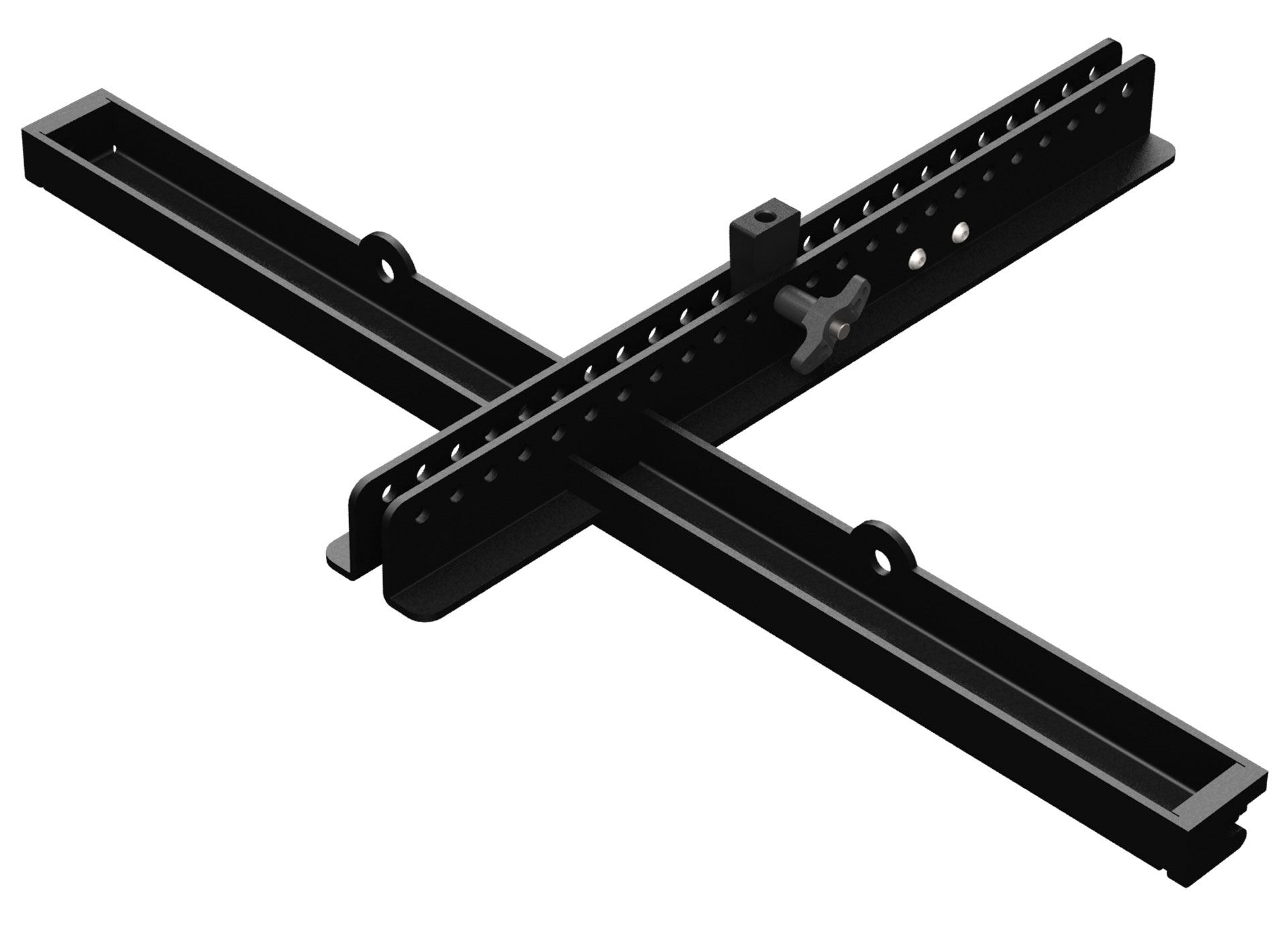

for Galeo C - Galeo C Sub flying frame /
PS 1 - C 15 - C 30 flying cradle
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
250 mm, ø 35 mm, M20,
with ring lock
max. load 100 kg
Order No. 01223/100kg
max. load 250 kg
Order No. 01223/250kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
10 mm internal thread,
28 mm ø
8 mm x 600 mm,
max. load 40 kg (BGI 810-3),
quick connector undetachably
Order No. 01376/8
bar: 400 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/400/w (RAL 9010)
bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/269/w (RAL 9010)
back
