A 3 HiMid Sound System

Leistungsstarkes und universelles Mittelhochtonsystem mit klassischer
2 x 8“ Nd / 1“ Bestückung. Gute Eignung als kräftiges Topteil in Kombination mit Subwoofern und als „Stand Alone“
System zur Sprachübertragung auf kleinen und mittleren Distanzen. Vier M10 Aufnahmepunkte (optional fünf bei Austausch gegen die werkseitig montierte HS-Flanschbuchse) ermöglichen in Kombination mit dem Zubehör eine einfache Installation in Horizontal- und Vertikalausrichtung.

Die A 3 ist auch als dp-Variante mit 500 Watt / 150 Watt AES Endstufenleistung und DSP-Controller lieferbar.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Technische Daten
  A 3 A 3 dp
Speaker Components 2 x 8“ Nd / 1” 2 x 8“ Nd / 1”
Description HiMid Sound System HiMid Sound System
Power AES / Peak 500 W / 1500 W - - -
Amp Power  - - - LF: 500 W AES / 110-230 V
HF: 150 W AES / 110-230 V
Impedance nominal 4 Ω (16 Ω optional) - - -
Rated Current  - - - 0,6 A @ 230 V
SPL 1 W / Peak @ 1 m
100 dB / 132 dB - - -
SPL Peak@1m  - - - 132 dB
Max. Input Signal  - - - 25 dBu
DSP  - - - HDLM FPGA Processing 32 bit floating point
AD / DA  - - - 24 bit / 96 kHz
Latency  - - - 0,8 ms (analog in to analog out)
Usable Range
80 Hz - 20 kHz (-6 dB) 80 Hz - 20 kHz (- 6 dB)
Tuning Frequency excursion minimum 90 Hz 90 Hz
X - Overpoint acoustical 1,4 kHz Depends on preset
Coverage horizontal / vertical 90° x 60° rotatable 90° x 60° rotatable
Max. Splay Angle - - - - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop through
Neutrik XLR in/out
Neutrik PowerCon in/out
Handles 1 x 1 x
Rigging / Fittings 4 x M10
2 x M6
35 mm pole mount
4 x M10
2 x M6
35 mm pole mount
Weight 12,5 kg 13,5 kg
Size height x width x depth 59,0 x 25,0 x 25,0 cm 59,0 x 25,0 x 25,0 cm
Order No. 00240/II 00240/II/dp
Zubehör
x
Cover

for A 3, padded

Order No. 01258
x
Rain Cover

for A 3

Order No. 01258/outdoor
x

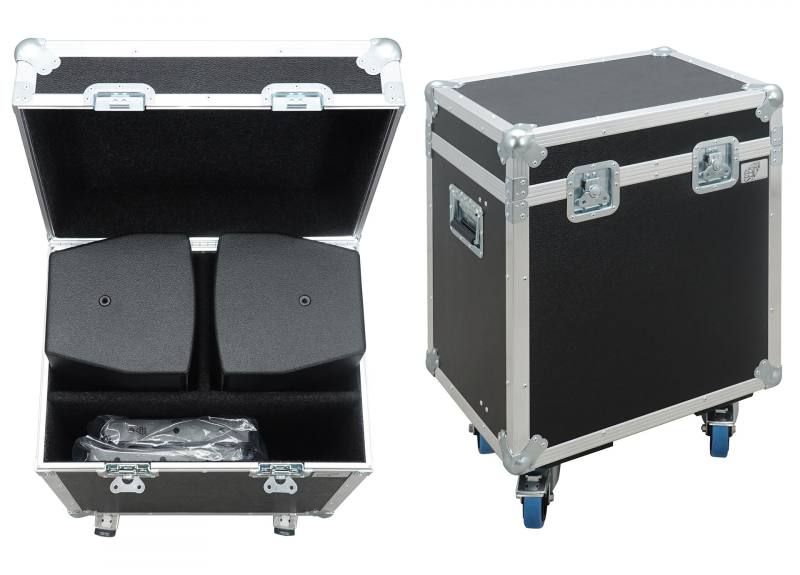

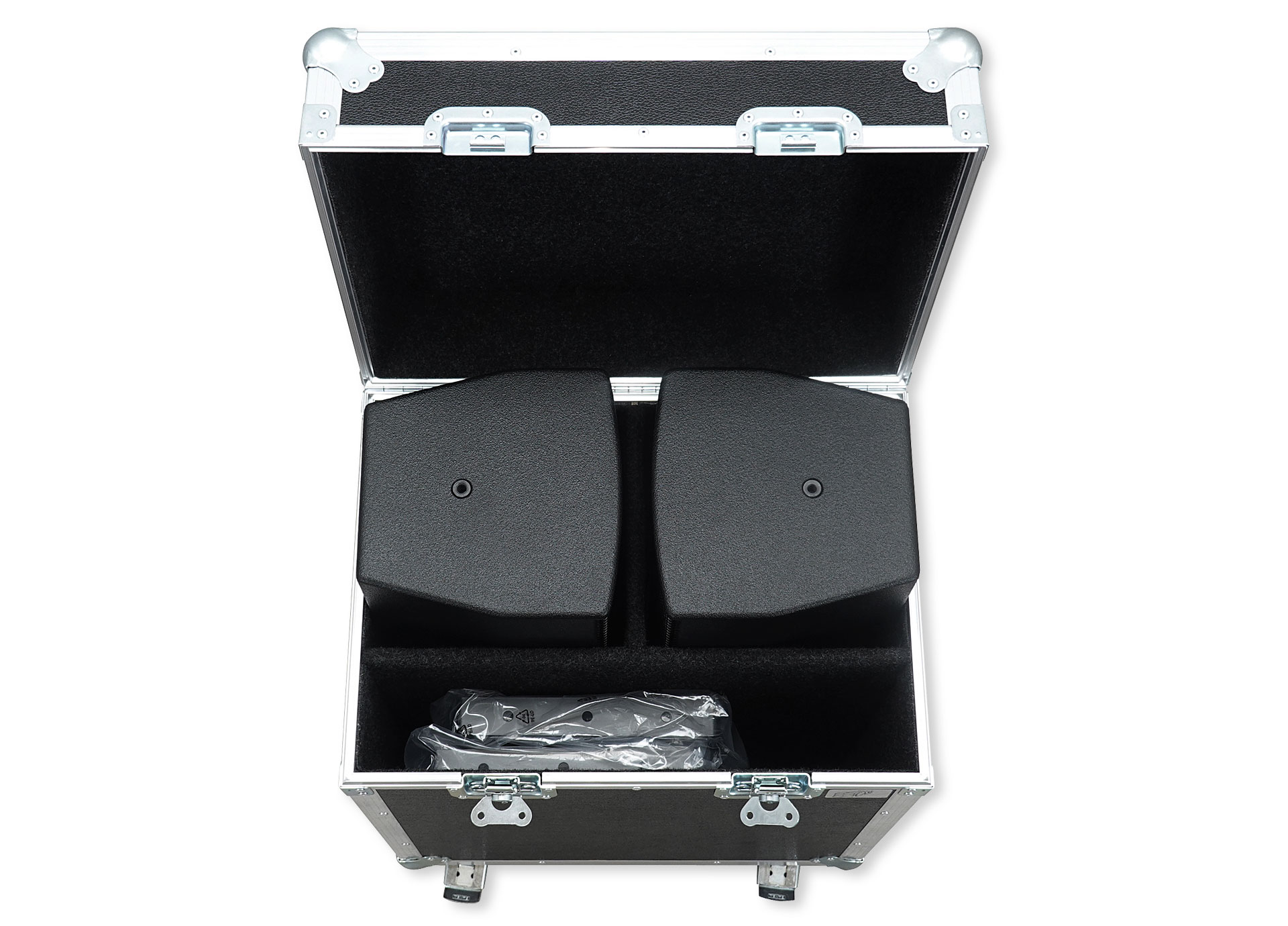

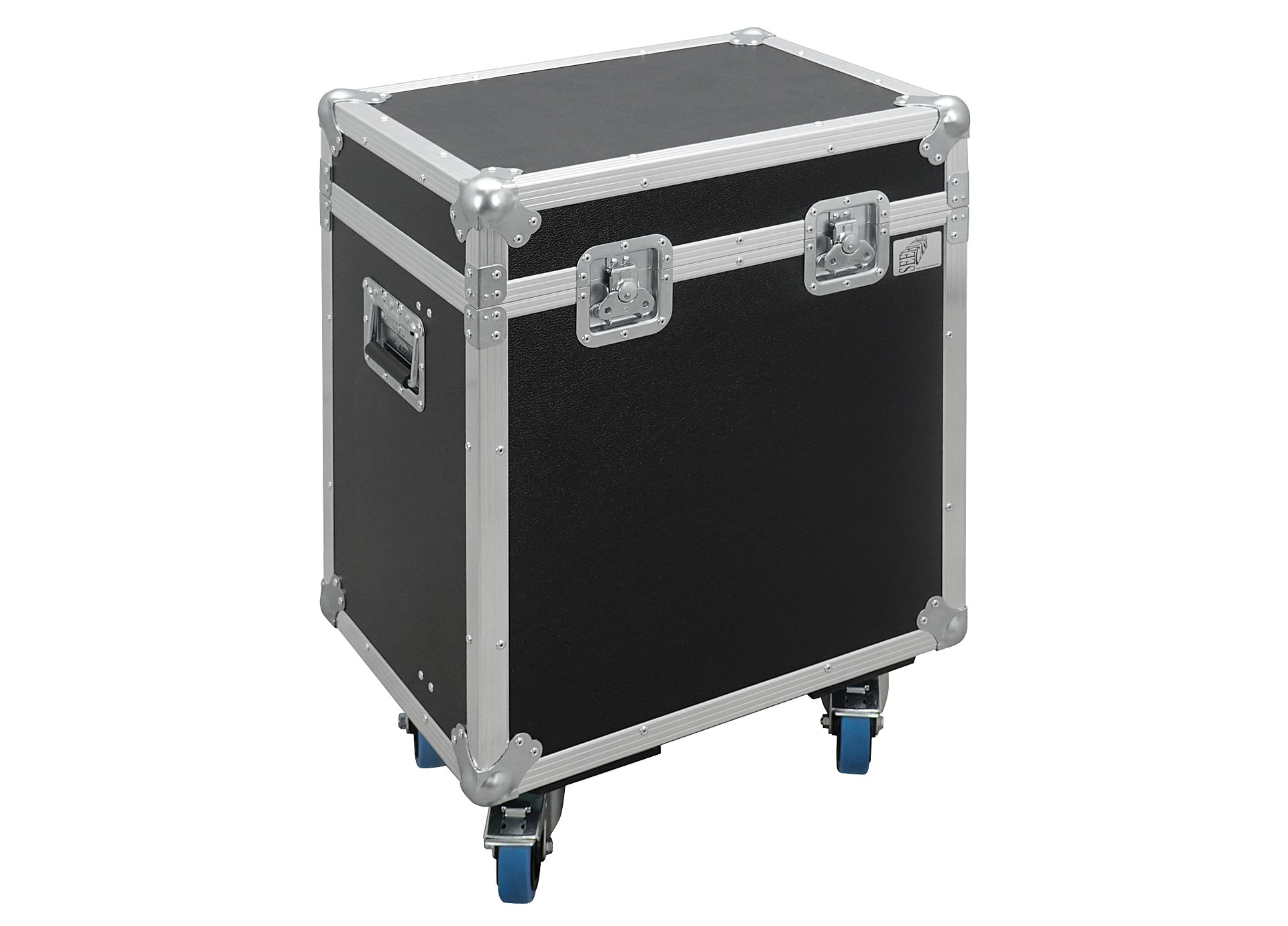

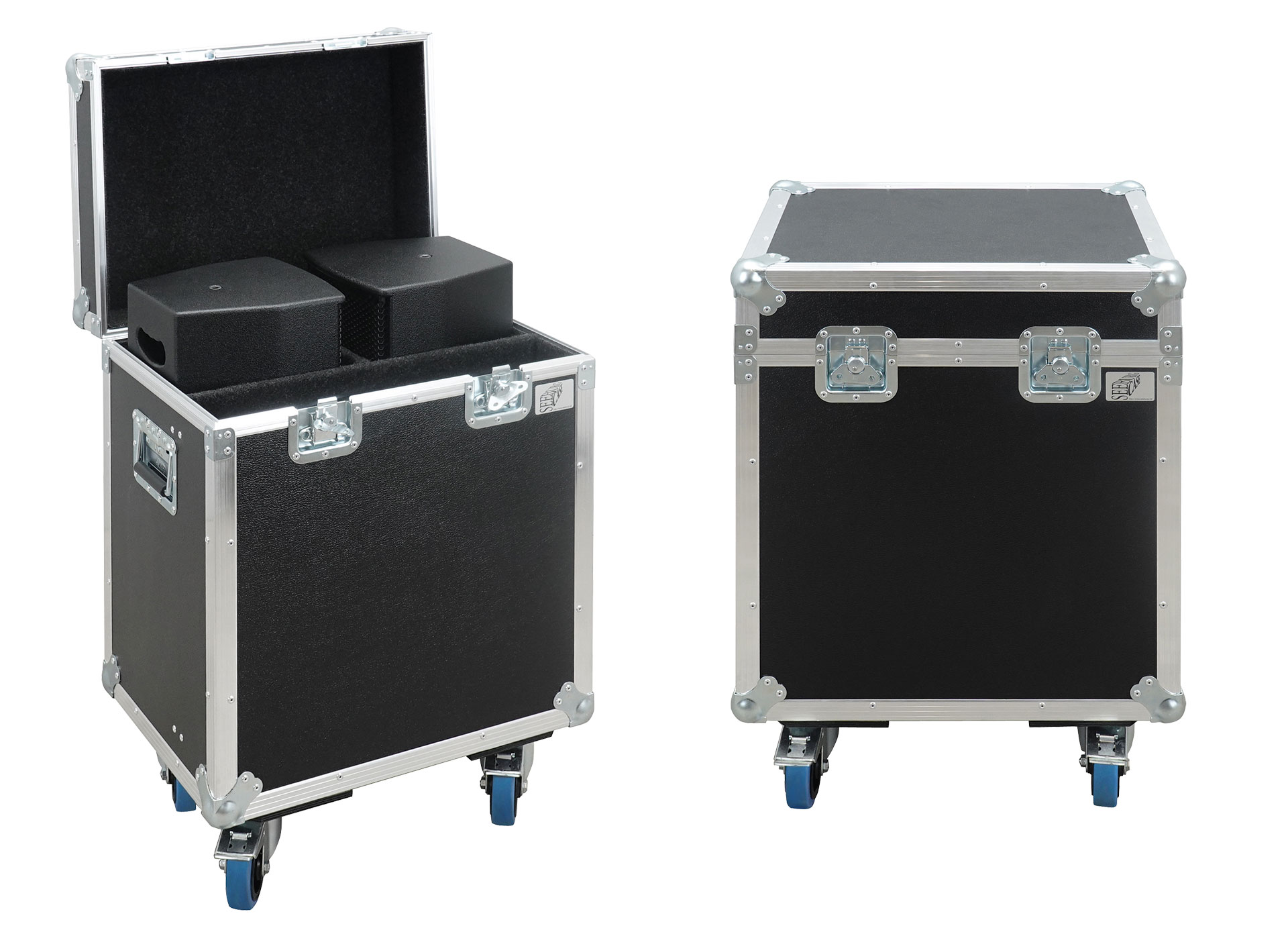

Flight Case Trunk

for 2 pcs. A 3 and accessories, standard, 7 mm birch multiplex, PVC coated,
hinged lid, 2 x recessed sprung handles,
2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, rubber feet, partition walls, interior lined with felt

Order No. 16066
Flying Bracket

for A 3
horizontal alignment,
incl. (2 x M10 x 20 socket head screws,
2 x rubber washers, 1 x plate)

Order No. 01215/H/set/w (RAL 9010)

Order No. 01215/H/set
Flying Bracket

for A 3
incl. (black version: 2 x M10 x 20 handle screws, 2 x rubber washers
white version: 2 x M10 x 20 socket head screws, 2 x rubber washers)

Order No. 01215/set/w (RAL 9010)

Order No. 01215/set
x
Handle Screw

for flying brackets,
adjustable
M10 x 20

Order No. 08375/20
x
Plate

for A 2 / A 3 flying brackets,
horizontal alignment,
replacement for pole mount flange,
110 mm ø flange with M10 nut

Order No. 08119/M10/w (RAL 9010)

Order No. 08119/M10
x
Rubber Washer

for flying brackets,
5 mm x 40 mm ø

Order No. 01206
Flange

with ball and socket joint,
with additional locking screw,
M10 x 15,
max. load 15 kg

Order No. 08125
Flange

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126
x
Doughty Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Truss Clamp

incl. M10 Adapter,
max. load 15 kg

Order No. 01221
x
Doughty Twenty Clamp

M10,
max. load 20 kg

Order No. 01223/20kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
x
Chain Fastener

VBS 7 mm

Order No. 01378
x
Steel Safety

6 mm x 600 mm, black,
max. load 22 kg (BGI 810-3),
quick connector undetachably

Order No. 01376/6
Wall Mount

2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg

Order No. 03034
Wall Mount

max. load 40 kg, bar: 269 mm,
incl. (M10 x 70 mm socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/269/w  (RAL 9010)

Order No. 08130/F/269
Wall Mount

ball and socket joint flange (08125)
+ 08125/plate

Order No. 08125/set
Wall Mount Spacer

for Wall Mount (03034)
M10 x 55 (screw),
polyurea coated

Order No. 03034/spc
x
Tilt Unit

with grid plate, max. load 30 kg

Order No. 01282

with grid plate and
„balance correction“, max. load 40 kg

Order No. 01284
x
Speaker Stand

K&M, incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

Order No. 03011
x
Speaker Stand

K&M, height 137,5 to 218,5 cm,
max. load 50 kg

Order No. 03010
x
Honeycomb Grille

for A 3 front replacement,
foam in front of grille


Order No. 97006/compl/w
(RAL 9010)

Order No. 97006/compl
x
Honeycomb Grille

for A 3 front replacement,
foam behind grille



Order No. 97006/hex/compl/w
(RAL 9010)

Order No. 97006/hex/compl
x
Hybrid Cable System

PowerCon-PowerCon / XLR-XLR

Order No. 08462    2,5 m
Order No. 08464    5,0 m
Order No. 08466    10 m
Order No. 08468    15 m
