X 2 Coaxial
X 2
01091 |
250 W AES, 8 Ω |
01091/dp |
500 W / 220 W AES |
Multifunctional premium-class compact 2-way system. The coaxial configuration in combination with a carefully designed large-area horn ensures absolutely constant response even off the main axis. High-power Neodym drivers and long-excursion coils provide high efficiency and reduced distortion.
Three M10 threaded mounting points are available to mount accessories for installation or mobile applications.
The X 2 is also available in the selfpowered dp version:
The integrated digital amplifier technology provides 500/ 220 Watt AES and DSP control. A range of factory-configured presets and volume settings can be selected.
| X 2 | X 2 dp | |
| Speaker Components | 8“ Nd (2,5“ VC) / 1“ Nd (1,7“ VC) | 8“ Nd (2,5“ VC) / 1“ Nd (1,7“ VC) |
| Description | Multifunctional Coaxial Sound System | - digitally powered |
| Power AES / Peak | 250 W / 750 W | - - - |
| Amp Power AES | - - - | LF: 500 W / HF: 220 W / 110-230 V |
| Impedance nominal | 8 Ω | - - - |
| Rated Current | - - - | 0,4 A |
| SPL 1 W / Peak @ 1 m |
95 dB / 124 dB | - - - |
| SPL Peak@1m | - - - | 124 dB |
| Max. Input Signal | - - - | 25 dBu |
| DSP | - - - | DPLMx FPGA Processing 32 bit floating point |
| AD / DA | - - - | 24 bit / 96 kHz |
| Latency | - - - | 0,8 ms (analog in to analog out) |
| Usable Range |
70 Hz - 19 kHz (-6 dB) | 70 Hz - 19 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 80 Hz | 80 Hz |
| X - Overpoint acoustical | 1,6 kHz | Depends on preset |
| Coverage horizontal / vertical | 90° x 60° - rotatable | 90° x 60° - rotatable |
| Connectors | 2 x Speakon NL4MP in/out > 1 +/- HiMid, 2 +/- loop thru |
XLR in, Ethercon, Powercon in |
| Handles | 1 x | 1 x |
| Rigging / Fittings | 3 x M10 35 mm pole mount |
3 x M10 35 mm pole mount |
| Weight | 8 kg | 8 kg |
| Size height x width x depth | 37,5 x 25,0 x 25,0 cm | 37,5 x 25,0 x 25,0 cm |
| Order No. |
01091 |
01091/dp |
for A 1 / GL 8 / X 1 / X 2 / TS Nano,
horizontal and vertical alignment,
(incl. white version:
1 x socket head screw M10 x 20 mm,
black version:
1 x adjustable handle screw
M10 x 20 mm)
Order No. 01200/set/w (RAL 9010)
for X 2,
horizontal alignment,
(incl. 4 x socket head screws
M10 x 20 mm, 4 x M10 washer,
4 x rubber washer)
for flying brackets,
adjustable, M10 x 20 mm
with ball and socket joint,
with additional locking screw,
M10 x 15 mm, max. load 15 kg
max. load 100 kg
Order No. 01223/100kg
incl. M10 mini TV spigot,
max. load 15 kg
M10, max. load 20 kg
Order No. 01223/20kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
4 mm x 600 mm,
quick connector undetachably,
max. load 10 kg (BGI 810-3)
bar: 269 mm,
(incl. socket head screw M10 x 70 mm,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/269/w (RAL 9010)
with tilt unit,
max. load 40 kg
for permanent installation,
(incl. tilt angle stop M10),
max. load 15 kg
Order No. 08131/F/w (RAL 9010)
Order No. 08131/F
ball and socket joint flange (08125)
+ 08125/plate
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
PowerCon-PowerCon / XLR-XLR
Order No. 08462 2,5 m
Order No. 08464 5,0 m
Order No. 08466 10 m
Order No. 08468 15 m
for 2 x F 1 / 2 x GL 8,
2 x TSM 8 / 2 x X 2,
padded, with pocket for accessories

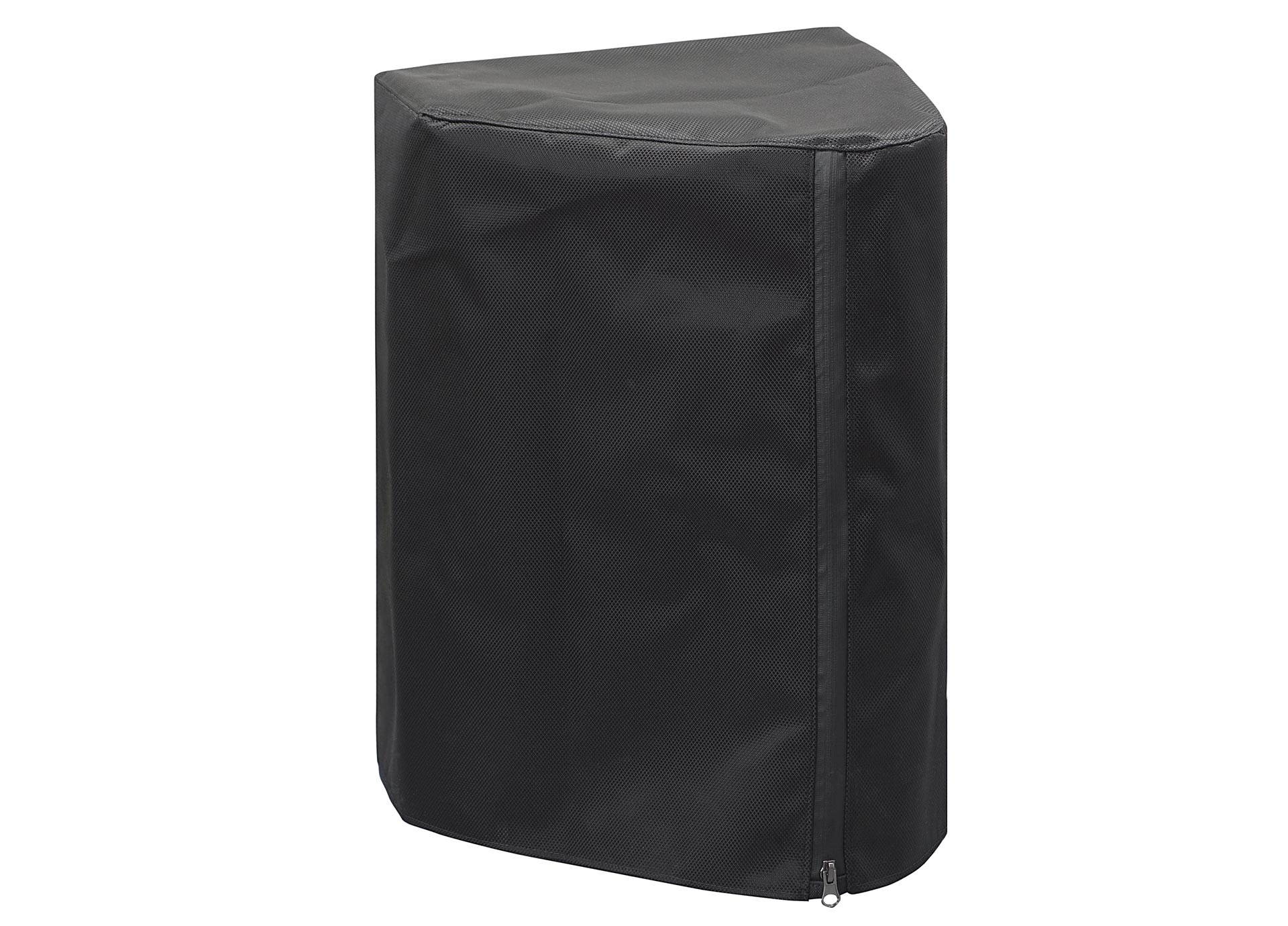

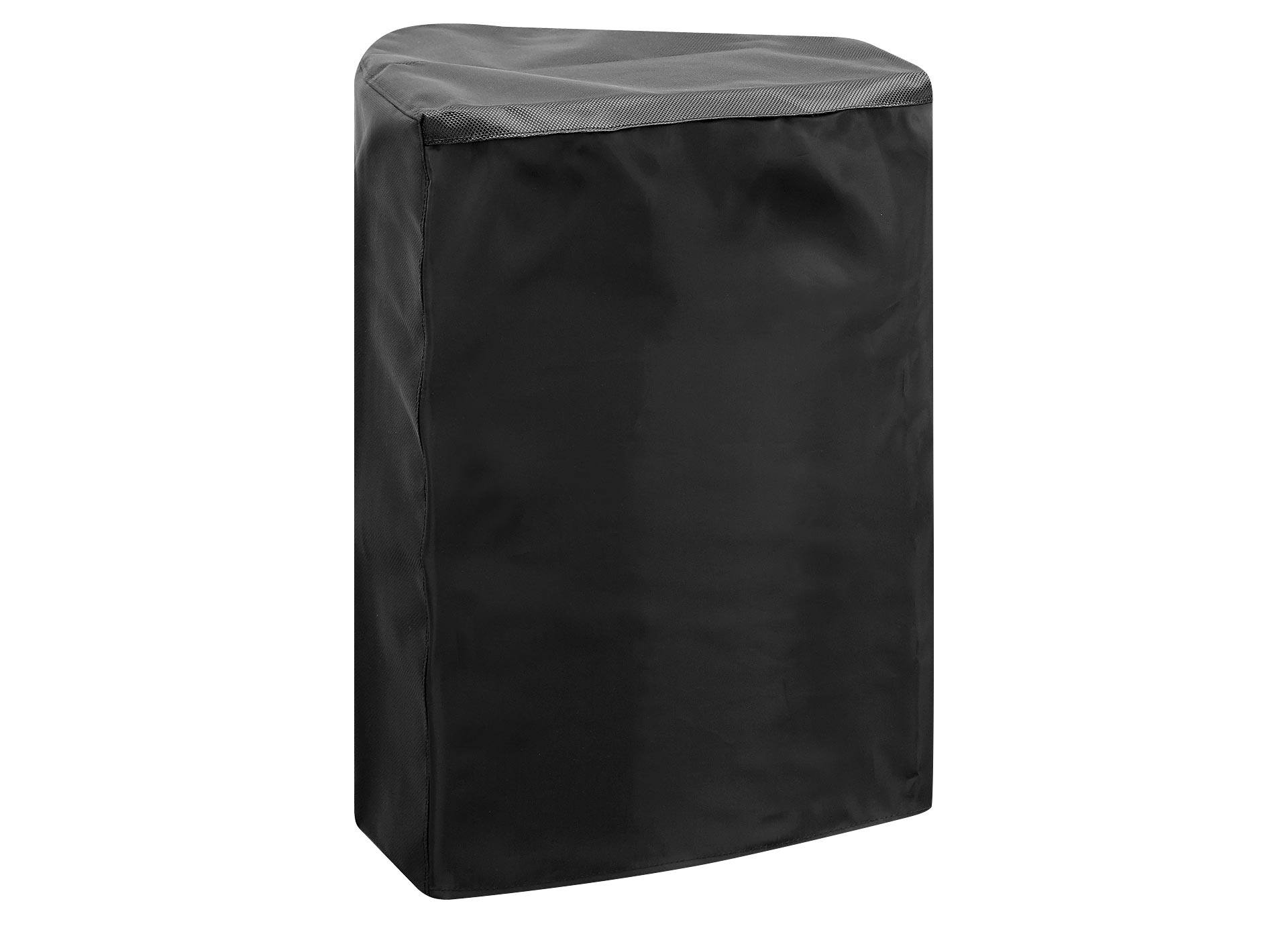

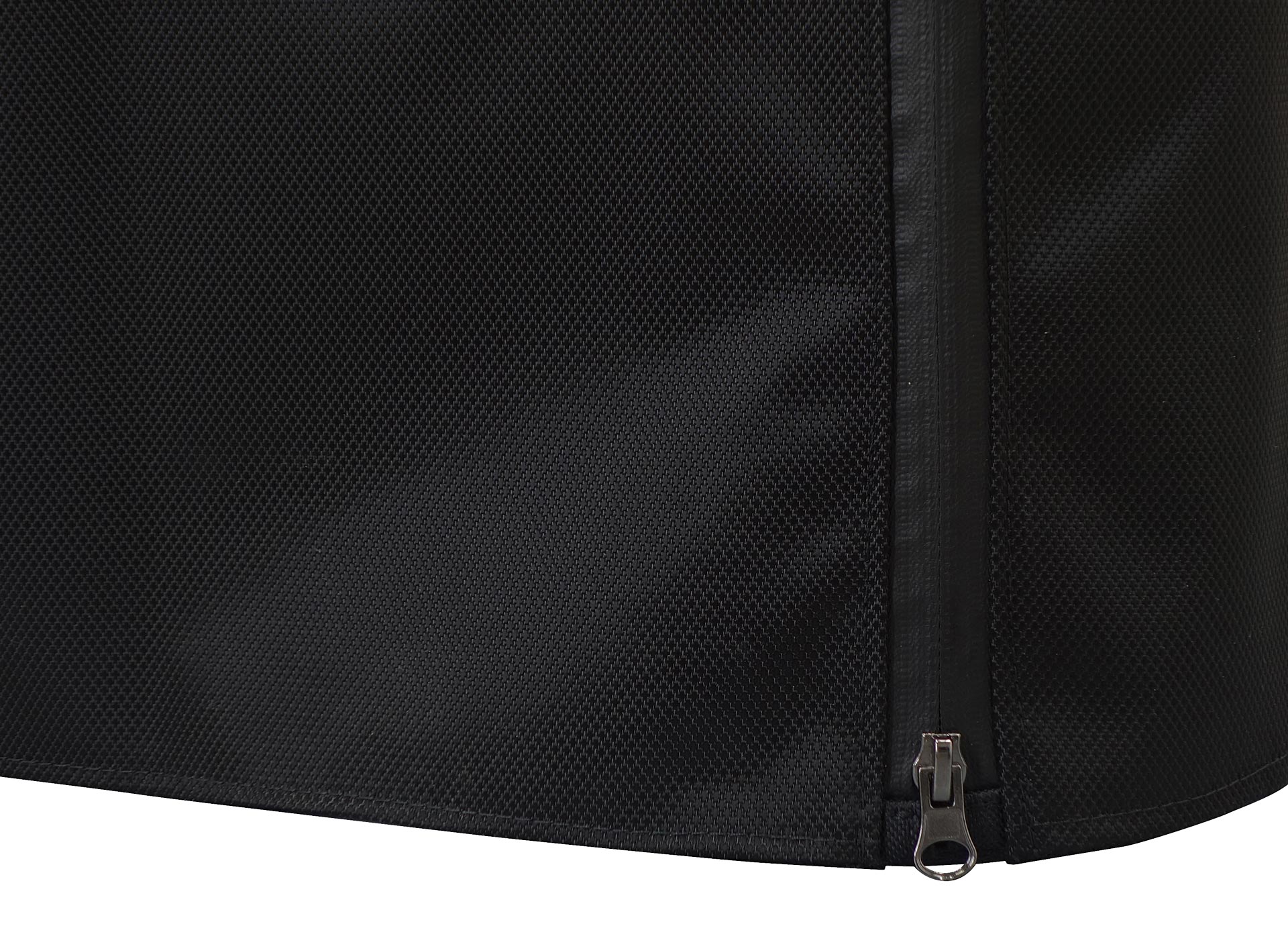

for X 2,
with zipper

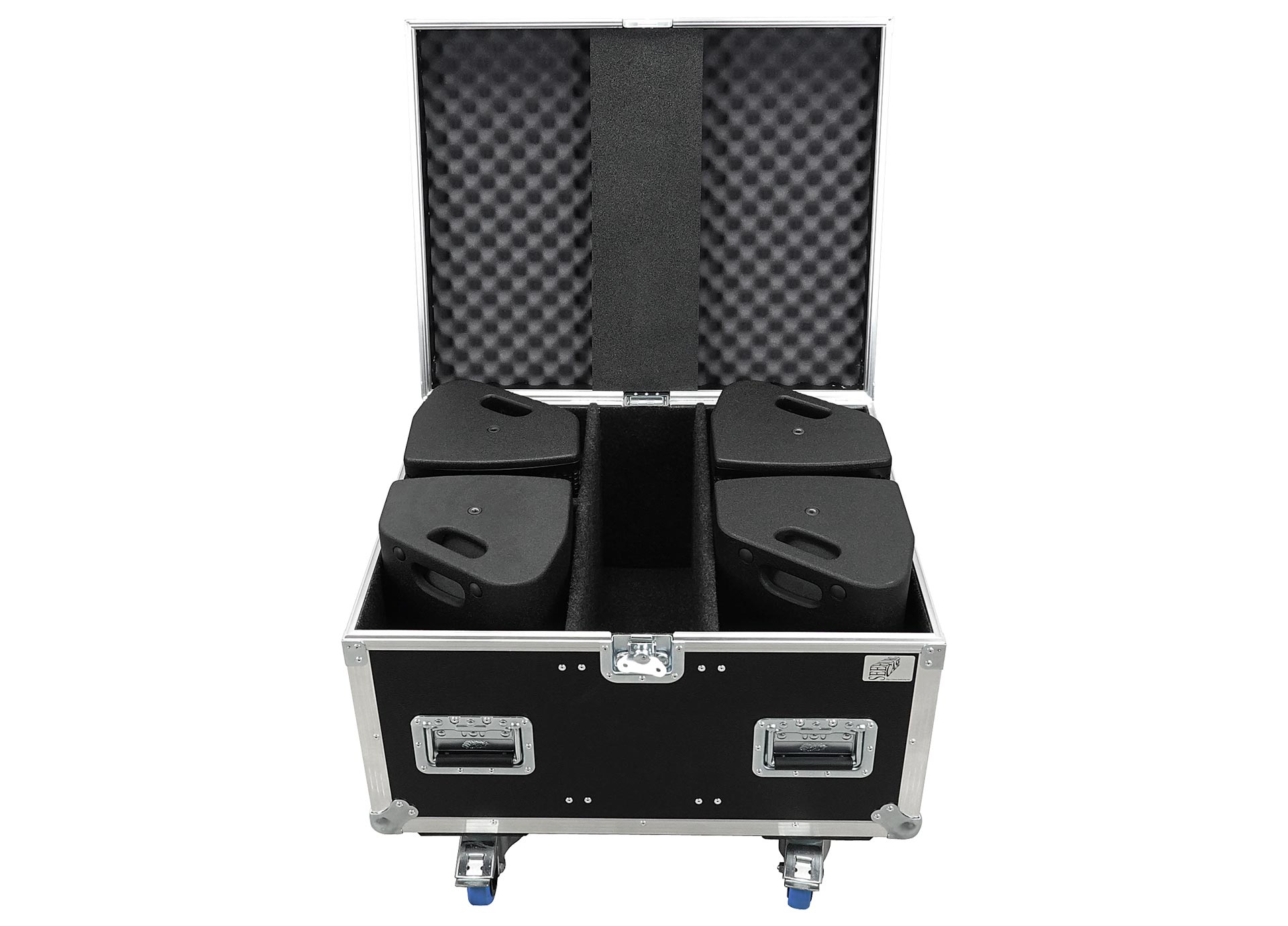

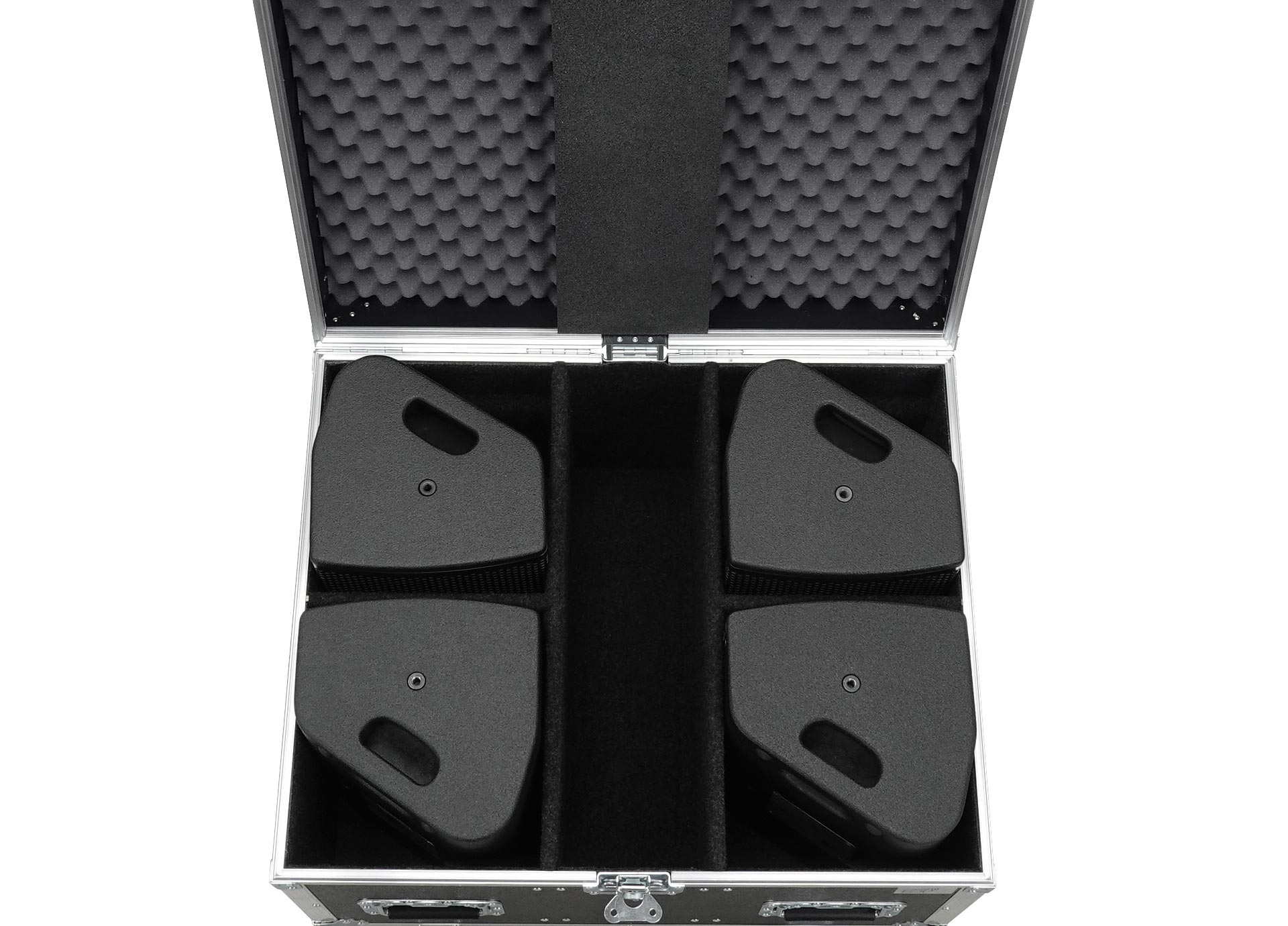

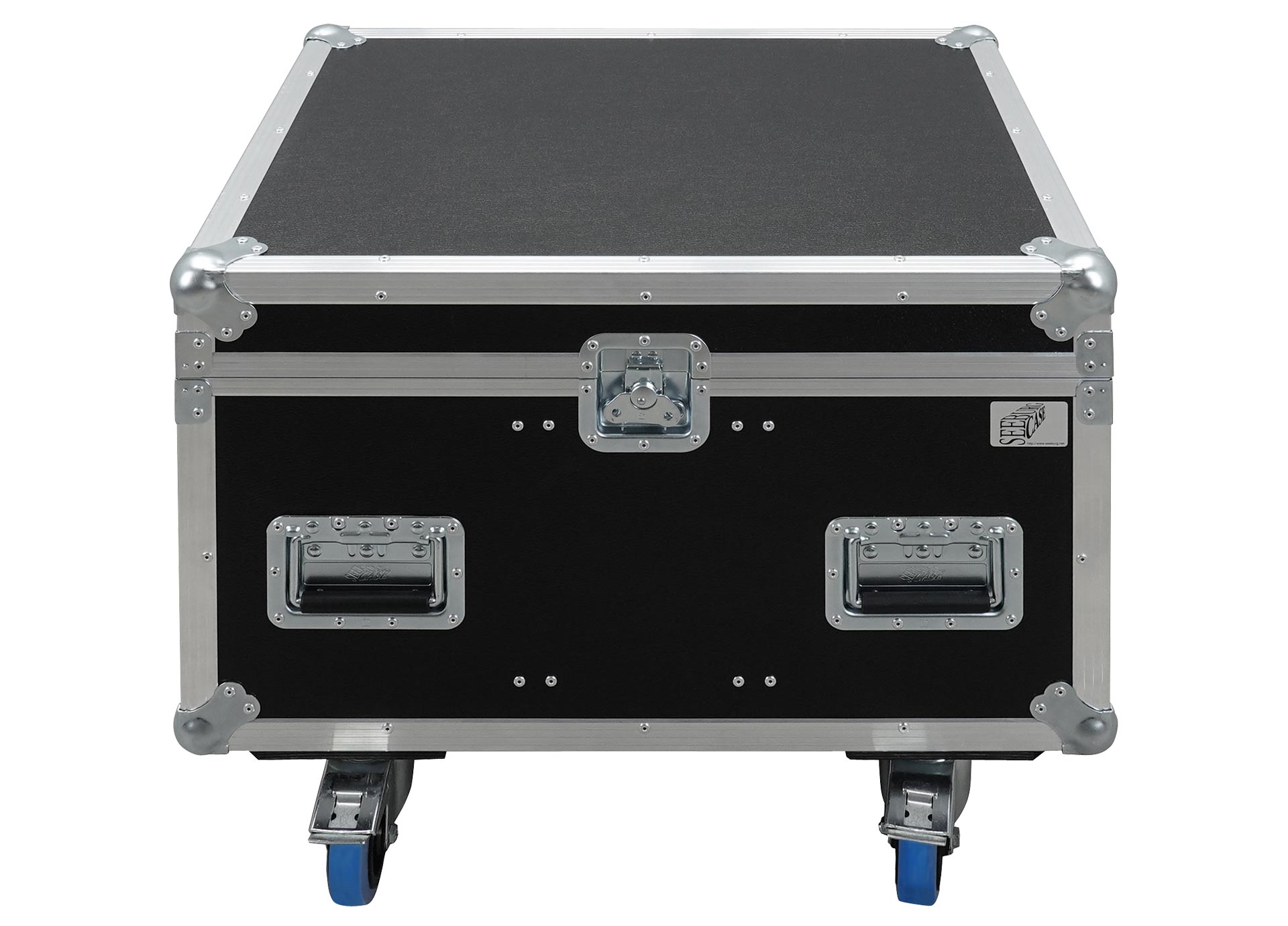

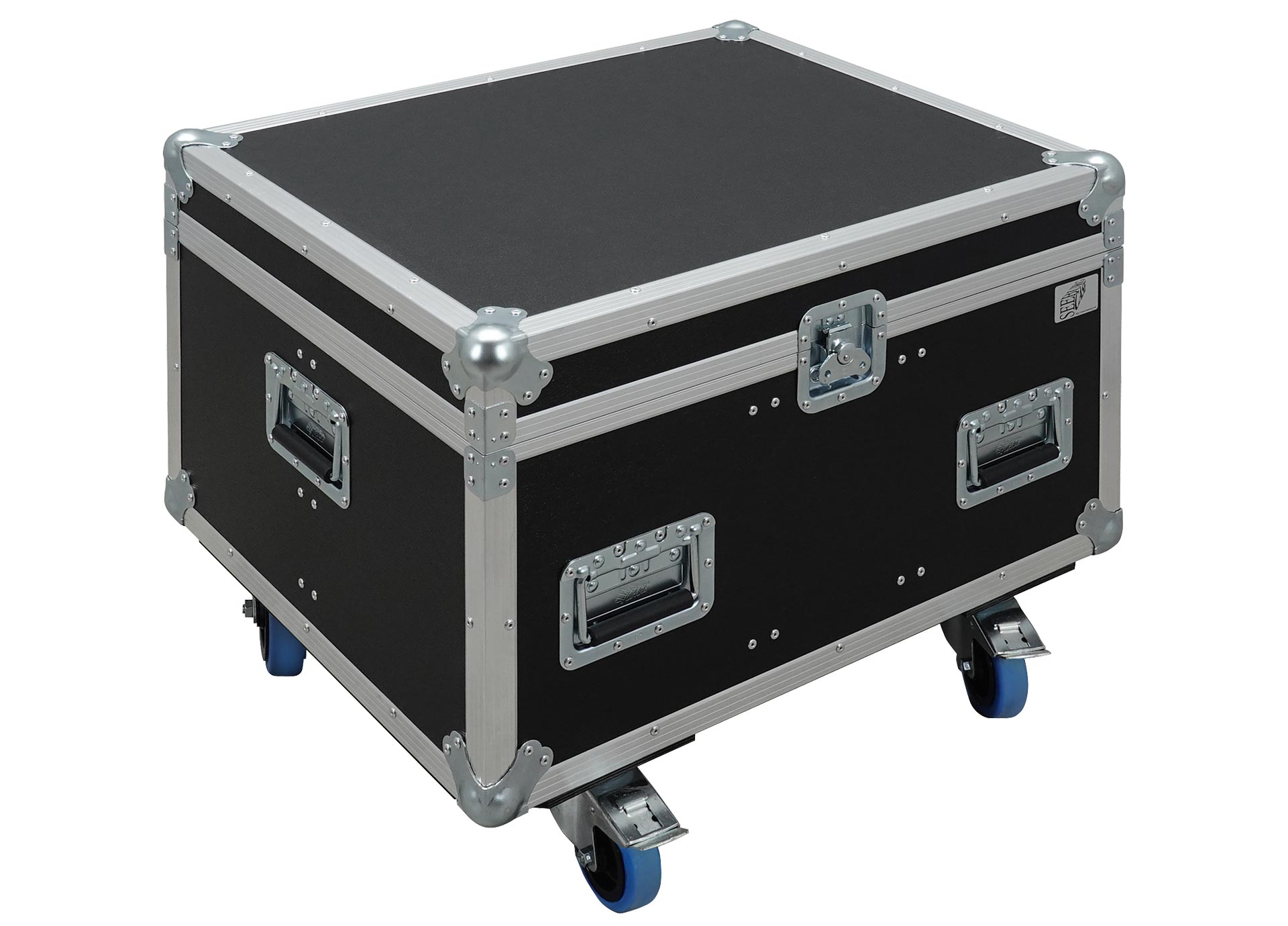

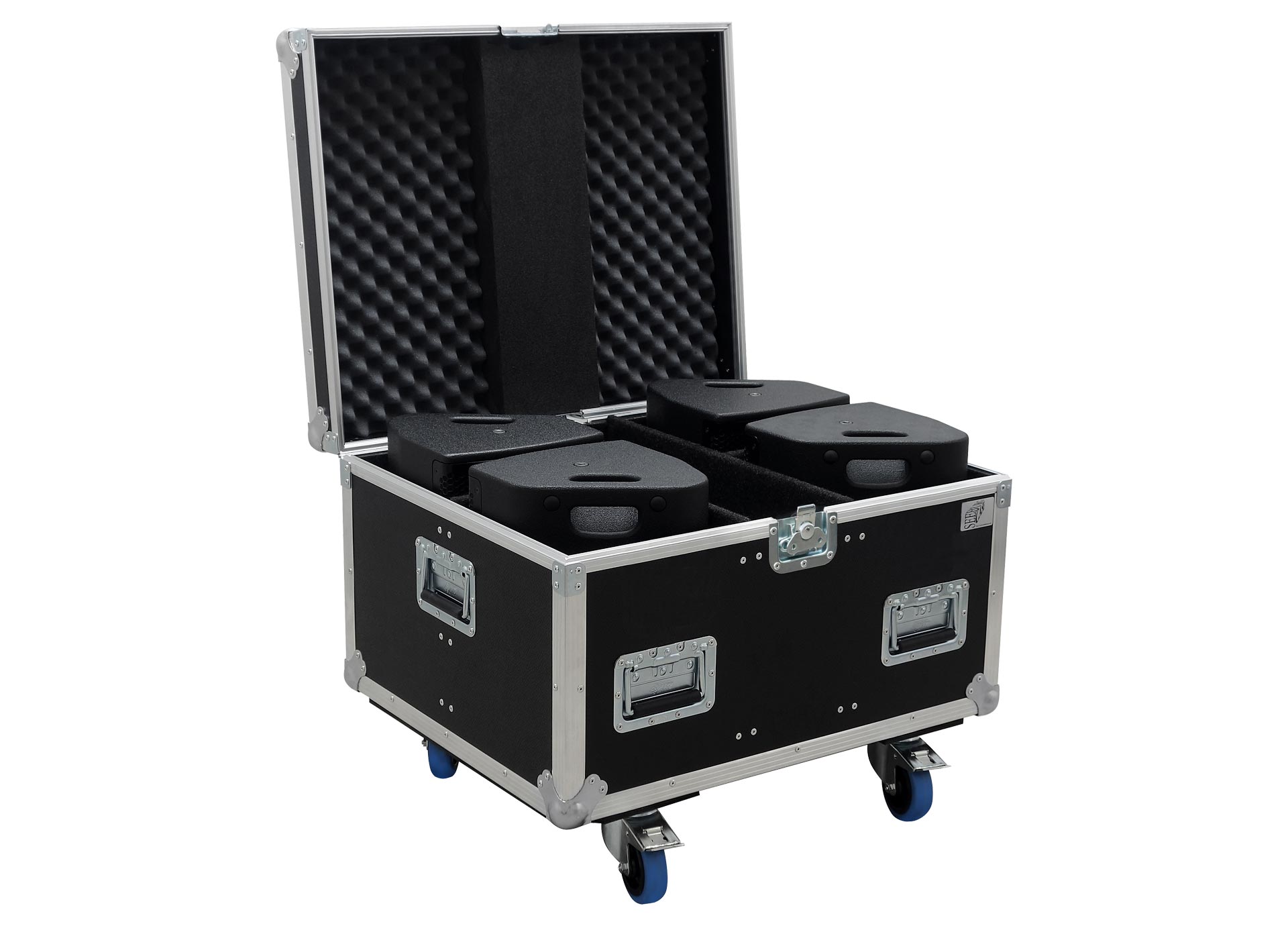

for 4 pcs. X 2, 4 x partition walls for X 2 and accessories, heavy duty, 9 mm birch multiplex, PVC coated black, 6 x recessed sprung handles, 2 x large butterfly catches, 4 x 100 mm blue wheels (2 pcs. with brake), interior lined with felt, 29 kg
Size (H x W x D): 58 x 74 x 60 cm
