GL 24 / GL 24 j
GL 24
00520/a |
2-way-active 600 W / 225 W AES 5,3 Ω / 5,3 Ω |
00520/xov |
X-Over 600 W AES, 5,3 Ω |
00520/dp |
Selfpowered Version 2 x 800 W AES bi-amped |
00520/j/a |
2-way-active 600 W / 225 W AES |
00520/j/xov |
X-Over 600 W AES, 5,3 Ω |
00520/j/dp |
j-Version Selfpowered Version 2 x 800 W AES bi-amped |
High-performance line array systems for optimised speech and music reproduction in acoustically challenging rooms.
The precise, broadband sound bundling to a nominal 20° (50°– j-version) vertical dispersion is achieved through the acoustic coupling of two slightly curved line arrays, arranged one behind the other within the cabinet. This innovative arrangement is complemented by the horn guide in the high frequency range to ensure an exceptionally homogeneous and symmetrical 100° horizontal dispersion. The GL 24 system is particularly suitable for individual applications up to a distance of 25 metres and can also be used as a downfill under the GL 16i.
In the standard version, the GL 24 is a 2-way active system with separate amplifiers and controller. The xov-version includes a passive crossover, and can be operated with a single amplifier channel.
The GL 24 system is also available in the self powered dp-version fitted with a 2 x 800 Watt AES amplifier featuring a selection of presets suitable for a variety of applications.
For special versions (EXTRAS) see data sheet.
GL 24 a |
GL 24 xov | |
Speaker Components | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter |
Description | Cylindric Wave Radiator | Cylindric Wave Radiator |
Power AES / Peak | LF: 600 Watt / 1800 Watt HF: 225 Watt / 675 Watt |
600 W / 1800 W |
Impedance nominal | 5,3 Ω / 5,3 Ω | 5,3 Ω |
SPL 1 Watt / Peak @ 1 m |
LF: > 98 dB / 130 dB HF: > 99 / 127 dB |
> 130 dB |
Usable Range |
80 Hz - 20 kHz (-6 dB) | 80 Hz - 20 kHz (-6 dB) |
Tuning Frequency excursion minimum | 90 Hz | 90 Hz |
X - Overpoint acoustical | Depends on preset | 1,1 kHz |
Coverage horizontal / vertical | 100° x 20° | 100° x 20° |
Mechanical Splay Angle | 13° | 13° |
Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HF, 2 +/- LF |
2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru |
Rigging / Fittings |
9 x M10 35 mm pole mount |
9 x M10 35 mm pole mount |
Weight | 20,5 kg | 21,0 kg |
Size height x width x depth | 106,0 x 18,9 x 34,3 (24,5) cm | 106,0 x 18,9 x 34,3 (24,5) cm |
Order No. | 00520/a 00520/a/full |
00520/xov 00520/xov/full |
GL 24 j a |
GL 24 j xov | |
Speaker Components | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter |
Description | Cylindric Wave Radiator | Cylindric Wave Radiator |
Power AES / Peak | LF: 600 Watt / 1800 Watt HF: 225 Watt / 675 Watt |
600 W / 1800 W |
Impedance nominal | 5,3 Ω / 5,3 Ω | 5,3 Ω |
SPL 1 Watt / Peak @ 1 m |
LF: > 98 dB / 130 dB HF: > 99 / 127 dB |
> 130 dB |
Usable Range |
80 Hz - 20 kHz (-6 dB) | 80 Hz - 20 kHz (-6 dB) |
Tuning Frequency excursion minimum | 90 Hz | 90 Hz |
X - Overpoint acoustical | Depends on preset | 1,1 kHz |
Coverage horizontal / vertical | 100° x 50° | 100° x 50° |
Mechanical Splay Angle | 43° | 43° |
Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HF, 2 +/- LF |
2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru |
Rigging / Fittings |
9 x M10 | 9 x M10 |
Weight | 20,5 kg | 21 kg |
Size height x width x depth | 100,6 x 18,9 x 52,0 (24,5) cm | 100,6 x 18,9 x 52,0 (24,5) cm |
Order No. | 00520/j/a |
00520/j/xov |
GL 24 dp | GL 24j dp | |
Speaker Components | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter | 6 x 6,5“ Nd / 24 x 1“ Nd Tweeter |
Description | Digitally Powered Cylindric Wave Radiator | Digitally Powered Cylindric Wave Radiator |
Amp Power | 2 x 800 W AES biamped / 110-230 V | 2 x 800 W AES biamped / 110-230 V |
Rated Current | 1,8 A @ 230 V | 1,8 A @ 230 V |
SPL Peak @ 1 m | >130 dB | > 130 dB |
Max. Input Signal | 25 dBu | 25 dBu |
DSP | DPLMx FPGA Proccessing 32 bit floating point | DPLMx FPGA Proccessing 32 bit floating point |
AD / DA | 24 bit / 96 kHz | 24 bit / 96 kHz |
Latency | 0,8 ms (analog in to analog out) | 0,8 ms (analog in to analog out) |
Usable Range |
80 Hz - 20 kHz (-6 dB) | 80 Hz - 20 kHz (-6 dB) |
Tuning Frequency excursion minimum |
90 Hz | 90 Hz |
X-Overpoint acoustical | Depends on preset | Depends on preset |
Coverage horizontal / vertical | 100° x 20° | 100° x 50° |
Mechanical Splay Angle | 13° | 43° |
Connectors | XLR in/thru, Ethercon, Powercon in/thru, Speakon NL4MP out |
XLR in/thru, Ethercon, Powercon in/thru, Speakon NL4MP out |
Rigging / Fittings | 9 x M10 35 mm pole mount |
9 x M10 |
Weight | 22,0 kg | 22,0 kg |
Size height x width x depth | 106,0 x 18,9 x 34,3 (24,5) cm | 100,6 x 18,9 x 52,0 (24,5) cm |
Order No. | 00520/dp 00520/dp/full |
00520/j/dp |

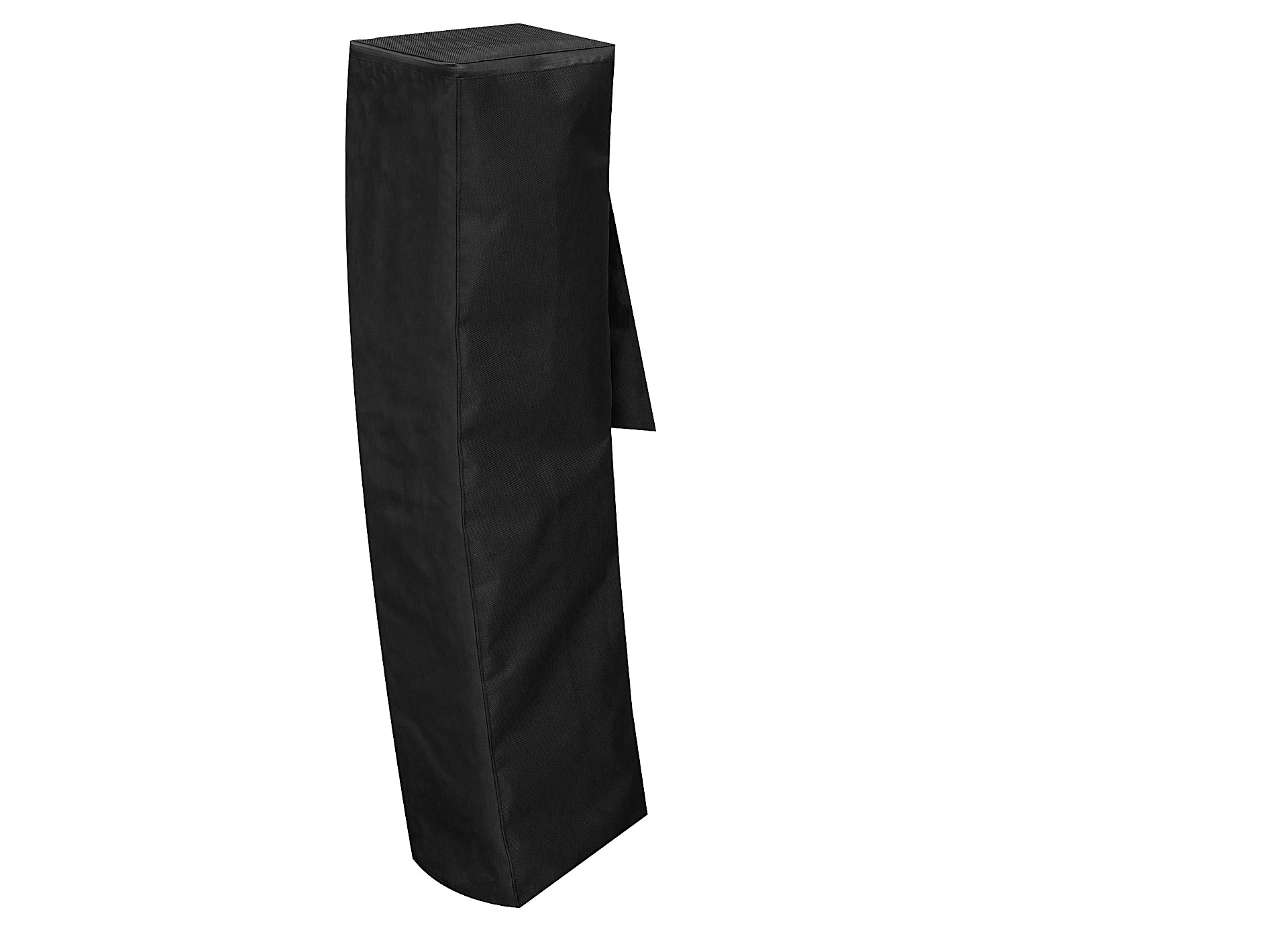

for GL 24, incl. low lid,
connectable to other covers of the
GL-system

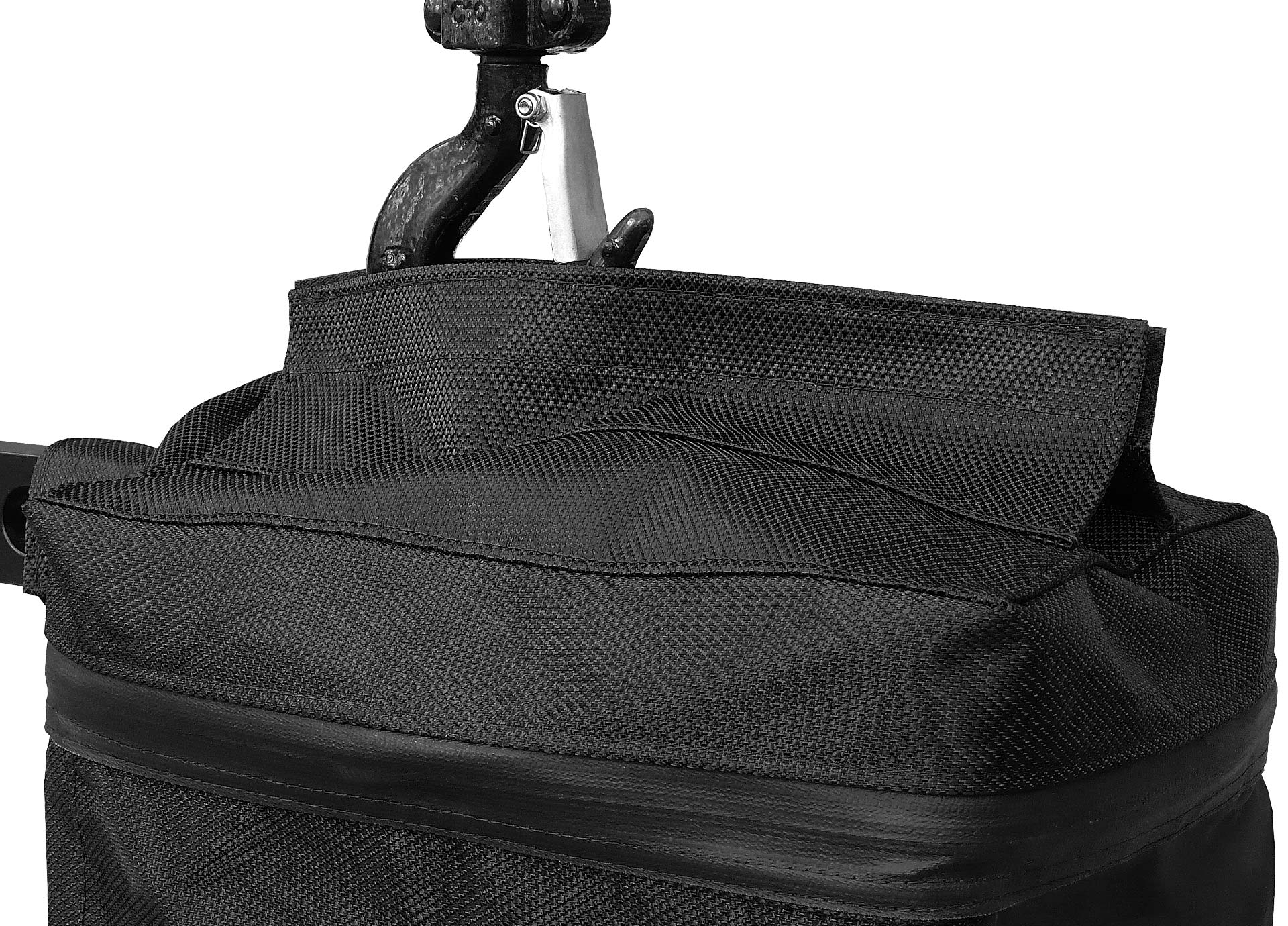

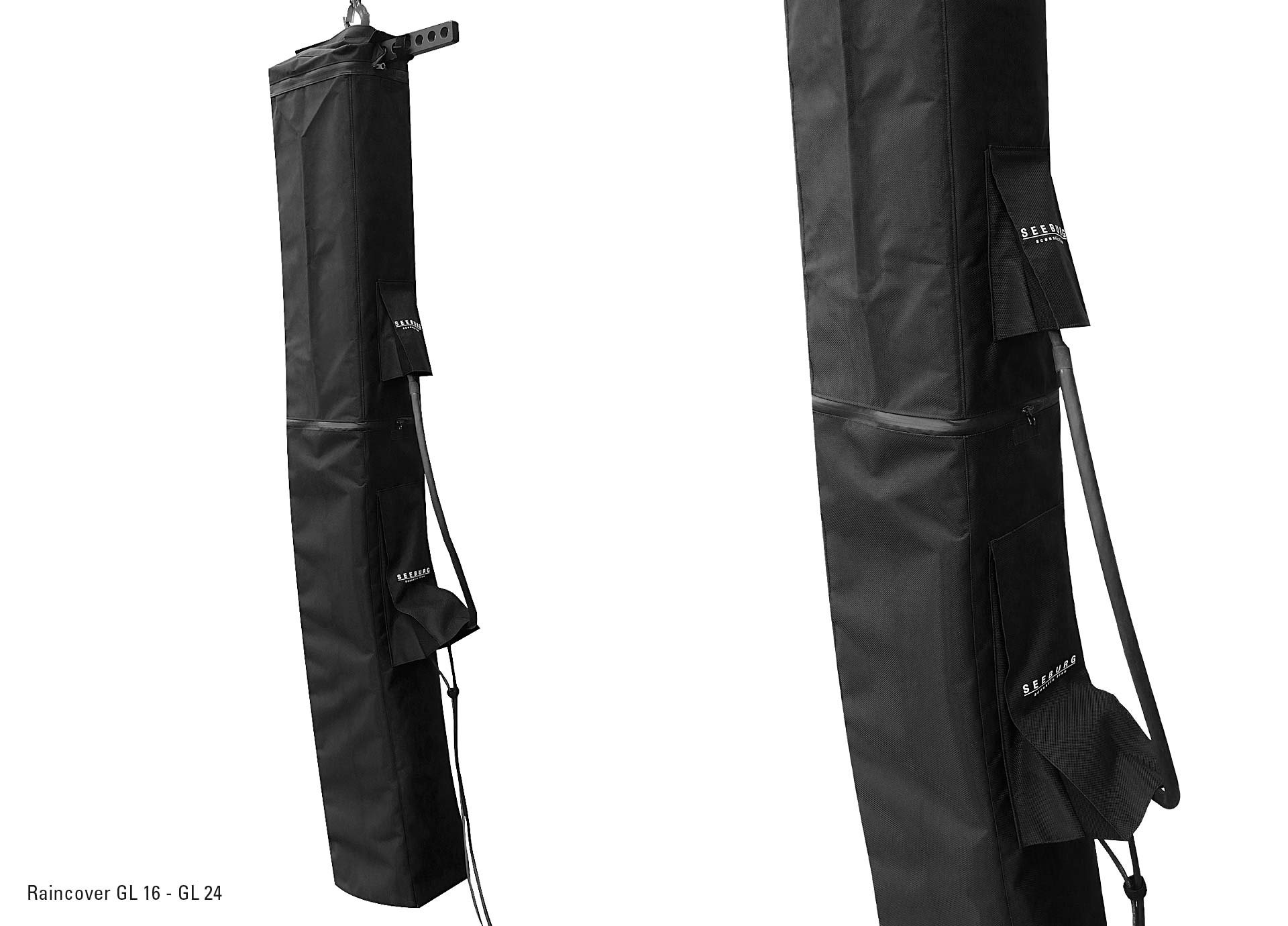

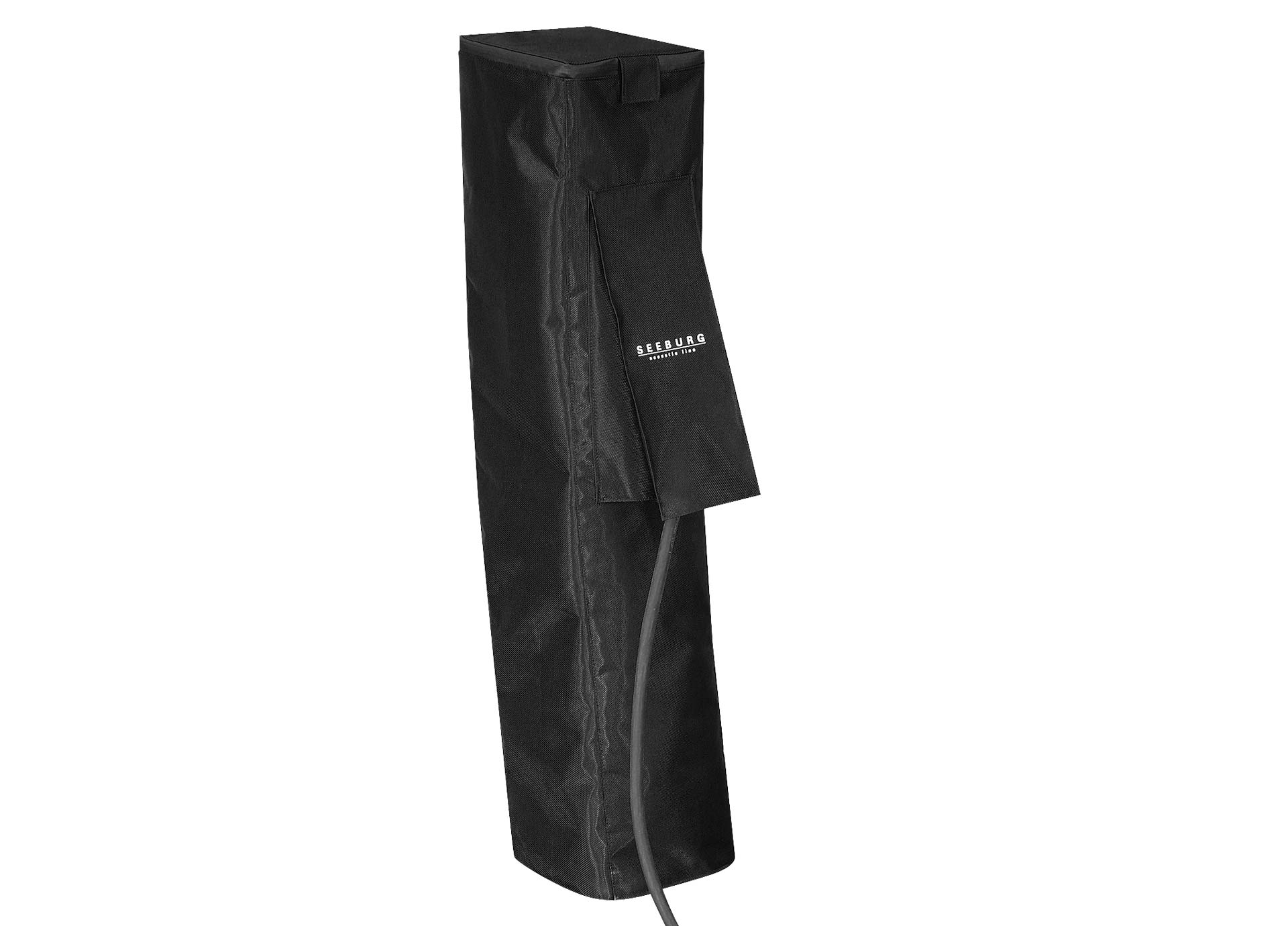

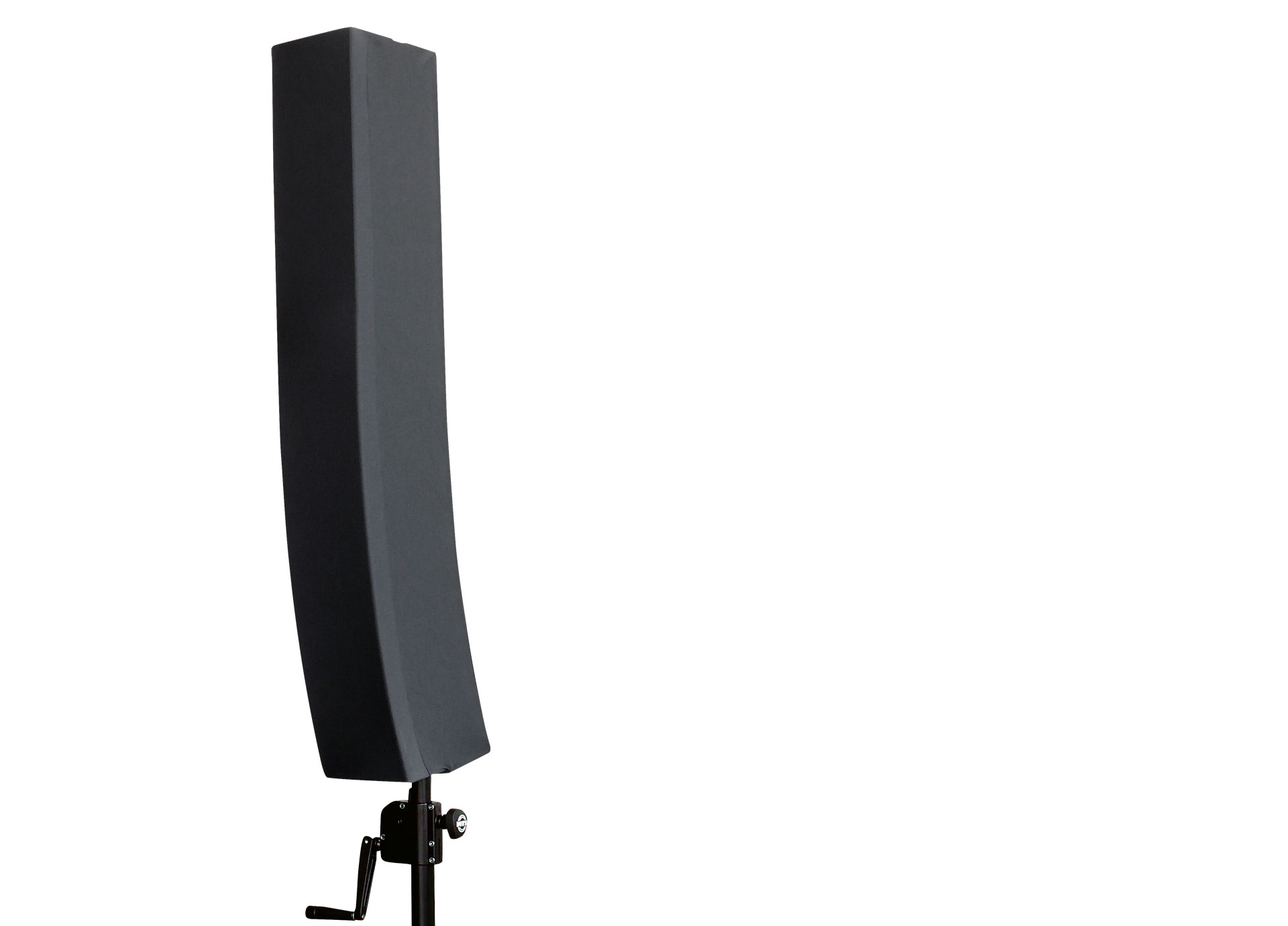

for GL 24 / GL 24 j
Order No. 01376/stretch/grey
Order No. 01376/stretch/white

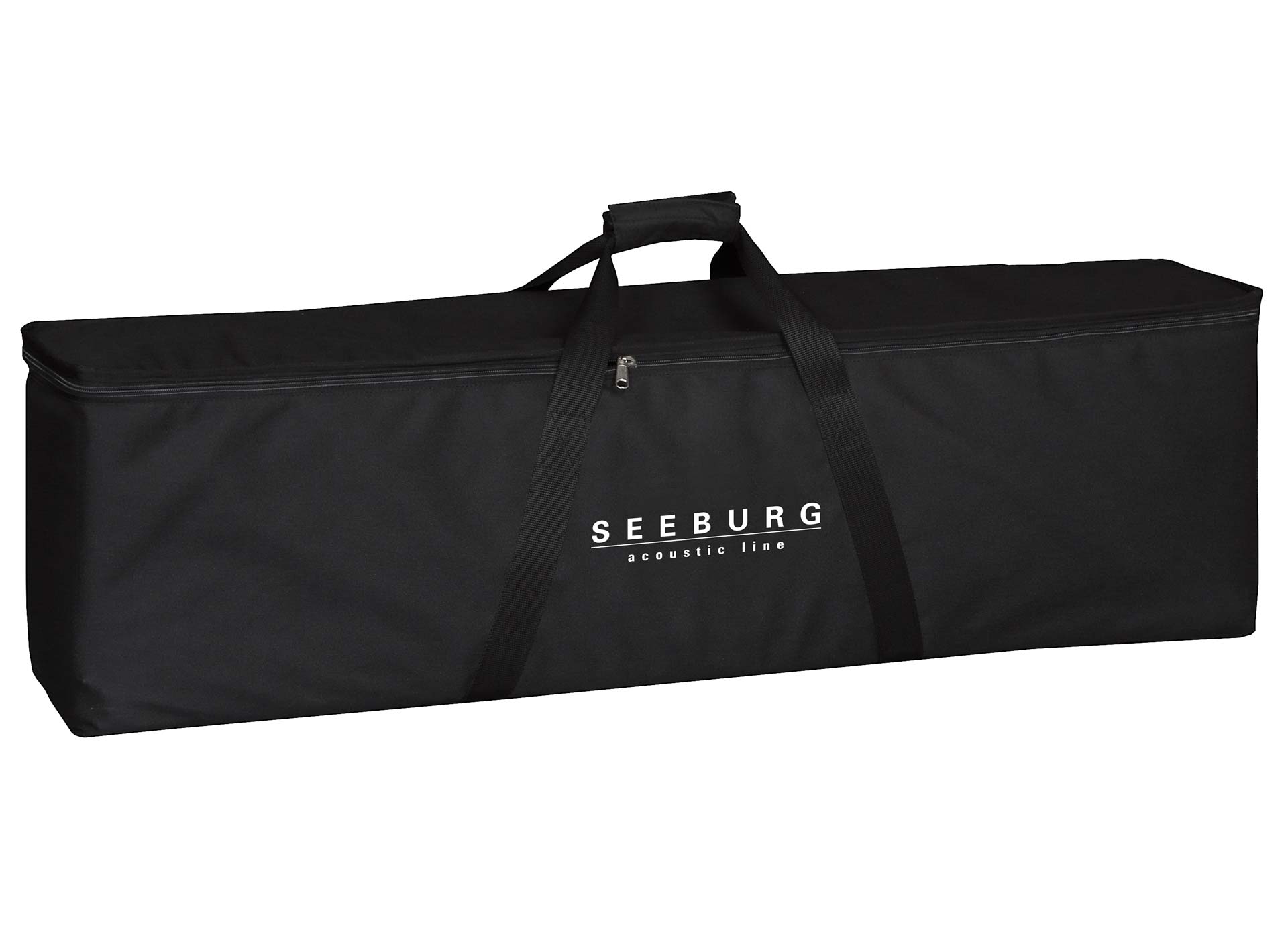

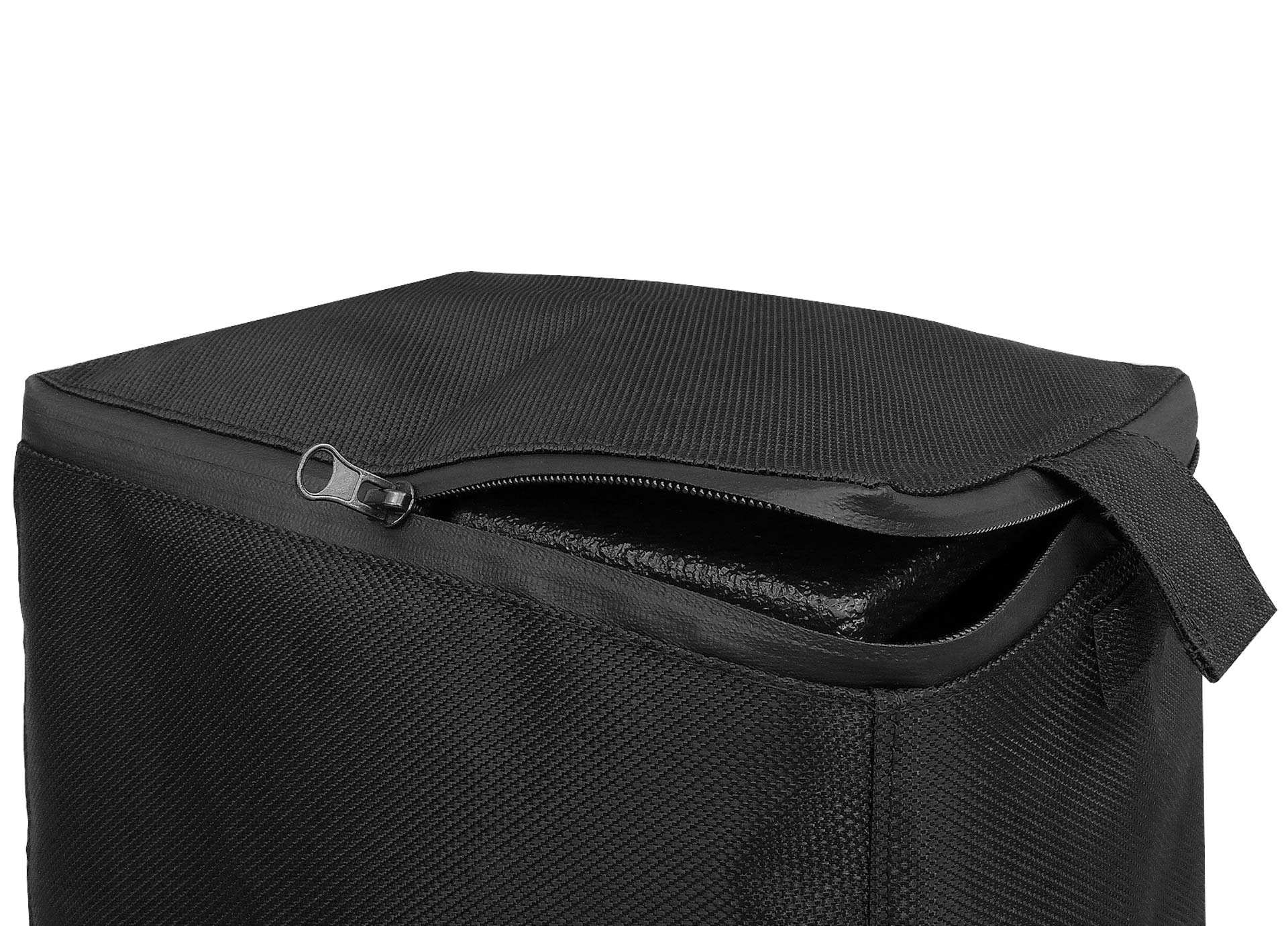

Universal bag for
Small Base Plate and accessories,
with side pocket
51 cm x 62 cm x 23 cm
(height x width x depth)
for one unit GL 24

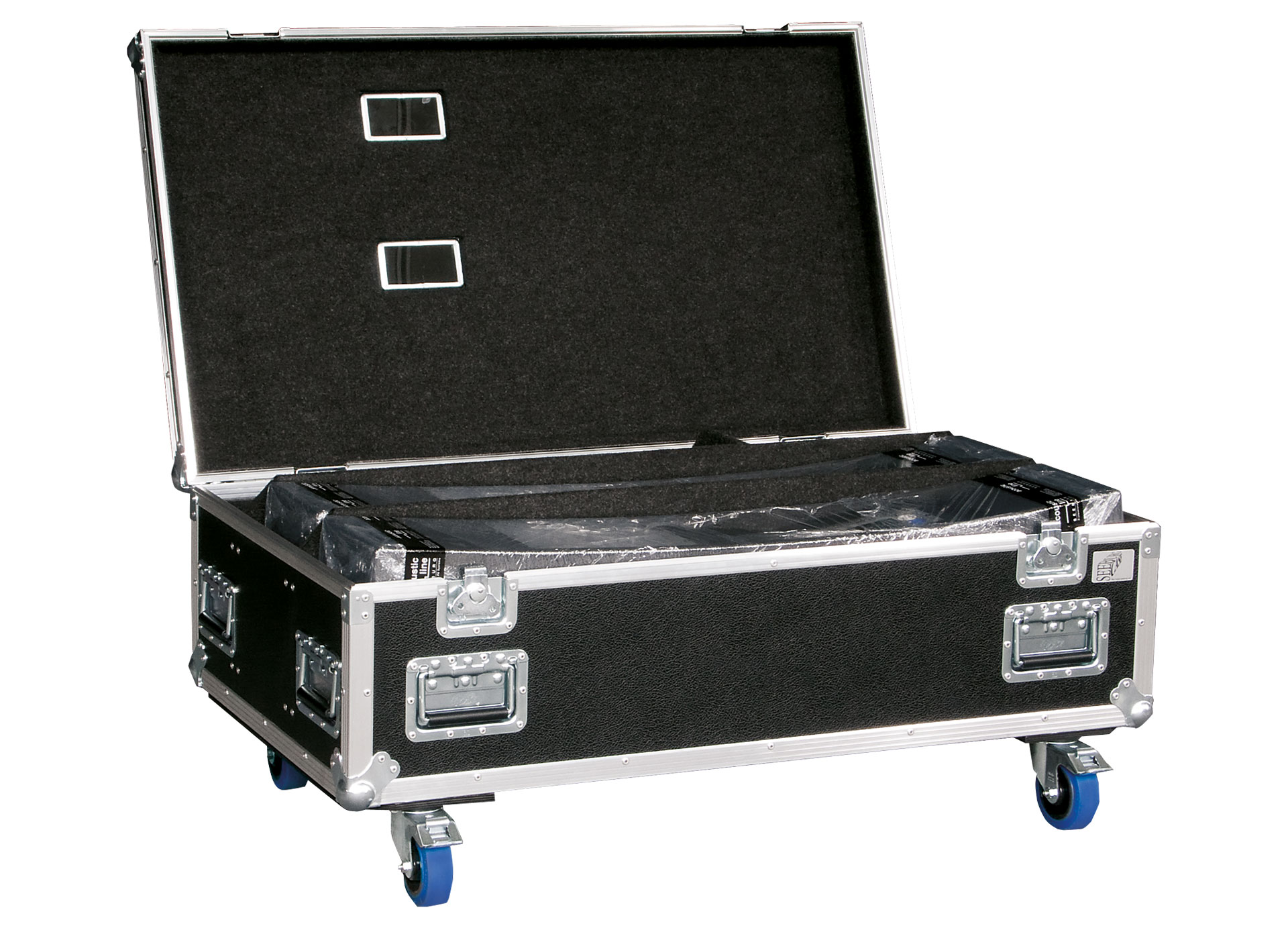

Order No. 01233for 2 pcs. GL 24 units,
and accessories, heavy duty, 9 mm birch multiplex, PVC coated, hinged lid, 8 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, stackable, inserts for accessories, interior lined with felt, loading measurements,
Size (H x W x D): 48,0 x 115,5 x 61,0 cm

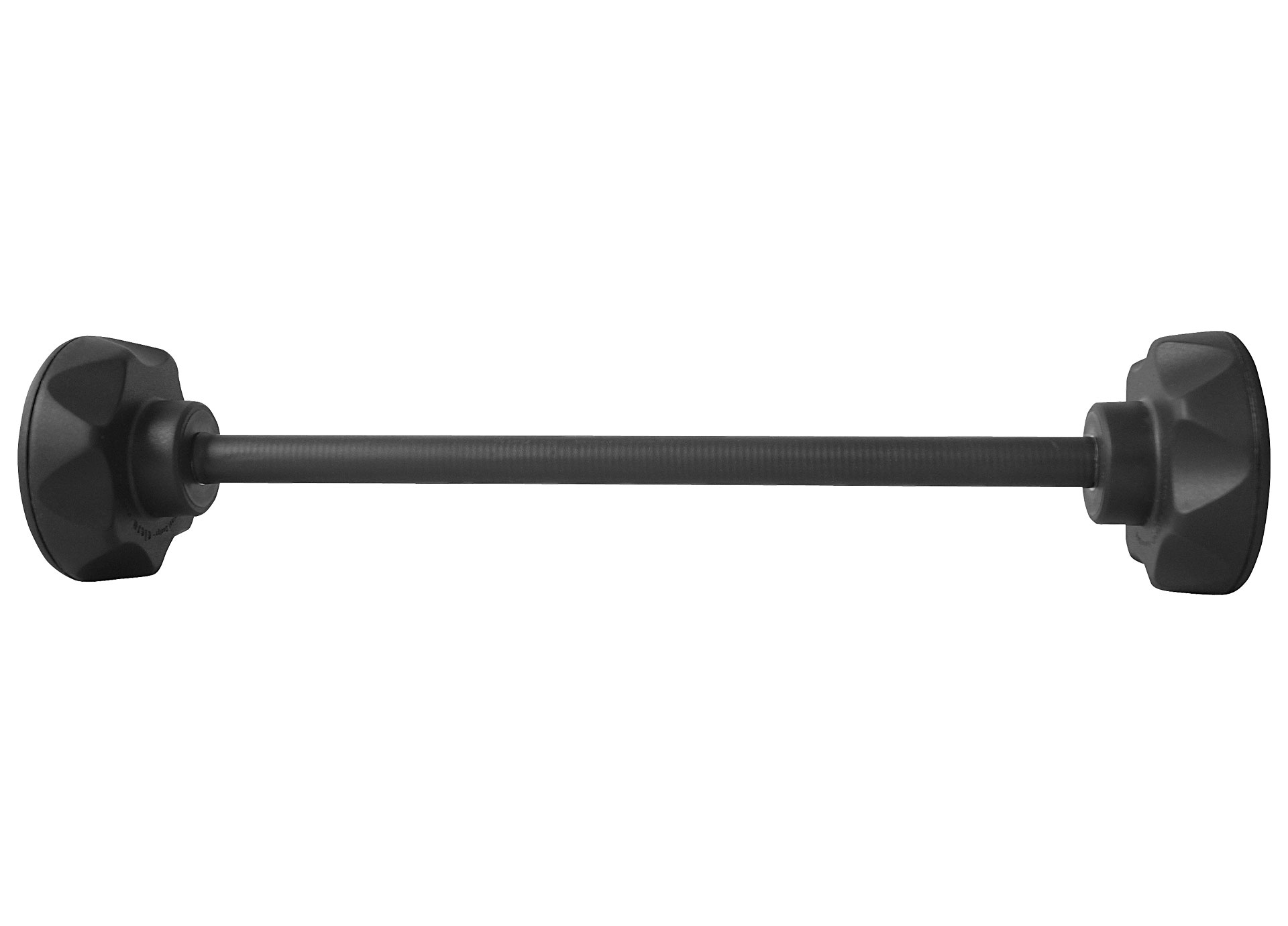

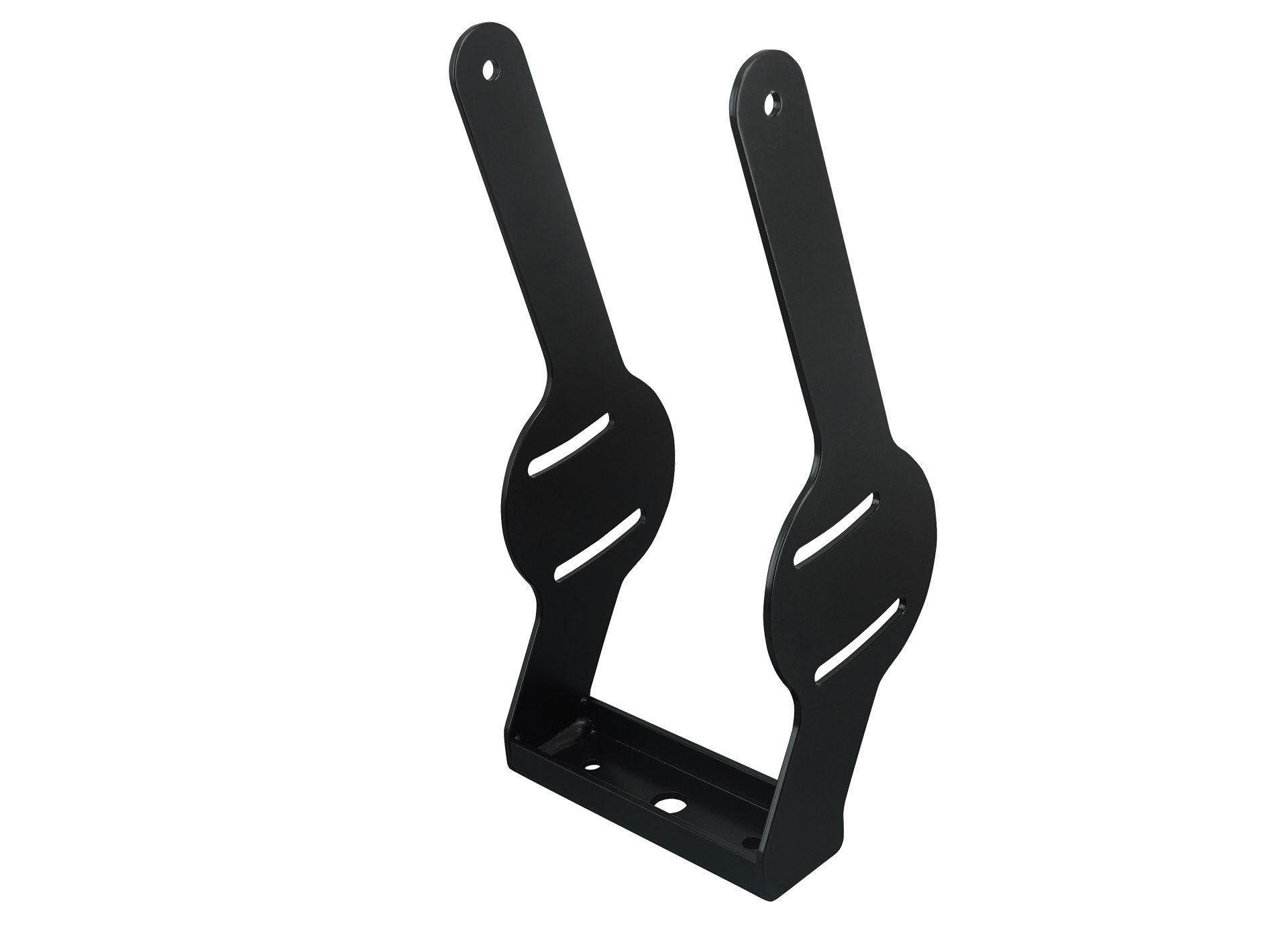

for GL 24,
incl. (black version:
4 x M10 x 20 handle screws,
1 x knurled head nut,
white version:
4 x M10 x 20 socket head screws,
1 x knurled head nut)
Order No. 01352/GL24/set/w (RAL 9010)
for GL System,
max. load 120 kg,
incl. shackle (01372/GL)
GL 24 standard version
–> GL 8c for Downfill,
a pair, incl. accessories
for flying brackets,
adjustable
M10 x 30
adjustable
M10 x 20
reduction screw for fastening
M10 pole mount adapter (08126)
max. load 100 kg

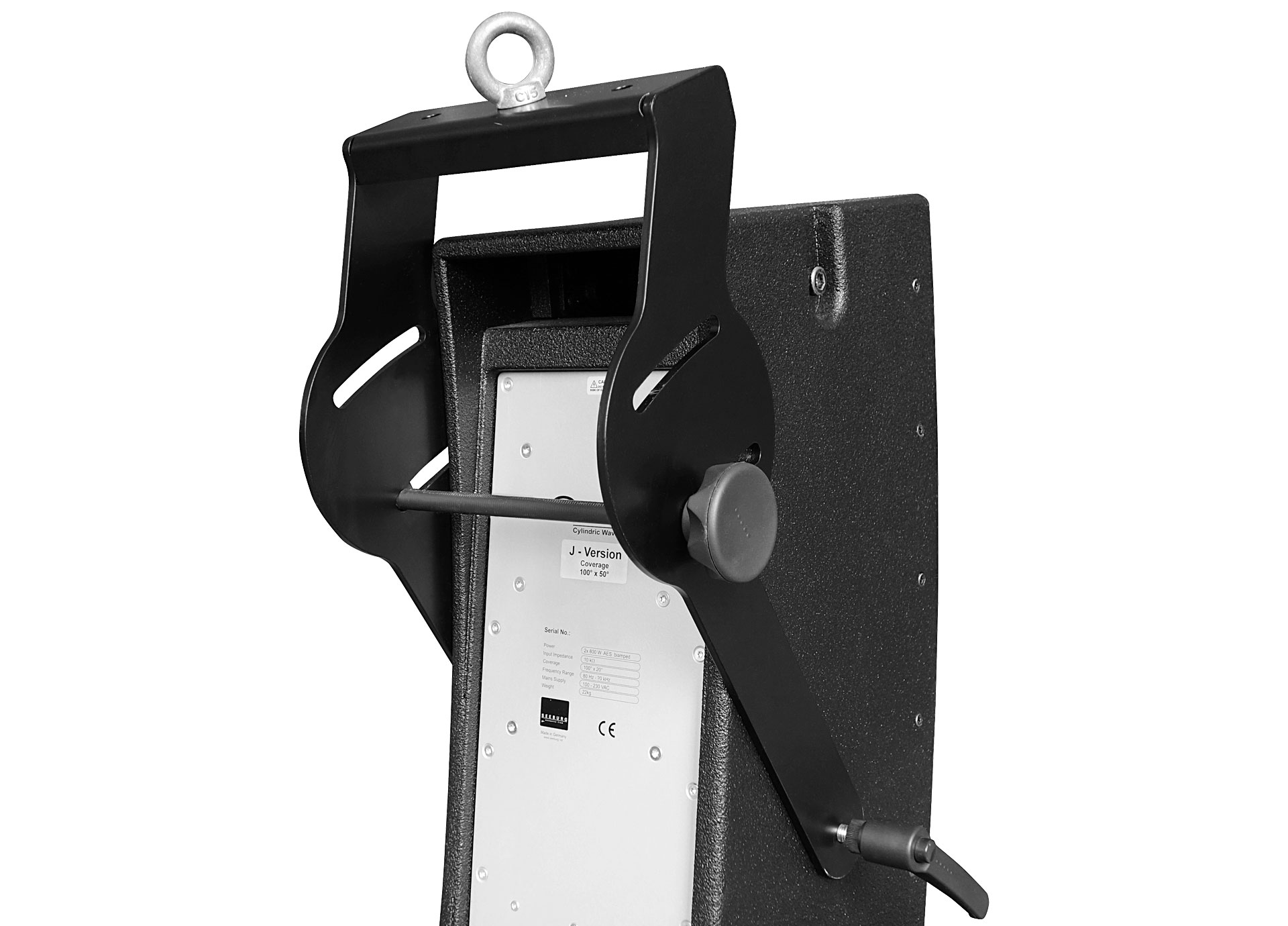

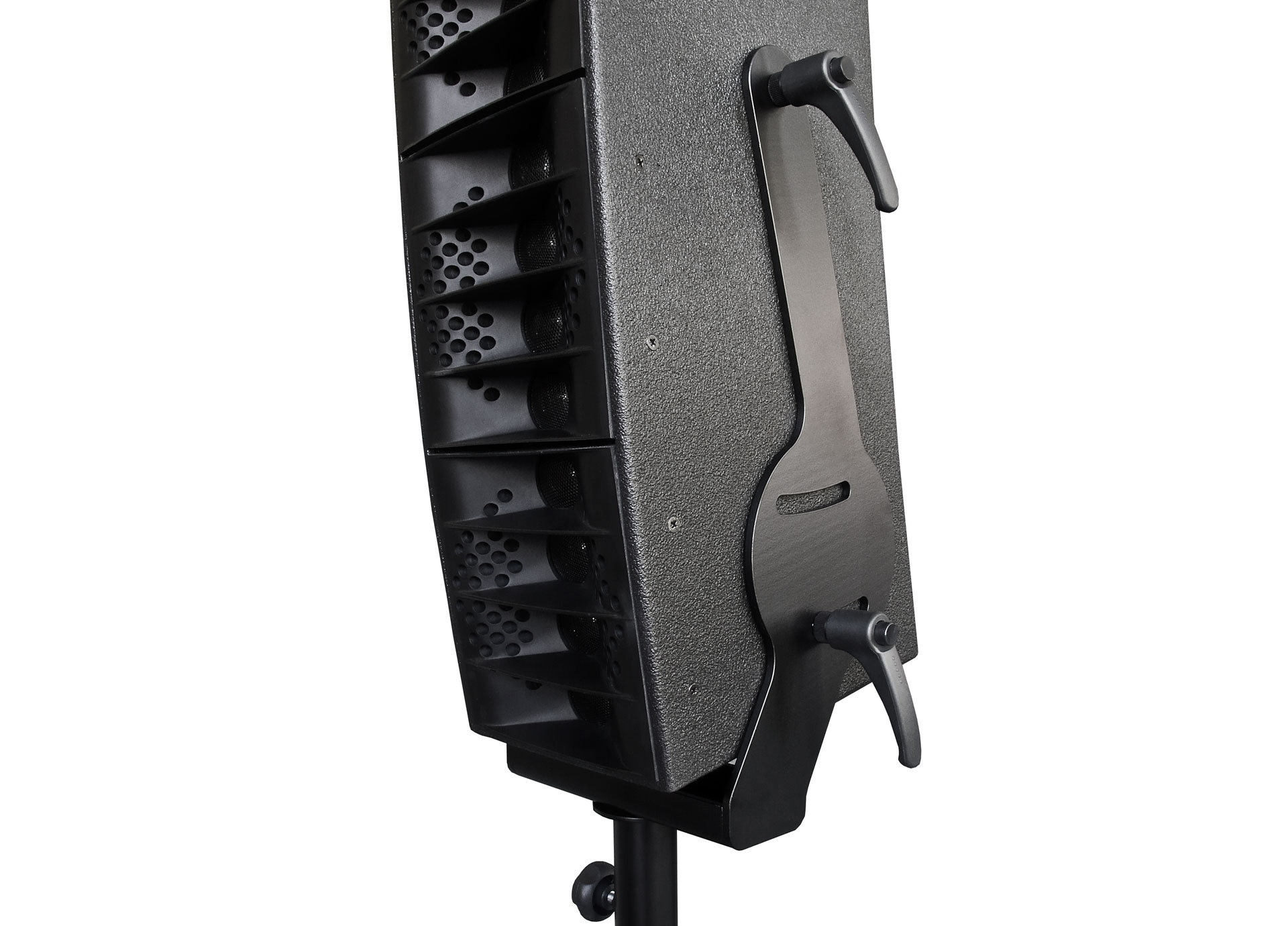

Order No. 01223/100kgfor Flying Bracket GL 24 / GL 24 j,
for stronger angling
Max. load 200 kg
Order No. 01223/TVM10– DIN 580
black zinced
Order No. 73700/sw
zinced
M20 external thread,
28 mm ø x 147 mm
VBS 7 mm

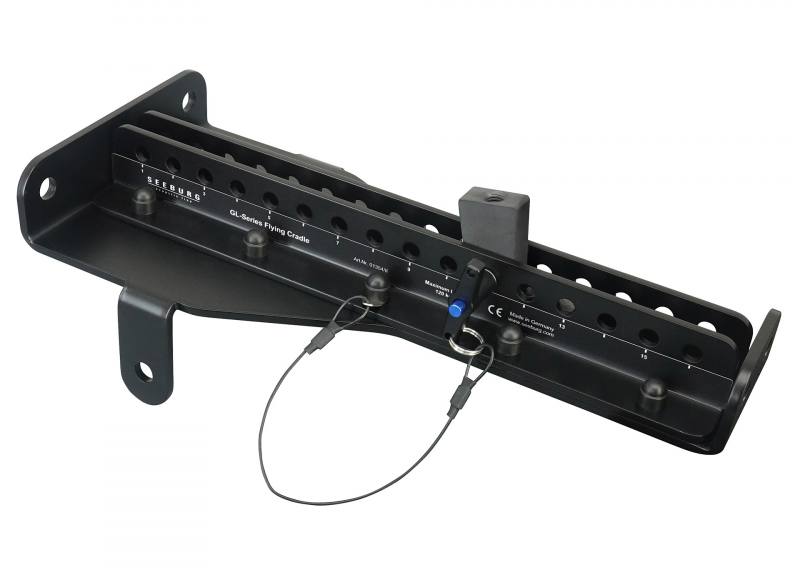

Order No. 01378for GL-flying cradle,
WLL 1000 kg
6 mm x 600 mm,
max. load 22 kg (BGI 810-3),
quick connector undetachably
2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg
Order No. 03034/w (RAL 9010)
Order No. 03034bar: 400 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/400/w (RAL 9010)
bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/269/w (RAL 9010)
for Wall Mount (03034)
M10 x 55 socket head screw,
polyurea coated
Order No. 03034/spc/w (RAL 9010)
Order No. 03034/spcfor flying bracket,
M20 x 35 mm with nut,
incl. 1 x M20 x 30 socket head screw,
1 x flat
adjustable,
incl. M20 Adapter
incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg
height 137,5 to 218,5 cm,
max. load 50 kg
