A 6 Multi Purpose Sound System
A 6
00260/II |
500 W AES, 8 Ω |
00260/AF/II |
Version for permanent installation, as above |
00260/II/dp |
Selfpowered Version, 2 x 500 W AES bi-amped |
 Downloads |
|
| Data Sheet A6 |
 |
| Data Sheet A6 dp |
|
| User Manual A6 dp |
|
| Quick Start Manual dp-systems |
|
| Quick Start Guide SEEBURG Network Manager-AES67 |
|
| 3D-Files | |
| Architectural Specifications |
|
| Product Pictures |
 |
Multifunctional 12“ Nd / 1“ cabinet with very linear sound reproduction. Equally suited to use as a high quality fullrange / high - mid unit or in monitor applications. The rotatable 1” DPC (= Dual Pattern Control) horn maintains a constant 90° x 60° dispersion over a wide frequency range.
The A 6 is also available in the dp-version with an integrated, DSP controlled 2 x 500 Watt amplifier, and in the "AF 6" version optimised for permanent installation.
| A 6 |
A 6 dp | |
| Speaker Components | 12“ Nd / 1“ | 12“ Nd / 1“ |
| Description | Multi Purpose Sound System | -digitally powered |
| Power AES / Peak | 500 W / 1500 W | - - - |
| Amp Power | - - - | LF: 500 W AES / 110-230 V HF: 150 W AES / 110-230 V |
| Impedance nominal | 8 Ω | - - - |
| Rated Current | - - - | 0,55 A @ 230 V |
| SPL 1 W / Peak @ 1 m |
99 dB / 131 dB | - - - |
| SPL Peak @ 1 m | - - - | 128 dB |
| Max. Input Signal | - - - | 25 dBu |
| DSP | - - - | HDLM FPGA Processing 32 bit floating point |
| AD / DA | - - - | 24 bit / 96 kHz |
| Latency | - - - | 0,8 ms (analog in to analog out) |
| Usable Range |
60 Hz - 20 kHz (-6 dB) | 50 Hz - 20 kHz (- 6 dB) |
| Tuning Frequency excursion minimum |
60 Hz |
60 Hz |
| X - Overpoint acoustical | 1,3 kHz | Depends on preset |
| Coverage horizontal / vertical |
90° x 60° - rotatable | 90° x 60° - rotatable |
| Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- HiMid, 2 +/- loop thru |
XLR in/thru, Ethercon, Powercon in/out |
| Handles | 1 x | 1 x |
| Rigging / Fittings |
2 x M10 / 7 x M8 35 mm pole mount |
2 x M10 / 7 x M8 35 mm pole mount |
| Weight | 17 kg | 16 kg |
| Size height x width x depth | 60,6 x 36,0 x 34,0 cm | 60,6 x 36,0 x 34,0 cm |
| Order No. | 00260/II 00260/AF/II (installation version) |
00260/II/dp |
for TSM 12 / A6,
padded
for TSM 12 / A6
Order No. 01244/outdoor

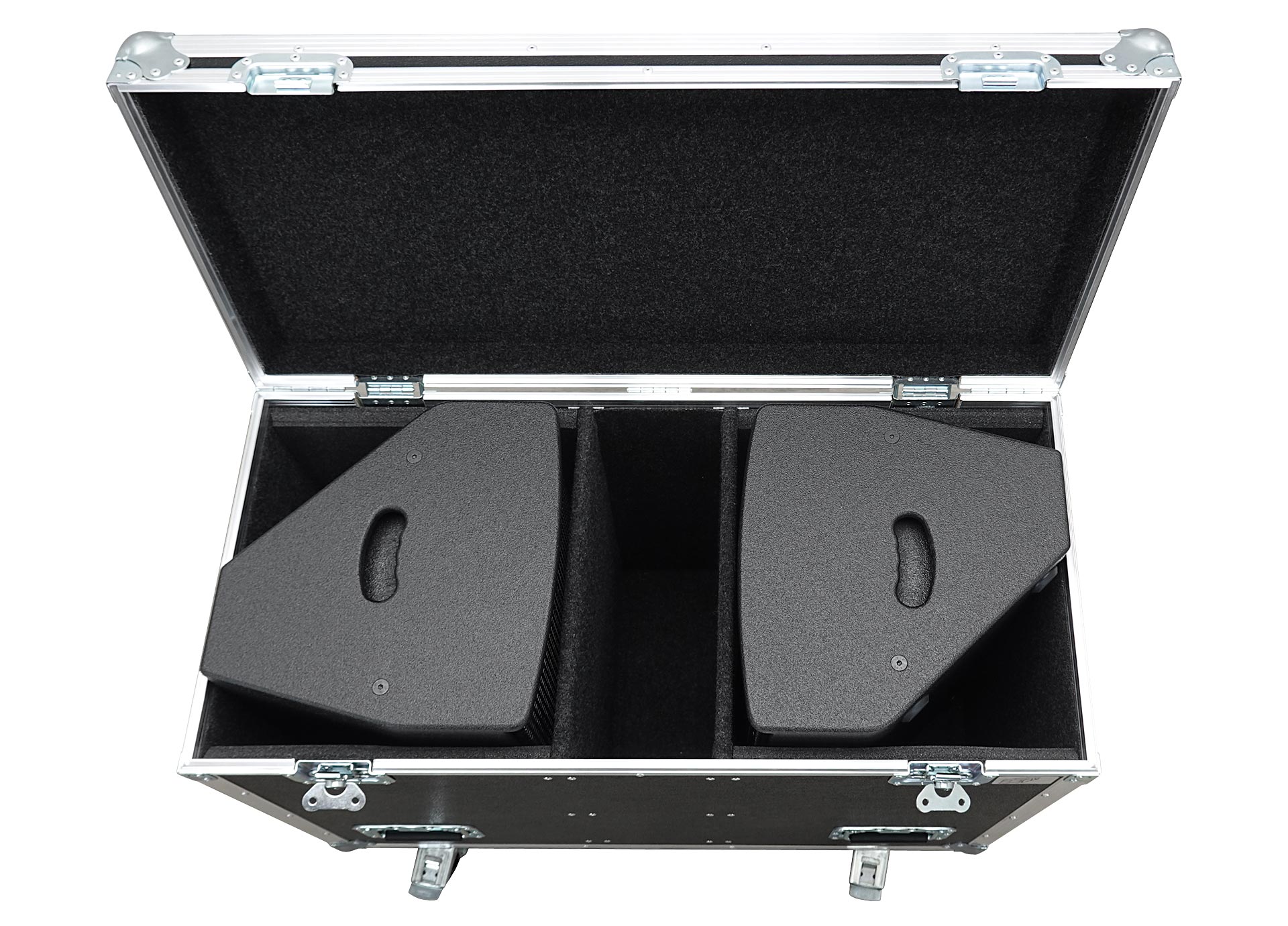

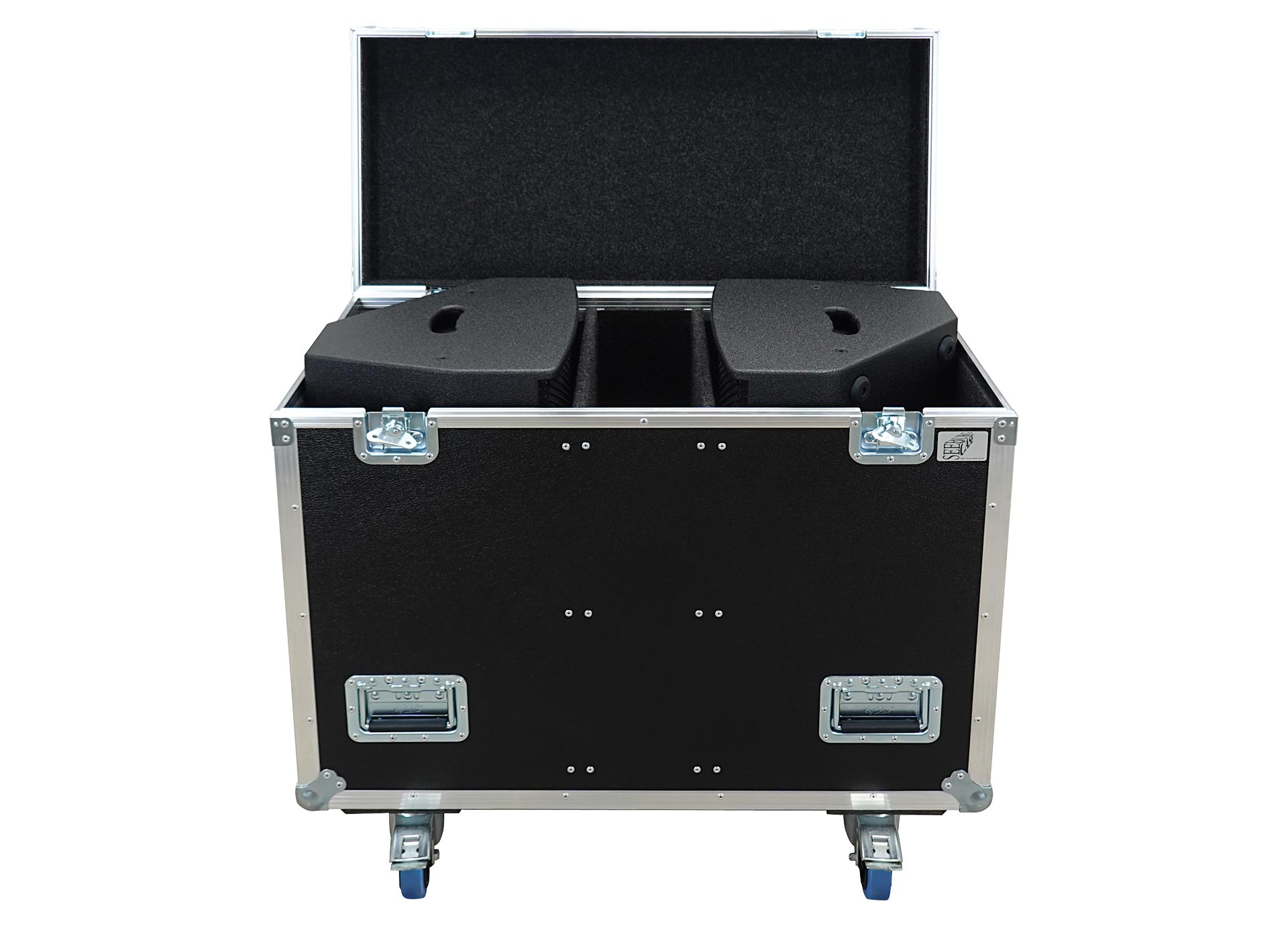

for 2 pcs. TSM 12 / A 6
heavy duty, 9 mm birch multiplex, PVC coated, 6 x recessed sprung handles, 4 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, partition walls, interior lined with felt
for AF 6 horizontal alignment,
incl. (2 x M10 x 20 socket head screws,
2 x rubber washers)
Order No. 01216/H/AF/w (RAL 9010)
for A 6 / A 6 dp / TSM 12
incl. (black version:
2 x M10 x 20 handle screws
white version: 2 x M10 x 20
socket head screws)
Order No. 01216/set/w (RAL 9010)
for A 6 / A 6 dp / TSM 12
horizontal alignment,
incl. accessories
Order No. 01216/H/set/w (RAL 9010)
swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg
version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg
for MultiRigg™ /MultiRigg™ light
for mounting on M10,
incl. 1 x M10 x 25 mm screw,
max. load 20 kg
adjustable
M10 x 20
for flying brackets,
5 mm x 40 mm ø
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw
Order No. 08126/w (RAL 9010)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
max. load 100 kg
Order No. 01223/100kg
M10, max. load 20 kg
Order No. 01223/20kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
10 mm internal thread,
28 mm ø
VBS 7 mm
Order No. 01378
6 mm x 600 mm,
max. load 22 kg (BGI 810-3),
quick connector undetachably
bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)
Order No. 08130/F/269/w (RAL 9010)
with tilt unit,
max. load 40 kg
with grid plate, max. load 30 kg
Order No. 01282
with grid plate and
„balance correction“, max. load 40 kg
incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg
height 137,5 to 218,5 cm,
max. load 50 kg
for A 6 front replacement,
foam behind grille
Order No. 97010/hex/compl/w
(RAL 9010)
for A 6 front replacement,
foam in front of grille
Order No. 97010/compl/w
(RAL 9010)
PowerCon-PowerCon / XLR-XLR
Order No. 08462 2,5 m
Order No. 08464 5,0 m
Order No. 08466 10 m
Order No. 08468 15 m
