SRX 810 Coaxial Transducer

SRX 810

00103

 200 W AES
Downloads
Data Sheet
3D-Files

The SRX 810 is a coaxial sound system for universal applications such as those requiring delay and surround sound.
Its homogeneous and symmetrical dispersion is achieved by the combination of a coaxial 8”/1” driver and a passive crossover with compensation of level and phase.

Specifications
Speaker Components 8“ / 1” Coaxial
Description Coaxial Sound System
Power    AES / Peak 200 W / 600 W
Impedance    nominal 8 Ω
SPL    1 W / Peak @ 1 m
 96 dB / 122 dB
Usable Range
 100 Hz - 18 kHz
Tuning Frequency    excursion minimum 85 Hz
X - Overpoint    acoustical 2,0 kHz
Coverage    horizontal / vertical 90° x 90°
Connectors 2 x Neutrik Speakon 4-pole
Coding: 1+/- HiMid, 2+/- Sub
Rigging    flying points
 6 x M10
2 x M8
Weight 9 kg
Size     height x width x depth 37,9 x 25,0 x 22,8 cm
Order No.

00103
Accessories
x
Flying Bracket

for SRX 810 / TSMini / TSM 8,
(incl. 2 x handle screws
M10 x 20 mm and rubber washers)

 Order No. 01213/set
x
Flying Bracket

for SRX 810 / TSM 8,
horizontal alignment,
(incl. 2 x socket head screws M10 x 20 mm,
spring- and rubber washers)

 Order No. 01213/H/set
x
Handle Screw

for flying brackets,
adjustable, M10 x 20 mm

 Order No. 08375/20
x
Rubber Washer

for flying brackets,
5 mm x 40 mm ø

 Order No. 01206
x
Quick Trigger Clamp

max. load 100 kg

 Order No. 01223/100kg
x
Quick Trigger Clamp-Small

M10, max. load 20 kg

 Order No. 01223/20kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

 Order No. 73700
x
TV Spigot

M10 internal thread,
28 mm ø

 Order No. 08128
x
Chain Fastener

VBS 7 mm

 Order No. 01378
x
Steel Safety

4 mm x 600 mm,
quick connector undetachably,
max. load 10 kg (BGI 810-3)

 Order No. 01376/4
x

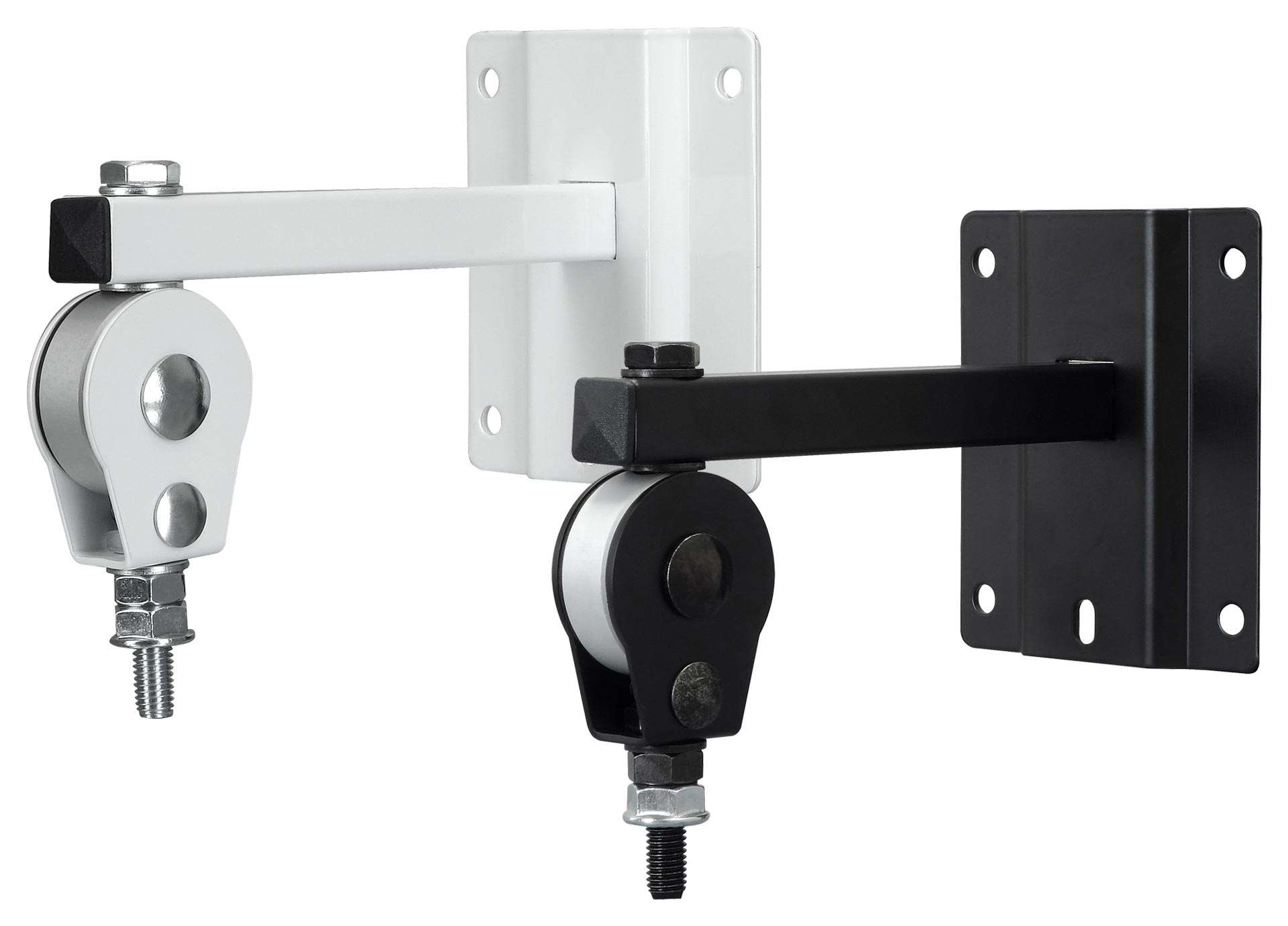

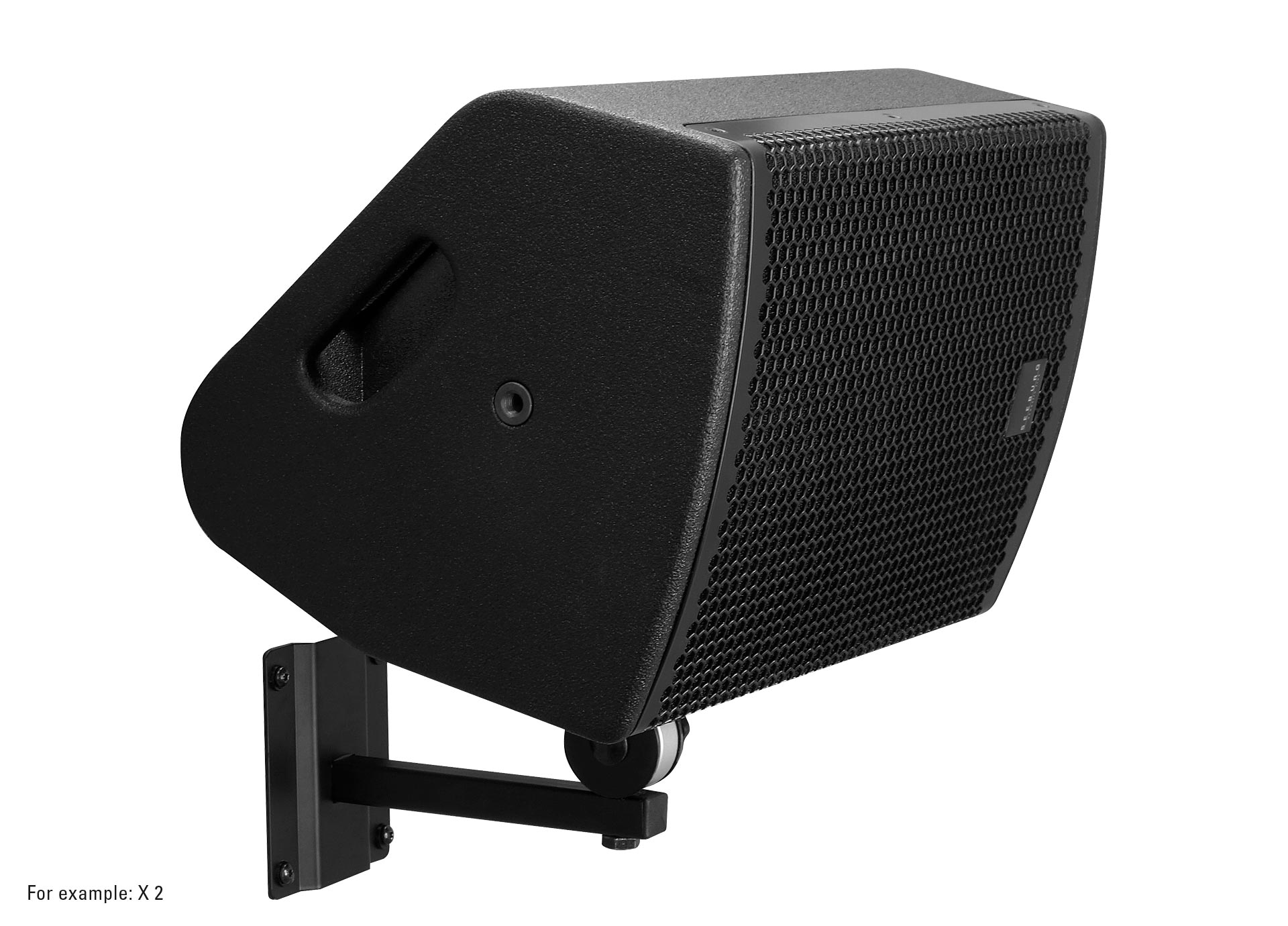

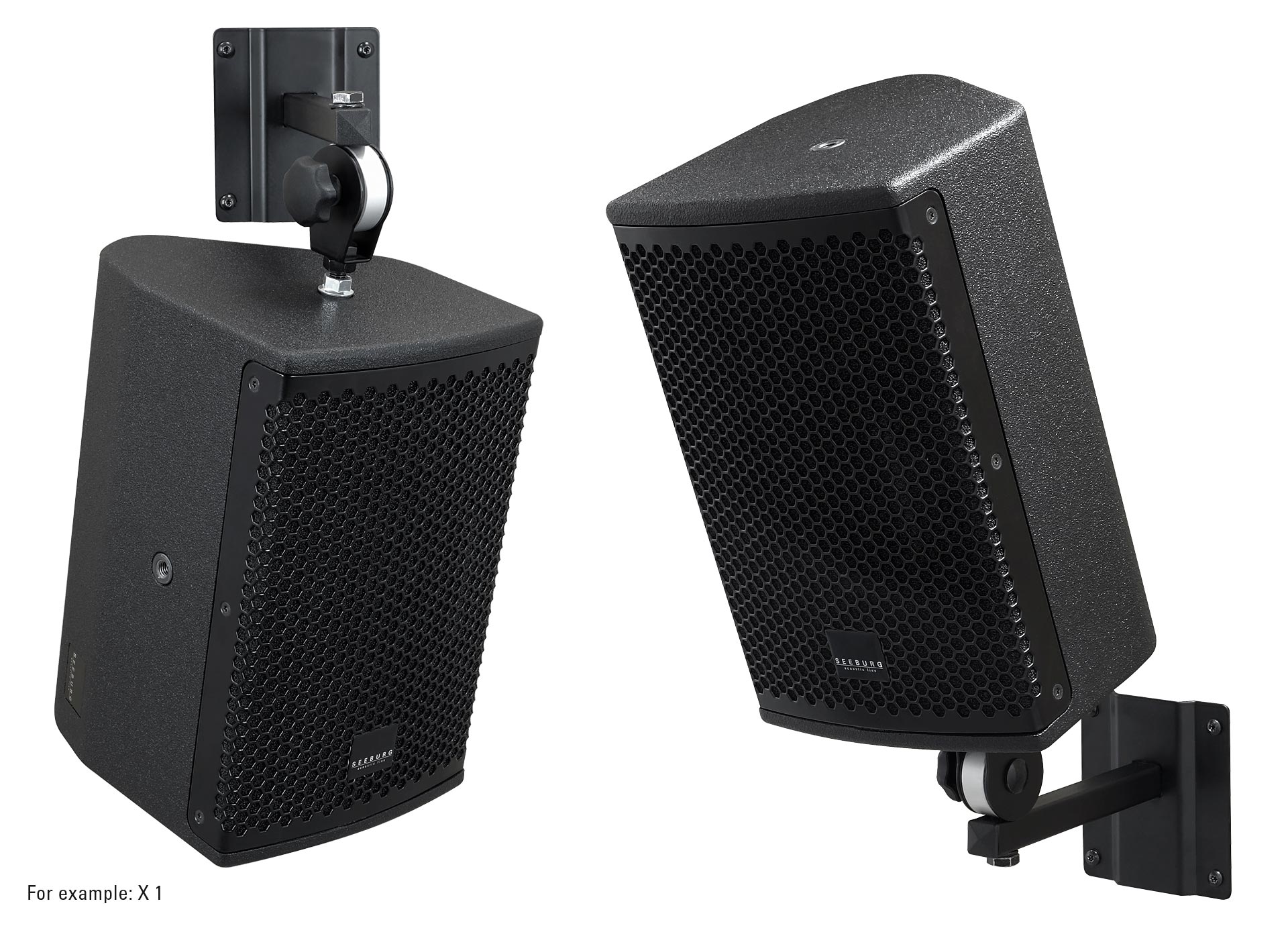

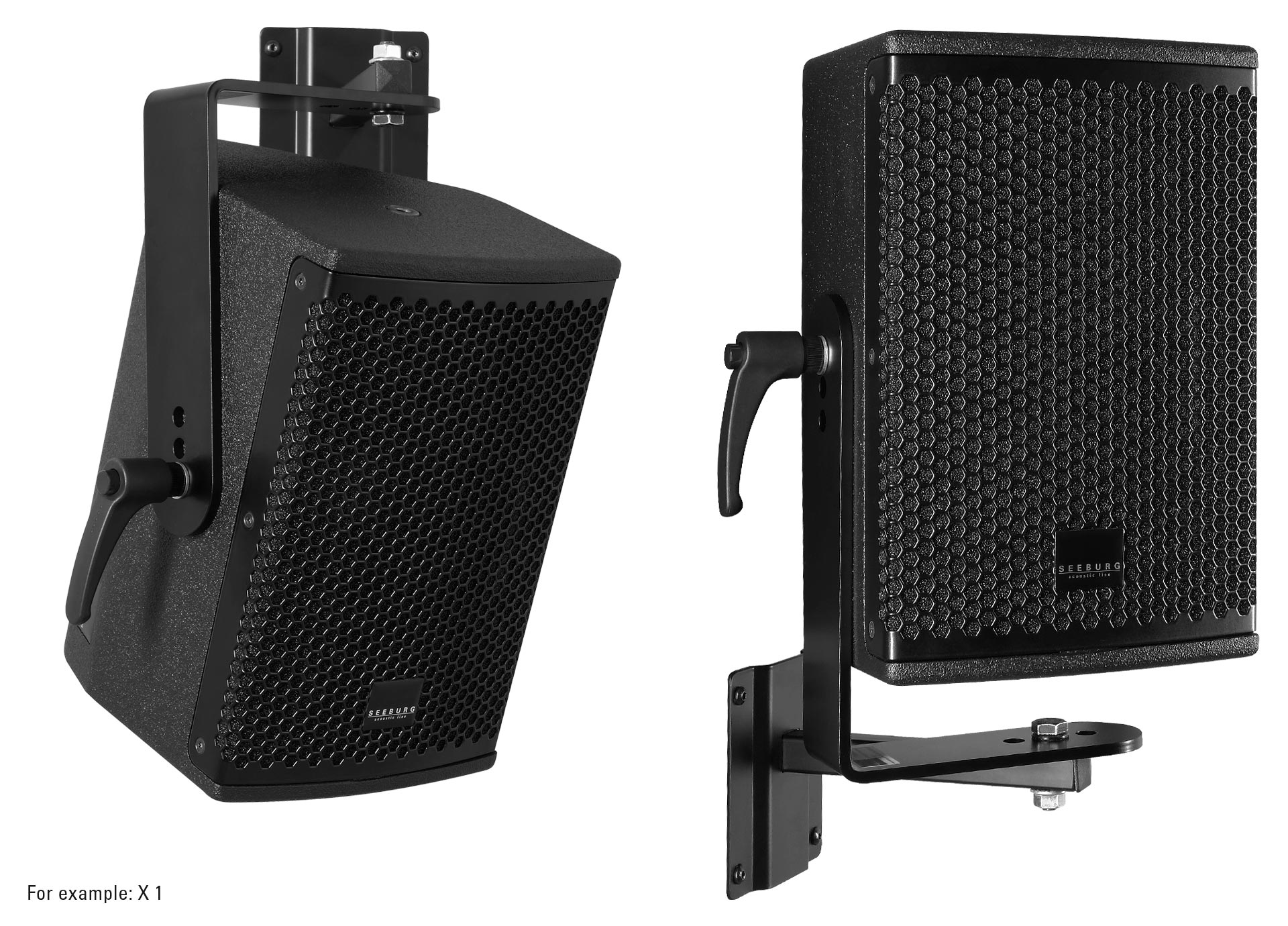

Wall Mount

for permanent installation,
(incl. tilt angle stop M10),
max. load 15 kg



Order No. 08131/F/w (RAL 9010)

 Order No. 08131/F
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

 Order No. 73755
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm

Order No. 08126/w (RAL 9010)

 Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

 Order No. 08126/II
x
Bag

for 2 x SRX 810 / TSMini
padded, with pocket for accessories

 Order No. 08375
