GL 16 Cylindric Wave Radiator

GL 16

00500/2x500W

i-Version, selfpowered Version,
2 x 500 W AES

00501/2x500W

c-Version
as above

00500/a

i-Version,
2-way-active
400 W / 150 W AES, 8 Ω / 8 Ω

00501/a

c-Version,
as above

00500/xov

i-Version,
X-Over
400 W AES, 8Ω

00501/xov

c-Version
as above
Downloads
Datenblatt GL 16
Handbuch GL 16 dp 1000
3D-Dateien_Stack-Cradle
3D-Dateien_GL 16c
3D-Dateien_GL 16i
Messdaten
Simulationsdaten
Montageanleitung_Bügel
Ulysses Datensatz
Ease Focus 1.55
GL Systeme.efo
Projektreport_dp1000
Projektreport_GL 16i
SPLmax15m
Projektreport_GL 16i
SPLmax25m
Projektreport_GL 16
Vergleichsmessung
TESTBERICHT GL 16
(tools4music-05/2009)
Produktbilder

Hochleistungs-Linienstrahler für definierte Sprach- und Musikreproduktion in akustisch schwierigen Räumen, auch bei langen Distanzen. Durch die akustische Kopplung zweier hintereinander angeordneter Schallzeilen wird die vertikale Schallbündelung bis auf 15 kHz erweitert, ohne Einschränkung der Leistungsfähigkeit im unteren Frequenzbereich. Diese spezielle Konstruktion bewirkt ein besonders homogenes und symmetrisches horizontales Abstrahlverhalten und reduziert die Systembreite auf schlanke 19 cm. GL 16 Systeme sind als i-Version (100° x 7°) und c-Version (100° x 23°) lieferbar und können mittels integriertem Flugsystem je nach Anforderung beliebig miteinander kombiniert werden.

GL 16 Systeme eignen sich aufgrund ihrer akustischen und mechanischen Eigenschaften als hervorragende Alternative zu konventionellen Sprachzeilen und kompakten Linearrays. Von der Einzelinstallation in Kirchen, Hörsälen und Konferenzräumen bis zu mehreren Metern langen Arrays in Theatern und Konzertsälen kann das GL 16 sehr vielseitig angewendet werden.

Für einen von separaten Verstärkern und Controllern unabhängigen Betrieb sind die aktiven dp (digitally powered) Versionen lieferbar.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Technische Daten
  GL 16 dp 1000
Speaker Components  4 x 6,5“ Nd / 16 x 1“ Nd Tweeter
Description Digitally Powered Cylindric Wave Radiator
Amp Power 2 x 500 W AES / 110-230 V biamped
Rated Current 0,85 A @ 230 V
SPL   Peak @ 1 m
> 130 dB
Max. Input Signal 25 dBu
DSP HDLM FPGA Processing 32 bit floating point
AD / DA 24 bit / 96 kHz
Latency 0,8 ms (analog in to analog out)
Usable Range
80 Hz - 20 kHz (- 6 dB)
Tuning Frequency  excursion minimum
90 Hz
X-Overpoint  acoustical
Depends on preset
Coverage   horizontal / vertical
100° x 7° (i-version)
100° x 23° (c-version)

Mechanical Splay Angle 0° (i-version)
16° (c-version)

Connectors Neutrik XLR in/out
Neutrik PowerCon in/out


Handles 1 x
Rigging / Fittings
12 x M10
Integrated flying hardware


Weight 17 kg
Size   height x width x depth 70,8 x 18,9 x 24,5 cm (i-version)
72,0 x 18,9 x 26,2 (24,5) cm (c-version)


Order No. 00500/2x500W   (i-version)
00501/2x500W   (c-version)





  GL 16 a GL 16 xov
Speaker Components 4 x 6,5“ Nd / 16 x 1“ Nd Tweeter 4 x 6,5“ Nd / 16 x 1“ Nd Tweeter
Description Cylindric Wave Radiator Cylindric Wave Radiator
Power   AES / Peak LF: 400 W / 1200 W
HF: 150 W / 450 W
400 W / 1200 W
Impedance nominal
LF: 8 Ω / HF: 8 Ω 8 Ω
SPL    1 W / Peak @ 1 m LF: > 96 dB / 127 dB
HF: > 97 dB / 124 dB
> 127 dB
Usable Range
80 Hz - 20 kHz (- 6 dB) 80 Hz - 20 kHz (- 6 dB)
Tuning Frequency excursion minimum 90 Hz 90 Hz
X-Overpoint acoustical Depends on preset 1,1 kHz
Coverage   horizontal / vertical 100° x 7° (i-version)
100° x 23° (c-version)
100° / 7°   (i-version)
100° / 23° (c-version)
Mechanical Splay Angle 0° (i-version)
16° (c-version)
0° (i-version)
16° (c-version)
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HF, 2 +/- LF
2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Handles 1 x 1 x
Rigging / Fittings 12 x M10
Integrated flying hardware
12 x M10
Integrated flying hardware
Weight 16 kg 16,5 kg
Size   height x width x depth 70,8 x 18,9 x 24,5 cm (i-version)
72,0 x 18,9 x 26,2 (24,5) cm (c-version)
70,8 x 18,9 x 24,5 cm (i-version)
72,0 x 18,9 x 26,2 (24,5) cm (c-version)
Order No. 00500/a   (i-version)
00501/a   (c-version)
00500/xov   (i-version)
00501/xov
(c-version)
Zubehör
Bag

for one unit GL 16

Order No. 01230
Rain Cover Set

for GL 16,
set incl. low lid and
high lid (by using flying cradle),
connectable to other covers of the GL-system

Order No. 01230/outdoor
Stretchcover

for one unit GL 16,
other colors available on request


Order No. 01230/GL16

for two units GL 16,
several colors on request

Order No. 01230/GL16/long
Universal Bag

Universal bag for
Small Base Plate and accessories,
with side pocket
51 cm x 62 cm x 23 cm
(height x width x depth)

Order No. 01227
Flight Case

for 2 pcs. GL 16 i/c units
and accessories, heavy duty, 9 mm birch multiplex, PVC coated, hinged lid, 6 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, inserts for accessories, interior lined with felt,
size (H x W x D): 48 x 77 x 61 cm

Order No. 16004/pro/T
Connection Adapter

for stacking GL 16i -> Small and XL Base Plate

Order No. 01276
Connection Adapter

for GL 16c -> GL Sub, G Sub 1501

Order No. 01276
Monopod

for GL 16,
height 110 cm

Order No. 01277
Flying Bracket

for GL 16
incl. accessories:
2 x M10 x 30 handle screws

Order No. 01352/GL16
Flying Cradle

for up to 6 units GL 16 or
for one unit GL 24

Order No. 01354
Flange

for Galeo S / G 3 / GL 16 / GL 24 / K 24 flying bracket,
M20 x 35 mm ø with nut,
incl. M20 x 20 socket head screw

Order No. 08127/nut
Knurled Head Screw

Reduction screw for fastening
M10 Flange (08126)

Order No. 03004
Handle Screw

for Flying Brackets, adjustable
M10 x 30

Order No. 08375/30
Handle Screw

for Flying Brackets, adjustable
M10 x 20

Order No. 08375/20
Quick Trigger TV Clamp

Max. load 200 kg

Order No. 01223/TV
Doughty Trigger Clamp

for flying brackets,
max. load 200 kg



Order No. 01222
Chain Fastener

VBS 7 mm

Order No. 01378
Ring Screw

M10– DIN 580,
black zinced

Order No. 73700
Shackle

for GL-flying cradle,
WLL 1000 kg

Order No. 01372/GL
Steel Safety

6 mm x 600 mm, black,
max. load 22 kg (BGI 810-3),
quick connector undetachably

Order No. 01376/6
TV Adapter

M20 external thread,
28 mm ø

Order No. 08128/M20
Wall Mount

2 x M6 fixing holes (d=73 mm),
1 x M10 fixing hole (center),
max. load 25 kg

Order No. 03034

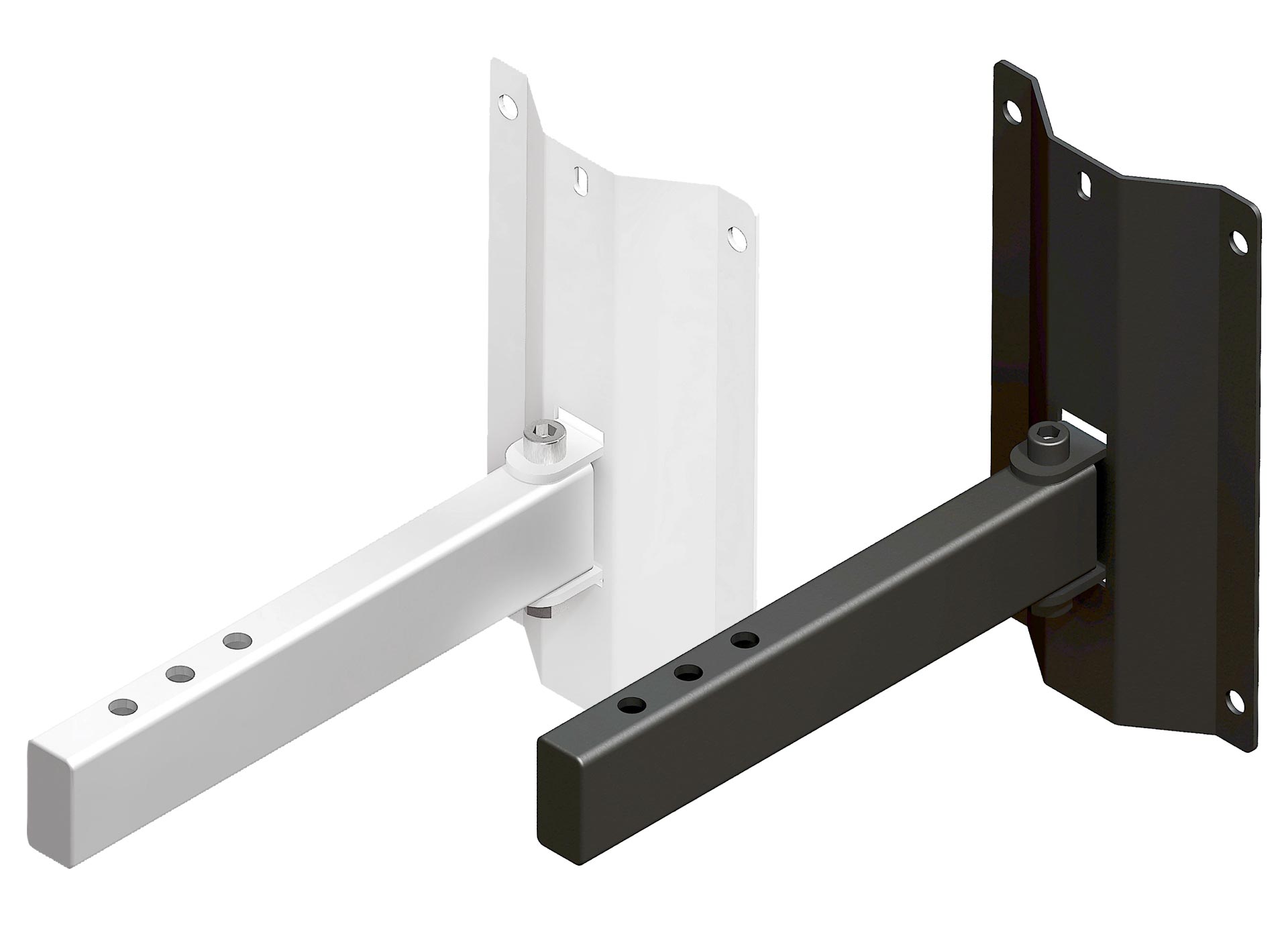

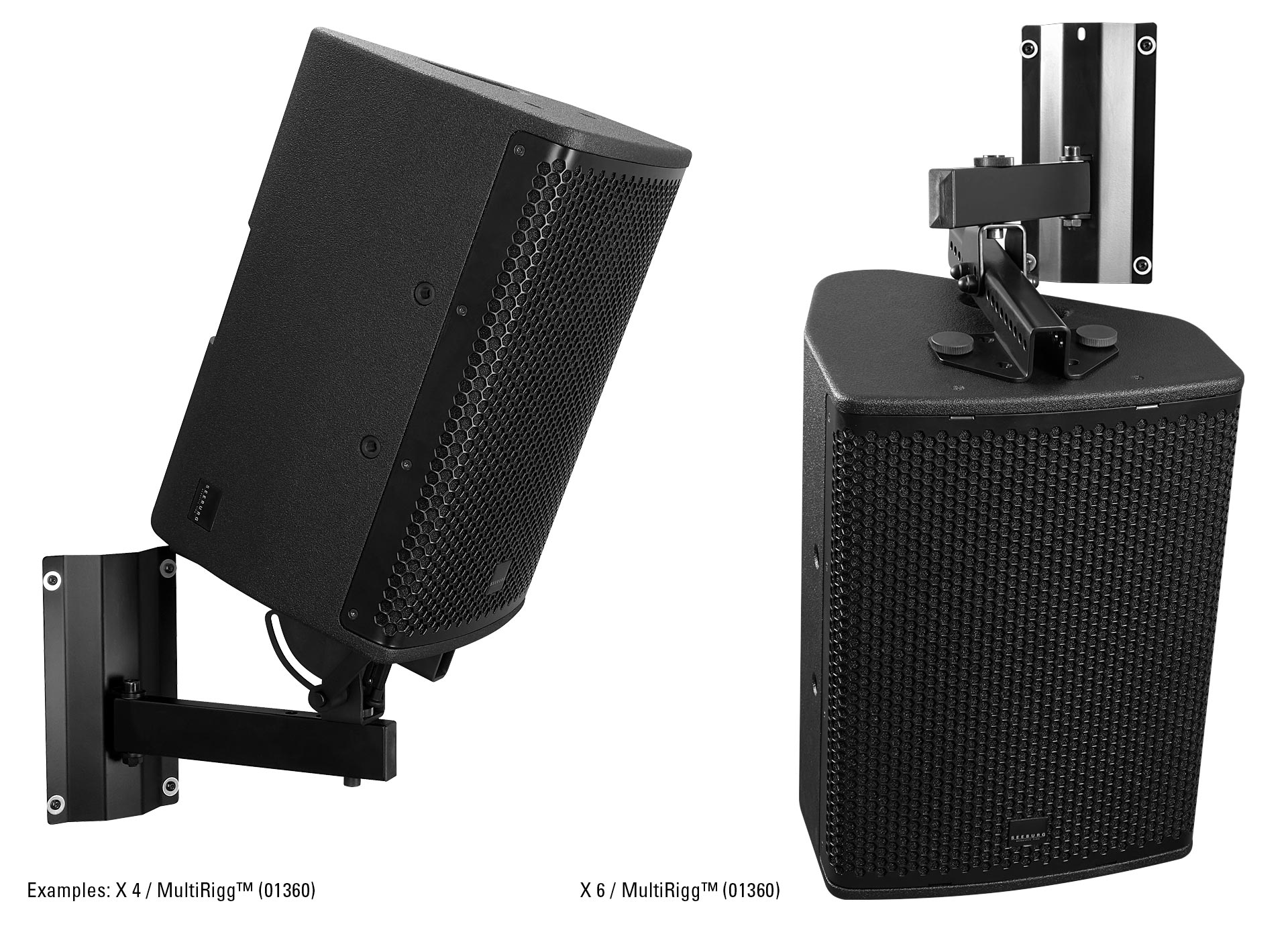

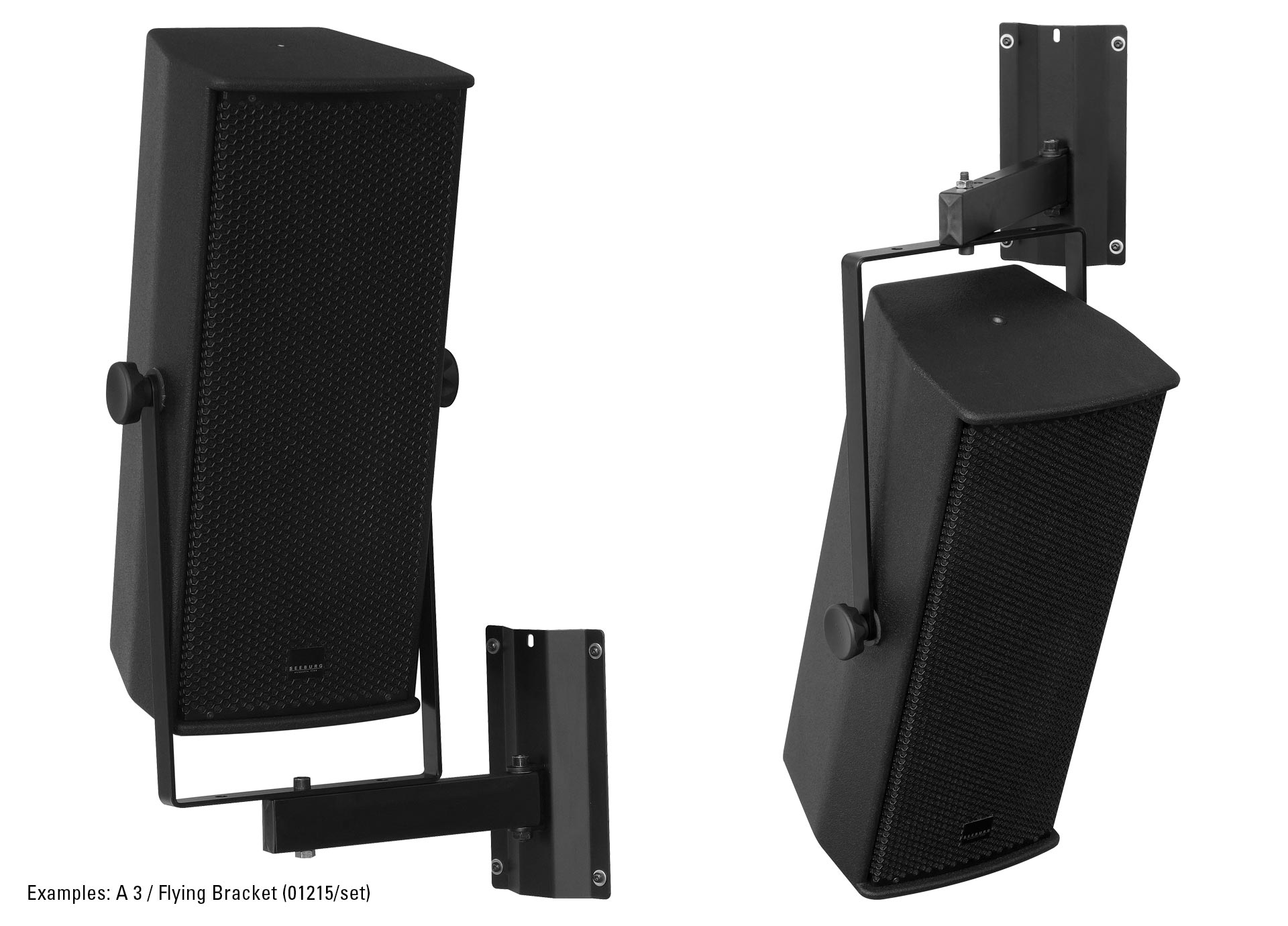

Wall Mount

for U-brackets, 40 kg max.,
incl. screws (M10 x 70 mm socket head screw, M10 hex lock nut and flat washer)


Order No. 08130/F/269 (269 mm)

Order No. 08130/F/400 (400 mm)

Wall Mount Spacer

for Wall Mount (03034)
M10 x 55 (screw),
polyurea coated

Order No. 03034/spc
Base Plate XL

for stacked mounting
of multiple GL 16 units, GL Sub
with M20 flange,
80,0 x 80,0 cm

Order No. 01279/M20
Base Plate, Small

for GL 16 / GL Sub / L-Series
with M20 flange,
61,5 x 48,0 cm

Order No. 01278/M20
Speaker Stand

K&M, incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

Order No. 03011
Speaker Stand

K&M, height 137,5 to 218,5 cm,
max. load 50 kg

Order No. 03010
Hybrid Cable System

PowerCon-PowerCon / XLR-XLR

2,5 m Order No. 08462
5,0 m Order No. 08464
10 m Order No. 08466
15 m Order No. 08468
