01024/90°

90° x 60°
800 W
4 Ω

01024/60°

60° x 50°
as above

01024dp/90°

Selfpowered Version,
90° x 60°
1000 W LF/350 W HF AES

01024dp/60°

Selfpowered Version,
60° x 50°
as above
Downloads
Datenblatt K 20
Benutzerhandbuch
K 20 dp
Prospekt K 20
Produktbilder

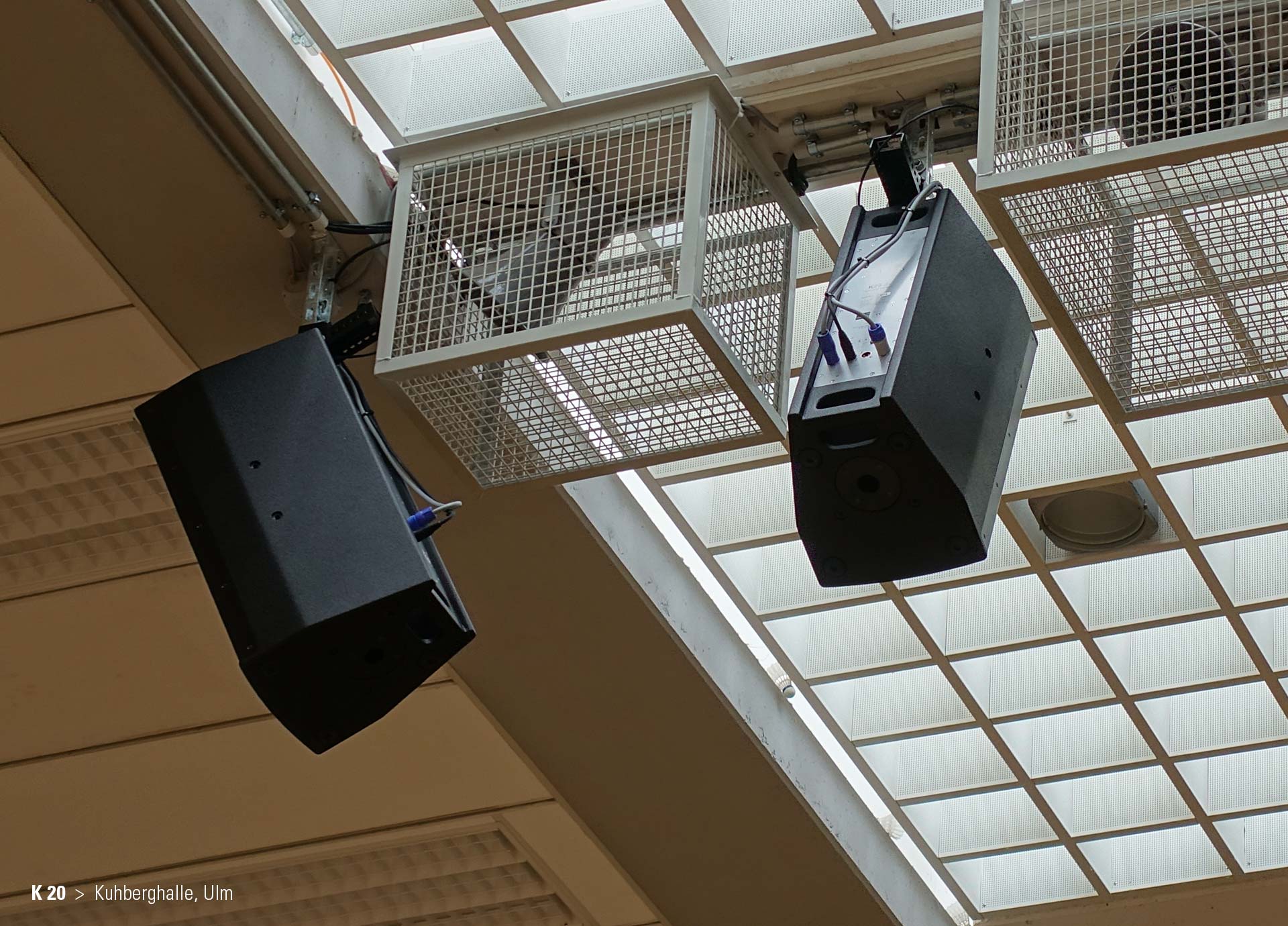

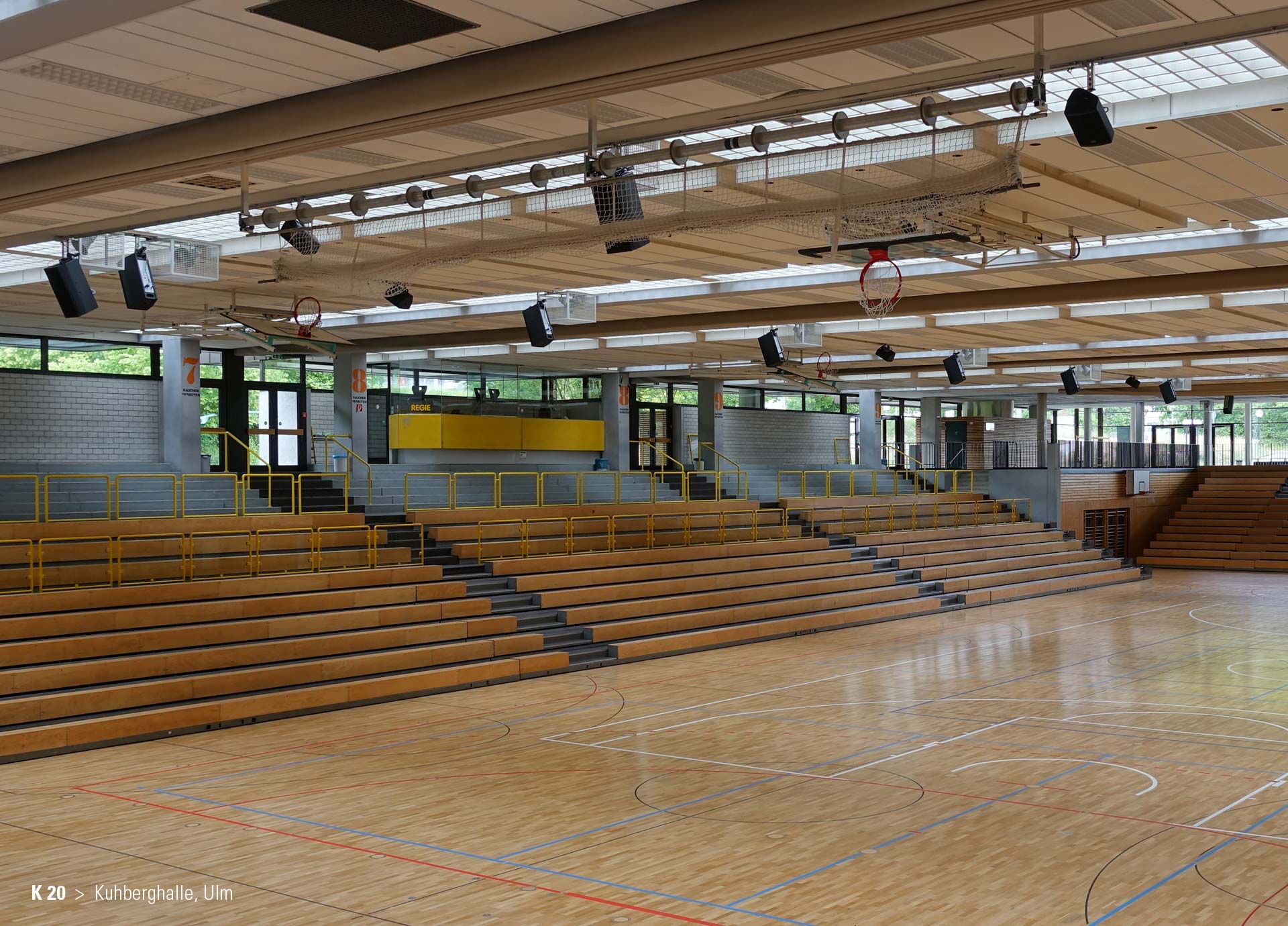

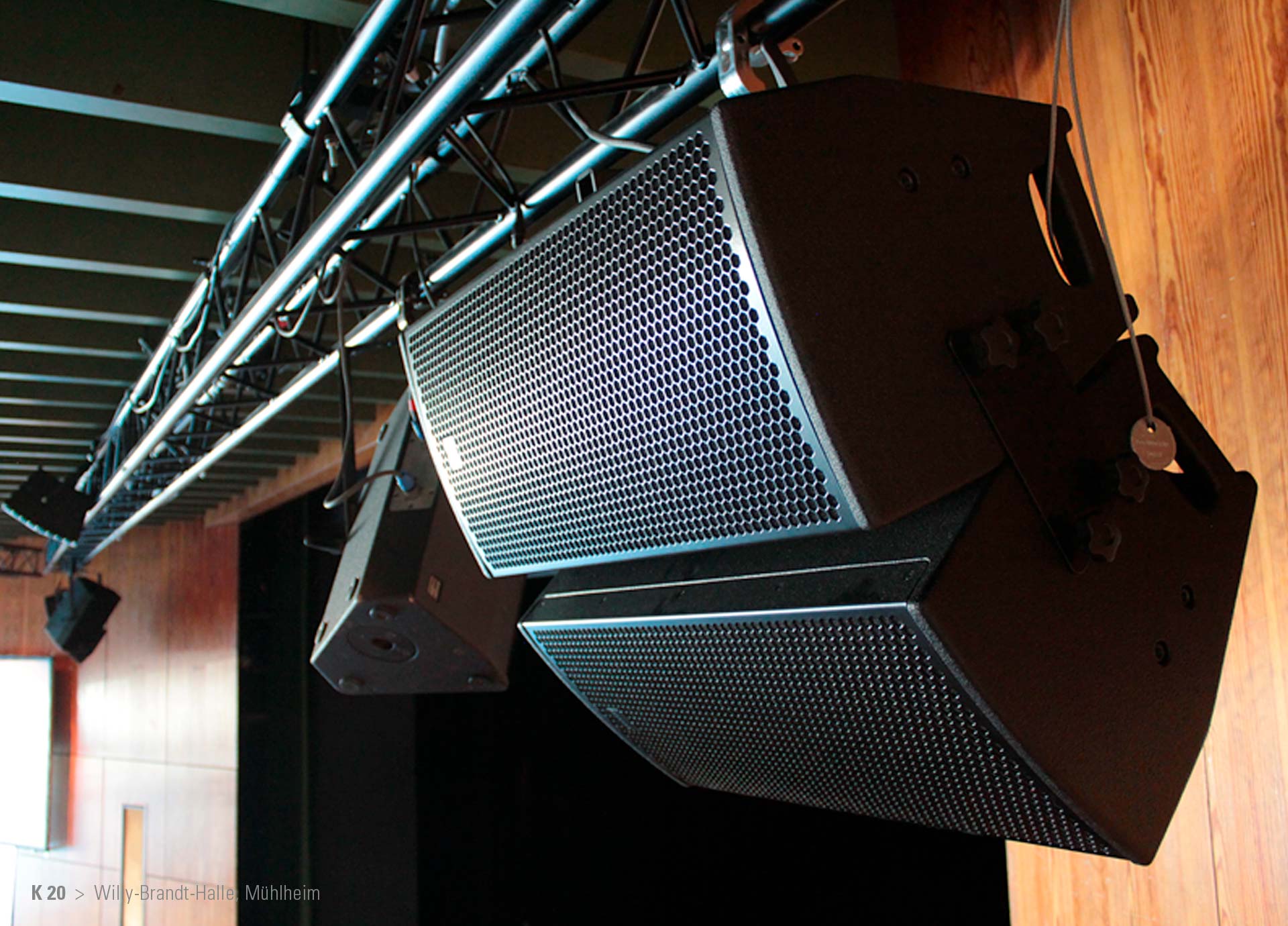

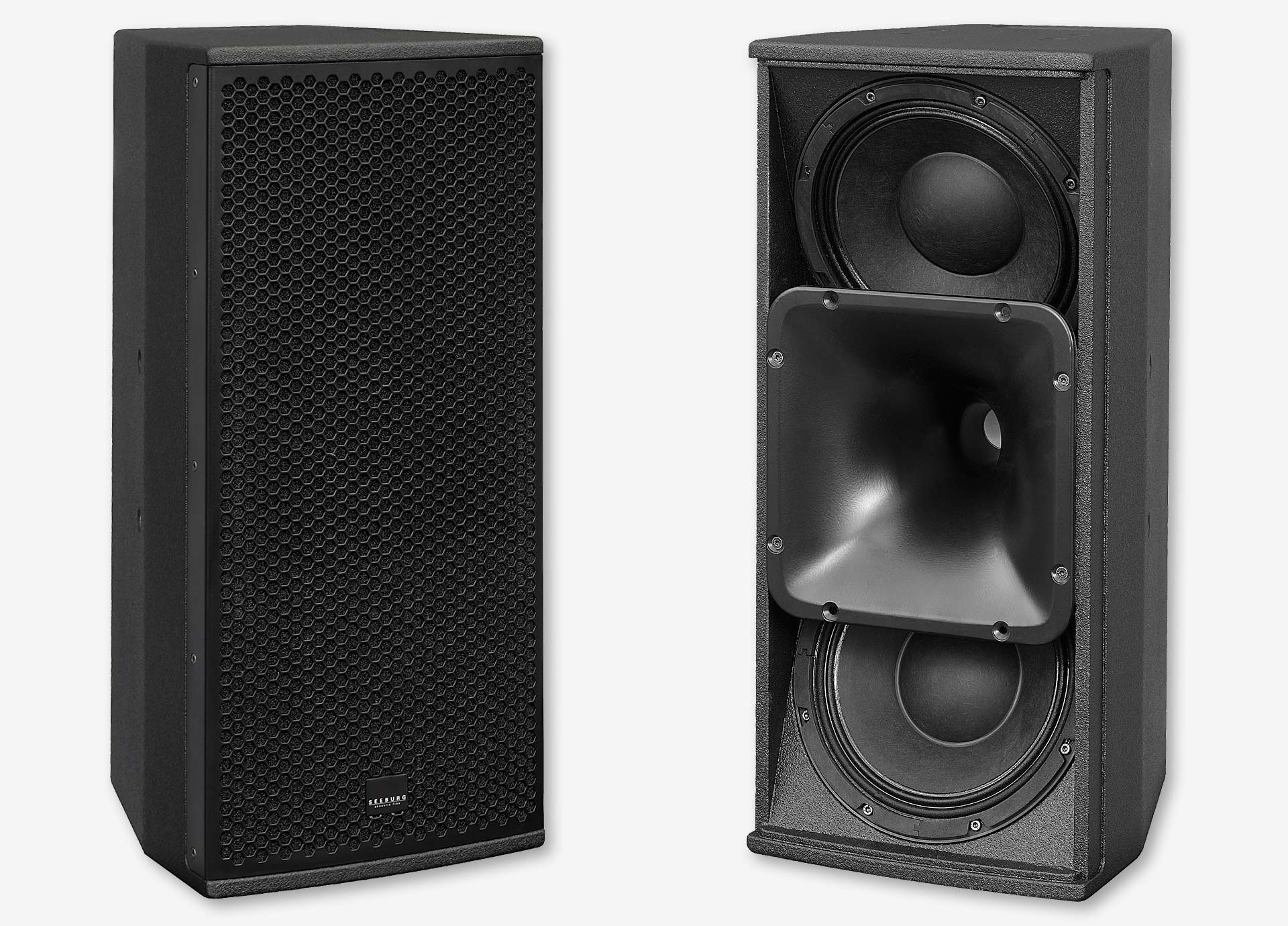

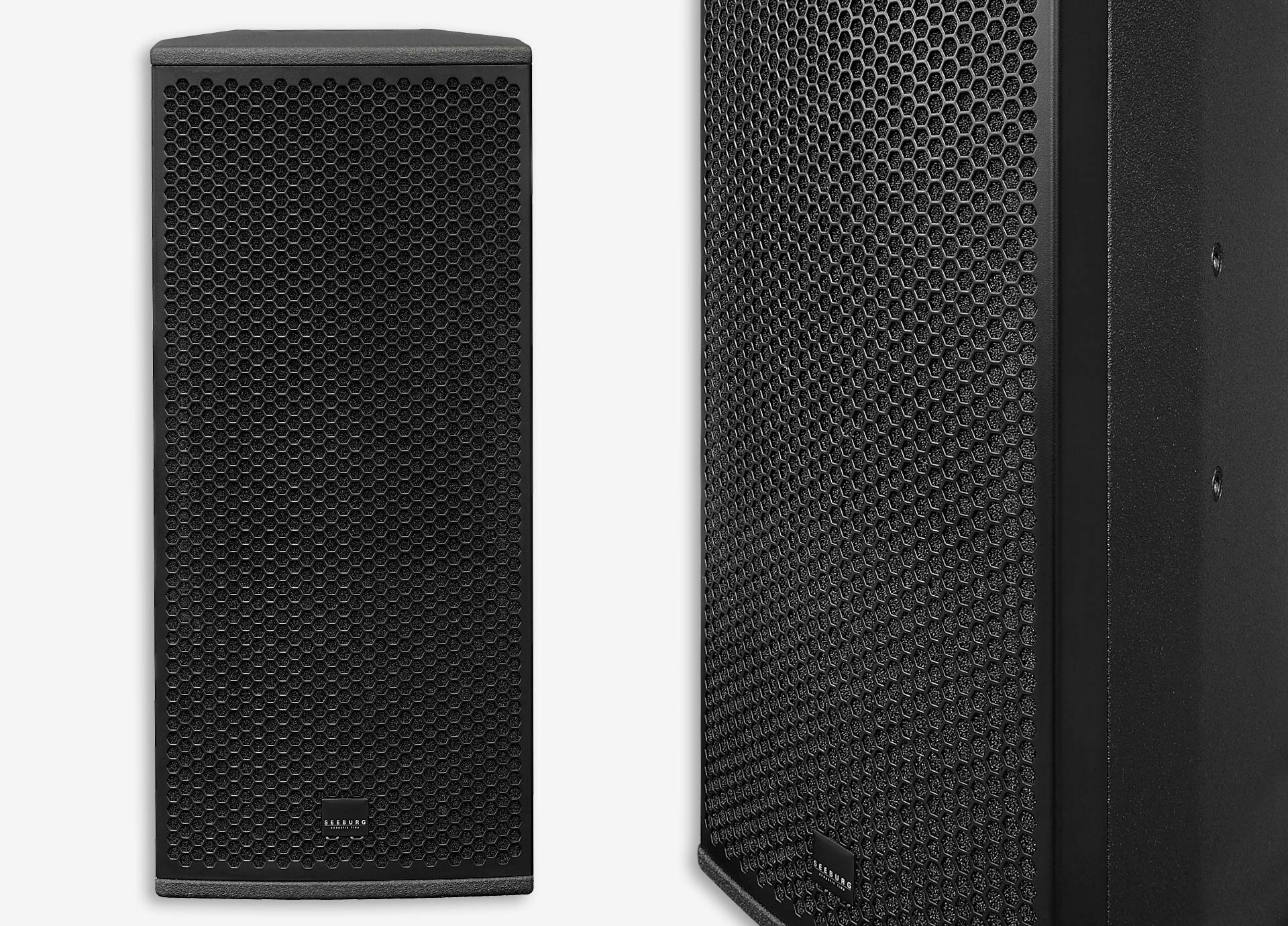

Das Hochleistungstopteil K 20 eignet sich aufgrund seiner Konstruktion für flexible Anwendungen in Vertikal- und Horizontalausrichtung. Die optimierte Anordnung und Ansteuerung der 2 x 10“/ 1.4 Komponenten sorgt für ein sehr präzises Abstrahl- und Phasenverhalten.

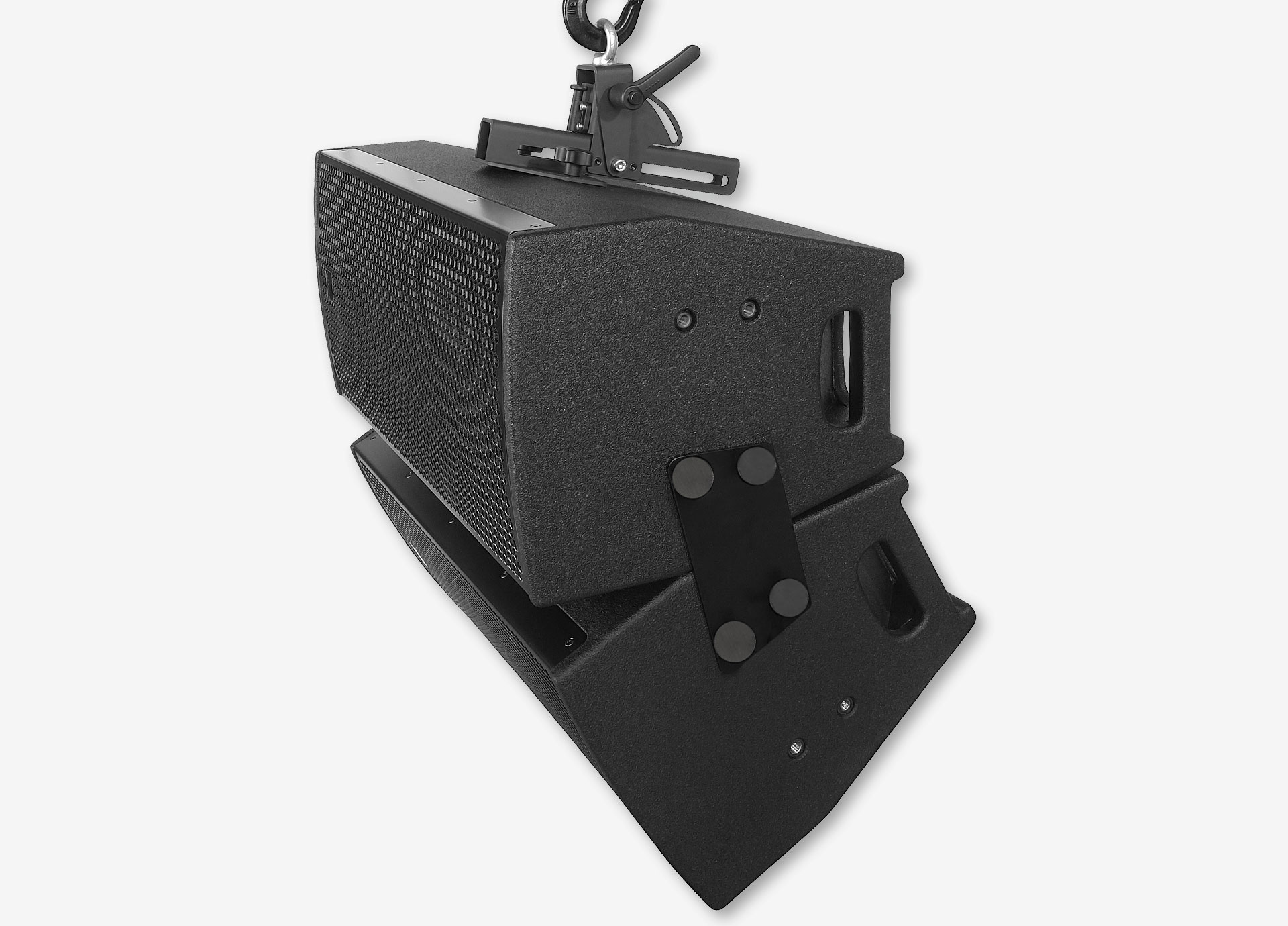

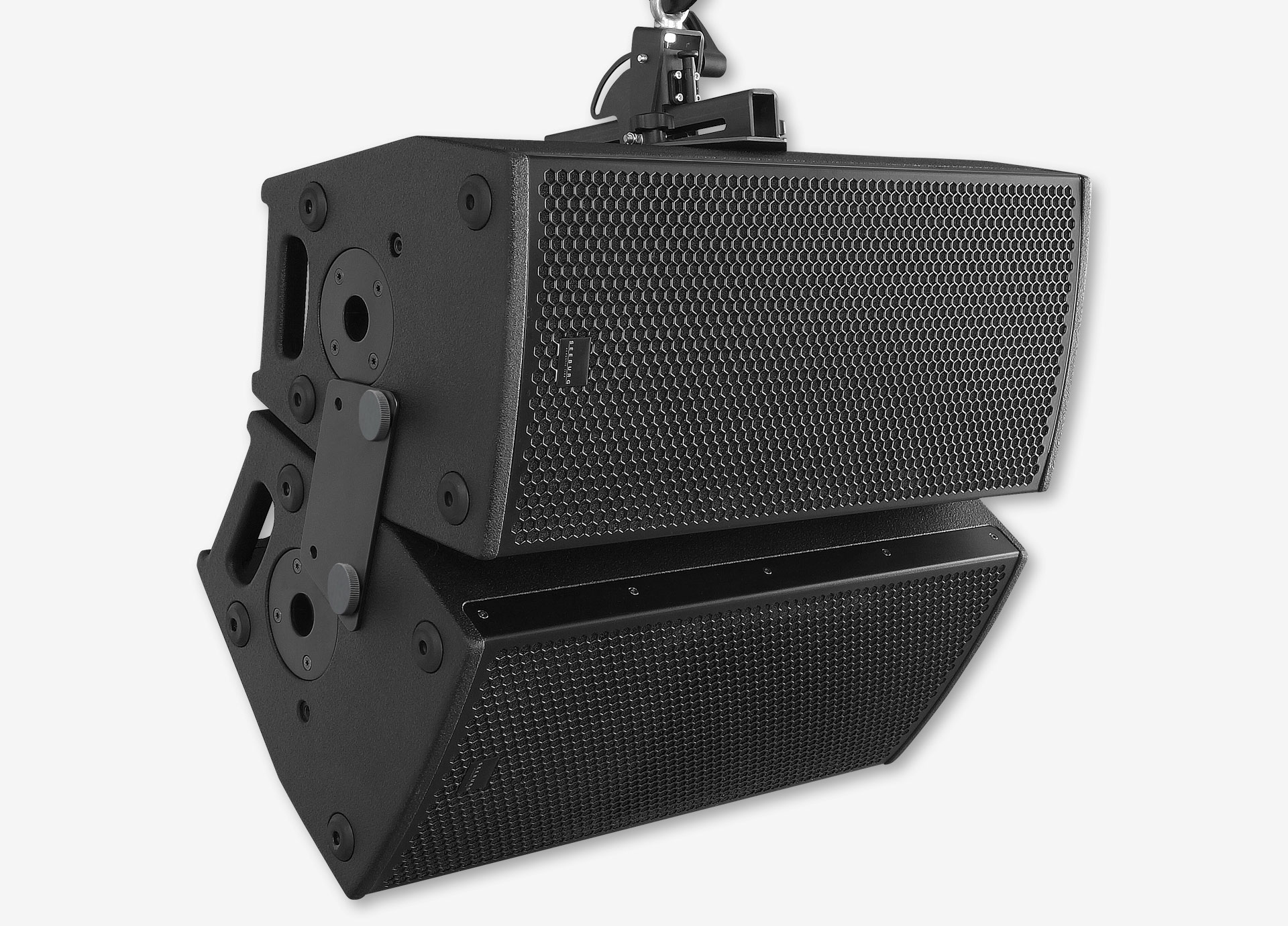

Für die Installation kann das universelle Multi Rigg™ montiert werden.
Das K 20 System ist als selfpowered Variante und als Version mit passiver Weiche lieferbar. Zur Anpassung an die Beschallungsaufgabe stehen zwei unterschiedliche Hornvarianten zur Verfügung.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Technische Daten
  K 20

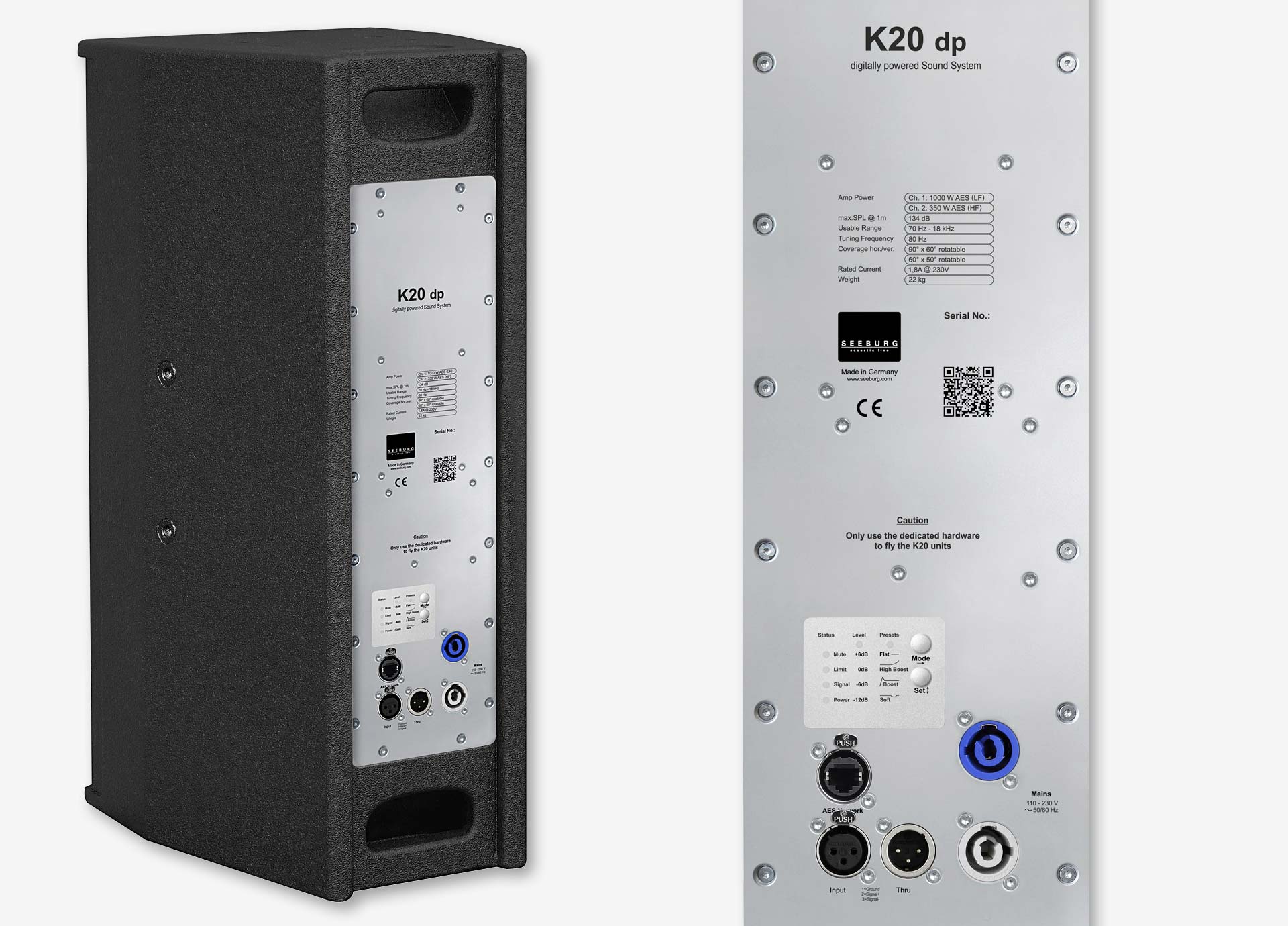

K 20 dp
Speaker Components 2 x 10“ Nd / 1,4“ Nd 2 x 10“ Nd / 1,4“ Nd
Description High Power HiMid System Digitally Powered HiMid System
Power AES / Peak 800 W / 2400 W - - -
Amp Power   AES
- - - LF: 1000 W / 110-230 V
HF: 350 W / 110-230 V
Impedance nominal 4 Ω - - -
Rated Current - - - 1,8 A @ 230 V
SPL 1 W / Peak @ 1 m
100 dB / 134 dB - - -
SPL Peak @ 1 m - - - 134 dB
Max. Input Signal - - - 25 dBu
DSP - - - HDLM FPGA Processing 32 bit floating point
AD / DA - - -  24 bit / 96 kHz
Latency - - -  0,8 ms (analog in to analog out)
Usable Range
70 Hz - 18 kHz (-6 dB) 70 Hz - 18 kHz (-6 dB)
Tuning Frequency excursion minimum

80 Hz

80 Hz
X - Overpoint acoustical 900 Hz Depends on preset
Coverage horizontal / vertical
90° x 60° (60° x 50°), rotatable 90° x 60° (60° x 50°), rotatable
Max. Splay Angle - - - - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Neutrik XLR in/out
Neutrik PowerCon in/out
Handles 2 x 2 x
Rigging / Fittings
10 x M10 for MultiRigg™
35 mm Pole Mount
10 x M10 for MultiRigg™
35 mm Pole Mount
Weight 22,5 kg 22 kg
Size height x width x depth 66,0 x 30,0 x 36,0 cm 66,0 x 30,0 x 36,0 cm
Order No. 01024/90° (90° x 60° Version)
01024/60° (60° x 50° Version)
01024/dp/90° (90° x 60° Version)
01024/dp/60° (60° x 50° Version)

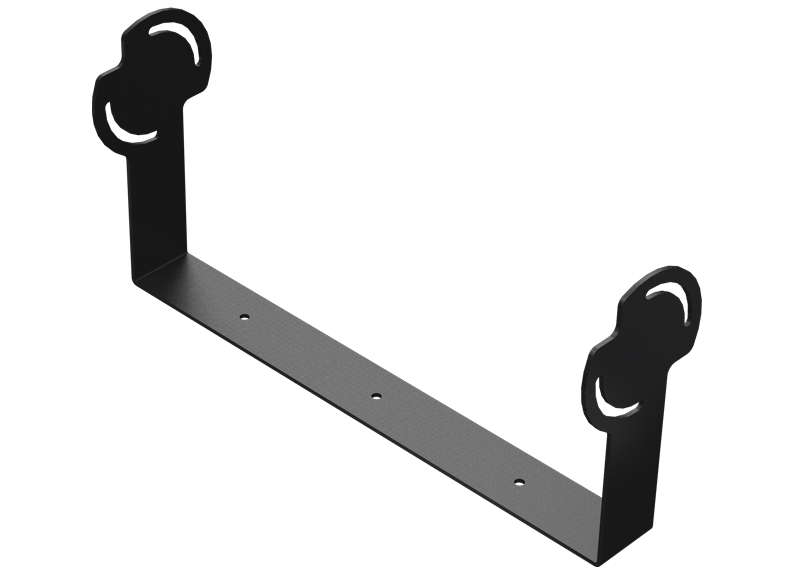

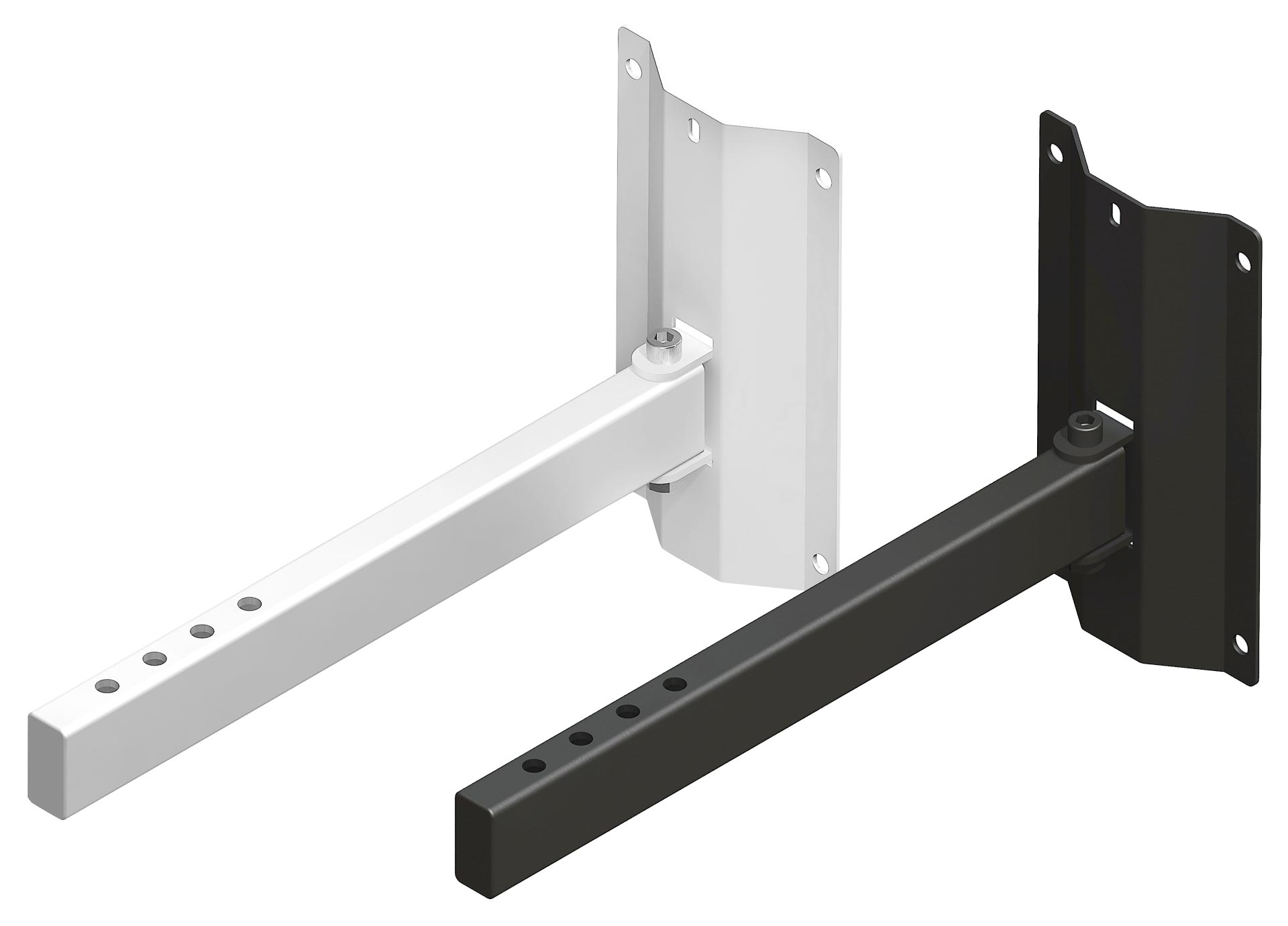

Zubehör

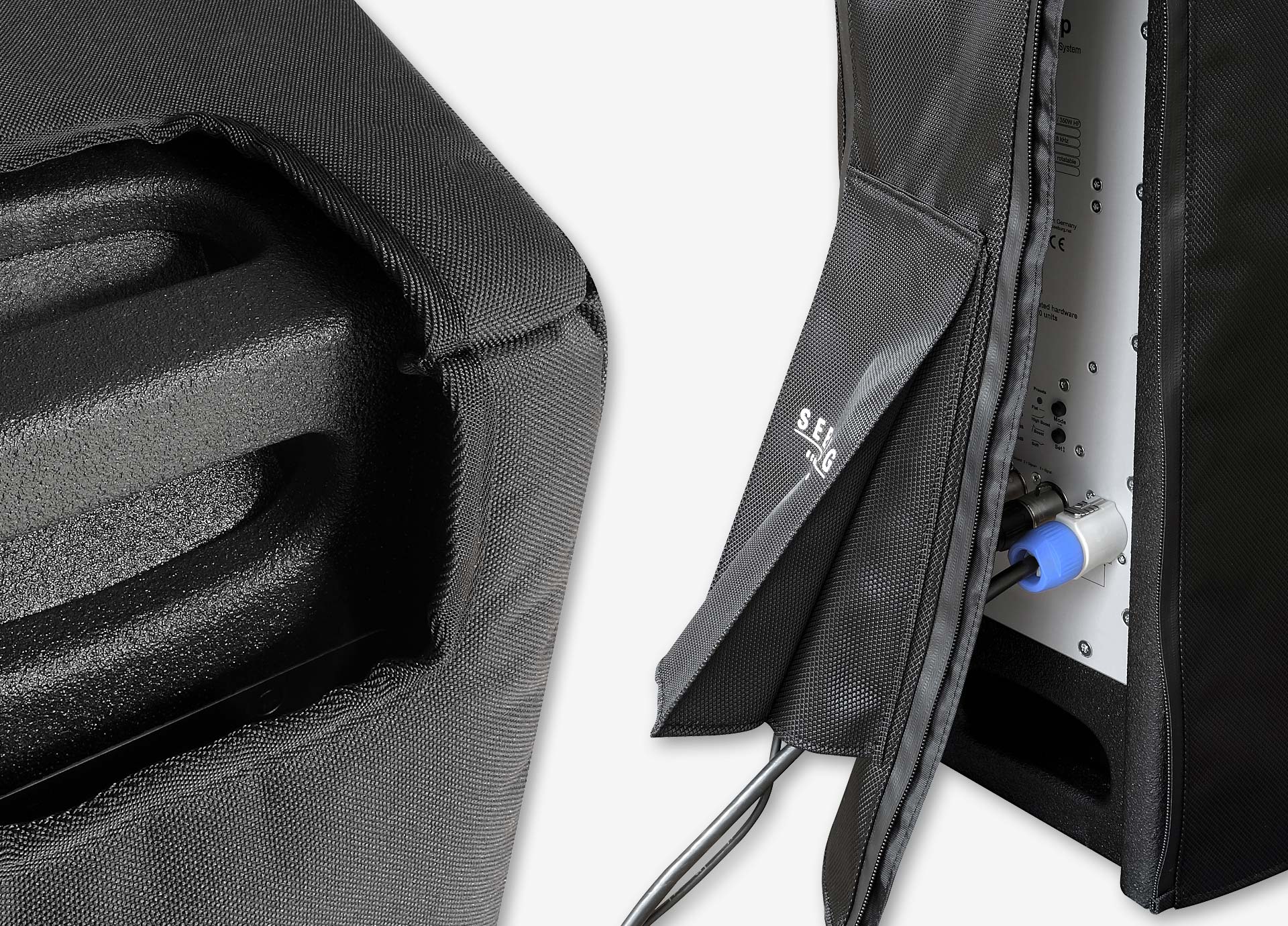

Cover

for K 20, padded

Order No. 01253
Rain Cover

for K 20

Order No. 01253/RC
Flight Case

for 2 pcs. K 20 and accessories,
heavy duty, 9 mm birch multiplex,
PVC coated, 6 x recessed sprung handles, 4 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, inserts for accessories, interior lined with felt

Order No. 16031

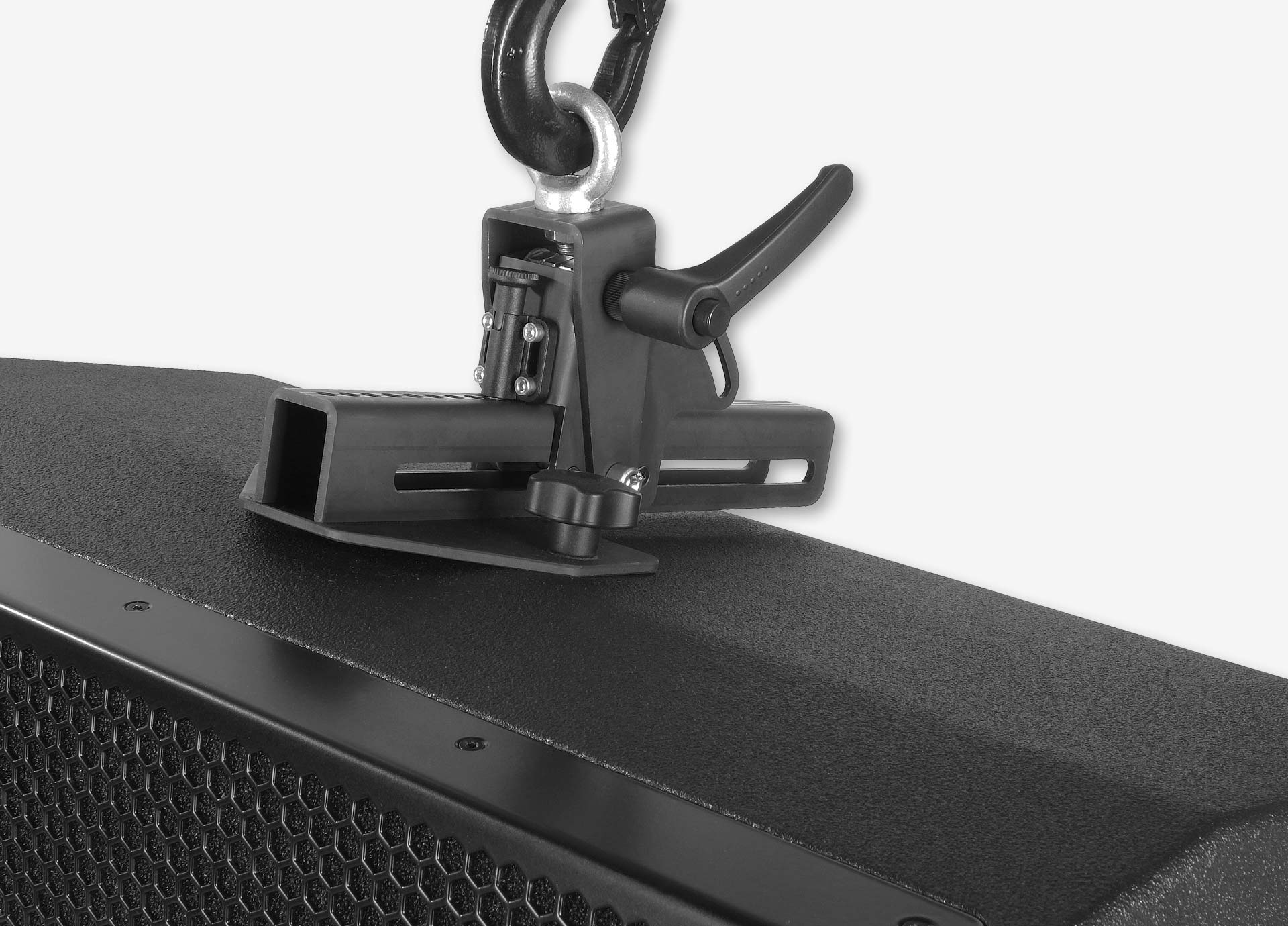

MultiRigg™

swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x star knob screws M10 x 18 mm,
1 x handle screw M8 x 55 mm),
max. load 50 kg

Order No. 01360
Knurled Head Screw

reduction screw for fastening
M10 Flange (08126)

Order No. 73755
Star Knob Screw

M10 x 18 mm

Order No. 08377
Flange

35 mm ø –> M10

Order No. 08126

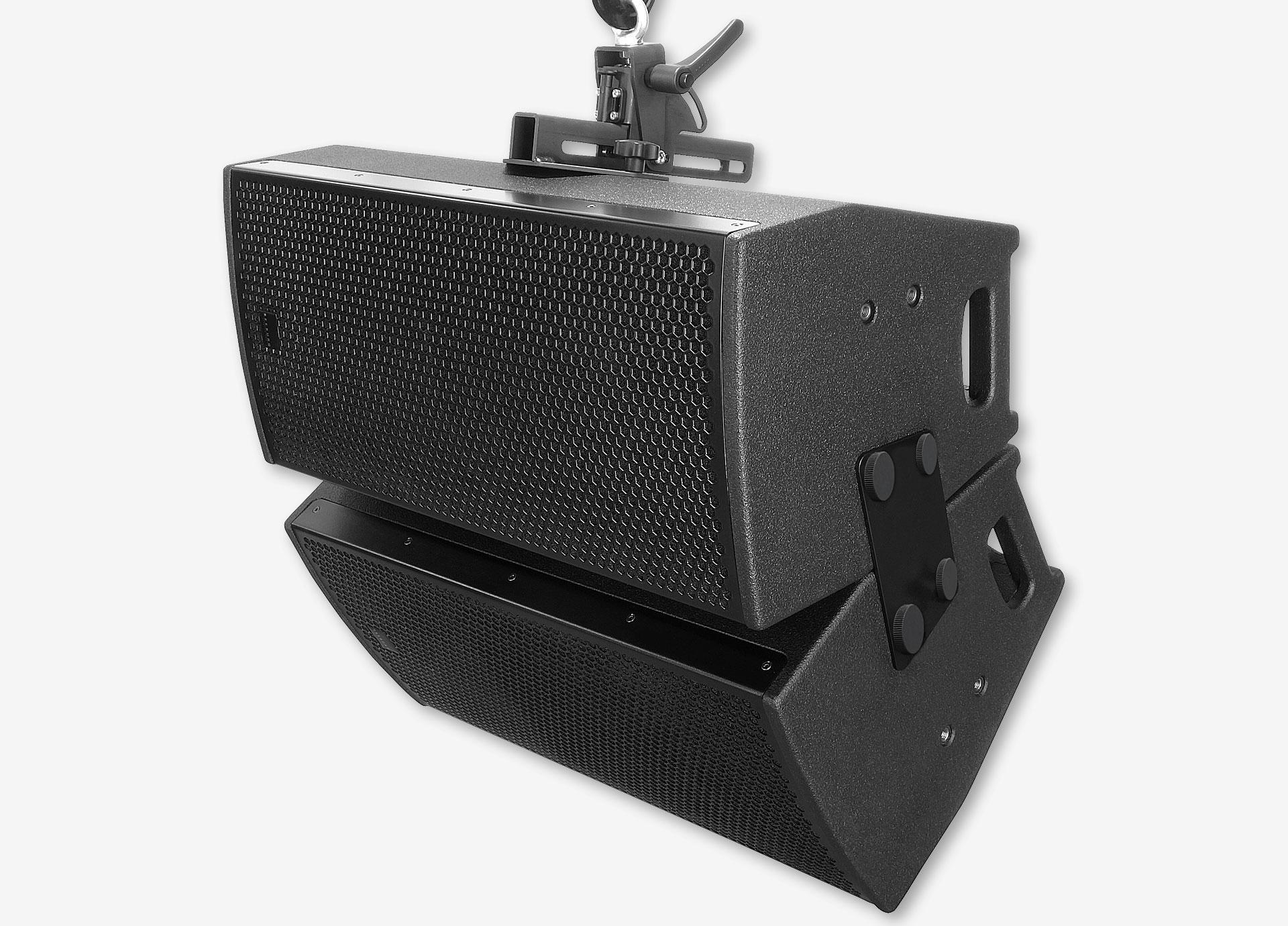

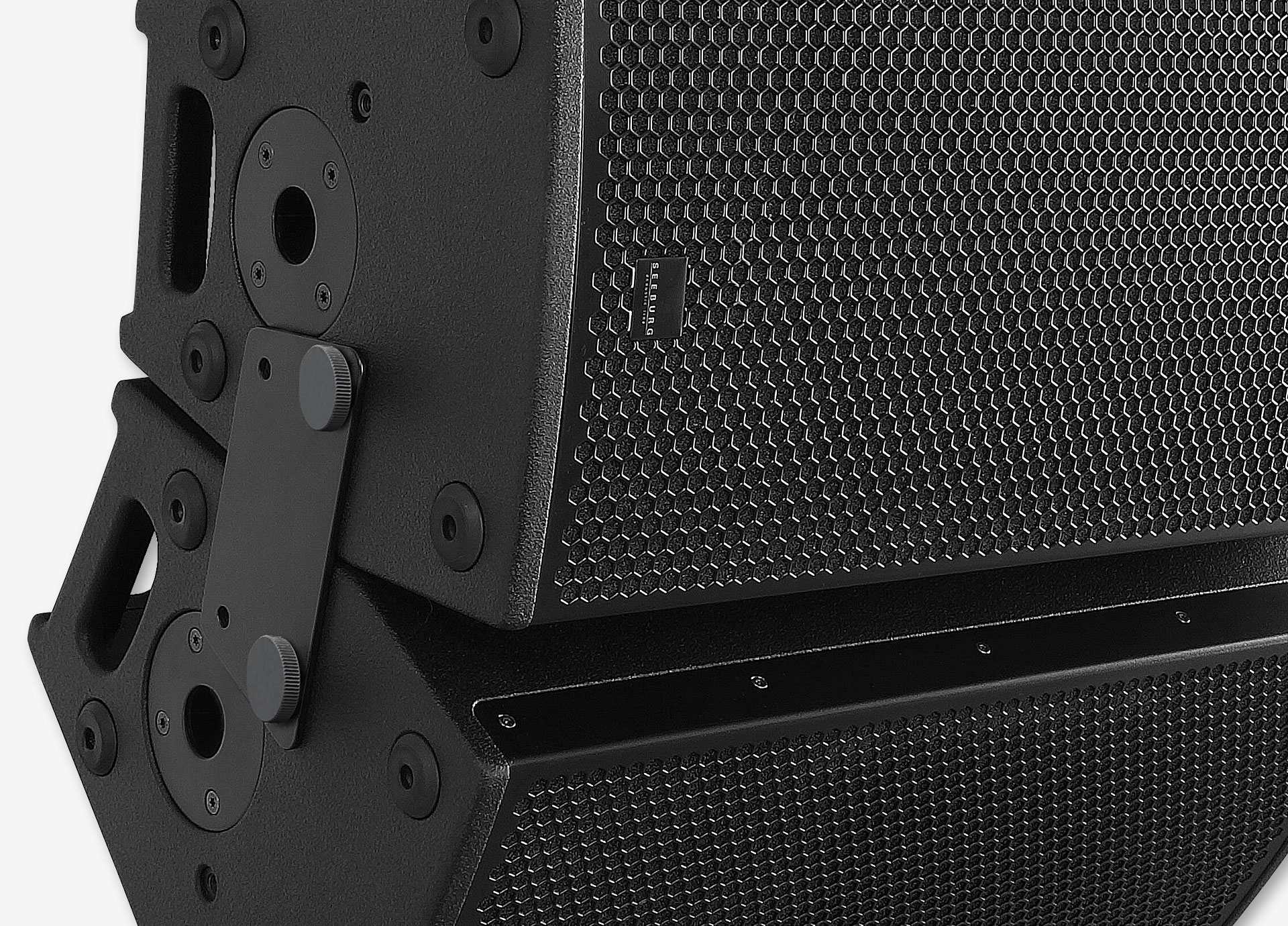

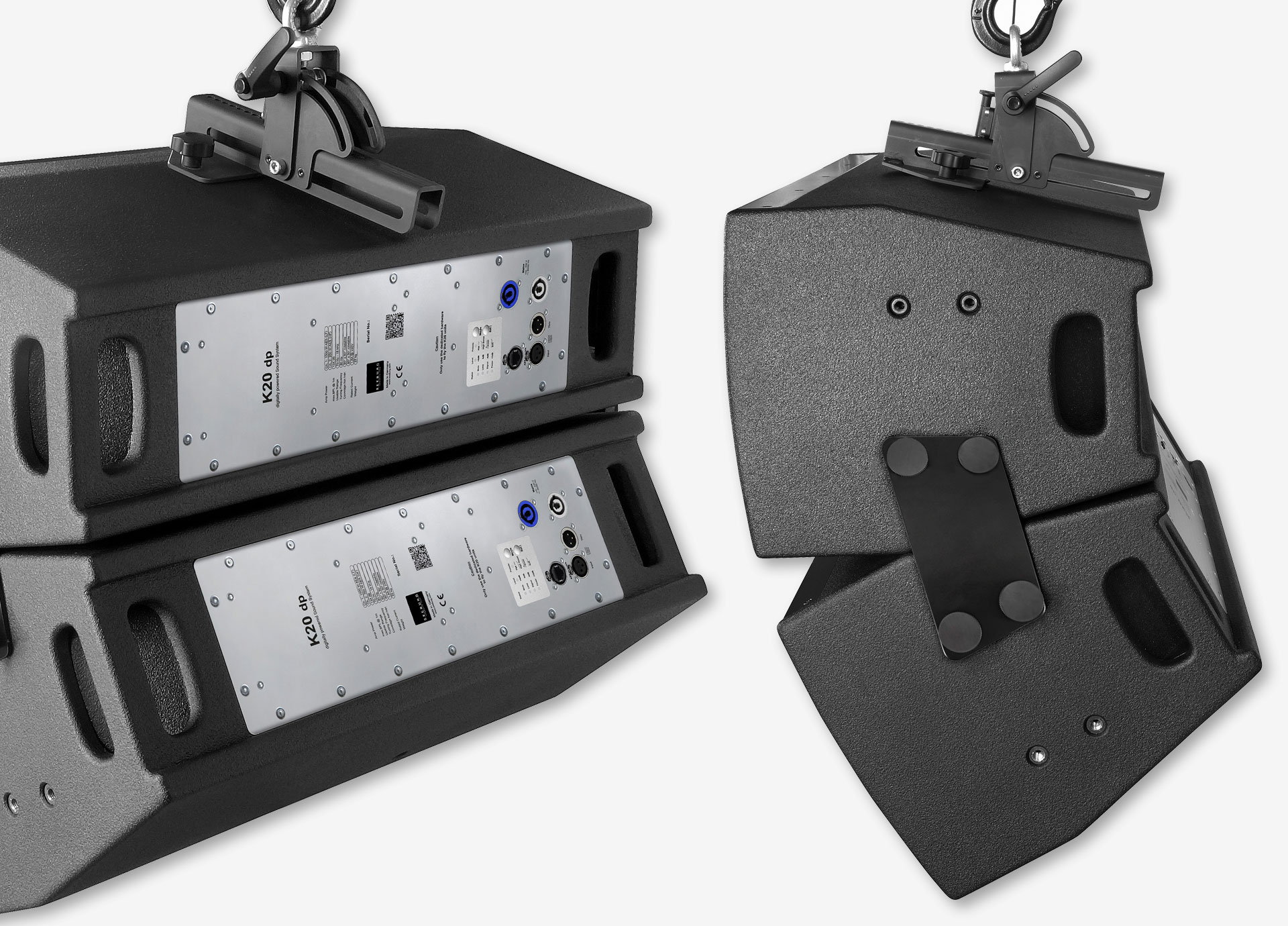

Connector

K 20 -> K 20,
incl. screws ( 4 x star knob screws),
max. load 75 kg

Order No. Order No. 08157/set
Doughty Quick Trigger Clamp

max. load 250 kg

Order No. 01223
Ring Screw

M10– DIN 580,
black zinced

Order No. 73700
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
Steel Safety

8 mm x 600 mm, black,
max. load 40 kg (BGI 810-3),
quick connector undetachably



Order No. 01376/8
Speaker Stand

K&M, incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

Order No. 03011
