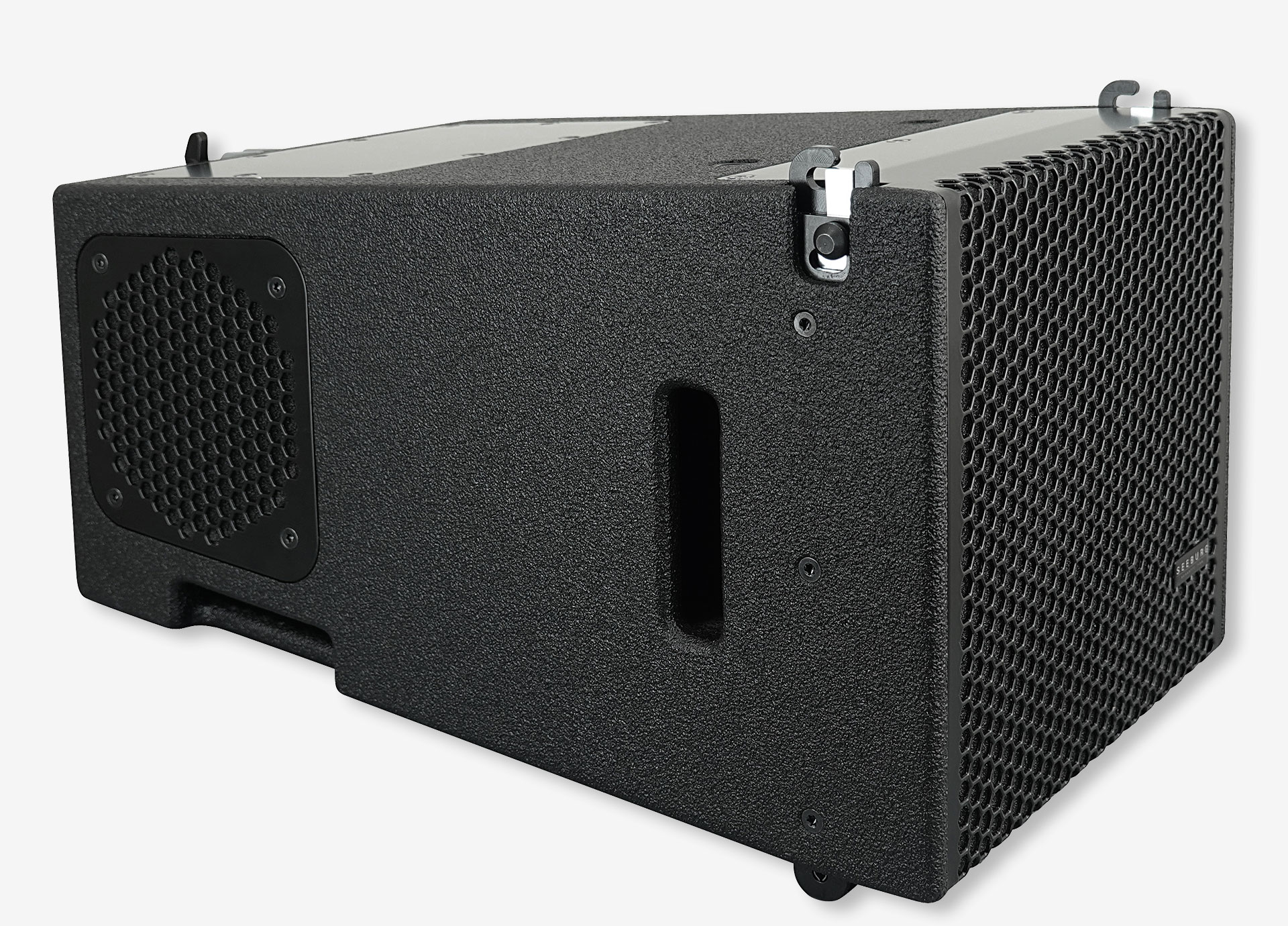

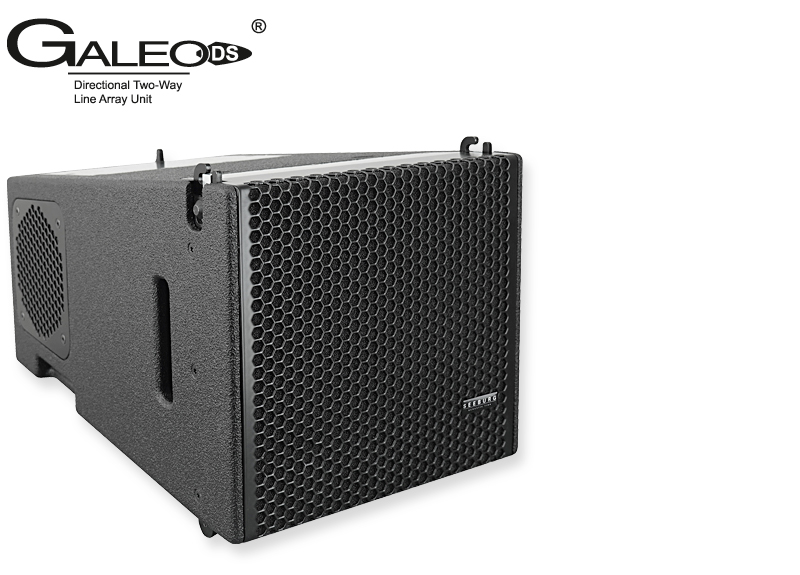

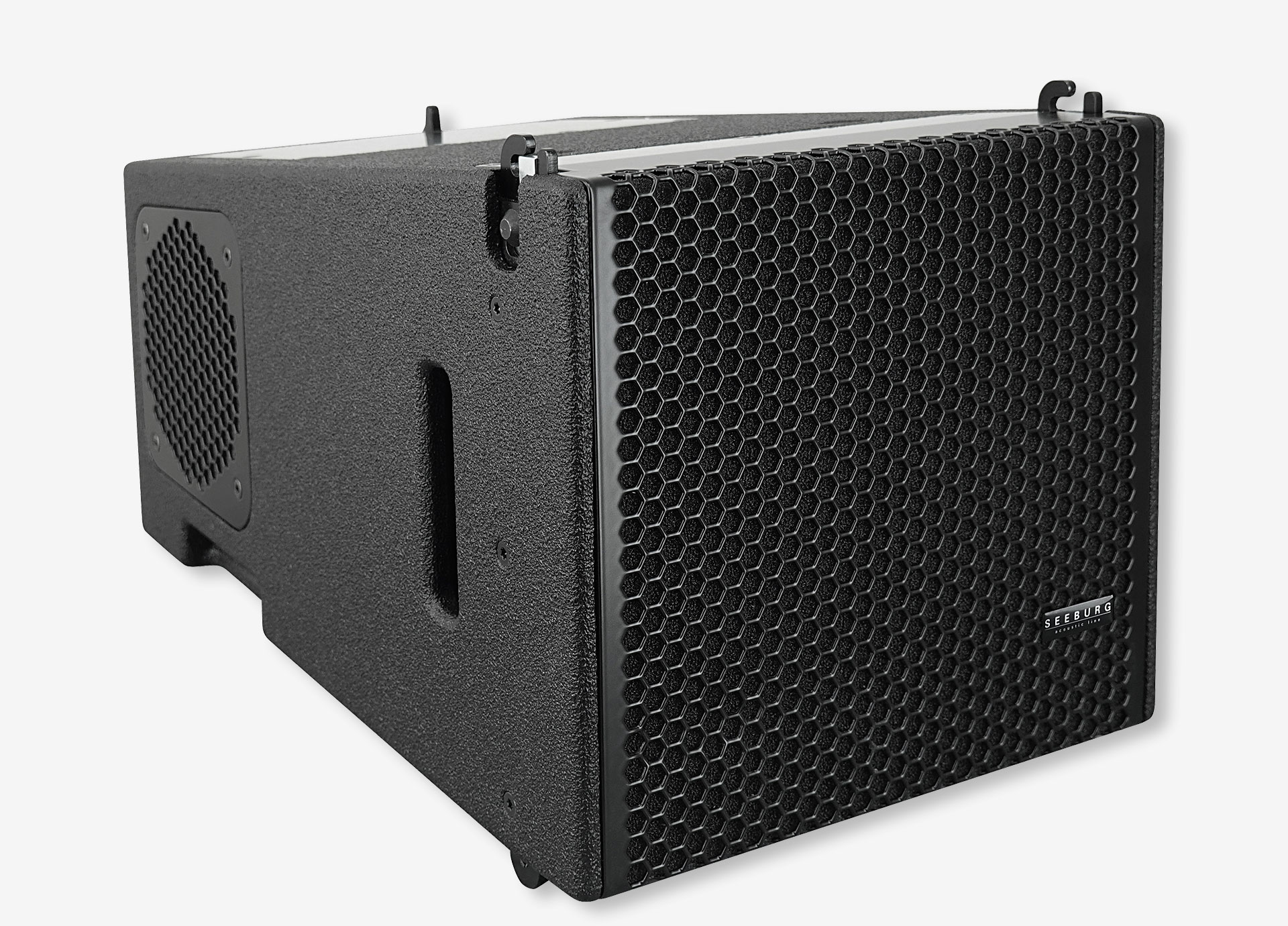

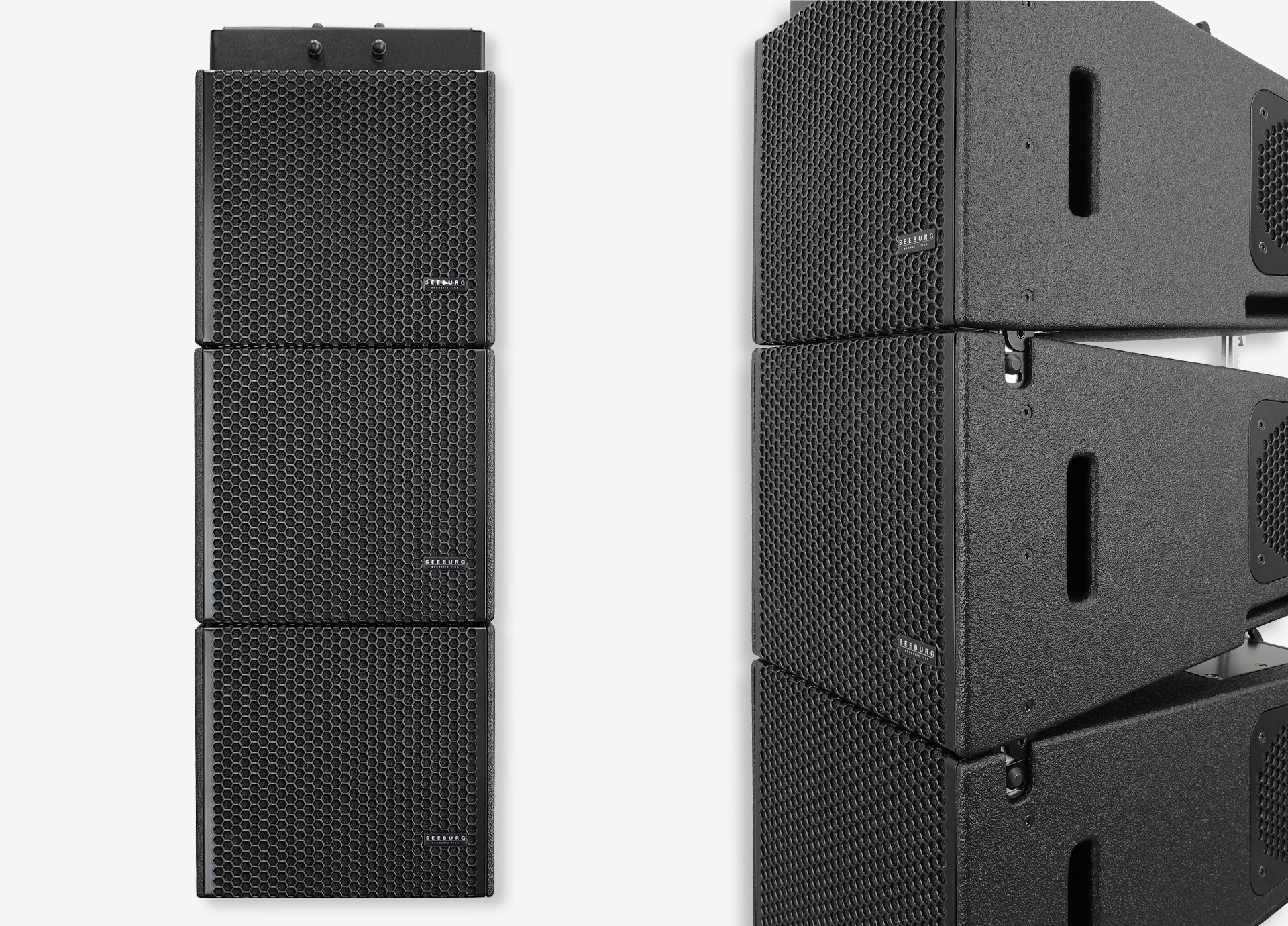

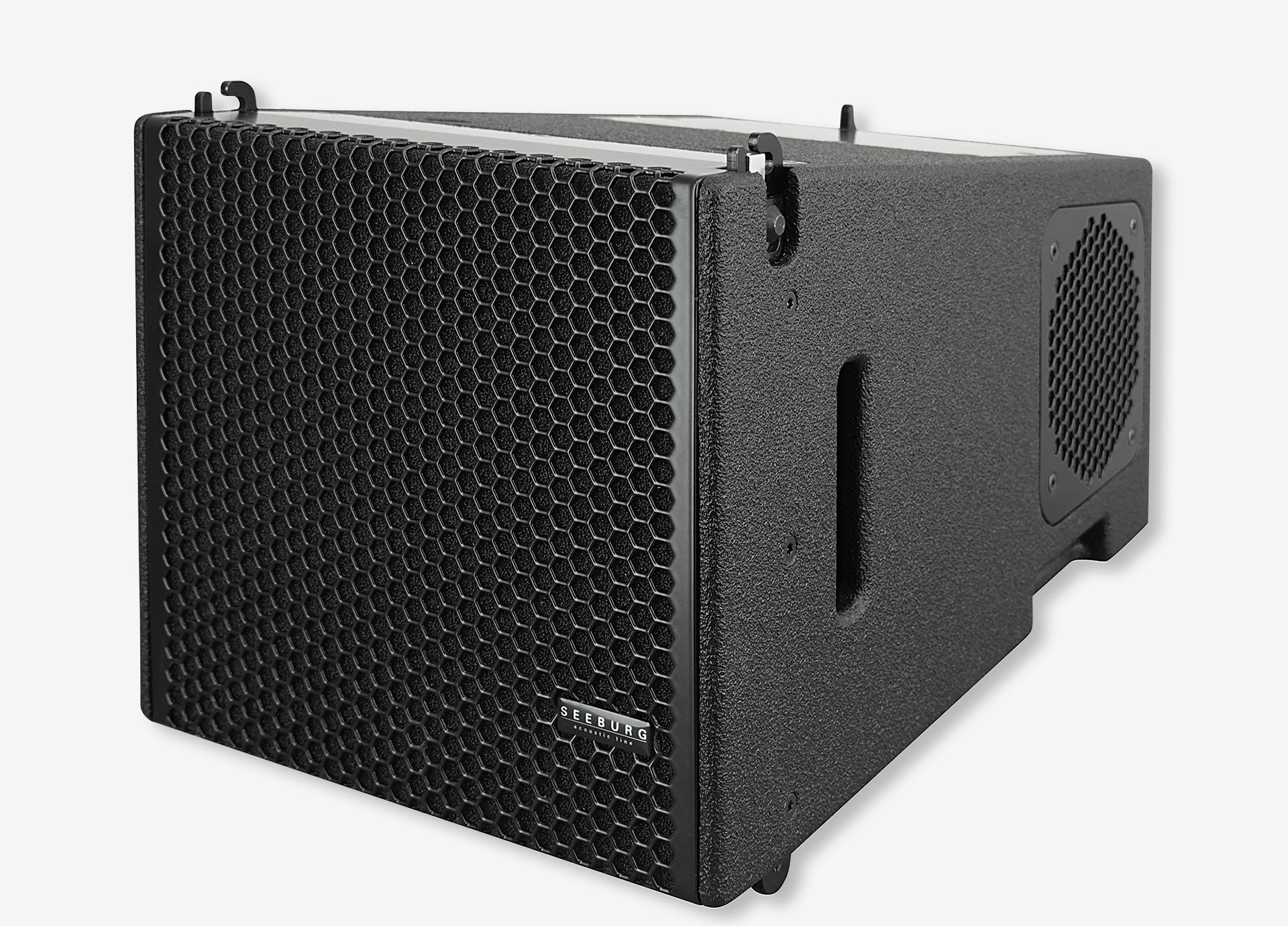

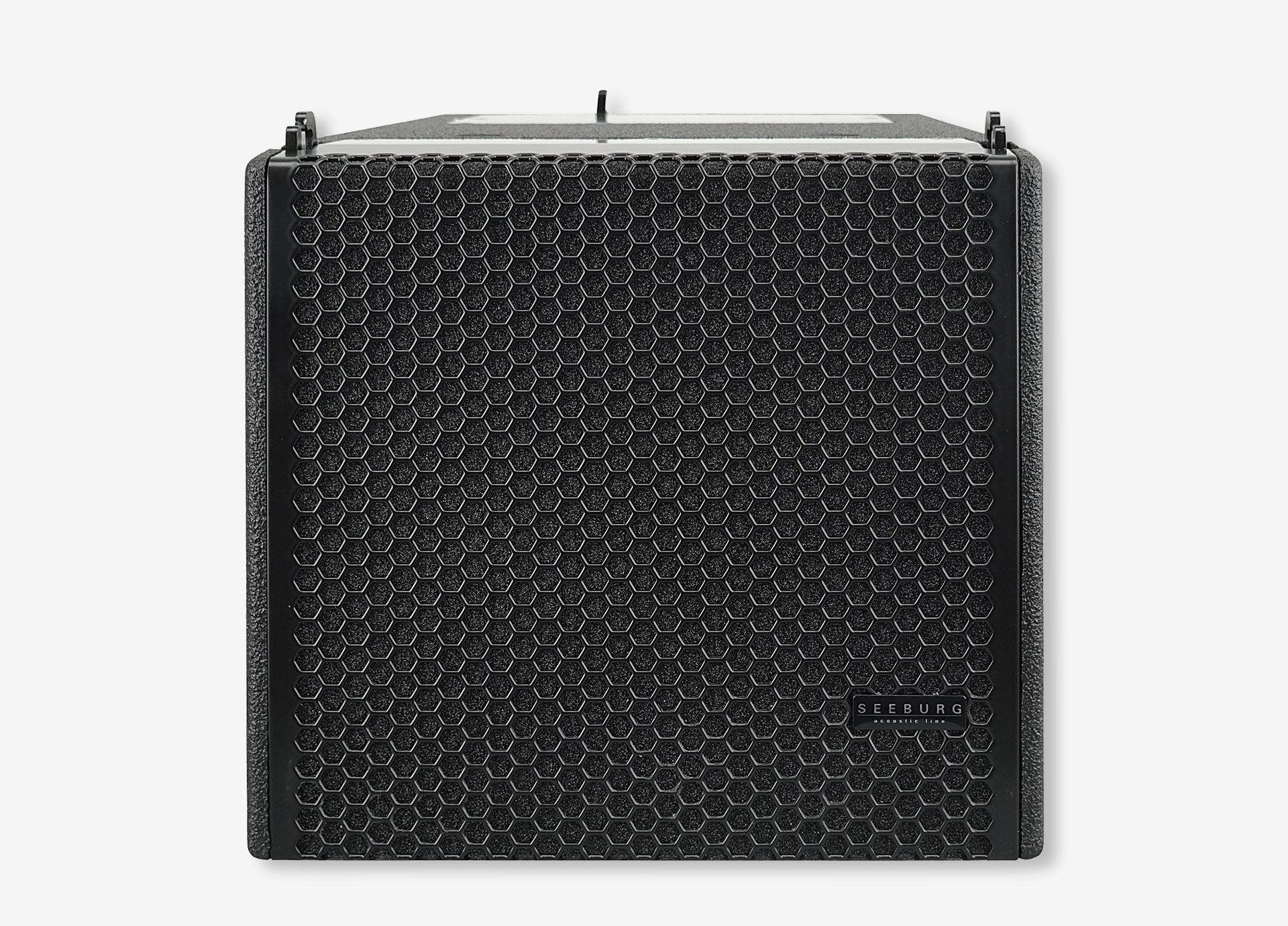

Galeo DS Directional Two-Way Line Array
Das Galeo DS ist ein ultraschlankes, cardioid abstrahlendes Line Array, welches die Vorzüge eines Linienstrahlers mit der Performance eines weitaus größeren, modernen Hochleistungs-Beschallungssystems vereinigt. Fünf horngeführte 1” Titantweeter sorgen für eine hohe Präzision im Mittelhochtonbereich, während das dahinter befindliche
8” Chassis den LowMid Bereich übernimmt.

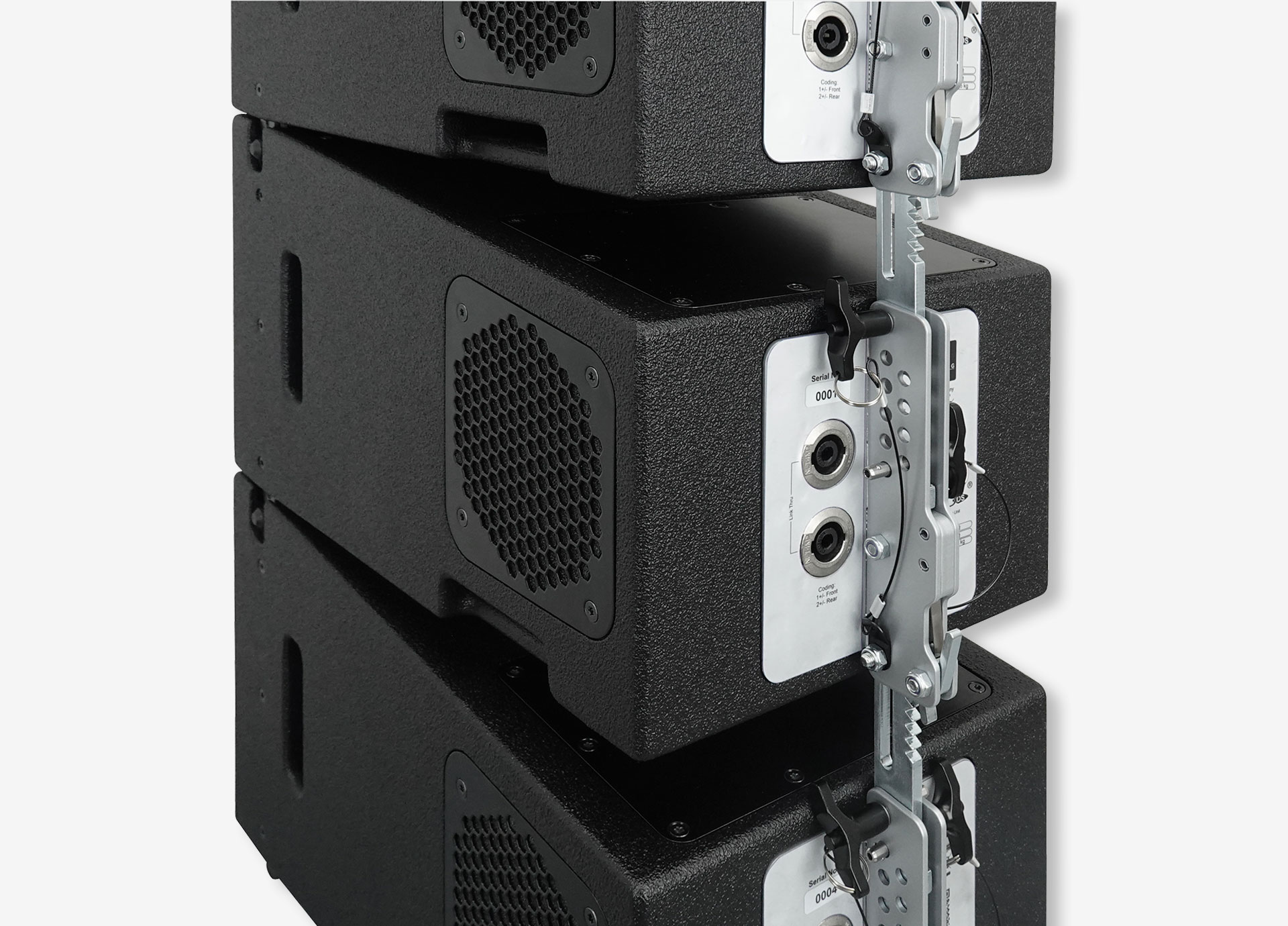

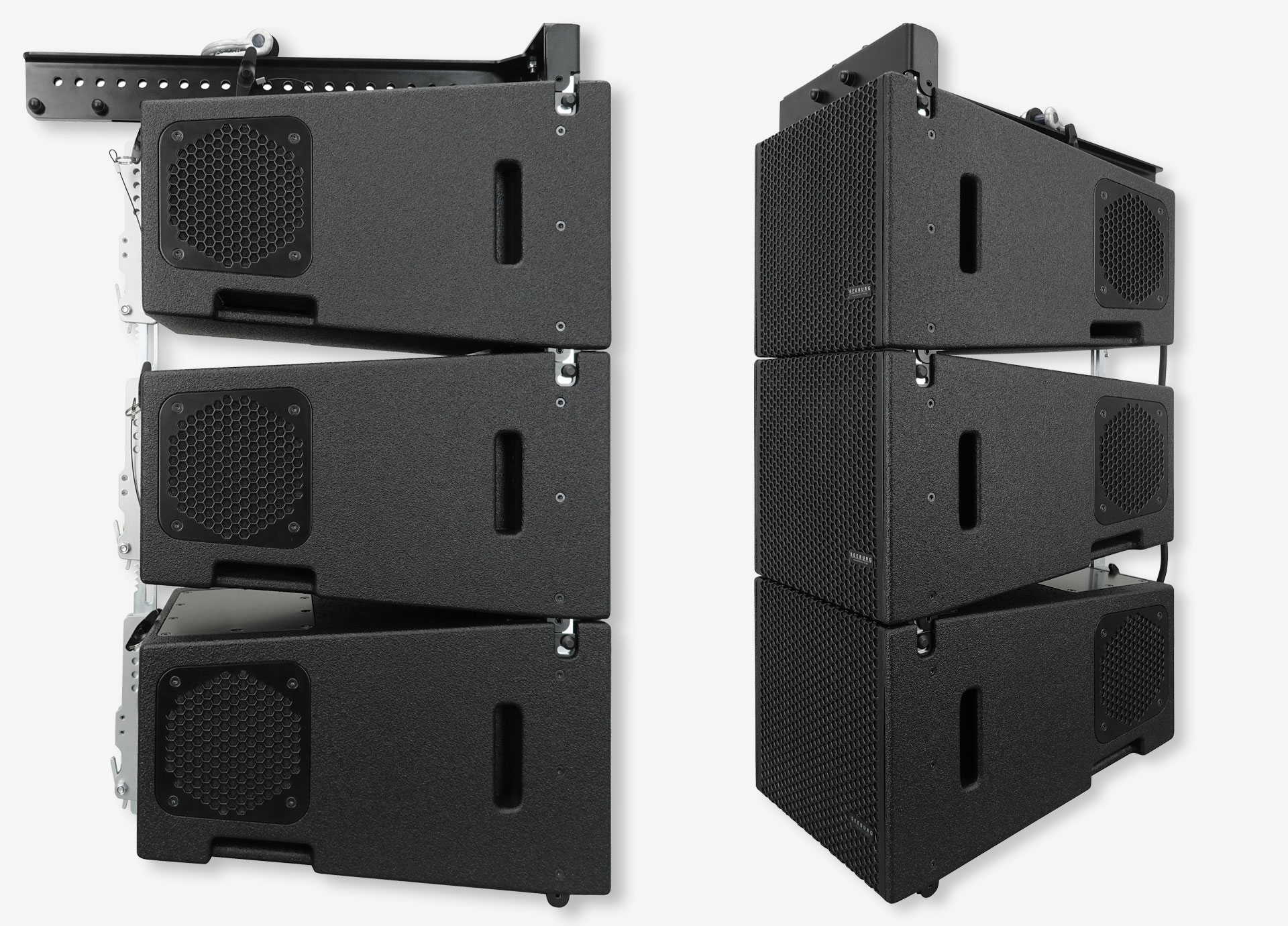

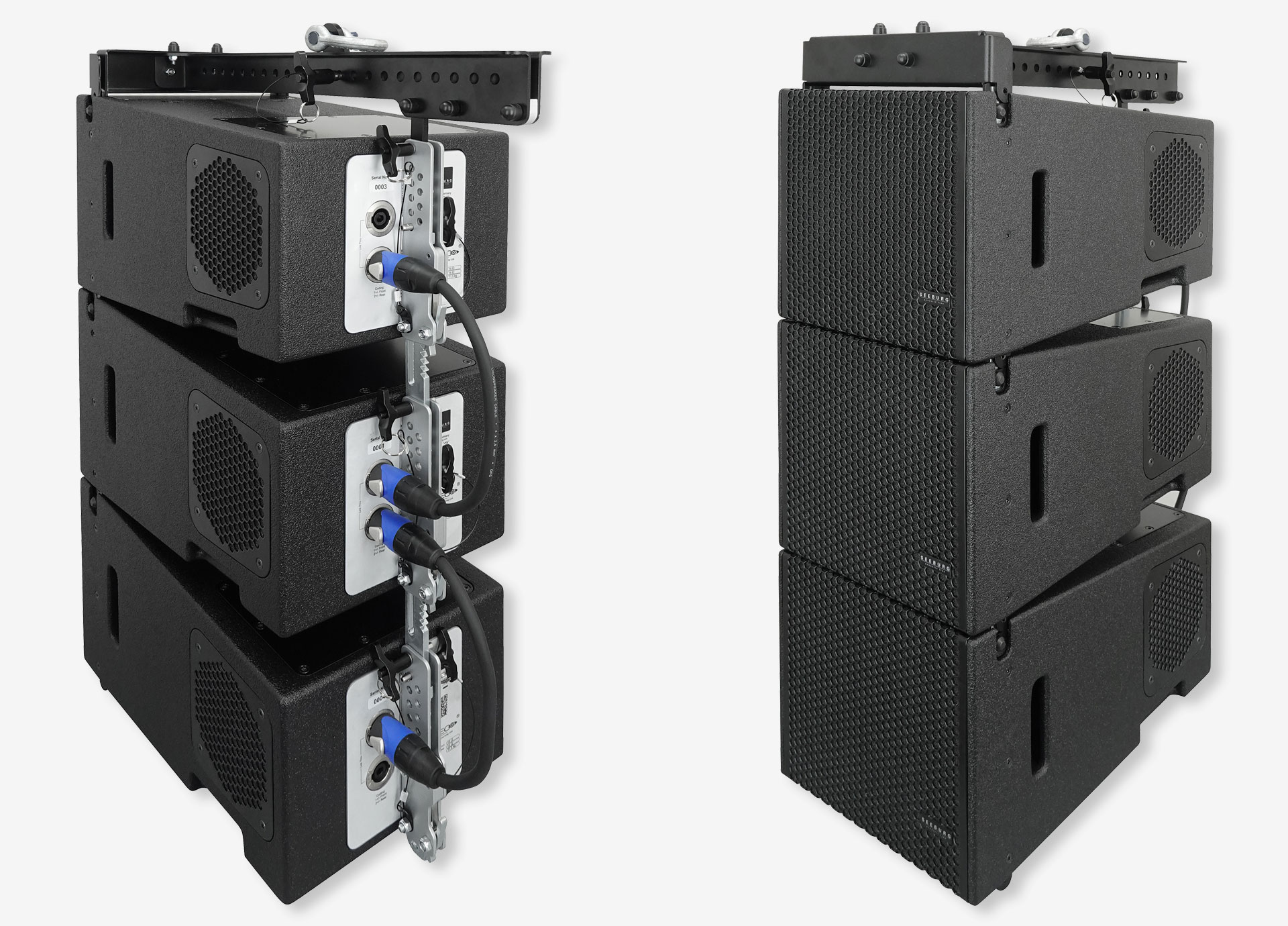

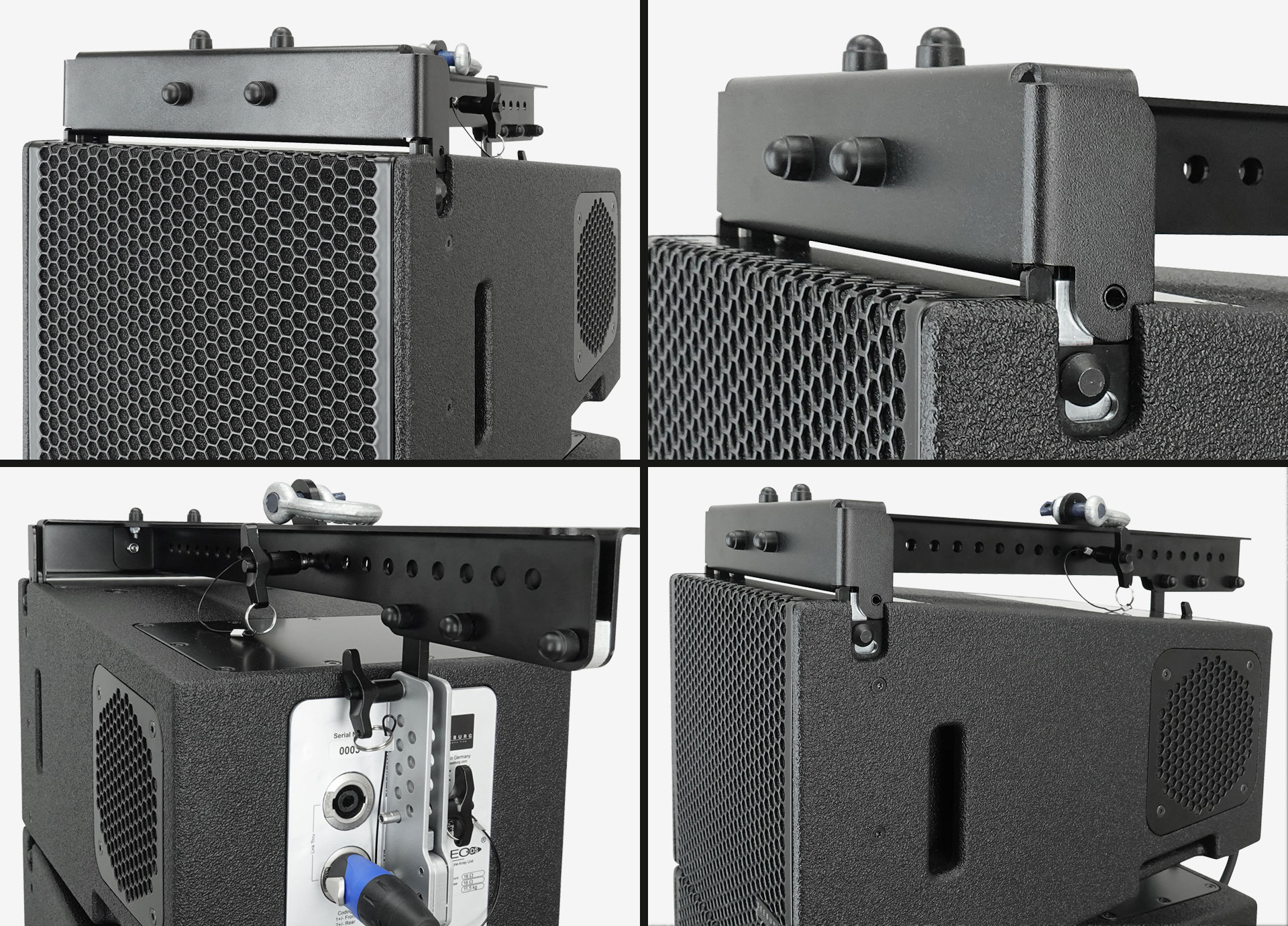

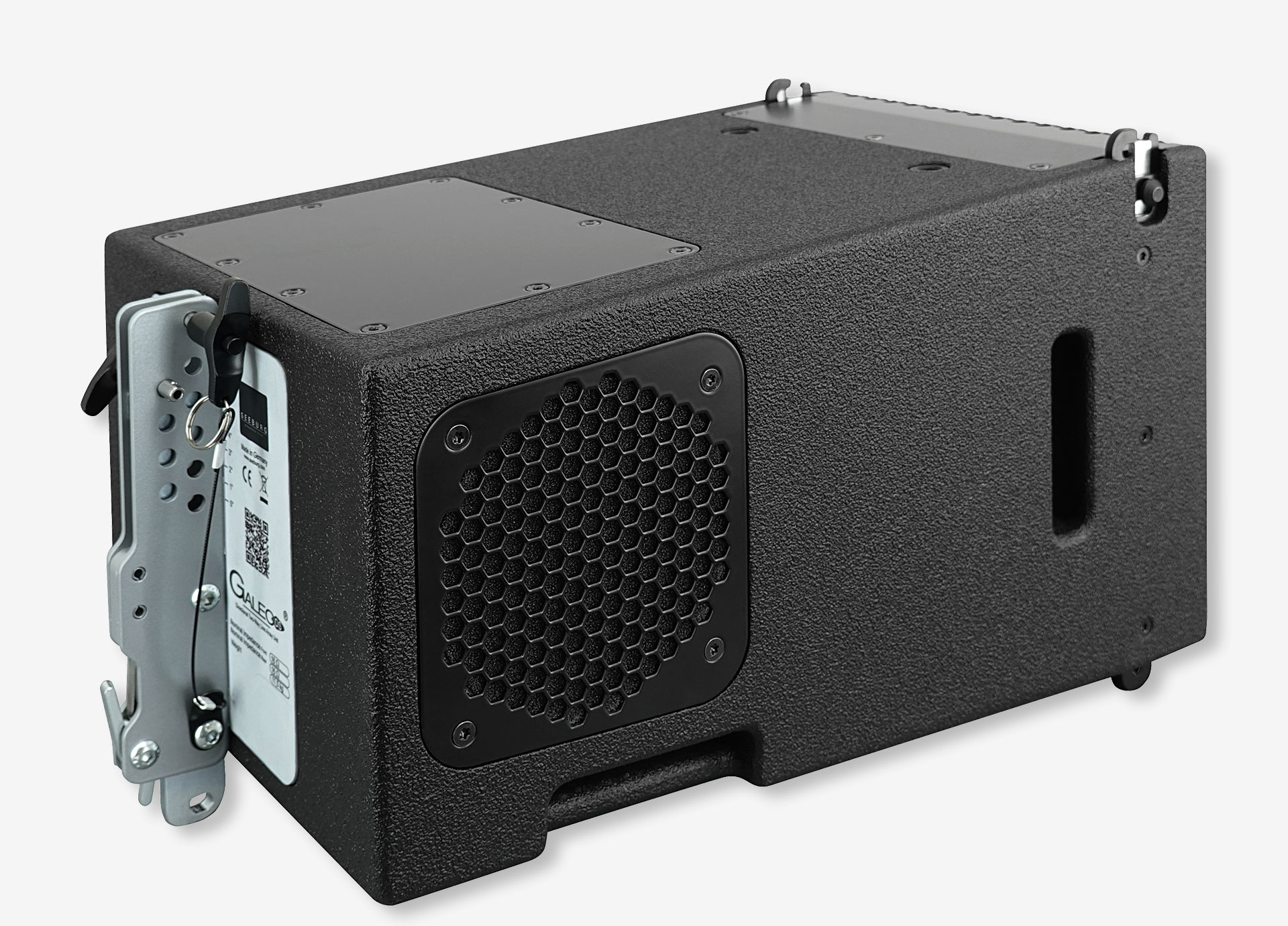

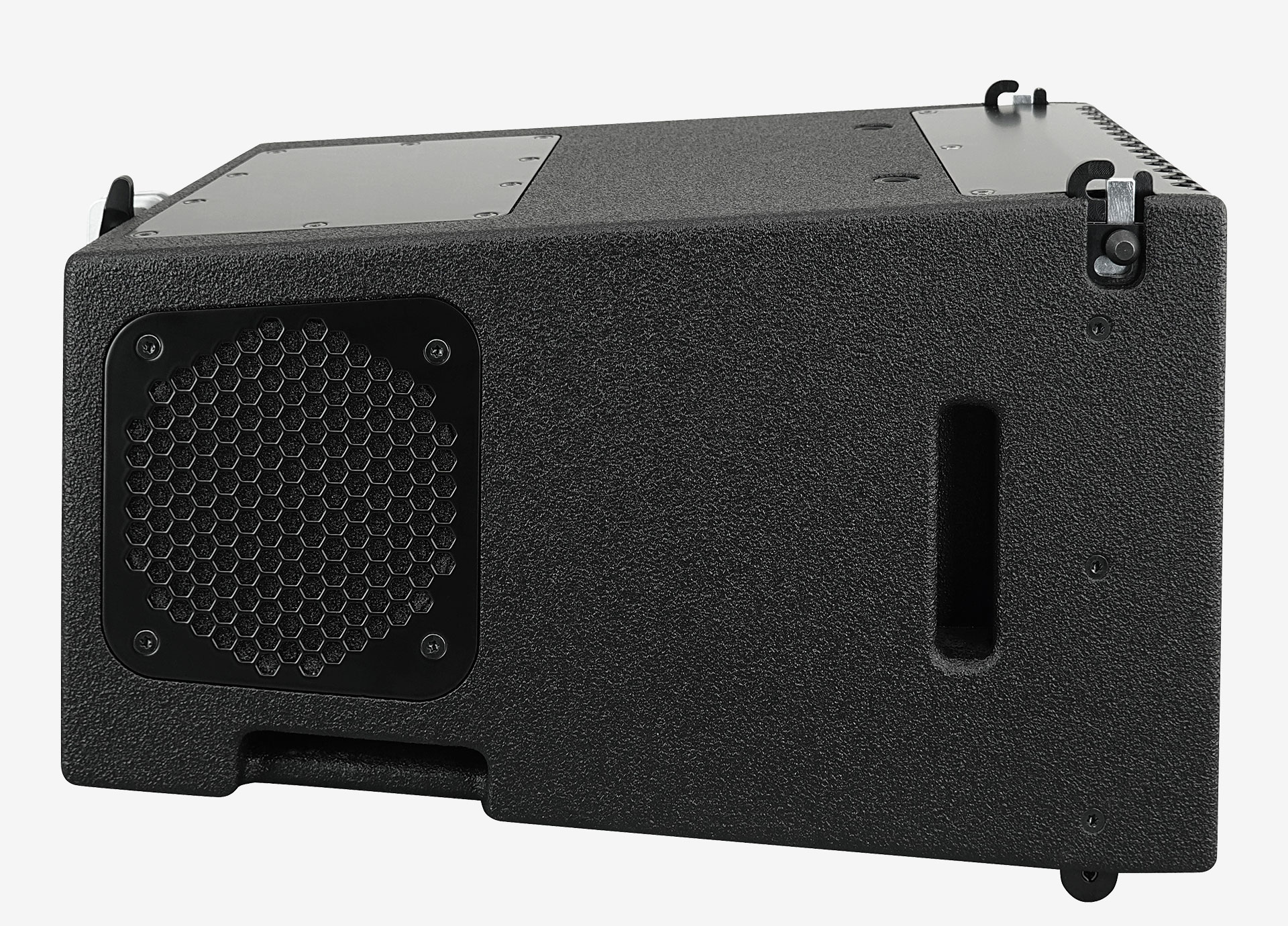

Die herausragend breitbandige Direktivität wird durch die seitlich verbauten zusätzlichen 5” Treiber erreicht, die über das Systemamping separat angesteuert werden. Die integrierte Flugmechanik für die Splaywinkeleinstellung lässt sich schnell und präzise einstellen und eignet sich für geflogene Anwendungen als auch für den Groundstack-Betrieb.
| Speaker Components | 1 x 8“ Nd (3“ VC) 2 x 5“ Nd (1.5“ VC) 5 x 1“ Nd Dome |
| Description | Directional Two-Way Line Array Unit |
| Power AES / Peak | Front: 400 W / 1200 W Rear: 300 W / 900 W |
| Impedance nominal | Front: 16 Ohm / Rear: 16 Ohm |
| SPL 1 W / Peak @ 1 m |
95 dB / 126 dB |
| Usable Range |
80 Hz - 20 kHz (-6 dB) |
| Tuning Frequency excursion minimum | 90 Hz |
| X-Overpoint acoustical | Front: 1.2 kHz Rear: depends on preset |
| Coverage horizontal x vertical | 90° x 8° |
| Max. Splay Angle | 8° |

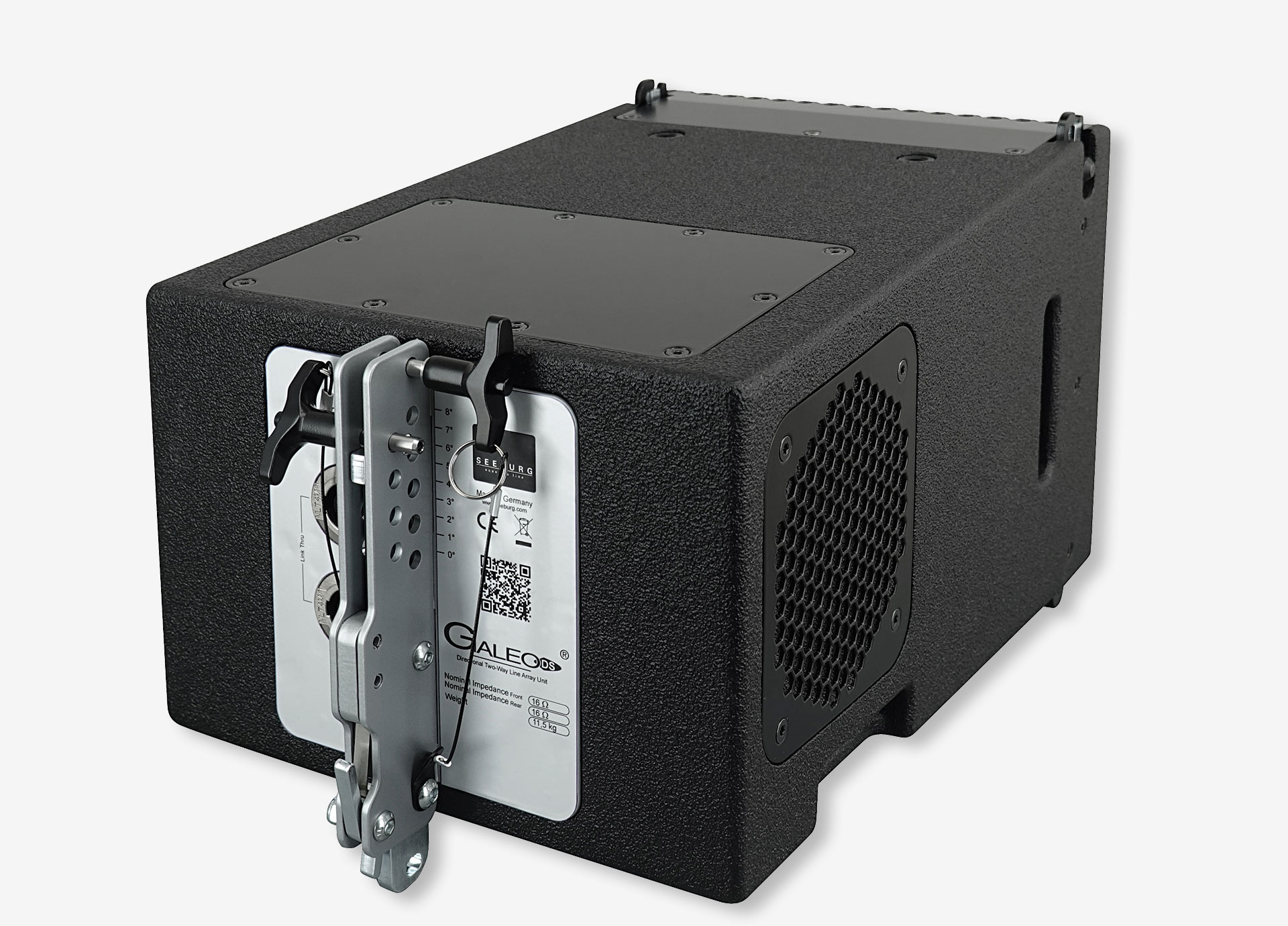

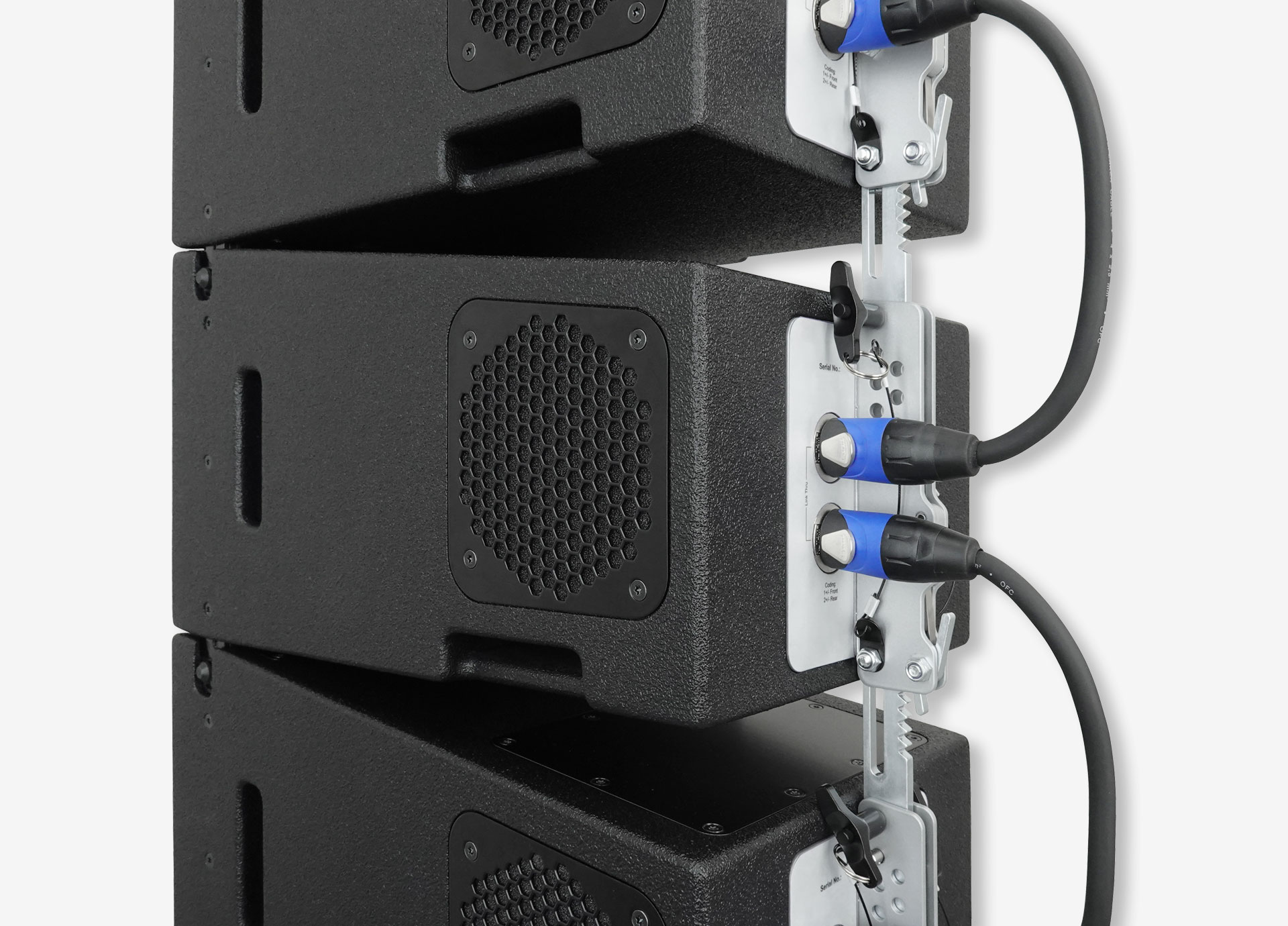

| Connectors | 2 x Speakon NL4MP in/out Coding: 1 +/- Front, 2 +/- Rear |
| Handles | 2 x |
| Rigging / Fittings |
4 x M10 Integrated flying hardware |
| Weight | 11.5 kg |
| Size height x width x depth | 23.0 x 25.0 x 43.5 cm |
| Order No. | 00480 |

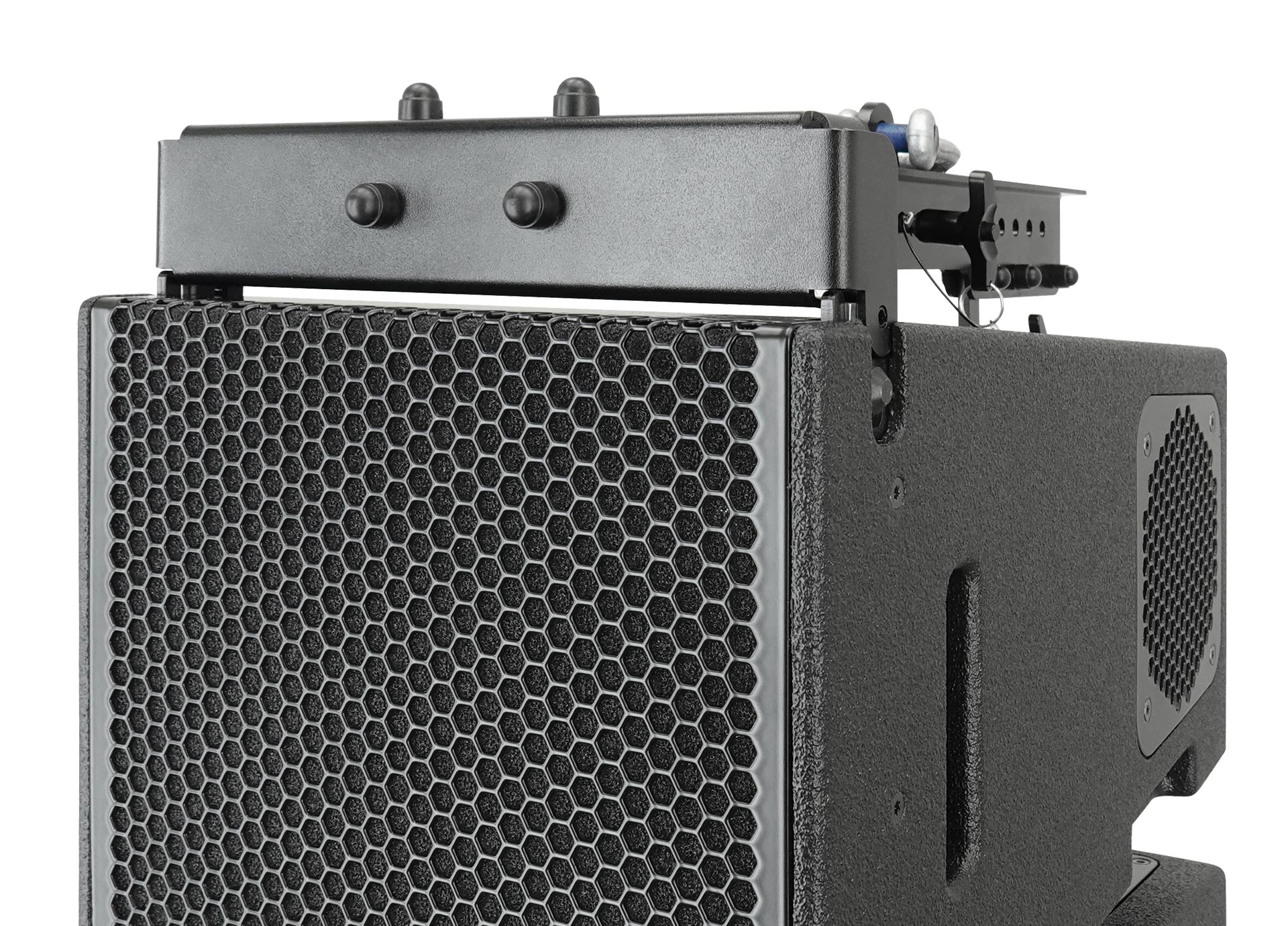

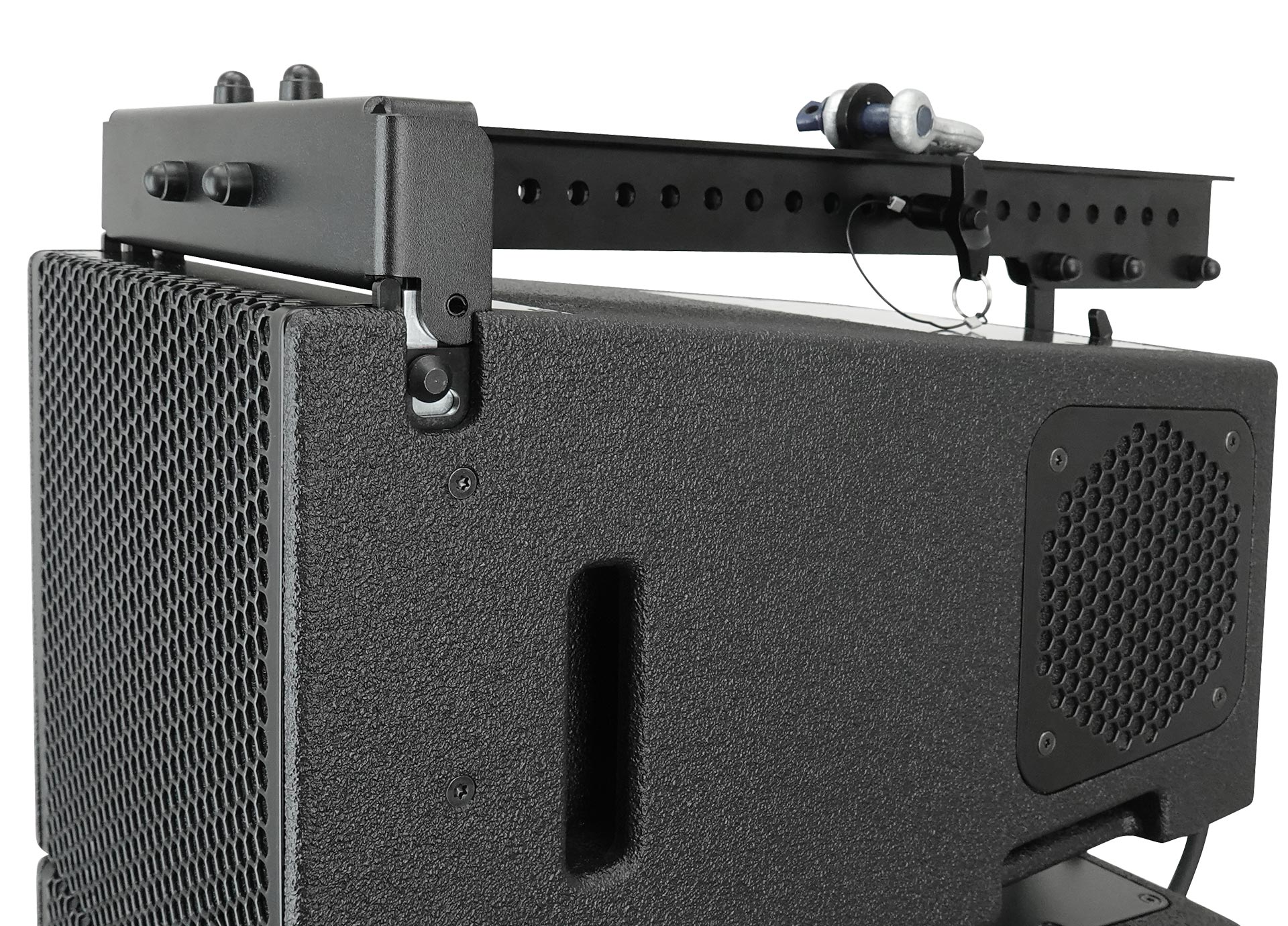

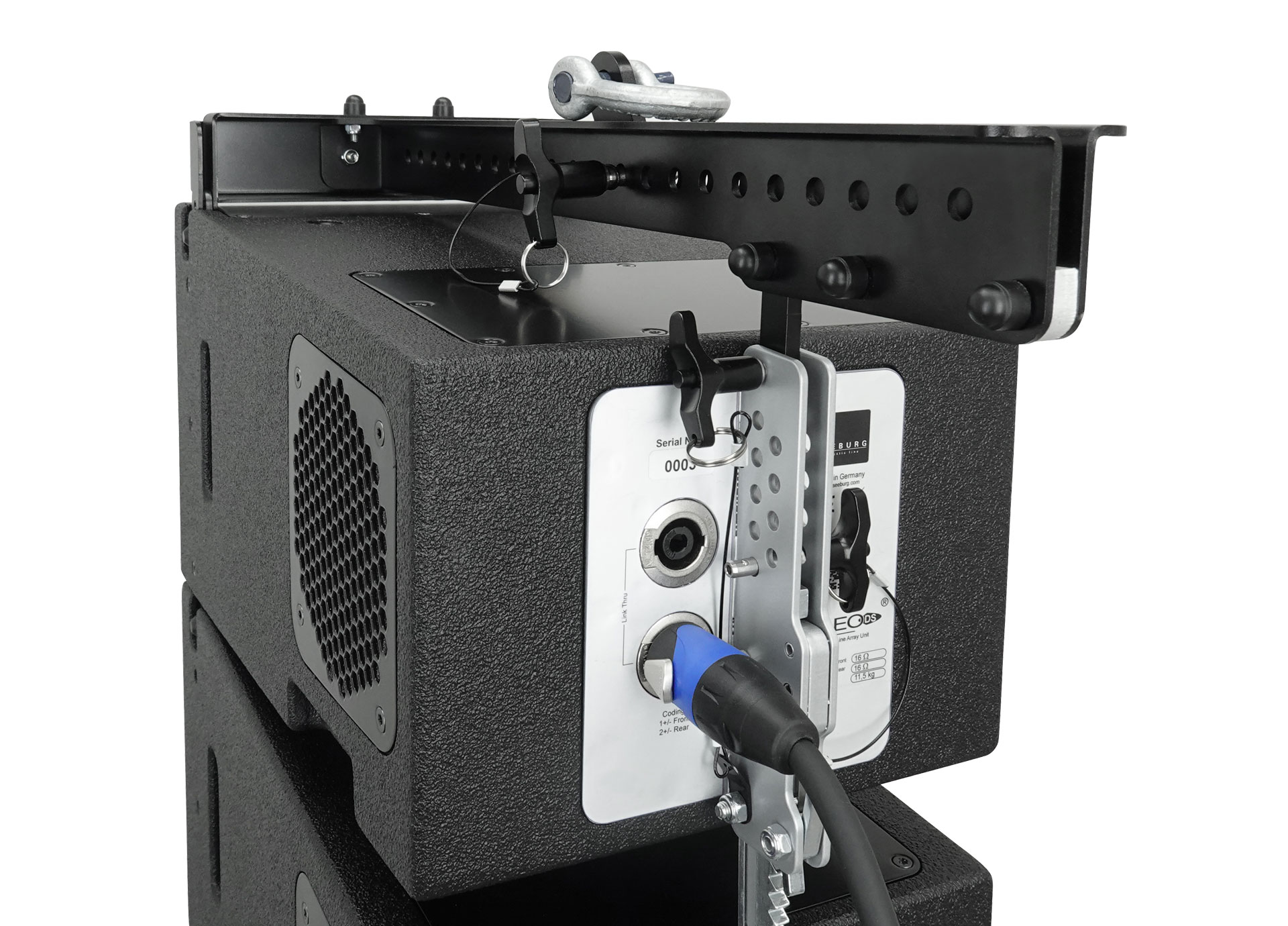

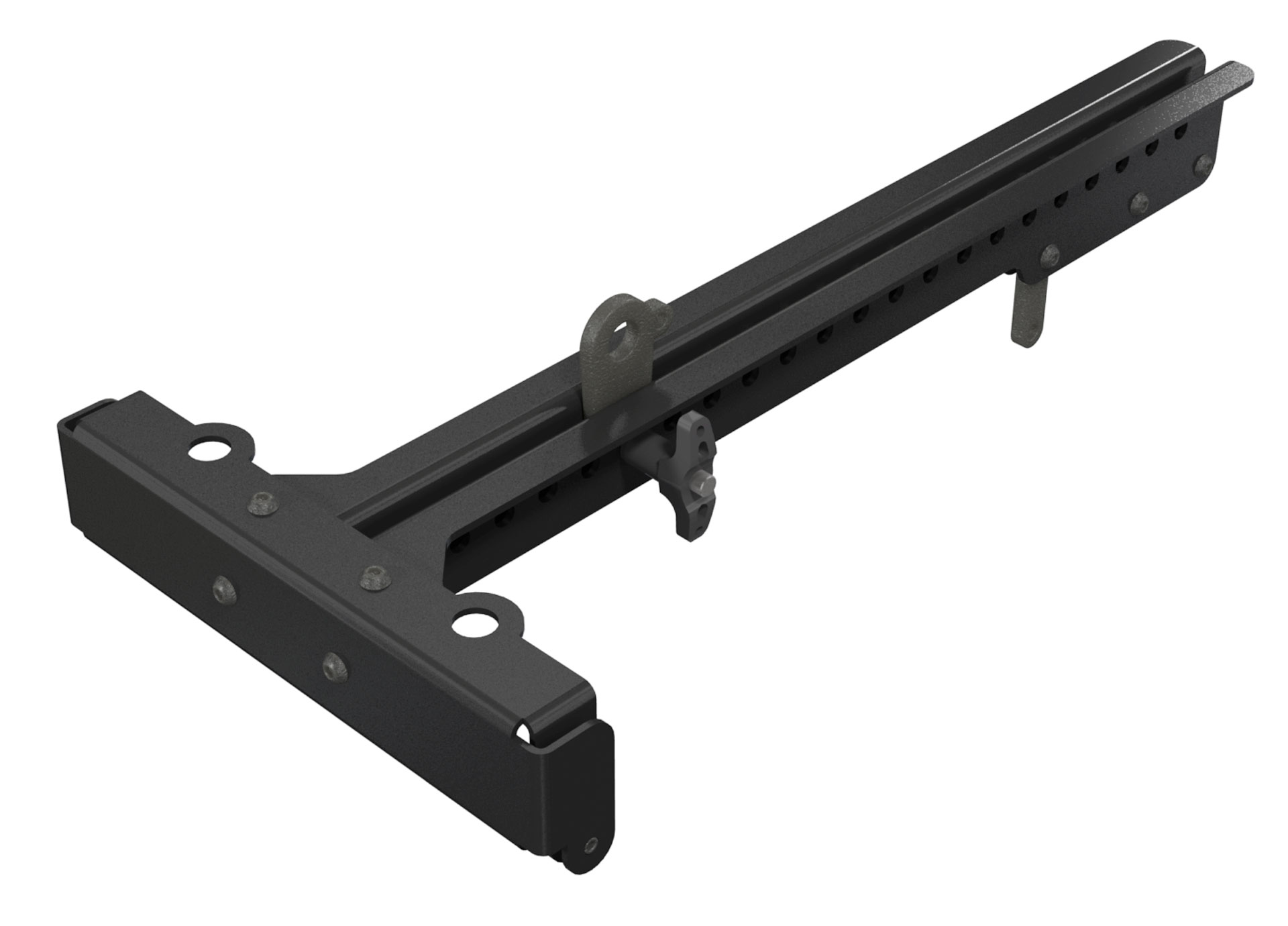

for Galeo DS,

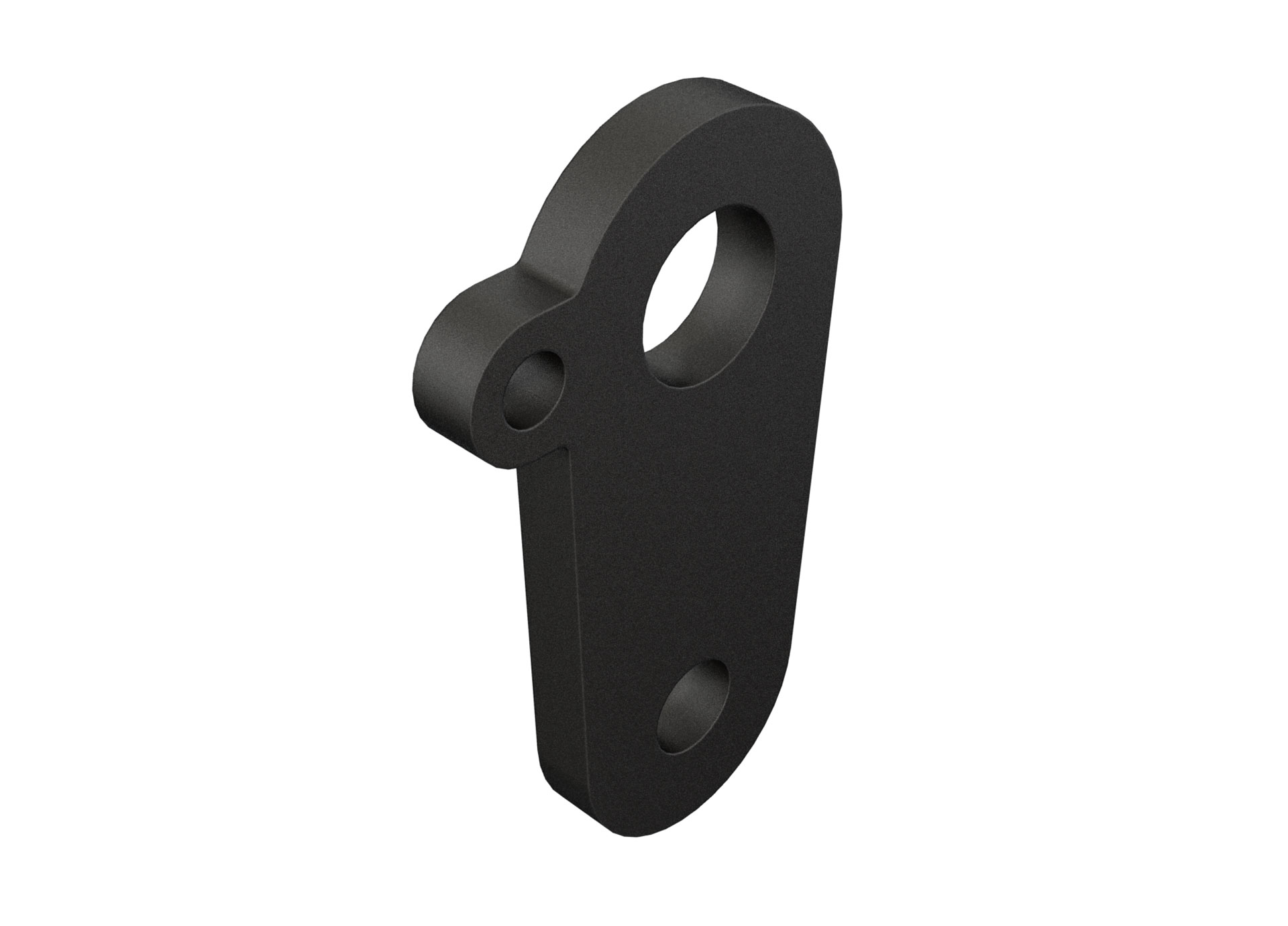

(incl. load adapter 1to (01314/L),
ball lock pin ø 8 x 25 mm),
max. load 190 kg, weight 3,4 kg

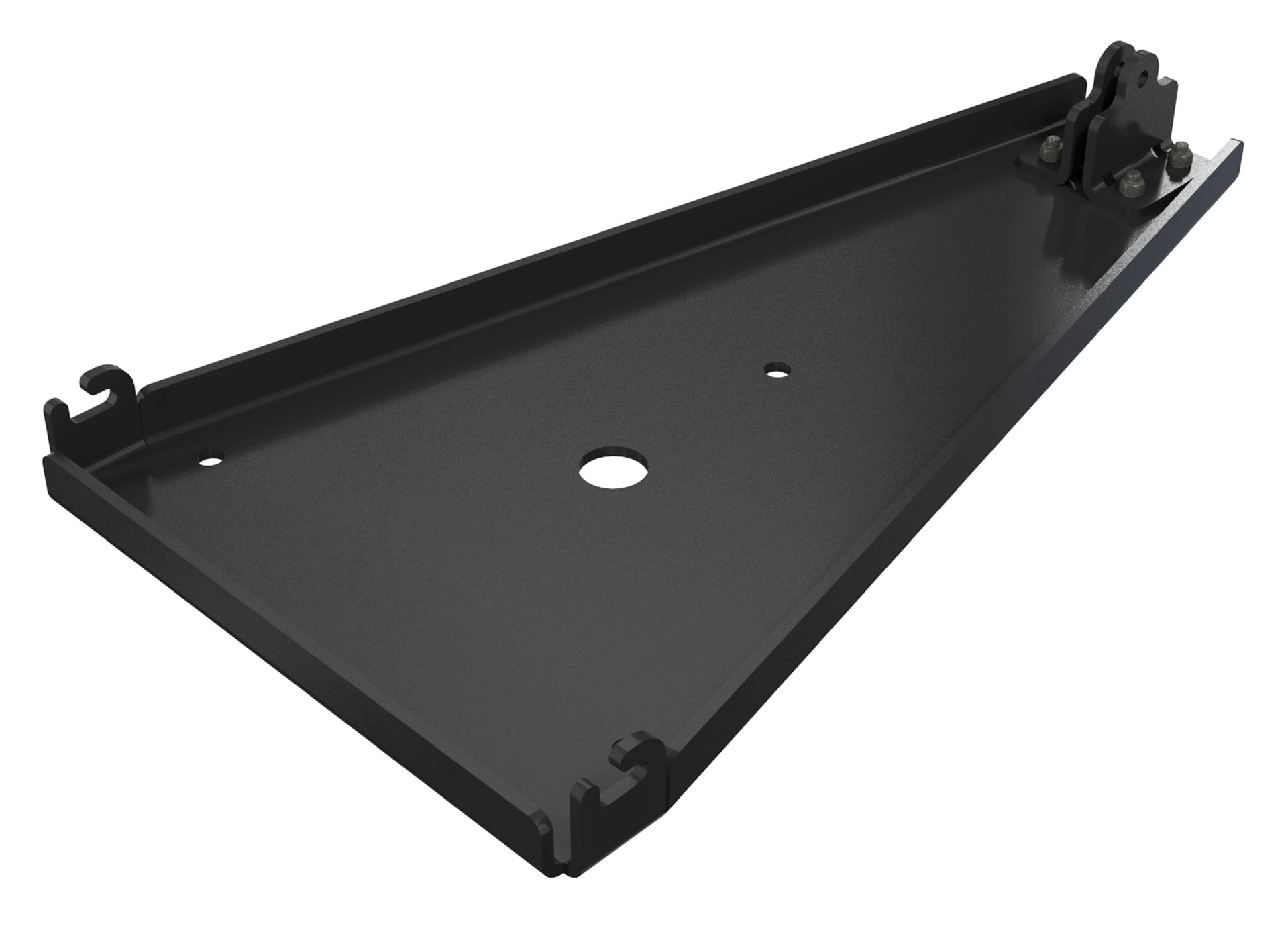

for Galeo DS
Order No. 01315
for flown and ground stacked
applications, (incl. 2 x knurled screws
M10 x 20 mm, 1 x handle screw
M8 x 55 mm), max. load 50 kg
for fixed installations,
(incl. 2 x socket head screws
M10 x 20 mm),
max. load 50 kg
(incl. load adapter M10,
2 x knurled screws M10 x 20 mm),
max. load: 50 kg
Tilt adapter with adjustable tilt
from 0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
(incl. 2 x knurled screws M10 x 20 mm),
max. load 50 kg
heavy duty, black,
support plate: 600 x 150 mm,
usable depth: 550 mm
(incl. screw M10 x 55 mm),
max. load capacity 150 kg
ø 8 x 25 mm
Order No. 01380/8x25
M10 x 20 mm
Order No. 73750/w (RAL 9010)
1to, for Galeo DS Flying Cradle
> Shackle

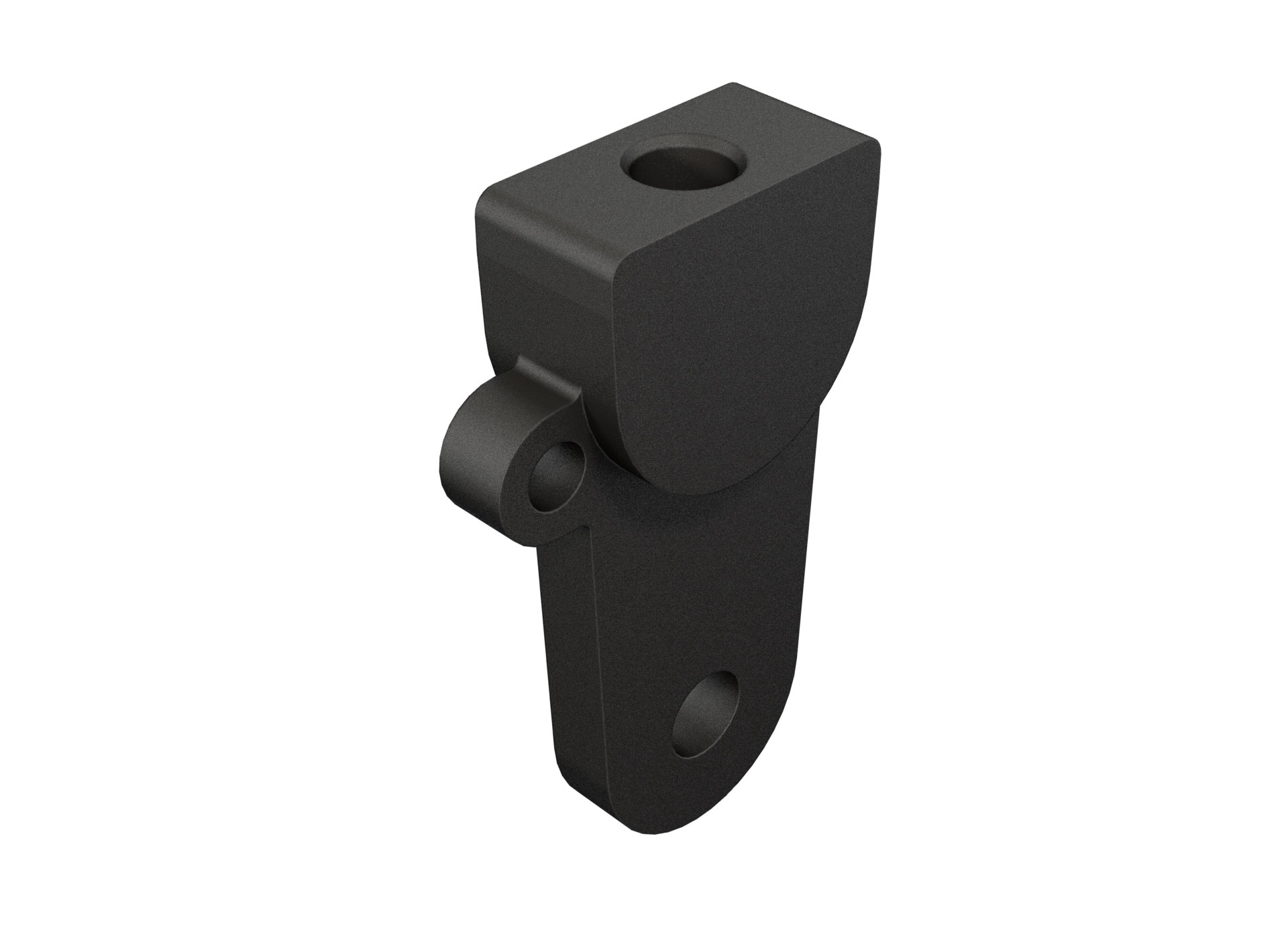

M10, for Galeo DS Flying Cradle
Order No. 01314/M10

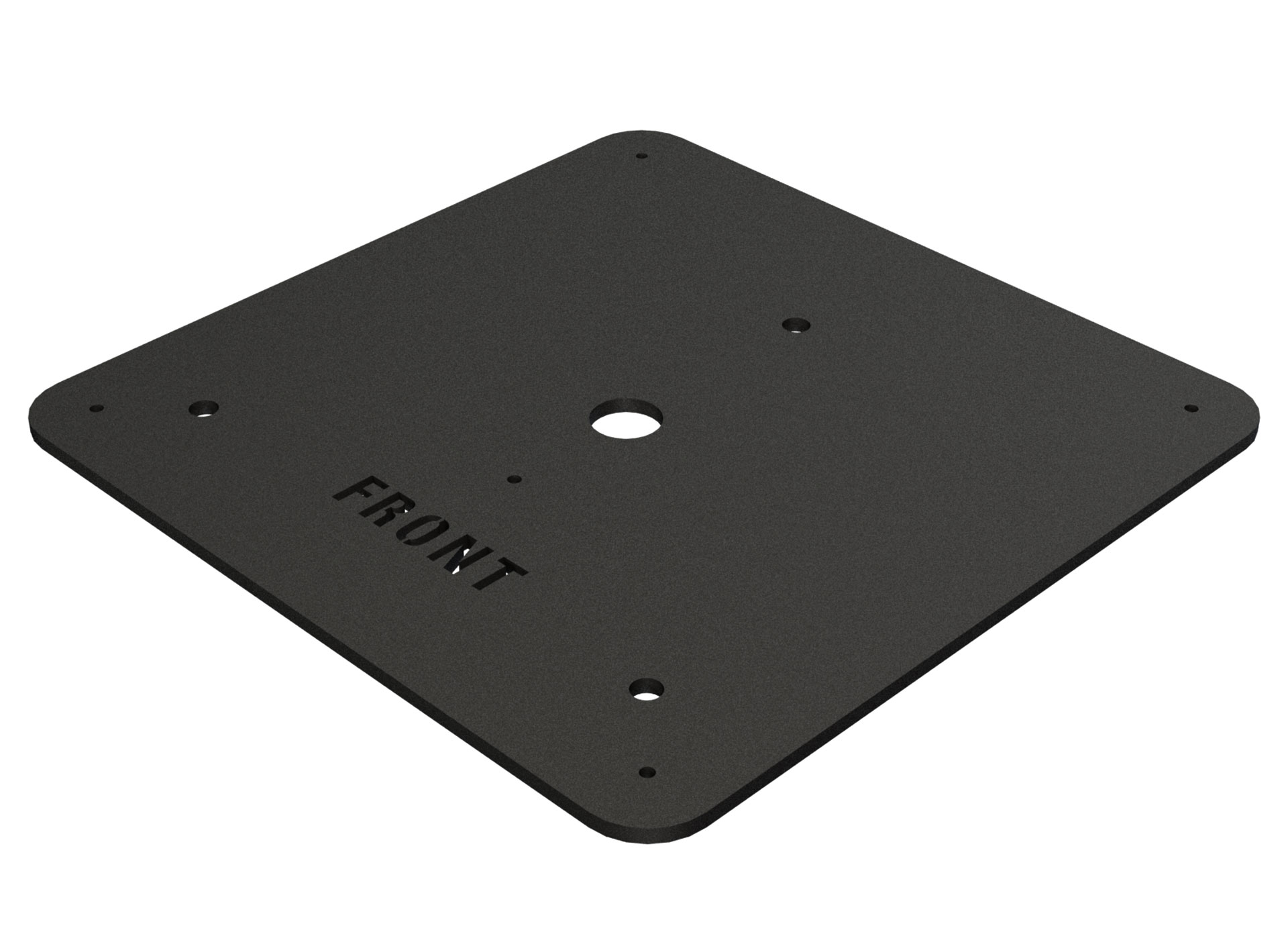

for Truss F23 > M20
Order No. 01371
max. load 100 kg
Order No. 01223/100kg
max. load 250 kg
Order No. 01223/250kg
M10– DIN 580
black zinced
Order No. 73700/sw
zinced
M10 internal thread,
28 mm ø
8 mm x 600 mm,
quick connector undetachably,
max. load 40 kg (BGI 810-3)
Order No. 01376/8
for Galeo C, Galeo DS
Order No. 08448
bar: 400 mm,
(incl. socket head screw M10 x 70,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/400/w (RAL 9010)
bar: 269 mm,
(incl. socket head screw M10 x 70 mm,
hex lock nut and flat washer M10),
max. load 40 kg
Order No. 08130/F/269/w (RAL 9010)
reduction screw for fastening
M10 pole mount adapter (08126)
35 mm ø –> M10 x 16 mm
Order No. 08126/II/w (RAL 9010)
for flying bracket,
M20 x 35 mm ø with nut,
(incl. 1 x star knob srew M8 x 16 mm,
1 x socket head screw,
M20 x 30 mm, 1 x flat)
250 mm, ø 35 mm, M20,
with ring lock
for 2 x pcs. flying frames or
flying cradles, with side pocket,
62,0 x 23,0 x 51,0 cm

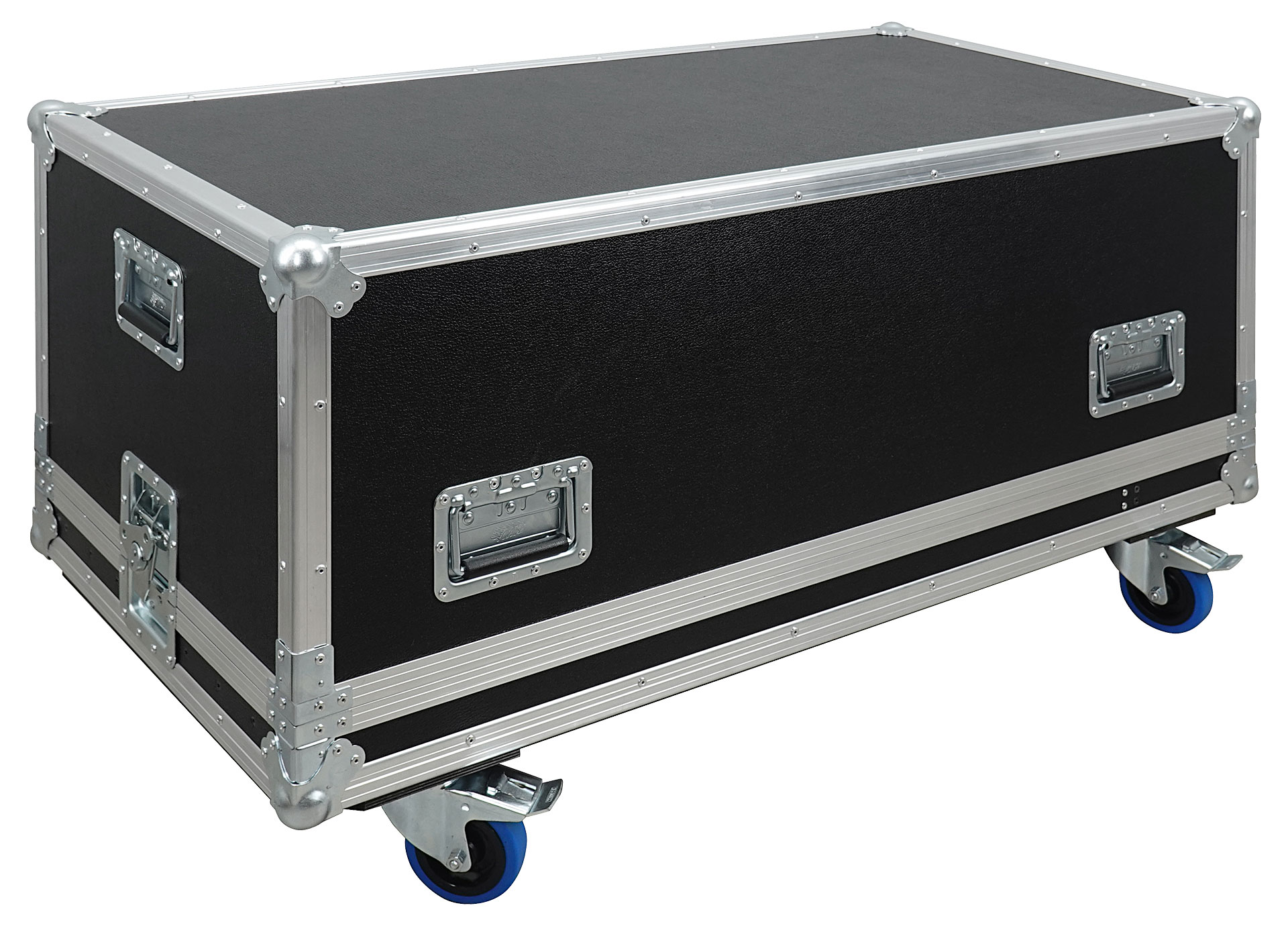

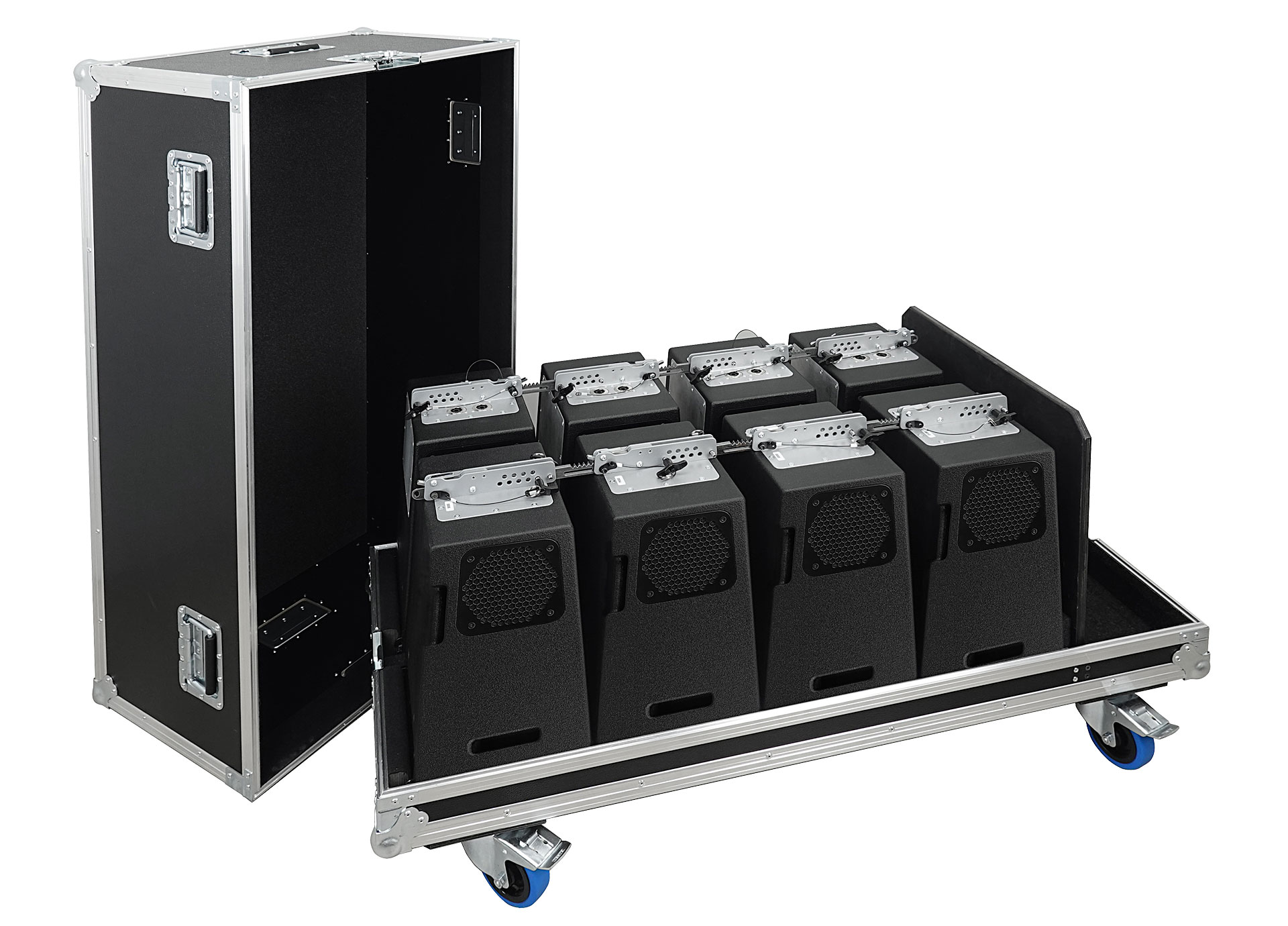

for 8 pcs. Galeo DS units and insert for accessories, heavy duty, 9 mm birch multiplex, PVC coated black, 6 x recessed sprung handles, 2 x butterfly catches,
4 x 100 mm blue wheels, 2 pcs. with brake, interior lined with felt
Size (H x W x D): 62 x 120 x 60 cm, weight 37 kg

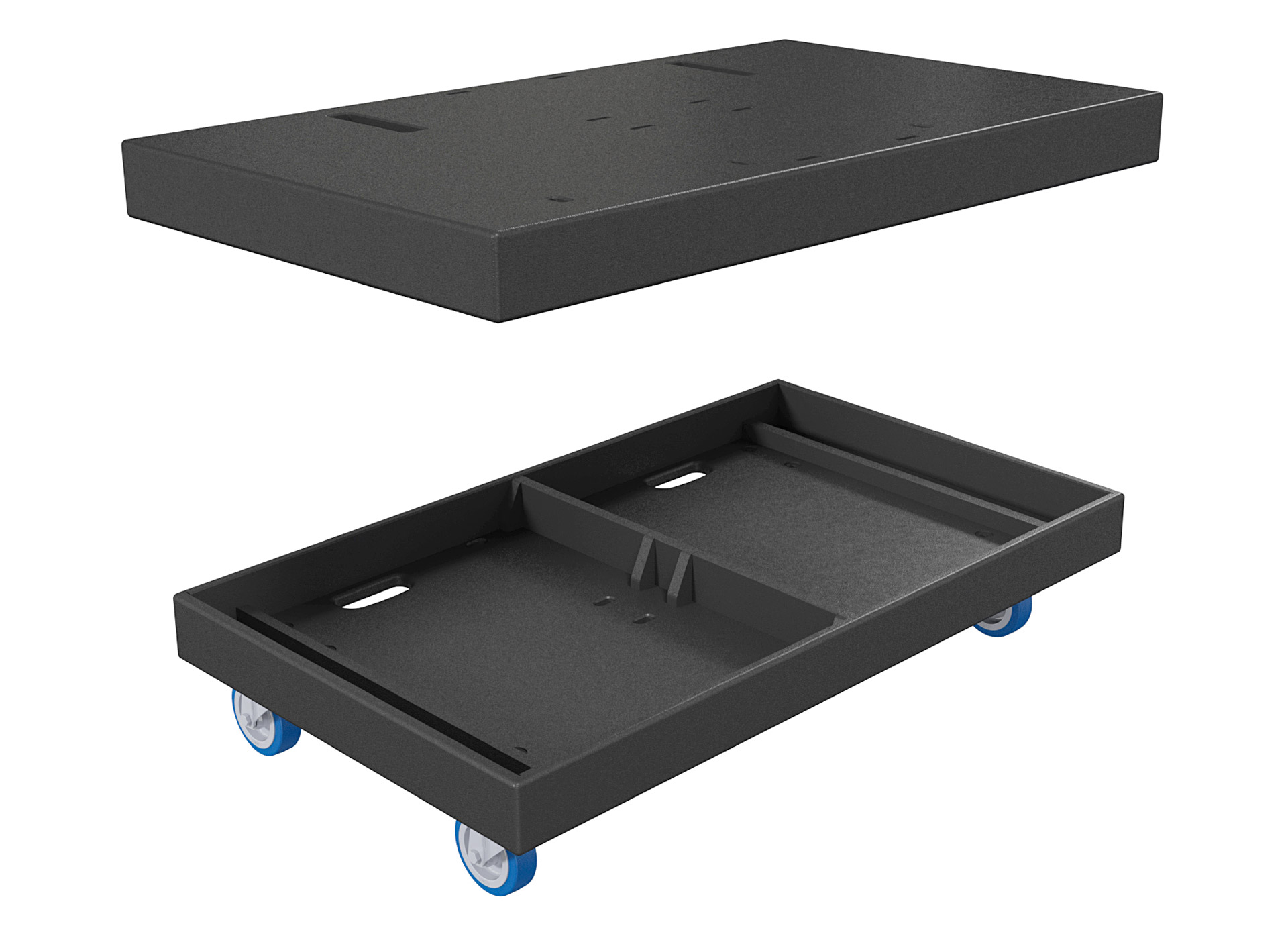

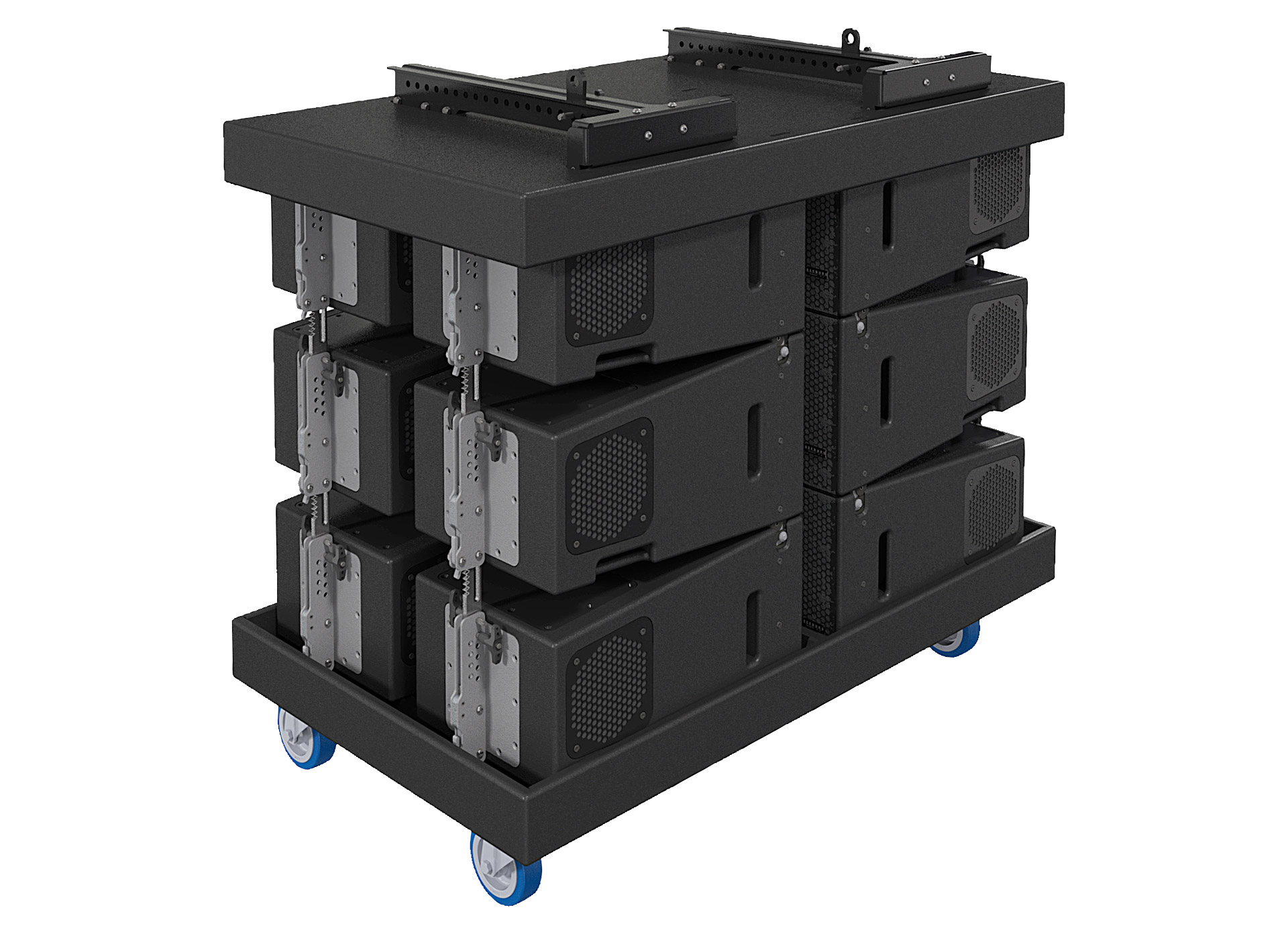

for up to 24 pcs. Galeo DS units,
4 x 100 mm wheels with brake,
incl. top board (stackable),
weight 25 kg
