GALEO C Two-Way Line Array
GALEO C
00410/100 |
100°-Version 600 W / 110 W AES, 16 Ω / 16 Ω |
00410/70 |
70°-Version as above |
 Downloads |
|
| Datenblatt Galeo C |
 |
| Benutzerhandbuch Galeo C / Galeo C Sub |
|
| Ausschreibungstext |
|
| Simulationsdaten | |
| 3D-Dateien | |
| Zertifikat Ballwurfsicherheit-Spritzwasserschutz |
|
| Produktbilder |
 |
Das Galeo C ist ein High Performance Line Array für die Großbeschallung mit vielen innovativen, akustischen und mechanischen Detaillösungen. Das 2 x 8” / 1.4” System wird 2-Wege aktiv betrieben.
Das Galeo C ist ein unauffälliges Beschallungssystem für die hochwertige Festinstallation und den anspruchsvollen Tourbetrieb. Durch einfachen Austausch der AMR- Hornhälften kann zwischen einem 70° oder 100° horizontalem Abstrahlwinkel gewählt werden. Mit einem maximalen Splaywinkel von 14° kann bereits mit wenigen Elementen eine starke Krümmung der Zeile erreicht werden. Die innovativ integrierte Flugmechanik erleichtert das Curving entscheidend, da es erst im geflogenen Zustand eingestellt werden muss.
| Speaker Components | 2 x 8“ Nd (2,5“ VC) / 1,4“ Nd (3“ VC) |
| Description | Two-Way Line Array Unit |
| Power AES / Peak | LF: 600 W / 1800 W HF: 110 W / 330 W |
| Impedance nominal | LF: 16 Ω / HF: 16 Ω |
| SPL 1 W / Peak @ 1 m |
LF: 98 dB / 131 dB HF: 111 dB / 136 dB |
| Usable Range |
80 Hz - 20 kHz (- 6 dB) |
| Tuning Frequency excursion minimum | 85 Hz |
| X-Overpoint acoustical | Depends on preset |
| Coverage horizontal x vertical | 100° x 14° (100°-version) 70° x 14° (70°-version) |
| Max. Splay Angle | 14° |
| Connectors | 2 x Speakon NL4 in/out Coding: 1 +/- HF, 2 +/- LF |
| Handles | 4 x |
| Rigging / Fittings |
6 x M10 Integrated flying hardware |
| Weight | 22 kg |
| Size height x width x depth | 24,0 x 58,0 x 46,0 cm |
| Order No. | 00410/100 (100°-version) 00410/70 (70°-version) |
for Galeo C / Galeo C Sub,
(incl. 3 x ball lock pins 8 x 25 mm,
load adapter M10 and 100 mm distance bar), also for ground stack
for flown and ground stacked
applications, (incl. 2 x knurled screws
M10 x 20 mm, 1 x handle screw
M8 x 55 mm), max. load 50 kg
for fixed installations,
(incl. 2 x socket head screws
M10 x 20 mm),
max. load 50 kg
(incl. load adapter M10,
2 x knurled screws M10 x 20 mm),
max. load: 50 kg
Tilt adapter with adjustable tilt
from 0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
(incl. 2 x knurled screws M10 x 20 mm),
max. load 50 kg
for Galeo C / C-Series / K 24,
to be used with FD34 / FD33 truss,
minimum truss length: 0,21 m
consisting of base plate with M20
and tilt adjuster (incl. socket head screw M20 x 30 mm),
weight: 13,5 kg, max. load 150 kg
ø 8 x 25 mm
Order No. 01380/8x25

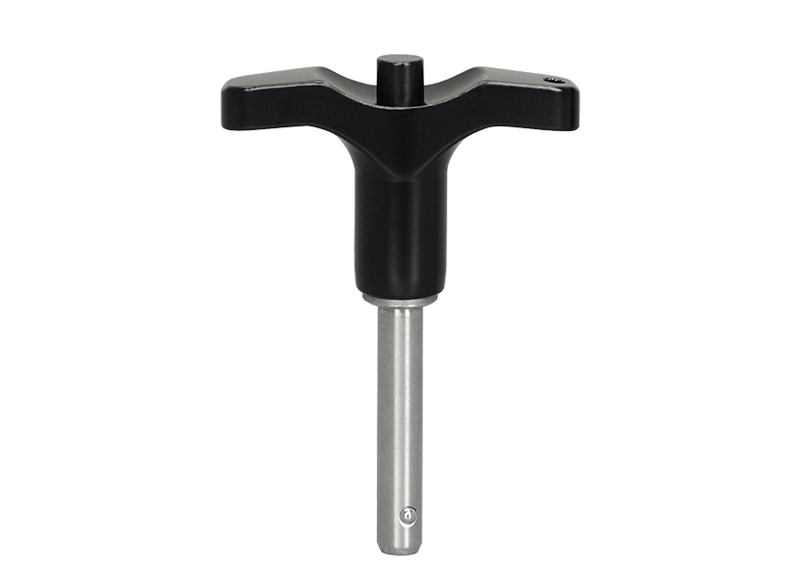

ø 6 x 25 mm
M10 x 20 mm
Order No. 73750/w (RAL 9010)
for Galeo C / Galeo C Sub
flying frame
M10
Order No. 01328
for Galeo C top unit
Order No. 01329/B
for Galeo C flying frame
Order No. 01329/T
fits: Galeo C Sub,
up to 6 x groundstacked Galeo C units,
(incl. 3 x ball lock pins 8 x 25 mm,
1 x screw M20 x 80 mm,
1 x screw M20 x 35 mm), 3,2 kg
cambered, high-quality tempered,
with bolt (ø 16 mm), weight: 0,33 kg,
WLL 2000 kg
for Galeo C
Order No. 08448
NL4, incl. cable fastener
Länge:5 m
Order No.08452
Länge:10 m
Order No.08453
Länge:15 m
Safetex 25A-B-1-DR,
0,8 t, one-piece,
length: 6 m, width: 25 mm
for Galeo C,
consisting of 2 pcs. AMR reflectors 100°,
incl. fittings
for Galeo C,
consisting of 2 pcs. AMR reflectors 70°,
incl. fittings
for 2 x 4 Galeo C top units,
with zippers for one-man handling,
4 x holes for fixing flying frame
Size (H x W x D): 100 x 61 x 101 cm
for 4 x Galeo C top units,
for ground stacked applications
for 4 pcs. Galeo C units, interior lined
with felt, heavy duty, 9 mm birch multiplex, PVC coated black,
8 x recessed sprung handles, 6 x butterfly latches, 4 x scanner windows, 4 x blue wheels 100 mm, 2 pcs. with brake
Size (H x W x D): 117 x 66 x 54 cm

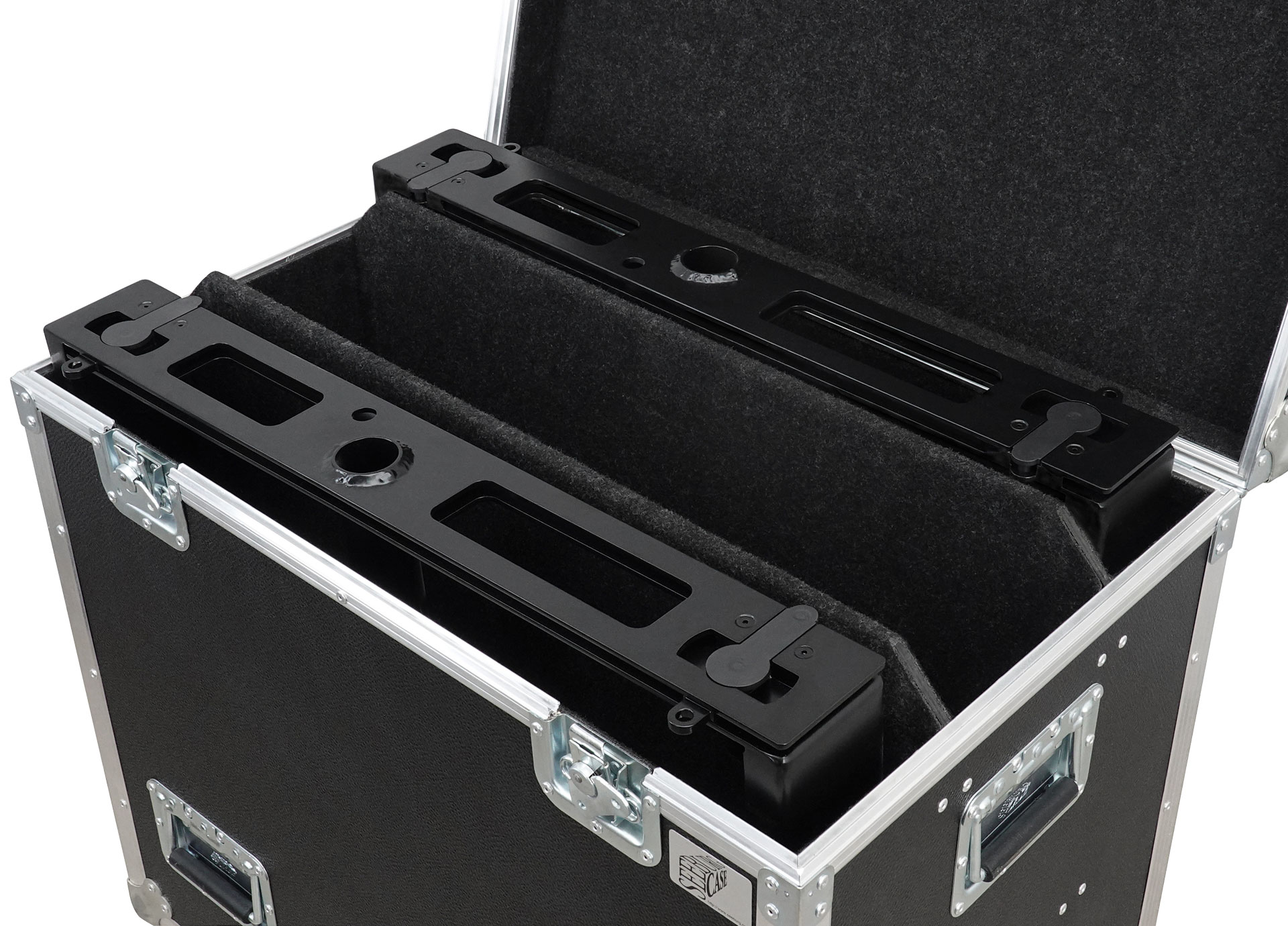

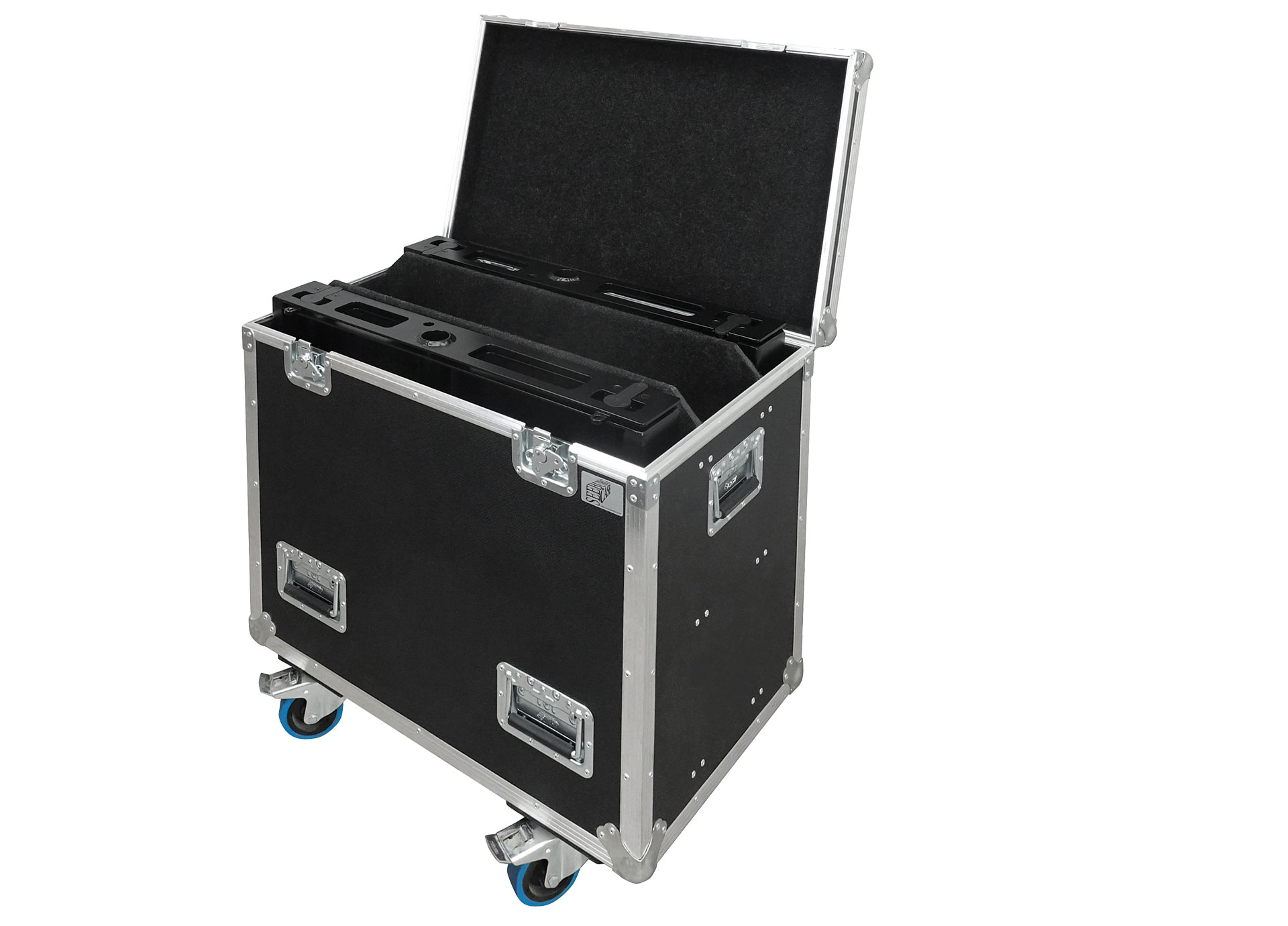

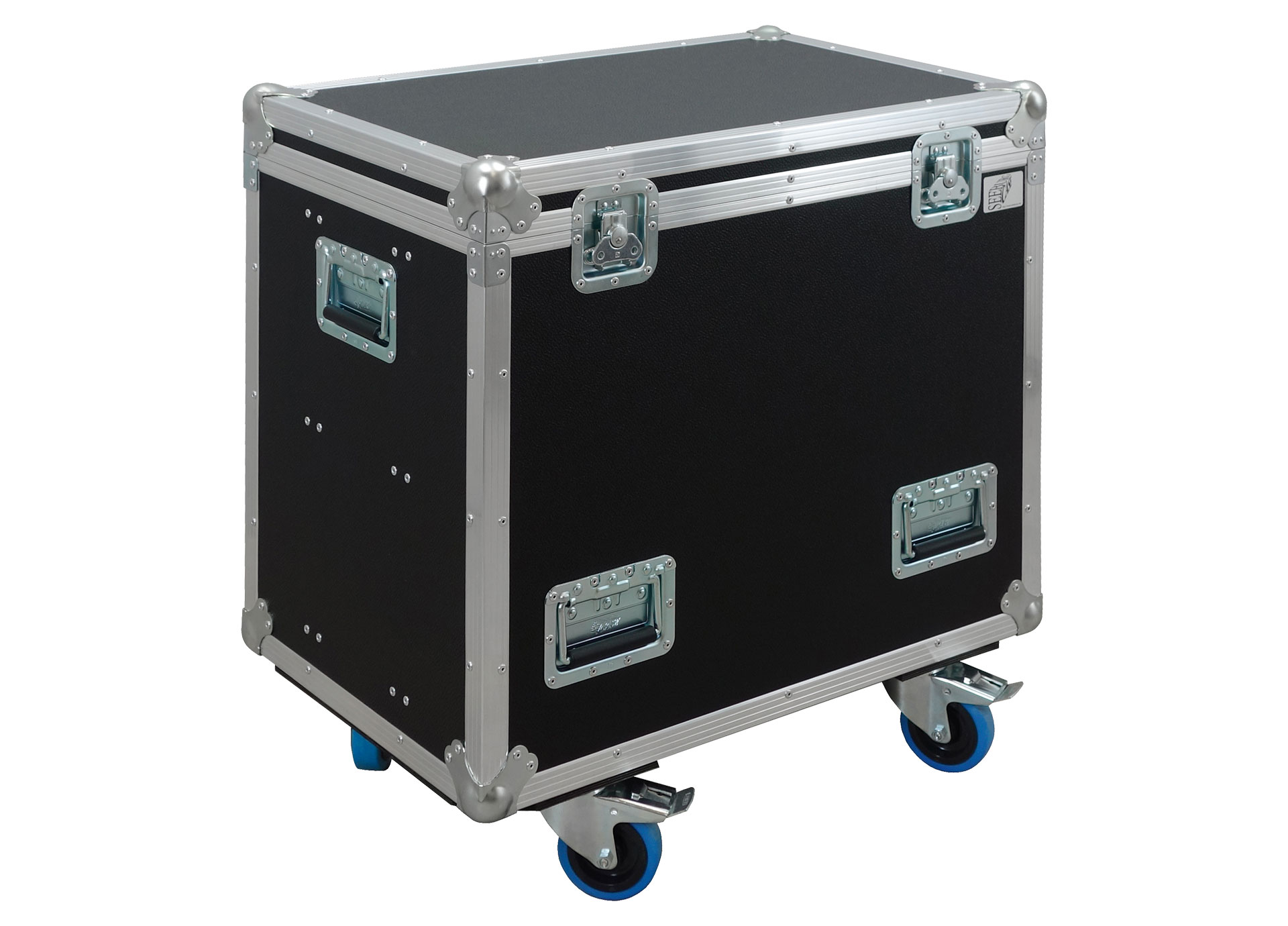

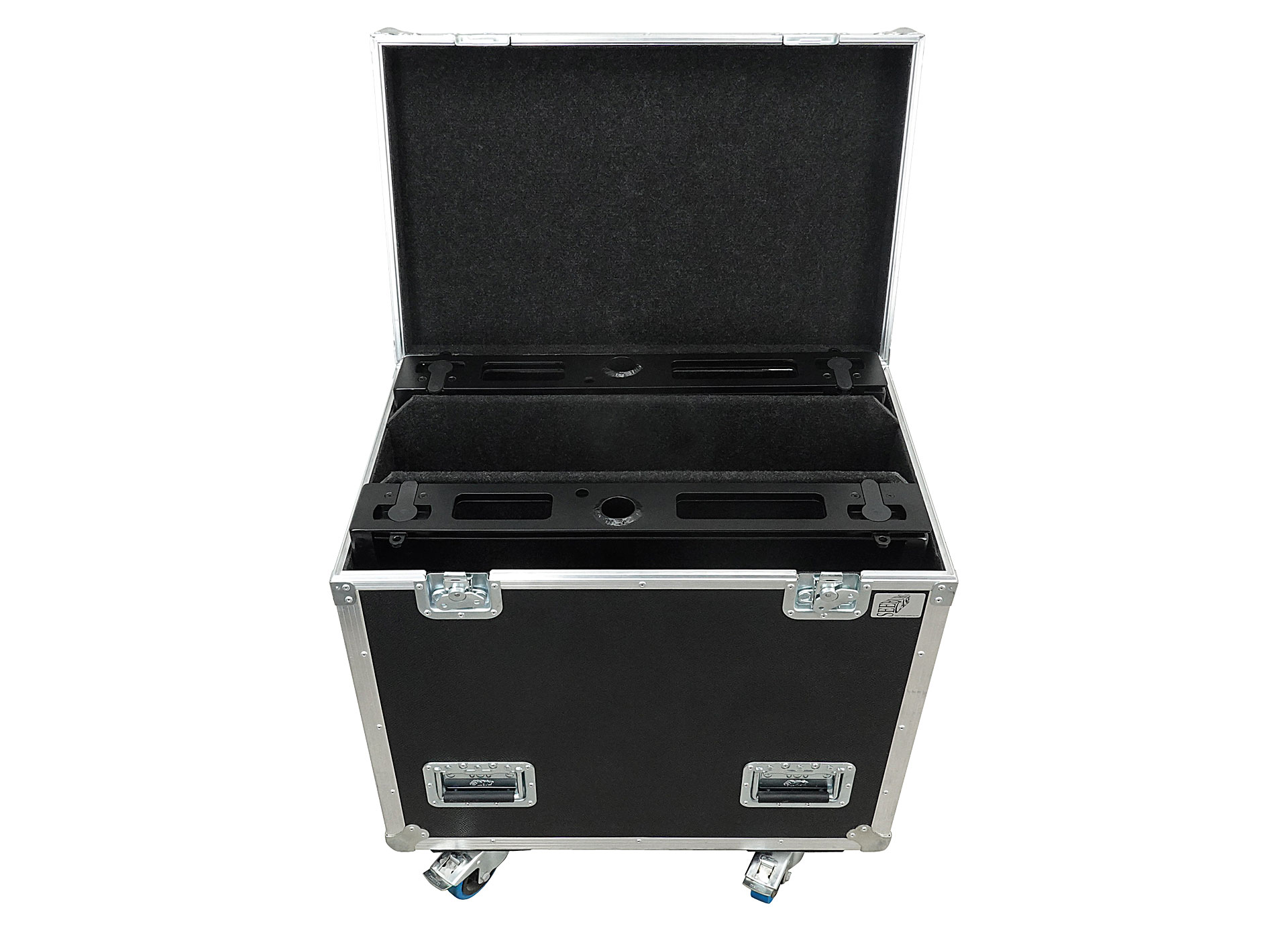

for 2 pcs. Galeo C flying frames,
central shelf for accessories
(70,5 W x 15,5 cm D), interior lined
with felt, heavy duty, 9 mm birch
multiplex, PVC coated black,
6 x recessed sprung handles,
2 x butterfly latches medium,
4 x blue wheels 100 mm,
2 pcs. with brake,
Size (H x W x D): 77 x 75,5 x 48 cm
for Galeo C,
up to 2 x 6 stacked units,
4 x 100 mm wheels with brake,
incl. top board (stackable),
Size (W x D): 100 x 60 cm
