C 15 / C 30 Constant Curvature Array Units

C 15 / C 30

00470

C 15 - 15°
800 W AES,

00472

C 30 - 30°
800 W AES,
Downloads
Datenblatt
3D-Dateien
Simulationsdaten
Ausschreibungstext C 15
Ausschreibungstext C 30
Produktbilder

Das C 15 und C 30 System vereinigt als “Constant Curvature Array” die Vorzüge von Punktquellenlautsprechern mit der Performance von Line Arrays. Die vertikale Abstrahlung wird durch die Addition der einzelnen C-Serie Komponenten definiert. Mit dem C 15 und C 30 System stehen Winkel von 15° bzw. 30° zur Verfügung. Damit lassen sich mit relativ wenigen Elementen auch größere Hörerflächen sehr präzise und gleichmäßig beschallen. Die Anwendungen liegen im Bereich Theater, Stadien, Clubbeschallung und mittlerer Open Air Konzerte.

Anwendungen
Technische Daten
  C 15
C 30
Speaker Components 2 x 10“ Nd (3“VC)
3 x 1“ Nd (1,7“ VC)
2 x 10“ Nd (3“VC)
3 x 1“ Nd (1,7“ VC)
Description Constant Curvature Array Units Constant Curvature Array Units
Power AES / Peak 800 W / 2400 W 800 W / 2400 W
Impedance nominal 8 Ω 8 Ω
SPL 1 W / Peak @ 1 m
100 dB / 134 dB 100 dB / 134 dB
Usable Range
70 Hz - 20 kHz (-6 dB) 70 Hz - 20 kHz (- 6 dB)
Tuning Frequency excursion minimum 80 Hz Hz 80 Hz
X - Overpoint acoustical 800 Hz 800 Hz
Coverage horizontal x vertical 90° x 15° 90° x 30°
Max. Splay Angle 15° 30°
Connectors 2 x Speakon NL4MP in/out,
Coding: 1+/- HiMid, 2+/- loop thru

2 x Speakon NL4MP in/out,
Coding: 1+/- HiMid, 2+/- loop thru

Handles 2 x 2 x
Rigging / Fittings Integrated flying hardware,
8 x M10 for MultiRigg™/MultiTilt™
Integrated flying hardware,
8 x M10 for MultiRigg™/MultiTilt™
Weight 25 kg 23,5 kg
Size height x width x depth 32,0 x 70,0 x 38,0 cm 32,0 x 70,0 x 38,2 cm
Order No. 00470 00472
Zubehör
x
Flight Case

for 2 pcs. C 15 or C 30,
mounting option for 2 x MultiRigg
or MultiTilt, 100 mm wheels, heavy duty, PVC coated black, interior lined with felt.
Size: 80 x 45,5 x 90 cm (w x d x h),
weight: 34 kg

Order No. 16600
x
Flying Cradle

for C 15 / C 30 / C Sub,
max. load 150 kg,
incl. load adapter M10 (01328)

Order No. 01357
MultiRigg™

swiveling fastening solution
for horizontal and vertical alignment,
for flown / ground stacked / mounted applications, incl. accessories
(2 x knurled screw M10 x 20,
1 x handle screw M8 x 55 mm),
max. load 50 kg

Order No. 01360
x
MultiRigg™ light

version for fixed installations,
for horizontal and vertical alignment, tiltable vertical angle,
incl. accessories (2 x M10 x 20 socket head screws), max. load 50 kg

Order No. 01362
x
MultiTilt™

Tilt adapter with adjustable tilt from
0° to 37,5° (2,5° steps),
integr. pole mount adapter
with clamping device,
2 x knurled screws (M10 x 20 mm),
max. load 50 kg

Order No. 01370
x
Knurled Screw

M10 x 20 mm

Order No. 73750/w (RAL 9010)

Order No. 73750
x
Load Adapter M10

for Galeo C - Galeo C Sub flying frame /
PS 1 - C 15 - C 30 flying cradle

Order No. 01328
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
M8 x 20 star knob screw

Order No. 08126/w (RAL 9010)

Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

Order No. 08126/II
x
Speaker Pole

250 mm, ø 35 mm, M20,
with ring lock

Order No. 03020
x
Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Quick Trigger Clamp

max. load 250 kg

Order No. 01223/250kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
x
Steel Safety

8 mm x 600 mm,
max. load 40 kg (BGI 810-3),
quick connector undetachably



Order No. 01376/8

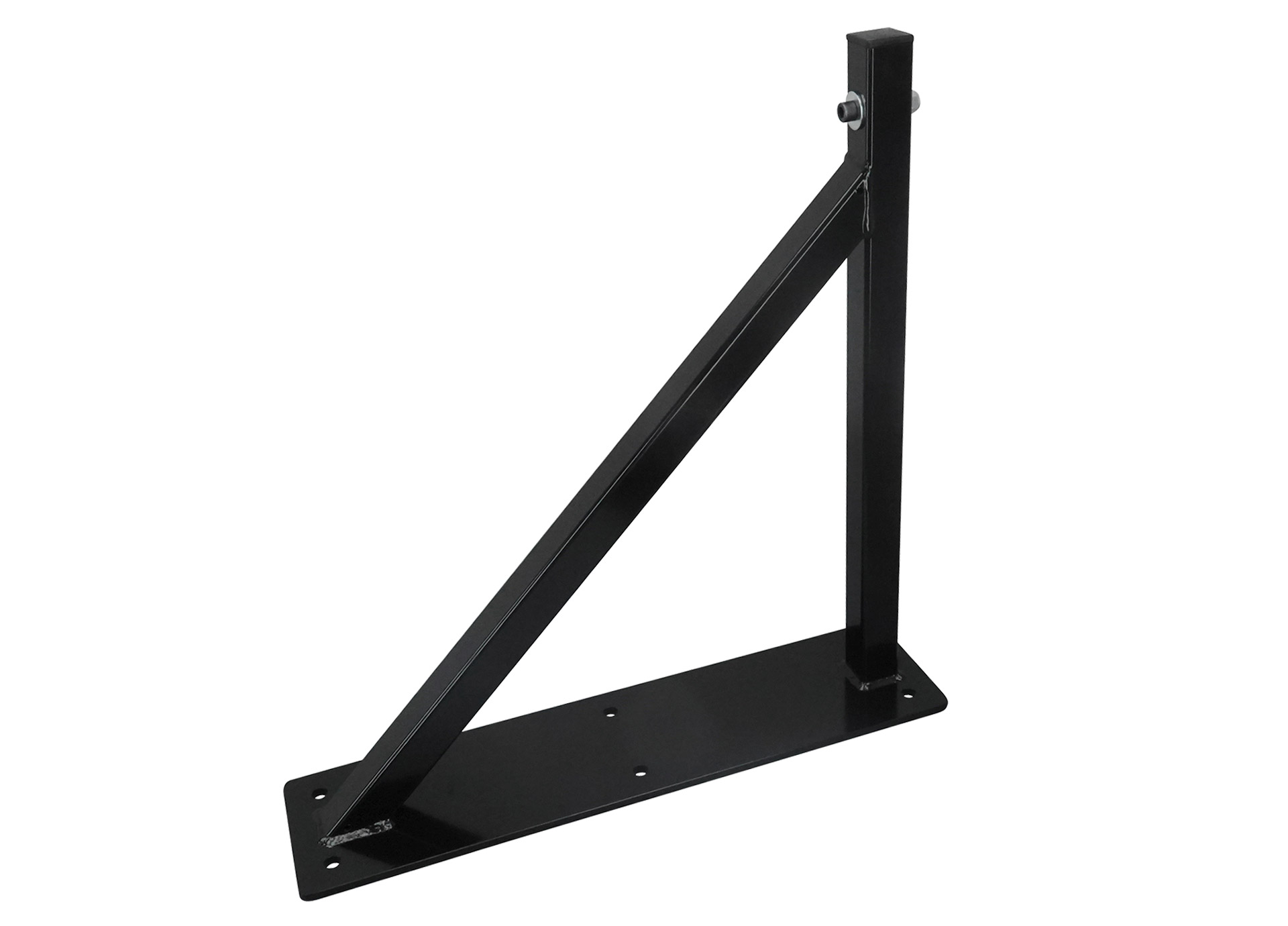

Wall Mount

bar: 400 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/400/w (RAL 9010)

Order No. 08130/F/400
Wall Mount

bar: 269 mm, max. load 40 kg,
incl. (M10 x 70 socket head screw,
M10 hex lock nut and flat washer)

Order No. 08130/F/269/w  (RAL 9010)

Order No. 08130/F/269
