K Sub 1502 Bass Extension

K Sub 1502

01059	passive Version, 2000 W / 6000 W AES / peak
01059/dp	selfpowered Version, 2400 W AES

Downloads
Datasheet K Sub 1502
Datasheet K Sub 1502 dp
User Manual K Sub 1502 dp
Quick Start Manual dp-systems
Quick Start Guide SEEBURG Network Manager-AES67
3D-Files
Product Pictures

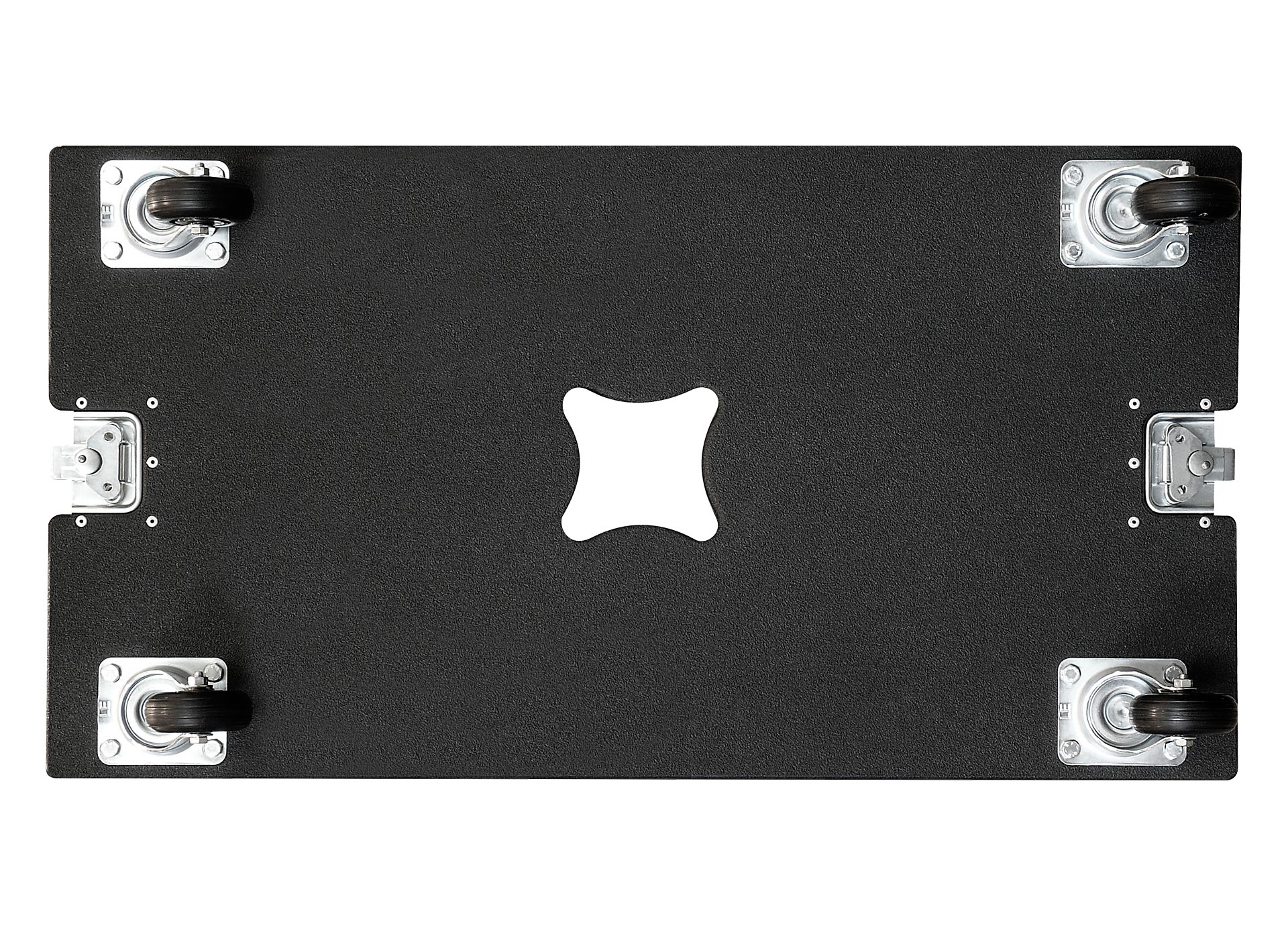

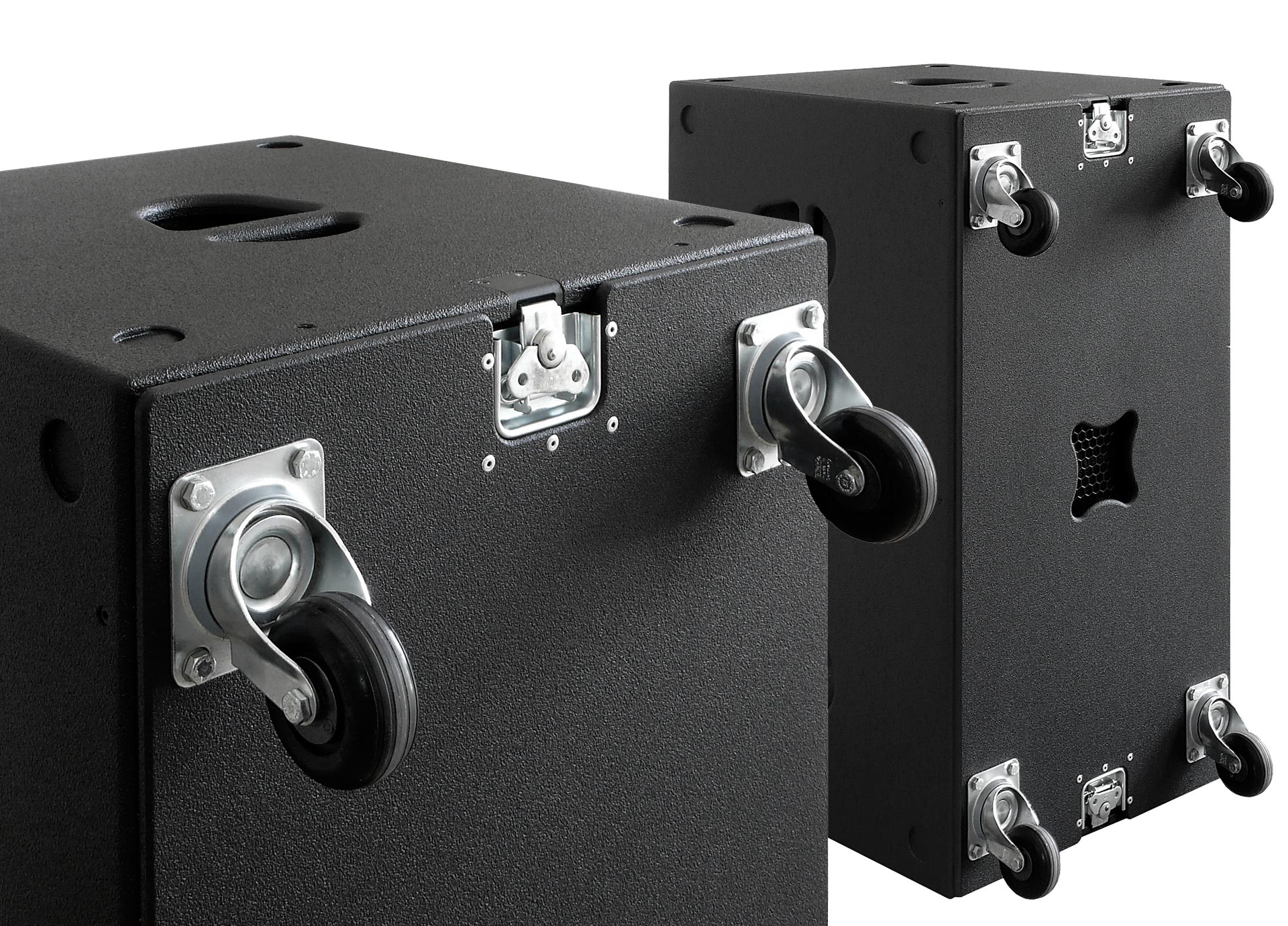

High performance bass reflex subwoofer. Twin long excursion 15" Neodym chassis provide accurate and highly efficient bass reproduction over a wide frequency range, powered by the integrated 2400 W amplifier. The on-board DSP controller offers three filter presets, a switchable cardiod mode, and a range of loudspeaker presets. A transport front cover with wheels is optionally available. The K Sub 1502 can be used in a horizontal or a vertical orientation as required.

The K Sub 1502 is also available in the selfpowered dp-version.

Specifications

	K Sub 1502	K Sub 1502 dp
Speaker Components	2 x 15“ Nd (4“ VC)	2 x 15“ Nd (4“ VC)
Description	Passive Bass Extension	Digitally Powered Bass Extension
Power AES / Peak	2000 W/ 6000 W	- - -
Amp Power	- - -	2400 W AES
Impedance nominal	4 Ω	- - -
Rated Current	- - -	3,2 A @ 230 V
SPL 1 W / Peak @ 1 m	104 dB / 142 dB	- - -
SPL Peak @ 1 m	- - -	142 dB
Max. Input Signal	- - -	25 dBu
DSP	- - -	DPLMx FPGA Processing 32 bit floating point
AD / DA	- - -	24 bit / 96 kHz
Latency	- - -	0,8 ms (analog in to analog out)
Usable Range - 6 dB	37 Hz - 220 Hz	37 Hz - 100 / 120 / 140 Hz
Tuning Frequency excursion minimum	45 Hz	45 Hz
Connectors	2 x Speakon NL4MP in/out Coding: 1+/- loop thru, 2+/- Sub	XLR in/thru, Ethercon, Powercon in/thru
Handles	6 x	6 x
Rigging / Fittings	M20 on top and side Wheelboard fittings	M20 on top and side Wheelboard fittings
Weight	48,0 kg (+ 8,5 kg wheelboard)	50,0 kg (+ 8,5 kg wheelboard)
Size height x width x depth	51,2 x 94,2 x 56,0 cm	51,2 x 94,2 x 56,0 cm
Order No.	01059	01059/dp
