iBeam Modular Beam Steering System

Beam steering line source loudspeaker with up to 24 DSP and amplifier channels. The modular system is based on the i Beam Master, containing eight 3“ broadband speakers, the DSP amplifier unit and a high-performance power supply. The system is expanded with up to two i Beam Slaves, which only contain the drivers and amplifiers. The relatively large cabinet volume ensures good speech reproduction without an additional subwoofer.
Applications: Acoustically difficult rooms such as lecture halls, concert halls, churches, exhibition halls and foyers, in which a very even and low-feedback reproduction and at the same time an unobtrusive appearance are required.

Applications
Specifications
    iBeam Master
  iBeam Slave
Speaker Components     8 x 3“ Nd  >  Master
16 x 3“ Nd  >  Master + Slave
24 x 3“ Nd  >  Master + 2 x Slave



8 x 3“ Nd




Description   24-way active beam steering DSP column system with
FIR Array Beam Steering (FABS)
and Mapping Optimiziation Mode (MOM)

Amp Power   AES
    8 x 44 W RMS = 352 W  >  Master
16 x 44 W RMS = 704 W  >  Master + Slave
24 x 20 W RMS = 480 W  >  Master + 2 x Slave

Power Supply   90-240 VAC   - - -
Rated Current




Idle: 0,223 Arms / Full-Load: 0,28 Arms >  Master
Idle: 0,27 Arms  / Full-Load: 0,44 Arms  >  Master + Slave
Idle: 0,32 Arms  / Full-Load: 0,53 Arms  >  Master + 2 x Slave

  - - -
Max. SPL   Pink noise 1)    119 dB  >
125 dB  >  Master + Slave
125 dB  >  Master + 2 x Slave




Max. Input Signal   28 dBu    - - -
AD / DA   24 bit / 48 kHz    - - -
Usable Range   - 10 dB
  110 Hz - 20 kHz
Coverage   horizontal / vertical   horizontal: 100° (1-3 kHz) und 80° (> 3 kHz)
vertical: depends on preset



Connectors   XLR in, Phoenix,
Powercon in, 3 x Ethernet RJ45
  24 pol. D-Sub
Rigging / Fittings   Captive rigging system
Rigging Components   Stainless steel, 1.4301 (t.b.u.)
Max. Array Size   2 x Master + 4 x Slave
Cabinet   Aluminum extrusion profile
Front   Steel grille with anti-corrosion powder coating
Finish   Powder coating
Weight   11,8 kg    6,6 kg
Size   height x width x depth   107,9 x 12,0 x 12,0 cm    68,1 x 12,0 x 12,0 cm
Order No.   00800


00810


    1) Peak level at 1 m under free field conditions using 12 dB
crest factor pink noise with preset and Auto EQ for a listener area from
5 to 15 m, cabinet mounting height 2,5 m, listener area 1,6 m height,
MOM quality

Accessories
x

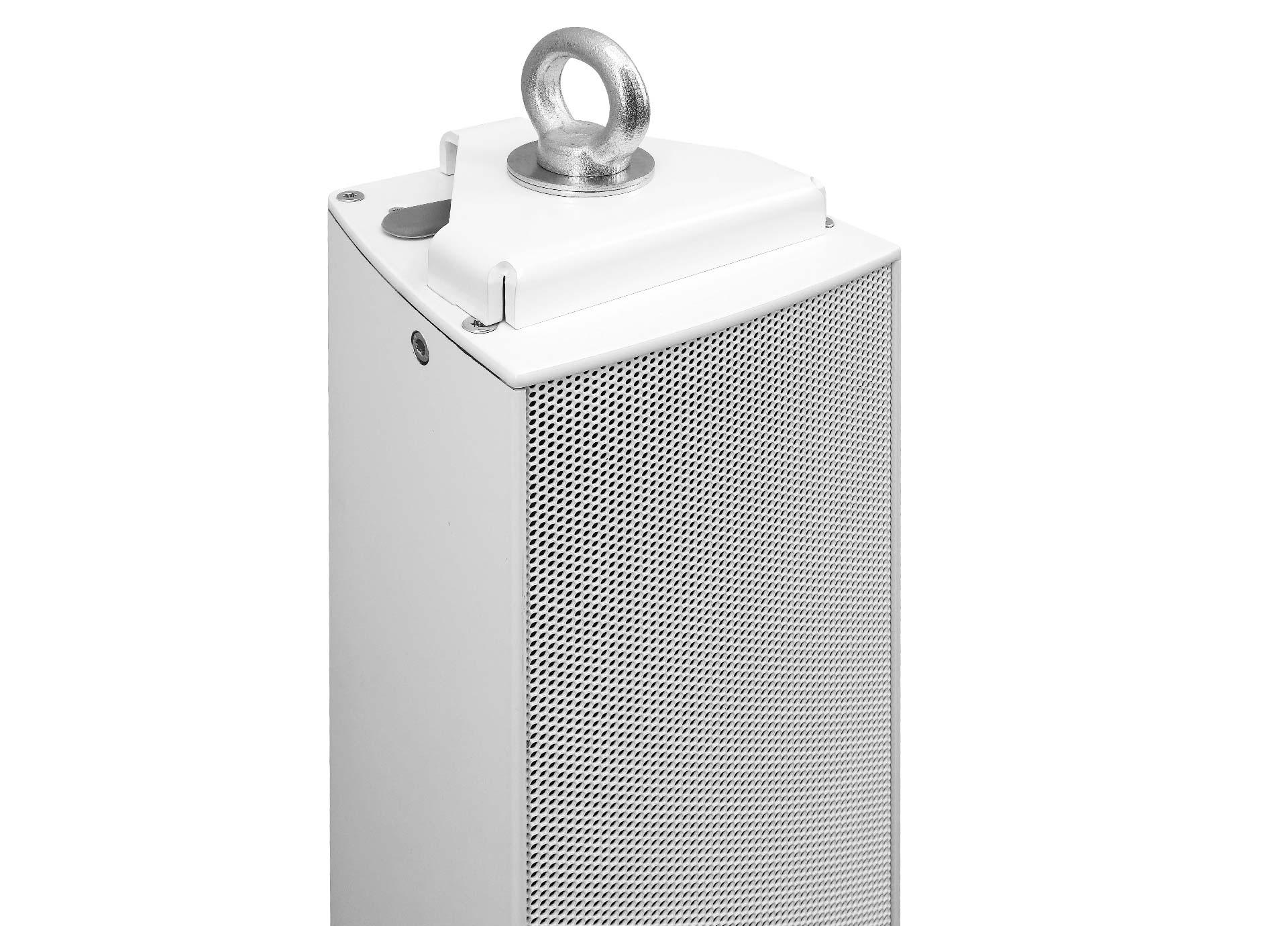

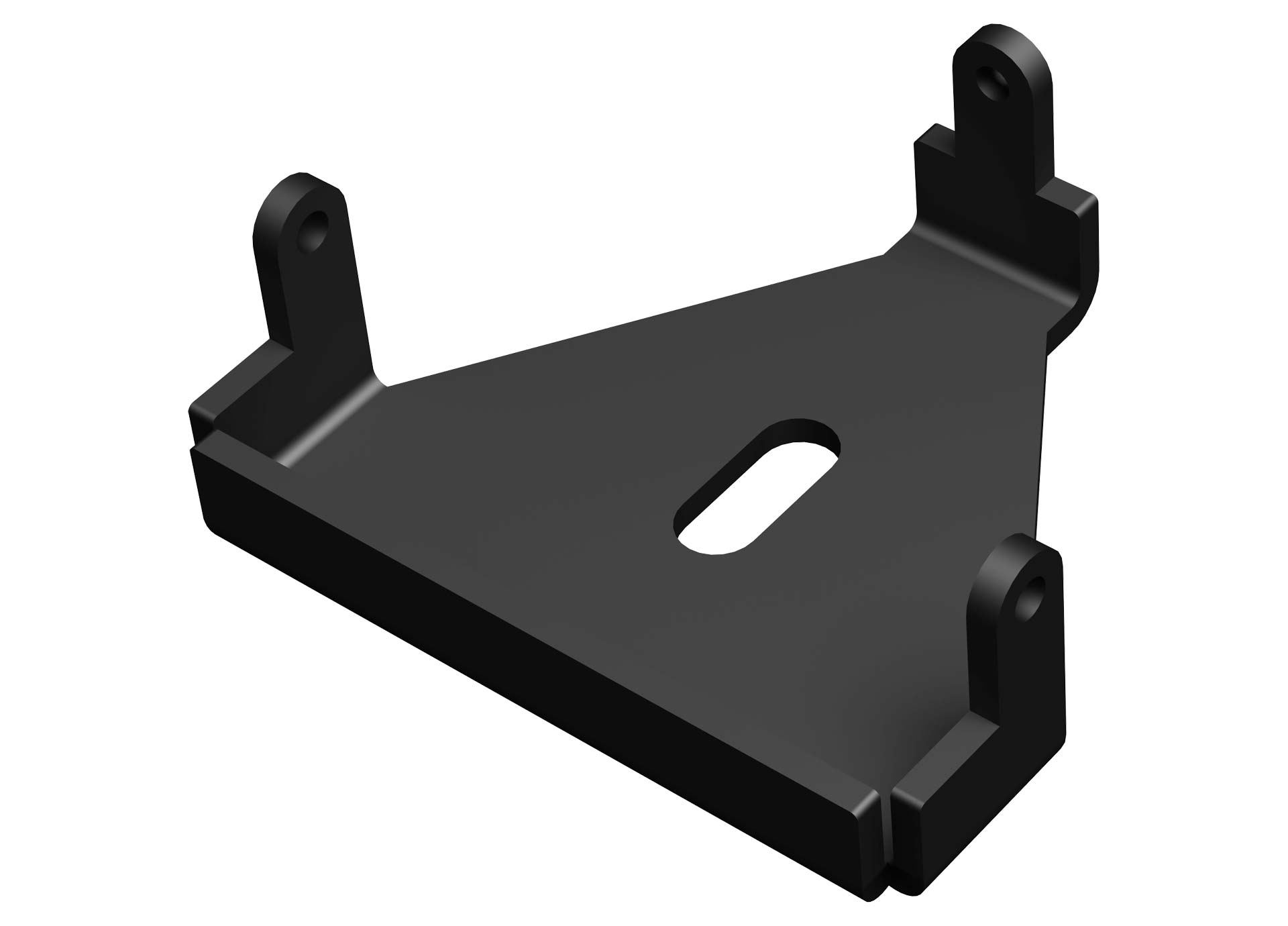

Cradle

for iBeam, fixing hole 10 mm,
(incl. 1 x screw M6 x 10mm,
1 x rubber washer), max. load 50 kg

Order No. 01399/w  (RAL 9010)

Order No. 01399
x

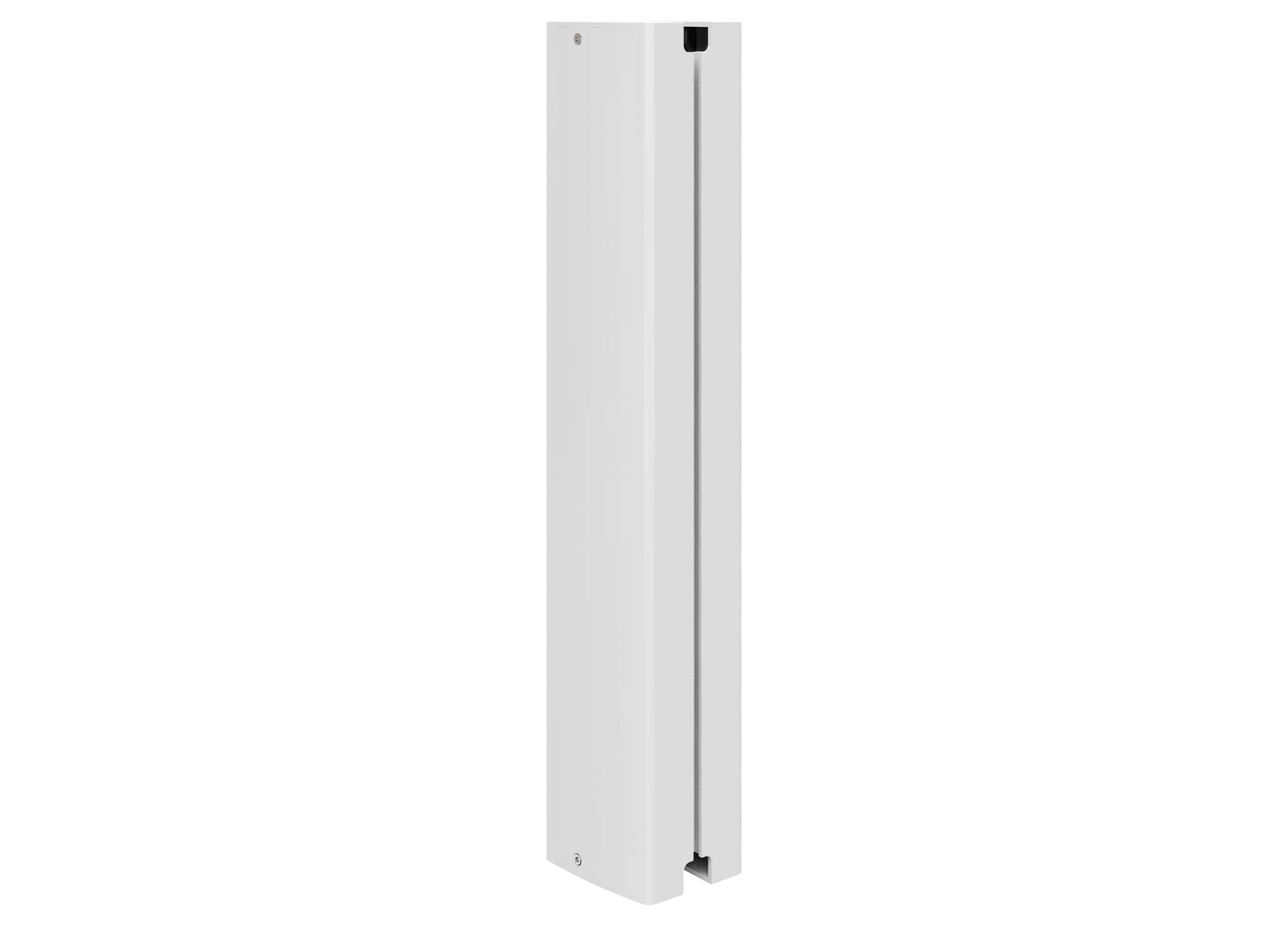

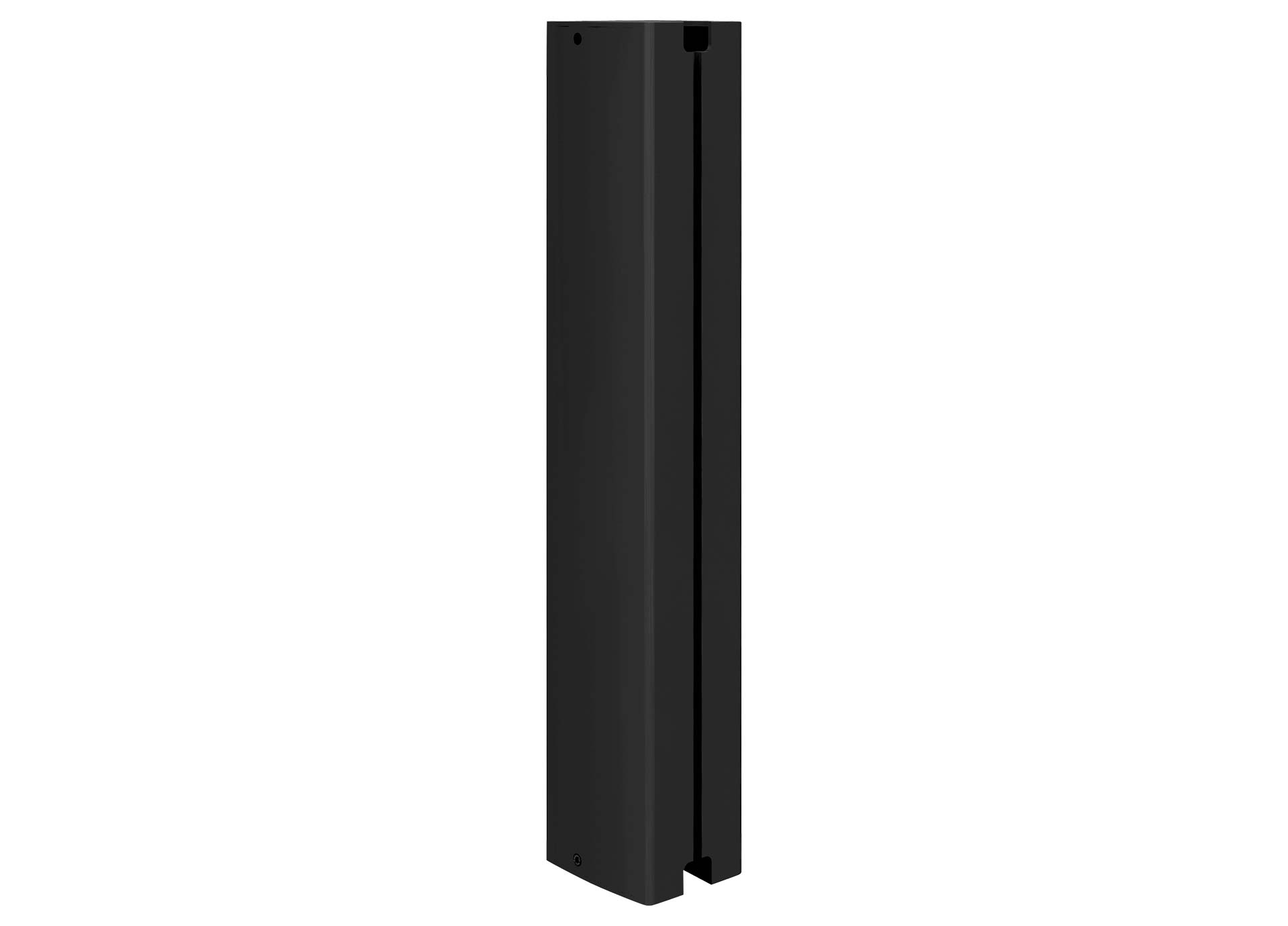

Monopod Slave

for i Beam,
size and design like iBeam Slave,
height 68,1 cm

Order No. 64104/w (RAL 9010)

Order No. 64104
x

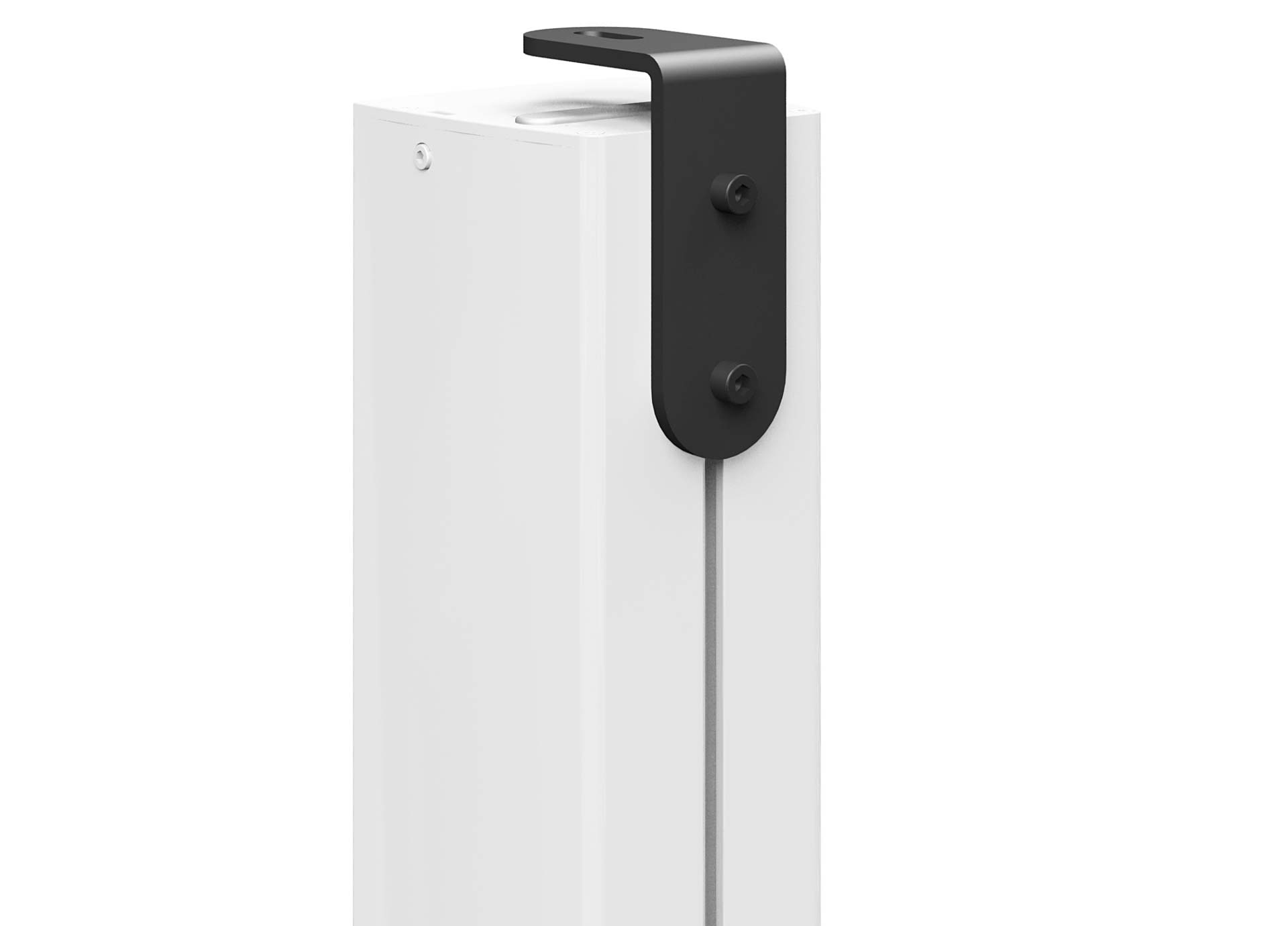

Angle Bracket

for iBeam, universal,
(incl. 2 x sliding blocks (64082),
2 x socket head screws M8 x 16 mm)

Order No. 08136/w (RAL 9010)

Order No. 08136
x

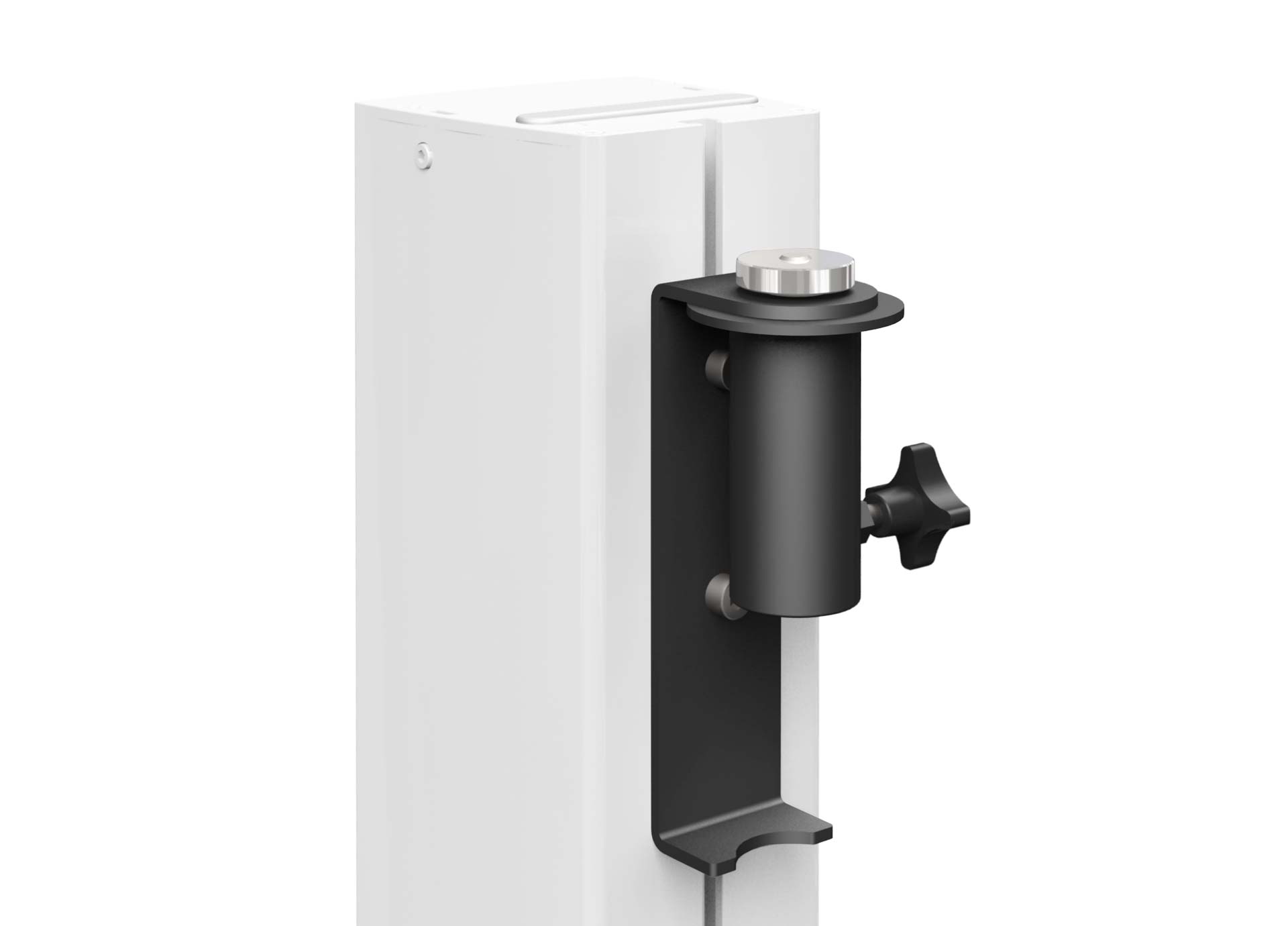

Pole Mounting Kit

for iBeam,
(incl. pole mount adapter (08126),
2 x sliding blocks (64082),
1 x knurled head nut (73755),
2 x M8 x 16 socket head screws)

Order No. 08137/set
x

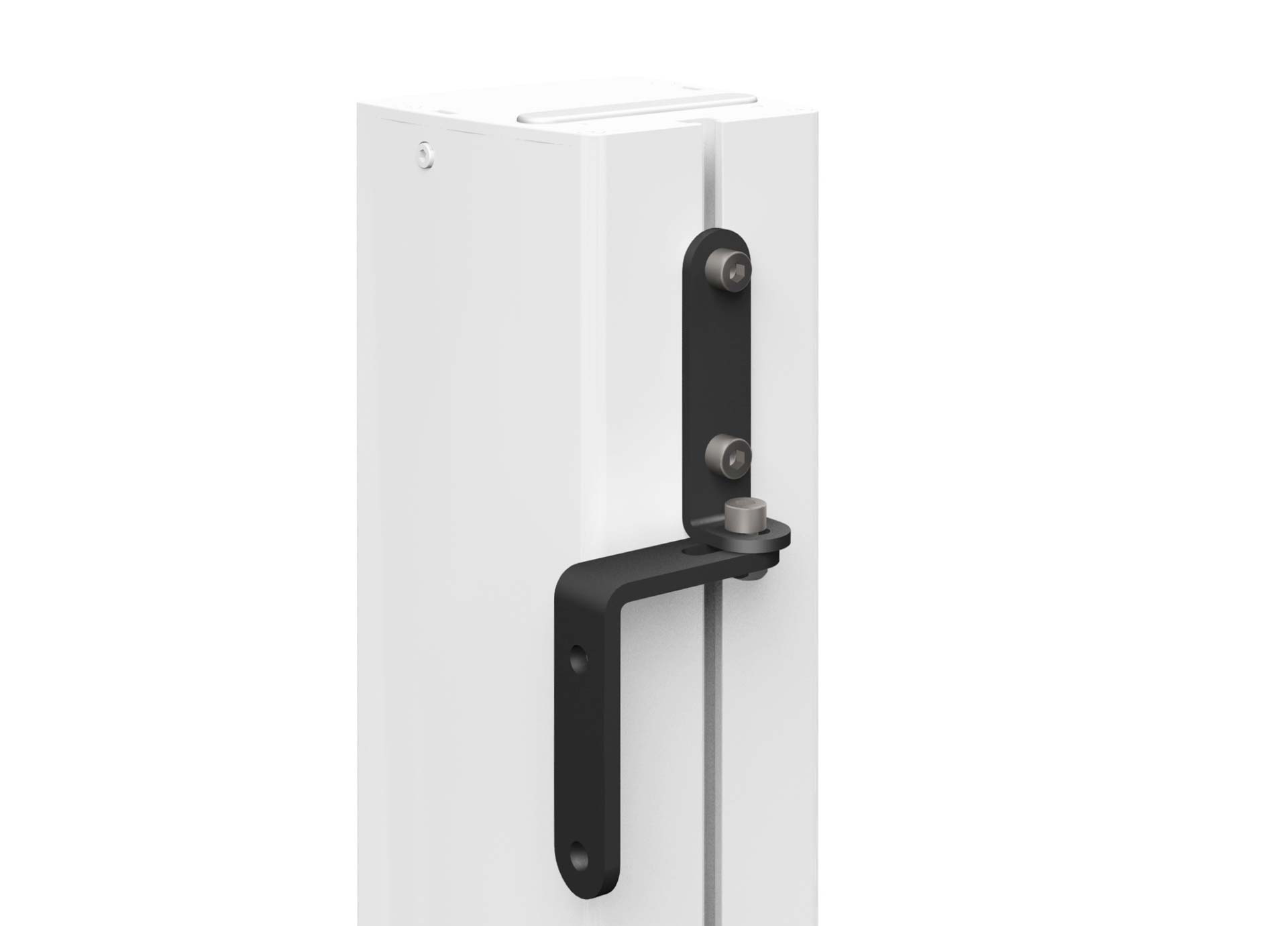

Wall Mount, long

for iBeam,
horizontal angle 0°-> 90°,
(incl. 2 x sliding blocks (64082),
3 x socket head screws M8 x 16 mm,
1 x M8 self-locking nut)

Order No. 08134/w (RAL 9010)

Order No. 08134
x

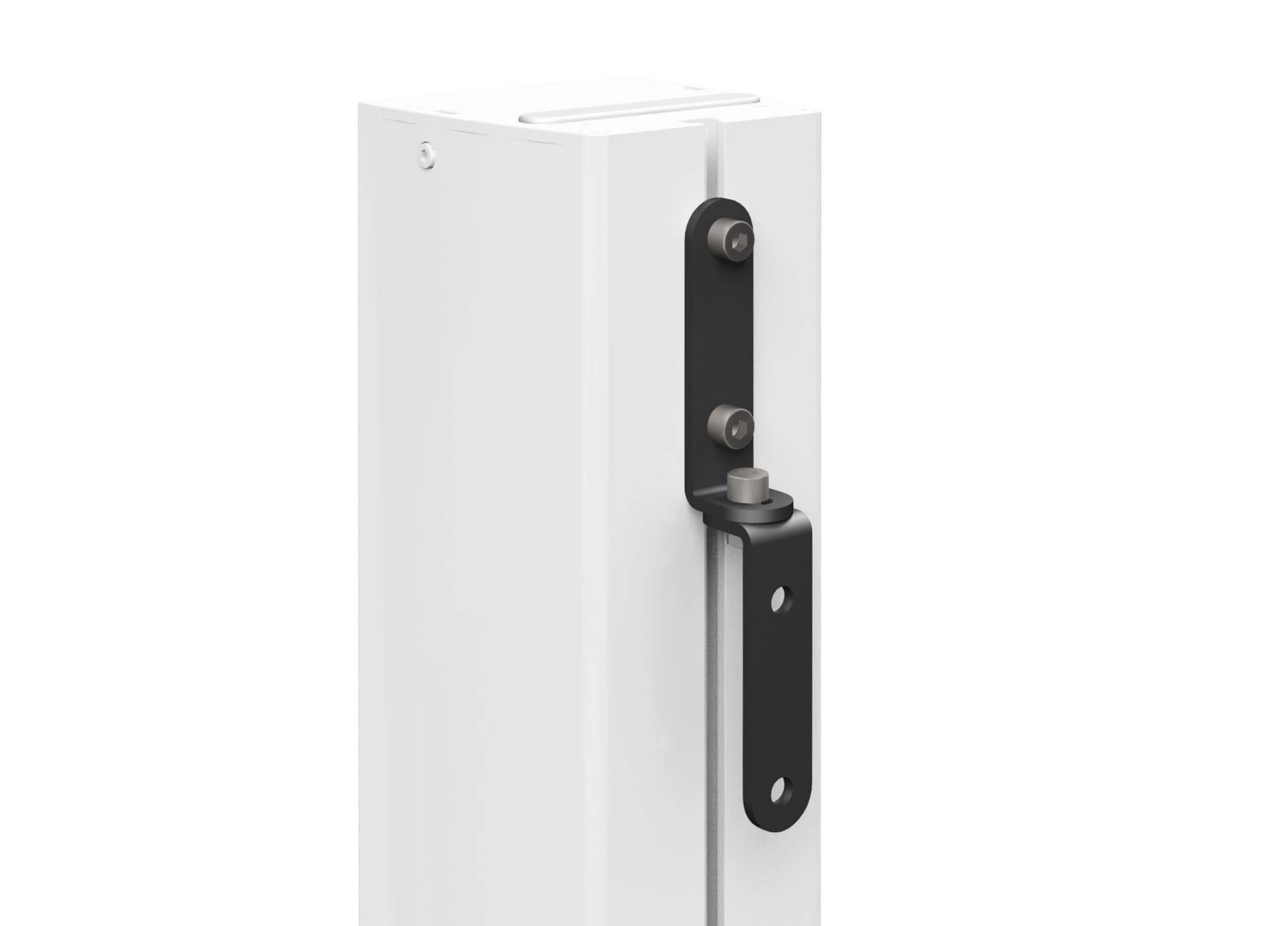

Wall Mount, short

for iBeam,
horizontal angle 0°-> 45°,
(incl. 2 x sliding blocks (64082),
3 x socket head screws M8 x 16 mm,
1 x self-locking nut M8)

Order No. 08133/w (RAL 9010)

Order No. 08133
x
Stacking Adapter

for mounting i Beam -> M20,
(incl. 1 x screw M20)

Order No. 01398/w   (RAL 9010)

Order No. 01398
x
Feet

Foot, 38 x 10 mm, Rubber

Order No. 07611



Foot, 38 x 10 mm, Nylon

Order No. 07609
x
Sliding Block M8

M8

Order No. 64082
x
Quick Trigger Clamp

max. load 100 kg

Order No. 01223/100kg
x
Ring Screw

M10– DIN 580

black zinced
Order No. 73700/sw

zinced

Order No. 73700
x
Base Plate Round

M20, ø 450 mm, height: 21 mm,
black zinc die-cast, felt strips on the bottom, weight: 6,7 kg

Order No. 01278/round
x
Base Plate Small

with M20 flange,
61,5 x 48,0 cm



Order No. 01278/w   (RAL 9010)

Order No. 01278
x
Base Plate XL

for stacked mounting,
with M20 flange, cable channel,
80,0 x 80,0 cm



Order No. 01279/w   (RAL 9010)

Order No. 01279
x
Knurled Head Nut

reduction screw for fastening
M10 pole mount adapter (08126)

Order No. 73755
Pole Mount Adapter

35 mm ø –> M10 x 16 mm,
star knob screw M8 x 20 mm

Order No. 08126/w (RAL 9010)

Order No. 08126
x
Pole Mount Adapter

35 mm ø –> M10 x 16 mm

Order No. 08126/II/w  (RAL 9010)

Order No. 08126/II
x
Speaker Pole

M20, with wind up

Order No. 03023
x
Speaker Pole

M20, adjustable

Order No. 03022
x
Speaker Stand

incl. wind up,
height 138,5 to 218 cm,
max. load 50 kg

Order No. 03011
x

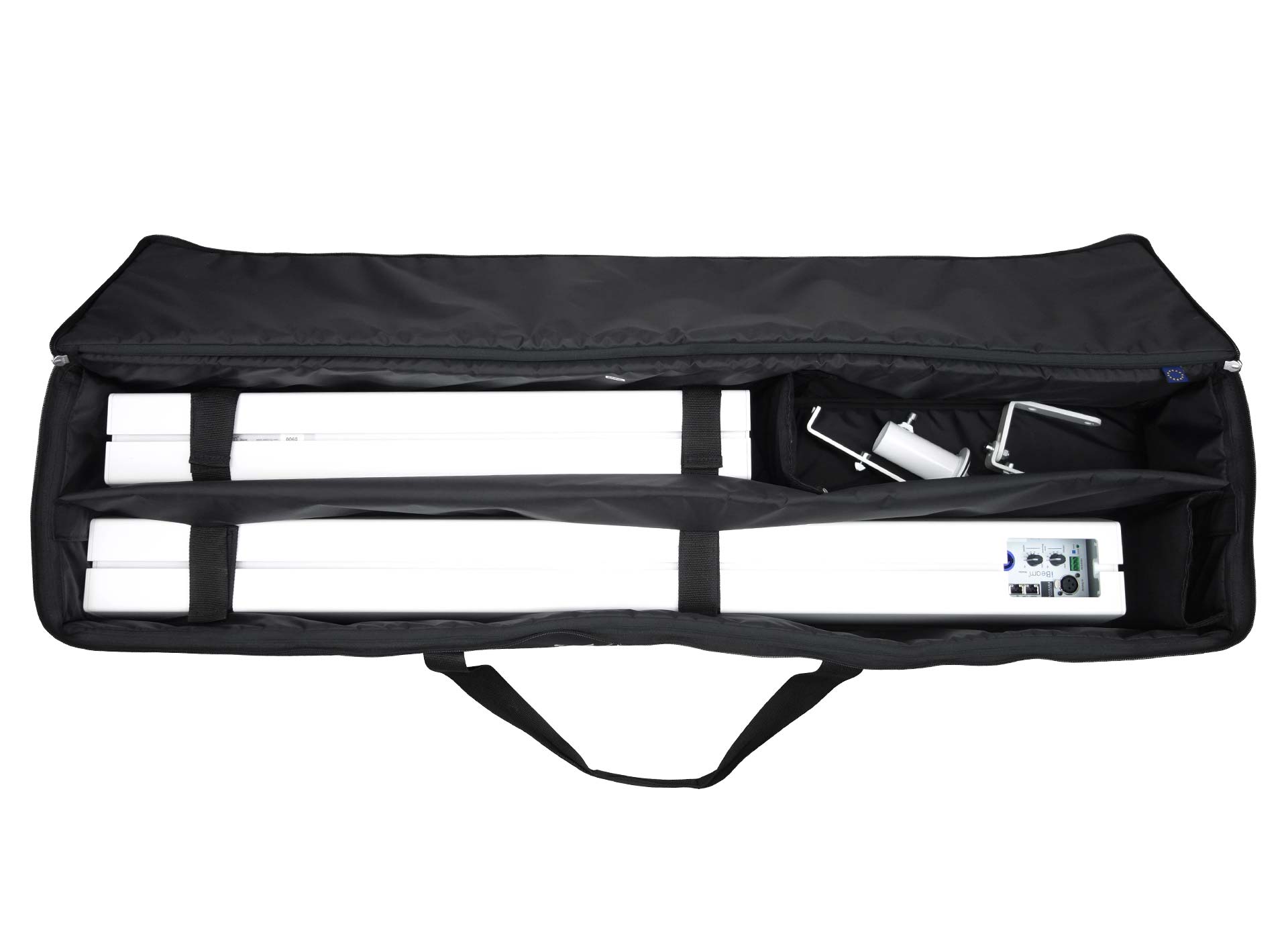

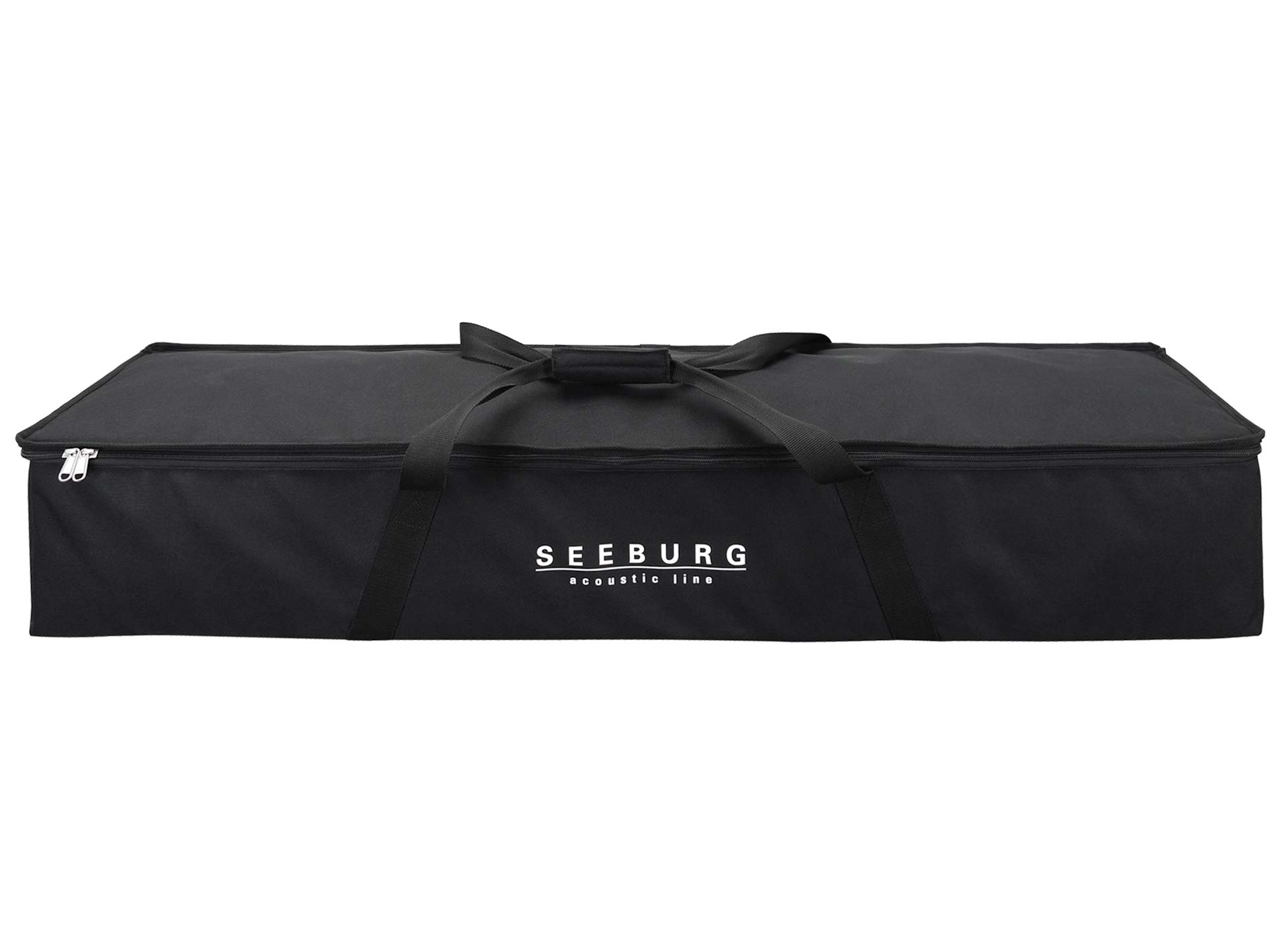

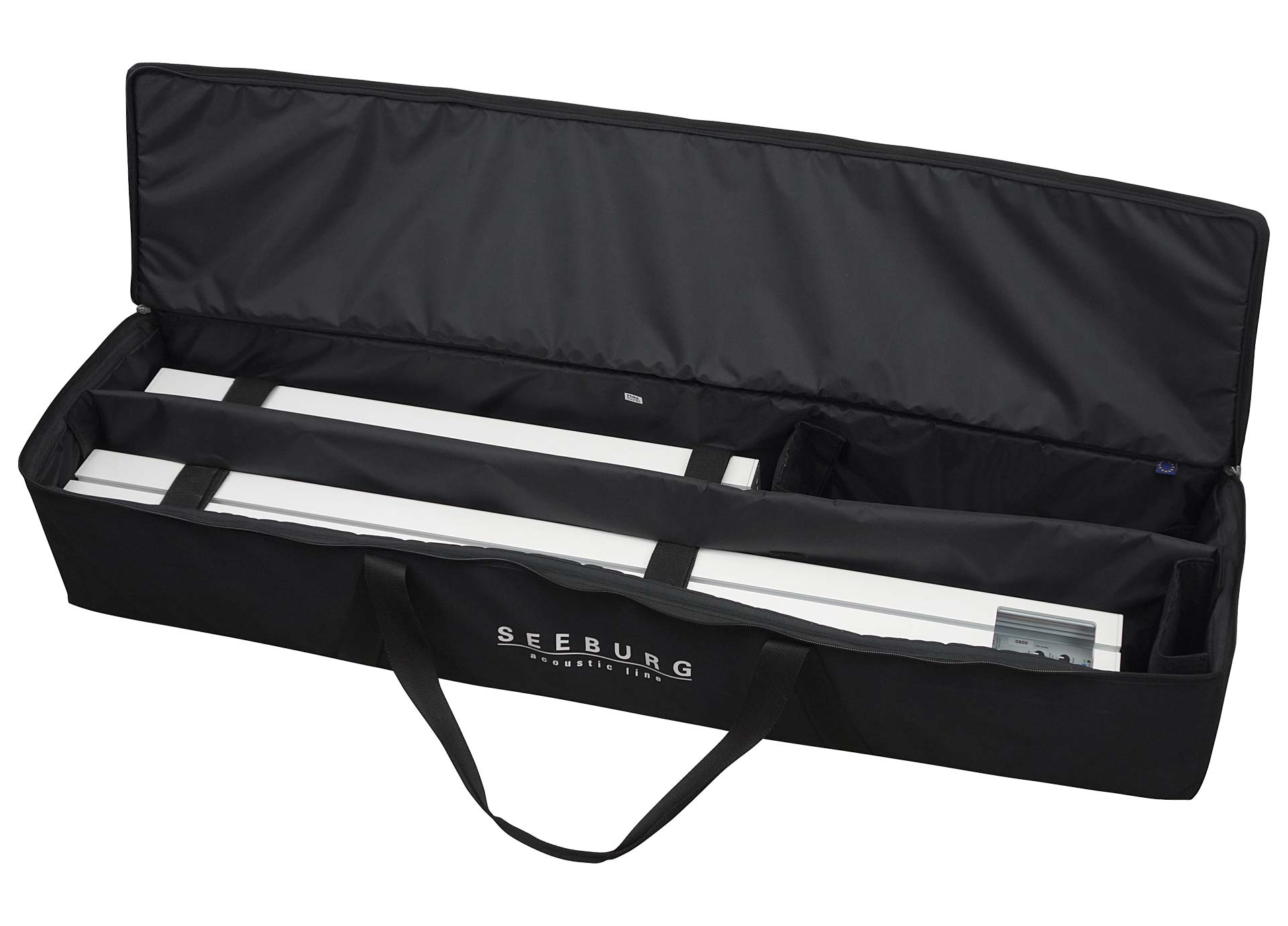

Bag

for 2 x iBeam Master or Slave
and accessories

Order No. 01235
