GALEO S Two-Way Line Array

GALEO S

00450/100

100°-Version
400 W AES,
16 Ω

00450/70

70°-Version
as above
Downloads
Data Sheet Galeo S
User Manual
Galeo S-Series Flyer
3-D-Files_Galeo S
Simulation Data
Product Pictures

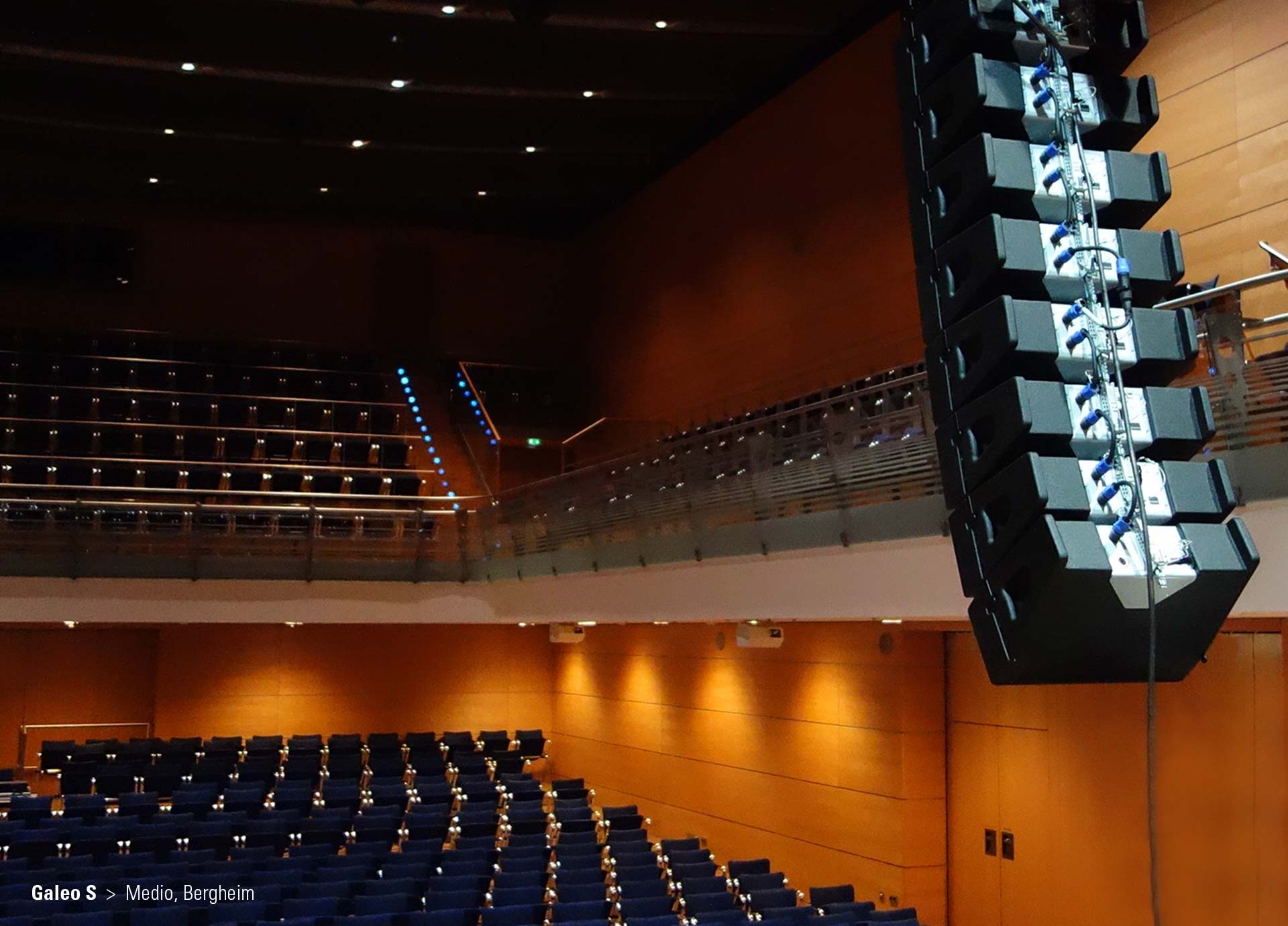

A compact, general purpose high performance line array featuring a number of innovative acoustical and mechanical solutions. This 2 x 6,5”/ 1.4” system has an integrated crossover, and therefore requires only one amplifier channel. The Galeo S is a visually inobtrusive sound reinforcement system equally suited to high end permanent installations and demanding tour applications. A choice of horizontal coverage angles of 70° or 100° is provided by the interchangeable AMR horn elements. The maximum splay angle of 16° allows a high degree of curvature in the line array with a small number of cabinets. The integrated flying hardware
allows the curving angle to be set after the system has been lifted up, thereby simplifying the set-up process.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Specifications
Speaker Components 2 x 6,5“ Nd (2" VC) / 1,4“ Nd (2,5" VC)
Description Two-Way Line Array Unit
Power AES / Peak 400 W / 1200 W
Impedance nominal 16 Ω
SPL   1 W / Peak @ 1 m
95 dB / 126 dB
Usable Range
80 Hz - 18 kHz (-6 dB)
Tuning Frequency   excursion minimum 90 Hz
X-Overpoint   acoustical 1 kHz
Coverage horizontal x vertical 100° x 16° (100°-version)
70° x 16° (70°-version)
Max. Splay Angle 16°
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Handles 2 x
Rigging / Fittings
2 x M10
Integrated flying hardware
Weight 13,5 kg
Size height x width x depth 19,0 x 45,0 x 38,5 cm
Order No. 00450/100 (100°-version)
00450/70    (70°-version)
Accessories
x

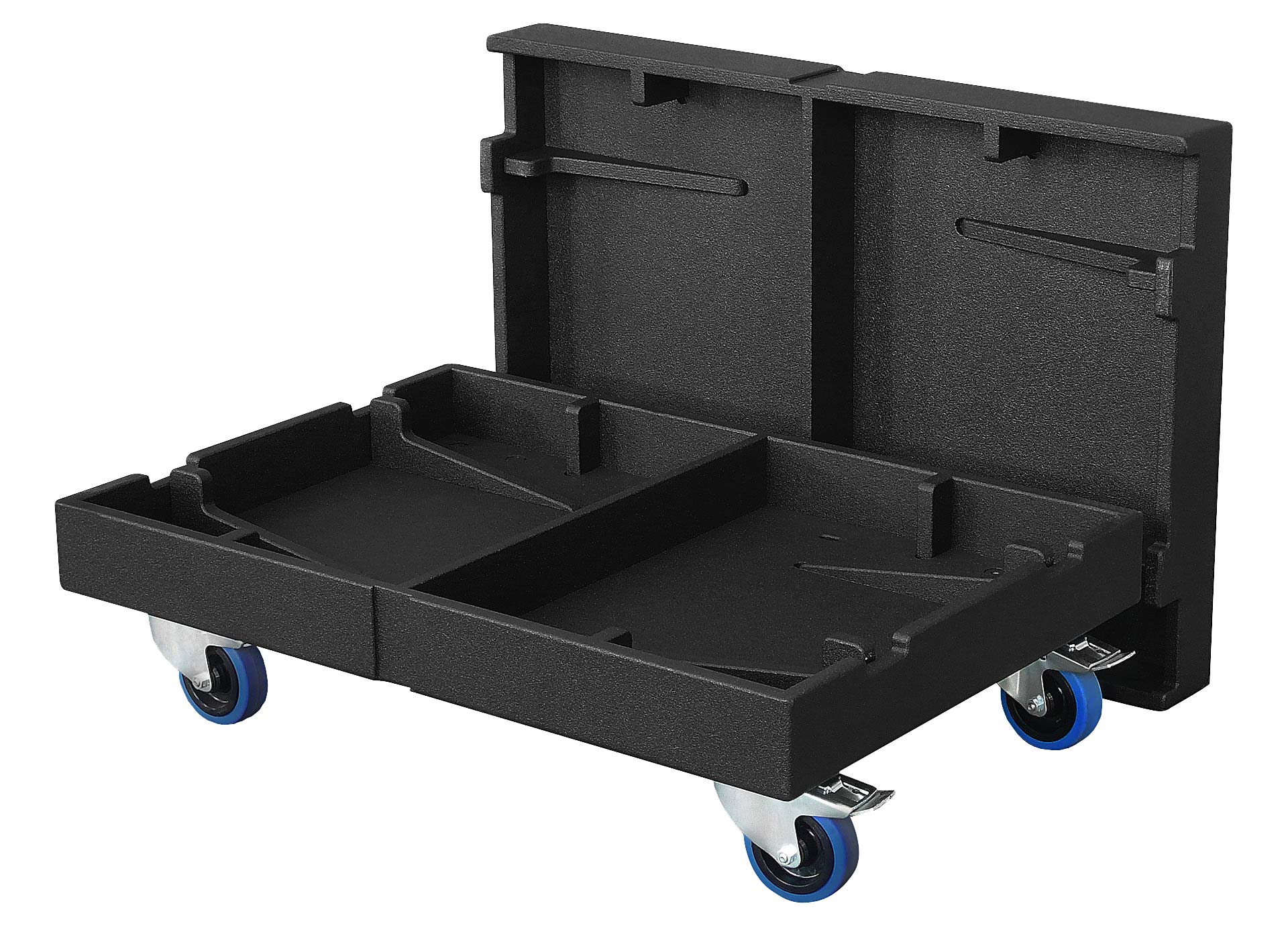

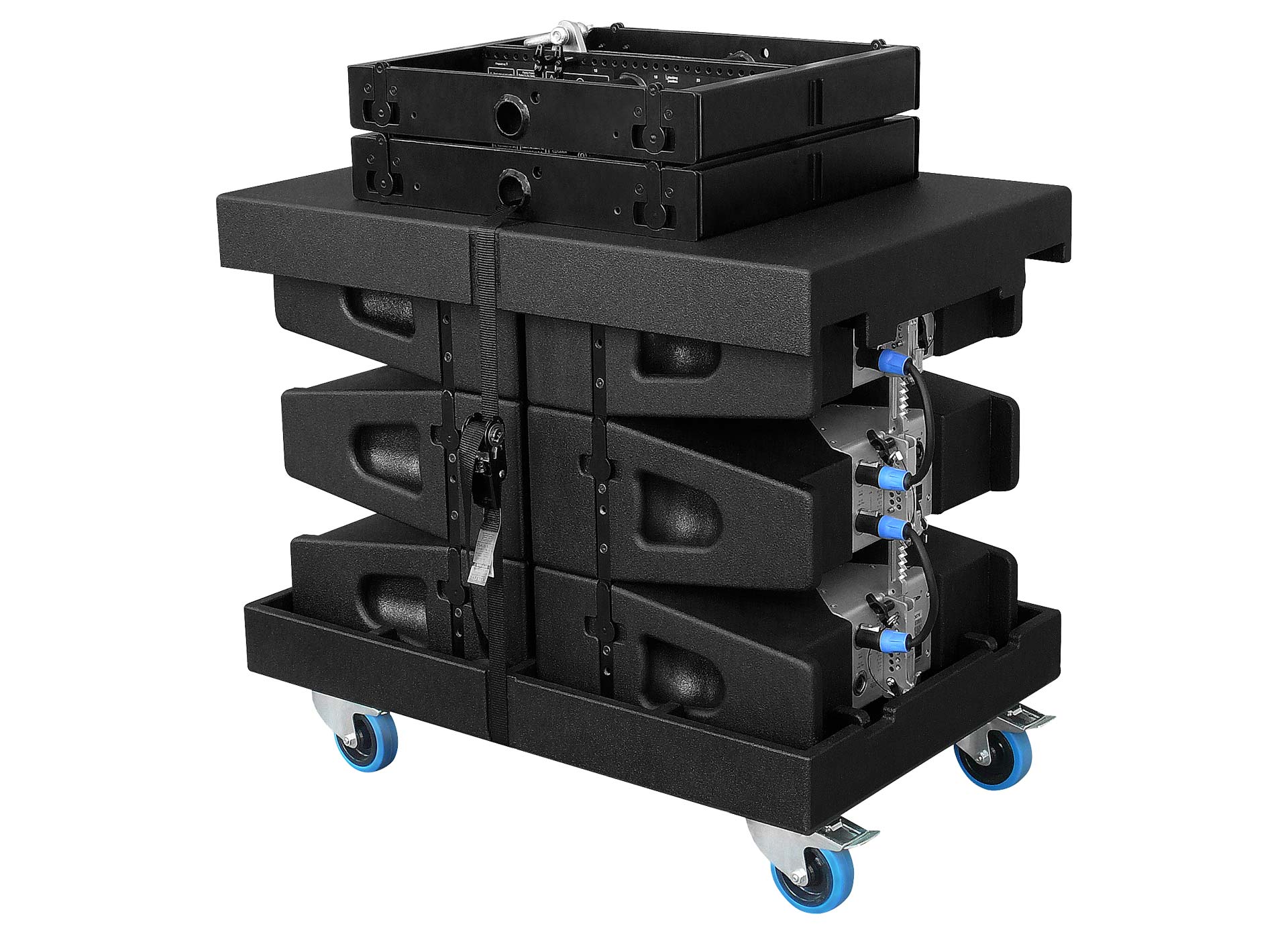

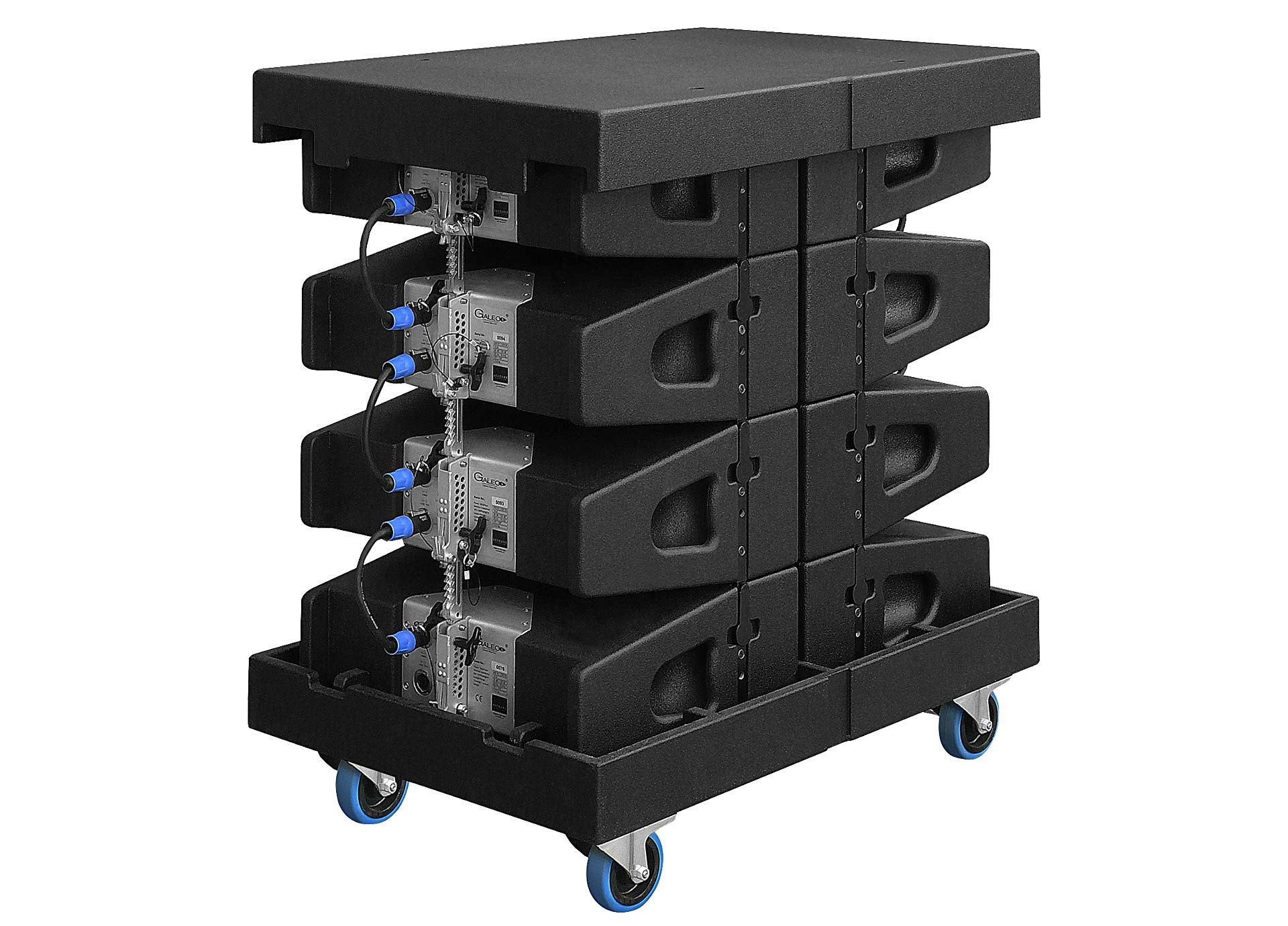

Dolly

for Galeo S,
up to 12 stacked units,
stackable

Order No. 01261
x

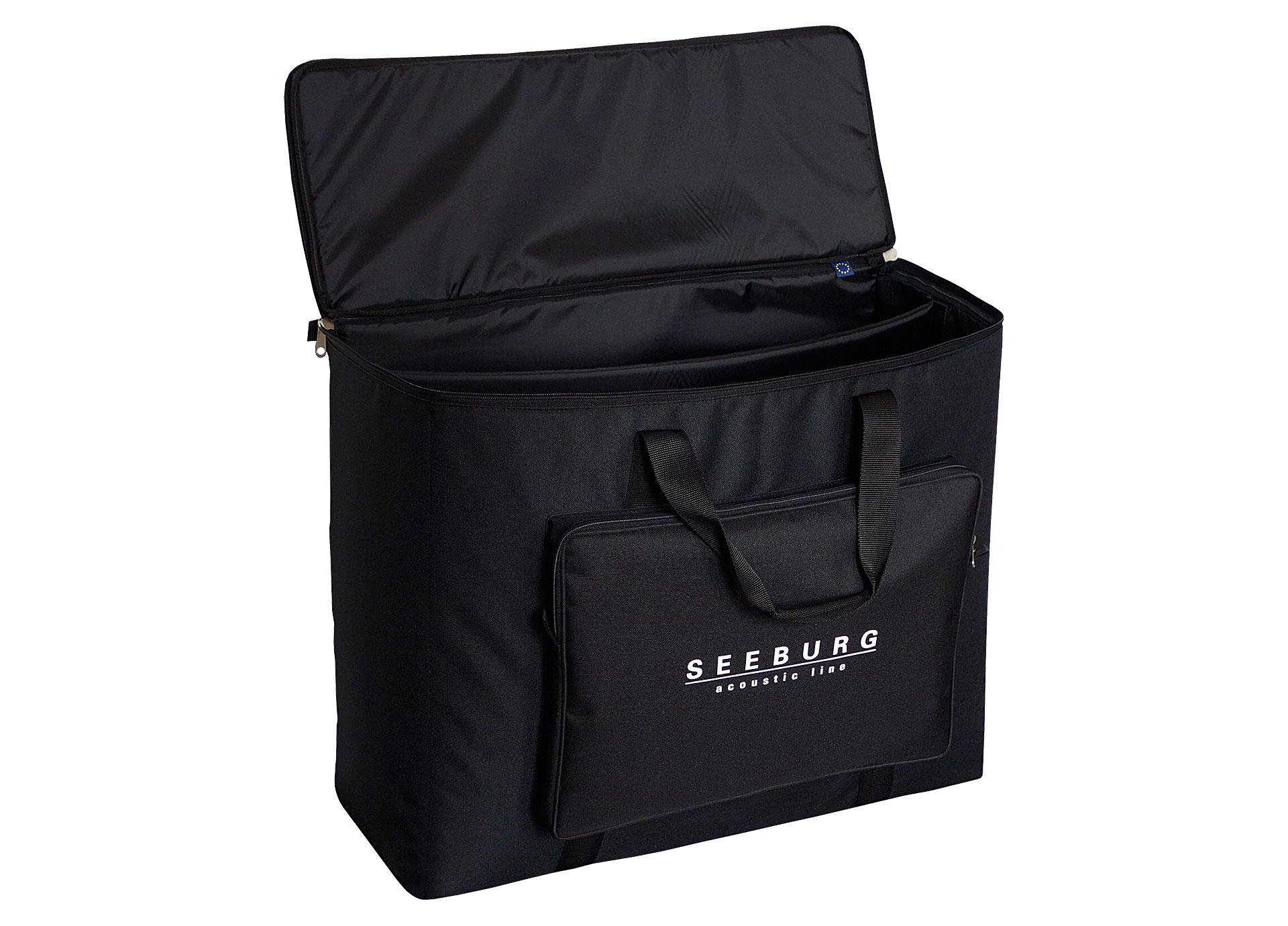

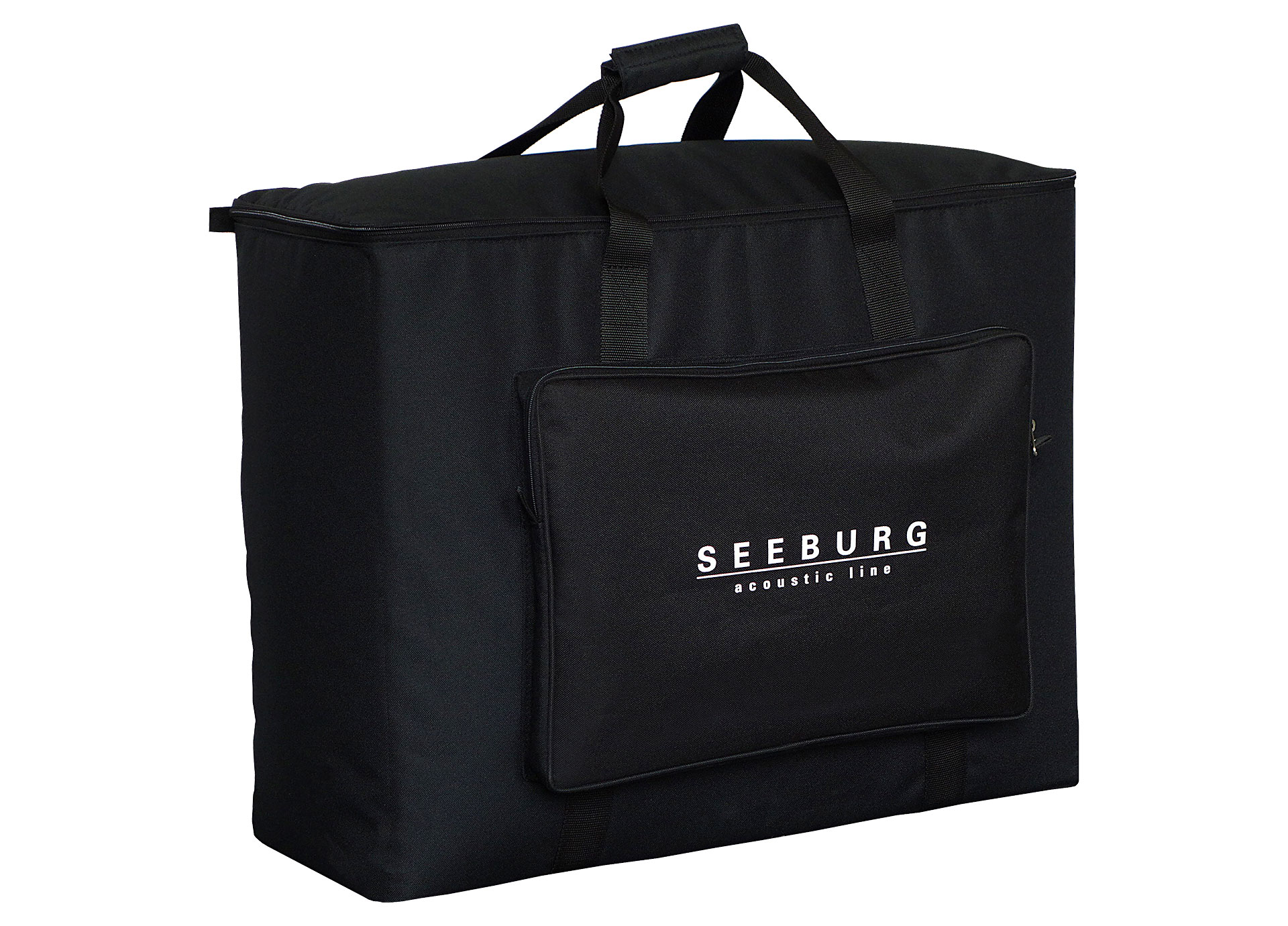

Universal Bag

for 2 x pcs. flying frames or
flying cradles, with side pocket
62,0 x 23,0 x 51,0 cm

Order No. 01227
x

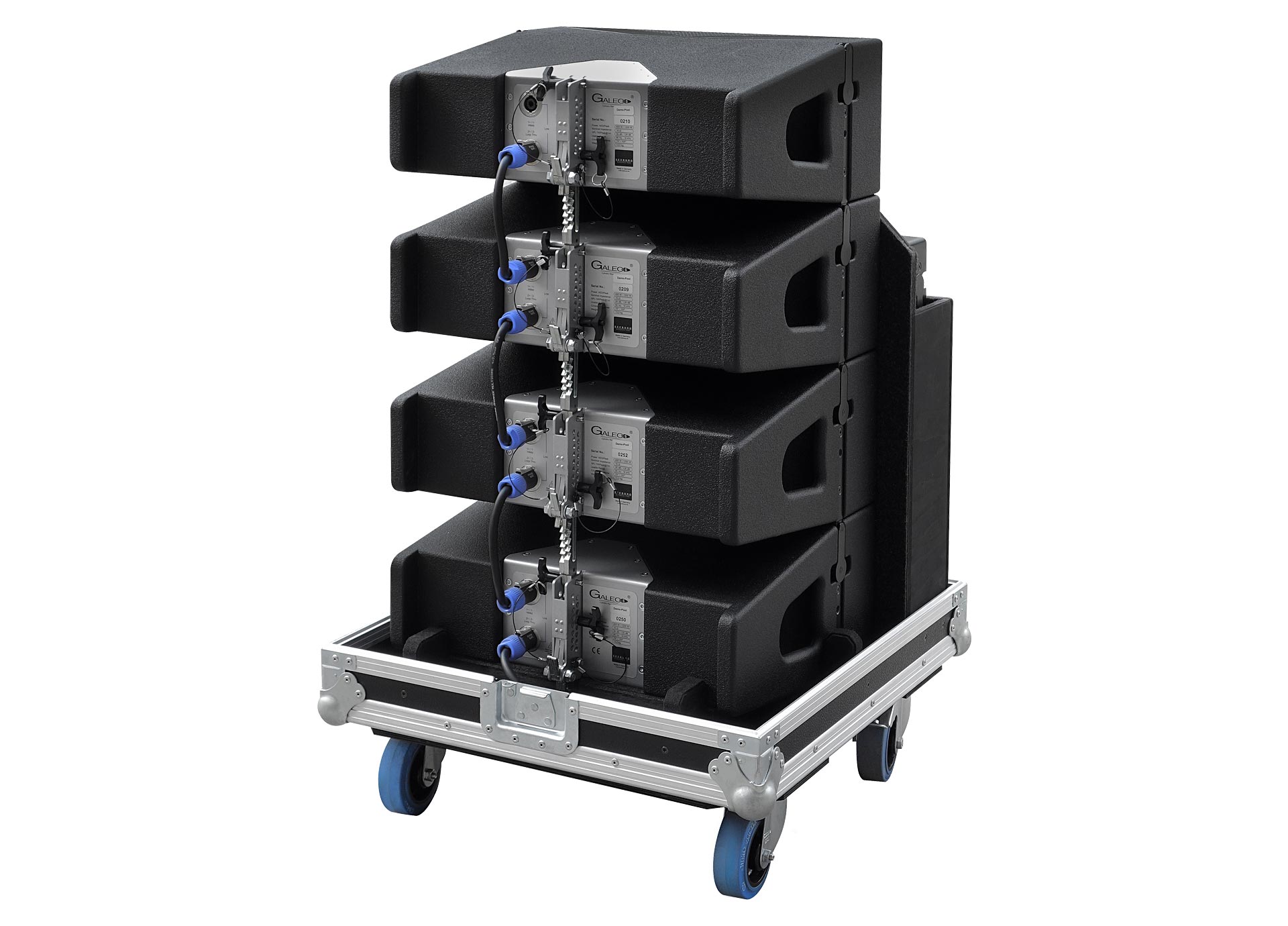

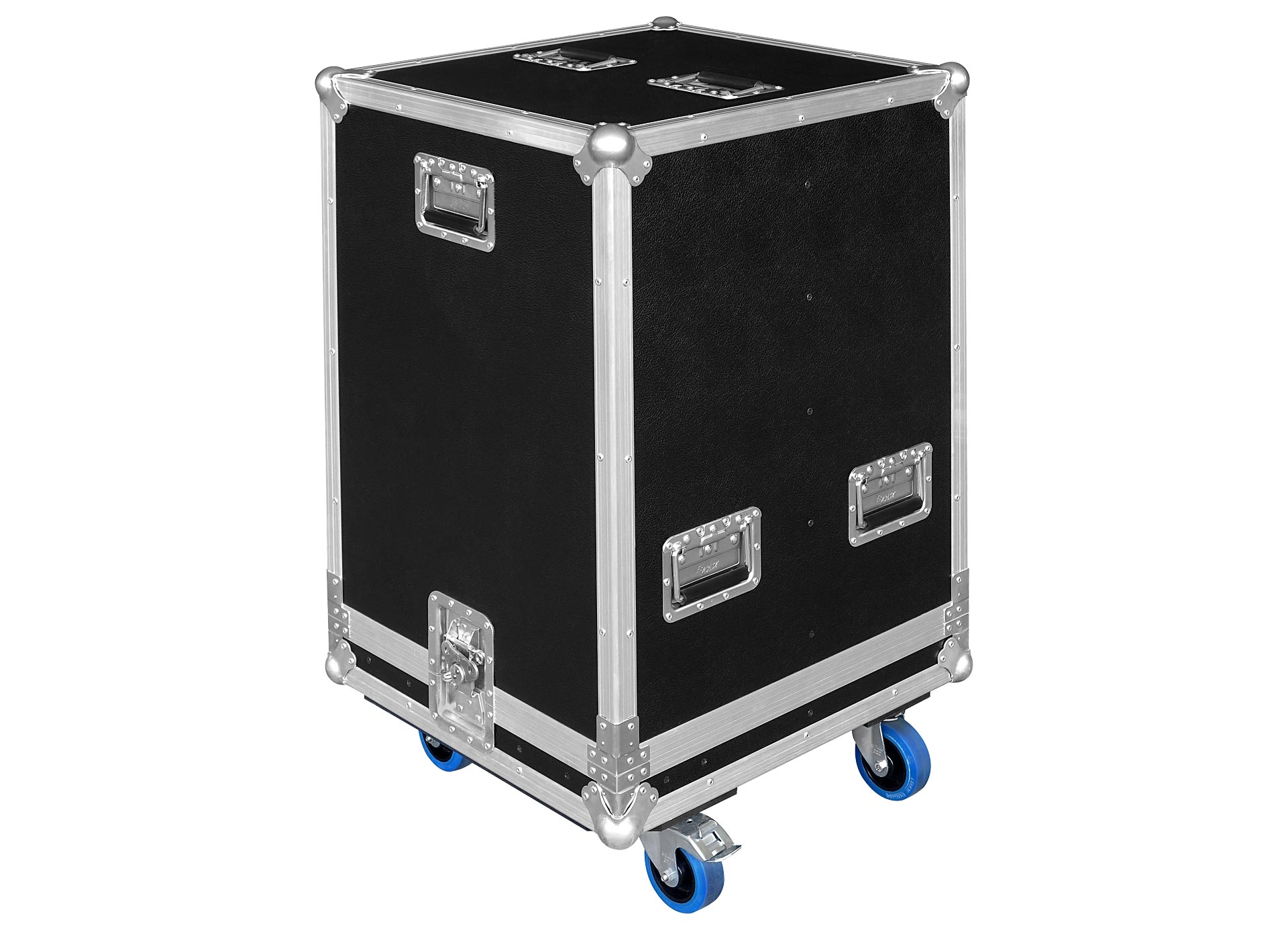

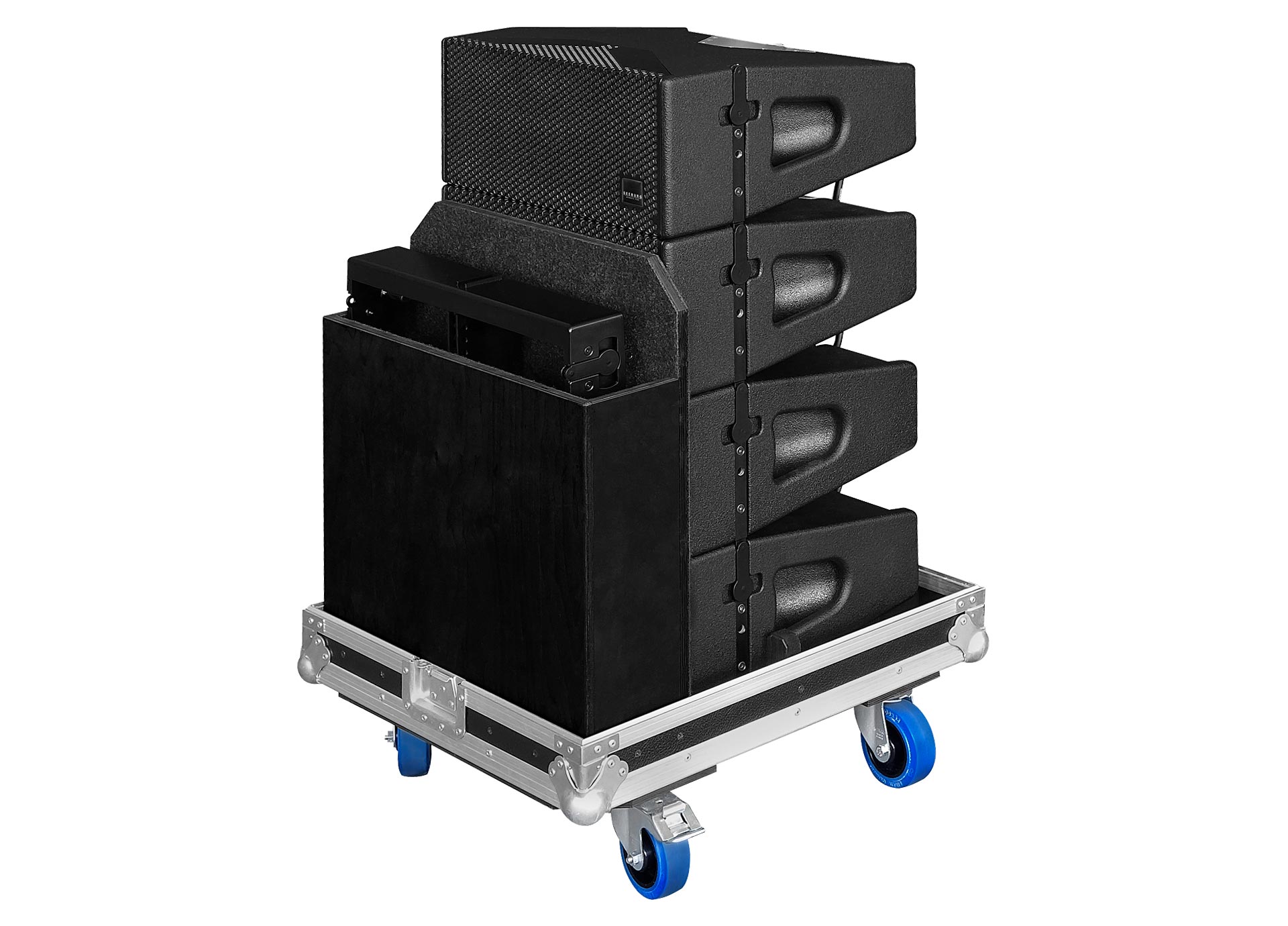

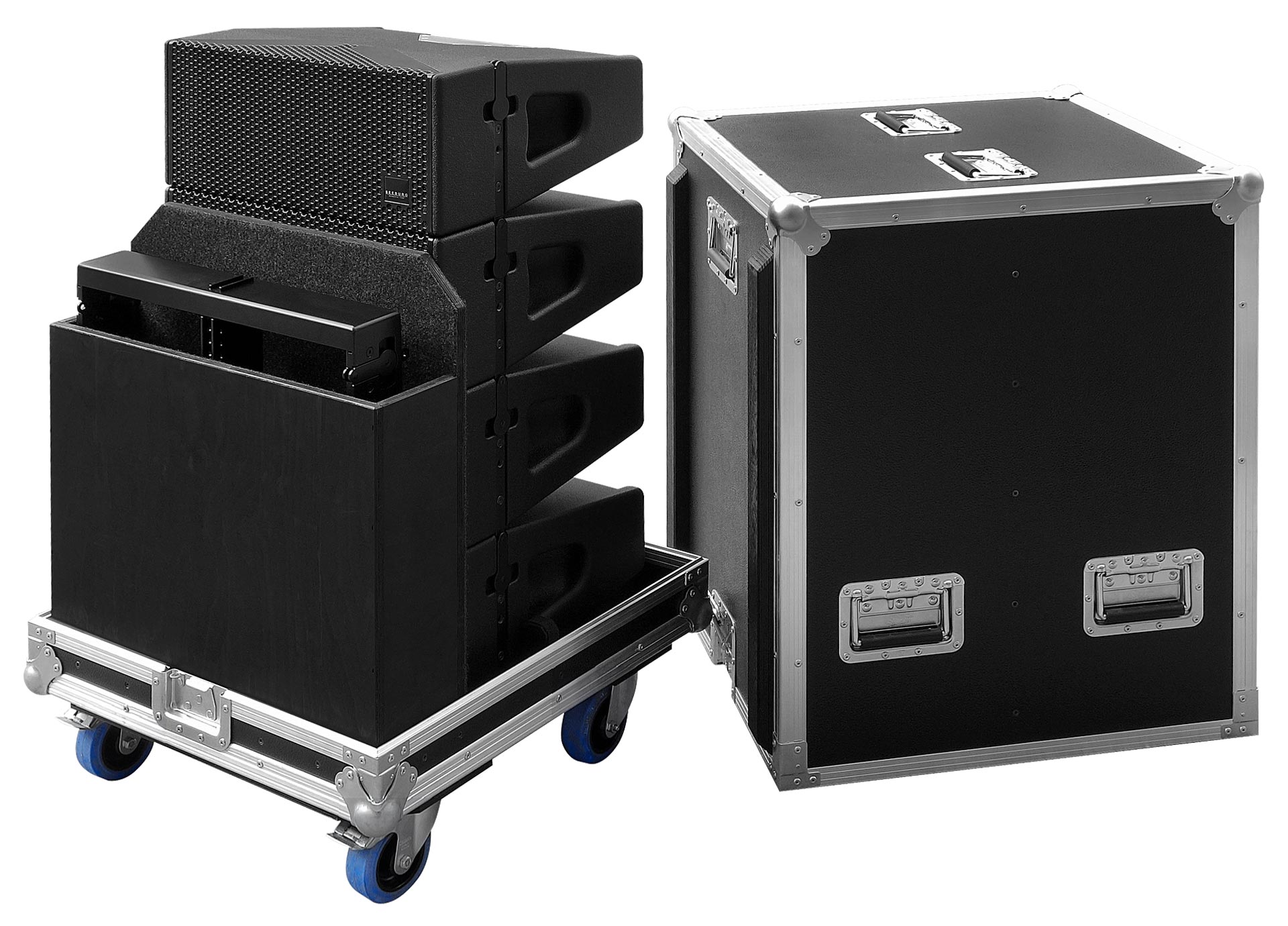

Flight Case

for 4 pcs. Galeo S units and 1 x Flying Frame (insert for accessories), heavy duty,
9 mm birch multiplex, PVC coated, 8 x recessed sprung handles, 2 x butterfly catches, 4 x 100 mm blue wheels, 2 pcs. with brake, interior lined with felt
Size (H x W x D): 97 x 58 x 62 cm

Order No. 16440
x

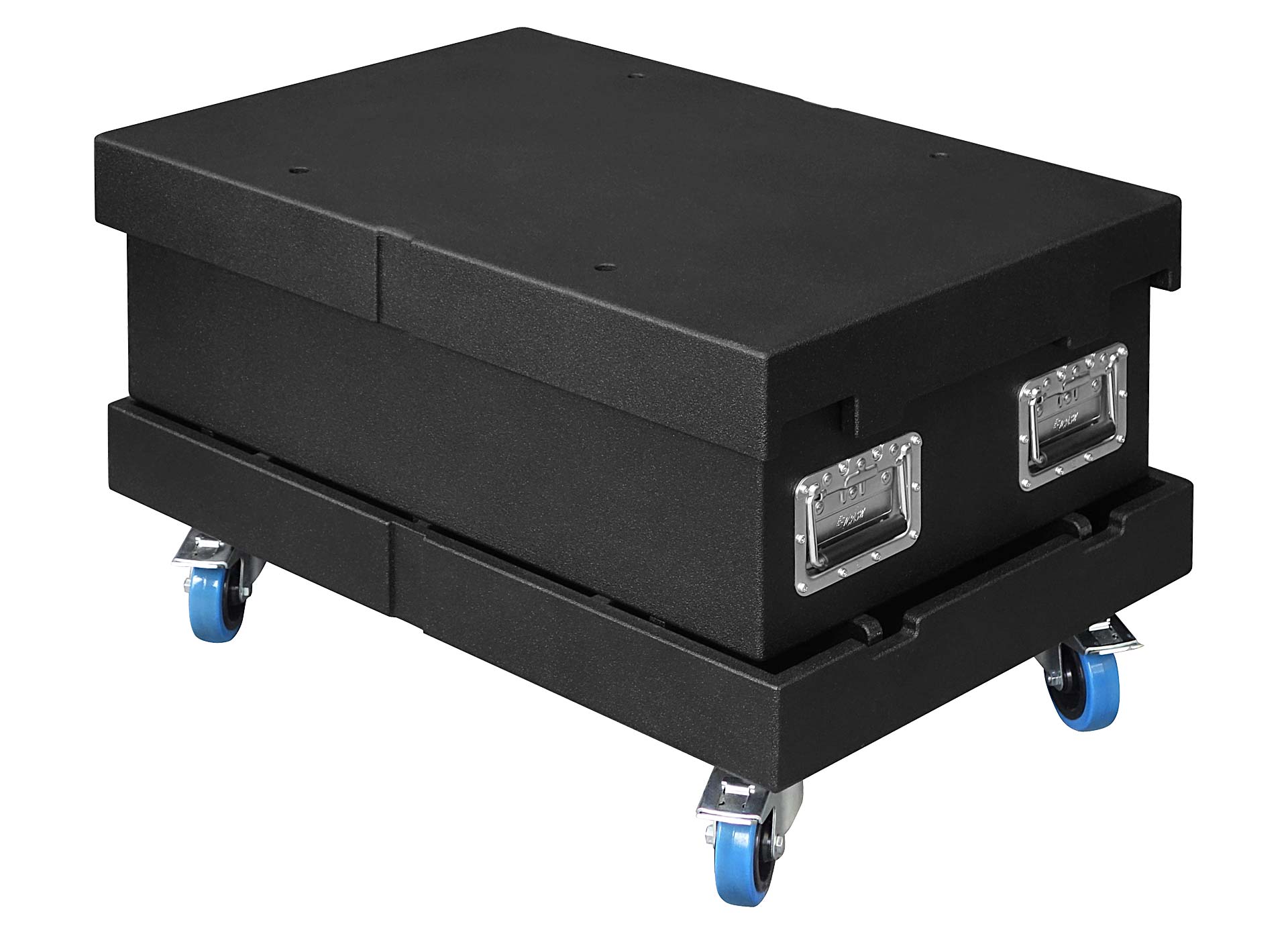

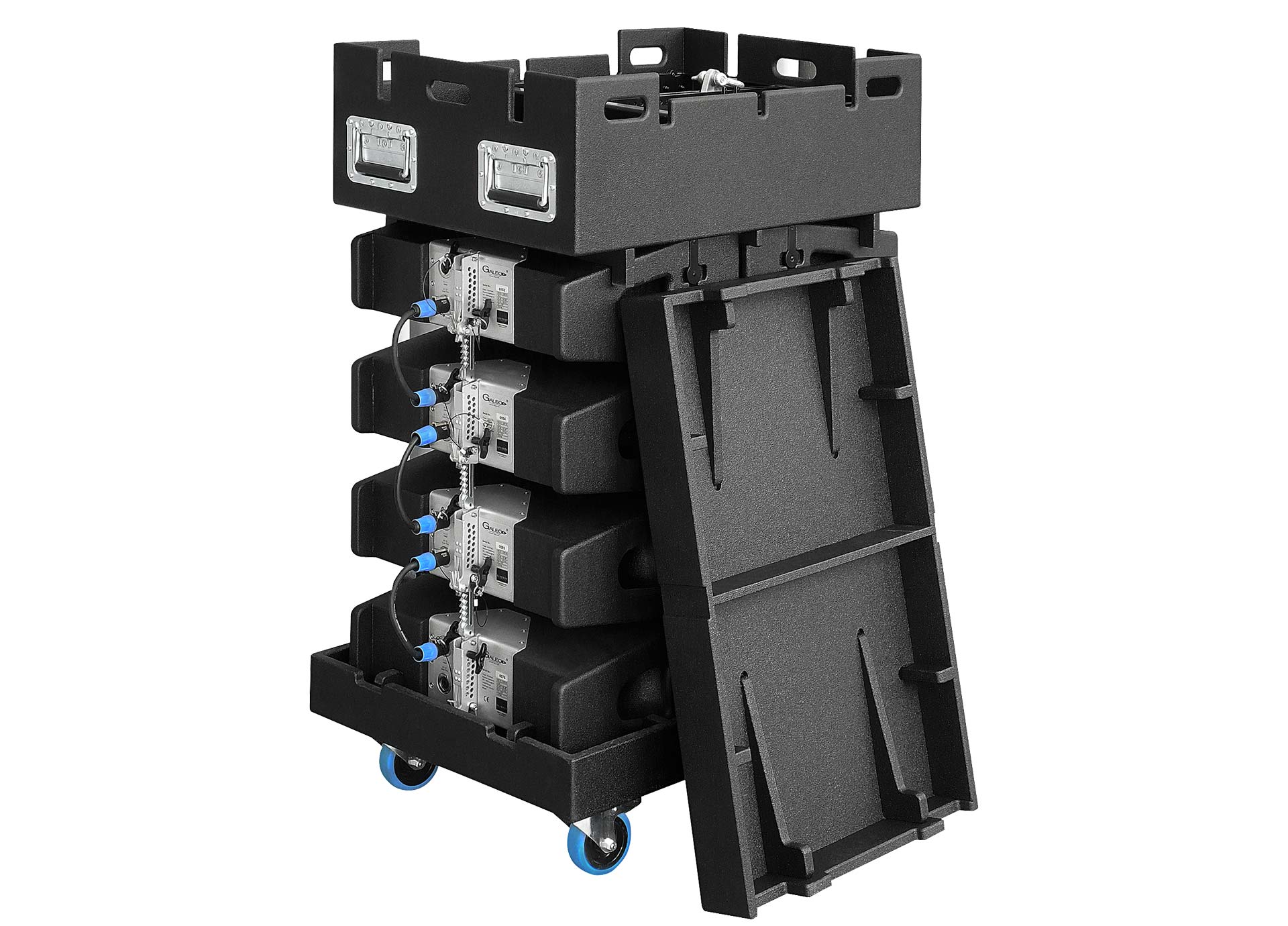

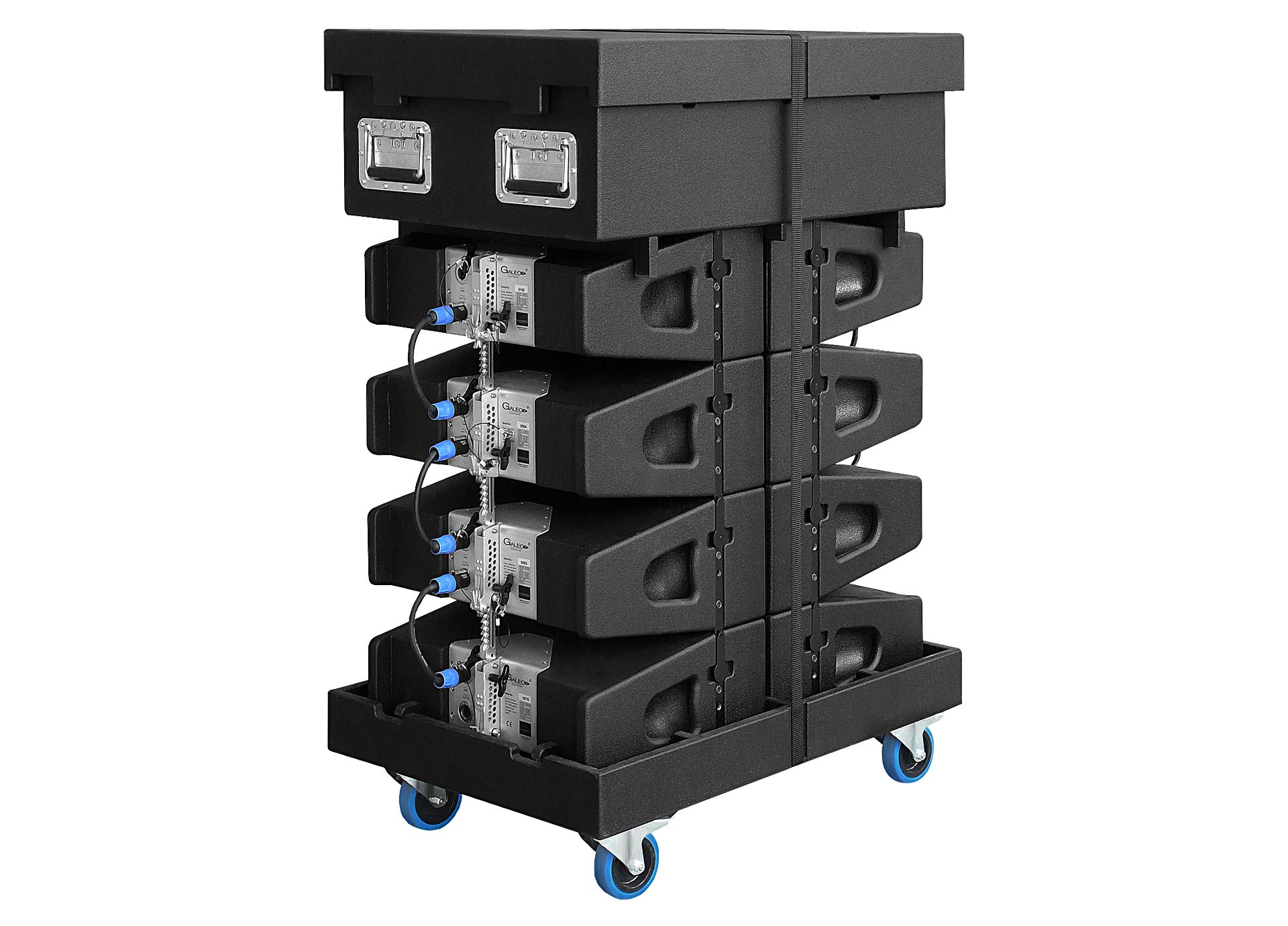

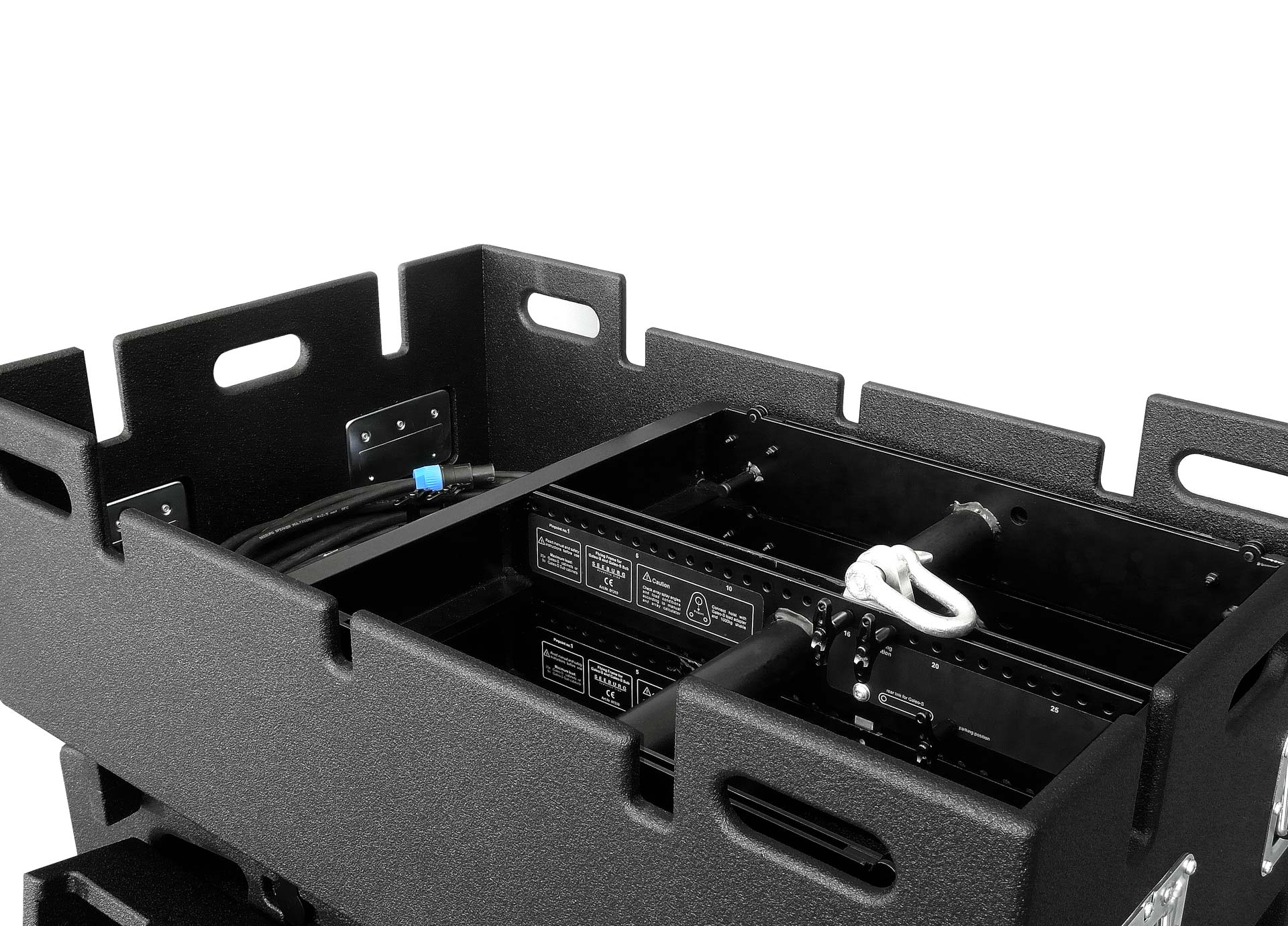

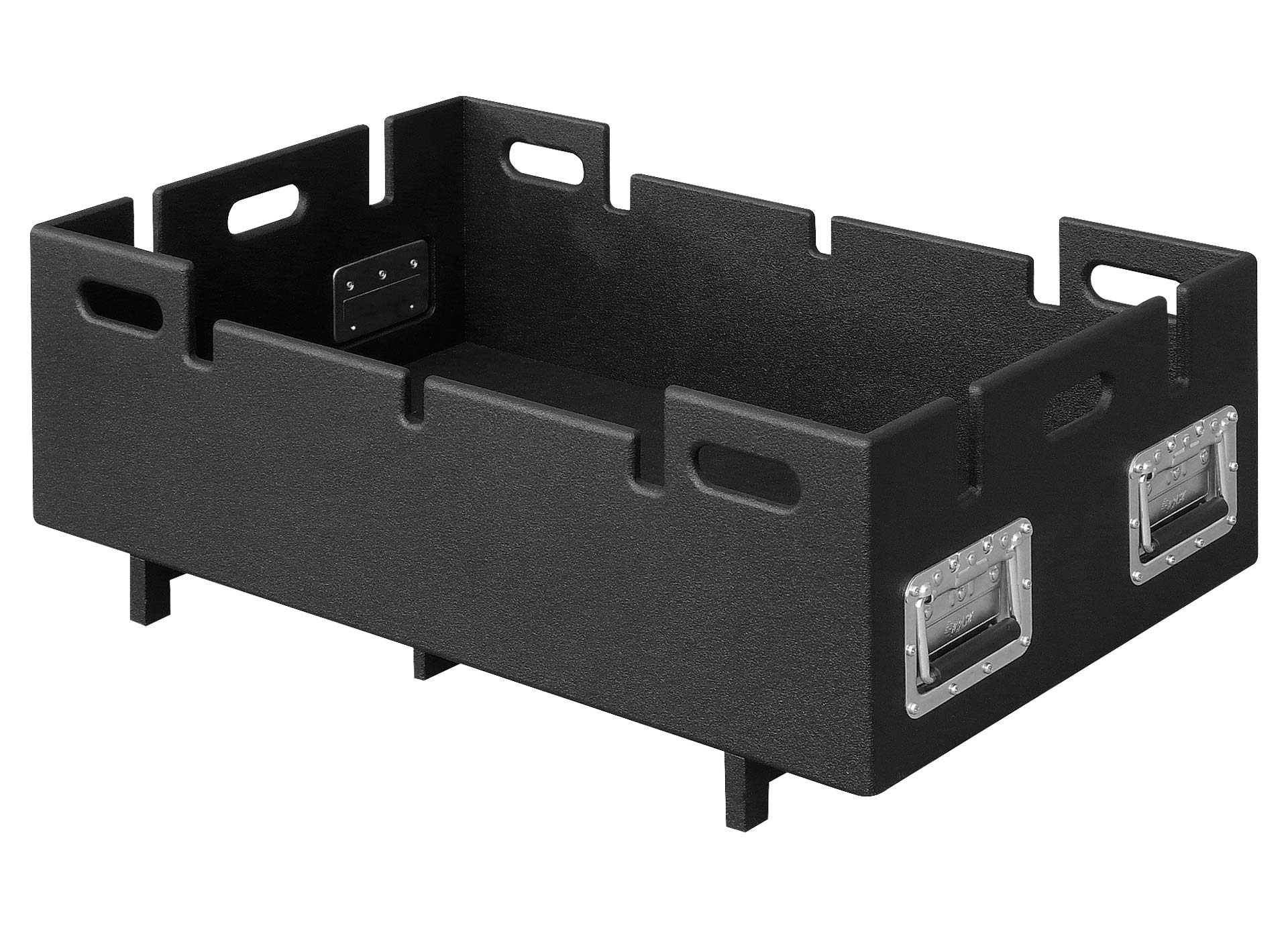

Utility-Box

for Galeo S-Dolly,
fits for 2 pcs. flying frames
and accessories

Order No. 01261/UB
x
19” Rack

6 units, prepared for 2 x LAB amps,
HDLM 8, connection panel,
incl. internal cabling and installation

Order No. 10510
x

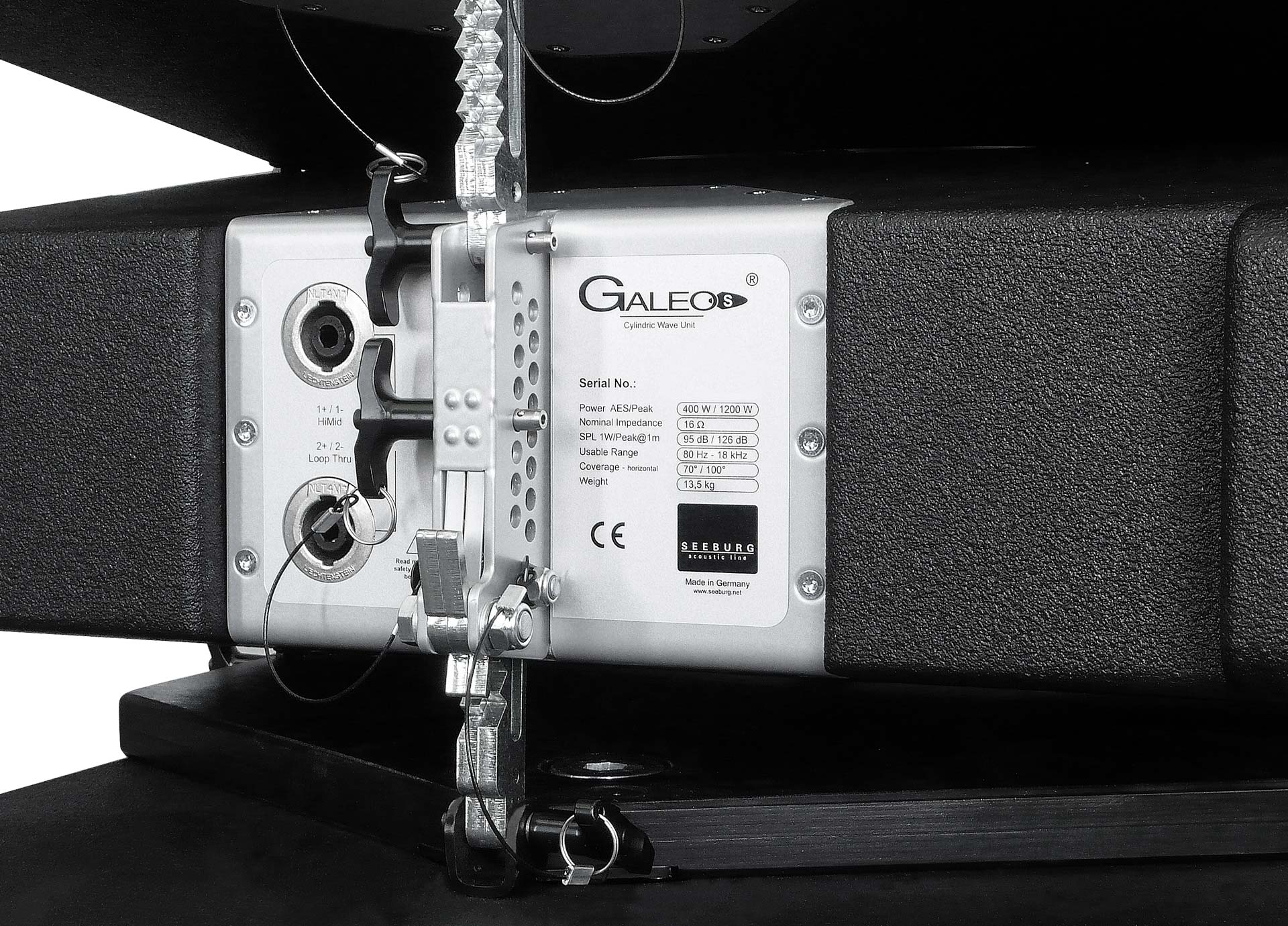

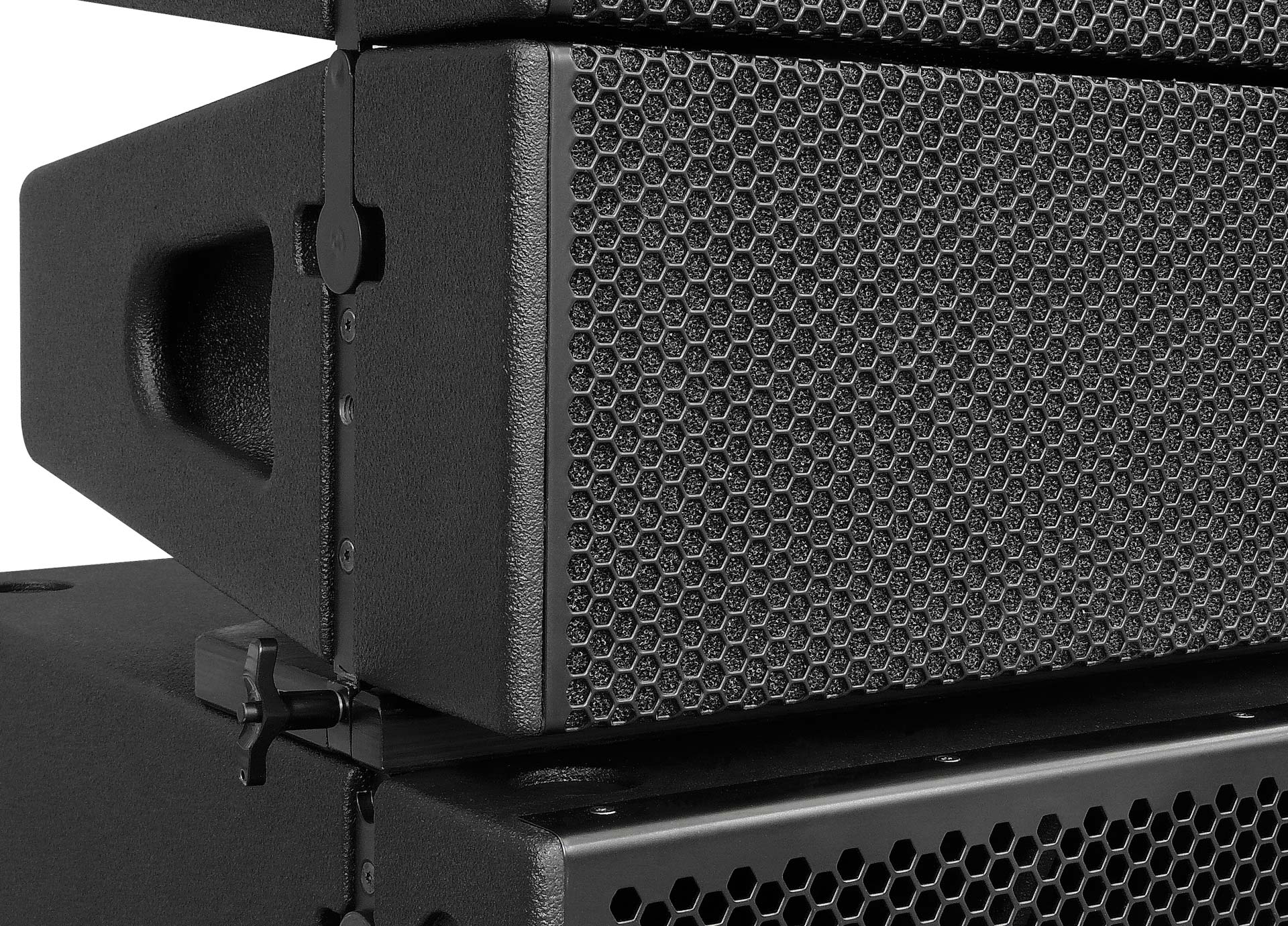

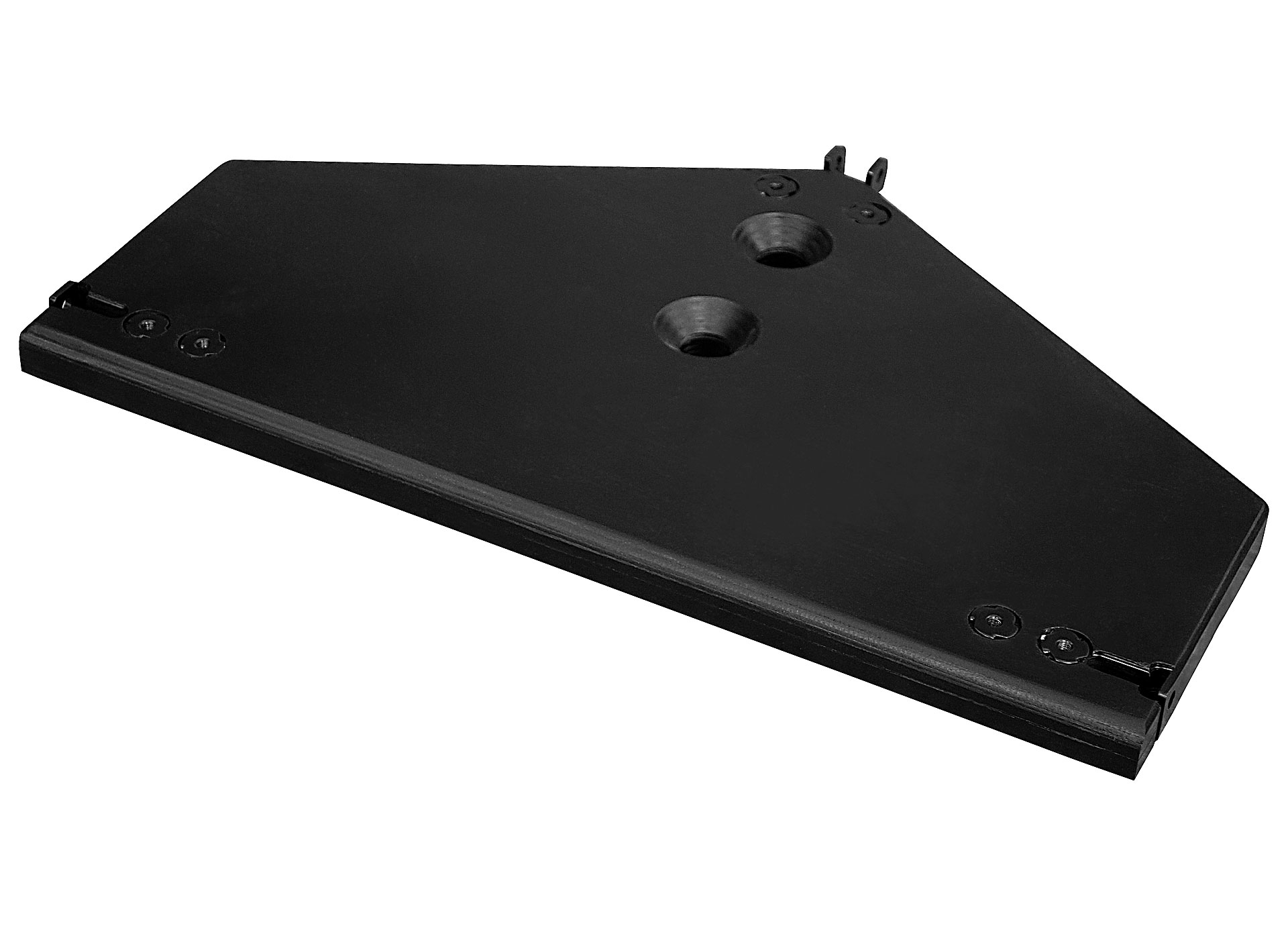

Stacking Board

fits: Galeo S Sub / G Sub 1501 /
G Sub / K Sub 1502 / K Sub 1801

Order No. 01396/S

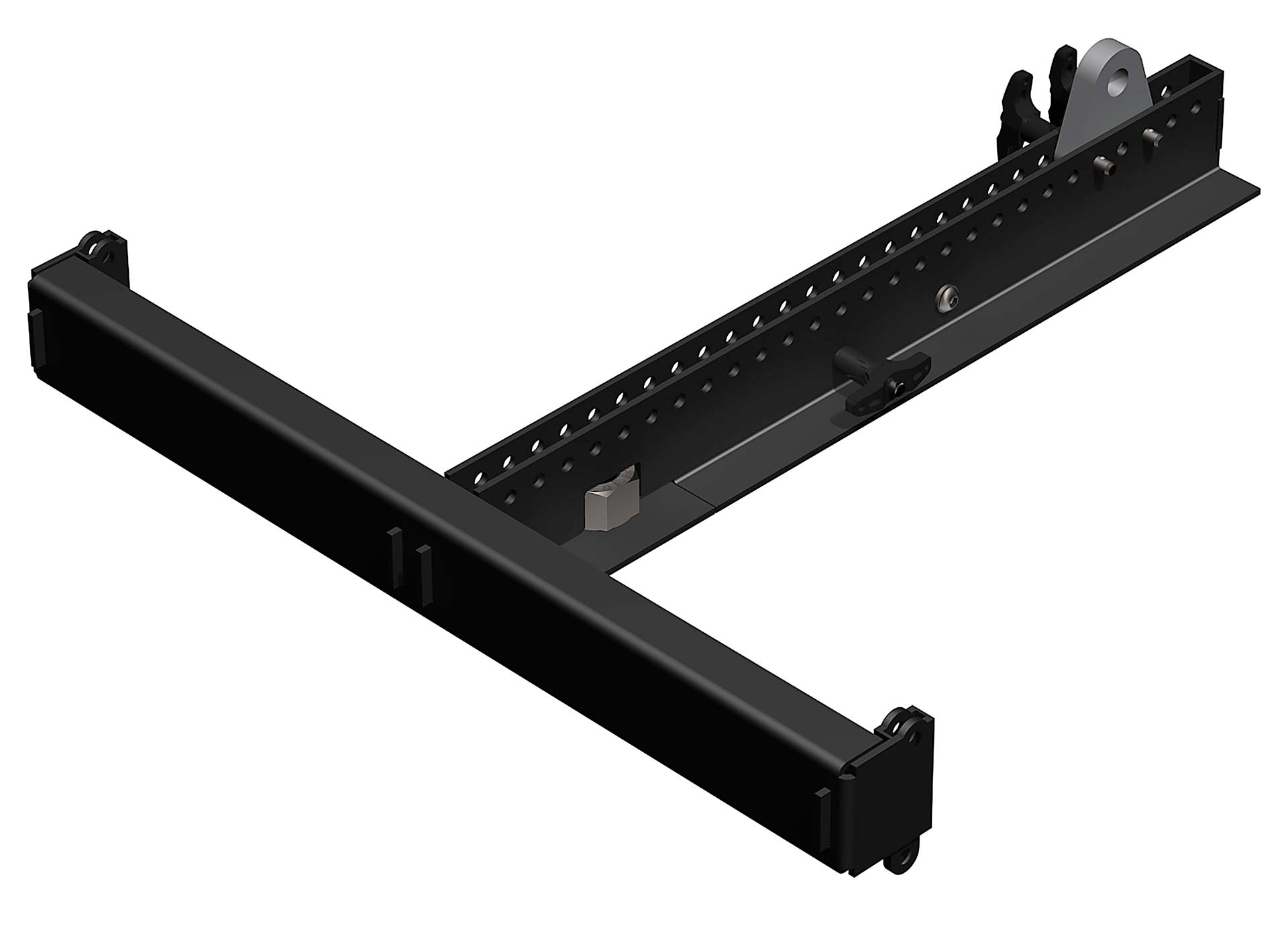

Flying Cradle

for Galeo S,
incl. accessories
(3 pcs. 6 x 20 mm ball lock pins,
load adapter and
100 mm distance bar) -
also for ground stack

Order No. 01312
Flying Frame

for Galeo S / Galeo S Sub,
incl. accessories
(3 pcs. 6 x 20 mm ball lock pins,
load adapter and 100 mm distance
bar) - also for ground stack.

Order No. 01310
x
Ball Lock Pin

for Galeo S flying frame,
Galeo S flying cradle
and Galeo S
6,0 x 20,0 mm

Order No. 01380/6x20
Load Adapter

for Galeo S / Galeo S Sub,
for flying frame and flying cradle

Order No. 01311
x
AMR Reflectors 100°

for Galeo T, Galeo S,
consisting of 2 pcs.,
AMR reflectors 100°,
incl. fittings

Order No. 08141/100
x
AMR Reflectors 70°

for Galeo T, Galeo S,
consisting of 2 pcs.,
AMR reflectors 70°,
incl. fittings

Order No. 08141/70
Flange

for Galeo S / G 3 / GL 16 / GL 24 / K 24,
M20, 35 mm ø with nut,
incl. M20 x 20 socket head screw

Order No. 08127/nut
Clamp Adapter

for Galeo S / Galeo S Sub,
flying frame and flying cradle-> truss

Order No. 01313
x
Shackle

cambered, high-quality tempered,
with bolt (ø 14 mm), weight: 0,22 kg,
WLL 1500 kg

Order No. 01372/1500
x
Patch Cable

for Galeo S

Order No. 08448/S
x
Lashing Strap

Safetex 25A-B-1-DR,
0,8 t, one-piece,
length: 6 m, width: 25 mm

Order No. 01320
x
Lashing Strap

Safetex 35A-B-1-DR,
2,0 t, one-piece,
length: 6 m, width: 35 mm

Order No. 01325
