GALEO C Sub Passive Bass Extension
Galeo C Sub
00415 |
1500 W AES, 8 Ω |
 Downloads |
|
| Datasheet Galeo C Sub |
 |
| User Manual Galeo C / Galeo C Sub |
|
| 3D-Files | |
| Certificate Ball Impact Resistance-Plash Water Protection |
|
| Product Pictures |
 |
Bass extension for the Galeo C Line Array featuring integrated flying hardware for flown or ground stacked applications. The classic bass reflex design in combination with flow optimised ports and the high power 18“ Nd driver provide accurate and precise bass reproduction even in the lowest frequency range.
| Speaker Components | 18“ Nd (4,5“ VC) |
| Description | Passive Bass Extension |
| Power AES / Peak | 1500 W / 4500 W |
| Impedance nominal | 8 Ω |
| SPL 1 W / Peak @ 1 m |
101 dB / 138 dB |
| Usable Range |
30 Hz - 200 Hz (-6 dB) |
| Tuning Frequency excursion minimum | 36 Hz |
| Connectors | 3 x Speakon NL4 in/out Coding (2x): 1+/- loop thru, 2+/- Sub Coding (1x): 1+/- Sub, 2+/- loop thru |
| Handles | 6 x |
| Rigging / Fittings | M20 on top Wheelboard fittings Integrated flying hardware |
| Weight | 49 kg (+ 8 kg wheelboard) |
| Size height x width x depth | 58,0 x 58,0 x 78,0 cm |
| Order No. | 00415 |
for Galeo C / Galeo C Sub,
(incl. 3 x ball lock pins 8 x 25 mm,
load adapter M10 and 100 mm distance bar), also for ground stack
for Galeo C / C-Series / K 24,
to be used with FD34 / FD33 truss,
minimum truss length: 0,21 m
consisting of base plate with M20
and tilt adjuster (incl. socket head screw M20 x 30 mm),
weight: 13,5 kg, max. load 150 kg
ø 8 x 25 mm
Order No. 01380/8x25
for Galeo C / Galeo C Sub
flying frame
M10
Order No. 01328
Foot, 38 x 10 mm, Rubber
Order No. 07611
Foot, 38 x 10 mm, Nylon
Order No. 07609
M20, with wind up
Order No. 03023
250 mm, ø 35 mm, M20,
with ring lock
for Galeo C Sub / G Sub 1801,
by using wheel board, padded
for 4 x Galeo C Sub / 4 x G Sub 1801
or 2 x G Sub 1802, to be used with
dolly/top board, padded, with zipper
on front and velcro strip to secure
the open lid.

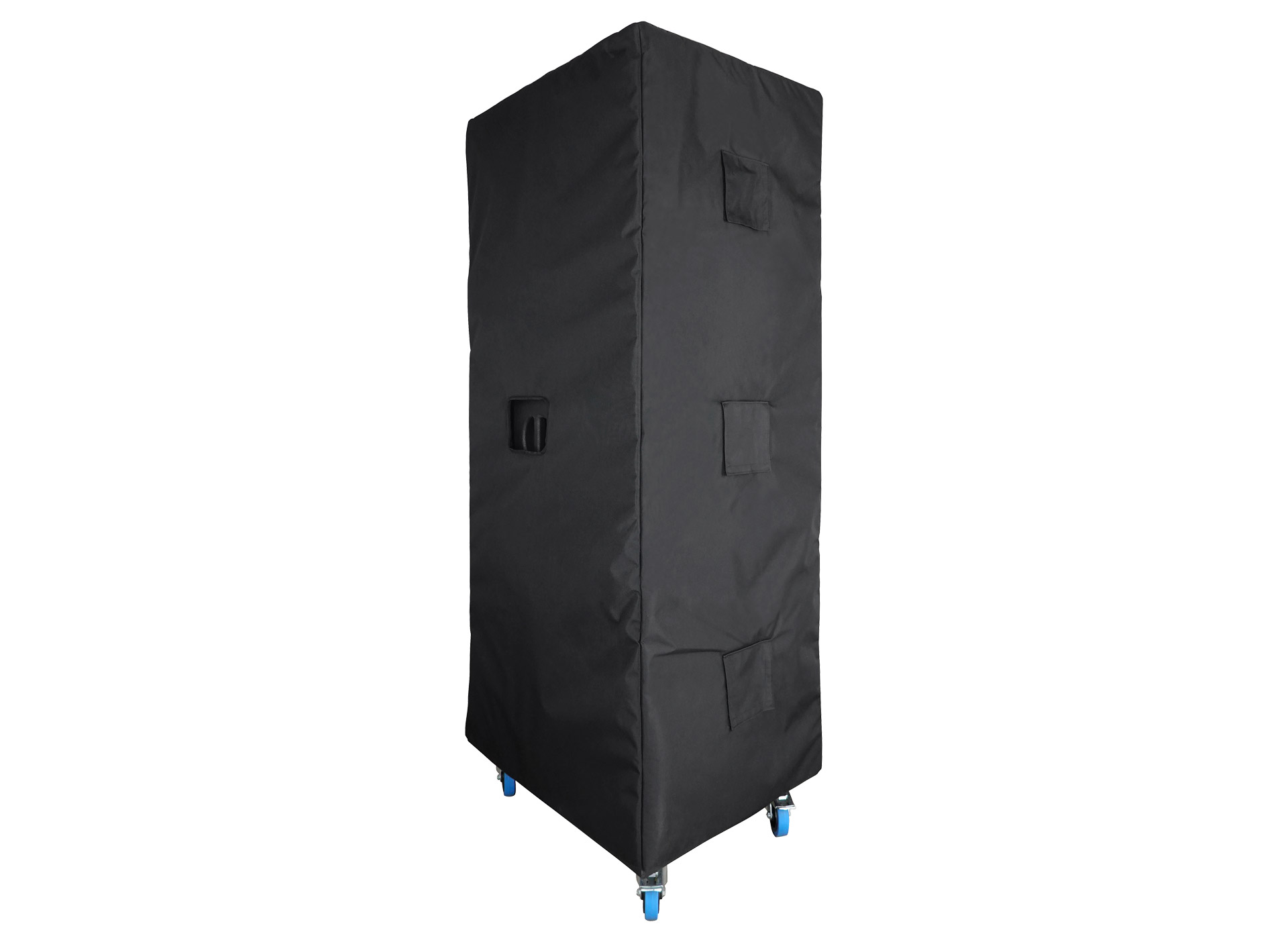

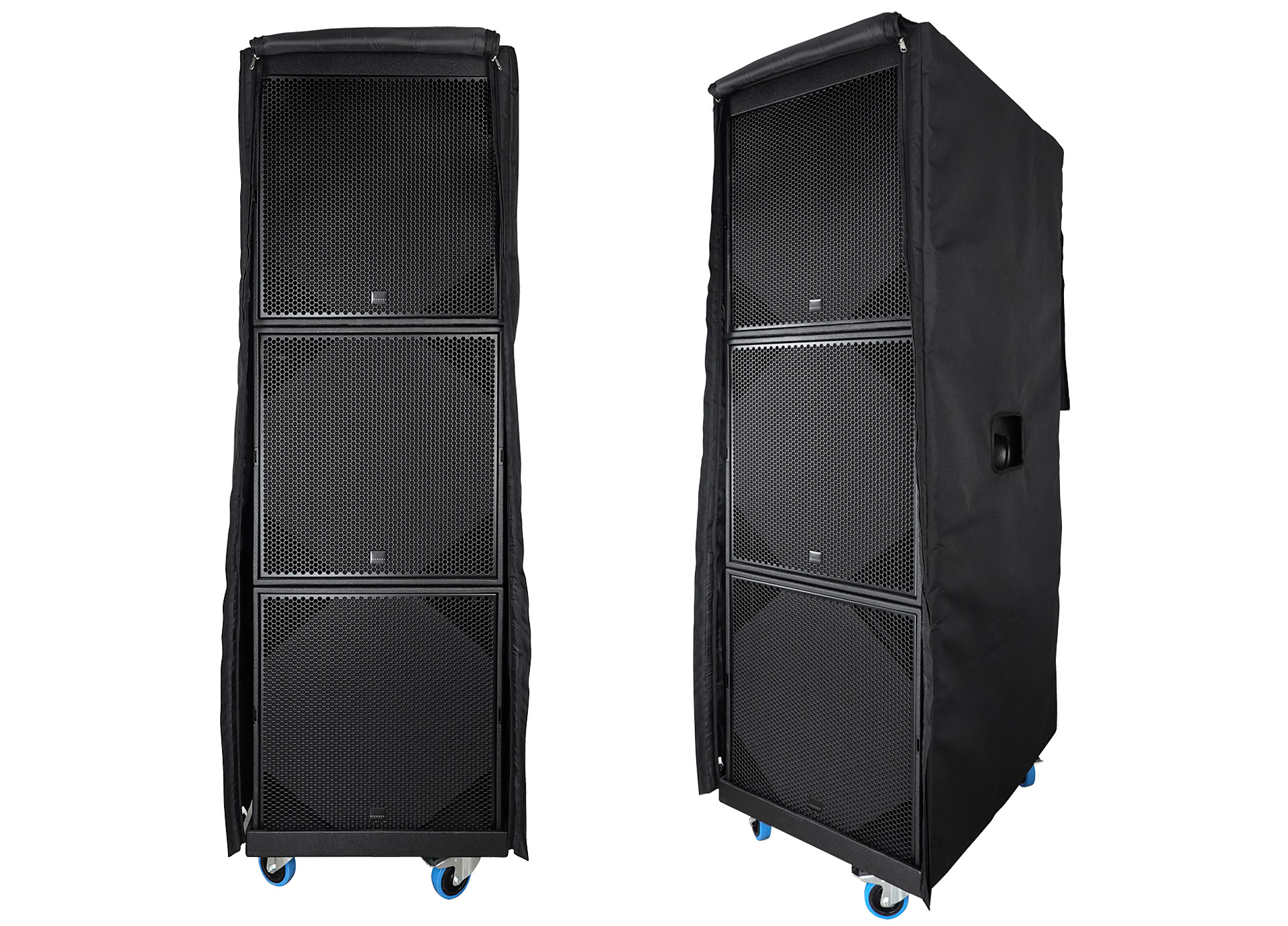

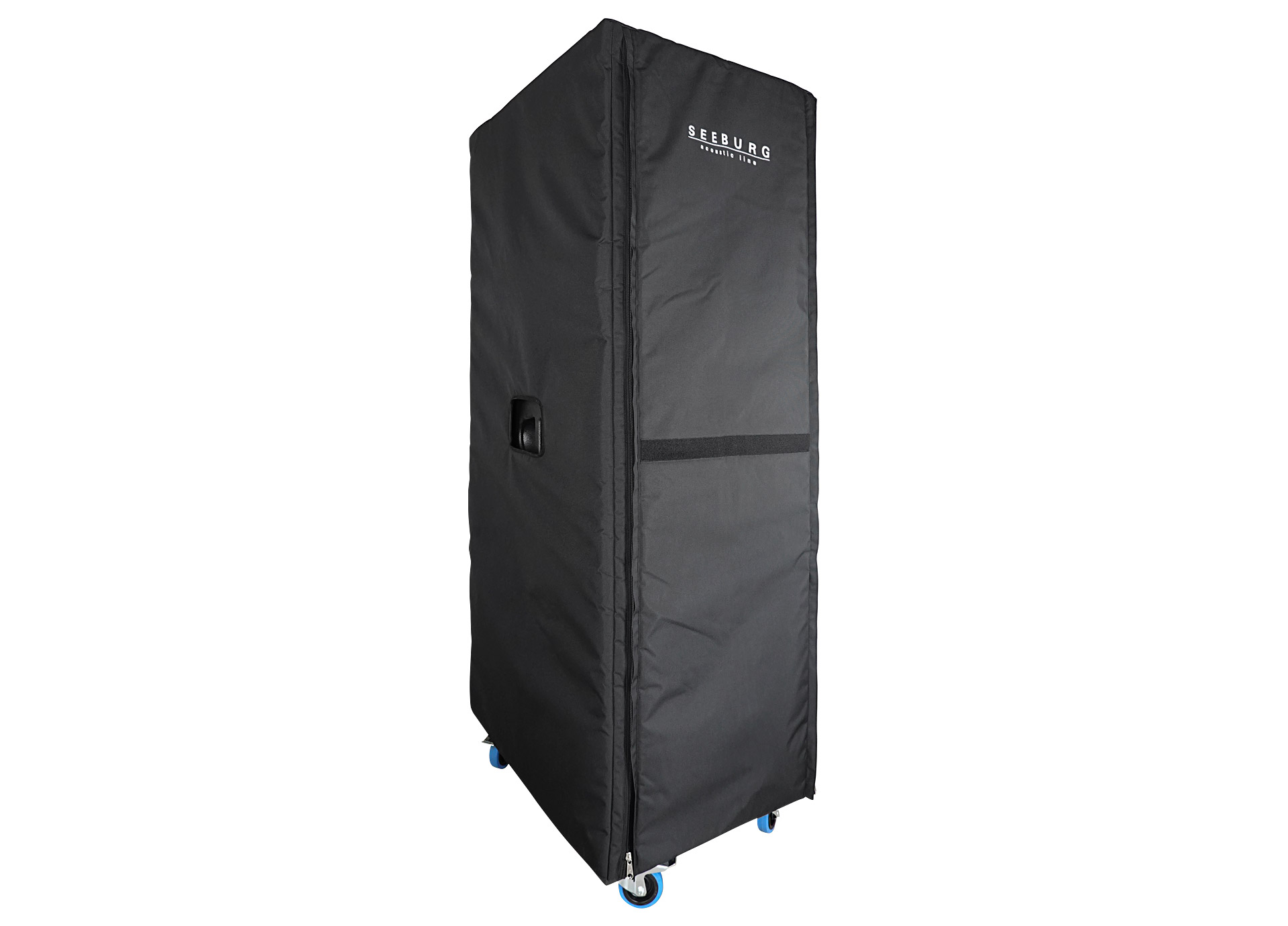

for 2 x Galeo C Sub / 2 x G Sub 1801,
to be used with dolly/top board,
padded, with zipper on front and velcro strip to secure the open lid.
for Galeo C Sub / G Sub 1801,
up to 3 units,
4 x 100 mm wheels with brake,
incl. top board (stackable),
Size (W x D): 80 x 60 cm
for up to 6 x Galeo C Sub /
6 x G Sub 1801/ 3 x G Sub 1802,
4 x 100 mm wheels with brake,
incl. top board (stackable),
Size (W x D):118 x 60 cm
for Galeo C Sub / G Sub 1801,
also usable as Dolly,
stackable, 8,0 kg
