GL 16 Sub

GL 16 Sub

00540

 900 W / 2700 W
(AES / peak)

00540/dp+

 800 W AES
Downloads
Datenblatt
Quick Start Manual
dp-systems
Quick Start Guide SEEBURG Network Manager-AES67
3D-Dateien
Produktbilder

Kompakter Subwoofer für GL-Systeme und alle Anwendungen,
bei denen ein unauffälliges Erscheinungsbild bei gleichzeitig hoher Leistung gefordert ist. Aufgrund seiner integrierten Flugmechanik kann der GL 16 Sub beliebig mit allen GL-Systemen in fliegender oder stehender Anordnung mechanisch verbunden werden.

Das System ist sowohl in einer passiven als auch in einer selfpowered dp+ Version lieferbar.

Technische Daten
  GL 16 Sub
  GL 16 Sub dp+
Speaker Components 3 x 6,5“ Nd, VC = 64 mm 3 x 6,5“ Nd, VC = 64 mm
Description Passive Bass Extension Digitally Powered Bass Extension
Power   AES / Peak 900 W / 1800 W  - - -
Amp Power   AES
 - - - Ch. 1 (internal): 800 W AES
Ch. 2 (external): 800 W AES
Impedance   nominal 5,3 Ω - - -
Rated Current - - - 2,0 A @ 230 V
SPL   1 W / Peak @ 1 m
 92 dB / 125 dB - - -
SPL   Peak @ 1 m - - - 125 dB
Max. Input Signal - - - 25 dBu
DSP - - - DPLMx FPGA Processing 32 bit floating point
AD / DA - - - 24 bit / 96 kHz
Latency - - - 0,8 ms (analog in to analog out)
Usable Range
 42 Hz - 300 Hz (-6 dB) 42 Hz - 300 Hz (-6 dB)
Tuning Frequency   excursion minimum

53 Hz

 53 Hz
Connectors 2 x Speakon NL4MP in/out
Coding: 1+/- loop thru, 2+/- Sub		 XLR in/thru, Ethercon,
Powercon in/thru
2 x Speakon NL4MP out
Rigging / Fittings
 10 x M10
Integrated flying hardware		 10 x M10
Integrated flying hardware
Weight 14,5 kg 15,5 kg
Size   height x width x depth 70,8 x 18,9 x 24,5 cm 70,8 x 18,9 x 24,5 cm
Order No. 00540 00540/dp+
Zubehör
x

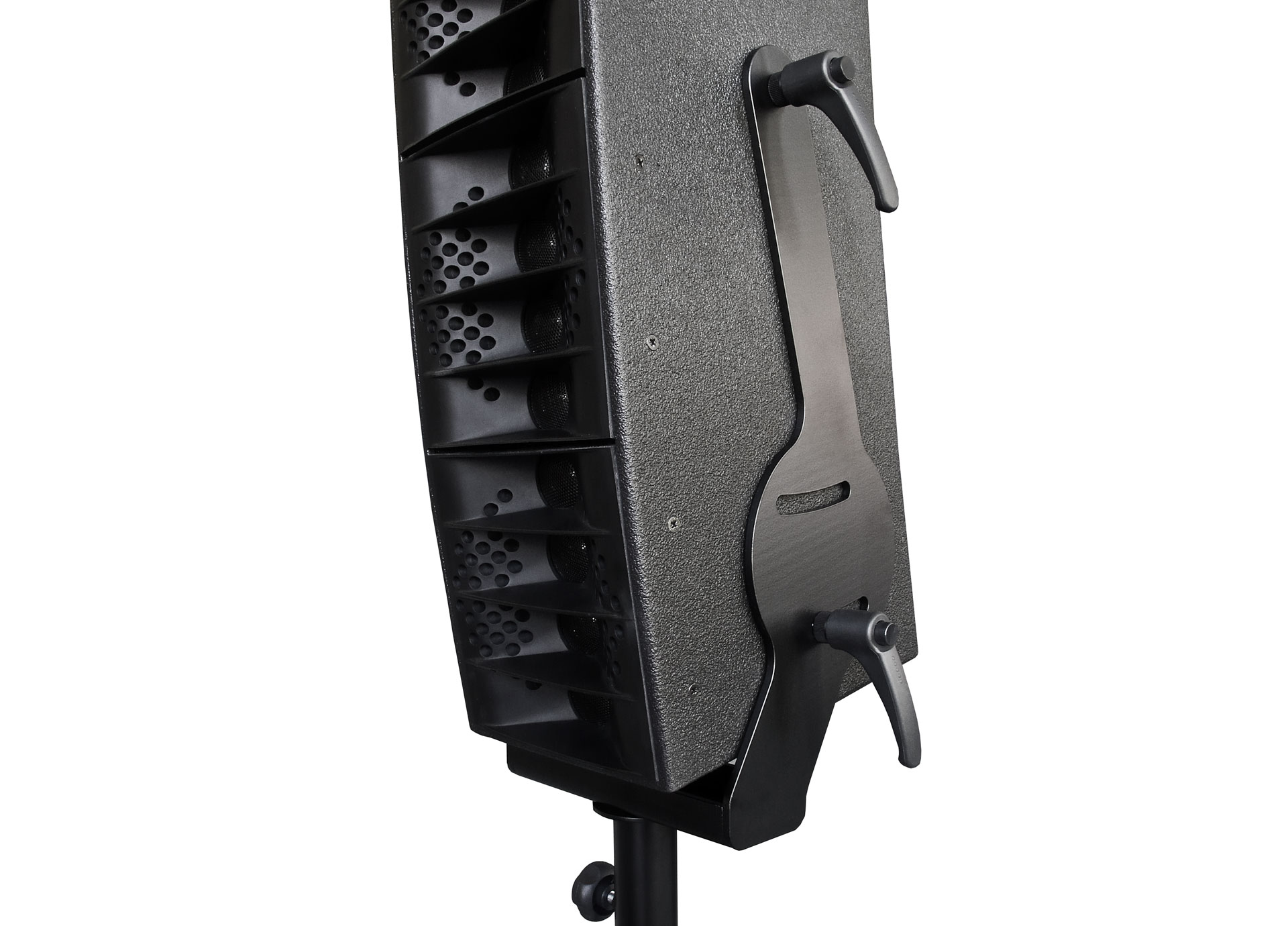

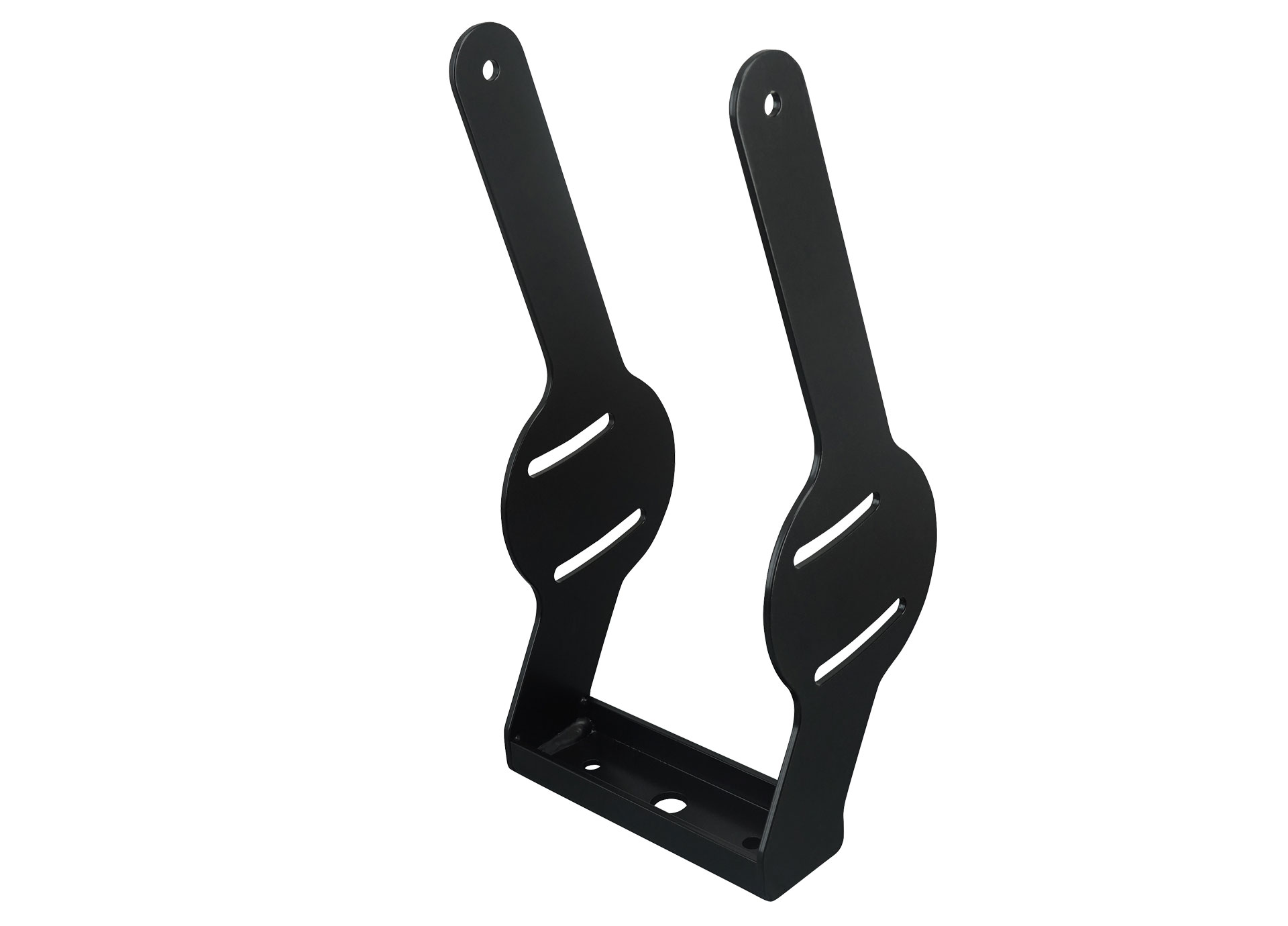

Flying Bracket

for GL System,
(incl. black version:
2 x handle screws M10 x 30 mm,
1 x knurled head nut /
white version:
2 x socket head screws M10 x 30 mm,
1 x knurled head nut)

Order No. 01352/GL16/set/w (RAL 9010)

 Order No. 01352/GL16/set
x

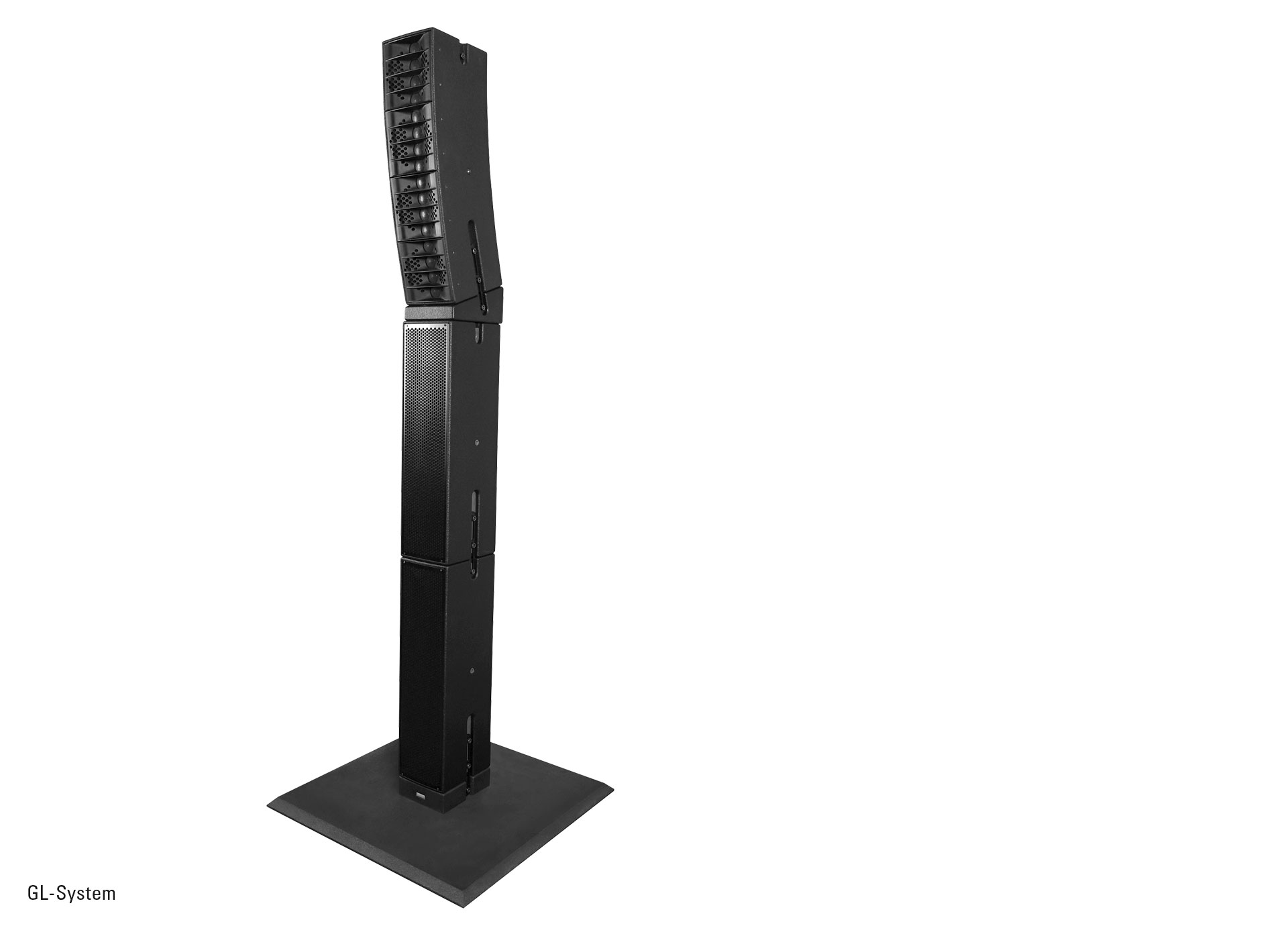

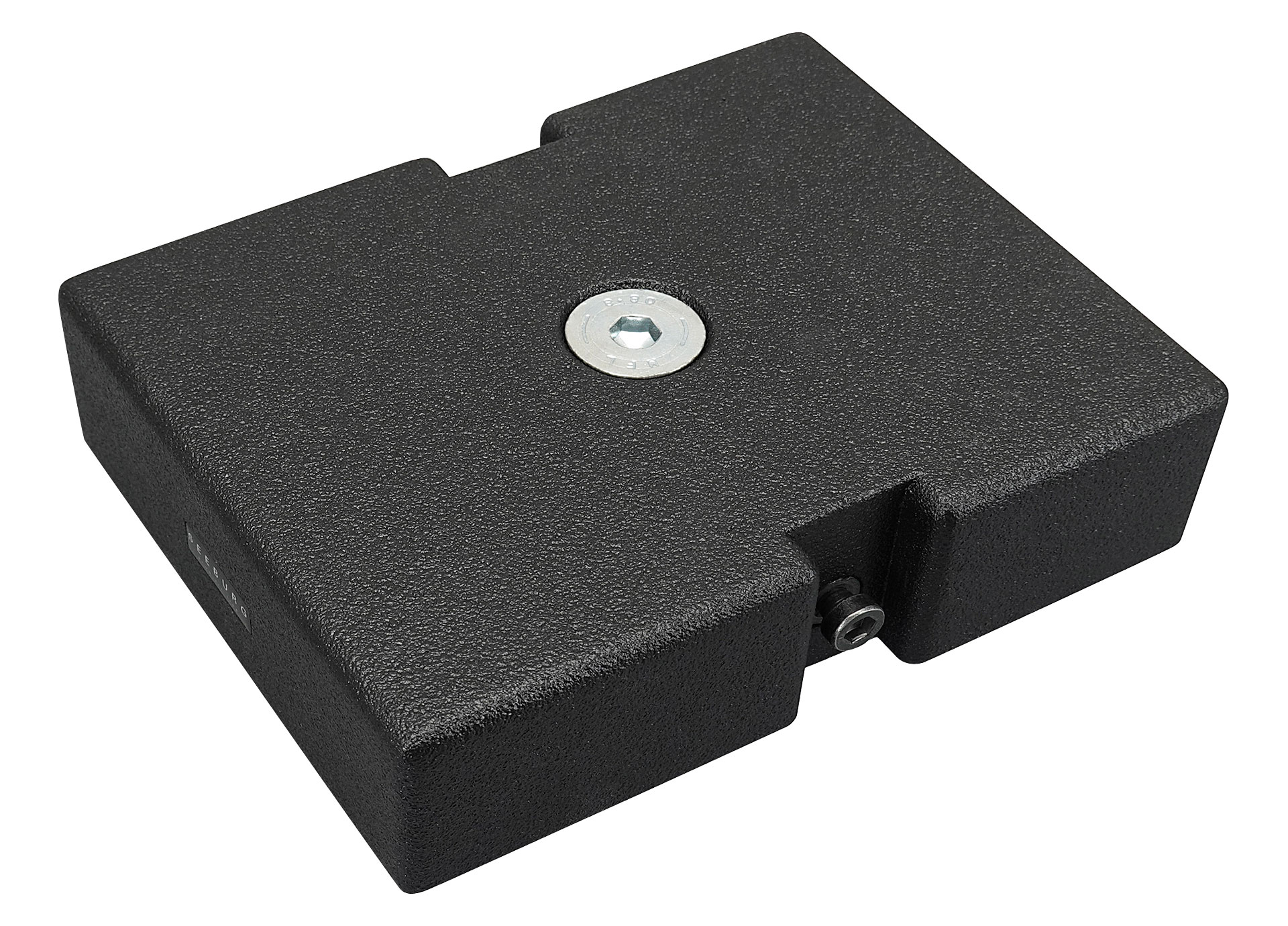

Connection Adapter

for GL 16 i / GL 16 Sub
to be mounted on baseplates with M20 mounting,
(incl. 1 x flat head screw M20 x 80 mm,
2 x flat head screws M10 x 20 mm)

 Order No. 01276/GL16i
x

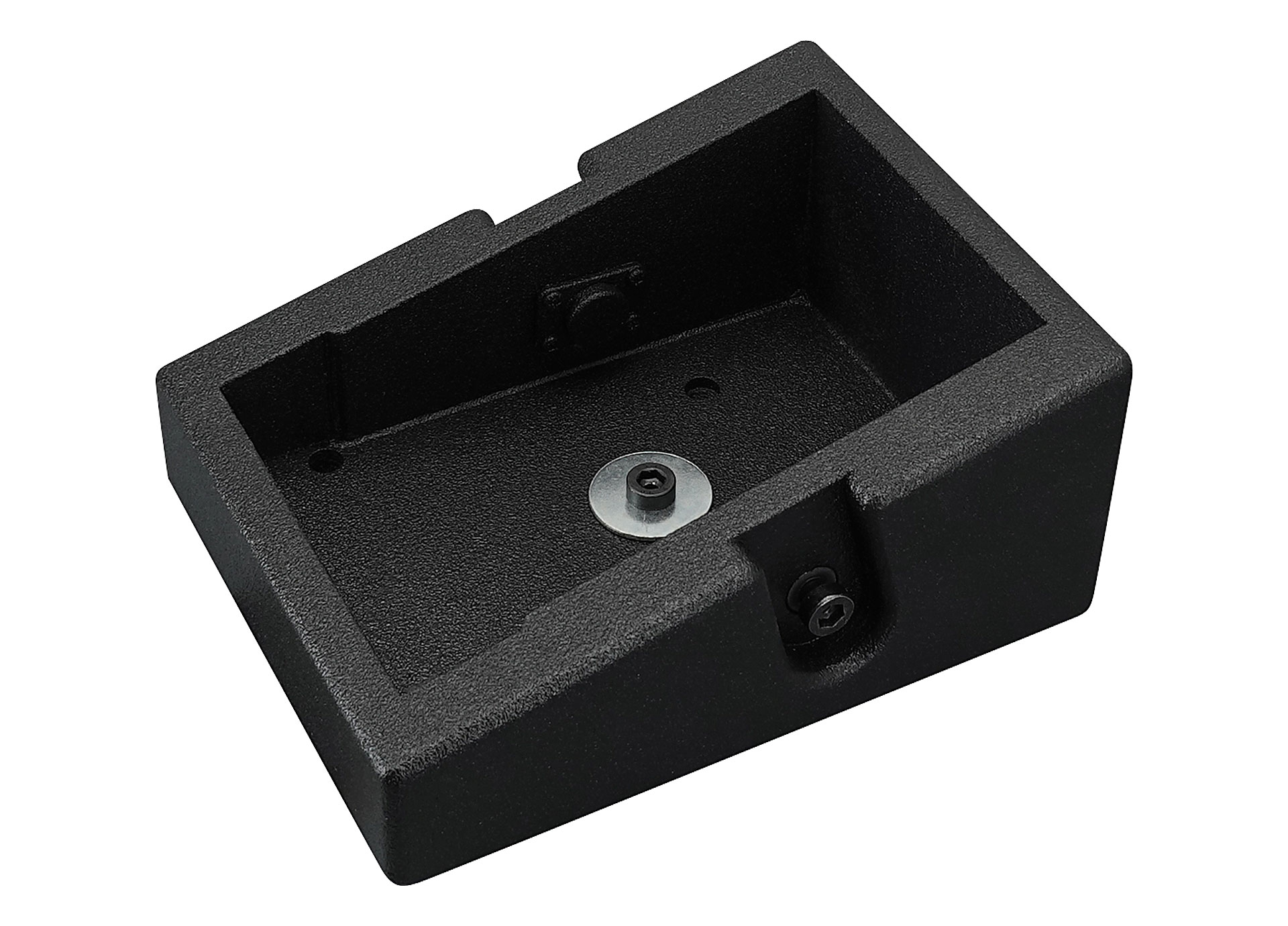

Connection Adapter

for GL 16 c -> GL 16 Sub,
(incl. 1 x screw M10 x 30 mm,
1 x flat washer,
2 x flat head screws M10 x 20 mm)

 Order No. 01276/GL16c
x
Connection Adapter

for GL 24 -> GL 16 Sub



 Order No. 01276/GL24
x
Base Plate Small

with M20 flange,
61,5 x 48,0 cm



Order No. 01278/w   (RAL 9010)

 Order No. 01278
x
Base Plate XL

for stacked mounting,
with M20 flange, cable channel,
80,0 x 80,0 cm



Order No. 01279/w   (RAL 9010)

 Order No. 01279
x

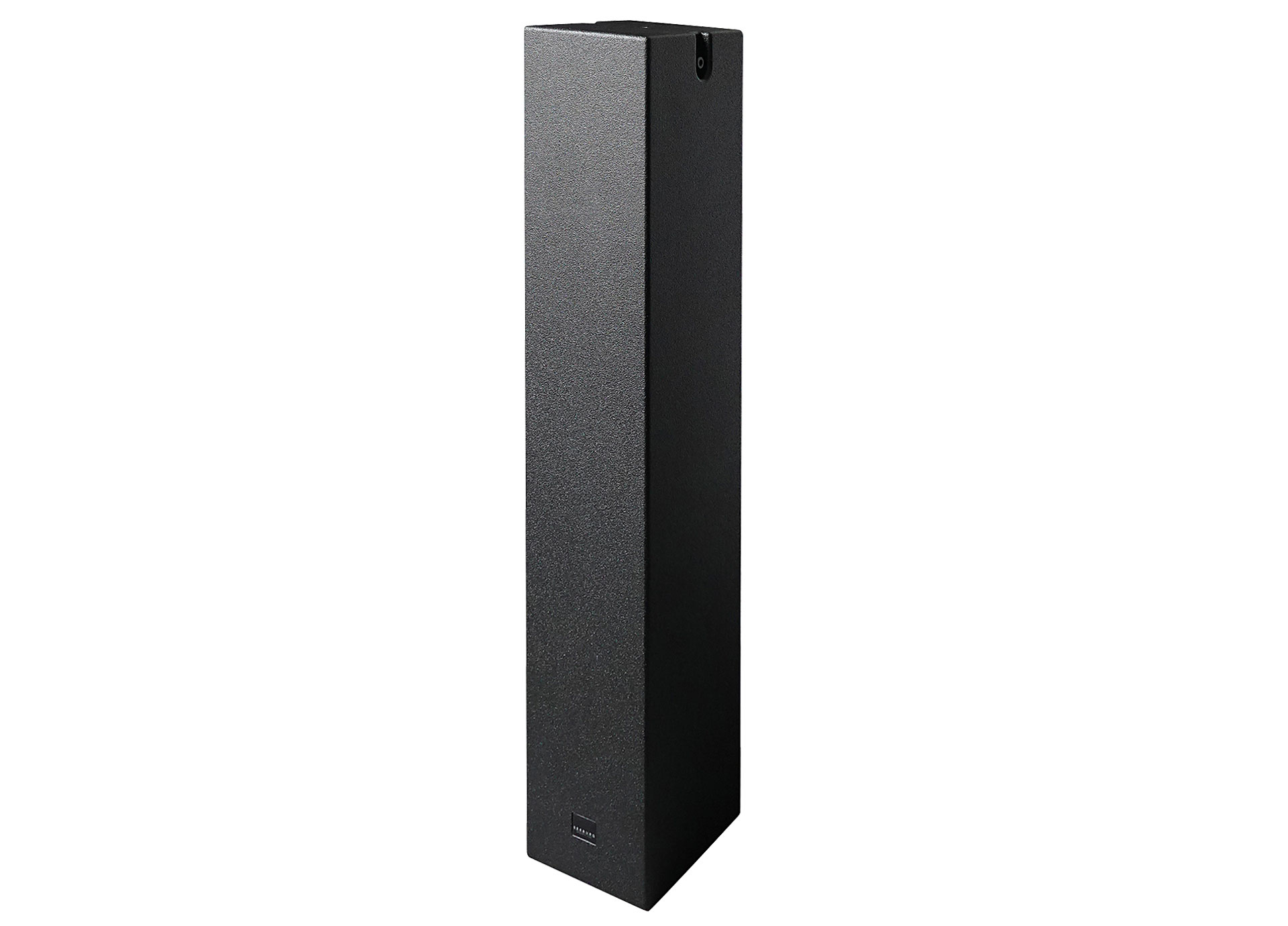

Height Extender

for stacking
GL 8 i, GL 16 i, GL 16 Sub
height 110 cm

 Order No. 01277/110
x

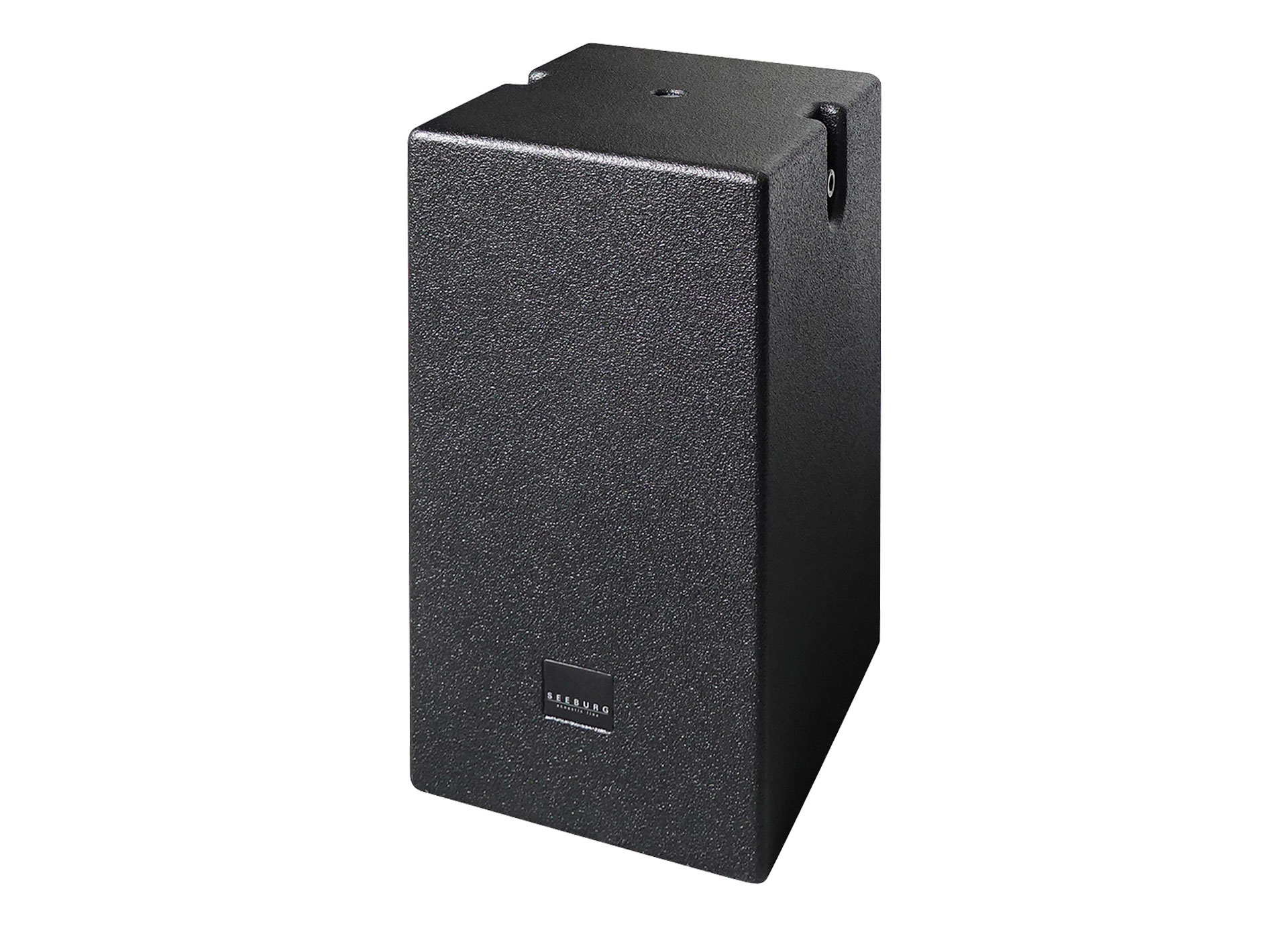

Height Extender

for stacking
GL 8 i, GL 16 i, GL 16 Sub,
height 35,4 cm

 Order No. 01277/35
x

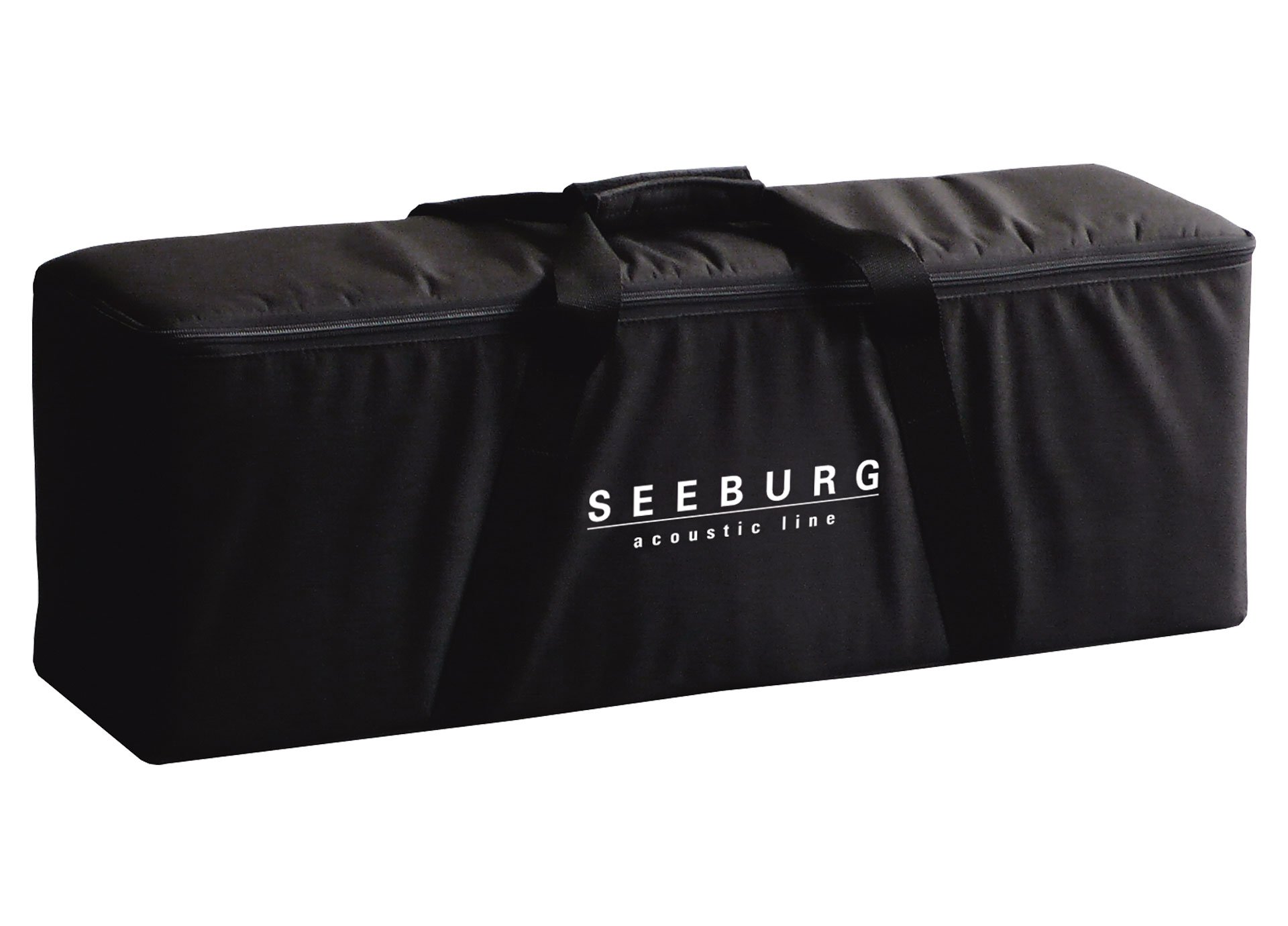

Bag

for one unit GL 16, GL 16 Sub

 Order No. 01230
