GALEO T Sub Passive Bass Extension

GALEO T Sub

00430

 1500 W/ 4500 W
AES / Peak, 8 Ω

00430/GV

 Ground Version without Flying Fittings
Downloads
Datenblatt Galeo T Sub
Benutzerhandbuch
Galeo T / Galeo T Sub
3D-Dateien
Simulationsdaten
Ausschreibungstext
Produktbilder

Basserweiterung für das Galeo T Line Array. Integrierte Flugmechanik für geflogene Arrayanwendungen und Groundstackbetrieb. Das klassische Bassreflexkonzept des Galeo T Sub bewirkt in Kombination mit den besonders strömungsgünstig ausgeführten Bassreflextunneln und dem Hochleistungs - 21“ Neodym-Treiber eine besonders impulstreue und tiefreichende Basswiedergabe.

Technische Daten
Speaker Components 21“ Nd
Description Passive Bass Extension
Power AES / Peak 1500 W / 4500 W
Impedance nominal 8 Ω
SPL 1 W / Peak @ 1 m
 103 dB / 139 dB
Usable Range   - 6 dB
 31 Hz - 150 Hz
Tuning Frequency excursion minimum 36 Hz
Connectors 2 x Speakon NL4MP in/out
Coding: 1+/- loop thru, 2+/- Sub
Handles 4 x
Rigging / Fittings M20 on top and side
Wheelboard fittings
Integrated flying hardware*
Weight 62,0 kg
(+ 9,0 kg wheelboard)
Size height x width x depth 56,0 x 76,0 x 76,0 cm
Order No. 00430
00430/GV (Ground Version)
   * not included in Galeo T Sub GV
Zubehör
x

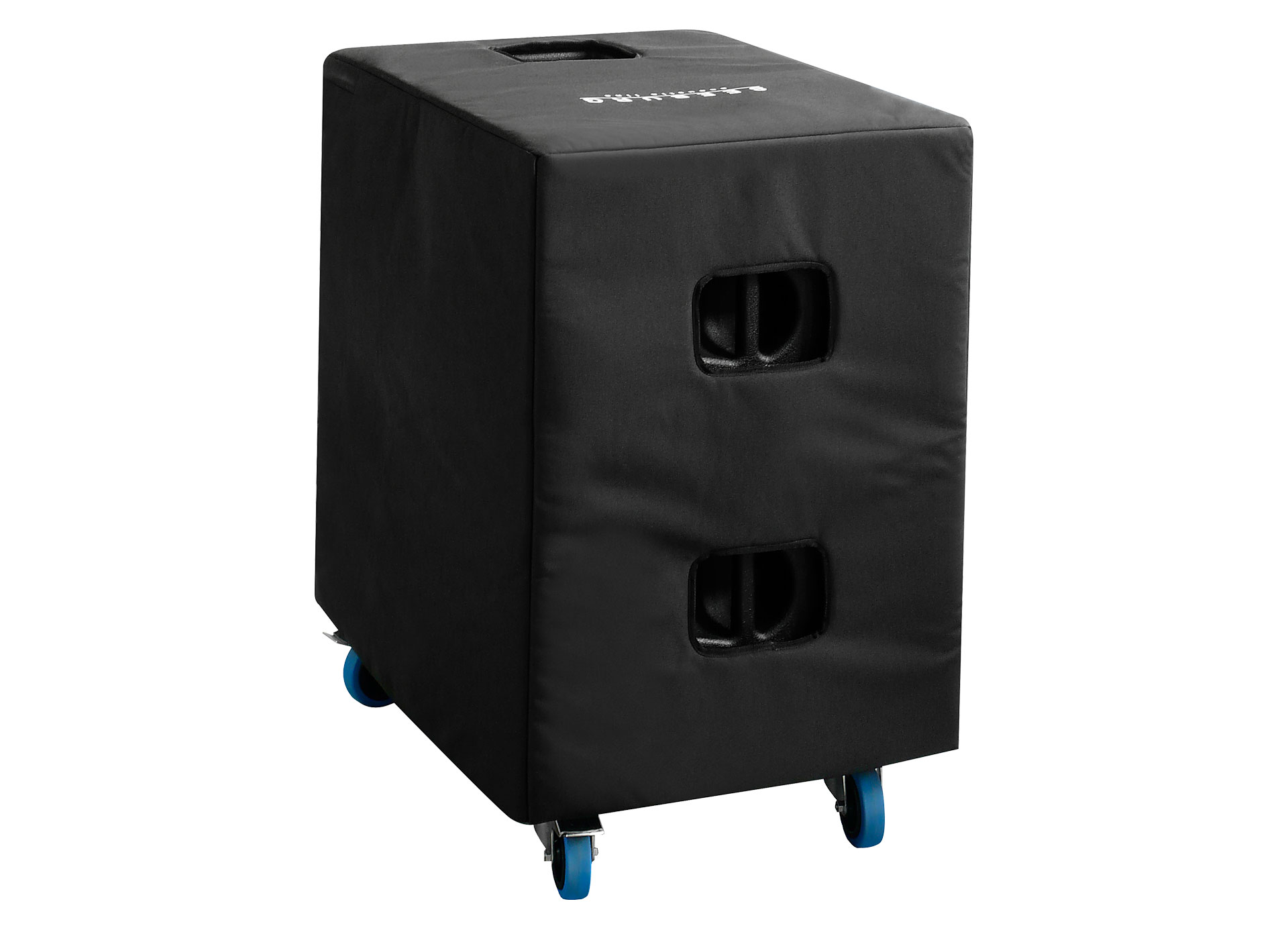

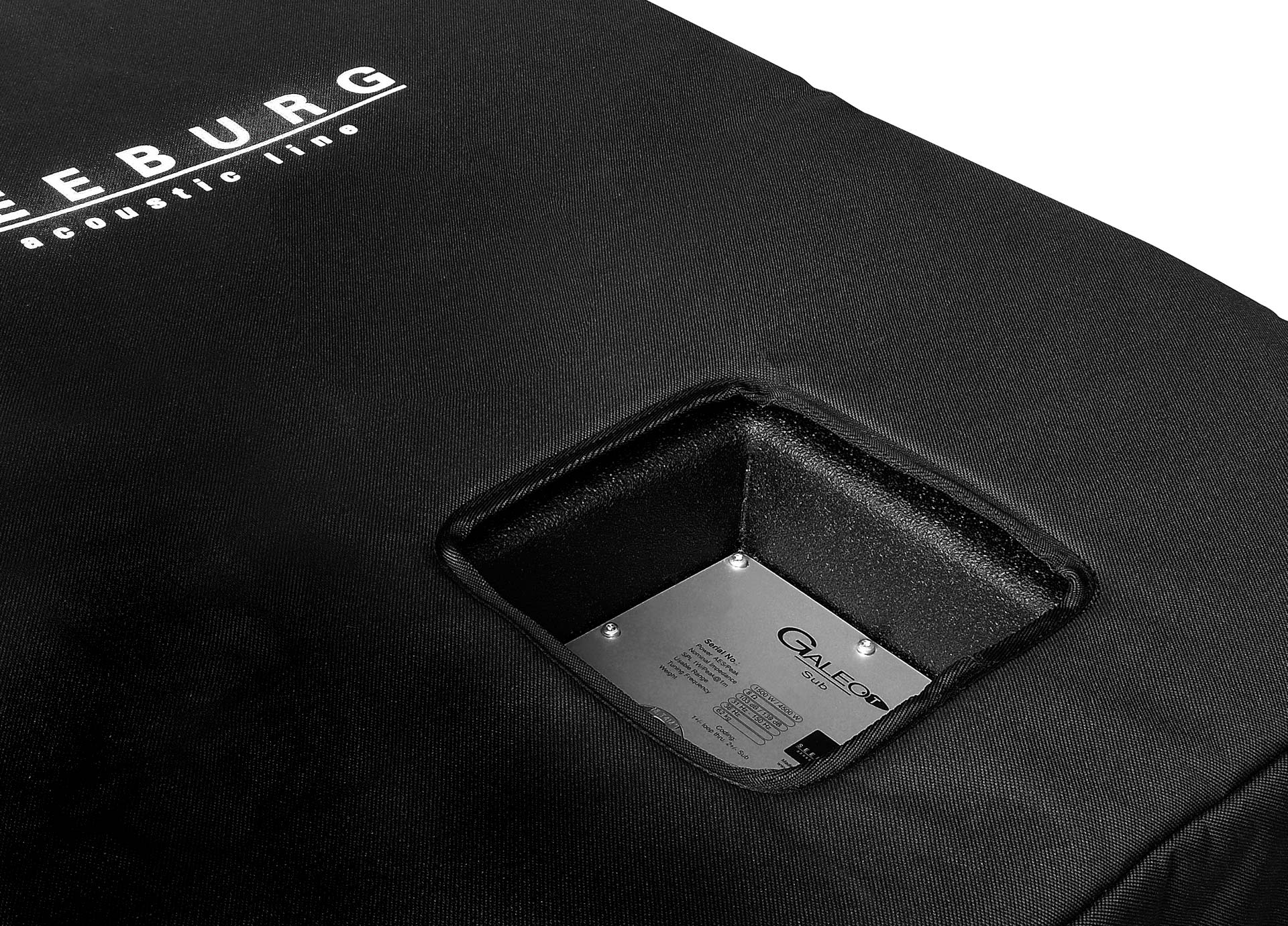

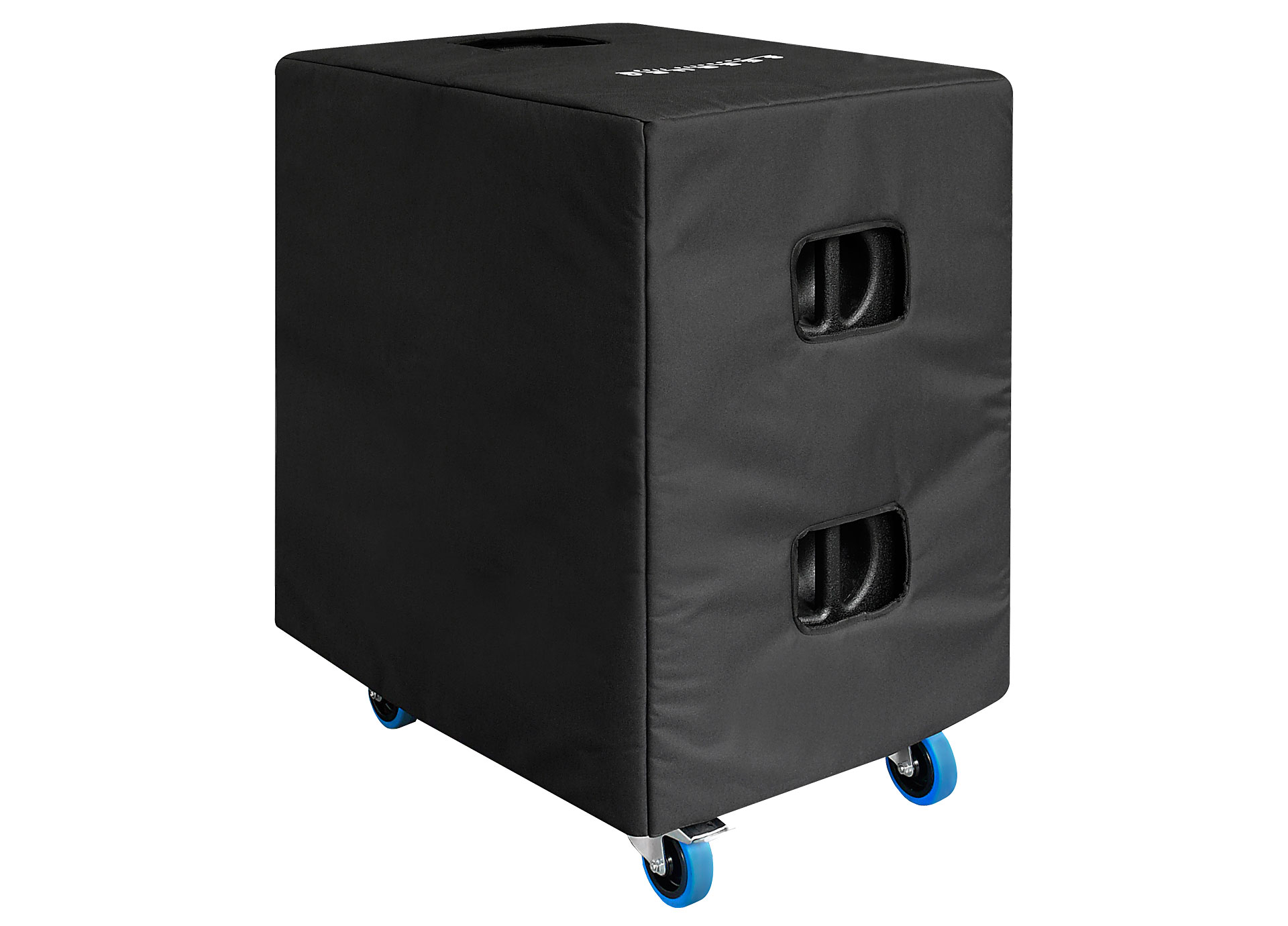

Cover

for Galeo T Sub,
by using wheelboard

 Order No. 01234/T
x

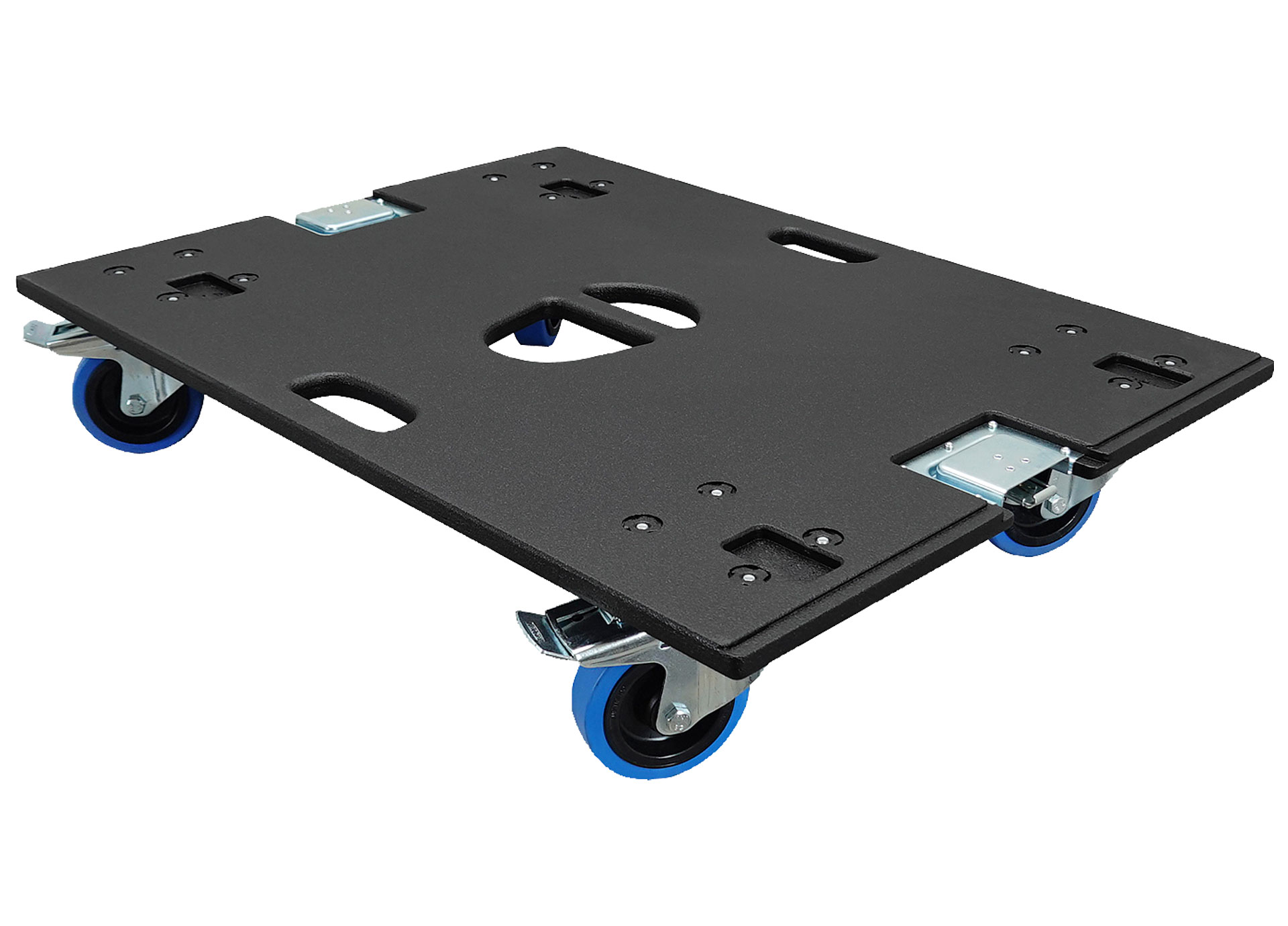

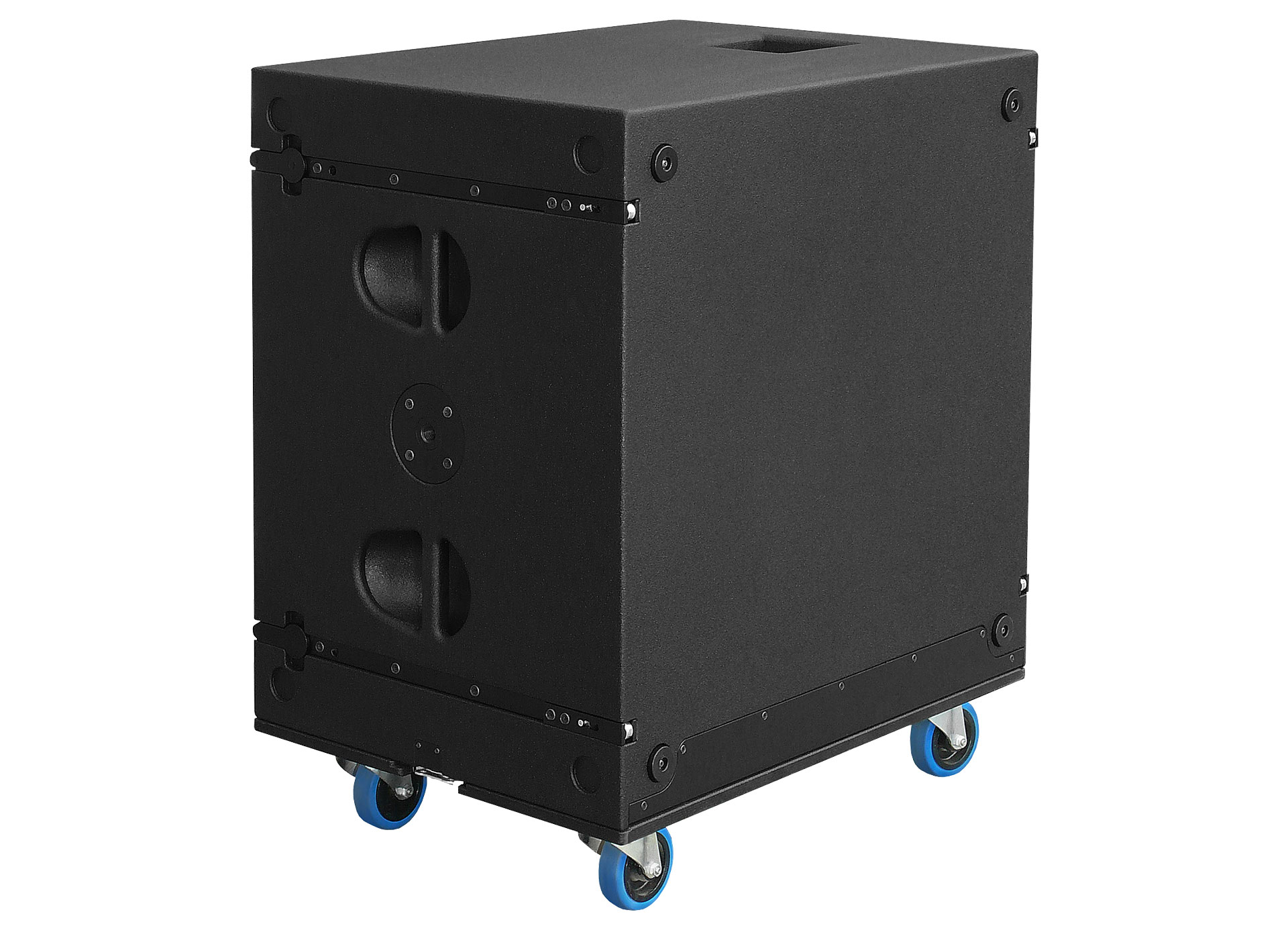

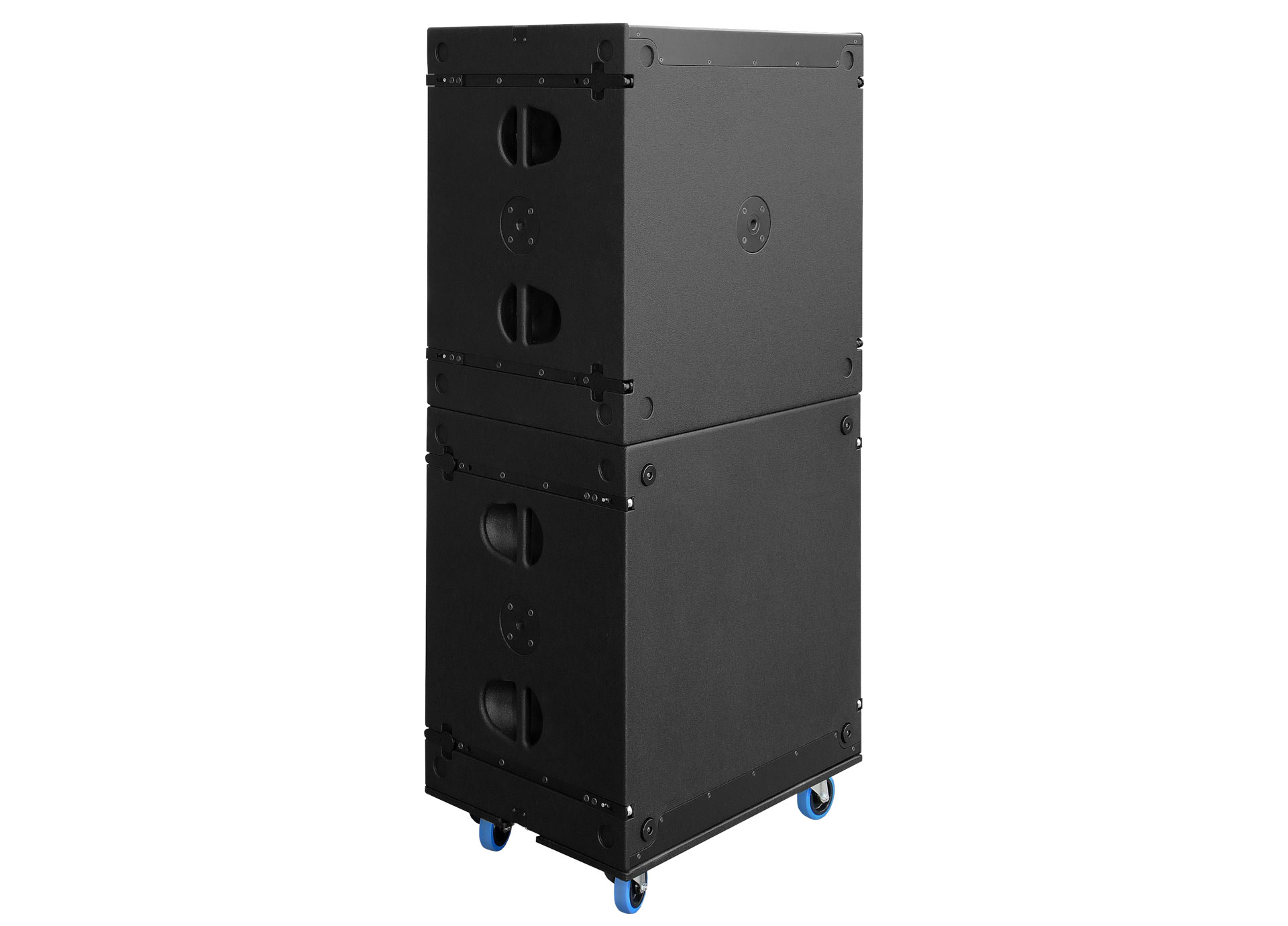

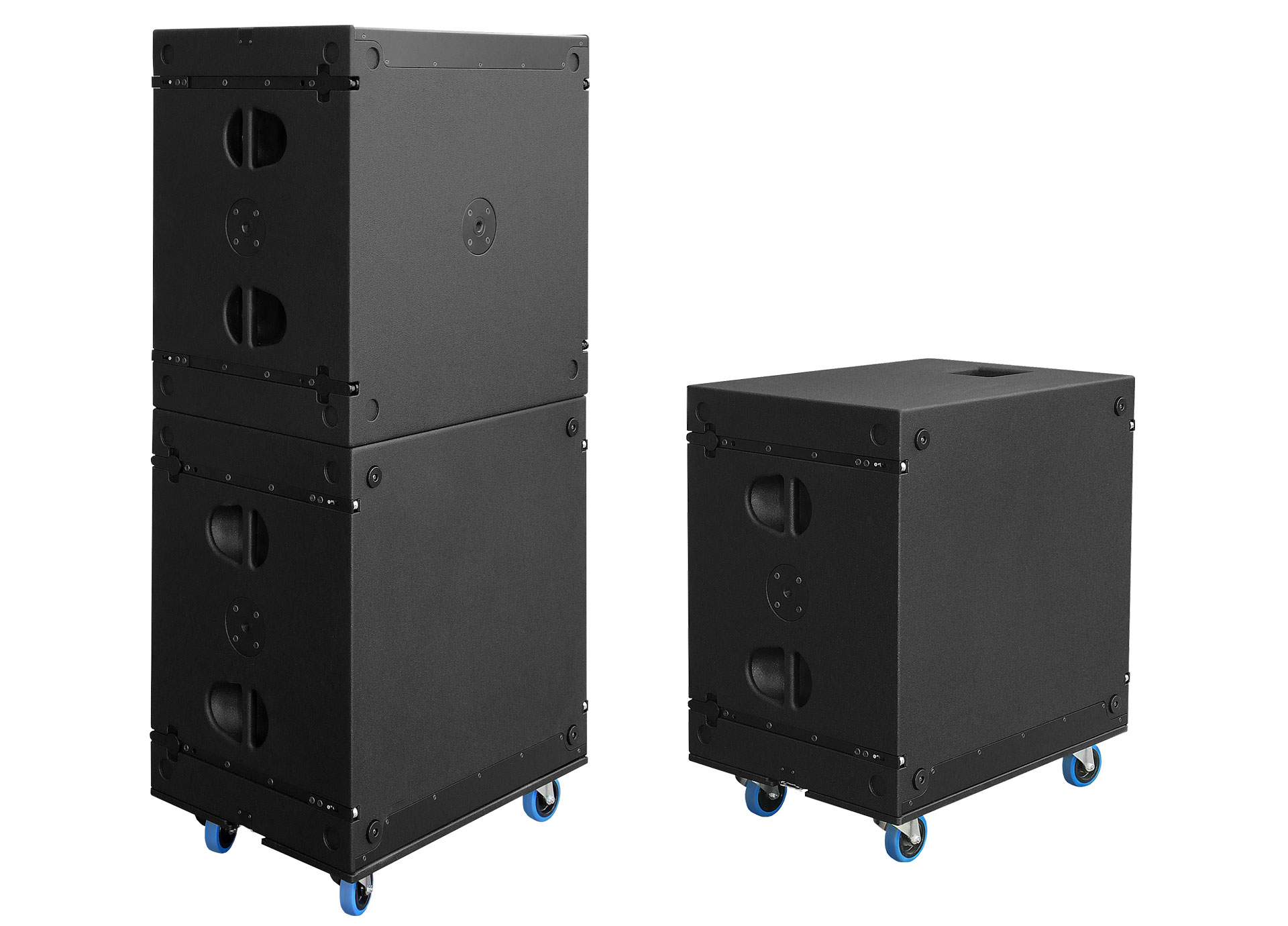

Wheel Board

for Galeo T Sub, on front,
stackable, 9 kg

 Order No. 01275
x

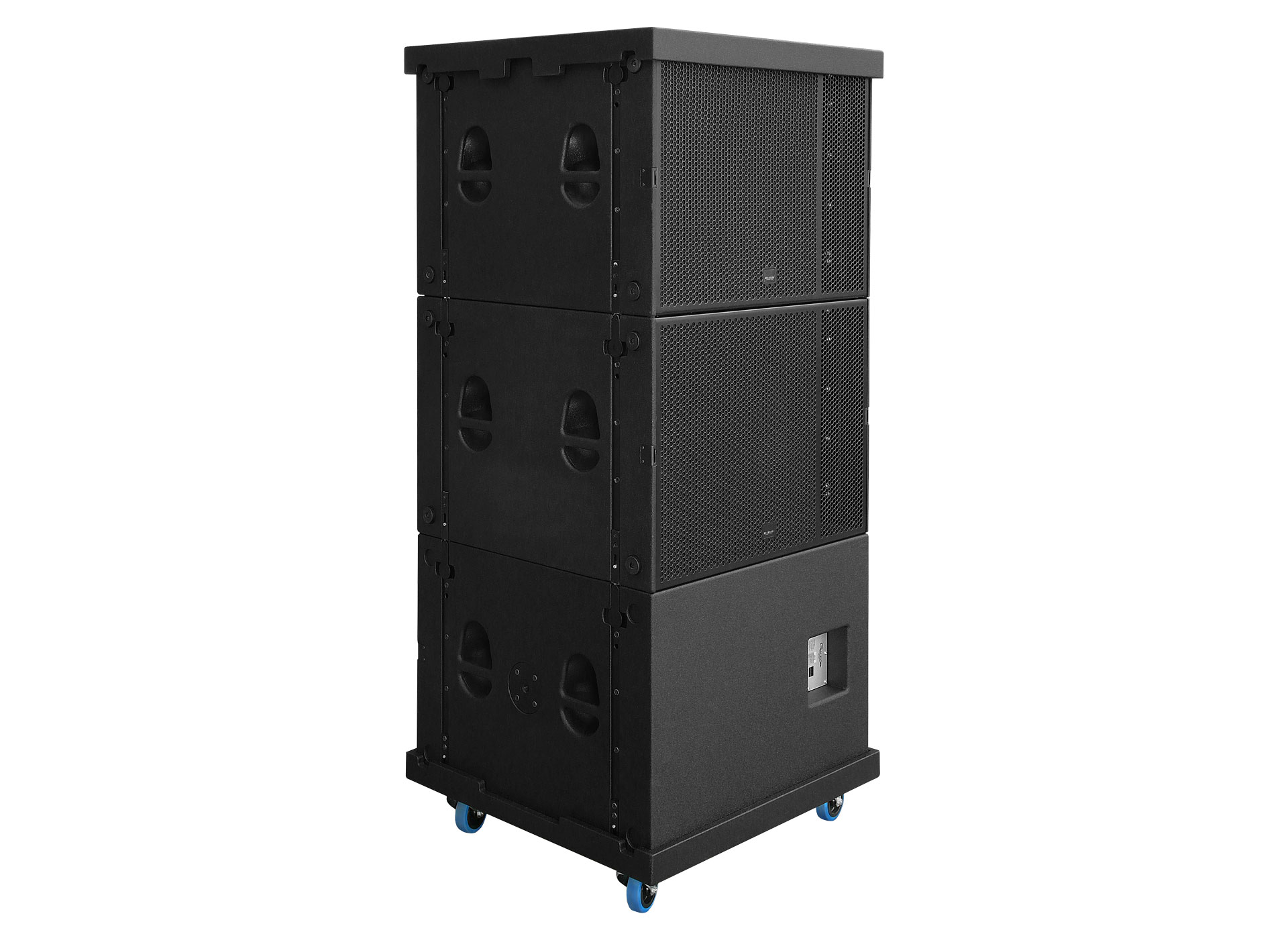

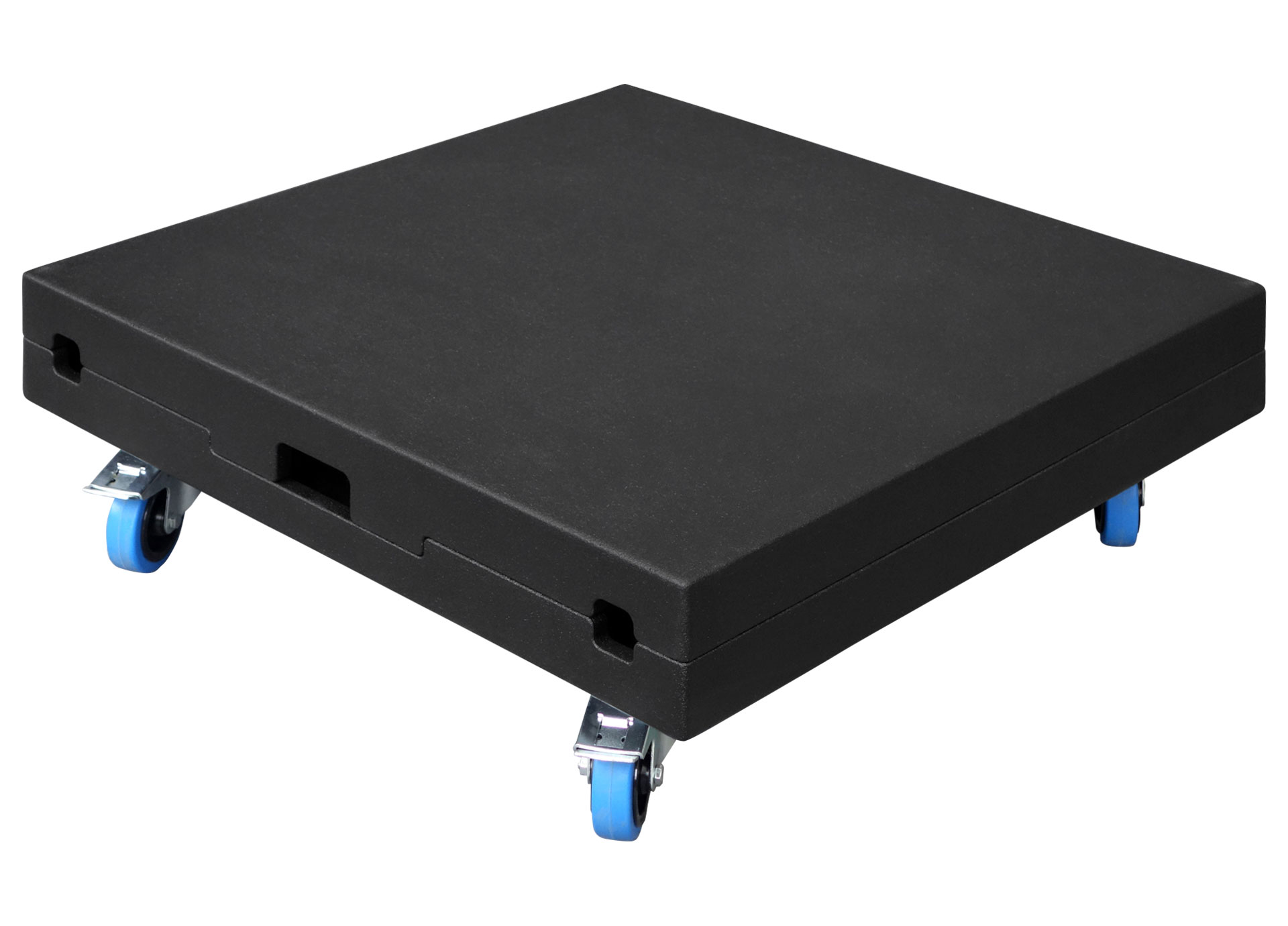

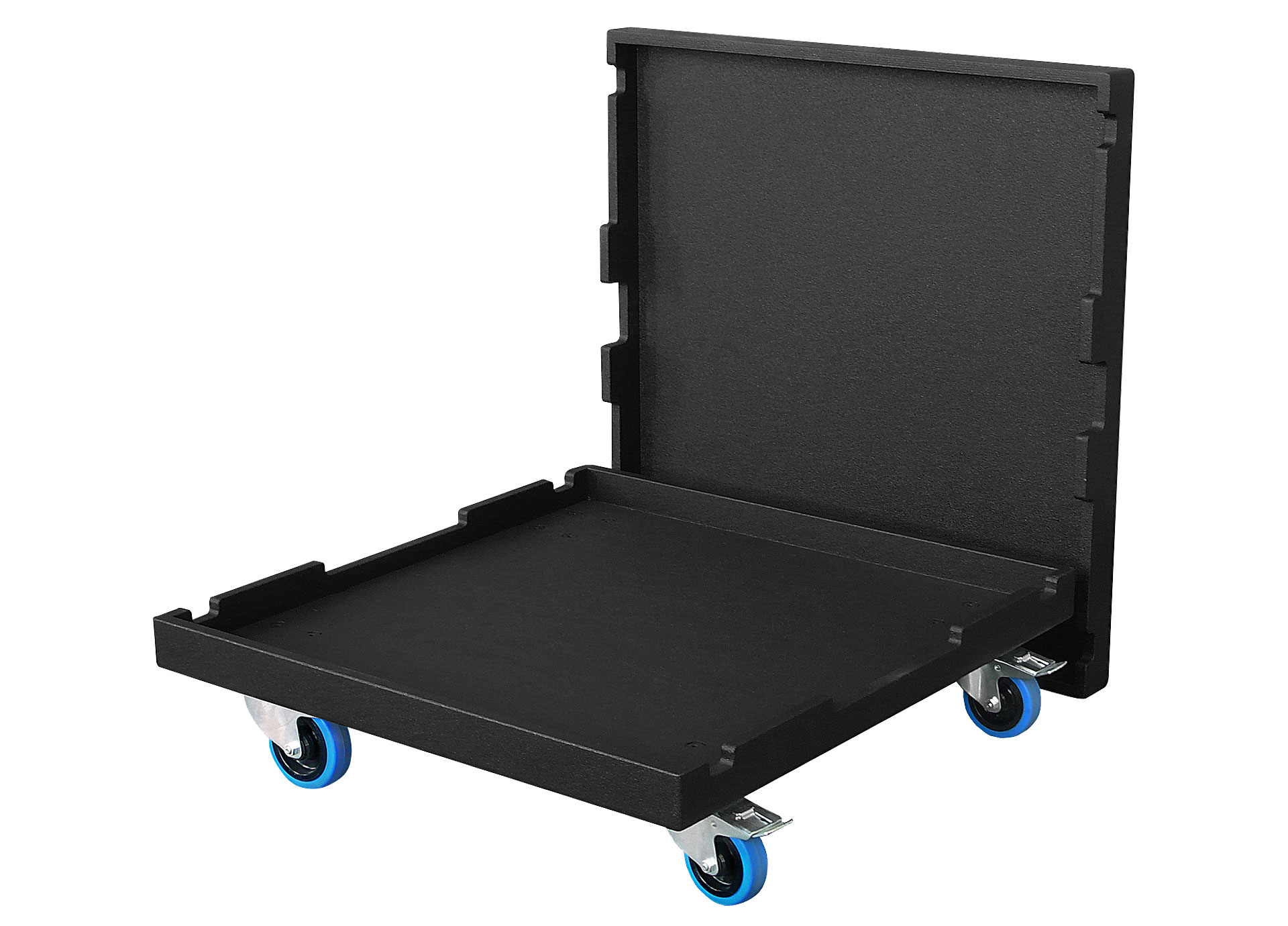

Dolly

for Galeo T Sub,
up to 3 units,
horizontal alignment

 Order No. 01275/Dolly
x
Flying Frame

for Galeo T / Galeo T Sub,
incl. accessories
(3 pcs. 12 x 40 mm ball lock pins,
load adapter and 100 mm distance
bar) - also for ground stack.

 Order No. 01316
x

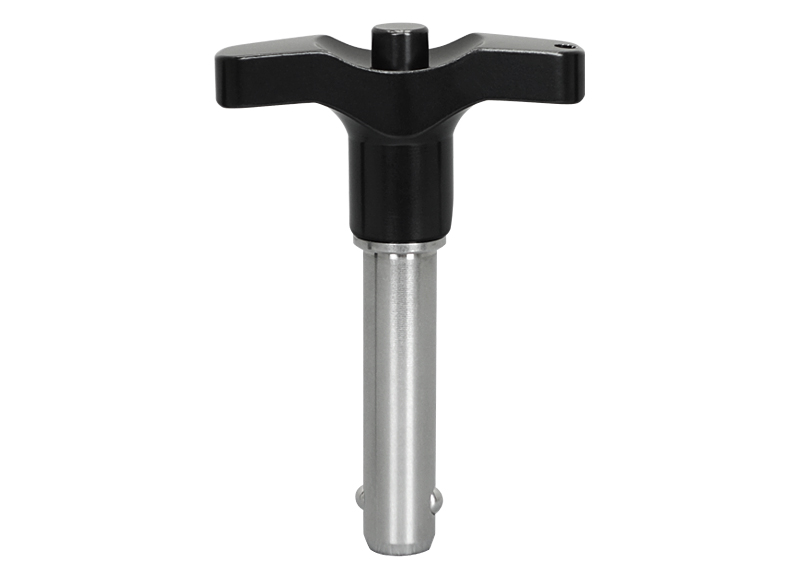

Ball Lock Pin

for Galeo T / Galeo T Sub,
flying frame

6,0 x 40,0 mm

Order No. 01380/6x40

12,0 x 40,0 mm

 Order No. 01380/12x40
x
Load Adapter

for Galeo T / Galeo T Sub,
flying frame

 Order No. 01316/L
x
Speaker Pole

250 mm, ø 35 mm, M20,
with ring lock

 Order No. 03020
x
Feet

Foot, 38 x 10 mm, Rubber

Order No. 07611



Foot, 38 x 10 mm, Nylon

 Order No. 07609
