GALEO S Sub Passive Bass Extension

GALEO S Sub

00460

1000 W / 3000 W
AES / Peak, 8 Ω
Downloads
Data Sheet Galeo S Sub
Galeo S-Series Flyer
3-D-Files_Galeo S Sub
Product Pictures

Bass extension for the Galeo S line array featuring integrated flying hardware for flown or ground stacked applications. The classic bass reflex design in combination with flow optimised ports and the high power 15“ Neodymium driver provide accurate bass reproduction even in the lowest frequency range.

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
Specifications
Speaker Components 1 x 15“
Description Passive Bass Extension
Power AES / Peak 1000 W / 3000 W
Impedance nominal 8 Ω
SPL 1 W / Peak @ 1 m
101 dB / 136 dB
Usable Range   - 6 dB
35 Hz - 220 Hz
Tuning Frequency excursion minimum 42 Hz
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1+/- loop thru, 2+/- Sub
Handles 2 x
Rigging / Fittings M20 on top and side
Wheelboard fittings
Integrated flying hardware
Weight 33,0 kg
(+ 7,0 kg wheelboard)
Size height x width x depth 56,0 x 45,0 x 60,0 cm
Order No. 00460
Accessories

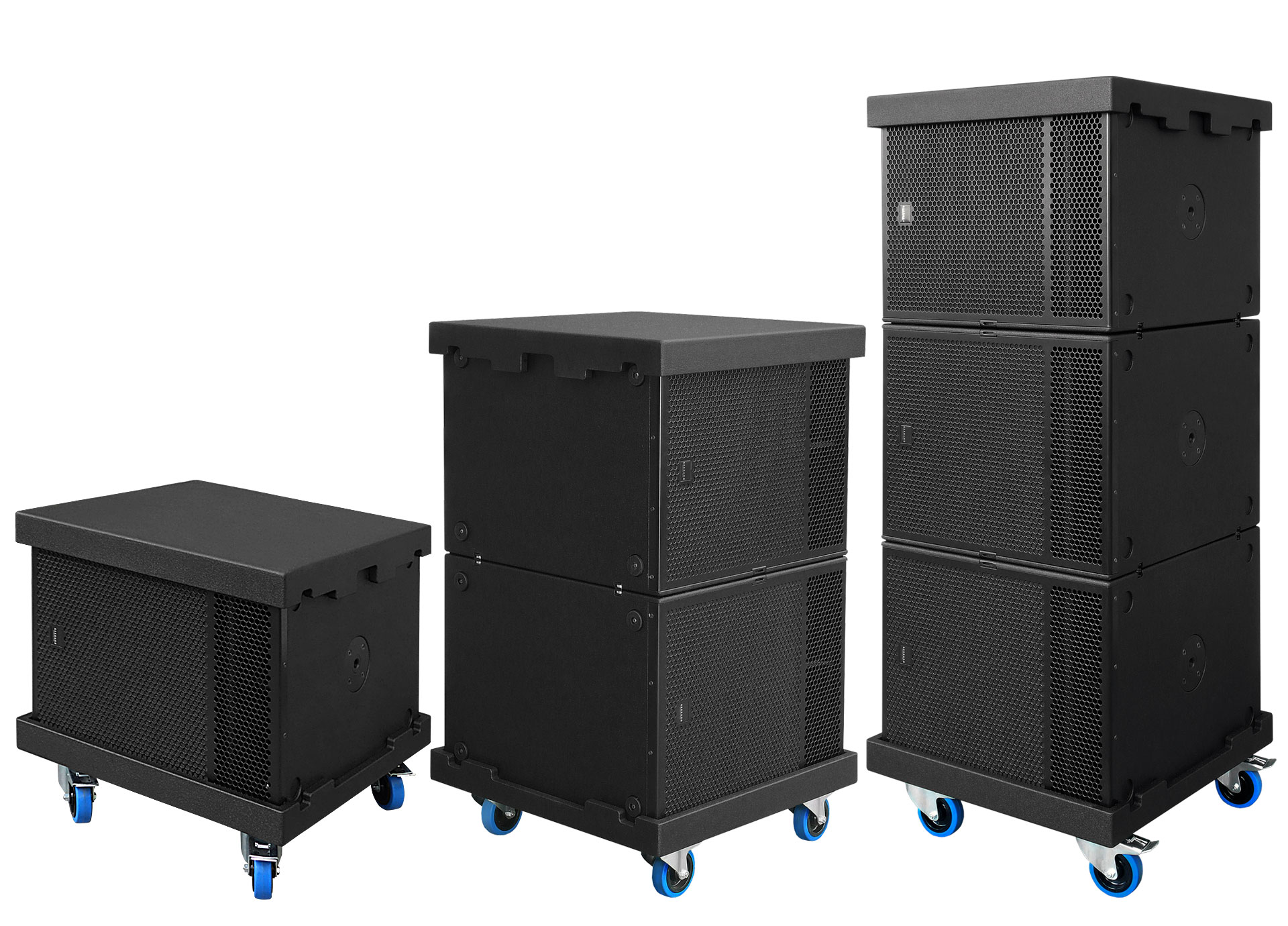

Dolly

for Galeo S Sub, up to 3 units,
horizontal alignment

Order No. 01269/Dolly/3

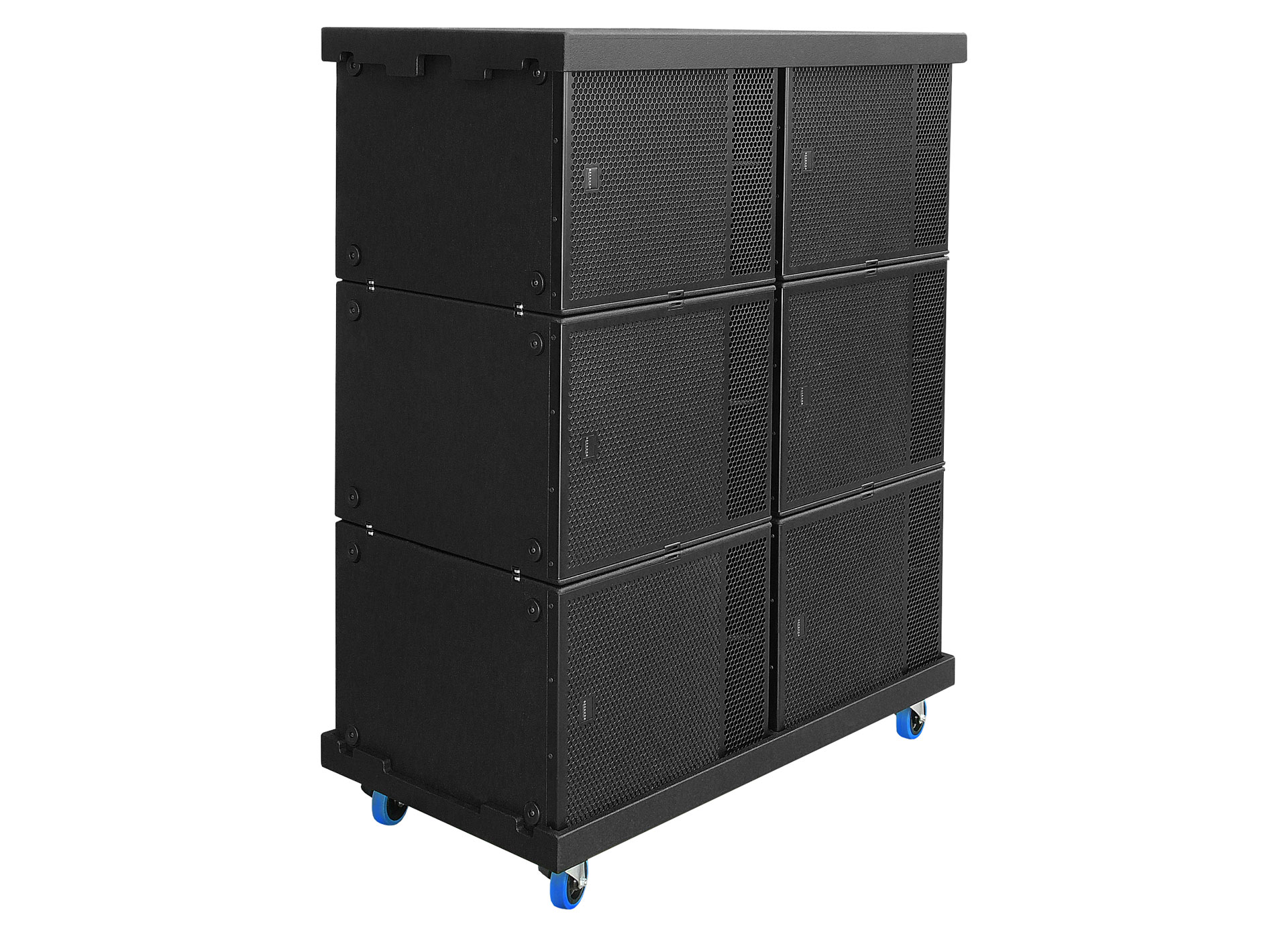

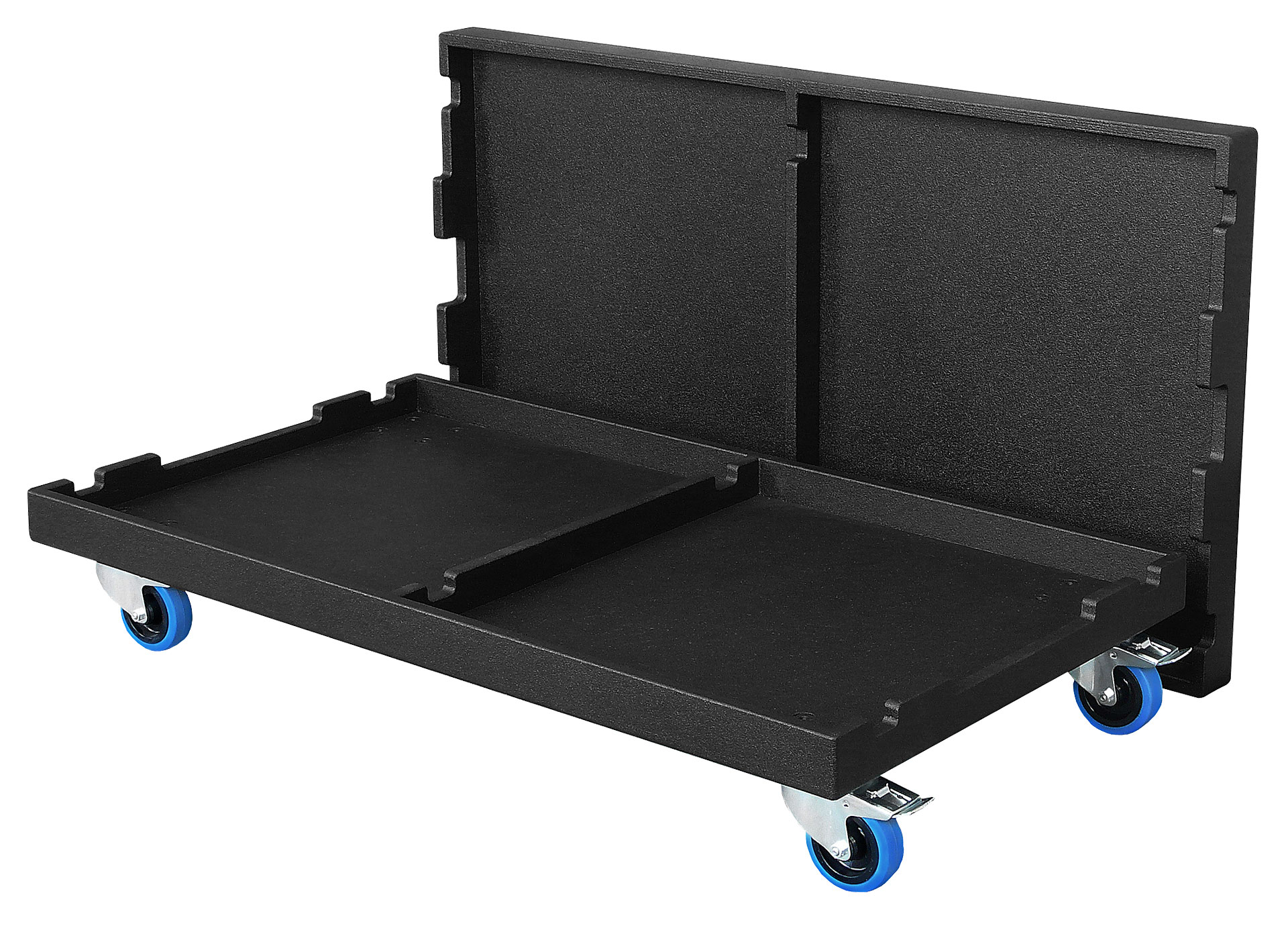

Dolly

for Galeo S Sub, up to 6 units,
horizontal alignment

Order No. 01269/Dolly/6

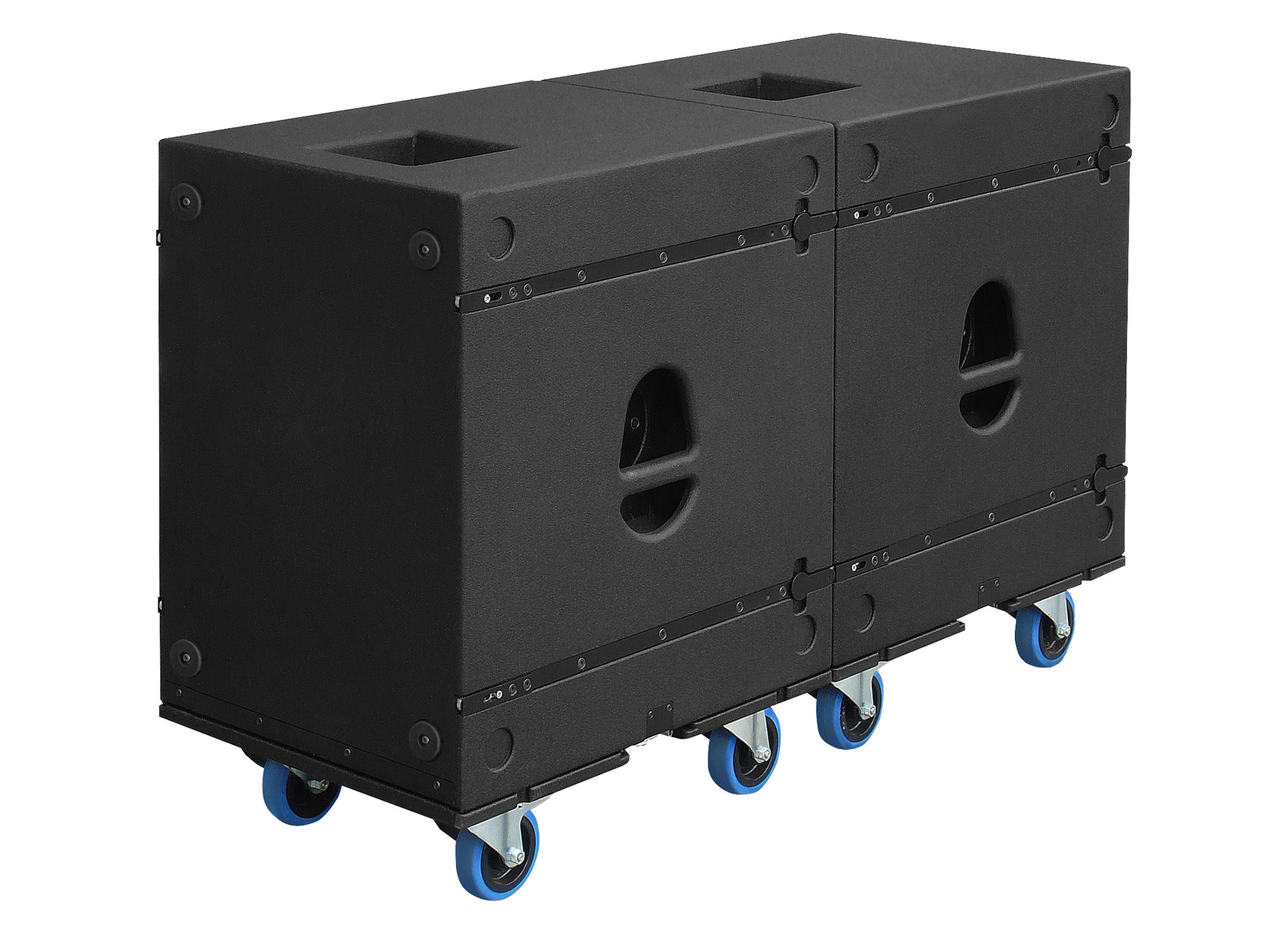

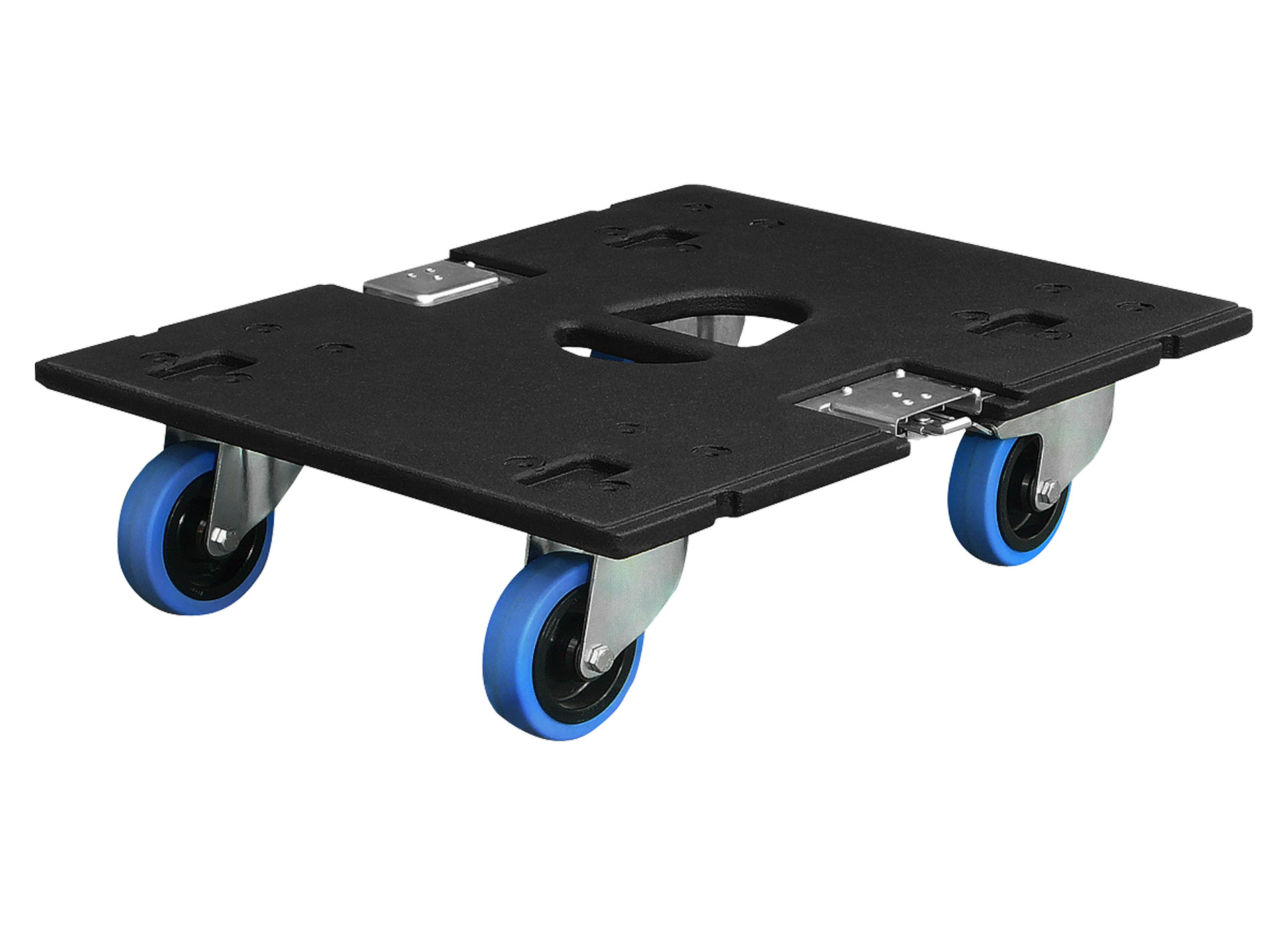

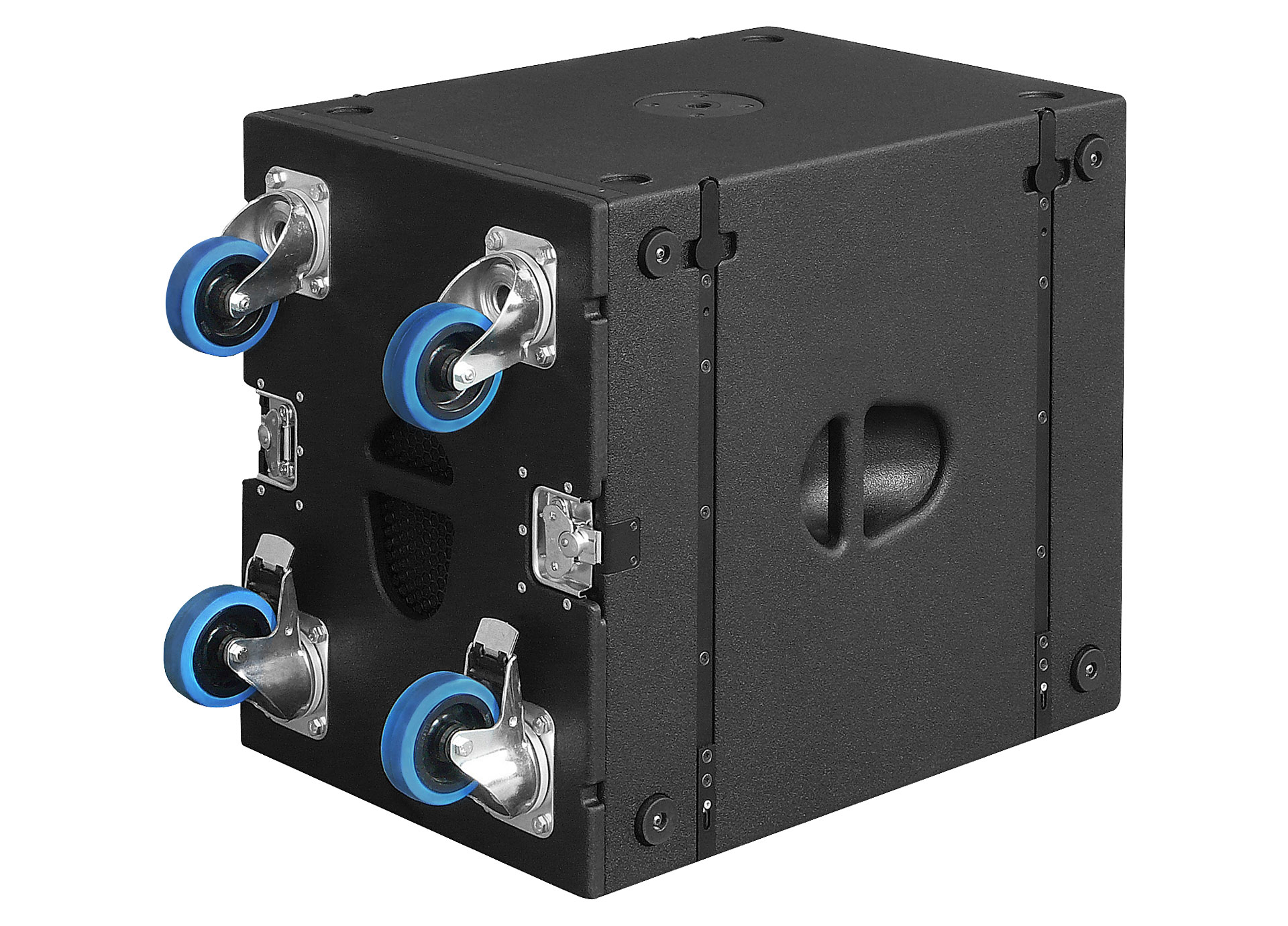

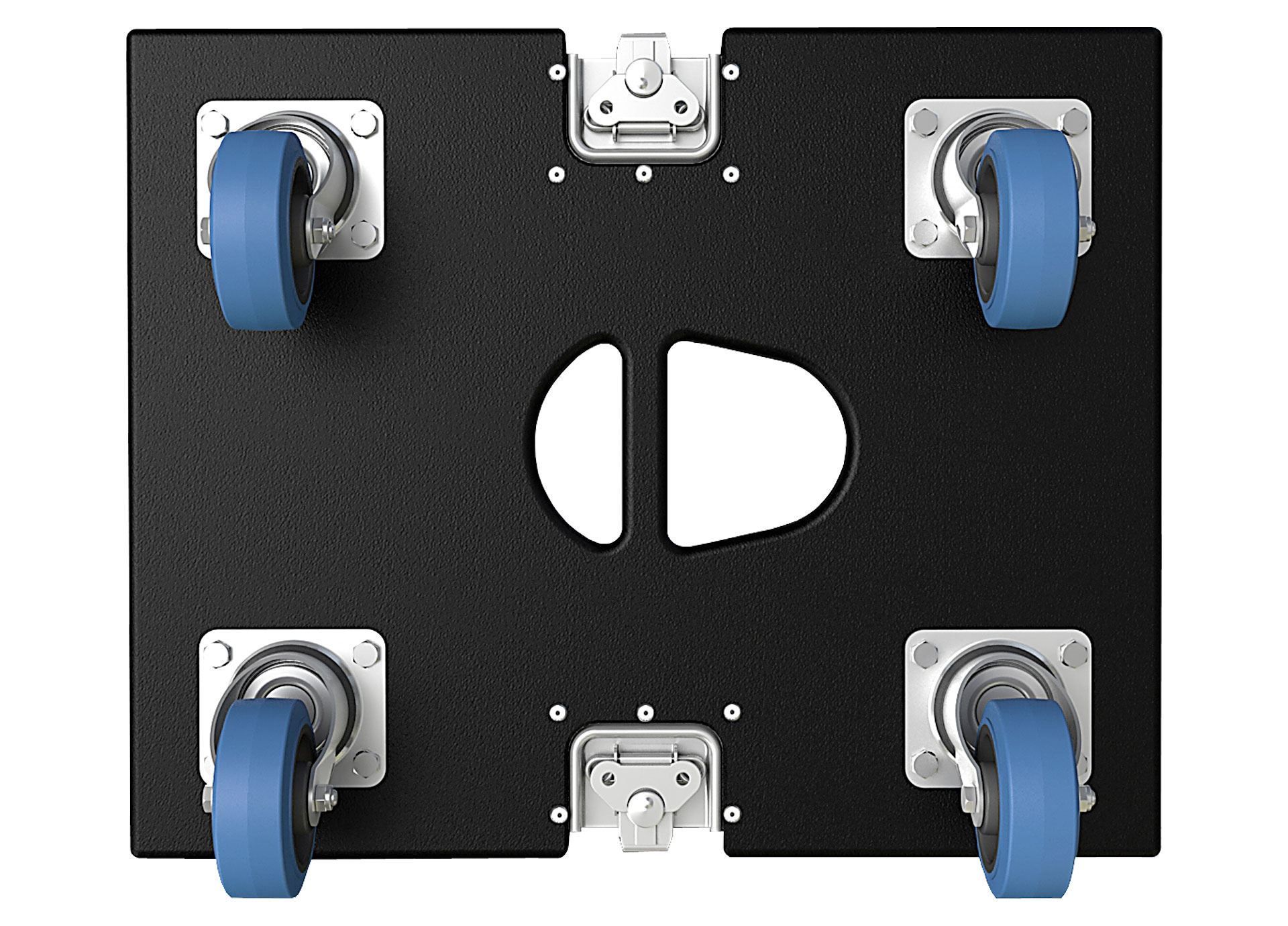

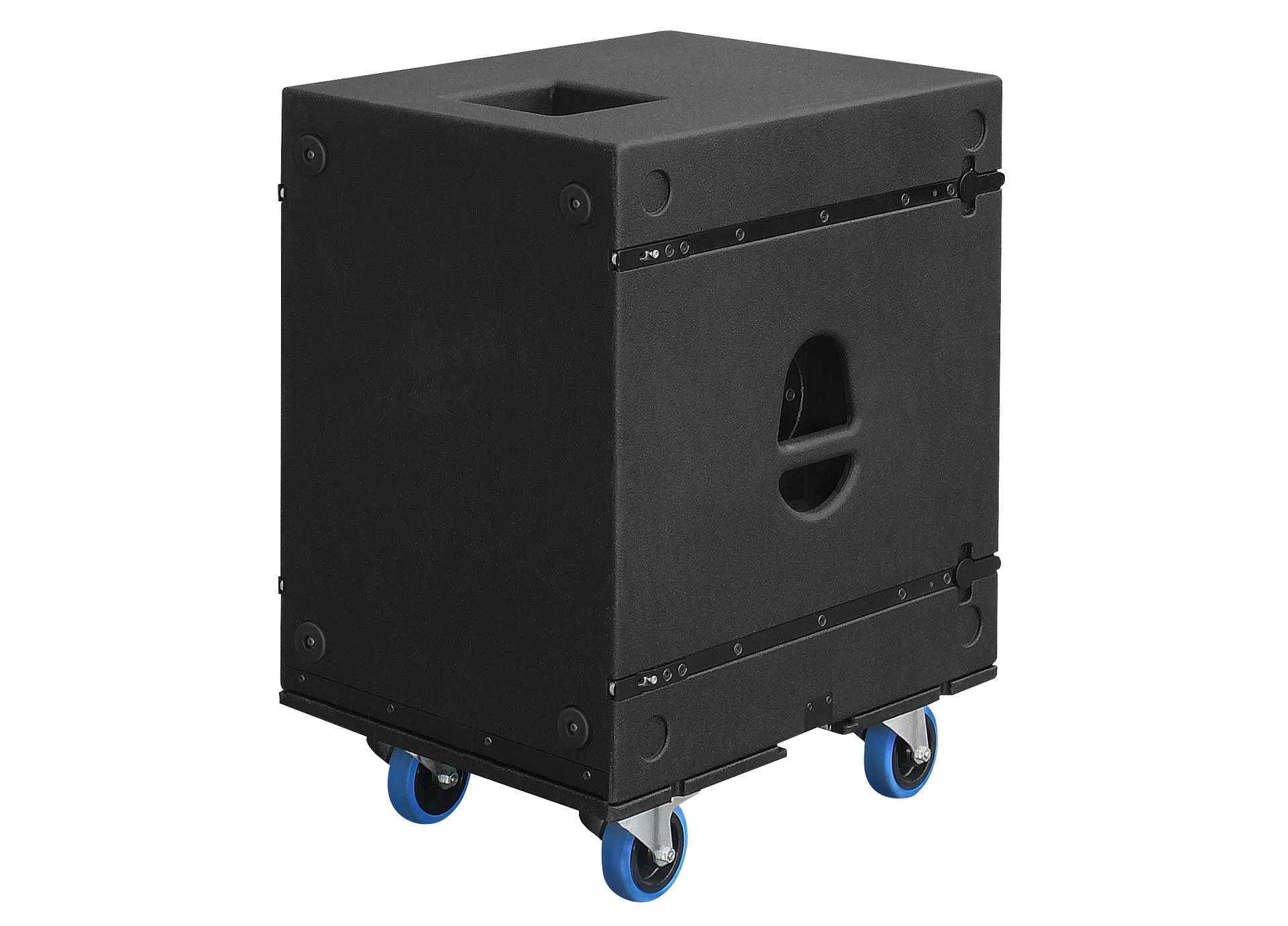

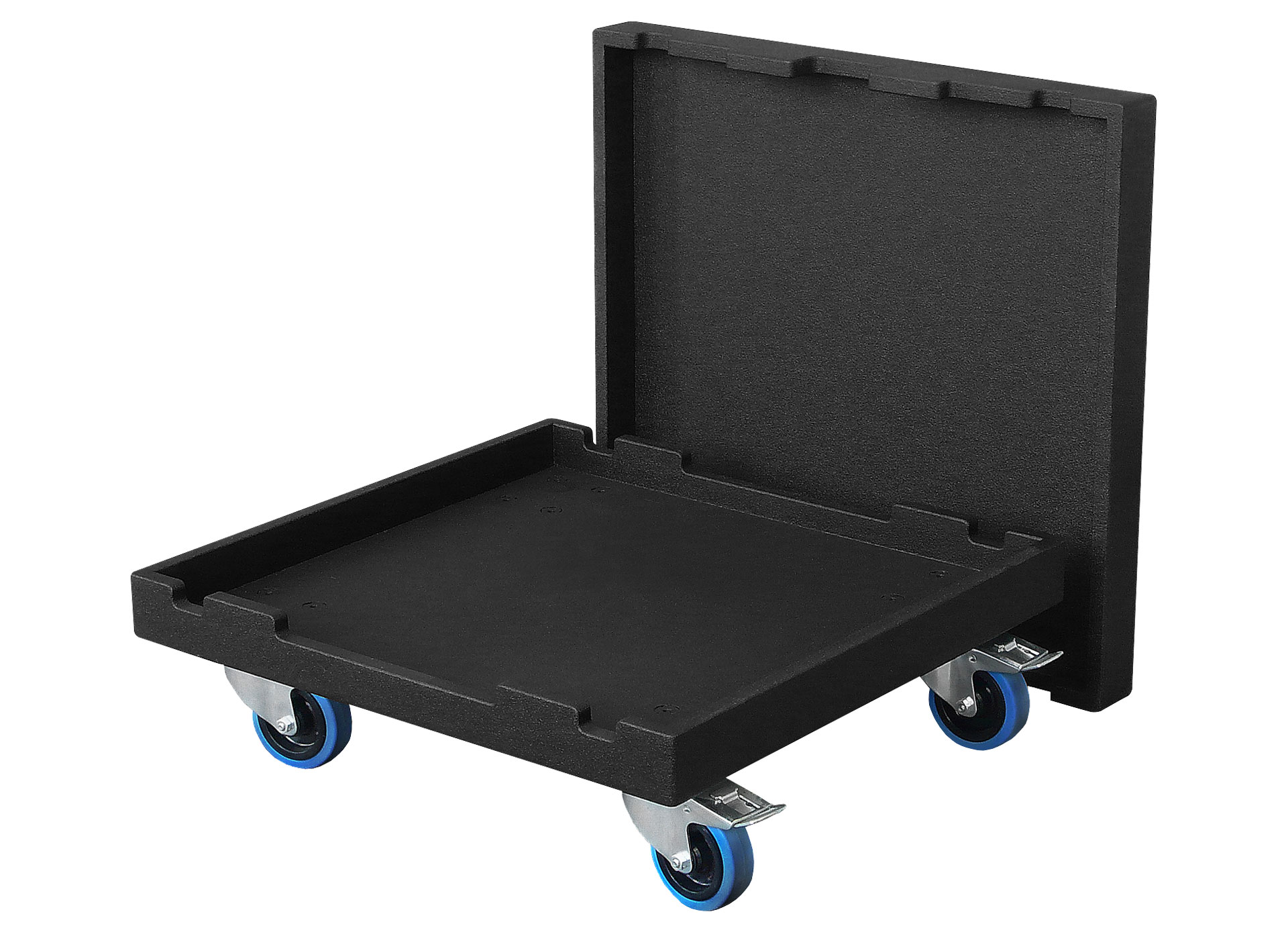

Wheel Board

for Galeo S Sub,
also usable as Dolly,
stackable, 7,0 kg

Order No. 01269

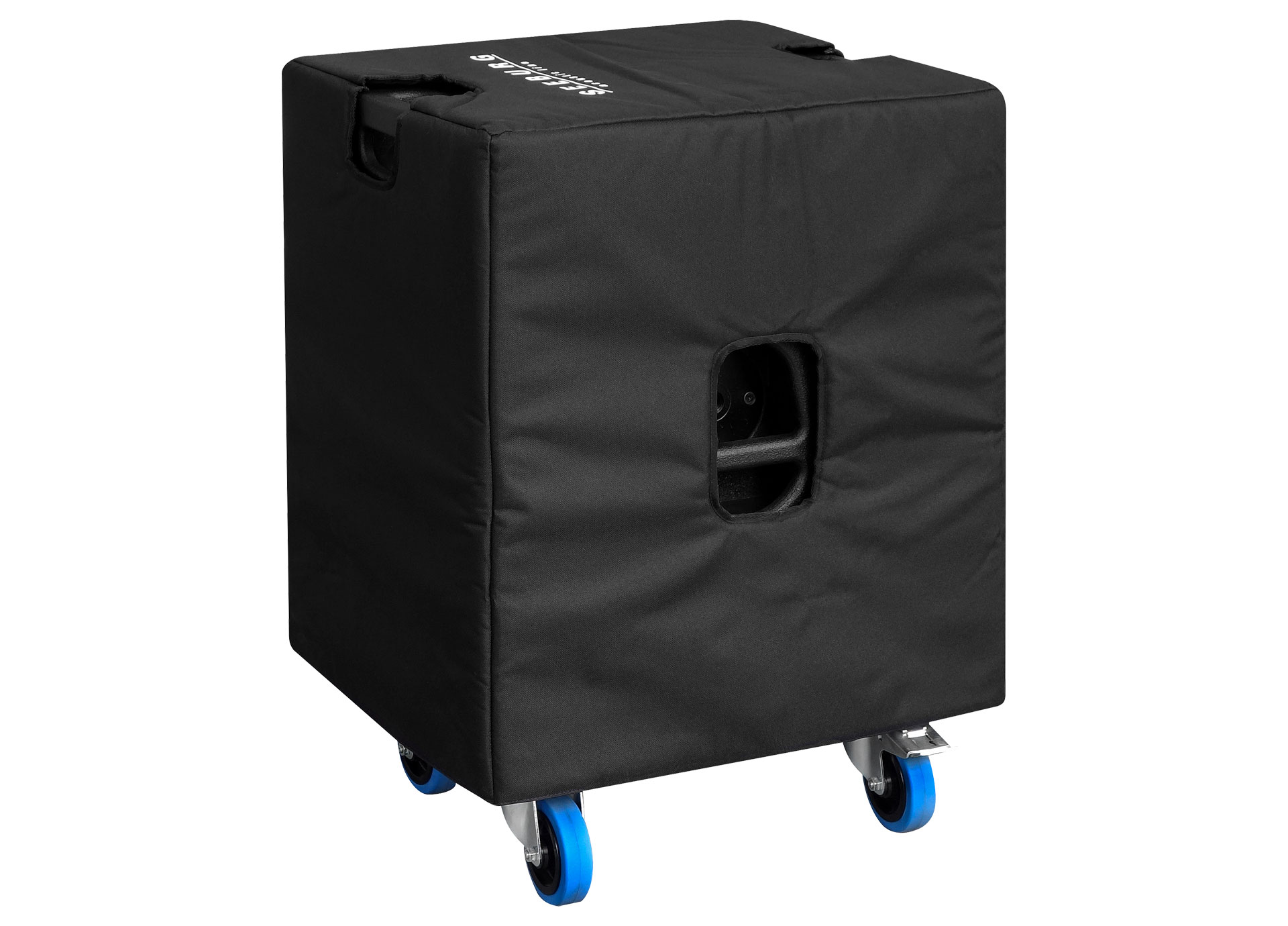

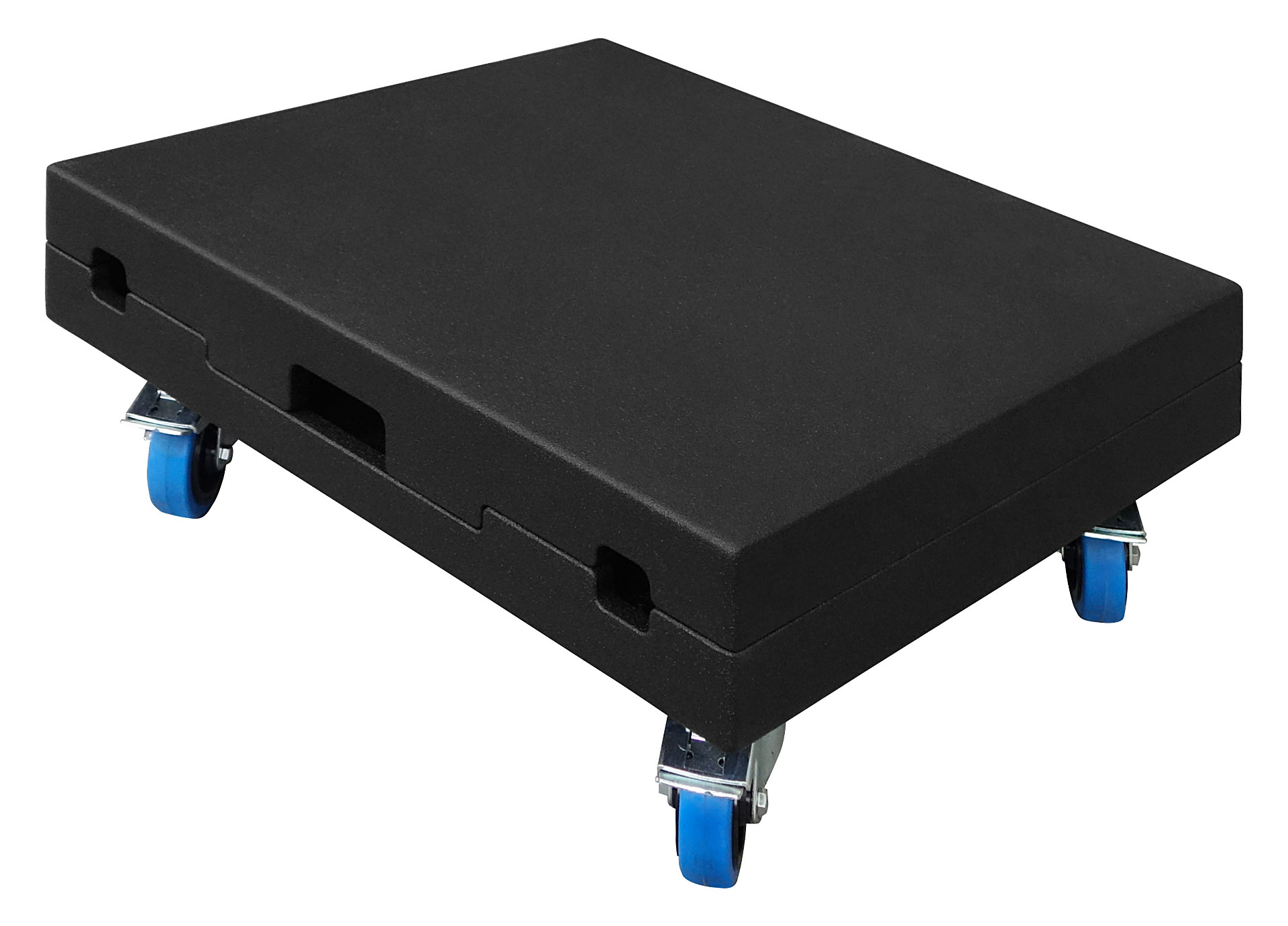

Cover

for Galeo S Sub,
by using wheelboard

Order No. 01234/S

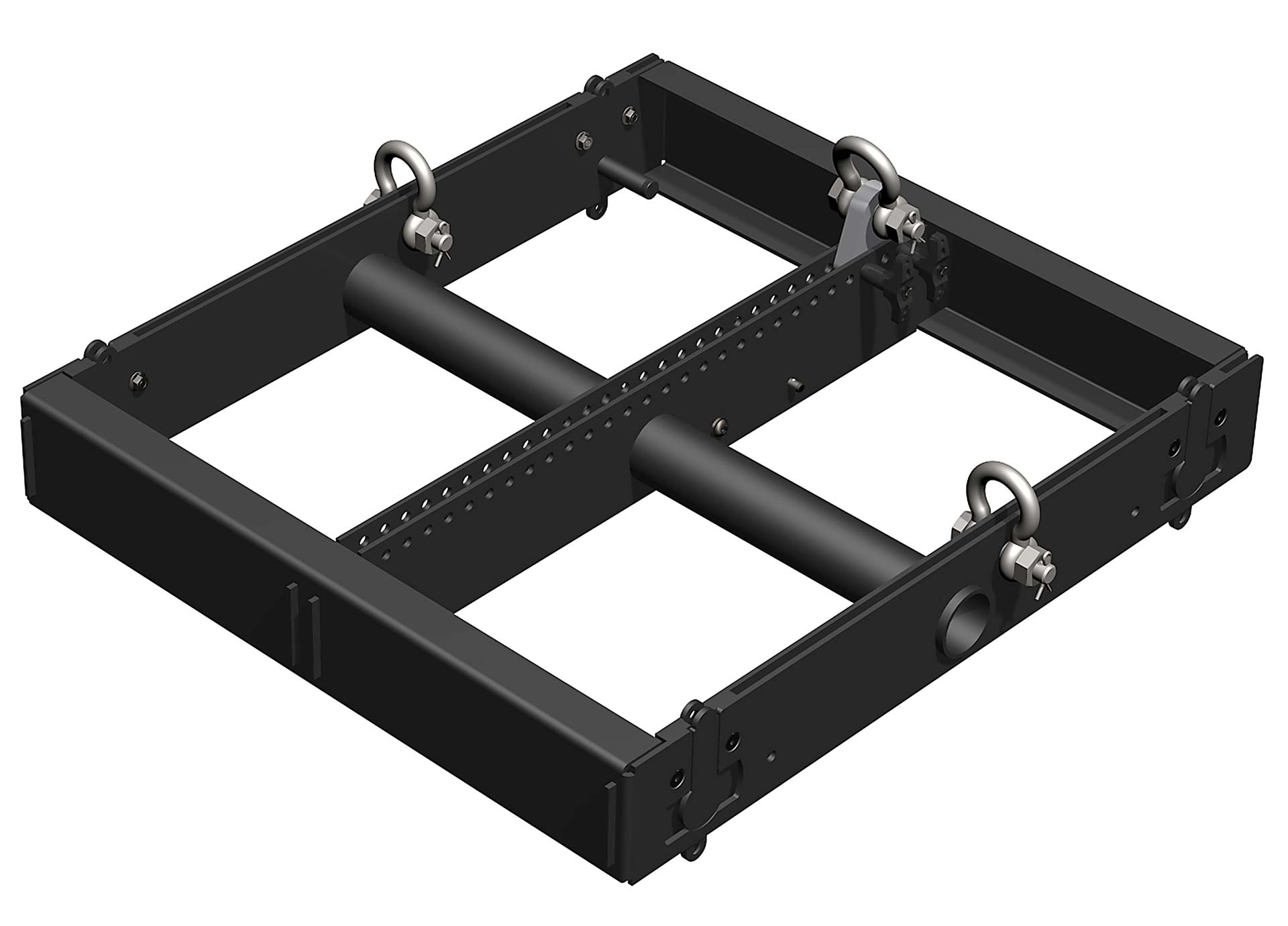

Flying Frame

for Galeo S / Galeo S Sub,
incl. accessories
(3 pcs. 6 x 20 mm ball lock pins,
load adapter and 100 mm distance
bar) - also for ground stack.

Order No. 01310
Ball Lock Pin

for Galeo S flying frame,
Galeo S flying cradle
and Galeo S
6,0 x 20,0 mm

Order No. 01380/6x20
Clamp Adapter

for Galeo S / Galeo S Sub,
flying frame and flying cradle-> truss

Order No. 01313
Load Adapter

for Galeo S / Galeo S Sub,
flying frame and flying cradle

Order No. 01311
Speaker Pole

M20, with wind up, K&M

Order No. 03023
