A 1 Multi Media Sound System

A 1

00210/II

200 W AES,
8 Ω (16 Ω optional)

00210/TR/II

TR-Version with 100 V transformer,
as above
Downloads
A 1 Data Sheet
3D-Files
3D-Files Bracket
Assembly Instruction
Bracket hor.
Assembly Instruction
J-Bracket
Product Pictures

Universal small format loudspeaker for high quality music and speech reproduction. Well suited for applications in Pubs, Bistros and Cafes, and as a universal near field system. 3 x M10 mounting points provide for easy installation.

The A 1 is also available in the TR-version with 100 V transformer.

  •
  •
  •
  •
  •
  •
  •
Specifications
Speaker Components 6,5“ Nd / 1,1“
Description Multi Media Sound System
Power   AES / Peak 200 W / 600 W
Impedance nominal 8 Ω ( 16 Ω optional)
SPL   1 W / Peak @ 1 m
93 dB / 121 dB
Usable Range
75 Hz - 19 kHz (-10 dB)
Tuning Frequency excursion minimum 91 Hz
X - Overpoint   acoustical 2,3 kHz
Coverage   horizontal / vertical 90° - conical
Max. Splay Angle - - -
Connectors 2 x Neutrik Speakon NL4MP in/out
Coding: 1 +/- HiMid, 2 +/- loop thru
Handles - - -
Rigging / Fittings 3 x M10
Weight 5,5 kg
Size height x width x depth 33,9 x 20,4 x 20,4 cm
Order No. 00210/II
00210/TR/II (with 100 V transformer)
Accessories

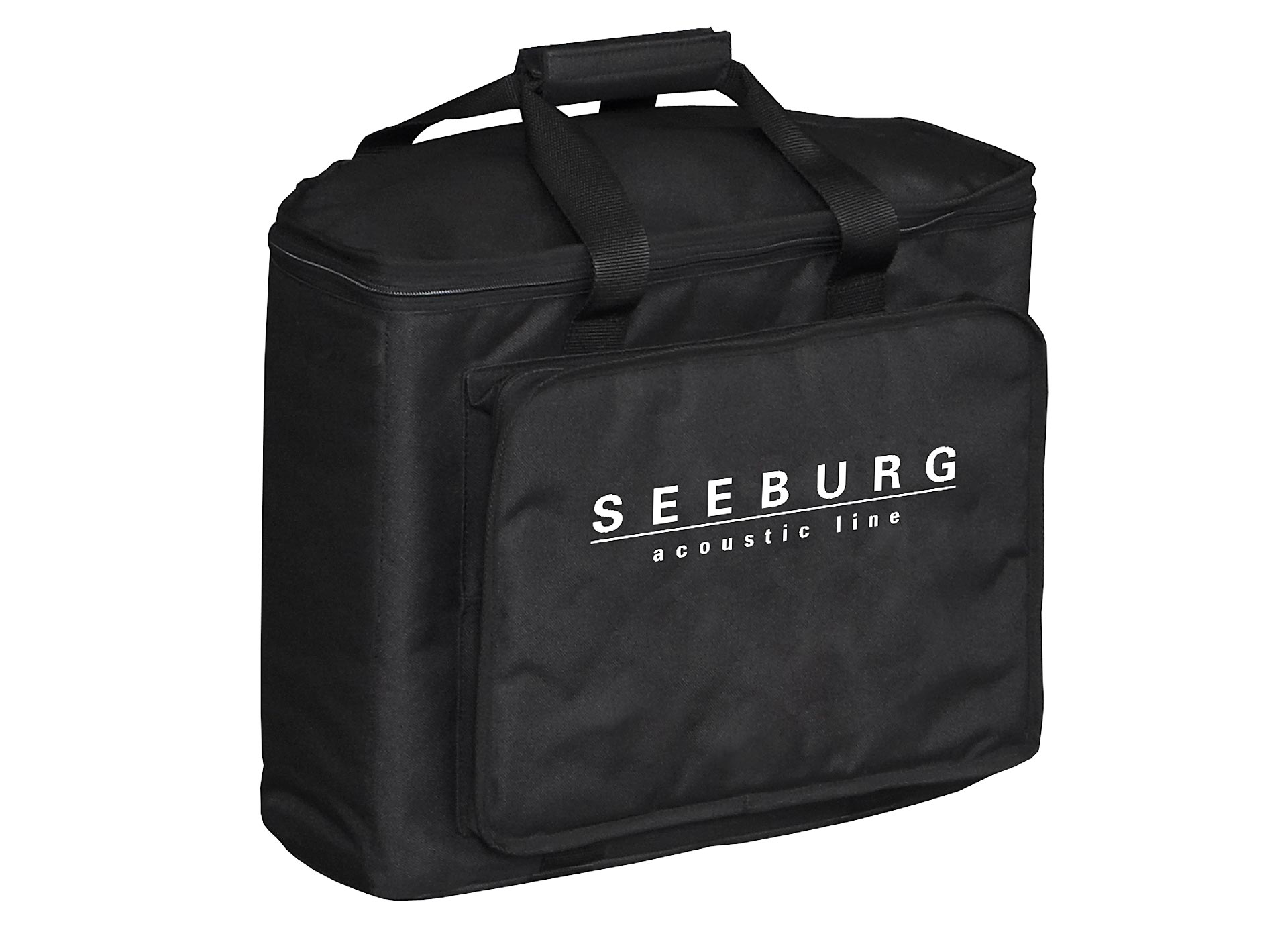

Bag

for 2 x TSNano / A 1, padded
with pocket for accessories

Order No. 01249
Flight Case Trunk

for 4 pcs. TS Nano / A 1,
with flying bracket, standard, 7 mm birch multiplex, PVC coated, hinged lid, 2 x recessed sprung handles, 2 x butterfly catches, rubber feet, partition walls, interior lined with felt

Order No. 16005
Flight Case Trunk

for 2 pcs. TS Nano / A 1,
with flying bracket and flange, standard, 7 mm birch multiplex, PVC coated, 2 x recessed sprung handles, 2 x butterfly catches, rubber feet, partition walls, interior lined with felt

Order No. 16006
Flying Bracket

for TSNano / A1,
horizontal alignment,
incl. screws (per unit: 2 pcs. M10 x 20
socket head screws, spring- and rubber washers)

Order No. 01210/H/set
Flying J-Bracket

for TSNano / A 1
horizontal and vertical alignment,
incl. screws
(per unit: 1 pcs. M10 x 20 adjustable
handle screws and flat)

Order No. 01212/J/set
Flange

for Flying Brackets,
35 mm ø –> M10

Order No. 08126
Flange

with ball and socket joint,
with additional locking screw,
M10 x 15,
max. load 15 kg

Order No. 08125
Ergostyle Lobe Knob

for flying brackets, M10 x 20,
with grip, adjustable

Order No. 08171
Handle Screw

for Flying Brackets, adjustable
M10 x 20

Order No. 08375/20
Rubber Washer

for flying brackets,
40 mm

Order No. 01205
Doughty Trigger Clamp

for flying brackets,
max. load 200 kg



Order No. 01222
Truss Clamp

incl. M10 Adapter,
max. load 15 kg

Order No. 01221
Chain Fastener

VBS 7 mm

Order No. 01378
Ring Screw

M10– DIN 580,
black zinced

Order No. 73700
Steel safety cable

4 mm - 50 cm

Order No. 01376
TV Spigot

10 mm internal thread,
28 mm ø

Order No. 08128
Wall Mount

M10, max. load 15 kg,
with stargrip



Order No. 08131/w (white)

Order No. 08131
Wall Mount

For permanent installation,
M10, max. load 15 kg,
incl. tilt angle stop



Order No. 08131/F/w (white)

Order No. 08131/F
Honeycomb Grille

for A 1 front replacement,
foam behind grille


Order No. 97002/hex/compl/w (white)

Order No. 97002/hex/compl
Honeycomb Grille

for A 1 front replacement,
foam in front of grille


Order No. 97002/compl/w (white)

Order No. 97002/compl
